Mayer Magnum Series User manual

46 Bottles Wine Cooler
MMWC46MAG

Contents
Environmental note 3
Important safety information 4–5
6-9
Dimensions 6
Description of the appliance 7
Control panel 8
Description of the product features 8-9
Using your wine cabinet 9-15
Before switching on 9
Switching on the appliance and setting the temperature 10
Changing between Fahrenheit and Celsius 11
The humidity control box 11
ACTIVE CHARCOAL FILTER 11
Loading the wine cabinet 12
Storing your wines 13-14
Wine storage problems 14-15
Cleaning and maintenance 16-18
Defrosting 16
Removing the shelves for cleaning 17
Moving your wine cabinet 17
Power failure 18
Vacation time 18
Installation 18-25
Electrical connection 19
Positioning 20
Built-in installation 21
Installing the handle 22
Reversing the door of your wine cabinet 22-25
Troubleshooting 26
2

3
Environmental note
Note:
behind the appliance to prevent misuse. This should be undertaken by a
competent person. Disable the door lock to make sure that children cannot get
stuck inside the appliance.
This appliance is marked according to the European directive 2002/96/EC on Waste
Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of
correctly, you will help prevent potential negative consequences for the environment
and human health, which could otherwise be caused by inappropriate waste
handling of this product.
The symbol on the product, or on the documents accompanying the product,
indicates that this appliance may not be treated as household waste. Instead it shall
be handed over to the applicable collection point for the recycling of electrical and
electronic equipment.
Disposal must be carried out in accordance with local environmental regulations for
waste disposal. For the more detailed information about treatment, recovery and
disposal service or the shop where you purchased the product.

Important safety information
Your safety is of the utmost importance to us. Please make sure that you read this
instruction booklet before attempting to install or use the appliance. If you are unsure
of any of the information contained in this booklet, please contact the Retailer where
you purchased your unit from.

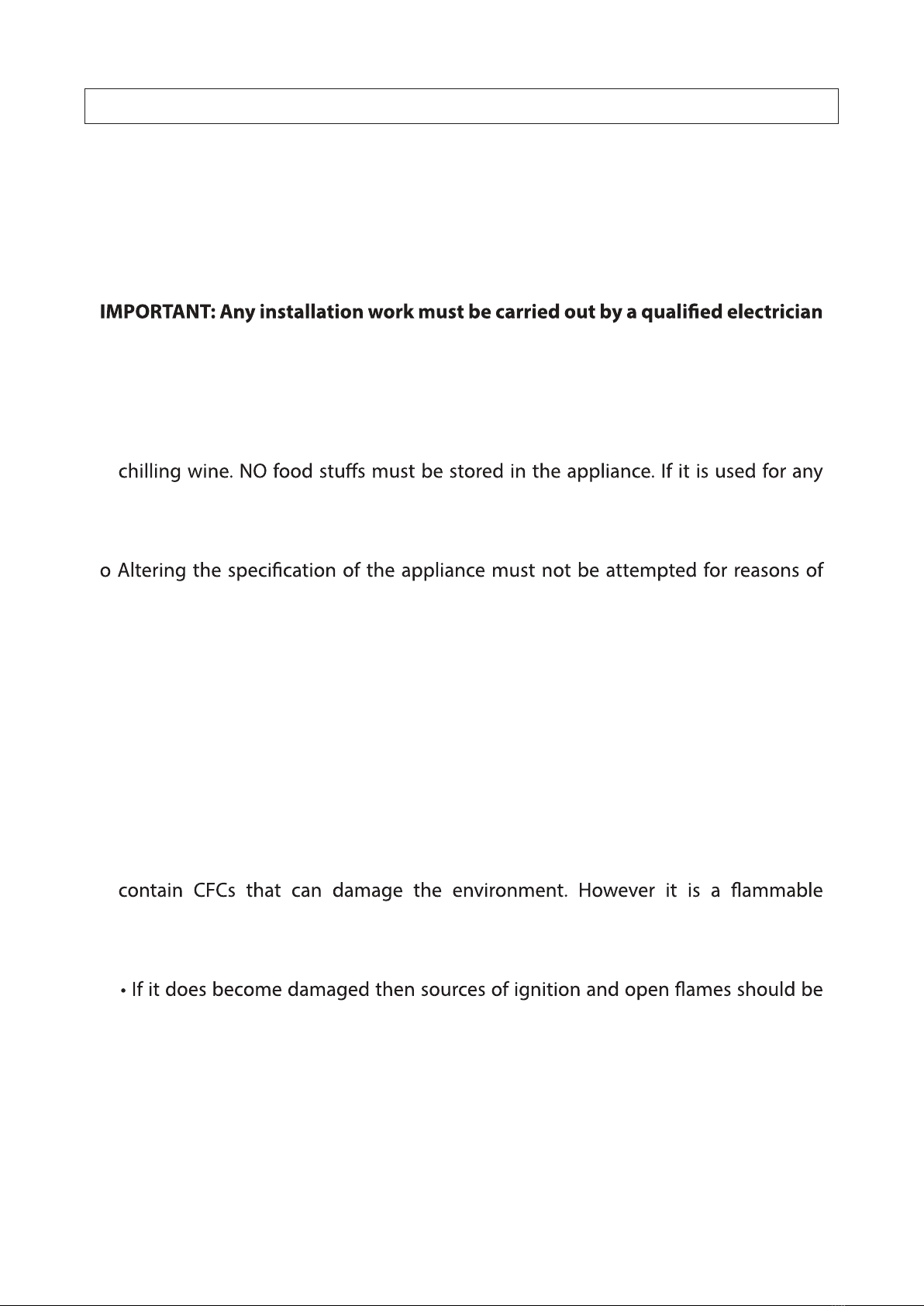

or competent person.
o Your appliance is only designed to be used in the home. It is suitable for storing and
other purpose or it is not used correctly, then manufacturer will accept no liability
for any damage that is caused.
safety.
Use of the appliance
oCheck the appliance for any signs of transport damage. If you notice any damage,
then you should not connect your appliance to your mains supply and should
contact your retailer.
Before using your appliance
o Your appliance contains R600a refrigerant, which is a natural gas that does not
substance, therefore care should be taken:
•During the transportation and installation of the appliance, make sure that the
refrigeration pipework does not get damaged.
avoided. Also the room that the appliance is situated in should be thoroughly
ventilated.
o Do not place any objects on top of the appliance, as this may damage the table top.
Refrigerant
4

o Packaging material should be kept away from children.
o Children should not be allowed to touch the controls or play with the appliance.
Child safety
o Do not pull on the power supply cable to remove the plug from your mains supply
socket.
o Do not pull out or insert the plug with wet hands.
o Do not attempt to use your appliance outdoors or any place where it is likely to
come into contact with the elements.
o Before cleaning the appliance or performing maintenance work, ensure that the
appliance has been disconnected from your mains supply.
o Never allow the back coils of the appliance to come into contact with the wall
surface.
o Always ensure that the location where you are installing your appliance is free of
o Never block the ventilation openings of the appliance, either on the inside or its
exterior.
between the bottom of the unit and the plinth/kick plate which it is sitting on.
o Do not place electrical devices inside of the appliance, such as mixers or ice cream
makers.
General safety
You should not attempt to repair the appliance yourself, as this could cause injury or
a more serious malfunction. If you require a service call then please contact Customer
Services.
Service
5

6
Height: 820 - 860 mm
Width: 595 mm
Depth: 570 mm
that you will require.
o Gross capacity: 145 litres
o Net capacity: 138 litres
o Bottle capacity: 46 x 0.75 litre Bordeaux style wine bottles
o Noise level: 41 dB
o Electronic push button control operation
o LED display
o Celsius and Fahrenheit switch
o 6 Adjustable wooden shelves
o Adjustable temperature
o Digital thermometer
o Humidity control box
o Internal light control
o Black exterior
o Stainless steel door frame and handle
o Reversible door
o Adjustable feet
o Tempered door glass
o Designed to store wine at its optimum temperature between + 5°C - 22°C
Dimensions of appliance

7
IMPORTANT: When you install your appliance it is important to bear in mind its climatic rating.
rating plate will indicate the ambient temperature range that your appliance will function
correctly within.
Model number ………………………………………………
Serial number ………………………………………………
Date of purchase ……………………………………………..

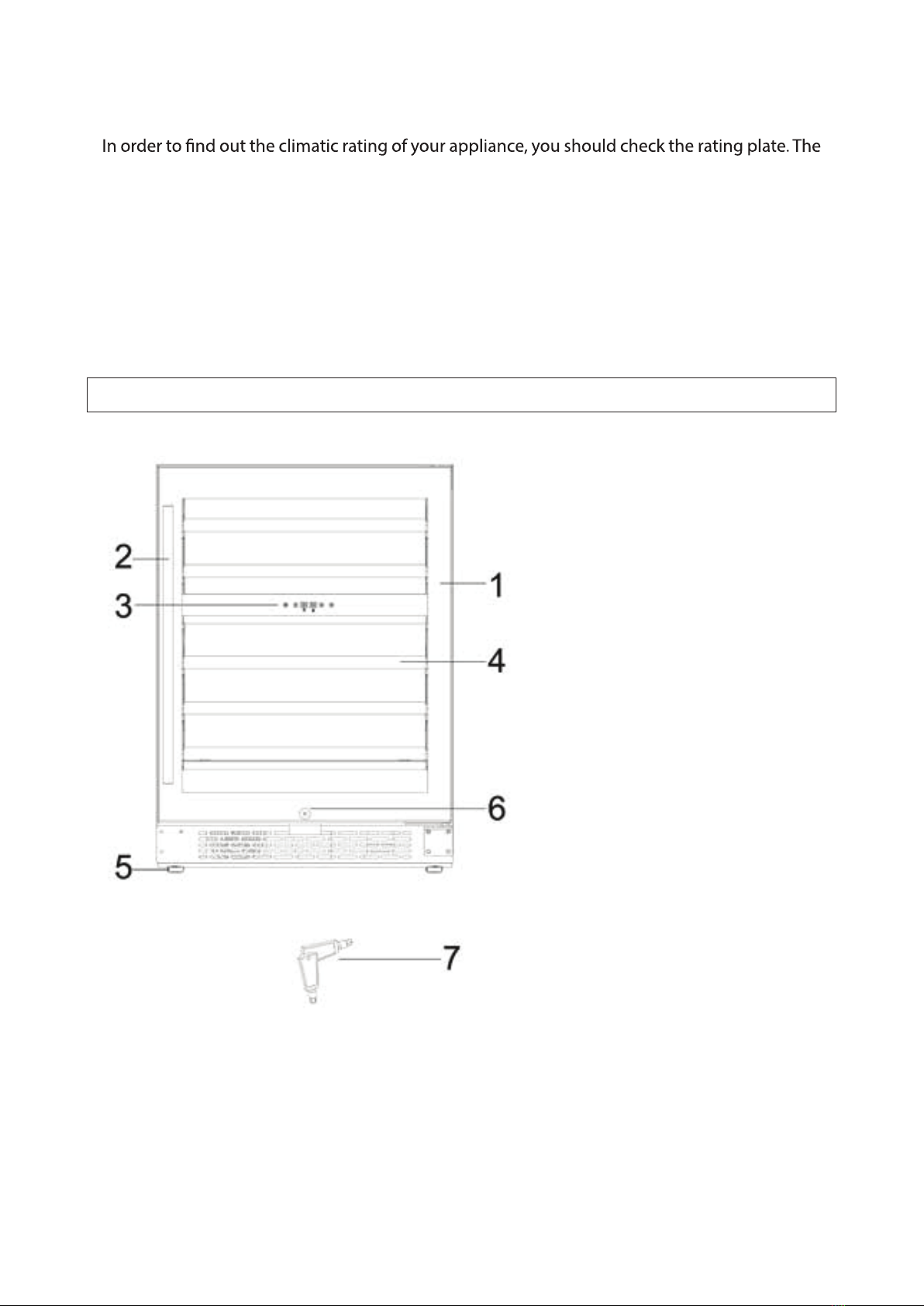

Description of the appliance
1. Stainless steel door
2. Stainless steel handle
3. Digital control panel
4. Adjustable shelves
5. Adjustable foot
6. Cylinder Lock and Latch
7. Door Keys

8
The control panel is located in the middle of the appliance.
Control panel
1. Light ON/OFF control button
2. Zone selection button
3. Upper zone display
4. Lower zone display
5. Temperature plus button
6. Temperature minus button
This icon indicates that the control panel is for the upper cooling zone.
This icon indicates that the control panel is for the lower cooling zone.
The control panel is located in the middle of the appliance, behind the glass door. This
means it is easy to set the temperature of the appliance and see what temperature
the appliance is set to.
Control panel
Description of the product features
There are two cooling zones inside of your wine cabinet; they are separated by a
partition that holds the control panel.
Each cooling zone has an independent temperature control and temperature display.
Two cooling zones
the light ON/OFF control button (1).
Interior light

9
The wooden shelves are fully adjustable to suit various wine bottle shapes and sizes.
To prevent damaging the door gasket, make sure the door is fully open when pulling
shelves out of the rail compartment.
For easy access to the bottles stored, pull the shelves out approximately 1/3.
The wine cabinet shelves
Using your wine cabinet
After delivery, wait for eight hours before connecting the appliance to your mains
supply. This will allow any refrigerant gasses that may have been disturbed during the
transportation process to settle.
The outside of the appliance and the removable accessories contained within it,
should be cleaned with a solution of liquid detergent and water.
The interior of the appliance should be cleaned with a solution of sodium bicarbo-
nate dissolved in lukewarm water. The interior and accessories should be thoroughly
dried, after the cleaning process has been completed.
appliance starts to cool.
Before switching on
degrees variance between the temperature you select and the one indicated on
the LED display. This is normal and it is due to the length of activation time. Once
the wine cabinet has been running for a few hours everything will be back to
normal.
the wine cabinet reaches a cool enough temperature.
During this period of time, you should try not to open the door frequently or place
bottles inside of the appliance.
restarting the appliance or reconnecting it to your mains supply.

10
To switch the appliance on, press the light ON/OFF control button (1) and the zone
selection button (2) simultaneously for 5 seconds.
The temperature for each zone will need to be set individually. The temperature
settings for both zones are adjustable within the range of 5°C - 22°C / 40°F - 72°F.
The temperature set for the lower zone must always be the same or higher than that
in the upper zone.
show the factory default temperature setting of 10°C / 50°F for the upper zone and
16°C / 60°F for the lower zone.
Press the zone selection button (2) again and the left LED indicator for the upper zone
upper zone.
Press the zone selection button (2) yet again and the right LED indicator for the lower
for the lower zone.
The temperature will increase by 1°C or 1°F if you touch the plus button once and will
decrease by the same amount of you press the minus button once.
When you set a new temperature for either of the zones, the display will show this
temperature for 5 minutes before showing the actual zone temperature. During this
time, the zone temperature will adjust accordingly.
To view the set temperature in both zones at any time, press the plus or minus button.
Switching on the appliance and setting the temperature
IMPORTANT: When the temperature of a zone is changed, the compressor works
harder to reach the required temperature. During this time, the side panels of
the wine cabinet can reach up to 45°C however they will cool down when the set
temperature is reached.

11
You can select whether the temperature displays show Celsius or Fahrenheit.
To alter what the temperature displays are showing, press the light ON/OFF control
button (1) for 5 seconds.
You cannot change the display if you are in the process of adjusting the temperature
of a cooling zone.
Changing between Fahrenheit and Celsius
The wine cabinet is equipped with a system for maintaining the correct level of
humidity for wine storage.
Fill the small plastic reservoir (humidity box) ¾ full with water and replace. The
humidity box is located on the top shelf and secured by runners.
IMPORTANT: Please ensure the reservoir is positioned correctly on the runners to
avoid the possibility of water spillage.
The humidity control box (optional)
The wine cooler is equipped with one activated charcoal filter, which ensures
ACTIVE CHARCOAL FILTER (optional)

12
IMPORTANT: Your appliance is ideally suited to store 0.75 litre Bordeaux style wine
bottles. Whilst it can store larger bottles, you must make sure that they do not prevent
the door from shutting properly.
Always check that you can close the door without it fouling on a wine bottle, before
shutting it.
Do not overload your wine cooler to facilitate air circulation
Avoid obstructing internal fans
When loading several bottles of wine at once, it will take longer for the appliance to
cool the individual bottles.

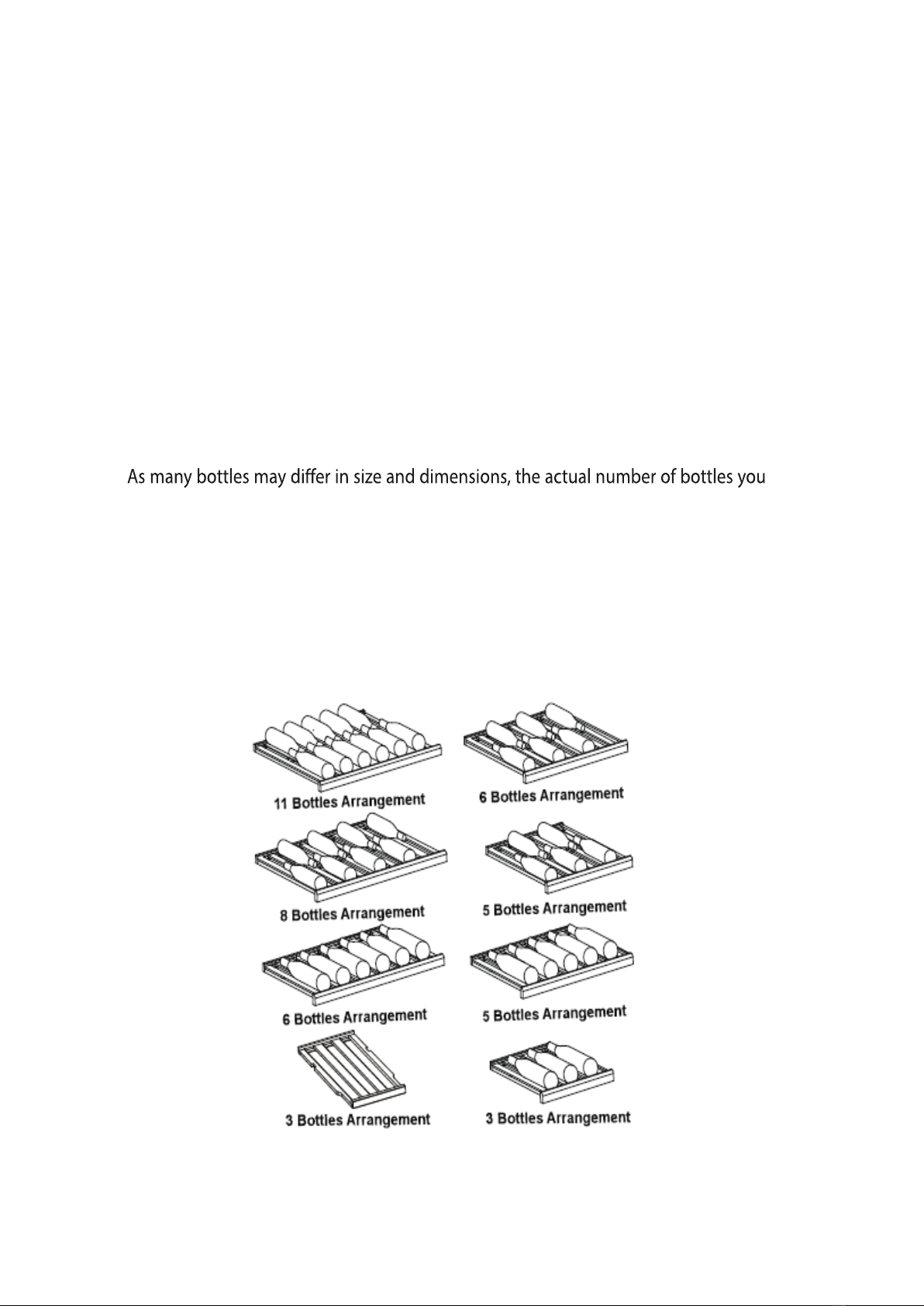

are able to store may vary. The maximum storage number is based on standard 0.75
litre Bordeaux style wine bottles.
You can place 16 standard bottles in the upper zone with 8 bottles on each shelf.
You can store 30 standard bottles in the lower zone with 8 bottles on each full size
shelf and 6 bottles on each half size shelf.
Loading the wine cabinet

13
Storing your wines
Type of wine
Red wine (*)
White wine (**)
Sparkling
wines/champagne
Rose wine
Vintage wine
Temperature(Celsius)
15.5 – 18.5°C
10 - 15°C
7.2 – 9.5°C
9.5 – 10.5°C
13°C
Temperature(Fahrenheit)
59.9 – 65.3°F
50 – 59°F
45 – 49.1°F
49.1 – 50.9°F
55°F
being served slightly cooler than full-bodied reds.
** Chardonnay is often served too cold. You should chill it at a warmer temperature
inside of your wine cabinet. Or leave it to warm slightly when you remove it from your
wine cabinet.
Temperature stability is the most important factor when it comes to storing wine.
cause wine to spoil. When properly stored, wines not only maintain their quality
Wines kept at a higher temperature will age faster. Wine that is exposed to
aroma.
If wine is kept at too low a temperature, this can result in the development of
harmful deposits. A humidity of 70% is ideal for keeping corks from shrinking.
After a bottle of wine has been opened, the wine comes into contact with air. So it
is best to store the remainder of the bottle upright, to minimize the surface area of
the wine that is coming into contact with the air.
Once opened, wine will remain in a drinkable condition for two days for delicate
whites or three days for rich reds, as long as the bottle as been resealed. You should

14
Special stoppers that keep wine sparking and Champagne bubbling for one or two
days after opening, can be bought at most good wine shops.
When stored correctly, white wines can keep well for up to two years. Full bodied
reds will age well for ten years and dessert wines will age well for up to twenty
years.
When you buy a bottle of wine, you should transfer it to a suitable storage location
immediately (if you are not going to store it in your wine cabinet).
Cheaper bottles of wine will not age as well as more expensive ones.
Some wines should be consumed earlier than others, check your wine merchant to
get the relevant information.

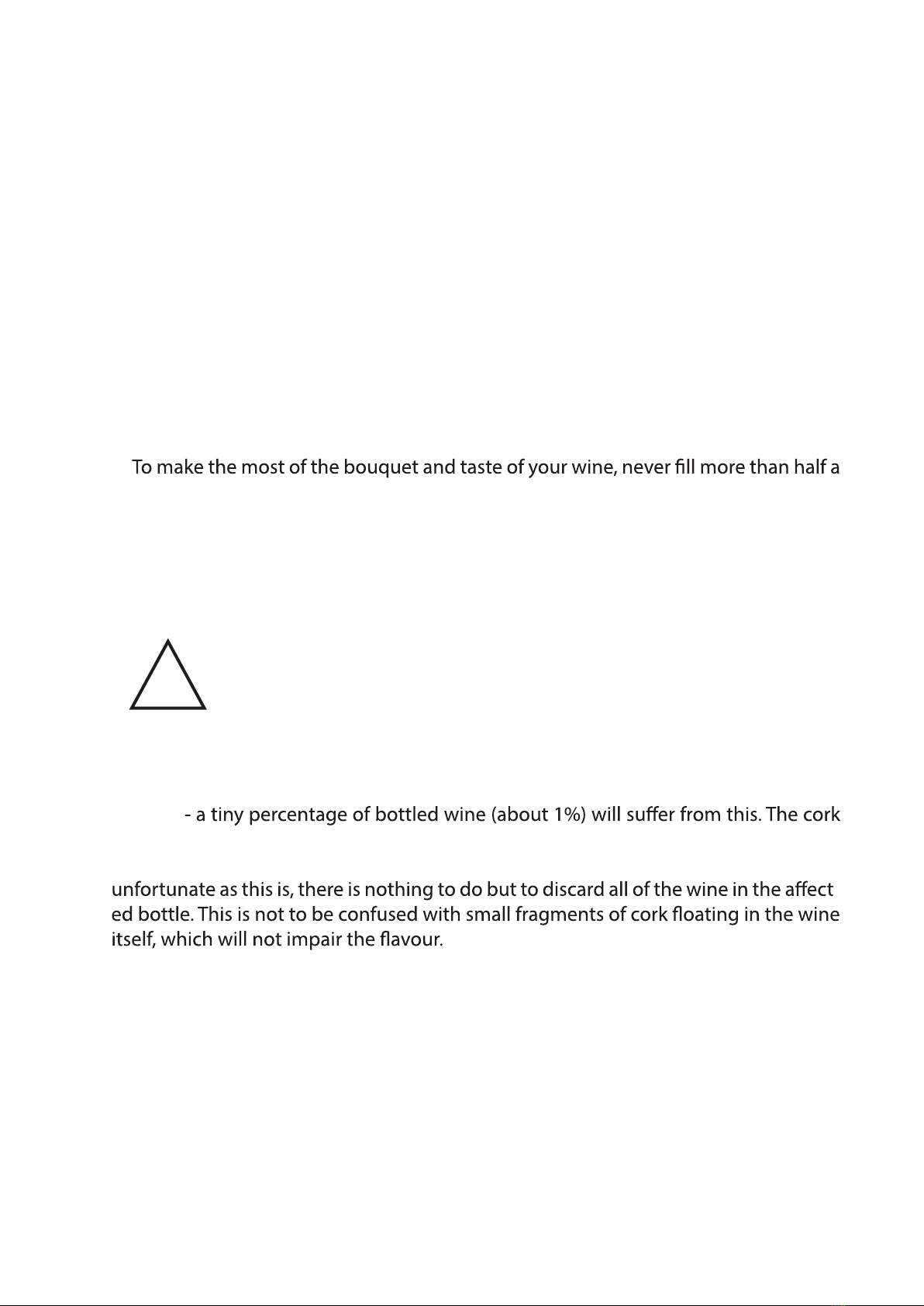

glass at a time. It will also help if the shape of your wine glass is appropriate for your
wine. The size and shape of your wine glass’s bowl will determine the intensity and
complexity of the bouquet. The stem should be long enough to allow you to avoid
hand contact with the bowl of the glass and should be tulip-shaped or tapered at
the top.
!IMPORTANT! Mayer is not responsible or liable for any spoilage or
damage to wines. Warranty only applies to the wine cooler and not to the
content of the wine cooler.
Corking
reacts with the wine and gives it a musty, unpleasant taste. It is the most common
wine storage problem and is caused by harmless bacteria growing on the cork. As
-
Wine storage problems

15
Oxidisation- when wine has been opened and left for longer than a day; it tends to
either drink the wine on the same day it was opened or to use a vacuum device
specially designed for removing oxygen from opened wine bottles. If you use such a
device, the wine should still be consumed shortly afterwards.
Ullage- this is loss of wine from the bottle by evaporation or leakage. Signs of ullage
include wine seeping around the cork, a protruding cork or a stained label. It can
happen if the bottle has been allowed to get too warm. The wine may still be drink-
able, if the leakage was recent; however, you should be aware that if the wine cools
down again, contraction can cause more air to be sucked into the bottle and result in
further deterioration.
- this isn’t really a problem with the way the wine
has been stored, but as a result of incomplete malolactic fermentation before the
Sediment- this is not normally a problem, however both red and white wines can
produce sediment after a number of months in a bottle. The sediment consists of
tartrate crystals and is totally harmless. If anything the building of sediment can be
considered a good sign because it means that the wine was not subjected to much (if
A good way to get around sediment (if it is a problem) is to stand the bottle upright,
the day before opening, so that the sediment can settle to the bottom of the bottle.
and old wines, but younger wines in particular. To decant, pour the wine slowly and
evenly into your decanter.

16

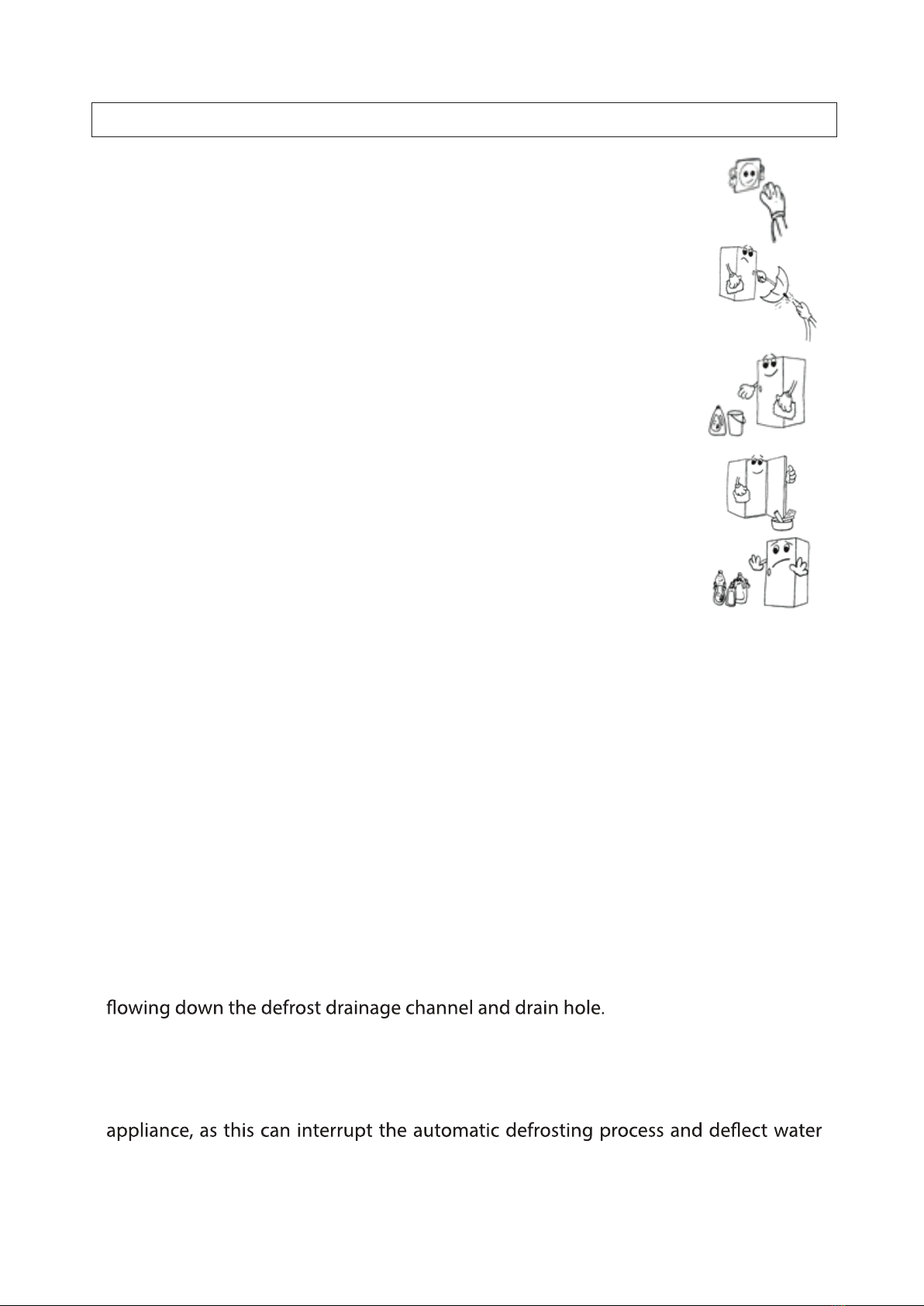

Cleaning and maintenance
WARNING: PLEASE ENSURE THAT YOUR APPLIANCE IS DISCON-
NECTED FROM YOUR MAINS SUPPLY BEFORE ATTEMPTING TO
CLEAN IT.
Do not clean the appliance by pouring water onto it or spraying water
over it.
The interior of the wine cabinet should be cleaned periodically, using
a solution of bicarbonate of soda and lukewarm water.
Clean the accessories separately with soap and water. Do not clean
them in a dishwasher.
Do not use abrasive products, detergents or soaps.
After washing the appliance, wipe over the area that you have
cleaned with a damp cloth and then dry it thoroughly.
When cleaning is complete, dry your hands and then reconnect the
plug to your mains supply.
Defrosting occurs automatically inside of the wine cabinet during operation. The
defrost water is collected by the evaporating tray and evaporates automatically.
The evaporating tray and defrost water drain hole should be cleaned periodically. This
will prevent water from collecting in the bottom of the wine cabinet, instead of
You can also pour a small amount of water down the drain hole to clean inside of it.
You should be careful to make sure that wine bottles do not touch the rear wall of the
into the base of your wine cabinet.
Defrosting

17
To remove any of the shelves from the rail compartment, move the shelf to the
position where the notch of wooden shelf is exactly under the plastic post and lift the
wooden shelf. Please ensure these are replaced when the shelf is put back.
Make sure the shelves are fully engaged before loading any bottle into the cabinet.
Pull the shelves out all the way to the STOP position and push them back in several
times to make sure the shelves are properly engaged.
Removing the shelves for cleaning
If you need to move your wine cabinet to another location you should follow the
steps outlined below.
o Remove all items from the wine cabinet.
o Securely tape down all loose items such as the shelves inside the appliance.
o Turn the adjustable foot up to the base to avoid damage.
o Tape the door closed.
o Be sure the appliance stays secure in the upright position during transportation.
Also protect the outside of the appliance with a blanket or similar item.
Moving your wine cabinet

18
temperature of your appliance if you minimize the number of times the door is
opened.
steps to protect the contents.
must wait 3 to 5 minutes before restarting the wine cabinet. If you attempt to
restart before this time delay, the wine cabinet will not turn on.
Vacation time
Short holidays: Leave the wine cabinet in operation for holidays of less than three
weeks.
Long absences: If the appliance will not be used for several months, remove all items,
thoroughly. To prevent odour and mould growth, leave the door open slightly by
blocking it open if necessary.
Power failure
Installation
IMPORTANT: Before installation and usage read all the instructions and make
sure that the voltage (V) and the frequency (Hz) indicated on the rating plate are
exactly the same as the voltage and frequency in your home. The rating plate
can be found on the front left edge of the inside of the wine cabinet.
The manufacturer declines all responsibility in the event of the installer failing to
observe all the accident prevention regulations in force, which are necessary for
normal use and the regular operation of the electric system.

19
YOUR WINE CABINET IS INTENDED FOR FITTED AND PERMANENT INSTALLA-
TION.
registered on the E.W.R.B. web site and who will comply with the AS/NZS 3000 Wiring
Regulations and local regulations.
o Your wine cabinet comes supplied with a 10 amp moulded lead with an AS/NZS
3112 approved plug.
o The wiring in the mains lead is coloured as follows:
Brown Live
Blue Neutral
Green and yellow Earth
o As the colours of the wires in the appliance’s mains lead may not correspond with
the coloured markings identifying the terminals in your spur box, please proceed
as follows:
The brown wire must be connected to the terminal marked “L” (live), or coloured
red.
The blue wire must be connected to the terminal marked “N” (neutral), or coloured
black.
The green and yellow wire must be connected to the terminal marked“E”(earth), or
by the earth symbol, or coloured green and yellow.
o When the connection is completed, no stray strands or cut wire should be
present. The cord clamp must be secured over the outer sheath.
Electrical connection

20
o It is advisable that your appliance is only installed in a location where the ambient
on the rating plate of your appliance. Your appliance may not function correctly if
the ambient temperature falls outside of the following ranges.
o Positioning the appliance requires two people in order to avoid injuries or damage
to the appliance.
o Your appliance should not be located in direct sunlight or exposed to continuous
heat or extremes of temperature (e.g. next to a radiator or boiler). If this is not
feasible, then you should install an insulation plate between the appliance and the
adjacent heat source.
o You should check whether there is an electrical socket available, which will be
accessible after your appliance is installed.
adjustable feet on the front side, which can be used to level the appliance.
o Be sure to leave enough space for the opening of the door, to avoid damage to the
appliance or personal injury.
o IMPORTANT: The vent at the base of the appliance is for ventilation. Nothing
should be placed in front of this vent; otherwise your wine cabinet may not
operate properly.
Positioning
Appropriate ambient temperature
SN +10 to +32 degrees centigrade
N +16 to +32 degrees centigrade
ST +18 to +38 degrees centigrade
T +18 to +43 degrees centigrade
