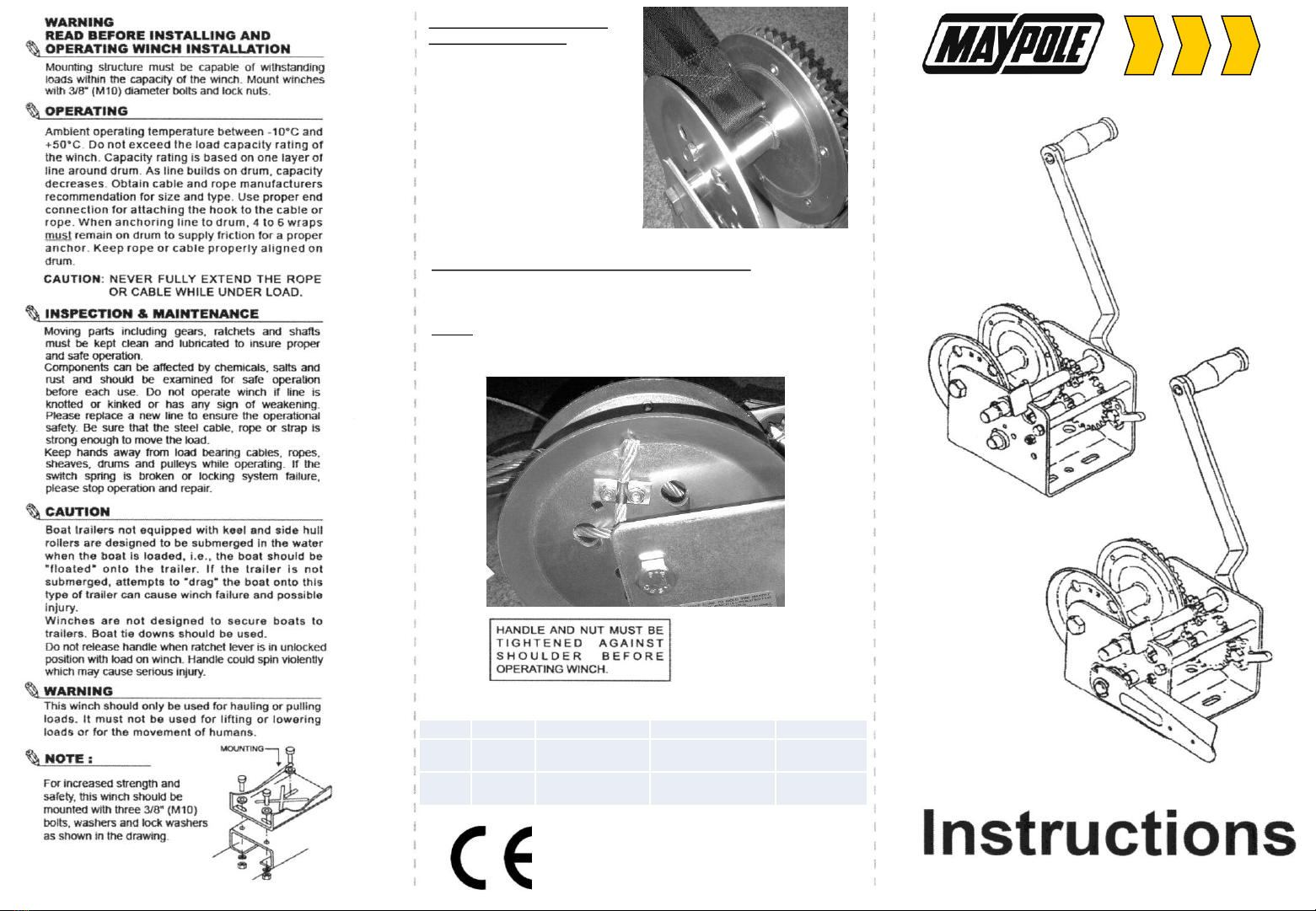

MayPole MP1420 User manual

MP1420
MP1425
Read carefully before use
Made in Taiwan on behalf of
Maypole Ltd, Birmingham, UK.
[email protected]
www.maypole.ltd.uk
OR STRAP
MP Type For MP Dimensions Fittings
1450 winch
cable 1420/1425/1432
6mm diameter
x
8m
(26’) length
forged hook &
fixing kit
1455 winch
strap 1420/1425/1432 63mm width x 8m (26’) length
forged hook &
fixing kit
Only use the following approved accessories :
INSTRUCTIONS FOR ATTACHING CABLE TO WINCH DRUM
Pass the steel cable through the angled hole in the drum side, from inside to
outside. Wrap the cable once around the outer drum spindle and secure into
the clamp provided, as shown, with nuts and shake-proof washers on the
outside of the drum. Ensure nuts are fully tightened and there is 25mm cable
beyond the clamp. CAUTION : Maintain at least four (4) complete wraps of
cable on the drum to ensure it can’t pull loose under load.
INSTRUCTIONS FOR ATTACHING
STRAP TO WINCH DRUM
Position the looped end of the strap
between the sides of the drum and
between the two round holes next
to the drum centre. Pass the M8 bolt
provided through the first drum
side, the strap loop and the second
drum side. Fit and tighten the M8
nyloc nut so the thread protrudes
beyond the nylon. Do not over-
tighten. See photo.

MP1420 MP1425
11.2:1
4.3:1 5.5:1
14.3:1
MP
CE Rated
Working
Capacity
Manufacturer's
Recommended
Max. Capacity
Speeds
Gear Ratio
Min / Max
Mechanical
Advantage
Operating Force
Required
Drive
Gear
Brake
Supplied
Finish
1420
500kg 900kg / 2000LB 2
4.3:1 / 11.2:1
73:1 / 190:1
6.84kg
/
2.63kg
single yes 500 hour
1425
625kg 1100kg / 2500LB 2
5.5:1 / 14.3:1
93:1 / 242:1
6.72kg
/
2.58kg
single yes 500 hour
Winch Specifications
