M AY TA G ®COMMERCIAL
SUPER-CAPACITY DRYER
CLP558
FOR YOUR CUSTOMERS:
• Easy-To-Operate Dial Controls
• Convenient Top-Opening Door
• Extra-Large Door Opening
FOR YOUR OPERATION:
• Reversible Door
• Large-Capacity Lint Filter
• Front Access For Easy Service
BUILT-TO-LAST™FEATURES:
• Premium Porcelain-Enamel Top
• Tri-Coat™Cabinet Protection
• DuraCushion™Dryer Drum
• Cushioned Drum Suspension
• Permanently Lubricated Bearings
• The Best Warranty In The Business
QUICK, EFFICIENT,
RELIABLE DRYING
Maytag®super-capacity dryers are the
perfect match for our washers, delivering
powerful 220-cfm diagonal airflow with a
choice of fabric care cycles.
MECHANICAL CONTROLS
Manual dryer controls make it easy for
anyone to select the appropriate drying
cycle and set the desired amount of time.
MDE/MDG16MN
SIMPLE
OPERATION
FOR OUTSTANDING
RESULTS.

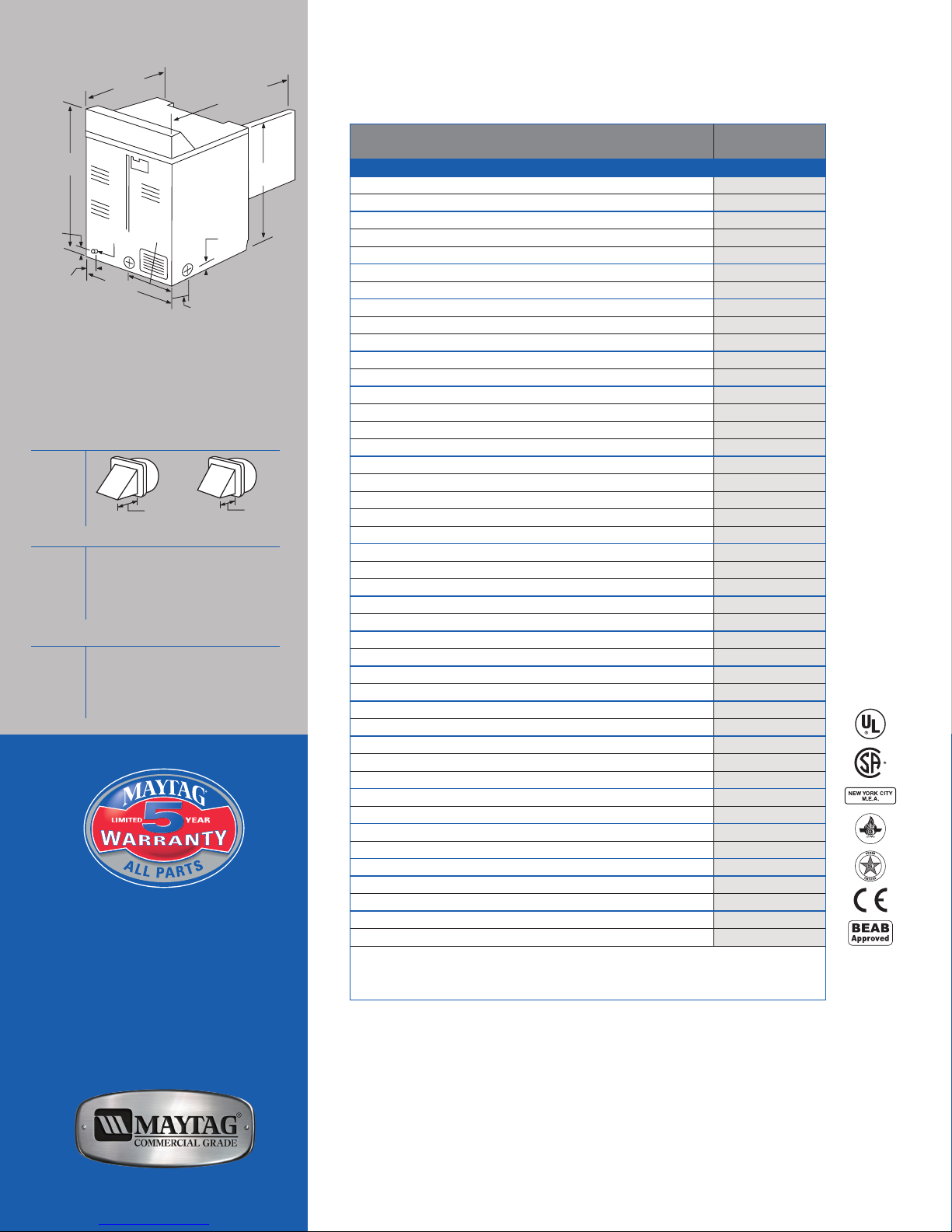

36"**
(91.4 cm)
41
3
/ 4 "**
(106 cm)
27"
(68.6 cm)
13
1
/ 2 "
(34.3 cm)
7
1
/ 2 "*
(19 cm)
3
7
/ 8 "**
(9.8 cm)
28
1
/ 2 "*
(72.4 cm)
2
13
/ 16 "**
(7.1 cm)
3
3
/ 8 "
(8.6 cm)
Door open 90º
50
1
/
2
"*
(128.3 cm)
Gas
connection
* Includes
3/4
" (1.9 cm) for hinge on back of dryer.
** Dimensions will vary according to adjustment of
leveling legs; add
1/2
" (1.3 cm) minimum.
MAXIMUM EXHAUST DUCT LENGTH
PER NUMBER OF TURNS
Number Of
90° Turns
4"-diameter rigid metal duct
0 65 ft. (19.8 m ) 59 ft. (18 m )
1 54 ft. (16.5 m ) 48 ft. (14.6 m )
2 44 ft. (13.4 m ) 38 ft. (11.6 m )
3 36 ft. (11 m ) 30 ft. (9.1 m )
4 28 ft. (8.5 m ) 22 ft. (6.7 m)
4"-diameter flexible stiff-walled metal duct
0 36 ft. (11 m ) 28 ft. (8.5 m )
1 32 ft. (9.8 m ) 24 ft. (7.3 m )
2 28 ft. (8.5 m ) 20 ft. (6.1 m )
3 25 ft. (7.6 m ) 17 ft. (5.2 m )
4 23 ft. (7 m ) 15 ft. ( 4.6 m)
21/2"
(6.4 cm)
4"
(10.2 cm)
21/2"
(6.4 cm)
4"
(10.2 cm)
Maytag®Super-Capacity Dryer
MECHANICAL CONTROLS
Super-Capacity
Dryer
DRYER SPECIFICATIONS
MODEL MDE/MDG16MN
MOTOR
Single-phase, thermoprotected against overload, auto-reset •
HP (kw)
1⁄4(.19)
CAPACITY
Cu. ft. (cu. m) 6 (.17)
AIRFLOW
Domestic models — cfm (cmm) 220 (6.2)
Export models — cfm (cmm) 180 (5)
TUMBLE SPEED
RPM 50 ± 1.5
ELECTRICAL REQUIREMENTS
MDE model — volts (Hz) 240 (60)
MDG model — volts (Hz) 120 (60)
Export models — volts (Hz) 220 – 240 (50)
BREAKER/FUSE REQUIREMENTS
MDE model — amps 30
MDG model — amps 15
MDE export model — amps 20
MDG export model — amps 10
APPROXIMATE OVERALL DRAW
Domestic models — watts 5,900
Export models — watts 4,800
EXHAUST DUCT DIAMETER
In. (cm) 4 (10.2)*
NICHROME HELIX COIL HEATING ELEMENT
MDE model •
SINGLE-PORT BURNER
MDG model •
AUTOMATIC ELECTRIC BURNER IGNITION
MDG model •
GAS RATING
MDG model — BTU/hr. (kcal/hr.) 24,000 (6,048)
MDG export model — BTU/hr. (kcal/hr.) 20,000 (5,040)
GAS INLET
MDG model — in. (cm)
1⁄2(1.3)
AUTOMATIC PRESSURE REGULATOR
MDG models •
ADJUSTABLE LEVELING LEGS •
COLOR
White •
APPROXIMATE WEIGHT
Crated — lbs. (kg) 163 (74)
Uncrated — lbs. (kg) 144 (65)
*Use a minimum of 4 ” (10.2 cm) -diameter rigid aluminum or rigid galvanized-steel duct. Never use plastic, nonmetal or
combustible duct.
See specific instructions for proper installation. Because of continuous product improvement, Maytag reserves the right
to change specifications without notice.
5 YEARS — ALL PARTS
For a period from the date of original purchase
through the time listed above, the designated
parts that fail in normal commercial use will be
repaired or replaced free of charge for the part
itself, with the owner paying all other costs,
including labor, transportation and customs duty.
Chemical damage is excluded from all warranty
coverage. See complete warranty for details.
www.maytagcommerciallaundry.com
1/06
