Maytag MDG50PCC User manual

MDG50PCC Installation Manual
50 lb Single Pocket / Phase 7 / Coin
Part No. 113198-5
AVERTISSEMENT:Assurez-vousdebien
suivrelesinstructionsdonnéesdanscette
noticepour réduireau minimumle risque
d’incendie ou d’explosion ou pour éviter
toutdommagematériel,touteblessureou
lamort.
—Ne pas entreposer ni utiliser d’essence
nid’autres vapeursou liquides
inflammablesà proximité decet
appareilou de toutautre appareil.
—QUEFAIRE SIVOUSSENTEZUNE
ODEURDE GAZ:
●Nepas tenter d’allumerd’appareils.
●Netouchezà aucuninterrupteur. Ne
pasvous servirdestéléphones se
trouvantdansle bâtiment.
●Évacuezla pièce,lebâtiment oula
zone.
●Appelezimmédiatement votre
fournisseurde gazdepuisunvoisin.
Suivezlesinstructionsdufournisseur.
●Sivous nepouvez rejoindrele
fournisseurde gaz,appelez leservice
desincendies.
—L’installation et l’entretien doivent être
assurés par un installateur ou un
service d’entretien qualifié ou par le
fournisseurdegaz.
WARNING:Foryoursafetytheinformation
in this manual must be followed to
minimize the risk of fire or explosion and
to prevent property damage, personal
injuryordeath.
— Do not store or use gasoline or other
flammable vapors and liquids in the
vicinityof thisor anyother appliance.
— WHATTO DOIFYOU SMELLGAS:
●Donot tryto lightany appliance.
●Donottouchanyelectrical switch;
donotuseanyphone inyour
building.
●Cleartheroom, building or areaof
alloccupants.
●Immediatelycallyourgassupplier
froma neighbor’sphone. Follow
thegas supplier’sinstructions.
●Ifyoucannotreachyourgas
supplier,call thefiredepartment.
— Installation and service must be
performedbyaqualifiedinstaller,service
agencyor thegas supplier.
RETAIN THESE
INSTRUCTIONS IN A
SAFE PLACE FOR
FUTURE REFERENCE

“IMPORTANT NOTE TO PURCHASER”
Information must be obtained from your local gas supplier on the
instructionstobefollowediftheusersmellsgas. Theseinstructions
mustbe postedin aprominent locationnearthe dryer.
FOR YOUR SAFETY
Do not store or use gasoline
orother flammablevapors
andliquids inthe vicinityof
thisor anyother appliance.
POUR VOTRE SÉCURITÉ
Ne pas entreposer ni utiliser d’essence
nid’autres vapeursou liquides
inflammablesà proximité decet
appareilou de toutautre appareil.
We have tried to make this manual as complete as possible and hope you will find it useful. The manufacturer
reserves the right to make changes from time to time, without notice or obligation, in prices, specifications,
colors, and material, and to change or discontinue models. The illustrations included in this manual may not
depict your particular dryer exactly.
IMPORTANT
For your convenience, log the following information:
DATEOF PURCHASE _________________________________________________________ MODELNO. _________________
DEALER’S NAME _________________________________________________________________________________________
SERIALNUMBER(S) ______________________________________________________________________________________
_______________________________________________________________________________________________________
_______________________________________________________________________________________________________
For replacement parts, contact the dealer from which the dryer was purchased or contact:
Maytag Co.
BentonHarbor,MI
1-800-662-3587
Retain This Manual in a Safe Place for Future Reference
This product embodies advanced concepts in engineering, design, and safety. If this product is properly
maintained, it will provide many years of safe, efficient, and trouble free operation.
Only qualified technicians should service this equipment.
OBSERVE ALL SAFETY PRECAUTIONS displayed on the equipment or specified in the installation
manual included with the dryer.
The following “FOR YOUR SAFETY” caution must be posted near the dryer in a prominent location.
MDG50PCC

IMPORTANT
YOUMUSTDISCONNECTANDLOCKOUTTHEELECTRICSUPPLYANDTHEGAS
SUPPLY OR THE STEAM SUPPLY BEFORE ANY COVERS OR GUARDS ARE
REMOVED FROM THE MACHINE TO ALLOW ACCESS FOR CLEANING,
ADJUSTING, INSTALLATION, OR TESTING OFANY EQUIPMENT PER OSHA
(OccupationalSafetyandHealthAdministration)STANDARDS.
WARNING
CHILDRENSHOULDNOTBEALLOWEDTOPLAYONORNEARTHEDRYER(S).
CHILDRENSHOULDBESUPERVISEDIFNEARDRYERSINOPERATION.
CAUTION
DRYERSSHOULDNEVERBELEFTUNATTENDEDWHILEINOPERATION.
FORYOURSAFETY
DONOTDRYMOPHEADSINTHEDRYER.
DONOTUSEDRYERINTHEPRESENCEOFDRYCLEANINGFUMES.
“Caution:Label all wires priorto
disconnection when servicing
controls.Wiringerrors can cause
improper operation.”
«Attention:Aumomentdel’entretiendes commandes,
étiquetez tous les fils avant de les débrancher. Des
erreursdecâblagepeuvententraînerun fonctionnement
inadéquatetdangereux.»
WARNING
UNDER NO CIRCUMSTANCES should the dryer door switch, lint drawerswitch, or
heat safety circuit ever be disabled.
Stateof CaliforniaProposition65Warnings:
WARNING:Thisproductcontainsachemicalknowntothe StateofCalifornia tocause
cancer.
WARNING:Thisproductcontainsachemicalknowntothe StateofCalifornia tocause
birthdefectsorotherreproductiveharm.

WARNING
The dryer must never be operated with any of the back guards, outer tops, or service
panelsremoved. PERSONALINJURYORFIRECOULDRESULT.
IMPORTANT
PLEASEOBSERVEALLSAFETYPRECAUTIONSdisplayedontheequipmentand/or
specified in the installation manual included with the dryer.
WARNING
DRYERMUSTNEVERBE OPERATEDWITHOUTTHELINTFILTER/SCREENIN
PLACE,EVENIFANEXTERNALLINTCOLLECTIONSYSTEMISUSED.
Dryer mustnot be installed or stored in an area where it willbe exposed to water or weather.
The wiring diagram for the dryer is located in the front electrical control box area.
IMPORTANT
Dryer must be installed in a location/environment, which the ambient temperature
remains between 40° F (4.44° C) and 130° F (54.44° C).

Table of Contents
SECTIONI
SAFETYPRECAUTIONS .................................................................................................................. 2
SECTIONII
SPECIFICATIONS.............................................................................................................................. 4
SECTIONIII
INSTALLATIONPROCEDURES ..................................................................................................... 6
A. Unpacking/Setting Up............................................................................................................................. 6
B. Location Requirements........................................................................................................................... 6
C. Dryer Enclosure Requirements .............................................................................................................. 7
D. FreshAir Supply Requirements .............................................................................................................. 8
E. Exhaust Requirements............................................................................................................................ 9
F. Electrical Information ........................................................................................................................... 12

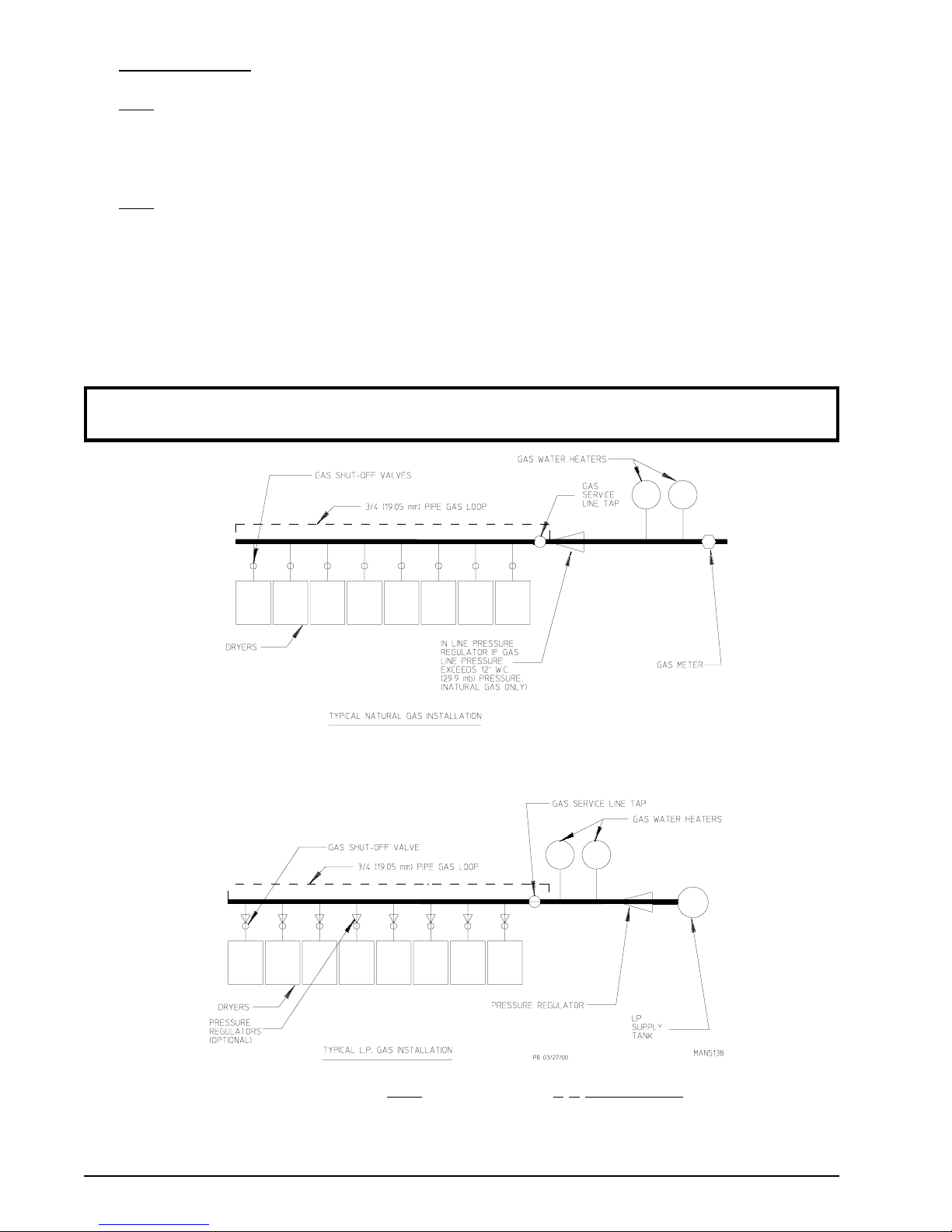

G. Gas Information .................................................................................................................................... 14
H. Preparation for Operation/Start-Up...................................................................................................... 17
I. Preoperational Tests ............................................................................................................................. 18
J. Preoperational Instructions ................................................................................................................... 19
K. Shutdown Instructions .......................................................................................................................... 19
SECTIONIV
SERVICE/PARTSINFORMATION ............................................................................................... 20
A. Service .................................................................................................................................................. 20
B. Parts...................................................................................................................................................... 20
SECTIONV
WARRANTYINFORMATION ....................................................................................................... 21
A. Returning Warranty Cards ................................................................................................................... 21
B. Warranty ............................................................................................................................................... 21
SECTIONVI
ROUTINEMAINTENANCE........................................................................................................... 22
A. Cleaning ................................................................................................................................................ 22
B. Adjustments .......................................................................................................................................... 23
C. Lubrication ............................................................................................................................................ 23
D. Lint Drawer Removal........................................................................................................................... 24
SECTIONVII
DATALABELINFORMATION ...................................................................................................... 25
SECTIONVIII
PROCEDUREFOR FUNCTIONALCHECK
OFREPLACEMENTCOMPONENTS........................................................................................... 26
SECTIONIX
MANUALRESETBURNERHI-LIMIT INSTRUCTIONS ......................................................... 28

2 Maytag Co. 113198-5
SECTIONI
SAFETYPRECAUTIONS
WARNING: Foryour safety, theinformationinthismanualmustbefollowedtominimizetheriskof
fireor explosionortopreventpropertydamage,personal injury, orloss oflife.
WARNING: Thedryermustneverbeoperatedwithanyofthe back guards, outer tops, or
servicepanelsremoved. PERSONALINJURY OR FIRE COULD RESULT.
1. DO NOT store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance.
2. Purchaser and user should consult the local gas supplier for proper instructions to be followed in the event
the user smells gas. The instructions should be posted in a prominent location.
3. WHAT TO DO IF YOU SMELL GAS:
a. DO NOT try to light any appliance.
b. DO NOT touch any electrical switch.
c. DO NOT use any phone in your building.
d. Clear the room, building, or area of ALLoccupants.
e. Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.
f. If you cannot reach your gas supplier, call the fire department.
4. Installation and service must be performed by a qualified installer, service agency, or gas supplier.
5. Dryers must be exhausted to the outdoors.
6. AlthoughMaytag produces a very versatile dryer, there are some articles that, due to fabric composition or
cleaning method, should not be dried in it.
WARNING: Dry onlywaterwashed fabrics. DONOTdry articles spottedorwashed in dry
cleaningsolvents,acombustible detergent, or“allpurpose”cleaner.
EXPLOSIONCOULDRESULT.
WARNING: DONOTdryrags orarticlescoated orcontaminatedwith gasoline,kerosene,oil, paint,
orwax. EXPLOSIONCOULD RESULT.
WARNING: DONOTdry mopheads. Contaminationbywaxor flammablesolventswillcreatea
firehazard.
WARNING: DONOTuse heatfordrying articlesthatcontain plastic,foam, spongerubber, or
similarlytexturedrubbermaterials. Dryingin aheatedbasket(tumbler)maydamage
plasticsorrubber andmaybe afirehazard.

113198-5 Maytag Co. 3
7. A program shouldbeestablished for the inspection and cleaning of lint in the burner area, exhaust ductwork,
and area around the back of the dryer. The frequency of inspection and cleaning can best be determined
from experience at each location.
WARNING: The collectionof lintin theburner areaand exhaustductworkcancreateapotentialfire
hazard.
8. For personal safety, the dryer must be electrically grounded in accordance with local codes and/or the
National Electrical Code ANSI/NFPA NO. 70-LATEST EDITION or in Canada, the Canadian Electrical
Codes Parts 1 & 2 CSA C22.1-1990 or LATEST EDITION.
NOTE: Failureto electricallygroundthedryerproperly willVOIDTHEWARRANTY.
9. UNDER NO CIRCUMSTANCES should the dryer door switch, lint drawer switch, or heat safety circuit
ever be disabled.
WARNING: PERSONALINJURYOR FIRECOULDRESULTSHOULDTHEDRYER
DOORSWITCH,LINTDRAWER SWITCH,ORHEATSAFETYCIRCUIT
EVERBEDISABLED.
10. This dryer is not to be used in the presence of dry cleaning solvents or fumes.
11. Remove articles from the dryer as soon as the drying cycle has been completed.
WARNING: Articles leftin thedryerafterthedryingandcoolingcycleshave beencompleted can
createafire hazard.
12. READ AND FOLLOW ALL CAUTION AND DIRECTION LABELS ATTACHED TO THE
DRYER.
13. For safety, proper operation, and optimum performance, the dryer must not be operated with a load less
than sixty-six percent (66%) 33 lb (14.96 kg) of its rated capacity.
WARNING: YOU MUSTDISCONNECTANDLOCK OUTTHE ELECTRICSUPPLY
ANDTHE GASSUPPLYORTHESTEAMSUPPLYBEFOREANYCOVERS
ORGUARDSARE REMOVEDFROMTHEMACHINETOALLOW
ACCESSFORCLEANING,ADJUSTING, INSTALLATION, ORTESTINGOF
ANYEQUIPMENTPEROSHA(OccupationalSafety andHealthAdministration)
STANDARDS.
IMPORTANT: Dryermustbeinstalled inalocation/environment,which theambient
temperatureremainsbetween40° F (4.44°C)and130°F(54.44° C).

4 Maytag Co. 113198-5

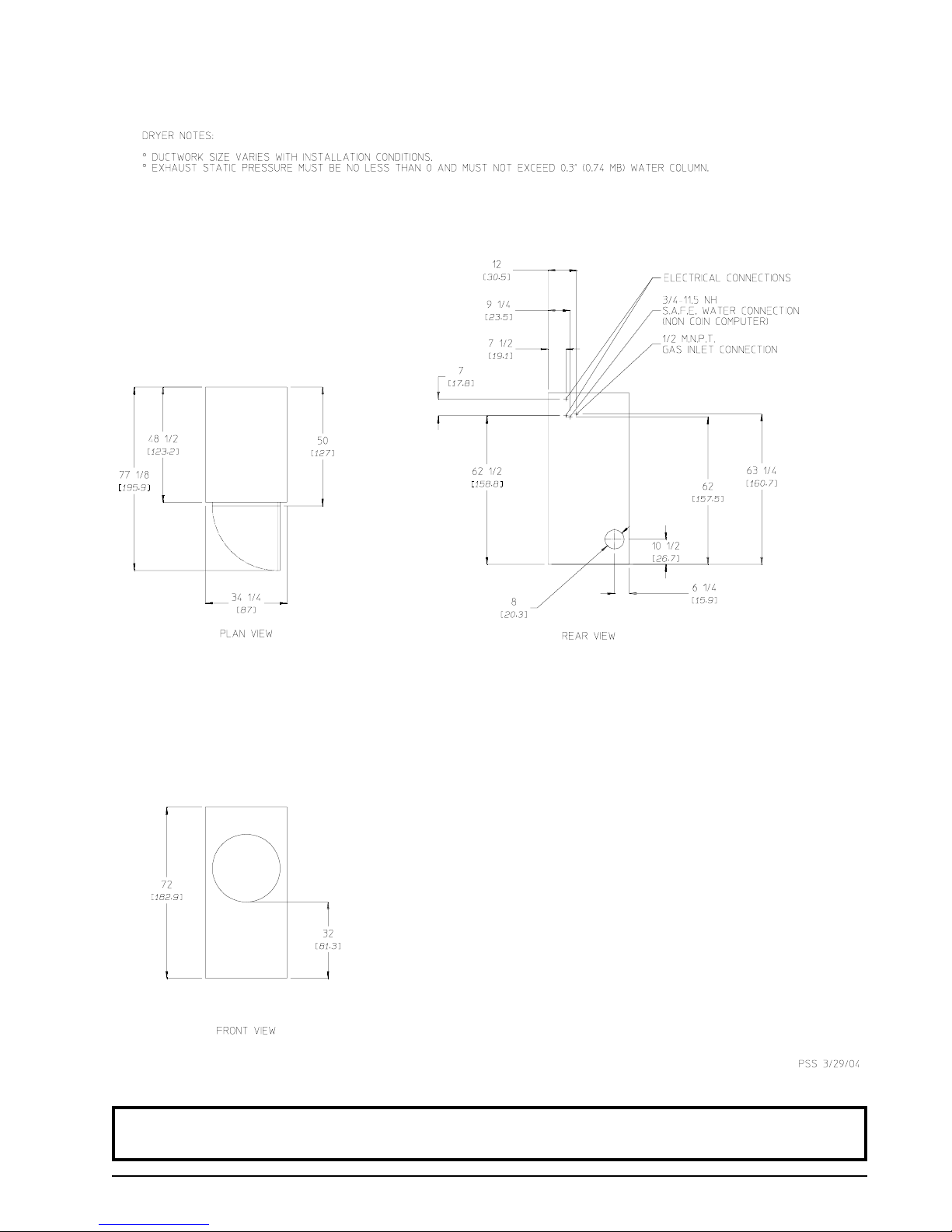

MAXIMUM CAPACITY(DRYWEIGHT) 50 lbs 22.7 kg
BASKET (TUMBLER) DIAMETER 32-3/4” 83.2 cm
BASKET (TUMBLER) DEPTH 37-1/2” 95.3 cm
BASKET (TUMBLER) MOTOR 3/4 hp 0.560 kW
DOOR OPENING (DIAMETER) 21-1/2” 54.61 cm
BASKET (TUMBLER) VOLUME 18.3 cu ft 0.518 cu m
DRYERS PER 20’/40’ CONTAINER 10/20
DRYERS PER 45’/48’ TRUCK 24/26
VOLTAGE AVAILABLE 120v 1ø 60 Hz
APPROX. WEIGHT (UNCRATED) 651 lbs 295.3 kg
APPROX. WEIGHT (CRATED) 700 lbs 317.7 kg
HEAT INPUT 150,000 Btu/hr 37,800 kcal/hr
AIRFLOW 750 cfm 21 cmm
INLET PIPE CONNECTION 1/2” M.N.P.T.*
SECTIONII
SPECIFICATIONS
Gas
Shaded areas are stated in metric equivalents 3/29/04
* Size of piping to dryer varies with installation conditions. Contact factory for assistance.
NOTE: Manufacturerreserves therighttomakechanges inspecificationsatanytimewithoutnotice or
obligation.

113198-5 Maytag Co. 5
NOTE: Manufacturerreserves therighttomakechanges inspecificationsatanytimewithoutnotice or
obligation.
SPECIFICATIONS–GASONLY

6 Maytag Co. 113198-5
SECTIONIII
INSTALLATIONPROCEDURES
Installation should be performed by competent technicians in accordance with local and state codes. In the
absence of these codes, the installation mustconform to applicableAmerican National Standards:ANSI Z223.1-
LATEST EDITION (National Fuel Gas Code) orANSI/NFPA NO. 70-LATEST EDITION (National Electrical
Code) or in Canada, the installation must conform to applicable Canadian Standards: CAN/CGA-B149.1-M91
(Natural Gas) or CAN/CGA-B149.2-M91 (Liquid Propane [L.P.] Gas) or LATEST EDITION (for General
Installation and Gas Plumbing) or Canadian Electrical Codes Parts 1 & 2 CSAC22.1-1990 or LATEST EDITION
(for Electrical Connections).
A. UNPACKING/SETTING UP
Remove protective shipping material (i.e., plastic wrap and optional shipping box) from dryer.
IMPORTANT: Dryermustbetransportedandhandledinanuprightpositionat ALLtimes.
The dryer can be moved to its final location while still attached to the skid or with the skid removed. To unskid
the dryer, locate and remove the four (4) bolts securing the base of the dryer to the wooden skid. Two (2) are
at the rear base (remove the back panel for access), and two (2) are located in the bottom of the lint chamber.
To remove the two (2) bolts located in the lint chamber area, remove the lint drawer.
With the skid removed, to make it easier to slide the dryer into its final position, slightly lower ALL four (4)
leveling legs, so that the dryer will slide on the legs instead of the base frame.
Leveling Dryer
The dryer is equipped with four (4) leveling legs, one (1) at each corner of the base. Two (2) are located at the
rear of the dryer base, and two (2) are located in the lint chamber (coop). To increase bearing life and improve
efficiency, the dryer should be tilted slightly to the rear.
B. LOCATION REQUIREMENTS
Before installing the dryer, be sure the location conforms to local codes and ordinances. In the absence of such
codes or ordinances the location must conform with the National Fuel Gas Code ANSI.Z223.1 LATEST
EDITION, or in Canada, the installation must conform to applicable Canadian Standards: CAN/CGA-B149.1-
M91 (Natural Gas) or CAN/CGA-B149.2-M91 (L.P. Gas) or LATEST EDITION (for General Installation and
Gas Plumbing).
1. The dryer must be installed on a sound level floor capable of supporting its weight. Carpeting must be
removed from the floor area that the dryer is to rest on.
IMPORTANT: “Thedryermustbeinstalledonnoncombustiblefloorsonly.”
2. The dryer must not be installed or stored in an area where it will be exposed to water and/or weather.
3. The dryer is for use in noncombustible locations.

113198-5 Maytag Co. 7
4. Provisions for adequate air supply must be provided as noted in this manual (refer to Fresh Air Supply
Requirements in Section D).
5. Clearance provisions must bemade from combustible construction as noted in this manual (refer to Dryer
Enclosure Requirements in Section C).
6. Provisions must be made for adequate clearances for servicing and for operation as noted in this manual
(refer to Dryer Enclosure Requirements in Section C).
7. The dryer must be installed with a proper exhaust duct connection to the outside as noted in this manual
(refer to Exhaust Requirements in Section E).
8. Dryer must be located in an area where correct exhaust venting can be achieved as noted in this manual
(refer to Exhaust Requirements in Section E).
IMPORTANT: Dryershouldbelocatedwhere aminimumamountofexhaust ductwillbenecessary.
9. The dryer must be installed with adequate clearance for air openings into the combustion chamber.
CAUTION: Thisdryerproduces combustiblelintand mustbeexhaustedtothe outdoors. Every6
months,inspecttheexhaustductingandremove anylintbuildup.
IMPORTANT: Dryermustbeinstalled inalocation/environment,which theambient
temperatureremainsbetween40° F (4.44°C)and130°F(54.44° C).
C. DRYER ENCLOSURE REQUIREMENTS
Bulkheads and partitions should be made of noncombustible materials. A minimum of 12-inches (30.48 cm)
above the dryer’s outer top is required, except along the front of the dryer. (18-inches [45.72 cm] or more is
recommended for ease of installation, maintenance, and service.) The bulkhead facing, along the front of the
dryer, will require a 1-inch (2.54 cm) clearance from the outer top. The bulkhead header may be a minimum of
4-inches (10.16 cm) above the dryer’s outer top and must not extend more than 4-inches (10.16 cm) to the rear.
NOTE: Allowancesmustbemadeforopening thecontrol door.
NOTE: Withthe exceptionof thefloor,clearances shownare forcombustibleconstruction.
X = 12-inch (30.48 cm) minimum, 24-inches (60.96 cm) is suggested for ease of maintenance.
* 1-inch (2.54 cm) maximum for electric dryers.

8 Maytag Co. 113198-5
NOTE: Airconsiderations areimportantforproperandefficientoperation.
Dryers may be positioned sidewall to sidewall. However, a 1/16” (1.59 mm) minimum allowance mustbemade
for opening and closing of the control door. It is suggested that the dryer be positioned about 2 feet (0.61 meters)
away from the nearest obstruction for ease of installation, maintenance, and service (to be measured from the
back guard). Refer to the illustration on page 7 for details.
D. FRESH AIR SUPPLYREQUIREMENTS
The air supply (make-up air) must be given careful consideration to ensure proper performance of each dryer.
As a general rule, an unrestricted air entrance from the outdoors (atmosphere) of a minimum of 1-1/2 square
feet (0.14 square meters) is required for each dryer. If registers or louvers are installed over the openings, then
the area must be increased. It is not necessary to have separate make-up air openings for each dryer. Common
make-up air openings are acceptable. However, they must be set up in such a manner that the make-up air is
distributed equally to the dryers. The dryer must be installed with provisions for adequate combustion and
make-up air supply.
EXAMPLE: For a bank of eight (8) dryers, two (2) unrestricted openings measuring 3 feet by 2 feet (0.914
meters by 0.61 meters) are acceptable.
IMPORTANT: Make-up airopeningsshouldnotbelocated in anareadirectly nearwhereexhaust
ventsexitthebuilding.
Allowances must be made for remote or constricting passageways or where dryers are located at excessive
altitudes or predominantly low-pressure areas.
IMPORTANT: Make-up airmust beprovidedfrom asourcefreeofcontaminating fumessuchasdry
cleaningsolventfumes. Make-upairthat iscontaminatedbydrycleaning solvent
fumeswill resultin irreparabledamage tothemotorsandotherdryercomponents.
NOTE: Componentfailureduetodry cleaningsolventfumeswillVOIDTHEWARRANTY.

113198-5 Maytag Co. 9
E. EXHAUST REQUIREMENTS
Exhaust ductwork shouldbedesigned and installed by a qualified professional. Improperly sized ductwork will
create excessive back pressure, which results in slow drying, increased use of energy, and shutdown of the
burner by the airflow (sail) switch, burner hi-limits, or lint chamber hi-limit protector thermostat. The dryer must
be installed with a proper exhaust duct connection to the outside.
When possible, it is suggested to provide a separate (single) exhaust duct for each dryer.
CAUTION: Thisdryerproduces combustiblelint andmustbeexhaustedto theoutdoors.
CAUTION: IMPROPERLYSIZEDORINSTALLEDEXHAUSTDUCTWORK CAN
CREATEAPOTENTIALFIREHAZARD.
The exhaust ductwork should be laid out in such a way that the ductwork travels as directly as possible to the
outdoors with as few turns as possible. Single or independent dryer venting is recommended.
It is suggested that the use of 90° turns be avoided; use 30° or 45° angles instead.
The ductwork should be smooth inside with no projections from sheet metal screws or other obstructions,
which will collect lint. When adding ducts, the ducts to be added should overlap the duct to which it is connected.
ALL ductwork joints must be taped to prevent moisture and lint from escaping into the building. Additionally,
inspection doors should be installed at strategic points in the exhaust ductwork for periodic inspection and
cleaning.
NOTE: Whenthe exhaustductwork passesthrough awall, ceiling,or roofmade ofcombustible
materials,theopeningmustbe2-inches(5.08 cm)largerthantheduct (allthe wayaround).
Theduct mustbecenteredwithin thisopening.
To protect the outside end of the horizontal ductwork from the weather, a 90° elbow bent downward should be
installed where the exhaust exits the building. If the ductwork travels vertically up through the roof, it shouldbe
protected from the weather by using a 180° turn to point the opening downward. In either case, allow at least
twice the diameter of the duct between the duct opening and the nearest obstruction (i.e., roof or ground level).
IMPORTANT: DONOTusescreens, louvers, orcapson theoutsideopening of theexhaust
ductwork.
IMPORTANT: Exhaustbackpressuremeasuredbyamanometeratthedryerexhaustductareamustbe
nolessthan0andmustnotexceed0.3inches(0.74mb)ofwatercolumn(W.C.).
IMPORTANT: Itisrecommendedthatexhaust orboosterfans notbeused in theexhaustductwork
system.
IMPORTANT: Forductworkrunsthatexceedwhatisstatedinthismanualaprofessionalheating,
ventilating,andair-conditioning(HVAC)firmshouldbeconsultedforproperventing
information.
NOTE: Asperthe NationalFuelGas Code,“Exhaustducts fortype2 clothesdryersshall be
constructedof sheetmetalorothernoncombustiblematerial. Suchducts shallbe equivalentin
strengthand corrosionresistancetoductsmade ofgalvanized sheetsteelnotlessthan26
gauge(0.0195-inches [0.50mm]) thick.”

10 Maytag Co. 113198-5
NOTE: Ductwork shouldbelaid out insucha mannerwhereallowances are madeatrear area ofthe
dryerforremovalofrear servicepanels orguards.
SINGLEDRYERVENTING
HORIZONTAL VENTING
When a single 8-inch (20.32 cm) horizontal vent is used, the ductwork to the outlet cannot exceed 20 feet
(6.1 meters), refer to Illus.Abelow. This calculation of 20 feet (6.1 meters) compensates or allows for the use
of a maximum of only one (1) elbow (which is the outside outlet protection).
Illus. A
IMPORTANT: Exhaust back pressure measuredby a manometer atthe dryer exhaust ductarea must
beno less than 0 and mustnotexceed0.3 inches (0.74 mb) of water column (W.C.).
VERTICAL VENTING
When vertical single 10-inch (25.4 cm) venting is used (refer to Illus. B below), the ductwork from the dryer to
the outside outlet cannotexceed 40 feet (12.19 meters). This calculation compensates for the use of a maximum
of three (3) elbows including the two (2) elbows creating the 180° (turned downward) outside outlet.
Illus. B
JEV 04/12/02

113198-5 Maytag Co. 11
MULTIPLE DRYER (COMMON) VENTING
If it is not feasible to provide separate exhaust ducts for each dryer, ducts for individual dryers may be channeled
into a common main duct. Each dryer is provided with a back draft damper. The individual ducts should enter
the bottom or side of the main duct at an angle not more than 45° in the direction of the airflow.
The main duct should be tapered with the diameter increasing before each individual 8-inch (20.32 cm) duct is
added (refer to Illus. C for horizontal venting and Illus. D for vertical venting).
IMPORTANT: No more thanfour (4) dryersmaximum shouldbeconnected toone(1) main
commonduct.
Refer to the illustrations below for Multiple Dryer Horizontal Venting and Vertical Venting examples/
illustrations.
HORIZONTAL VENTING
Illus. C
VERTICAL VENTING
Illus. D

12 Maytag Co. 113198-5
GAS
ELECTRICAL SERVICE SPECIFICATIONS (PER DRYER)
NOTES: A.
B.
When fuses are used they must be dual element, time delay, current
limiting, class RK1 or RK5 ONLY. Calculate/determine correct fuse value,
by applying either local and/or National Electrical Codes to listed
appliance amp draw data.
Circuit breakers are thermal-magnetic (industrial) motor curve type ONLY.
For others, calculate/verify correct breaker size according to appliance
amp draw rating and type of breaker used.
SERVICE
VOLTAGE PHASE WIRE SERVICE
APPROX.
AMP DRAW CIRCUIT
BREAKER
60 Hz 50 Hz
120 1ø 2 12.0 — 20
F. ELECTRICAL INFORMATION
1. Electrical Requirements
ALL electrical connections must be made by a properly licensed and competent electrician. This
is to ensure that the electrical installation is adequate and conforms to local and state regulations or codes.
In the absence of such codes, ALL electrical connections, materials, and workmanship must conform to
the applicable requirements of the National Electrical CodeANSI/NFPANO. 70-LATEST EDITION or in
Canada, the Canadian Electrical Codes Parts 1 & 2 CSA C22.1-1990 or LATEST EDITION.
IMPORTANT: Failuretocomplywiththesecodesorordinances,and/ortherequirementsstipulated
inthismanualcanresultinpersonalinjuryorcomponentfailure.
NOTE: ComponentfailureduetoimproperinstallationwillVOIDTHEWARRANTY.
Each dryer shouldbe connected to an independently protected branch circuit. The dryer mustbeconnected
with copper wire only. DO NOT use aluminum wire; it could create a fire hazard. The copper
conductor wire/cable must be of proper ampacity and insulation in accordance with electric codes for
making ALLservice connections.
NOTE: Theuseofaluminum wirewillVOIDTHEWARRANTY.
IMPORTANT: Aseparate protected circuit mustbeprovided to eachdryer.
NOTE: Anindividual groundcircuitmustbe providedtoeach dryer, donotdaisychain.
IMPORTANT: The dryermustbeconnectedto theelectricsupply shown onthe data label.
IMPORTANT: Thewiresize mustbeproperlysizedto handletherelated current.
WARNING: Anydamagedoneto dryercomponents dueto impropervoltage connectionswill
automaticallyVOIDTHEWARRANTY.
NOTE: Manufacturerreserves therighttomakechanges inspecificationsatanytimewithoutnotice or
obligation.
2. Electrical Service Specifications
9/23/08

113198-5 Maytag Co. 13
IMPORTANT: Figuresshownarefornon-reversingmodelsonly. For reversingmodels contactthe
factory.
3. Grounding
A ground (earth) connection must be provided and installed in accordance with state and local codes. In the
absence of these codes, grounding must conform to applicable requirements of the National Electrical Code
ANSI/NFPA NO. 70-LATEST EDITION, or in Canada, the installation must conform to applicable Canada
Standards: Canadian Electrical Codes Parts 1 & 2 CSA C22.1-1990 or LATEST EDITION. The ground
connection may be to a proven earth ground at the location service panel.
For added personal safety, when possible, it is suggested that a separate ground wire (no. 18 minimum) be
connected from the ground connection of the dryer to a grounded cold water pipe. DO NOT ground to a gas
pipeor hotwater pipe. The grounded cold water pipe must have metal-to-metal connectionALL the way to the
electrical ground. If there are any nonmetallic interruptions, such as, a meter, pump, plastic, rubber, or other
insulating connectors, they must be jumped out with no. 4 copper wire and securely clamped to bare metal at
both ends.
IMPORTANT: For personalsafetyand proper operation,thedryer mustbegrounded.
Provisions are made for ground connection in each dryer at the electrical service connection area.
4. Electrical Connections
A wiring diagram is located inside the control box for connection data.
If local codes permit, power to the dryer can be made by the use of a flexible U.L. listed power cord/pigtail
(wire size must conform to rating of dryer), or the dryer can be hard wired directly to the service breaker
panel. In both cases, a strain relief must be installed where the wiring enters the dryer.
Single-Phase (1ø) Wiring Connections/Hookup
The electrical input connections on ALL single-phase (1ø) gas dryers are made into the rear service box
located at the upper left area of the dryer.

14 Maytag Co. 113198-5
A ground lug is provided in the rear electrical box to connect your
service ground.
G. GAS INFORMATION
It is your responsibility to have ALL plumbing connections made by a qualified professional to ensure that the
gas plumbing installation is adequate and conforms to local and state regulations or codes. In the absence of
suchcodes, ALLplumbing connections,materials,and workmanship mustconform totheapplicable requirements
of the National Fuel Gas CodeANSI Z223.1-LATEST EDITION, or in Canada, the Canadian Installation Codes
CAN/CGA-B149.1-M91 (Natural Gas) or CAN/CGA-B149.2-M91 (Liquid Propane [L.P.] Gas) or LATEST
EDITION.
IMPORTANT: Failuretocomplywith codesor ordinances,and/orrequirementsinthismanual,can
resultin personalinjury andimproperoperationofthedryer.
The dryer and its individual shutoff valves must be disconnected from the gas supply piping system during any
pressure testing of that system at test pressures in excess of 1/2 psig (3.5 kPa). The dryer must be isolated
from the gas supply piping system by closing its individual manual shutoff valve during any pressure test of the
gas supply piping system at test pressures equal to or less than 1/2 psig (3.5 kPa).
IMPORTANT: Failuretoisolate ordisconnect thedryerfrom supplyas notedcancauseirreparable
damageto thegas valve,whichwillVOIDTHEWARRANTY.
WARNING: FIREOREXPLOSION COULDRESULTDUETOFAILURE OF
ISOLATINGORDISCONNECTINGTHEGASSUPPLYASNOTED.
1. GasSupply
The gas dryer installation must meet the American National Standard...National Fuel Gas Code ANSI
Z223.1-LATESTEDITION,or inCanada,the CanadianInstallationCodes CAN/CGA-B149.1M91(Natural
Gas) or CAN/CGA-B149.2-M91 (L.P. Gas) or LATEST EDITION, as well as local codes and ordinances
and must be done by a qualified professional.
NOTE: Undersizedgaspipingwillresultinignitionproblems,slowdrying,increaseduseofenergy,and
cancreatea safetyhazard.
The dryer must be connected to the type of heat/gas indicated on the dryer data label. If this information
does not agree with the type of gas available, DO NOT operate the dryer. Contact the dealer who sold
the dryer or contact the Maytag Co.
Single-Phase Electrical Lead Connections
Black
+
Positive
White or Red
+
Neutral
or L2
Green
+
Ground
FOR110VAPPLICATIONS

113198-5 Maytag Co. 15
TYPE OF GAS
Liquid
Propane
Conversion Kit
Part Number
Btu/hour
Rating kcal/hr
Rating Natural Liquid Propane
Qty. D.M.S.* Part No. Qty. D.M.S.* Part No.
150,000 37,800 3 #29 140820 3 #46 140806 883325
TYPE OF GAS
NATURAL LIQUID PROPANE
Manifold Pressure* 3.5 inches W.C. 8.7 mb 10.5 inches W.C. 26.1 mb
In-Line Pressure 6.0 - 12.0 inches W.C. 14.92 - 29.9 mb 11.0 inches W.C. 27.4 mb
IMPORTANT: Anyburnerchangesorconversionsmustbemadeby aqualified professional.
The input ratings shown on the dryer data label are for elevations up to 2,000 feet (610 meters), unless
elevation requirements of over 2,000 feet (610 meters) were specified at the time the dryer order was
placed with the factory. The adjustment or conversion of dryers in the field for elevations over 2,000 feet
(610 meters) is made by changing each burner orifice. If this conversion is necessary, contact the dealer
who sold the dryer or contact the Maytag Co.
2. Technical Gas Data
a. Gas Specifications
Shaded areas are stated in metric equivalents
* Measured at outlet side of gas valve pressure tap when gas valve is on.
b. Gas Connections
Inlet connection -------------1/2” N.P.T.
Inlet supply size -------------1/2” Diameter Pipe (minimum)
Heat input (per dryer) ------150,000 Btu/hr (37,800 kcal/hr)
1) Natural Gas
Regulation is controlled by the dryer’s gas valve’s internal regulator. Incoming supply pressure
must be consistent between a minimum of 6.0 inches (14.92 mb) and a maximum of 12.0 inches
(29.9 mb) water column (W.C.) pressure.
2) Liquid Propane (L.P.) Gas
Dryers made for use with L.P. gas have the gas valve’s internal pressure regulator blocked open so
that the gas pressure must be regulated upstream of the dryer. The pressure measured at each
gas valve pressure tap must be a consistent 10.5 inches (26.1 mb) water column. There is no
regulator or regulation provided in an L.P. dryer. The pressure must be regulated at the source
(L.P. tank) or an external regulator must be added to each dryer.
Shaded area is stated in metric equivalent
* Drill Measurement Size (D.M.S.) equivalents are as follows:
Natural Gas..................... #29 = 0.1360” (3.4540 mm).
Liquid Propane Gas ........ #46 = 0.810” (2.0574 mm).

16 Maytag Co. 113198-5
3. PipingConnections
ALLcomponents/materials must conformto National FuelGasCode SpecificationsANSI Z223.1-LATEST
EDITION, or in Canada, CAN/CGA-B149.1-M91 (Natural Gas) or CAN/CGA-B149.2-M91 (Liquid
Propane [L.P.] Gas) or LATEST EDITION (for General Installation and Gas Plumbing), as well as local
codes and ordinances and must be done by a qualified professional. It is important that gas pressure
regulators meet applicable pressure requirements, and that gas meters be rated for the total amount of
ALL the appliance Btu being supplied.
The dryer is provided with a 1/2” N.P.T. inlet pipe connection extending out the back area of the burner
box. The minimum pipe size (supply line) to the dryer is 1/2” diameter. For ease in servicing, the gas supply
line of each dryer must have its own shutoff valve.
The size of the main gas supply line (header) will vary depending on the distance this line travels from the
gas meter or, in the case of L.P. gas, the supply tank, other gas-operated appliances on the same line, etc.
Specific information regarding supply line size should be determined by the gas supplier.
NOTE: Undersizedgassupplypipingcancreatea loworinconsistentpressure,which willresultin
erraticoperationoftheburnerignitionsystem.
Consistent gas pressure is essential at ALL gas connections. It is recommended that a 3/4-inch (19.05
mm) pipe gas loop be installed in the supply line servicing a bank of dryers. An in-line pressure regulator
must be installed in the gas supply line (header) if the (natural) gas pressure exceeds 12.0 inches (29.9
mb) of water column (W.C.) pressure. (Refer to the illustrations above.)
