CABINET PARTS
1
For Models: M1TXEMMWW02, M1TXEMMWB02, M1TXEMMWS02, M1TXEMMWQ02
(White) (Black) (Stainless Steel) (Biscuit)
12−09 Litho In U.S.A. (mjb)(bay) Part No. W10305562 Rev.A
REFRIGERATOR

CABINET PARTS
2
For Models: M1TXEMMWW02, M1TXEMMWB02, M1TXEMMWS02, M1TXEMMWQ02
(White) (Black) (Stainless Steel) (Biscuit)
W10305562
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 Literature Parts
W10142143 Service &
Wiring Sheet

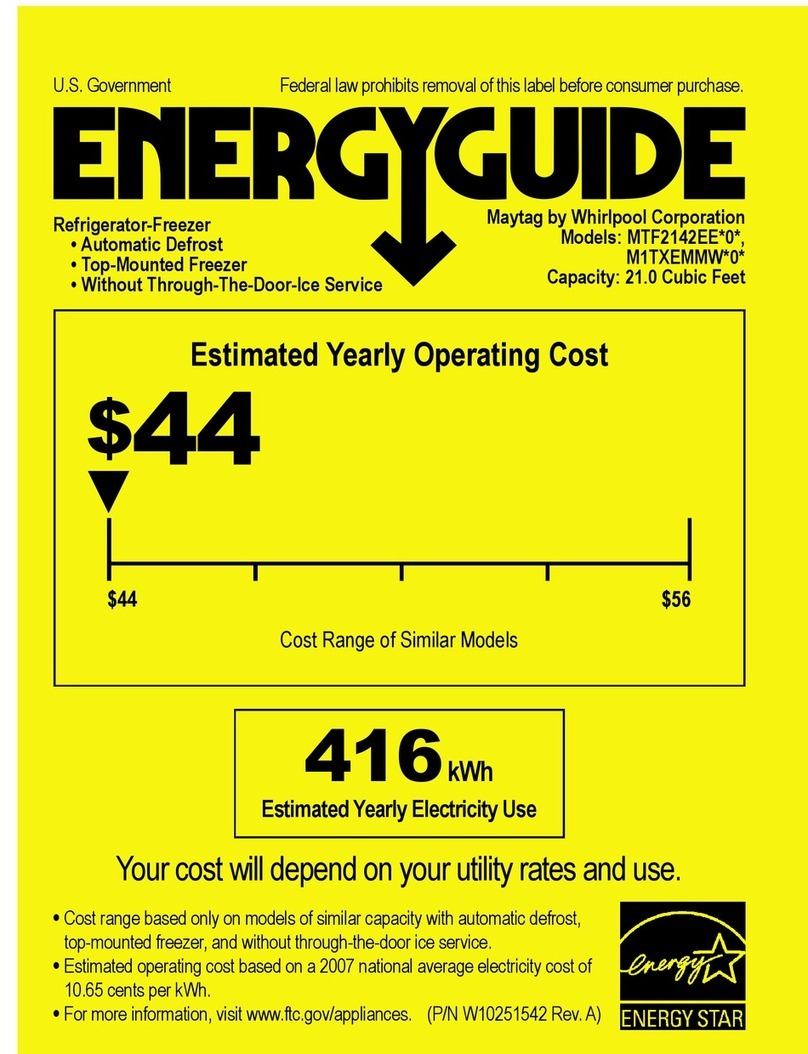

W10251542 Energy Label
Use & Care Guide
W10249206 Bilingual
W10249207 Trilingual
2225623 Modular Icemaker
Service Sheet
Following May Be Purchased
DO−IT−YOURSELF
REPAIR MANUALS
677969 Do−It−Yourself
Manual Ref./Frz.
2 2189410 Hinge (Top)
3 2166108 Roller, Front (2)
4 Cabinet (Not a
Serviceable Part)
5 489385 Clamp, Tube
(Water Supply Line)
6 489442 Screw
7 2179826 Rivet
8 3400504 Screw
9 549193 Clamp, Cord
10 489497 Screw
11 2254618 Hinge, Center
12 2183852 Shim, Hinge
Center
13 8281265 Screw
14 2254473 Hinge Butt
15 Fitting, Water Tube
(Not Serviced)
16 Hole Plug (6)
2201012 White
2183998 Black
2200924 Biscuit
17 Corner Filler (2)
W10283959 White
W10283960 Black
2200926 Biscuit
18 Grille
(Includes
Illus. 21)
2254313 White
2254315 Black
2254316 Biscuit
19 489341 Washer
20 487576 Washer
21 2189356 Clip, Grille (2)
22 Cover, Hinge
2213360 White
2213363 Black
2213364 Biscuit
23 Rail, Center
(Not Serviced)
24 2254576 Cover, Unit
25 489427 Screw

DOOR PARTS
3
For Models: M1TXEMMWW02, M1TXEMMWB02, M1TXEMMWS02, M1TXEMMWQ02
(White) (Black) (Stainless Steel) (Biscuit)
W10305562

DOOR PARTS
4
For Models: M1TXEMMWW02, M1TXEMMWB02, M1TXEMMWS02, M1TXEMMWQ02
(White) (Black) (Stainless Steel) (Biscuit)
W10305562
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 Refrigerator Door
(Includes
Illus. 6 & 14)
2183920 White
2200714 Black
W10271883 Stainless Steel
2205284 Biscuit
2 Handle, Trim
2193143W White
2193143B Black
2193143T Biscuit
3 Handle,
Refrigerator
2254533W White
2254533B Black
2254533T Biscuit
4 489357 Screw
5 8281146 Screw
6 Door Gasket,
Magnetic
2202875 Mist Beige
2202882 Black
7 2195378 Trim
8
W10170766 Nameplate
9 2195947 Trim, Door Shelf
10 8281206 Screw
11 Freezer Door
(Includes
Illus. 14 & 15)
2182489 White
2200711 Black
W10271885 Stainless Steel
2204686 Biscuit
12 Hole Plug,
Handle
2189000 White
2189009 Black
2200936 Biscuit
13 2188236 Shelf, Flip−Up
14 2314293 Thimble
15 Door Gasket,
Magnetic
2214967 Mist Beige
2214969 Black
16 2204812 Bin, Door Shelf
17 2189202 Bracket,
Door Stop (2)
18 488921 Screw
19 Hole Plug
2212648 White
2212651 Black
2212649 Biscuit
20 2195916 Plug, Trim
21 2156006 Plug, Trim
22 2218118 Compartment Door
23 Handle,
Freezer
W10291249 White
W10292303 Black
W10292304 Biscuit
24 2195948 Trim, Door

LINER PARTS
5
For Models: M1TXEMMWW02, M1TXEMMWB02, M1TXEMMWS02, M1TXEMMWQ02
(White) (Black) (Stainless Steel) (Biscuit)
W10305562

LINER PARTS
6
For Models: M1TXEMMWW02, M1TXEMMWB02, M1TXEMMWS02, M1TXEMMWQ02
(White) (Black) (Stainless Steel) (Biscuit)
W10305562
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 2197380 Grommet (2)
3 2254360 Gasket, Evaporator
Cover (2)
4 2304099 Defrost Timer
5 2212485 Thermostat Tube
Barrier
6 488208 Screw
7 2310057 Wire Assembly,
Control Box
8 2162085 Socket, Light
9 2179858 Damper, Air
10
W10208121 Fan Motor
11 2163777 Fan Blade
12 2212982 Control Box
13
W10225856 Thermostat Assy.
(Includes
Illus. 5 & 18)
14 8534009 Screw
15 2304099 Screw
16 2320194 Cover, Evaporator
17 527949 Light Bulb (2)
18 2200831 Weight, Thermal
19 1118894 Switch, Rocker Arm
20 2179859 Post, Damper
21 2176281 Cover, Air
Diffuser
22 2200863 Knob, Thermostat
23 2254354 Air Tower
24 2189452 Air Diffuser,
Bottom
25 2321800 Defrost, BI−Metal
26 2204690 Air Separator
Assembly
27 2254453 Bracket,
Fan Motor
29 2204639 Shield, Heat
30 2254454 Bracket
Evap. Fan, Rear
31 2302536 Knob, Damper
32 2163810 Bracket,
Damper Knob
33 2205079 Seal, Rear
Thermostat
34 2171931 Valve−Tube, Body
35
W10129803 Wire Assembly,
Freezer Compartment
(Includes
Illus. 25)

UNIT PARTS
7
For Models: M1TXEMMWW02, M1TXEMMWB02, M1TXEMMWS02, M1TXEMMWQ02
(White) (Black) (Stainless Steel) (Biscuit)
W10305562

UNIT PARTS
8
For Models: M1TXEMMWW02, M1TXEMMWB02, M1TXEMMWS02, M1TXEMMWQ02
(White) (Black) (Stainless Steel) (Biscuit)
W10305562
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 2320187 Plate, Unit
Mounting
2 2214857 Insulation
3
W10268878 Condenser
4
W10140847 Heater, Defrost
5 2254249 Evaporator Assy.
6 8533961 Screw
7 2254295 Drain Pan
8 2319835 Grommet−Cond−(4)
9 2176301 Bracket, Heater
10 2300638 Extension, Air
Baffle
11
W10174384 Strap
12 2169104 Insulation
14 Grommet (4)
1100826 Production
4387558 Service
15
W10194431 Start−Device
Combination
(Start Relay and
Overload for
Production
Compressor Only)
16 2201185 Support Block
17 2150304 Roller (2)
18 2221797 Rivet
19 2182338 Clip, Heater
20 489373 Screw
21 3400518 Screw
22 488500 Screw
24
W10164016 Compressor
(Includes
Illus. 14,25,27)
(Also Order 482801
Installation Kit
& 876765 Tube Kit)
25 Drier
W10177049 Service
26 2155774 Clamp
27 Capacitor
2264017 Production
1118576 Service
29 2315541 Air Baffle
30 2188874 Motor, Condenser
31 2187382 Wire Assembly,
Unit
32 2225834 Fan Blade
34
W10189806 Tube, Suction
35
W10274306 Tube, Process
36 2254574 Tray, Evaporator
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
4.00 Ozs.
(R134A)

ICEMAKER PARTS
9
For Models: M1TXEMMWW02, M1TXEMMWB02, M1TXEMMWS02, M1TXEMMWQ02
(White) (Black) (Stainless Steel) (Biscuit)
W10305562

ICEMAKER PARTS
10
For Models: M1TXEMMWW02, M1TXEMMWB02, M1TXEMMWS02, M1TXEMMWQ02
(White) (Black) (Stainless Steel) (Biscuit)
W10305562
Illus. Part
No. No. DESCRIPTION
1 488878 Clamp, Tube
3 2210495 Clip, Water Valve
4 2181939 Insert, Tube
5 628379 Clip, Fuse
6 2181943 Tube Water
7 2315576 Valve Solenoid
8 79191001 Cover
9 8281265 Screw
10
W10122527 Mold & Heater
Assembly (Also
Order 542638
Silicone Grease)
11 628515 Cup, Water Fill
12 627843 Ejector
13
W10122563 Ice Striper
14 2194712 Support
15 2315522 Retainer
Thermostat
16 628397 Thermostat (Also
Order 542369
Cement
Alumilastic)
17 8533917 Screw
18 489276 Screw
19 627792 Shut Off Arm
20 2187464 Harness, Wiring
21 628320 Bracket
22
W10223929 Module Assembly
(Includes Item 24)
23 489478 Screw
24 489136 Screw,
3−24 x 23/64
25 488208 Screw
26 488886 Screw, 8−18 x 1/2
100
W10190952 Icemaker,Complete
Assembly

SHELF PARTS
11
For Models: M1TXEMMWW02, M1TXEMMWB02, M1TXEMMWS02, M1TXEMMWQ02
(White) (Black) (Stainless Steel) (Biscuit)
W10305562
Illus. Part
No. No. DESCRIPTION
1 2210522 Shelf, Ladder (2)
2 2300520 Shelf, Ladder
Center
3 2163762 Cup, Shelf Mtg.
4 2188691 Trim,Shelf Front
5 489478 Screw
6 2176222 Slide, Humidity
Control
7 2212446 Body, Humidity
Control
8 2314502 Crisper Cover
9 2201102E Shelf, Cantilever
10 2210573 Insert, Crisper
Cover
11 2201106 Pan, Shelf
Cantilever
12 2174694 Glass, Shelf
13 2188685 Trim, Shelf Front
14 2314478 Crisper Support
15 2189454 Shelf, Freezer
16 2218132K Pan, Meat
17 2188689 Trim, Shelf Rear
18 2254352 Bucket, Ice
19 2218130 Crisper Pan
(Includes
Illus. 6 & 7)
20 2188687 Trim, Shelf Rear
21 2174693 Glass, Shelf Full
22 2201104E Frame Assy

OPTIONAL PARTS
12
For Models: M1TXEMMWW02, M1TXEMMWB02, M1TXEMMWS02, M1TXEMMWQ02
(White) (Black) (Stainless Steel) (Biscuit)
W10305562
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
Parts Not Illustrated and
Optional Parts (Not Included)
Miscellaneous
978941 Insulation,
Fiberglass
(63−1/2" x 35−1/2"
x 2−5/8")
212643 Sealer, Gum
(4 Feet)
479502 Tape, Vinyl
(3/4" x 108")
876305 Kit, Insulation
(14 Pcs.
3" x 24" x 48")
876370 Kit, Insulation
(2 Pcs.
3" x 24 " x 48")
876029 Kit, Foam Slab
(30" x 32−1/2" x
1−1/2")
505587 Sealer, Mastic
(1 Qt.)
511873 Touch−Up, White
Porcelain (2 Oz.)
542638 Grease, Silicone
(1/2 Oz.)
542639 Cement,
Alumilastic
(1−1/4 Oz.)
606755 Bag, Insulation
(36−5/8" x 46")
799833 Kit, Evaporator
Repair
(Aluminum Epoxy)
799832 Kit, Porcelain
Repair (White)
503695 Cork Sealer
(1/4 Pound)
Customer Touch−Up Material
350942 Primer, White
(12 Oz. Spray Can)
350939 Enamel, Black
(12 Oz. Spray Can)
350930 Enamel, White
(12 Oz. Spray Can)
4392901 Enamel, Biscuit
(12 Oz. Spray Can)
72017 Brush Touch−Up Kit
(White)
72032 Brush Touch−Up Kit
(Black)
4392899 Brush Touch−Up Kit
(Biscuit)
Refinishing Material
799344 Enamel, White
(1 Qt. Uncut)
4392900 Enamel, Biscuit
(1 Qt. Uncut)
786032 Enamel, Black
(1 Qt. Uncut)
833938 Kit, Terminal
Connector
Important: The spray paint is
not to be used where the paint
may make contact with the door
gaskets.
TORX SCREW WRENCH
1117510 Torx Key
