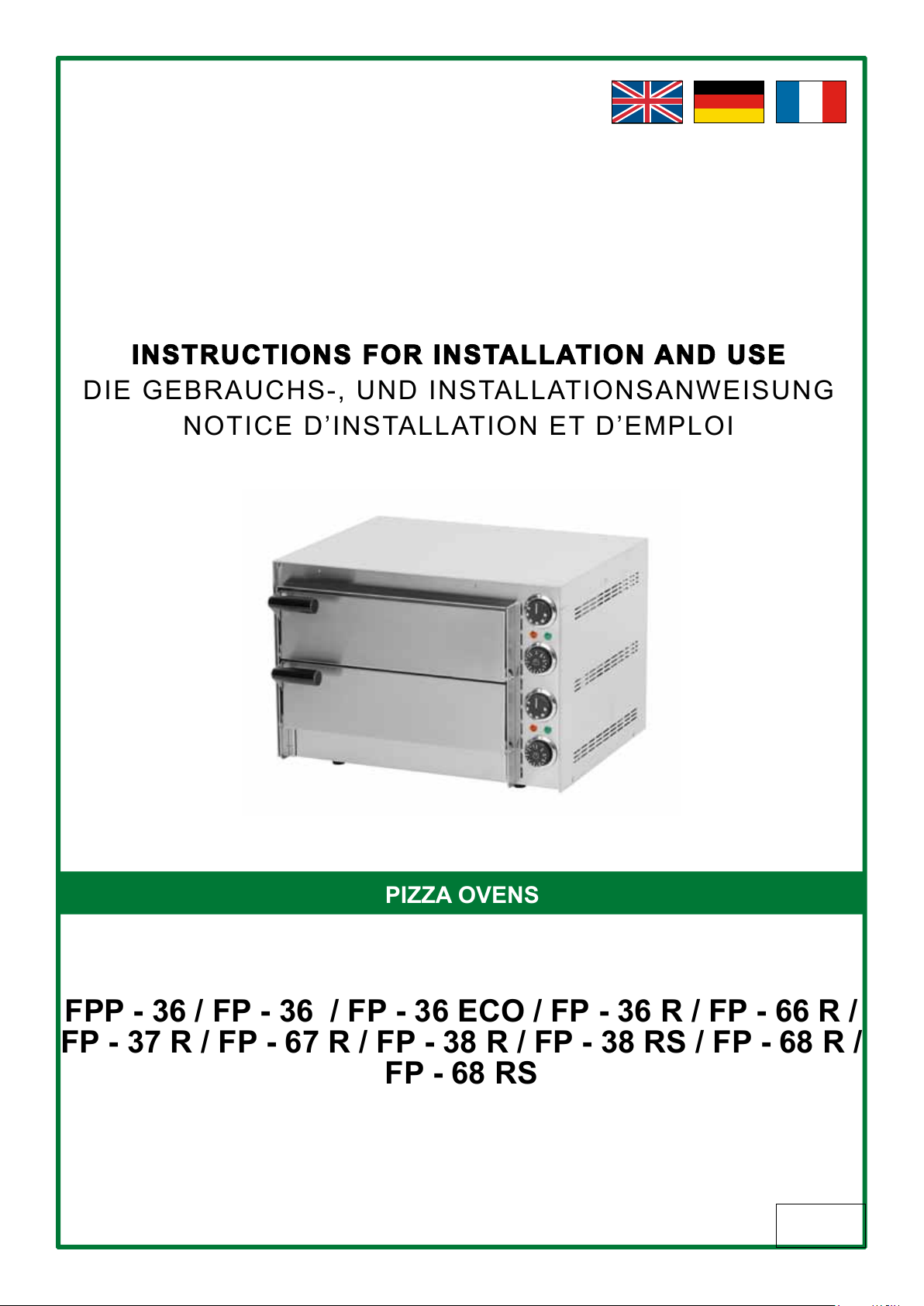

Mayway Fpp-36 User manual

INSTRUCTIONS FOR INSTALLATION AND USE

DIE GEBRAUCHS-, UND INSTALLATIONSANWEISUNG

NOTICE D’INSTALLATION ET D’EMPLOI

Date:

2015

FPP - 36 / FP - 36 / FP - 36 ECO / FP - 36 R / FP - 66 R /

FP - 37 R / FP - 67 R / FP - 38 R / FP - 38 RS / FP - 68 R /

FP - 68 RS

PIZZA OVENS

DECLARATION OF A STANDARDS CONFORMITY

The producer conﬁ rms that the devices agree with 2004/108/ES, 2006/95/ES standards, rule nr. 616/2006

sb., 17/2003 sb. and with relevant goverment orders. Instalation must be done with respect to valid standards.

Attention, the producer refuses any responsibility in case of direct or indirect damages which are caused due

to wrong instalation, incorrect intervention or modiﬁ cation, insufﬁ cient maintenance, incorrect use and also

possibly caused by other reasons presented by items in sale conditions. This appliance is set only for skilled

use and must be operated by qualiﬁ ed persons only. Parts set and secured by the producer or accredited

person must not be rebuilt by user.

TECHNICAL DATA

Label with technical data is placed on the back side of the device. Study the electrical diagram of connection

and all following information before instalation.

DECLARATION OF A STANDARDS CONFORMITY

The producer conﬁ rms that the devices agree with 2004/108/ES, 2006/95/ES standards, rule nr. 616/2006

sb., 17/2003 sb. and with relevant goverment orders. Instalation must be done with respect to valid standards.

Attention, the producer refuses any responsibility in case of direct or indirect damages which are caused due

to wrong instalation, incorrect intervention or modiﬁ cation, insufﬁ cient maintenance, incorrect use and also

possibly caused by other reasons presented by items in sale conditions. This appliance is set only for skilled

use and must be operated by qualiﬁ ed persons only. Parts set and secured by the producer or accredited

person must not be rebuilt by user.

TECHNICAL DATA

Label with technical data is placed on the back side of the device. Study the electrical diagram of connection

and all following information before instalation.

PACKING AND DEVICE CHECK

The device leaves our stocks properly packed with appropriate symbols and labels. There are also appropriate

instructions for use. In case the packing shows bad handling or damage, it must be reclaimed at transporter

immediately by writing and signing of a damage protocol.

Important notice:

• only for proffesional use

• this instructing guide must be read properly and carefully because it contains important information about

safety elements, installation, use

• these recommendations refer to this product

• this product corresponds with valid standards

• this guide must be properly deposited for future use

• keep the children away from manipulation with the product

• when selling or moving the product to another place it is necessary top make yourself sure that the staff

or the professional service has got acquainted with control and installation instructions from enclosed guide

• only authorised person can operate the product

• it can not be switched on without supervision

• we recommend to have the product checked by professional service min. once a year

• only original spare parts can be used for repairs

• the product can not be cleaned by the water jet or pressure shower

• by damage or break down disconnect all the feeders (water, gas, electricity) and call professional service

• producer refuses any responsibility in case of damages caused by wrong installation, by disobserving of

above mentioned recommendations or by other use etc.

PRODUCT

TYPE PIIZZA NUMBER OF THER-

MOSTATS (ITEMS)

POWER INPUT

MAX. (KW)

VOLTAGE

(V/HZ)

CHAMBER DIMEN-

SIONS (CM)

DIMENSIONS

(CM)

FPP - 36 1x ø 32 cm 1 1,75 230 / 50 34 x 34 x 8 50 x 40 x 22 v

FP - 36 1x ø 32 cm 1 1,75 230 / 50 41 x 37 x 8 55 x 40 x 21 v

FP - 36 ECO 1x ø 32 cm 1 1,75 230 / 50 34 x 34 x 8 48,8 x 50 x 19,2 v

FP - 36 R 1x ø 35 cm 1 2 230 / 50 41 x 37 x 9 55 x 43 x 24,5

FP - 66 R 2x ø 35 cm 2 2,7 230 / 50 (2x) 41 x 37 x 9 55 x 43 x 37,5

FP - 37 R 1x ø 35 cm 1 2 230 / 50 41 x 37 x 9 55 x 43 x 24,5

FP - 67 R 2x ø 35 cm 2 2,7 230 / 50 (2x) 41 x 37 x 9 55 x 43 x 37,5

FP - 38 R 1x ø 35 cm 2 2 230 / 50 41 x 37 x 9 55 x 47 x 25

FP - 68 R 2x ø 35 cm 4 3,4 230 / 50 (2x) 41 x 37 x 9 57 x 47 x 45

FP - 38 RS 1x ø 35 cm 2 2 230 / 50 41 x 37 x 9 55 x 47 x 25

FP - 68 RS 2x ø 35 cm 4 3,4 230 / 50 (2x) 41 x 37 x 9 57 x 47 x 45

PLACEMENT

The device must be instalated in well ventilated room what is necessary for regulation of the function of the

device (technician must go by valid standard (EN....). If the device is situated close to the wall or if it is in

contact with the furniture walls, these walls must resist the temperatures ranging to 90°C. Instalation, setting,

putting into operation must be done by qualiﬁ ed person who is competent for this and according to the valid

standards.

Wrap up the device and check whether it was not damaged during transport. Settle the device on horizontal

surface (max imbalance 2°).Settle the device under the fumehood to eliminate water steam and bad smell.

The device can be instalated separately or in a set with devices of our production. Min. distance 10 cm

from other subjects must be kept.It is also necessary to prevent our product from contact with combustible

materials. In this case you must make corresponding changes to secure heat izolation of combustible parts.

Safety measures from the standpoint of the ﬁ re protection according to EN 061008čl. 21:

TECHNICAL INSTRUCTIONS FOR INSTALATION AND REGULATION

Important:

The manufacturer does not provide warranty for defects caused by improper use, failure to instructions

contained in the attached instructions for use and mistreatment of the appliances.

Installation, adjustment and repair of appliances for kitchens, as well as their removal because of possible

damage to the gas can be carried out only under a maintenance contract, this contract may be signed with an

authorized dealer, and must be complied with regulations and technical standards and regulations regarding

the installation, power supply, gas connection and health & safety system.

These instructions are intended for the qualiﬁ ed technician who must perform the installation, put it into

operation and test the appliance.

Any activity as settings, placement, rebalancing etc, must be made only when is device disconnected from

electricity. If it is necessary to have the device connected to the electricity you must keep the highest attention

to avoid any injuries.

DEVICE INSTALATION

Instalation, setting, rebuilding for another gas type, putting into operation must be done by qualiﬁ ed person

whois competent for this and according to the valid standards. The device can be instalated in good ventilated

room. When it is possible place the device under the fumehood to suck off the products of combustion. Air

needy to the burning is 2m/3/h/kW ot the performance of the instaled device. The device can be instalated

separately or in a set with devices of our production. Min. distance 10 cm from other subjects must be kept.It

is also necessary to prevent our product from contact with combustible materials. In this case you must make

corresponding changes to secure heat izolation of combustible parts (for example:place between the device

and combustible material azbestos plate).

SAFETY MEASURES FROM THE STANDPOINT OF THE FIRE

PROTECTION ACCORDING TO EN 061008 ČL. 21

• only adults can operate the device

• device must be safely used in common surroundings according to EN 332000-4-462; EN 332000-4-42. You

must switch the gas device off under the circumstances leading: to the danger of the temporary rise of the

combustion gas or steam or during works when there is a big possibilityof rise ot the temporary ﬁ re danger

or explosion (for example: to stick linoleum, PVC etc.).

• before you start to instal the device you must get the licence for connection to the gas feeder from the

gasworks

• device must be placed so as to stand or hang on the noncombustible surface which is on each side 10

cm larger than the device. No subjects from combustible materials can be placed directly on the device

or in distance which is shorter than safety distance (the shortestdistance is 50 cm in the direction of the

heat emission and 10 cm in other directions).- safety distances from various materials of different degree of

combustion and information about the degree of comb. of common building materials - see chart:

Chart:

Combustion degree of building materials classiﬁ ed according to the combustion degree of materials and

products (EN 730823)

A noncombustible granit, sandstone, concretes,bricks, ceramic wallfacing tiles, plaster

B uneasily combustible akumine, heraklite, lihnos, itavere

C1 hardly combustible leafy wood, plywood, sirkoklit, rare paper formica

C2 middle combustible ﬁ breboards, solodure, cork boards, rubber,ﬂ oor-coverings

C3 easily combustible wood-ﬁ breboards, polystyrene,polyurethane, PVC

Devices must be instalated in a safe way. When instaling you must respect corresponding project, safety and

hygienic orders according to:

• EN 061008 ﬁ re protection of local devices and sources of heat

• EN 332000 (33 2000-4-482; 33 2000-4-42) surrounding for electric devices ČSN EN 1775 Gas supplying

• Gas ﬁ ttings in the buildings - the highest operational pressure < 5 bar - operation demands

• § 10 law nr. 185/2001 Sb. about waste

CONNECTION OF THE ELECTRIC CABLE TO THE ELECTRICITY

Instalation of electric feeder - This feeder must be separetely protected by a safety fuse according to the

speciﬁ c electric stream which depends on the wattage of the instaled device. Check the wattage on the label

at the back of the device. Connect the device directly to the electricity but you must put the switch between

the device and electric net. The switch must be placed in min. distance 3 mm between the particular contacts

according to the standards and loading. The feeder of grounding (yellow-green) cannot be interrupted by this

switch. In every case feeding cable must be placed so that no point of the cable will reach the temperature

which is 50°C higher than the temperature of the surrounding. Before connecting the device check that:

• safety fuse of the feeder and inner mains can stand the loading of the device (see label of the matrix)

• mains are equipped with effective grounding according to standards (ČSN) and conditions given by law

• socket or switch of the feed is well accessible from device

We refuse any responsibility in case of not respecting above mentioned rules. Before the ﬁ rst use it is

necessary to remove all the protection foil and to clean the device - see chapter „cleaning and maintenance“.

Maintenance: We recommend to have the device checked once a year by the proffesional service. Only

qualiﬁ ed or competent persons can do interventions in the product.

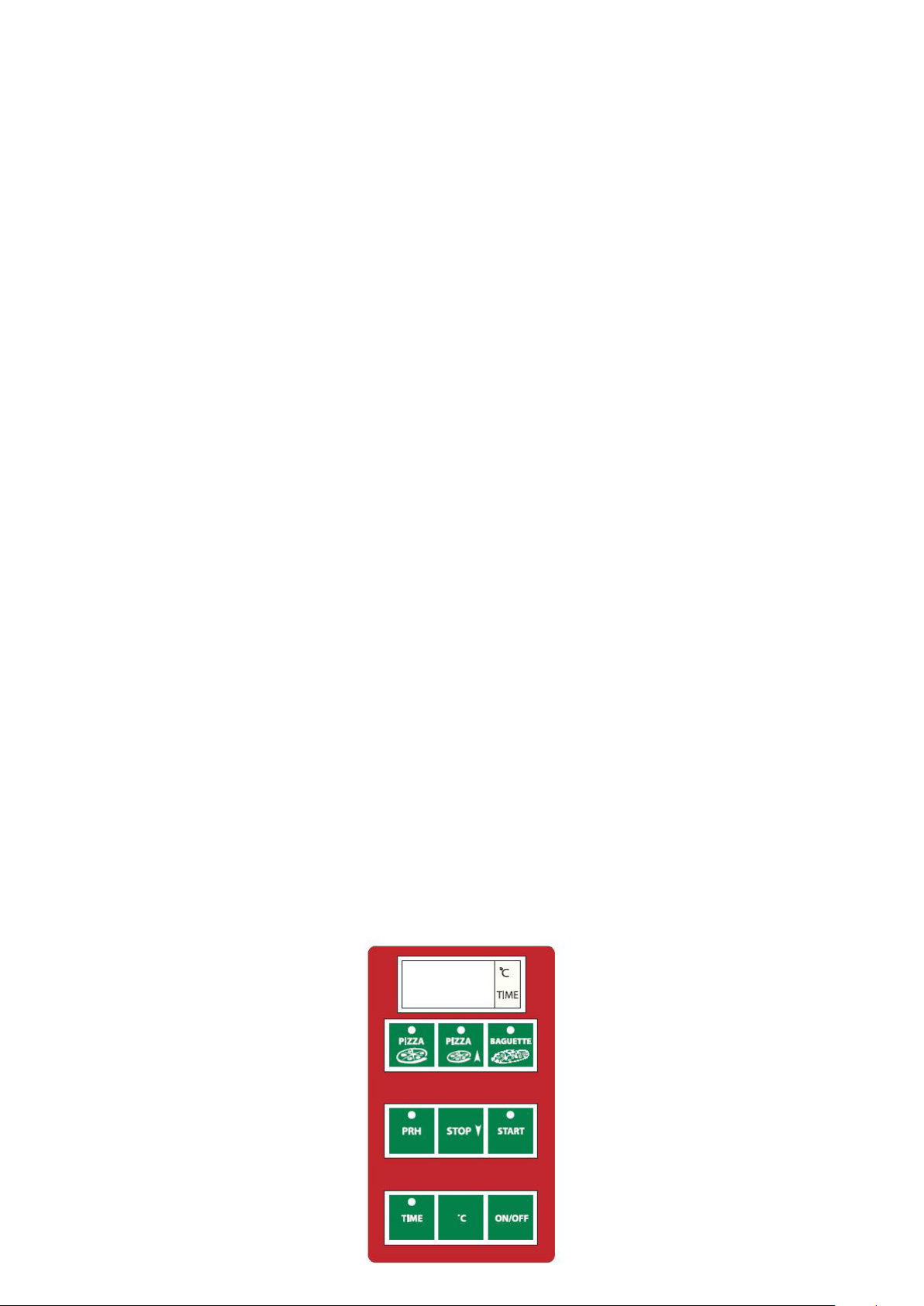

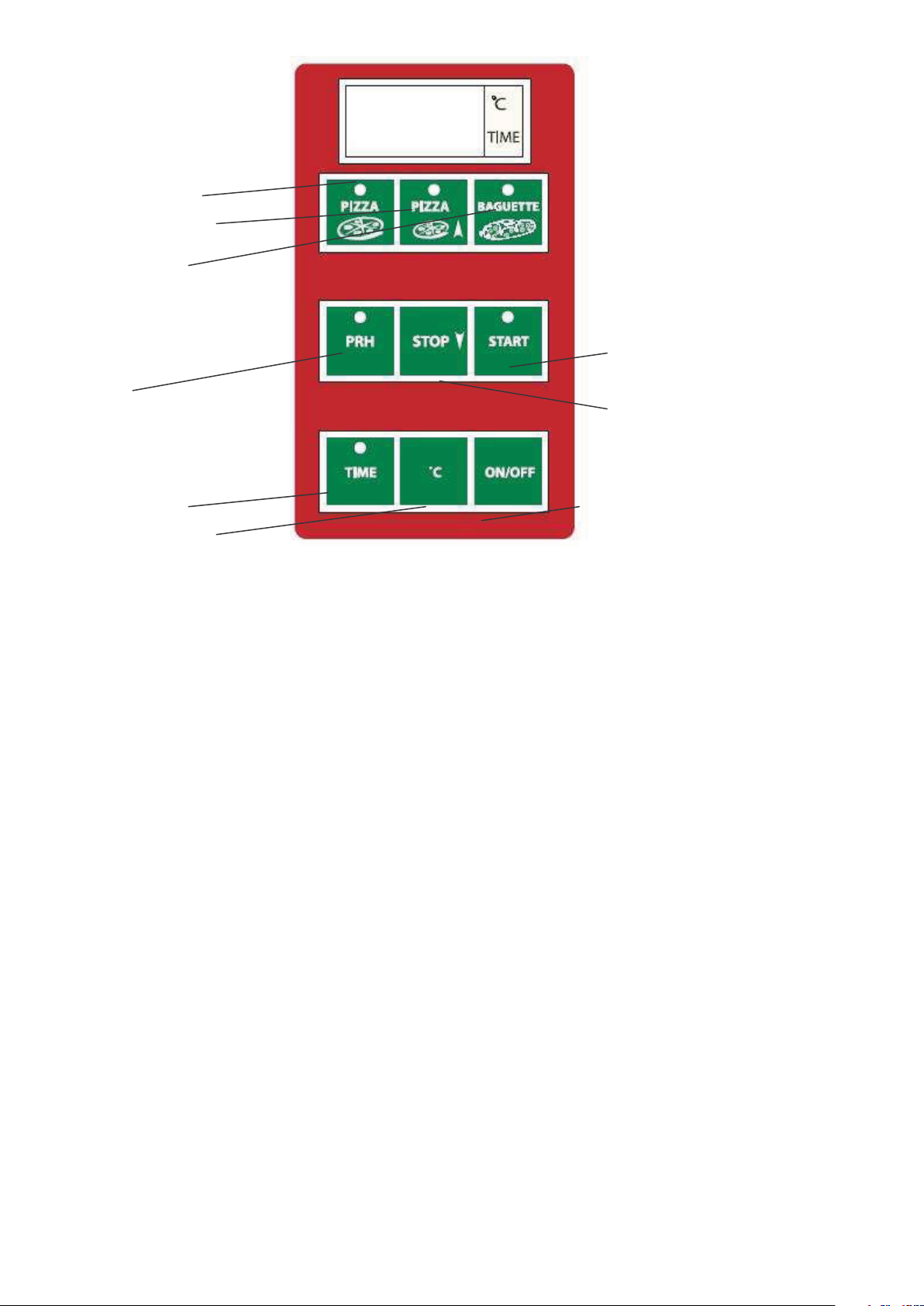

INSTRUCTION FOR USE

Attention

Before the ﬁ rst use of the device you must remove protection foil from all surfaces and wash the device

with moist cleaning cloth.

In order to switch on the oven, turn clockwise the knob (A) of the timer until reaching the requested time of

cooking from 0 to 15 minutes. The orange light (B) turns on to signal that the appliance is on. In order to

use the oven without timing, you can choose the manual mode by turning the knob unclockwise until pointer

is in the position ON. To regulate the temperature of the oven, turn clockwise the thermostat knob (D) until

reaching the requested temperature between 50 and 300 degrees. When temperature is reached, the

green light (c) turn off. To turn off heating elements before set time, turn slowly timer knob unclockwise until

reaching the 0 position. Také care, as forced operation can damage it seriously!

Open and close the door using the handle. Avoid putting hands in when the oven is on or is still hot. Use

gloves or appropriate accessories for this purpose.
