Quick GuideQuick Guide
This Quick Guide is provided as a simple explanation of how to operate some of the
features equipped on your MAZDA CX-30.
Essential Safety Equipment
Before Driving
When Driving
Interior Features
Maintenance and Care
The meaning for each of the symbols used in the Quick Guide is as follows:
Detailed explanation pertaining to some information.
If Trouble Arises
For more information regarding the following sections, refer to the main owner's manual.
The content described in the quick guide may differ depending on the vehicle grade and
specification.
10
45

Essential Safety Equipment
1
1. Moving the steering wheel and seat to their default positions.
2. Adjusting the seatback angle.
3. Adjusting the seat position forward and back.
4. Adjusting the seat height.
5. Adjusting the height on the front edge of the seat bottom.
6. Adjusting the steering wheel position.
7. Adjusting the head restraint position.
Seat Operation
The adjustments for the driving position recommended by Mazda are done using
the following procedures.
Adjusting the Driver's Seat
Seat Slide
Height Adjustment
Seat Recline
Height Adjustment for Front
Edge of Seat Bottom
Lumbar Support Adjustment
Lower the lever, move the steering
wheel to the lowest position, and then
push it down and all the way back.
How to move the steering wheel to
its default position
Before making adjustments to the driving position recommended by Mazda
1. Slide the seat all the way back.
2. Lower the seat to its lowest
height.
3. Lower the front edge of the seat
bottom to its lowest height.
4. Sit squarely in the seat and rest
your back against the seatback.
How to move a driver’s seat to
its default position
Power operation
For details, refer to Section 2, “Seats”.

Essential Safety Equipment
Adjust the seatback to the angle providing a comfortable seated posture.
Adjust the seat to the position best for operating the accelerator and brake pedals.
Seat adjustment procedure for the driving position recommended by Mazda
Adjusting the seatback angle (reclining)
Adjusting the seat position forward and back (sliding)
With your posture slightly slouched,
move the seatback forward to the angle
where your waist feels slightly cramped.
Move the seatback backward to a
comfortable seated posture without any
feeling of cramping in your waist.
Place your left foot on the footrest, your
right foot between the accelerator and
brake pedals. With your heel set on the
floor, set your right foot on the brake
pedal and move the seat forward as far
as possible until you feel a slight
cramping in your ankle.
With your right foot set on the brake
pedal, move the seat back until you
no longer feel cramping in your
ankle. For the details, refer to the
owner’s manual.
Seat Operation
For details, refer to Section 2, “Seats”.
2

Essential Safety Equipment
For details, refer to Section 2, “Seats”. 3
Seat Operation
Adjust the seat height to a position where you have a clear forward view and you
can drive the vehicle easily.
Adjusting the seat height
With your back resting against the
seatback, raise the seat to the height
where you can see the rear edge area
of the bonnet surface from the
windscreen.
Adjust the height on the front edge of the seat bottom to the position where
the back of your knees contacts the front edge of the seat bottom.
Adjusting the height on the front edge of the seat bottom
With your right foot set on the
accelerator pedal, adjust the height on
the front edge of the seat bottom so that
the back of your knees lightly contacts
the front edge of the seat bottom.
Depress the accelerator pedal and make
sure that you no longer feel cramping
in the back of your knees.
Adjusting the steering wheel position
Adjust the steering wheel to the position where it can be operated easily and the
gauges can be viewed easily.

Before Driving
Seat Operation
For details, refer to Section 2, “Seats”, refer to Section 3, “Keys” or “Doors and Locks”.
4
Operational Range
Advanced Keyless Entry System
The advanced keyless system operates only when the driver is in the vehicle or
within operational range while the key is being carried.
The advanced keyless function allows you to lock/unlock the door, liftgate, and
fuel-filler flap, or open the liftgate while carrying the key.
Adjusting the head restraint position
Adjust the head restraint so that the centre is even with the top of the passenger's
ears.
Exterior aerial
80 cm (31 in)
Operational range
Lock/Unlock Opening the Liftgate

Before Driving
Fuel Requirements and Capacities
Premium unleaded fuel
(Conforming to EN 228 and
within E10)*1
*1 Europe
Fuel Research Octane Number Capacity
95 or above
SKYACTIV-G 2.0, SKYACTIV-X 2.0
The vehicle will operate efficiently on diesel fuel with
specification EN590 or the equivalent.
When refuelling, always add at least 10 L (2.6 US gal, 2.2 Imp gal) of fuel.
Fuel Capacity
SKYACTIV-D 1.8
51.0 L (13.5 US gal, 11.2 Imp gal)
AWD:
48.0 L (12.7 US gal, 10.6 Imp gal)
2WD:
51.0 L (13.5 US gal, 11.2 Imp gal)
AWD:
48.0 L (12.7 US gal, 10.6 Imp gal)
2WD:
By touching the sensing area of the touch sensor, various locking/unlocking
operations can be done without taking the key out of a bag or pocket.
Locking, Unlocking with Touch Sensor, Door Handle
Locking Unlocking
When locking/unlocking with the transmitter carried, securely touch the sensing
area of the touch sensor as follows.
5
For details, refer to Section 3, “Doors and Locks” or “Fuel and Emission”.

Before Driving
6
Refuelling
1. Using the following, unlock the driver’s door.
• Transmitter
• Touch sensor
• Door-lock switch
• Auto lock/unlock function
Fuel-Filler Flap and Cap
2. Press the location shown in the illustration and
open the fuel flap.
3. To remove the fuel-filler cap, turn it
anticlockwise.
4. Attach the removed cap to the inner side of the
fuel-filler flap.
5. Insert the refuelling nozzle all the way and
begin refuelling. Pull out the refuelling nozzle
after the refuelling stops automatically.
6. To close the fuel-filler cap, turn it clockwise
until a click is heard.
7. To close, press the fuel-filler flap until a click
sound is heard.
8. Make sure to lock all the doors when leaving
the vehicle.
Before refuelling, close all the doors, windows, and the liftgate, and switch the
ignition OFF.
Fuel-filler flap
Fuel-filler cap
For details, refer to Section 3, “Fuel and Emission”.

Before Driving
7
Power Liftgate
The power liftgate opens/closes electrically by operating the switches in the
vehicle or the buttons on the keyless entry system transmitter.
Press the power liftgate switch for
about 1 second or longer while the
liftgate is in the fully closed/open
position. The hazard warning lights
flash twice and the liftgate opens/closes
fully after a sound is activated.
Operation using the transmitter
When the power liftgate button on the transmitter is pressed and held for about 1
second or longer with all of the following conditions met, the hazard warning lights
flash 2 times, a beep sound is activated, and the liftgate automatically opens/closes
fully.
• The ignition is switched OFF.
• The vehicle is stopped.
Operation from outside (To close)
Press the power liftgate close switch while the liftgate is fully opened. The
hazard warning lights flash twice and the liftgate closes automatically after
the beep sound is heard.
(With the advanced keyless function) (Without the advanced keyless
function)
Operation from the driver's seat
(To open/close)
For details, refer to Section 3, “Doors and Locks”.

Before Driving
8
Outside Mirrors
1. Press the select switch for the outside
mirror to be adjusted to turn on the
indicator light.
To adjust:
2. Press the adjustment switch to adjust the
angle of the outside mirror.
Indicator light
Select switch
Adjustment switch
Automatic folding function
When the ignition is switched to OFF, the outside
mirrors automatically fold in and out when the
doors are locked and unlocked.
Also, when the ignition is switched ON or the
engine is started, the outside mirrors fold out
automatically.
The ignition must be switched to ACC or ON position.
For details, refer to Section 3, “Mirrors”.

Before Driving
9
Operation of the Power Windows
The window opens while the switch is pressed and it closes while the switch is
pulled up with the ignition switched ON.
Rearview Mirror
Rearview mirror adjustment
Auto-dimming mirror
Front passenger's window
switch/Rear window switches
Before driving, adjust the rearview
mirror to centre on the scene through the
rear window.
The auto-dimming mirror automatically reduces the glare of headlights from
vehicles at the rear when the ignition is switched ON.
Close
Open
Front passenger's
window
Right rear window
Power window lock
switch
Left rear window
Driver's window
Locked position
Unlocked position
Close
Open
Master control switches
For details, refer to Section 3, “Mirrors” or “Windows”.

When Driving
10
(SKYACTIV-D 1.8)
• The starter does not rotate until the glow indicator light turns off.
Indicator light
Push button start
• If the ignition is left switched ON for a long period of time without the engine
running after the glow plugs are warmed up, the glow plugs may warm up again
which will illuminate the glow indicator light.
1. Make sure the parking brake is on.
2. Continue to depress the brake pedal firmly
until the engine has completely started.
3. (Manual transmission)
Continue to depress the clutch pedal firmly
until the engine has completely started.
(Automatic transmission)
Put the vehicle in park (P). If you must restart
the engine while the vehicle is moving, shift
into neutral (N).
4. Press the push button start after the push button start
indicator light (green) turns on.
• When starting the engine, do not release the clutch pedal (manual tranmisson) or
the brake pedal (automatic tranmisson) until the glow indicator light in the
instrument cluster turns off and the engine starts, after pressing the push button
start.
• If the clutch pedal (manual tranmisson) or the brake pedal (automatic
tranmisson) is released before the engine starts, depress the clutch pedal (manual
ttranmisson) or the brake pedal (automatic tranmisson) again and press the push
button start to start the engine.
Starting the Engine
For details, refer to Section 4, “Start/Stop Engine”.

When Driving
11
Operation of i-stop Function
The i-stop function automatically stops the engine when the vehicle is stopped at a
traffic light or stuck in traffic, and then restarts the engine automatically to resume
driving. The system provides improved fuel economy, reduced exhaust gas
emissions, and eliminates idling noise while the engine is stopped.
• The i-stop indicator light (green) turns on under the following conditions:
• After parking the vehicle, make sure that the ignition is switched OFF. There is
the possibility of the vehicle moving if the vehicle is parked while i-stop is
operating.
• When engine idling is stopped.
• The i-stop indicator light (green) turns off when the engine is restarted.
The i-stop function restart conditions differ depending on the system used.
For details, refer to Section 4, “Start/Stop Engine”.

When Driving
12
i-stop OFF Switch
i-stop warning light (amber)/i-stop indicator light (green)
i-stop Warning Beep
When pressing the switch, the i-stop
function stops and the i-stop OFF switch
indicator light turns on. If the switch is
pressed again, the i-stop function becomes
operational and the i-stop OFF switch
indicator light turnes off.
i-stop indicator light (green)
• The light turns on while engine idling is stopped and
turns off when the engine is restarted.
i-stop warning light (amber)
• The light turns on when the ignition is switched ON and
turns off when the engine is started.
If the driver's door is opened while engine idling is stopped, the warning sound
operates to notify the driver that engine idling is stopped. It stops when the driver's
door is closed.
For the details, refer to the owner's manual.
For details, refer to Section 4, “Start/Stop Engine”.
Indicator light

13
When Driving
For details, refer to Section 4, “Instrument Cluster and Display”.
Warning Indication/Warning Light
Signal Warning
Charging System Warning
Indication/Warning Light
Brake System Warning
Indication/Warning Light
Engine Oil Warning Indication/Warning
Light
High Engine Coolant Temperature
Warning Indication
Power Steering Malfunction
Indication/Indicator Light
Brake Control System Warning
Indication/Warning Light
Master Warning Indication
Brake Override Warning Indication
Check Engine Indication/Light
i-stop Warning Indication/Warning
Light
Automatic Transmission Warning
Indication/Warning Light
Air Bag/Seat Belt Pretensioner System
Warning Indication/Warning Light
Exterior Light Warning
Indication/Warning Light
Seat Belt Warning Indication/Warning
Light (Front seat)
Seat Belt Warning Light (Rear seat)
Door-Ajar Warning Indication
Liftgate-Ajar Warning Indication
Door-Ajar Warning Light
Signal Warning
ABS Warning Indication/Warning Light
These lights turn on or flash to notify the user of the system operation status or a
system malfunction.
Low Washer Fluid Level Warning
Indication/Warning Light
Adaptive LED Headlights (ALH)
Warning Indication/Warning Light
High Beam Control System (HBC)
Warning Indication/Warning Light
Diesel Particulate Filter Warning
Indication/Warning Light
(SKYACTIV-D 1.8)
Petrol Particulate Filter Warning
Indication/Warning Light
(SKYACTIV-X 2.0) (Red)
(Amber)
(Amber)
(Red)
(Amber)
KEY Warning Indication/Warning Light
(Red)
Tyre Pressure Monitoring System
(TPMS) Warning Indication/Warning
Light
Engine Oil Level Warning
Indication/Warning Light
AWD Warning Indication/Warning
Light
Low Fuel Warning Indication/Warning
Light
i-ACTIVSENSE Warning
Indication/Warning Light

When Driving
14 For details, refer to Section 4, “Instrument Cluster and Display”

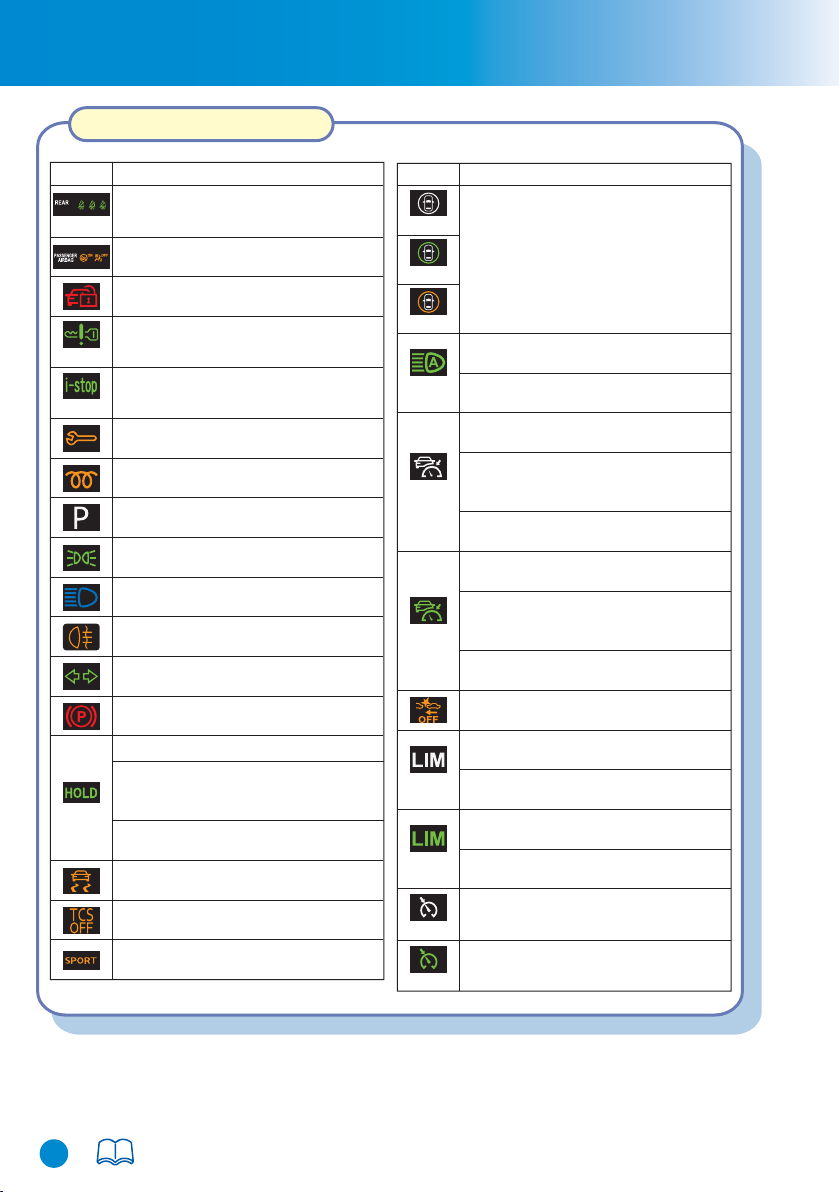

Signal Indicator
Seat Belt Indicator Light (Rear seat)
KEY Indicator Light
i-stop Indicator Light
Wrench Indication/Indicator Light
Glow Indicator Light (SKYACTIV-D
1.8)
Shift Position Indication
Lights-On Indicator Light
Headlight High-Beam Indicator Light
Rear Fog Light Indicator Light
i-ACTIVSENSE Status Symbol
(Warning/Risk Avoidance Support
System)
High Beam Control System (HBC)
Indicator Light
Adaptive LED Headlights (ALH)
Indicator Light
Mazda Radar Cruise Control (MRCC)
Standby Indication
Signal Indicator
Mazda Radar Cruise Control with Stop
& Go function (MRCC with Stop & Go
function) Standby Indication
Cruising & Traffic Support (CTS)
Standby Indication
Mazda Radar Cruise Control (MRCC)
Set Indication
Mazda Radar Cruise Control with Stop
& Go function (MRCC with Stop & Go
function) Set Indication
Cruising & Traffic Support (CTS) Set
Indication
Smart Brake Support (SBS) OFF
Indicator Light
Intelligent Speed Assistance (ISA)
Standby Indication
Adjustable Speed Limiter (ASL)
Standby Indication
Intelligent Speed Assistance (ISA) Set
Indication
Adjustable Speed Limiter (ASL) Set
Indication
Cruise Standby Indication
Cruise Set Indication
Front Passenger Air Bag Deactivation
Indicator Light
Direction Indicator/Hazard Warning
Indicator Lights
Electric Parking Brake (EPB)
Indication/Indicator Light
(Green)
Indication/Indicator Light
AUTOHOLD Active Indicator Light
Cruising & Traffic Support (CTS)
indicator Light
Mazda Radar Cruise Control with Stop
& Go function (MRCC with Stop & Go
function) indicator Light
(Green)
(Green)
(Green)
(Amber)
(White)
(White)
(Green)
(Green)
(Green)
(Green)
(White)
(White)
Security Indicator Light
Select Mode Indicator Light
TCS OFF Indicator Light
TCS/DSC Indication/Indicator Light

When Driving
15
Active Driving Display
The active driving display indicates the vehicle speed, system operation status, and
warnings.
Always adjust the display brightness and position with the vehicle stopped:
Adjusting the display brightness and position while driving the vehicle is dangerous as
doing so could distract your attention from the road ahead and lead to an accident.
WARNING
Display
Dust-proof sheet
For details, refer to Section 4, “Instrument Cluster and Display”

When Driving
16
Automatic Transmission Controls
Drive Selection
Various Lockouts:
Indicates that you must depress the
brake pedal and hold in the
lock-release button to shift (The
ignition must be switched ON)
Indicates the selector lever can be
shifted freely into any position.
Indicates that you must hold in the
lock-release button to shift.
Drive selection is a system to switch the vehicle's drive mode. When the sport mode
is selected, vehicle's response against accelerator operation is enhanced. This
provides additional quick acceleration which may be needed to safely make
manoeuvres such as lane changes, merging onto freeways, or passing other vehicles.
Press the drive selection switch forward ( ) to select the sport mode. Pull the
drive selection switch back ( OFF ) to cancel the sport mode.
Drive Selection Switch
Select Mode Indication
When the sport mode is selected, the
select mode indicator light turns on in
the instrument cluster.
Select mode indicator light
Lock-release button
Selector lever
For details, refer to Section 4, “Automatic Transmission” or “Drive Selection”

When Driving
17
Indicator light
Operation of the Headlights
Operation of the Windscreen Wipers
Operation while pulling up lever
Low speed
Switch Position Wiper operation
High speed
When the wiper lever
is in the
position, the rain
sensor senses the
amount of rainfall on
the windscreen and
turns the wipers on or
off automatically.
Auto control
Stop
When the wiper lever is switched to the position, the indicator
light turns on.
Switch
Higher sensitivity
Centre position
Less sensitivity
For details, refer to Section 4, “Switches and Controls”

When Driving
17
18 For details, refer to Section 4, “Brake”
Electric Parking Brake (EPB)
The EPB system applies the parking brake
using an electric motor. The system can
operate automatically and manually.
The EPB switch indicator light turns on
when applying the parking brake and it turns
off when releasing the parking brake.
When the brake pedal is firmly depressed
and the EPB switch is pulled up, the parking
brake is applied regardless of the ignition
position. When the parking brake is applied,
the EPB indicator light in the instrument
cluster and the EPB switch indicator light
turn on.
Manual operation
Auto operation
When the parking brake is firmly depressed and
the EPB switch is pressed while the ignition is
switched ON or the engine is running, the
parking brake is released. When the parking
brake is released, the EPB indicator light in the
instrument cluster and the EPB switch indicator
light turn off.
Applying the parking brake automatically
For the details, refer to the owner's manual.
When the ignition is switched from ON to ACC or OFF, the parking brake will be
applied automatically. When the parking brake is applied, the EPB indicator light in
the instrument cluster and the EPB switch indicator light turn on.
Applying the parking brake manually
Releasing the parking brake manually
Indicator light

19
When Driving
M Hybrid
M Hybrid uses the Integrated Starter-Generator (ISG) with excellent power
generation efficiency to generate electricity from the kinetic energy generated
when the vehicle decelerates. The system uses the electrical power stored in the M
Hybrid battery, which is a large-capacity battery to improve driveability and fuel
economy by reducing engine load and providing motor assist. In addition, the ISG
provides quiet engine restarting after the engine is stopped by after the i-stop
function (idling stop).
CAUTION
The following parts are extremely hot and have high-current electricity flowing
through them, therefore do not touch them.
• ISG
• DC-DC converter
• M Hybrid battery
Fot the details, refer to the owner’s manual.
ISG
DC-DC Converter
M Hybrid Battery
For details, refer to Section 4, “M Hybrid”.
