CI-VL2-MAZDA3
Installation Manual
Product Name: CI-VL2-MAZDA3
Product Type: Video Interface with (optional) build in navigation
Application: All Mazda 2014/2015 cars with new Mazda Connect systems

What's in the box:
Item
Qty
Description
Part No.
1
1
Video Interface
2
1
Power Interface Harness
3
1
Audio RCA Cable
4
1
Video RCA Cable
5
1
LVDS Cable
6
1
Relay Interface Cable
7
1
Speaker (optional)
8
1
GPS Antenna (optional)

Description:
This video interface is used to install navigation (optional), reverse camera
and 2 other video inputs onto the car screen. It has 4 video inputs:
1. RGB port (External navigation or External Android box).
2. Video In1 (used for DVD, Digital TV, DVR etc).
3. Video In2 (used for DVD, Digital TV, DVR etc).
4. CAM In (used for reverse camera).
Functions:
This interface is complete plug and play. All connectors are easy to install. It has
built in high speed navigation module which is compatible with all new
navigation software's like IGO, Sygic etc.
OEM touch screen can be used to control the navigation. User do not need
to open screen to add PCB or touch overlay.
OEM "call off" button can be used to switch between video sources.
Easy installation, few parts and OEM connectors make this product ideal for users.

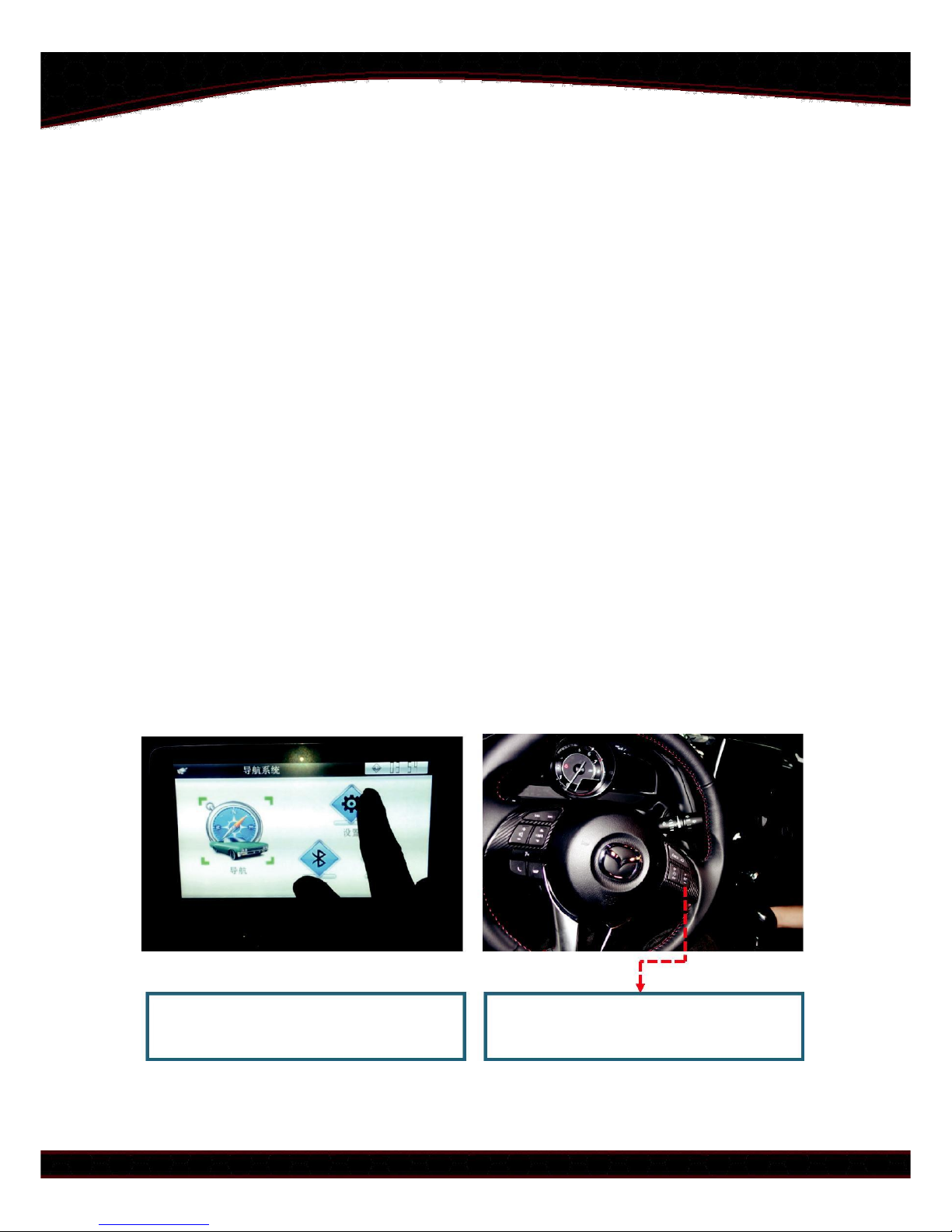

OEM touch screen will be used to control
the navigation.
The "CALL-OFF" button on the steering wheel
is used to switch between video sources.

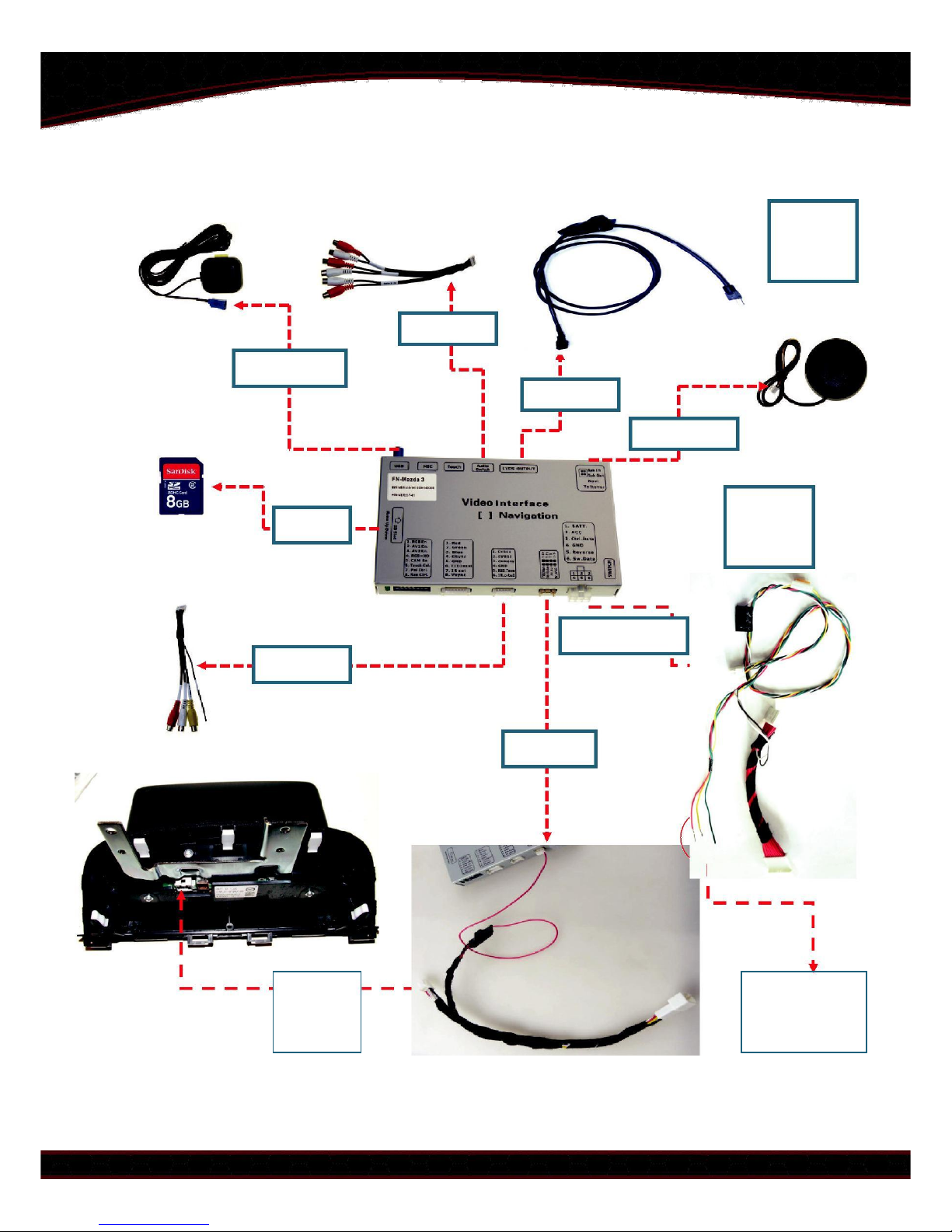

Connections Diagram:
GPS Antenna
SD Card
Video RCA
Connect
behind
LCD
Audio RCA
LVDS Cable
GPS Speaker
Connect
behind
CD unit
Interface Power
CTRL Port
Connect
Connect to ACC
behind
and Reverse
LCD
Trigger

How to connect Power cable:
Connect the Yellow and Red wire together to
Connect to Reverse trigger
Connect separate GREY
ACC of the Car.
of car(reverse light)
wire here.

RGB Port:
The RGB port can be used to connect external GPS module. Can also be used to
connect external Android Box (provided as optional). The Android box has
powerful hardware and customized UI for optimized use in a car while driving.
The Camera can be connected using the Video RCA cable
provided. Red: Backup camera Input.
Yellow: Video Input 1.
White: Video Input 2.
Grey: IR output to control inserted DVD/TV touch control.

DIP Settings:
DIP Down= ON
DIP UP= OFF
DIP
ON
OFF
Default
1
External RGB connected.
Internal GPS module
UP(OFF)
(when using external
Enabled.
GPS/Android box)
2
External video source 1
External video source 1
UP(OFF)
enabled (DVD/Digital TV etc)
Disabled
3
External video source 2
External video source 2
UP(OFF)
enabled (DVD/Digital TV etc)
Disabled
4
RGB Input Resolutions
RGB Input Resolutions
DOWN(ON)
800*480
480*240 or 400*240
5
Reverse camera installed
Reverse camera not
DOWN(ON)
installed
6
Set On Once for IR
Set off for normal use
UP(OFF)
programming and ON/OFF 5
(touch calibration is for
times for touch panel
DVD/TV for Video1 and
calibration
Video2)
7,8
No Function (Keep UP(OFF) in all cases)
Power Definition for 6PIN power connector between CANBOX and Interface:
YELLOW 12V power supply (Battery)
RED: ACC =12V when key in ignition state when=12V the interface works.
BLACK Ground to Chassis.
GREEN Can box generated reverse trigger signal [when =12V the reverse video is enabled], this wire is automatically
generated by CAN bus.
WHITE: This wire is the switch signal, when the user presses call off key. Can switch video source.
GRAY CAN box’s communication data with guideline angle.

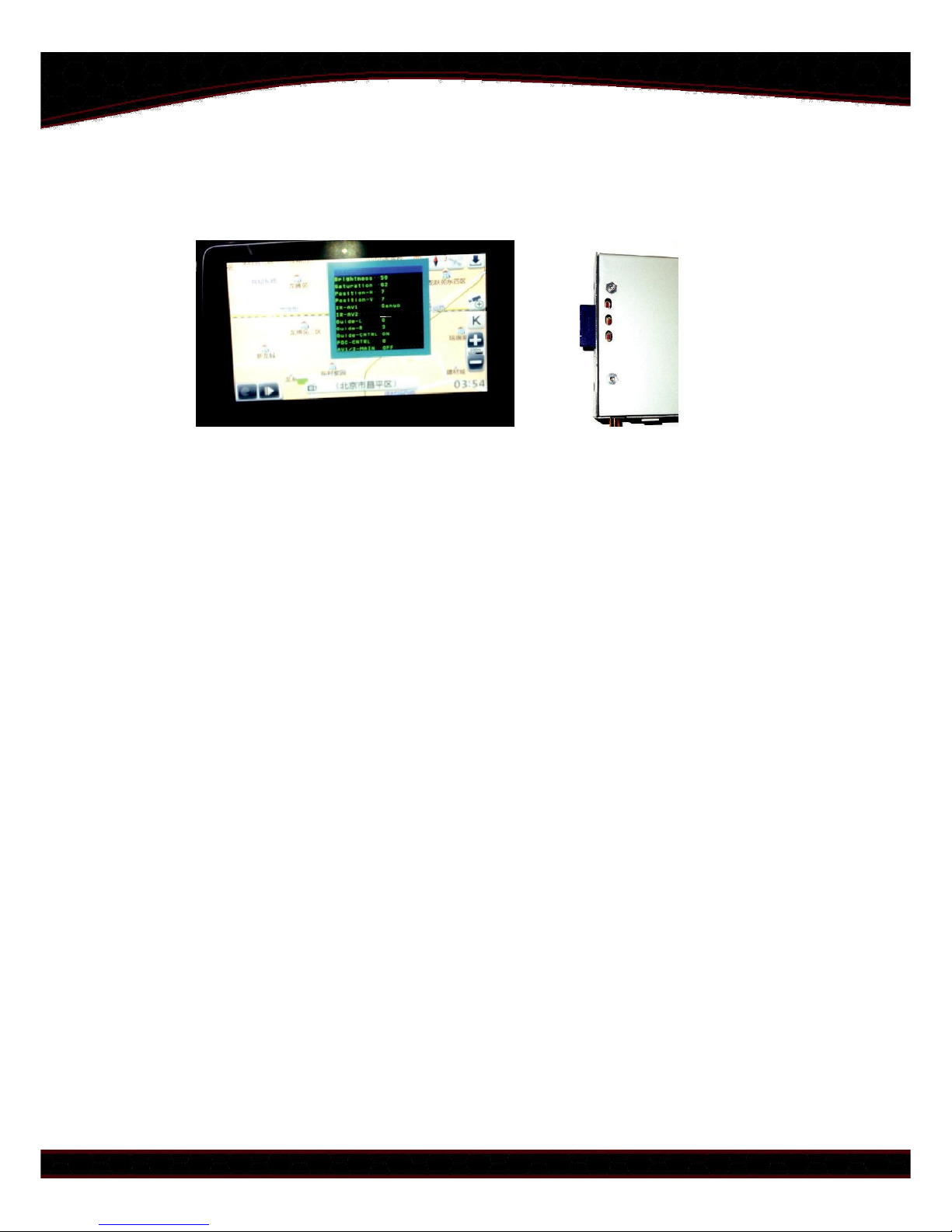

OSD Menu Operation:
The OSD Menu can be brought up by using the three buttons on the interface.
Each Video input i.e. GPS, Video1, Video2, Camera and RGB can be adjusted
separately. The interface has 5 separate memory states for each setting.
The keys used are "menu" "+" and "-".
To bring up the OSD menu press the "menu" button. To toggle between
option use "+" and "-".
Options:
OContrast: Set the contrast of each video source.
OBrightness: Set the Brightness of each video source.
OSaturation: Set the saturation of each video source.
OPosition-H: Set the horizontal position of each video source.
OPosition-V: Set the vertical position of each video source.
OIR-AV1: Use this to IR program the touch control of video source 1.
OIR-AV2: Use this to IR program the touch control of video source 2.
OGuide-L: Use this to set horizontal position of guidelines on the screen.
OGuide-R: Use this to set horizontal position of guidelines on the screen.
OGuide-CNTRL: Use this to turn ON/OFF Parking Guidelines.
OPDC-CNTRL: Use this to turn ON/OFF PDC.

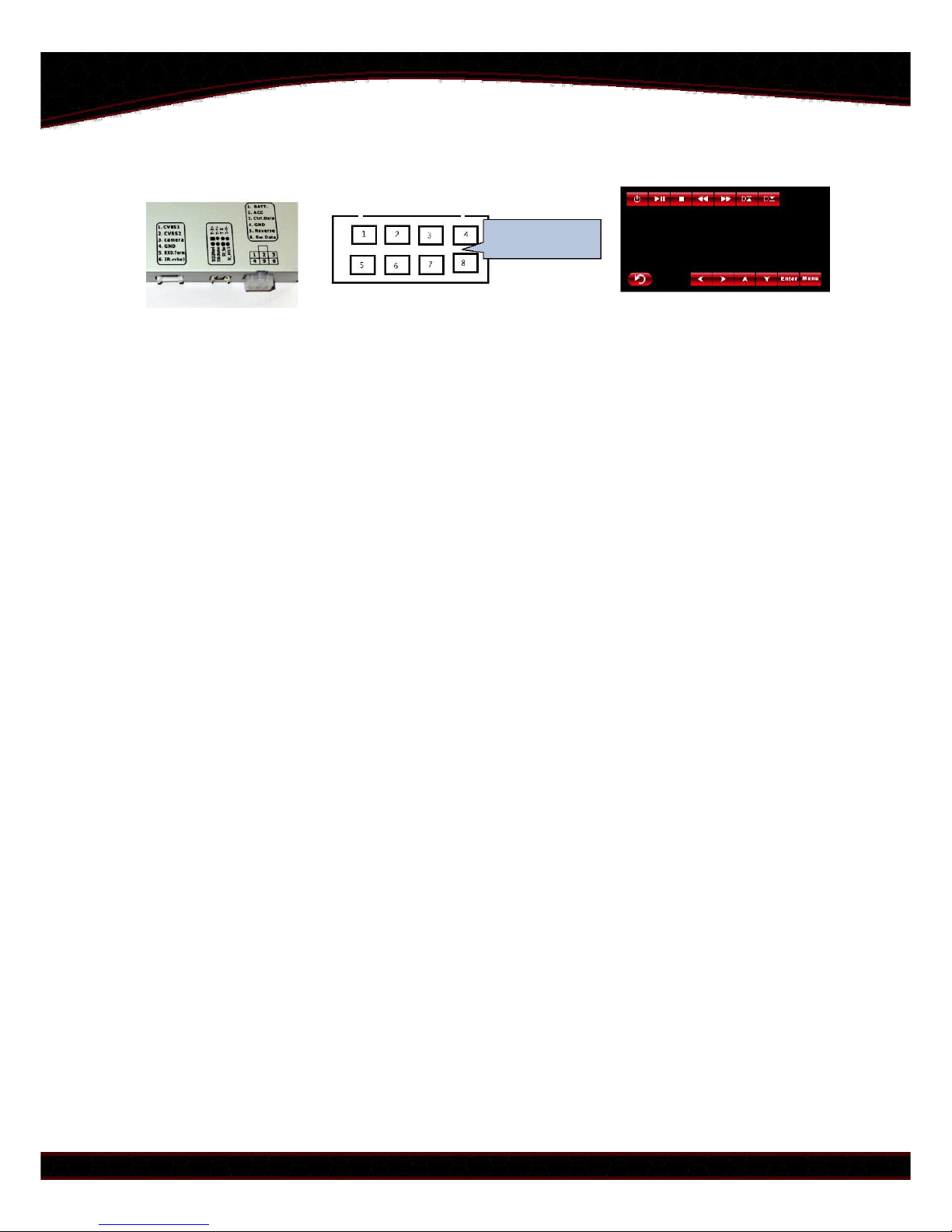

Extra Control Port:
Extra control port:
This interface has released a lot of hidden functions, so the 3rd party can use it
for various usages.
The Extra control port close to the power connector
1 the 4-pin in the up row touch screen 4Pin input, when in DVD or TV,
the touch foil can be switched and connected to these 4Pin, so the
controller inside can read the touch operation and location and
generate the IR code for DVD etc.
2 the 5th Pin(TXD2Navi) the input pin to take external control data for
internal navi, to replace the touch control
3
the 6th Pin (TXD.Status) the interface tells the outside its internal
status.
4
the 7th Pin
5V_SW
: this pin can output 5V with 1A max, which is
enough for a relay pull, when in inserted video this pin=5V, when in
OEM video, this pin=0V.
5
the 8th Pin
5V_AV1/2
this pin can output 5V with 1A max, which is
enough for a relay pull, when in AV1/2 video this pin=5V, otherwise
this pin=0V. it can be used to switch the 4Pin touch so one touch foil is
shared by navi, and DVD/TV.
The 5th pin in the Video input port (RXD.Term)
This interface can work in terminal mode, a 3rd developer or installer can send
commands into this pin. E.g. when he sends “switch Input 1\r”, the interface will
switch into RGB navi, “switch Input 2\r”, the interface will switch into AV1, when
he sends “Help\n” the interface will tell a list of available commands. This Pin
works in 11.5K baud rate and it loses all sent commands when drops power.

Parameters:
No.
Name
Parameter
1
RGB Navigation resolution
800*480 HD suggested.
2
Video source 1, Video Source 2,
0.7Vpp with 75 ohm impedance
Reverse Camera
NTSC/PAL/SECAM automatic switch
3
GPS antenna
5V active antenna from the golden finger
connector
4
Reverse control wire
>5v will switch it to camera mode.
All wires can tolerate 12V for <10 seconds.
5
Normal Power consumption
4.8W
6
Standby current
< 10uA
7
Reverse trigger threshold
>5V trigger
8
Work temperature
-40°C to +85°C
9
Dimensions
15.2*9.0*2.1cm
10
USB
OTG function, 1A output with surge of 3A.
11
Compatible maps
IGO, Sygic, Navitel, Navione etc.
12
HDMI Resolution for RGB port
800*600, 1024*768, 1280*720, 1920*1080 etc
Auto recognition software built in.

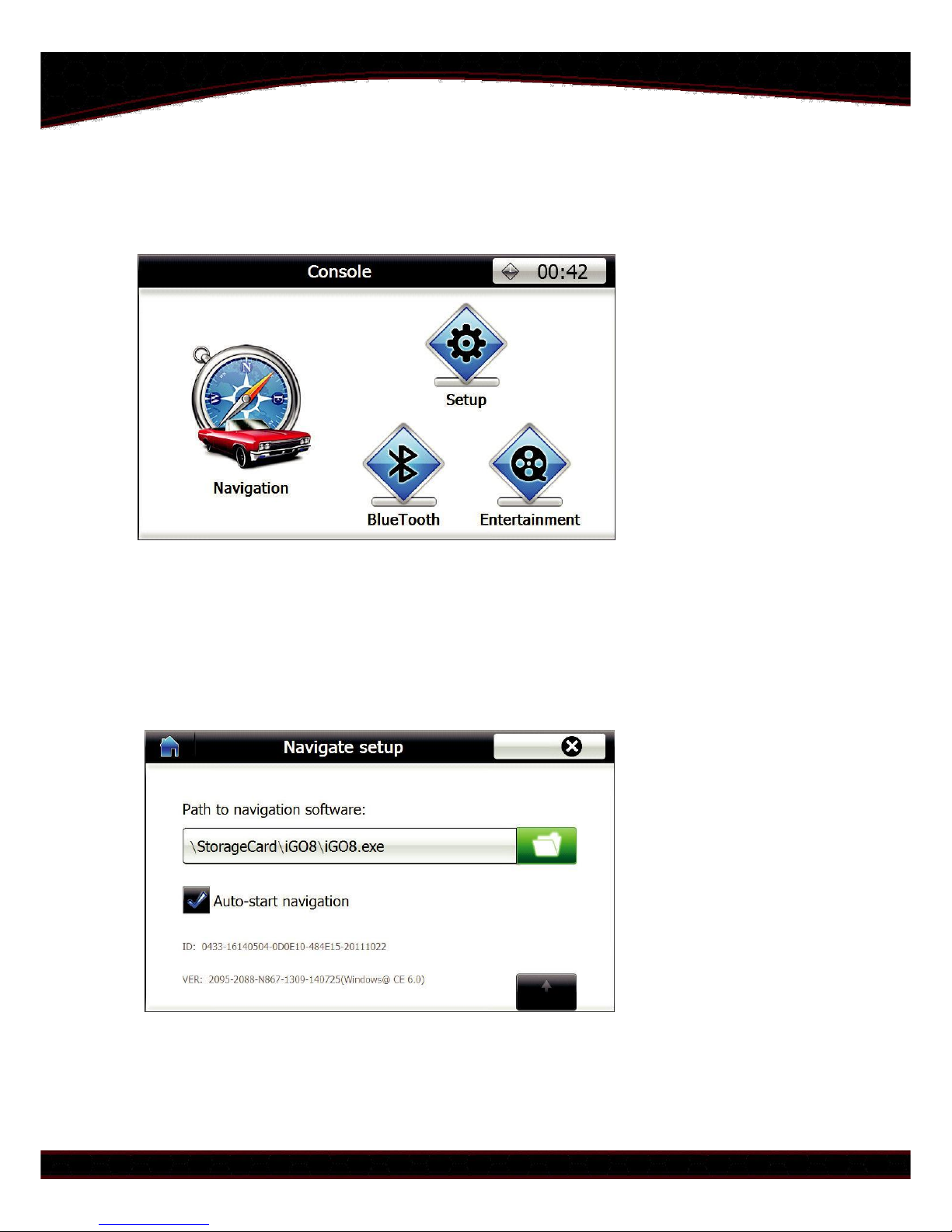

Navigation Functions (optional):
When switching to navigation the main menu will be shown.
To setup up navigation press the "Navigation" icon. If first time use it will take
you to page where user can select default path for the navigation software
through the SD card. Select the ".exe" file for the navigation software. Select
auto-start option if user do not want to set every time. This will execute the
".exe" file path on entering Navigation mode.

When starting for first time. Remove SD card and enter navigation mode. It
will automatically start touch screen calibration. Press the corresponding
crosses on the screen to complete touch calibration.
The main menu consists of three icons. Navigation, Setup and Multimedia.

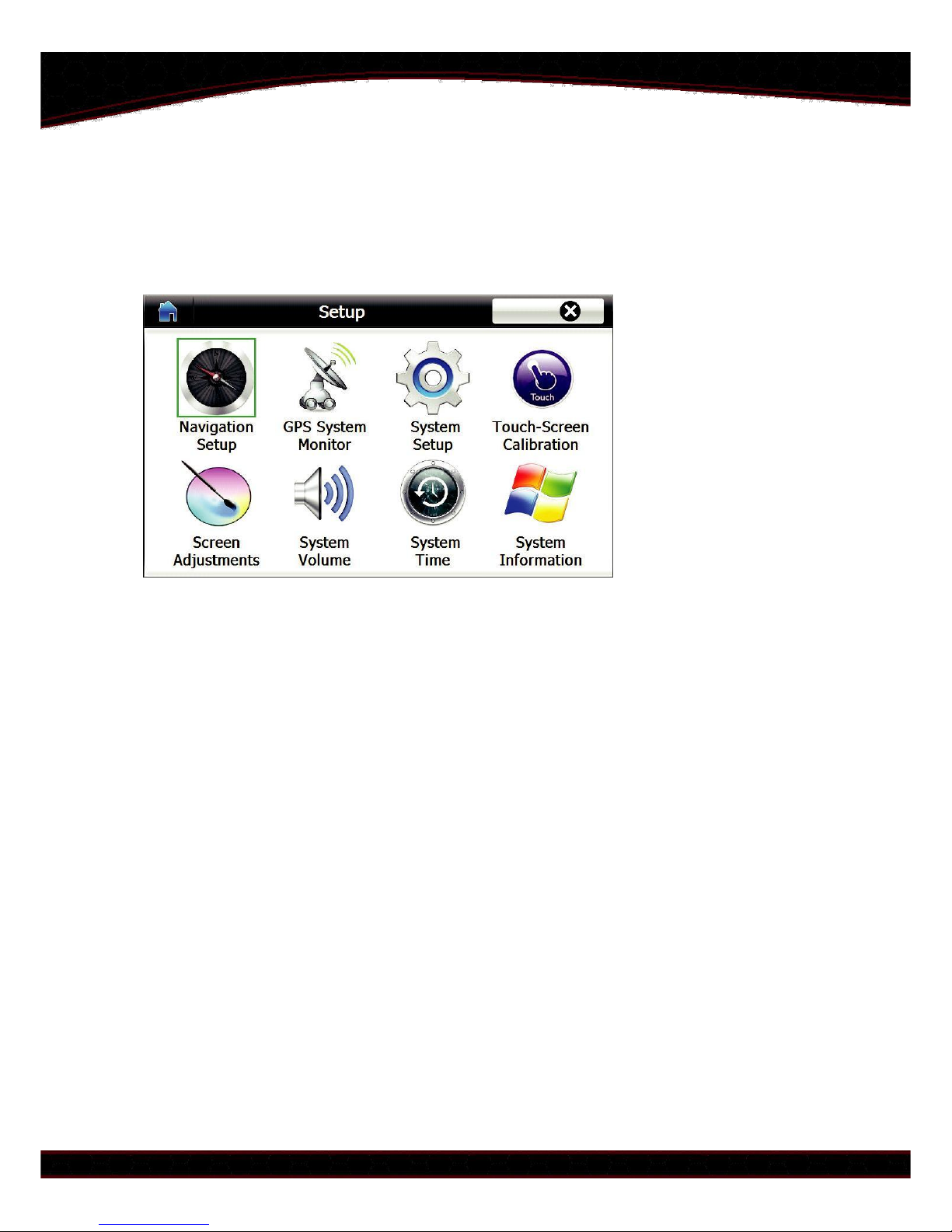

The Setup Icon will let you go to options menu. Which will let you
configure options of the navigation module. The options consist of:
OSetup: set pathway for .exe file.
OGPS monitor: Used to check the GPS signal. If no signals shown set
COM port to COM2. The Baud rate is automatically set.
OSystem Setup: Used to change the display language and switch effects.
OTouch Screen Calibration: To manually start touch screen calibration.
OScreen Adjustments: To set color, Position and Size of display. (will not
be used in case using built in GPS module)
OSystem Volume: To adjust volume of touch strokes and system volume.
OTime settings: To adjust time and time zone. (will be selected
automatically when GPS signal is positioned)
OSystem Information: To see software version, perform factory reset
or Repairs.

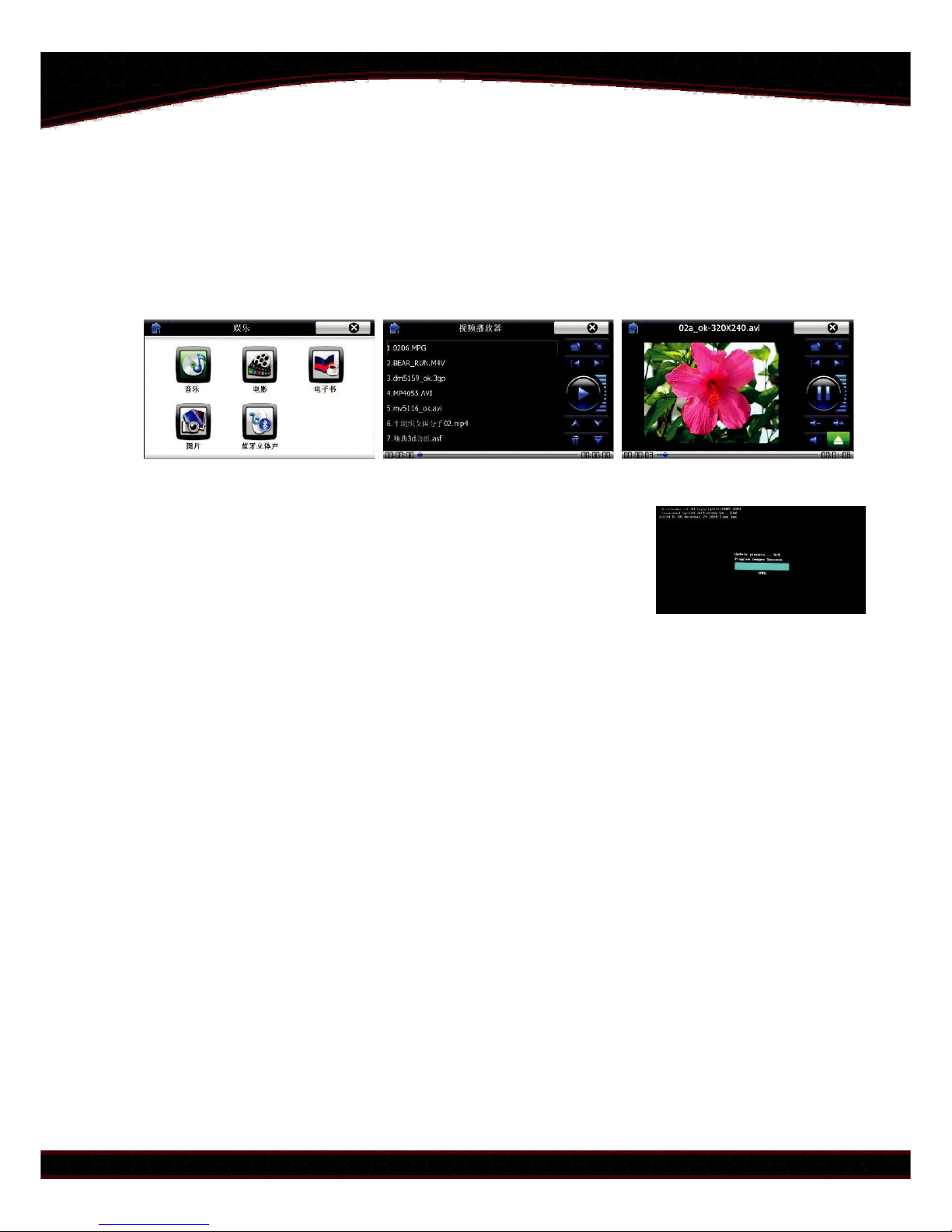

Multimedia can be accessed from the main menu. This includes music, video,
digital books, photos and Bluetooth music. The audio is sent out through AUX
port and can be connected to the cars OEM speaker system. The files for
multimedia are stored on usb and can be accessed using mini USB to USB hub
cable. The functions of multimedia are used through the touch screen.
For upgrade of software for navigation module insert
the provided SD card with upgrade software and reboot
the device by disconnecting and reconnecting power.
The upgrade process will start automatically and once
completed touch calibration screen will start.

FAQs:
1. Navigation video is slightly out of position.
In case the video is slightly out of position, it is usually a few centimeter's up
or down of optimal position. There are two adjusting methods:
(1) Open navigation settings - Screen - screen settings, there you can
adjust the position of the navigation video.
(2) Press the left menu key on the interface box there are 3 side keys on the
interface box : There will appear options, you can adjust the image's
horizontal and vertical position.
2. Black screen when switching to reverse.
Check whether the relay interface cable installed correctly.
3. The parking guideline not be displayed, incorrect, do not move, or bounce.
Please check whether the parking guideline is switched’’ ON’’.
4. The navigation touch is not working properly.
Did no configure the navigation properly (calibrate method: pull out the
navigation map card, power off and restart the navigation module, after 10-
30 seconds touch calibration option will appear. Follow the calibration steps
until “OK” icon is shown. Put the map in after calibration).

Optional Accessories:
1. Smartphone Receiver:
This is a specially designed HDMI receiver box that converts HDMI to
High definition RGB input for the interface.
Connect to Power from CAN box.
ACC and GROUND.
Connect to AUX for OEM speakers.
Connect to RGB of Interface.
The HDMI in can be used to connect to phones directly (phones equipped
with HDMI out function).
Support for MHL converter for Samsung
Support for Apple Lightning to HDMI
phones.
converter.

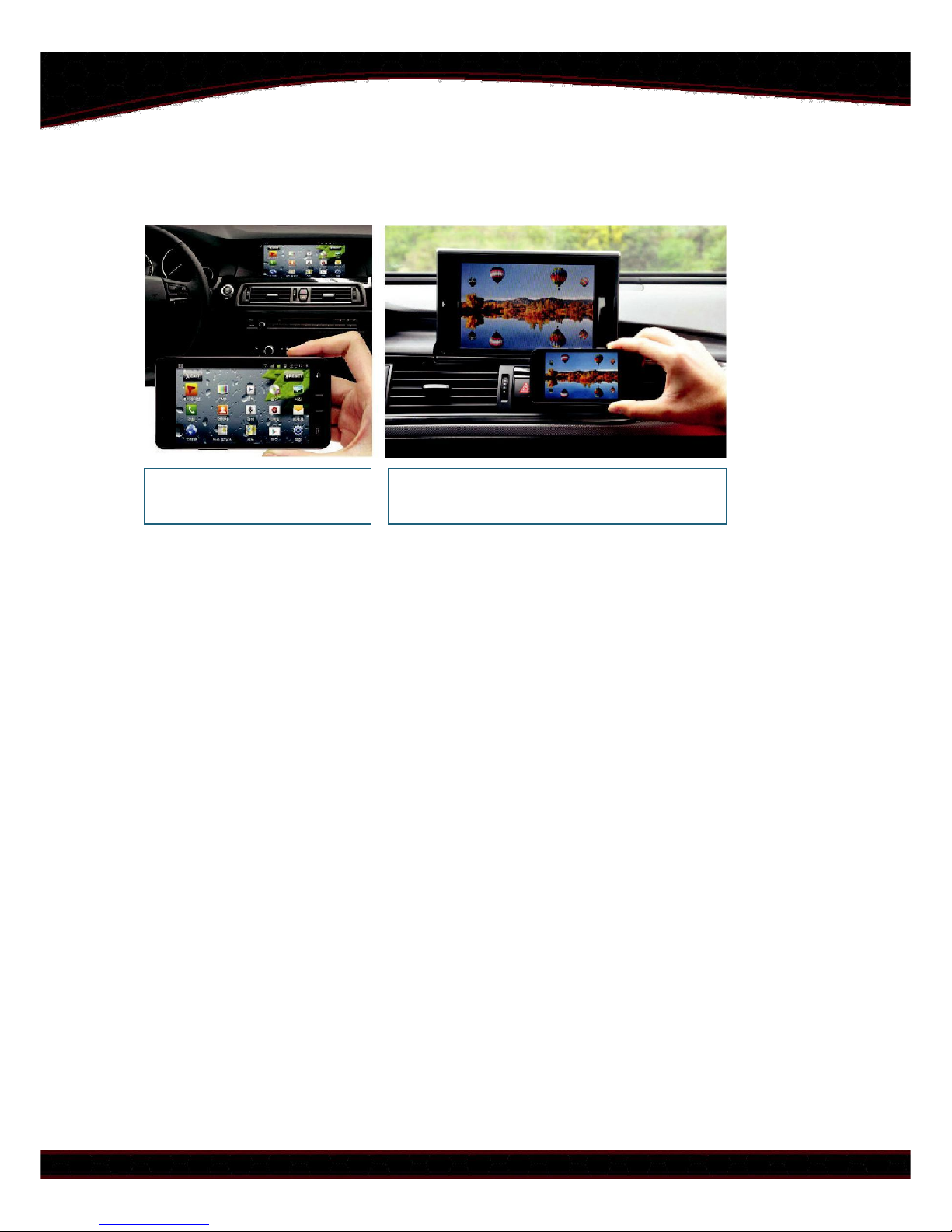

It can also be connected to Wireless Smartphone dongle(also provided as
optional) to display the phones screen through Miracast, Airplay or DLNA.
Miracast wireless mirroring for
Airplay or DLNA wireless mirroring for IOS
Android phones.
phones.
To connect the Smartphone receiver connect the RGB cable to the RGB port on
interface. Connect the red and black power cable to ACC and GND from CAN
box to give power to the converter.
Make sure to select the DIP4 on interface to be OFF and DIP1 on interface
should be ON.
The AUX can be connected for sound (make sure to turn sound on from phone
to HDMI) or directly connect sound from phone using AUX cable separately.
When connecting to Android or Iphone for mirroring please check with phone
how to connect wireless display. Follow simple process to have phones
content on cars OEM screen.
