Mazda CX-7－1
GENUINE SATELLITE RADIO KIT
INSTALLATION INSTRUCTIONS
Thank you for purchasing a genuine Mazda accessory.
Before removal and installation, be sure to thoroughly read these instructions.
Please read the contents of this booklet in order to properly install and use the satellite
radio kit. Your safety depends on it.
Keep these instructions with your vehicle records for future reference.
•There are several WARNING and CAUTION sections in this booklet concerning
safety when installing. Always read and follow them in order to prevent injuries,
accidents, and possible damage to the vehicle.
WARNING: Indicates a situation in which serious injury or death could result if the
warning is ignored.
CAUTION: Indicates a situation in which bodily injury or damage to the vehicle
could result if the caution is ignored.
•If in any doubt, please ask your Mazda dealer to install the accessory in order to
prevent errors in installation.
•If you have any questions about the use of the accessory, ask your Mazda dealer for
proper advice before using it.
•Mazda and its suppliers are not responsible for injuries, accidents, and damage to
persons and property that arise from the failure of the dealer or installer to follow these
instructions.
•To ensure safety and reliability of the work, installation, removal and disposal work
done by an Authorized Mazda Dealership is recommended.
•Be careful not to lose removed parts, and be sure that they are kept free from
scratches, grease or other dirt.
PART NAME: SATELLITE RADIO KIT
PART NUMBER: 0000 81 M09 (Harness Kit H5)
VEHICLE: Mazda CX-7
1ED6P11A22600
To the dealer
•Please turn over these instructions to the customer after installation.
To the customer
•Keep these instructions after installation. The instructions may be necessary for
installing other optional parts or removal of this accessory.
•Should the vehicle or this accessory be resold, always leave these instructions
with it for the next owner.
Note
WARNING

Mazda CX-7－2
INSTALLATION VIEW
1
DLP unit
Antenna cable
Antenna
iPod connection cable
To Audio unit
iPod integration module
SIRIUS and iPod
ANTENNA CABLE
HARNESS (H5)
SIRIUS only
Antenna cable
Tie redundant part
(Harness (H5))
Tie redundant part
(Antenna cable)
Electro tap
【CAN (+) and CAN (-)】
To AUX or Bluetooth H/F
Electro tap
【+B and ACC】
GND
Harness (H5)
Tie redundant part
(iPod connection cable)
DLP unit
To Audio unit
Antenna cable
Tie redundant part
(Harness (H5))
Electro tap
【CAN (+) and CAN (-)】
To AUX or Bluetooth H/F
Electro tap
【+B and ACC】
GND
Harness (H5)

Mazda CX-7－3
CONNECTION DIAGRAM
<Installation of SIRIUS and iPod integration module>
2
•When connecting a connector, be sure to insert it straight along the guide.
The connector terminal may be bent if inserted at an angle.
CAUTION
iPod
(On market product)
DLP unit
(SIRIUS)
Antenna cable
To AUX or Bluetooth H/F
iPod
integration module
NO
CONNECT
iPod connection cable
Audio unit
16 pin connector (White)
To audio bracket
CAN (+)
CAN (-)
Harness (H5)
CAN (-)
CAN (+)
+B
ACC
A
udio 24-pin
connector
ACC
GND
+B
CAN (+)
NO CONNECT
16 pin connector
(Gray)
8 pin connector
16 pin connector (Black)

Mazda CX-7－4
<Installation of SIRIUS only >
•When connecting a connector, be sure to insert it straight along the guide.
The connector terminal may be bent if inserted at an angle.
CAUTION
Antenna cable
To AUX or Bluetooth H/F
Not used
(Wrap with sponge and vinyl tape)
Audio unit
To audio bracket
CAN (+)
CAN (-)
Harness (H5)
CAN (-)
CAN (+)
+B
ACC
A
udio 24-pin
connector
ACC
GND
+B
CAN (-)
CAN (+)
NO
CONNECT
DLP unit
(SIRIUS)
16 pin connector (White)
16 pin connector
(Gray) 8 pin connector
16 pin connector (Black)

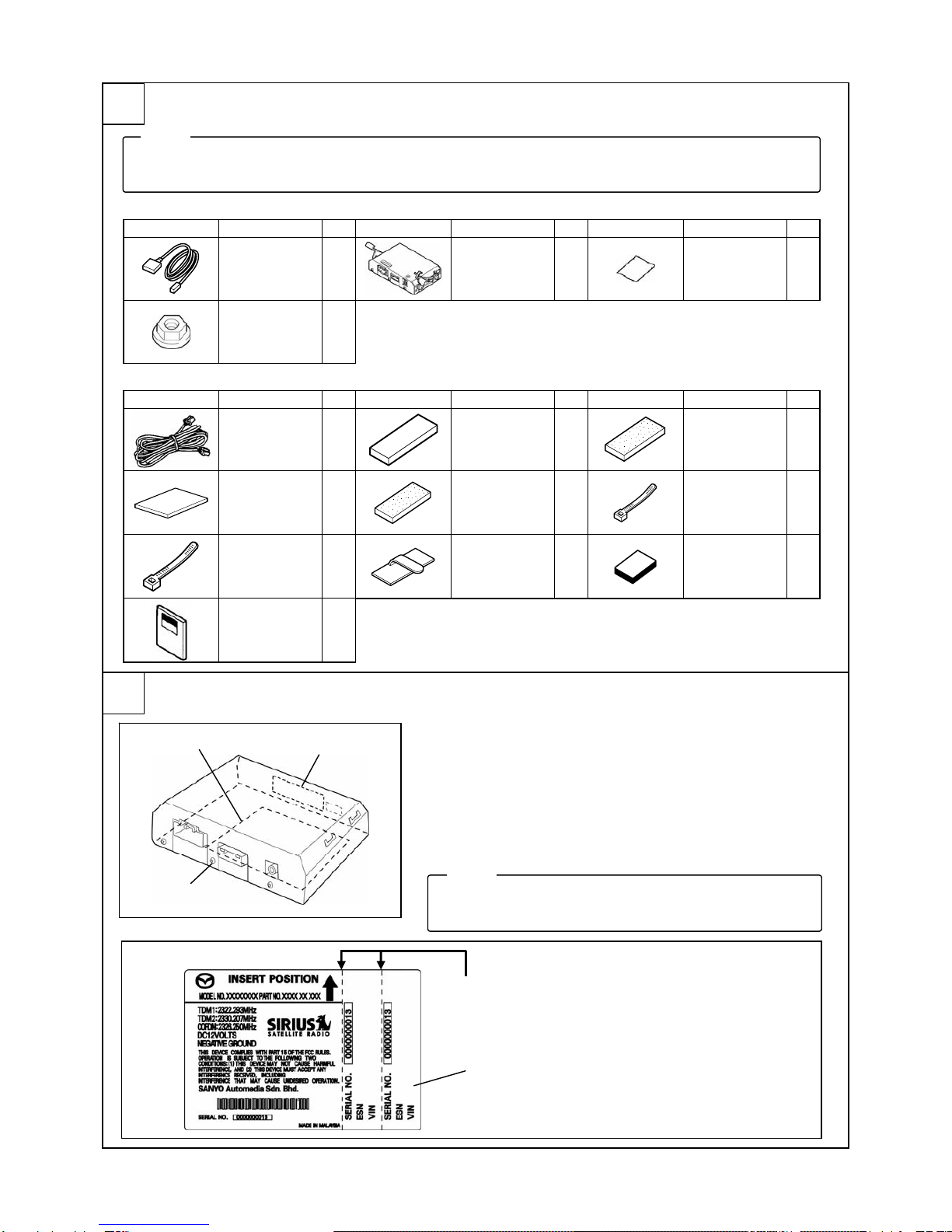

Mazda CX-7－5
PARTS
Main Kit (0000 81 Z40)
Part Part name Qty. Part Part name Qty. Part Part name Qty.
Antenna 1 DLP unit 1 Alcohol wipe 1
Nut 2
Harness Kit H5 (0000 81 M09)
Part Part name Qty. Part Part name Qty. Part Part name Qty.
Harness (H5) 1 Double-sided
adhesive tape 4Pad protector 20
Urethane 2 Sponge 2
Tie wrap
(Small) 3
Tie wrap
(Large) 20 Clip 3 Butyl tape 1
Installation
instructions 1
BEFORE INSTALLATION
Rating Label Removal
1. Tear off lower part of the rating label on the bottom of DLP
unit.
2. If there is nothing written in the Sirius ID (ESN) space of
the rating label, write down the 12-digit number printed in
the location shown in the figure.
3. Affix one rating label in the last page of the Owner’s
Manual.
3
•Verify that the kit includes all the following parts and that they are free of dirt, scratches or damage.
•All hardware required to install is contained in the two Satellite Radio Kits below.
Note
4
•
The other rating label is for the dealer (port) records.
•Do not fail to submit the record.
Note
DLP unit
Rating label Sirius ID (ESN)
Rating label
Tear off
①Affix to the back of the Owner’s Manual.
②Submit to the manager of installation department.
②①

Mazda CX-7－6
REQUIRED TOOLS
Prepare the following tools or items before installation.
●Electrical vinyl tape ●Mat ●Scissors ●Scale ●Touch-up paint or Zinc primer
●Phillips screwdriver ●Socket driver (8 mm, 10 mm, 14 mm) ●Torx wrench ●Wrench ●File
●ISP alcohol
WARNING
When the negative battery
cable is connected during
operation, it may cause
electric shock or other
personal injuries.
Disconnect the negative
battery cable before
removal/installation.
When
connecting/disconnecting
connectors, grasp the
connectors, not the wires.
Otherwise a short, an
accident from poor contact
or fire may occur.
Do not pull the harness
with excessive force. Doing
so can cause a breakage
or a short-related accident,
as well as an electrical
short or fire.
Secure the harness with
the band (part included) so
it doesn’t dangle. If not, it
may cause a short,
accident, or fire.
CAUTION
Put the removed parts and
the parts in the kit on the
protective sheet to prevent
scratches.
Using improper tools may
cause damage and or
broken parts. Use the
correct tool for the job.
Be sure to cover the
vehicle body with
protectors or mats to
prevent stains, scratches
and damage when
removing/installing the
vehicle parts.
Excessive length of tie
wrap may interfere with
other parts and cause
damage.
Cut unnecessary part up to
about 5 mm {0.19 in} from
the fixed point.
Take care not to trap
antenna cable under
attachment nuts.
•When the negative battery cable is removed, the clock, radio, trip meters and other memories will be
erased. Before performing work, record the content of the memory.
Note
•When removing/installing the parts, park the vehicle on level
ground and apply the side brake securely. Be sure to turn the
ignition switch off, otherwise the vehicle can move, causing
personal injury or vehicle damage.
WARNING
•
During the installation of the antenna cable make
sure the cable is not pinched, knotted “kinked” or
coiled too tightly. It is recommended that a coil of
less than 20 mm {0.78 in} be avoided if possible.
•If this wiring procedure is not followed, the
performance of the antenna will be affected and
could result in increased audio muting.
CAUTION
20 {0.78}
mm {in}

Mazda CX-7－7
PART REMOVAL
Negative battery cable disconnection
1. Set the selector lever to D range.
2. Disconnect the negative battery cable and wrap tape around it to insulate.
Front scuff plate inner (passenger’s side) removal
1. Pull the front scuff plate inner upward while detaching tabs
A, detach clips B, pins C and tab D from the body, and
then remove the front scuff plate inner.
Front side trim (passenger’s side) removal
1. Remove the nut using 14mm socket.
2. Pull the front side trim in the direction shown by the arrow,
then detach clip A.
Console panel (driver’s and passenger’s side)
removal
1. Remove clips A in order starting from the vehicle rear
using a tape-wrapped flathead screwdriver.
5
•When the negative battery cable is connected during operation, it may cause electric shock or other
personal injuries. Disconnect the negative battery cable before removal/installation.
WARNING
•
Be careful not to damage the scuff plate during
removal.
CAUTION
•
Be careful not to tear the seaming welt when puling it
out.
CAUTION
Pin C Clip B
Front scuff plate inner
Tab D
Clip B detail
Tab A
Vehicle front
Front side trim
Clip A detail
Nut Vehicle front
Clip A
Console panel Vehicle front

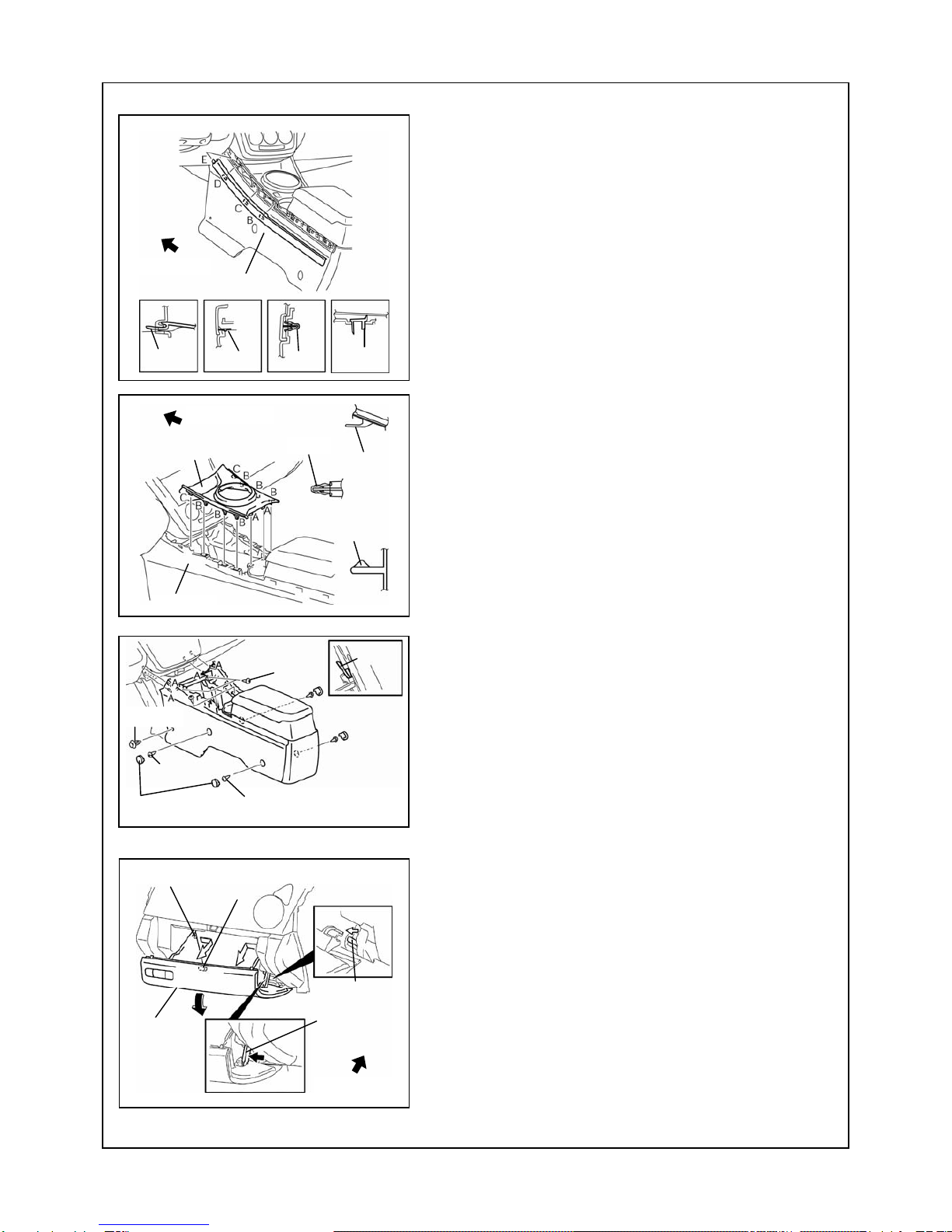

Mazda CX-7－8
2. Remove the parts in the order of pin B, clip C and tab D
from the vehicle rear.
3. Remove the pin E.
4. Remove the console panel.
Panel removal
1. Remove the selector lever knob.
2. Pull the panel upward, then disengage clips A, clips B and
tabs C.
3. Disconnect the accessory socket connector.
4. Disconnect the seat warmer switch connectors.
(Vehicles with seat warmer system)
5. Remove the panel.
Console removal
1. Remove the covers.
2. Remove the fasteners and screws.
3. Remove the pins A.
4. Remove the console.
Glove compartment removal
1. Press the stay damper in the direction shown by the arrow
and detach it from the glove compartment lid.
2. Bend the stoppers inward to remove.
3. Turn the glove compartment downward and pull the pins.
4. Remove the glove compartment.
Stopper
Stay damper
Glove
compartment
Pin
Pin
Vehicle front
Console
Clip B
Panel
Clip A
Tab C
Vehicle front
Pin E
Console panel
Clip C Pin B
Vehicle front
Tab D
Pin A
Scre
w
Cove
r
Scre
w
Scre
w
Fastene
r

Mazda CX-7－9
Lower panel (passenger’s side) removal
1. Pull the cover outward and detach the tabs.
2. Remove the cover.
3. Remove the screws.
4. Pull the lower panel outward and detach clips A.
5. Remove the lower panel.
Lower panel (driver’s side) removal
1. Remove the fastener.
2. Pull the cover outward and detach the tabs.
3. Remove the cover.
4. Remove the hood release lever.
(See hood release lever removal note on page 10.)
5. Remove the screw.
6. Pull the lower panel outward and detach clips A.
7. Disconnect the connectors, then remove the lower panel.
Tabs
Cove
r
Vehicle fron
t
Lower panel
Clip A
Screws
Vehicle fron
t
Cover Fastene
r
Tabs
Vehicle fron
t
Scre
w
Clip A
Lower panel
Hood release lever Vehicle front

Mazda CX-7－10
Hood release lever removal Note
a. Pull the lever.
b. While pushing the tab in the direction of the arrow using a
tape-wrapped, small flathead screwdriver, detach it from
the lower panel.
c. Under the condition in Step b, pull the hood release lever
outward, then remove it from the lower panel.
8. Remove the air hose and passenger’s compartment
temperature sensor connector.
9. Remove the lower panel.
Decoration panel removal
1. Detach clips A by pulling them in the direction of the arrow.
2. Remove the decoration panel.
Center panel removal
1. Remove the screws.
2. Pull the center panel outward and detach clips A.
3. Remove the center panel.
Tab
Lower panel (driver’s side)
Cross-sectional vie
w
Tab
•
Be careful not to damage the hood release cable when
removing the hood release lever with the flathead
screwdriver.
CAUTION
Connecto
r
Lower panel
Air hose
Vehicle front
Decoration panel
Clip A
Vehicle front
Flathead screwdriver
Center panel
Screws
Vehicle front
Clip A

Mazda CX-7－11
Audio unit removal
1. Remove the bolt.
2. Remove the screws.
3. Pull the audio unit outward slowly and detach pins.
4. Disconnect the audio side connectors, antenna feeder,
and hazard switch connector, and then remove the audio
unit.
Climate control unit removal
1. Remove the screws.
2. Release the tab and pull the climate control unit toward
you.
3. Disconnect the climate control unit connector.
4. Remove the climate control unit.
Meter hood removal
1. Pull the upper column cover upward and detach the upper
column cover from the lower column cover.
2. Pull the meter hood and remove clipsAand tabs B.
3. Remove the meter hood.
•
When installing the audio unit, make sure that the
wiring harness and antenna feeder are not caught
between the unit and dashboard. If the wiring harness
or the antenna feeder is caught between the unit and
dashboard, it may cause malfunctions.
•Pressing the switch area of the audio unit when
installing it could result in a malfunction. Therefore
only press the hatched area shown in the figure.
CAUTION
A
udio unit
Screws
Audio side connectors
Hazard switch connecto
r
Vehicle front
Pin
Screws
Pin
Pin
Bolt
Bolt: 6.9－9.8 N･m
{71.0－99.0 kgf･cm, 61.0－86.0 in･lbf}
Climate control unit connector
Tab
Climate control unit
Vehicle front
Screws
Vehicle front
Meter hood
Tab B
Clip A
Upper column cover

Mazda CX-7－12

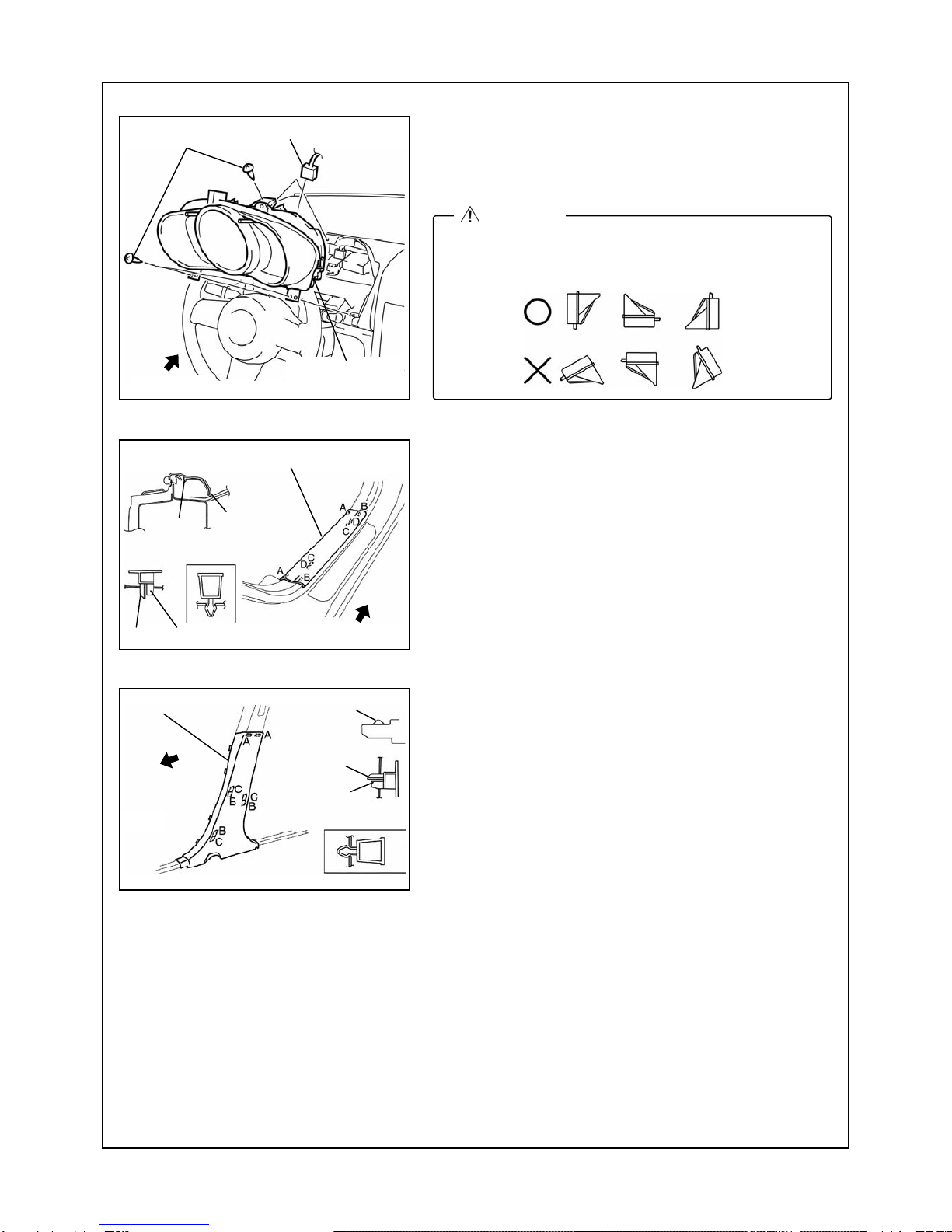

Instrument cluster removal
1. Remove the screws.
2. Disconnect the instrument cluster connector.
3. Remove the instrument cluster.
Rear scuff plate inner (passenger’s side) removal
1. Pull the rear scuff plate inner upward while detaching tabs
A and B, detach clips C, pins D from the body, and then
remove the rear scuff plate inner.
B-pillar lower trim (passenger’s side) removal
1. Partially peel back the seaming welt.
2. Pull the B-pillar lower trim outward and detach clips A, C
and locator pins B.
3. Remove the B-pillar lower trim.
Pin D Clip C
Rear scuff plate inner
Cli
p
C detail
Tab A
Tab B
Vehicle front
B-pillar lower trim
Locator
p
in B
Clip A
Cli
p
C detail
Clip C
Vehicle front
Instrument cluster
Connector
Vehicle front
Screws
•
The removed instrument cluster should be placed with
the display side up to prevent grease from leaking
from the meters.
CAUTION
Display facing
downward
Display facing
upward
GOOD
NO GOOD

Mazda CX-7－13

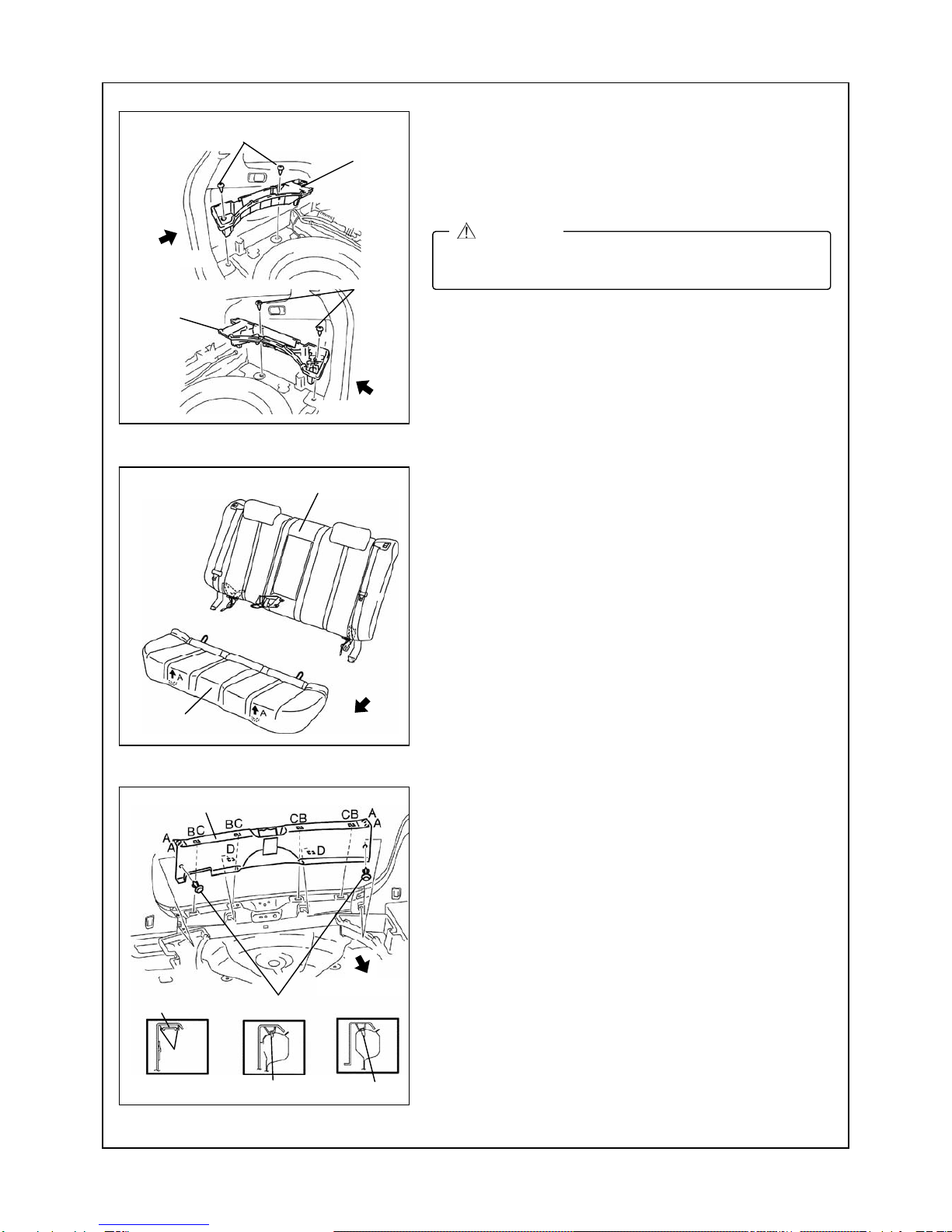

Sub trunk box (driver’s and passenger’s side)
removal
1. Remove the cargo sub-compartment.
2. Remove the screws.
3. Remove the sub trunk box.
Rear seat cushion removal
1. Lift the point A in the direction of the arrow, then remove
the rear seat cushion.
Trunk end trim removal
1. Remove the fasteners.
2. Pull the trunk end trim upward, then disengage tabs A,
clips B and pins C.
3. Remove the tabs D.
4. Remove the trunk end trim.
Rea
r
seat back
Rea
r
seat cushion Vehicle front
Trunk end trim
Fastener
Tab A
Pin C
Cli
p
B
Trunk side trim
Vehicle front
•
Need to tighten screws hand tight when re-assembling
the vehicle.
CAUTION
Scre
w
LH
RH Scre
w
Sub trunk box
Sub trunk box
Vehicle front
Vehicle front

Mazda CX-7－14

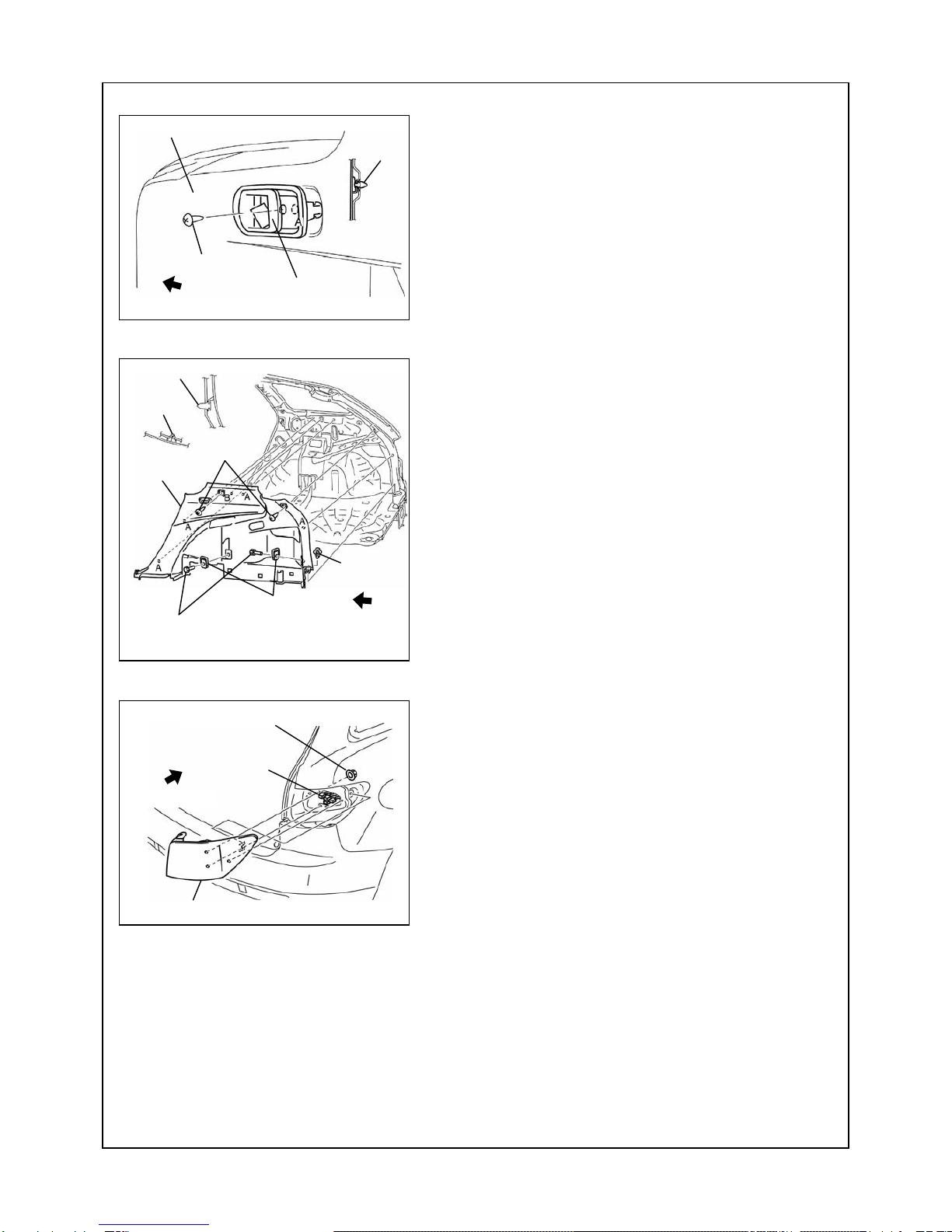

Trunk side trim (passenger’s side) removal
1. Lift cover to expose screw.
2. Remove the screw.
3. Pull the remote handle lever outward and detach clip A.
4. Remove the screws and fasteners.
5. Remove the bolts using 10 mm socket, then remove the
cargo net hook.
6. Pull the trunk side trim outward and detach clips A and B.
7. Remove the trunk side trim.
Rear combination light (passenger’s side) removal
1. Disconnect the connectors.
2. Remove the nuts using 10 mm socket.
3. Remove the rear combination light.
Trunk side trim
Fastener
Bolt: 4.1－6.1 {42－62, 37－53}
Cli
p
A
Screw
Cargo net hook
Cli
p
B
N･m {kgf･cm, in･lbf}
Vehicle front
Nut
Connector
Rear combination light
Nut: 4.1－6.1 {42－62, 37－53}
N･m {kgf･cm, in･lbf}
Vehicle front
Trunk side trim
Scre
w
Cli
p
A
Remote handle lever
Vehicle front

Mazda CX-7－15
INSTALLING DLP UNIT
1. Remove the bushes (4 locations), brackets (2 locations),
washers (4 locations), and screws (4 locations) from the
DLP unit.
2. Affix the pad protectors to the DLP unit as shown in the
figure.
3. Affix pad protectors to the DLP unit as shown in the figure.
4. Adhere double-sided adhesive tapes to the top of the pad
protectors.
6
•
To ensure proper affixing, be sure to degrease the
area where the pad protector is affixed.
CAUTION
Double-sided adhesive tapes
Pad protectors
DLP unit
Pad protectors
DLP unit Pad protecto
r
Pad protectors
DLP unit
DLP unit
Bracket
Bush
Washe
r
Scre
w
Bracket
Bush
Washe
r
Scre
w
•
The brackets are not used with the installation of this
accessory.
Note

Mazda CX-7－16
5. Adhere the pad protector halves (5) to the top of the
double-sided adhesive tapes.
6. Affix the pad protector to the dashboard member.
7. Install the DLP unit to the dashboard member and secure
with tie wraps (large).
•
To ensure proper affixing, be sure to degrease the
area where the pad protector is affixed.
CAUTION
DLP unit
Tie wraps (large)
Dashboard member
Vehicle front
•
To ensure proper affixing, be sure to degrease the
area where the pad protector is affixed.
CAUTION
Dashboard member
Pad protector
Vehicle front
Pad protector 1/2×5
DLP unit
Double-sided adhesive tapes

Mazda CX-7－17
INSTALLING ANTENNA (1) [From Antenna to Trunk side trim]
1.File the hole where the rear combination light harness
passes through as shown in the figure.
2.Using ISP alcohol, remove grease from around the holes
and apply touch-up paint or zinc primer for rust prevention.
3.Clean the adhesion area on the trunk lid with isopropyl
alcohol (IPA).
4.Install the antenna in the position shown in the figure.
7
•
When filing, always use a mat or other protection to
prevent shavings from getting into the vehicle interior.
•Be sure to remove any burrs after filing.
•Remove any chips or drill filings that may have fallen
in the vehicle.
CAUTION
A
dhesion area
mm {in}
100 {3.93}
Roof
100 {3.93}
100 {3.93}
Vehicle front
•
To ensure proper affixing, be sure to degrease the
area where the double-sided adhesive tape is affixed.
CAUTION
A
ntenna
Roof
15－20 {0.59－0.78} mm {in}
90 {3.54}
Vehicle front
Remove using a file
2 {0.08}
15 {0.59}
Vehicle front mm {in}
3 {0.12}

Mazda CX-7－18
5.Clean the adhesion area on the trunk lid with isopropyl
alcohol (IPA).
6.Attach the clip to the vehicle as shown in the figure.
7.Install the antenna cable to the clips.
8.Pull the seam upward and route the antenna cable in the
seaming welt. (Does not need to be completely removed)
9. Reinstall the rubber seaming welt to its original position.
10.Clean the adhesion area with isopropyl alcohol (IPA).
11.Secure the antenna cable in place with the butyl tape and
pad protector halves.
•
It is critical that the antenna follows the route as
shown. Failure to follow this route will not provide the
slack required to open and close the liftgate.
•Be careful not to tear the seaming welt when pulling it
up.
•Do not remove trunk seam from the flange. The
antenna cable must not interfere with the flange seals.
CAUTION
•
To ensure proper affixing, be sure to degrease the
area where the pad protector is affixed.
•Do not wrap butyl tape around flange.
•Do not double-layer tape.
Butyl tape should hold the antenna cable to the sheet
metal as shown.
•Take care not to trap antenna cable under attachment
nuts.
CAUTION
Antenna
Clips
Antenna cable
Clip
Vehicle front
Ⓐ
A
ntenna cable
Seaming welt
Vehicle front
Ⓐ
Ⓑ
Pad protector 1/2
Antenna cable
mm {in}
Do not put pad protectors
within 35 {1.37} of opening
Butyl tape Antenna cable
20 {0.78}
30 {1.18}
Vehicle front
To trunk compartment
Seaming
welt
60 {2.36}
Ⓑ

Mazda CX-7－19
INSTALLING ANTENNA (2) [From DLP unit to Trunk side trim]
1. Connect the antenna cable to the DLP unit.
(See step 6 on page 16 as to the installation position.)
2. Secure the antenna cable to the vehicle wiring harness
inside of the glove compartment with tie wraps (large).
3. Secure the antenna cable to the vehicle wiring harness
inside of the front side trim with tie wraps (large and small).
4. Route the antenna cable through the inside of the front
scuff plate inner and secure it with tie wraps (large).
8
A
ntenna cable
Tie wraps (large)
Vehicle front
Ⓒ
Ⓓ
DLP unit
Antenna cable
Vehicle front
Ⓒ
A
ntenna cable
Tie wrap
(large)
Tie wrap (small)
Vehicle front
Ⓓ
Ⓔ
Tie wraps (large)
A
ntenna cable
Vehicle front
Ⓔ
Ⓕ

Mazda CX-7－20
5. Route the antenna cable through the inside of the rear
scuff plate inner and secure it with tie wraps (large).
6. Route the antenna cable through the inside of the trunk
side trim and secure it with tie wraps (large and small).
7. Secure the extra antenna cable using a pad protector.
•
Bundle the antenna cable into a loop and attach it to
the sheet metal on the inside of the trunk side trim,
and secure with pad protectors.
Note
•
Be sure to bundle the antenna cable into a loop.
•To ensure proper affixing, be sure to degrease the
area where the pad protector is affixed.
CAUTION
A
ntenna cable
Tie wraps (large)
Vehicle front
Ⓕ
Ⓖ
A
ntenna cable
Pad protecto
r
Tie wraps (large)
Tie wrap (large)
Tie wrap (small)
Pass through hole
Vehicle front
Ⓖ
