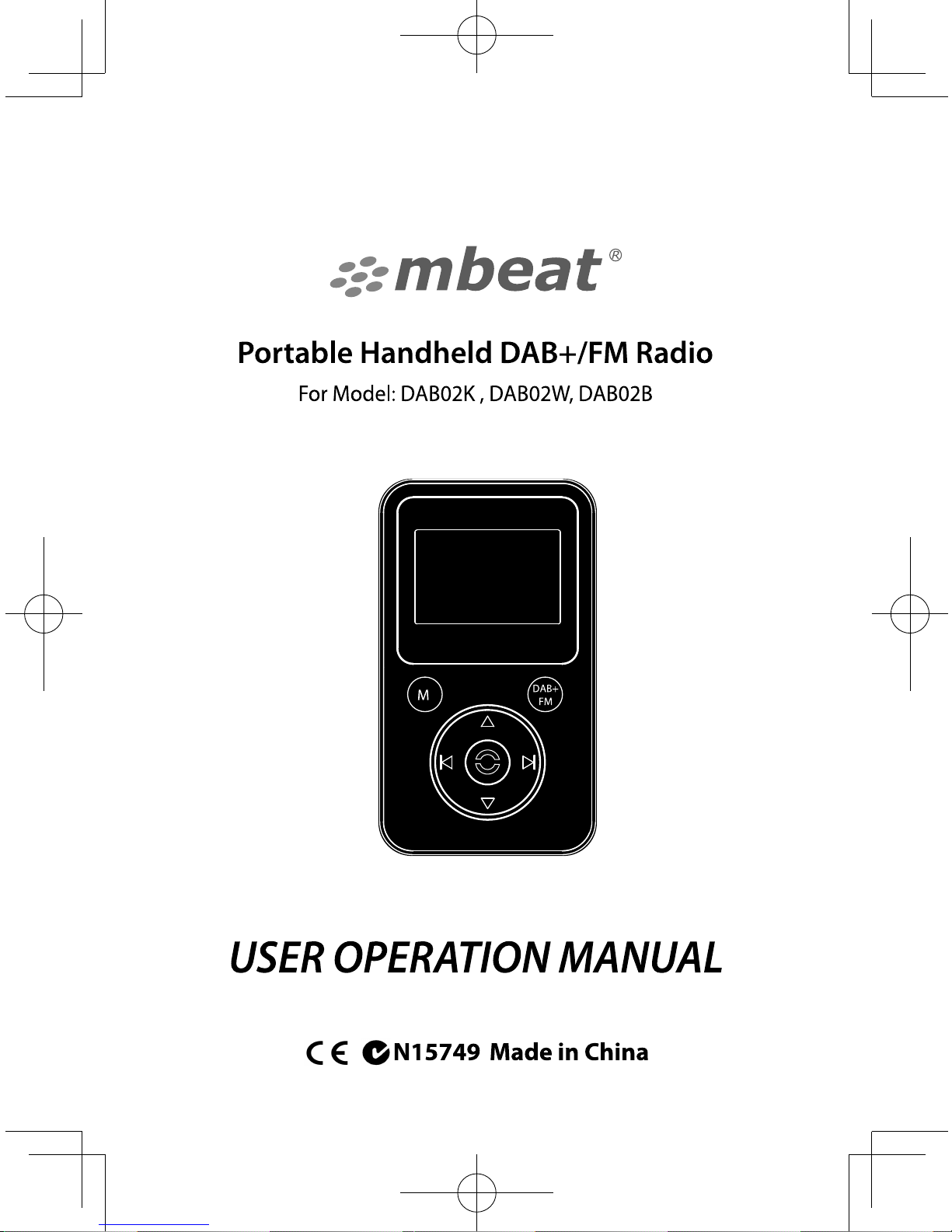

mbeat DAB02K User manual

1
Quick Start Guide
Caution: DAB02 is a portable DAB+/DAB/FM player, without
built-in antenna, an external earphone plug or audio cable must
be plugged to the device to get reception to scan radio channels.
Press and hold the Power Button for more than 3 seconds
to turn on the radio.
DAB Radio
When the DAB mode is selected for the rst time, press the M
Button to enter into <Region> to select a region,Australian user
please select [AU&EURO] region for DAB+ radio. then radio will
automatically search for local DAB and DAB+ radio stations.
Selecting <Station List>, it will display all the radio stations found
and play the rst radio station automatically.
FM Radio
Press the DAB+/FM Button then switch to FM mode. Press the
M Button to access to the FM Main Menu.
Use the“ ”Button to select <Auto Program> and then press
the Enter Button, some new stations will replace the pre-stored
radio stations.
MP3
MP3 les stored into a TF card, it can be played back through
the radio by inserting card into the card slot on the bottom of the
radio.
Recording Function
It is possible to record FM or DAB broadcast to TF card. (Please
ensure the TF card was inserted before recording.)
System Setup
Set Power off Time can save the battery power.
Time Setup: You can set the time and date manually and also
can use the DAB broadcast as time synchronize.
You can set the Brightness; Backlight Time out and can check
the version information.

2
User Manual
1. Introduction.........................................................................4
2. Packaging and Specication .....................................4
2.1 Packaging................................................................4
2.2 Specications ..........................................................5
2.2.1 DAB Function .................................................5
2.2.2 FM Function.....................................................5
2.2.3 MP3 .................................................................6
2.2.4 Time.................................................................6
2.2.5 Battery .............................................................6
2.2.6 General............................................................6
3. Button Instruction................................................................7
4. Display Screen ...................................................................9
4.1 Playing Screen .......................................................9
4.2 Menu Screen .........................................................10
4.3 Information Screen ................................................ 11
4.4 Query Screen ........................................................12
5. Main Menu........................................................................13
6．DAB Menu.......................................................................15
6.1 Preset List .............................................................16
6.2 Station List ............................................................16
6.3 Local Scan.............................................................16
6.4 Manual Tune ........................................................17
6.5 Region ...................................................................17
6.6 DRC.......................................................................18
6.7 Record ...................................................................18
6.8 Sort ........................................................................18
6.9 System Setup .......................................................18
6.10 Main Menu ...................................................18
7. DAB Mode Operation .......................................................19
7.1 Basic Operation .....................................................19
7.1.1 Power on DAB for the First Time...................19
7.1.2 Power on DAB after the First Time................19
7.1.3 Select Stations...............................................19
7.1.4 Playing Stations.............................................19
7.1.5 Storing Stations .............................................19

3
7.1.6 Recalling Preset Stations ..............................20
7.1.7 Display Station Information ...........................20
8. FM Radio Menu Introduction and Operation ....................20
8.1 Preset List..............................................................20
8.2 Channel List...........................................................20
8.3 Seek Mode ............................................................21
8.4 Tune Mode.............................................................21
8.5 Auto Program.........................................................21
8.6 Clear All List...........................................................22
8.7 Region ...................................................................22
8.8 Scan Setting ..........................................................23
8.9 Audio Setting .........................................................23
8.10 Record............................................................24
8.11 System Setup .................................................24
8.12 Main Menu......................................................24
9. MP3 .................................................................................25
9.1 TF Card .................................................................25
9.2 Audio Setting Menu ..............................................26
9.2.1 Play Mode......................................................26
9.2.2 Play Range....................................................27
9.2.3 EQ .................................................................27
9.3 System Setup ........................................................28
9.4 Main Menu............................................................28
9.5 MP3 User Interface for Display..............................28
10. System Setup Menu Introduction and Operation............28
10.1 Set Power Off Time .............................................29
10.2 Time Setup ..........................................................29
10.2.1 Display Time & Date....................................29
10.2.2 Set Time & Date ..........................................29
10.3 Brightness............................................................30
10.4 Backlight TimeOut ...............................................30
10.5 Reset All ..............................................................30
10.6 Info.......................................................................31
11. Safety Warning ...............................................................31

4
1. Introduction
DAB02 is a digital radio with DAB, DAB+, FM and MP3
functions.
DAB stands for Digital Audio Broadcasting and it is the third-
generation broadcasting system after AM and FM analogue
broadcasting. This new transmission system has great anti-
interference performance qualities and can eliminate noise
and distortion during the transmission process, automatically
correcting errors, can also be amended which leads it to
provide near CD-quality sound.
DAB+ is the updated version of the DAB standard and is used
in many European countries as well as Australia, Canada,
China and South Korea. The DAB+ standard is based on
HE-AACv2 and can deliver the same high quality sound at a
much lower bit rate.
As DAB Radio isn’t available everywhere in the world，
DAB02 has FM radio function for choosing.
In MP3 mode, it can play MP3 music les which stored into
TF card.
2. Packaging and Specication
2.1 Packaging
Thank you for choosing the DAB radio, please check the
accessories in the box according to the list as below. If there
is anything missing, please contact your retailer.
1. DAB+ radio device 1pc
2. USB 2.0 charging cable 1pc
3. Earphone 1pc
4. User Manual 1pc
5. Adapter 1pc (optional)

5
2.2 Specications
2.2.1 DAB Function

The DAB radio can receive and play all the
Band III radio stations, the frequency range
of DAB band III is 174.928MHZ-239.2MHZ

Supports Region setting, so the device
will search the appropriate band for the
radio stations when the user has set up the
default Region.

Supports local searching.

Supports searching by preferred frequency
channel.

Supports DRC function.

Supports recording function, and the default
recording format is MP2 when it is in DAB
status. The default recording format is AAC
when it is in DAB+ status. The capacity is
up to the capacity of TF card.

Supports preset, and the maximum number
of preset station is 30.
2.2.2 FM Function

Also you can use the device to receive
and play FM radio stations, and the FM
frequency range is 87.5MHZ-108MHZ, the
interval is 0.1MHZ.

Supports searching and playing strong
signal radio stations only.

Supports playing the radio stations only in
Mono mode.

Supports searching and storing the radio
stations automatically. The maximum is 30
radio stations in the Channel list.

Supports preset function, and the maximum
number of preset station is 30.

6

Supports Tune and Seek mode.

Supports recording function. The default
recording format is MP3, and the capacity is
up to the capacity of TF card.

Supports clearing all the pre-stored radio
station list, including the preset list and the
channel list.

Supports RDS function.
2.2.3 MP3

The device supports playing music les
from TF card.

Playing mode supports <One Time>,
<Repeat> and <Shufe> mode.

Playing range can be <Single>, <Directory>
and <All> les.

Supports equalizer function.

Supports play, pause, next, previous
function.
2.2.4 Time

The time can be set up manually or can use
the DAB broadcast as time synchronize.

User can set 30 minutes, 45 minutes or 60
minutes to turn off the device automatically.
2.2.5 Battery
1. Build in 700mAh Li-polymer battery, playing time is over 10
hours
2. Charging time: 3 hours.
3. The charging current: 300mAh
4. Circle times: over 300 times.
2.2.6 General
1. 3.5-mm stereo earphone jack.
2. Dimension: 54*93.5*15.5mm (H*W*D)
3. Weight: 64 grams

7
3. Button Instruction
RESET
M Button
DAB+/FM Button
LCD display
Next/function plus
(Right Button)
Enter Button/Power Button
TF slot
RESET
Volume+ (Up Button)
Previous/function
reduce (Left Button)
Volume- (Down Button)
Earphone Jack
USB Charging Connection

8
1Items Descriptions
2M Button Press it to go back to the previous
menu.
3
DAB+/FM
Button
Short press is for DAB/FM/MP3
mode converting. Long press is for
storing radio stations.
4
Left / Right
Button
Select previous or next music in
MP3 mode.
Searching FM or DAB radio stations
in FM or DAB mode.
5Volume+/- “+” means increasing the volume, “-”
means decreasing the volume.
6
Enter
Button/
Power
Button
Short press is for conrm selections;
long press is for power on or power
off the device.
7Reset
Button
If the device operation is failed,
press the button to reset the radio.
8
Earphone
Jack
Connect earphone and listen the
radio stations or connect to an
external speaker system.
9
USB
Charging
Connection
Charge the internal battery via the
USB charging connection, either
directly via a computer, or using
power adapter (optional).
Use USB cable to read the
information of the TF card in the
device.
10 TF slot Plug the TF card into this slot.
11 LCD Display Display all the pictures or characters
info.

9
4. Display Screen

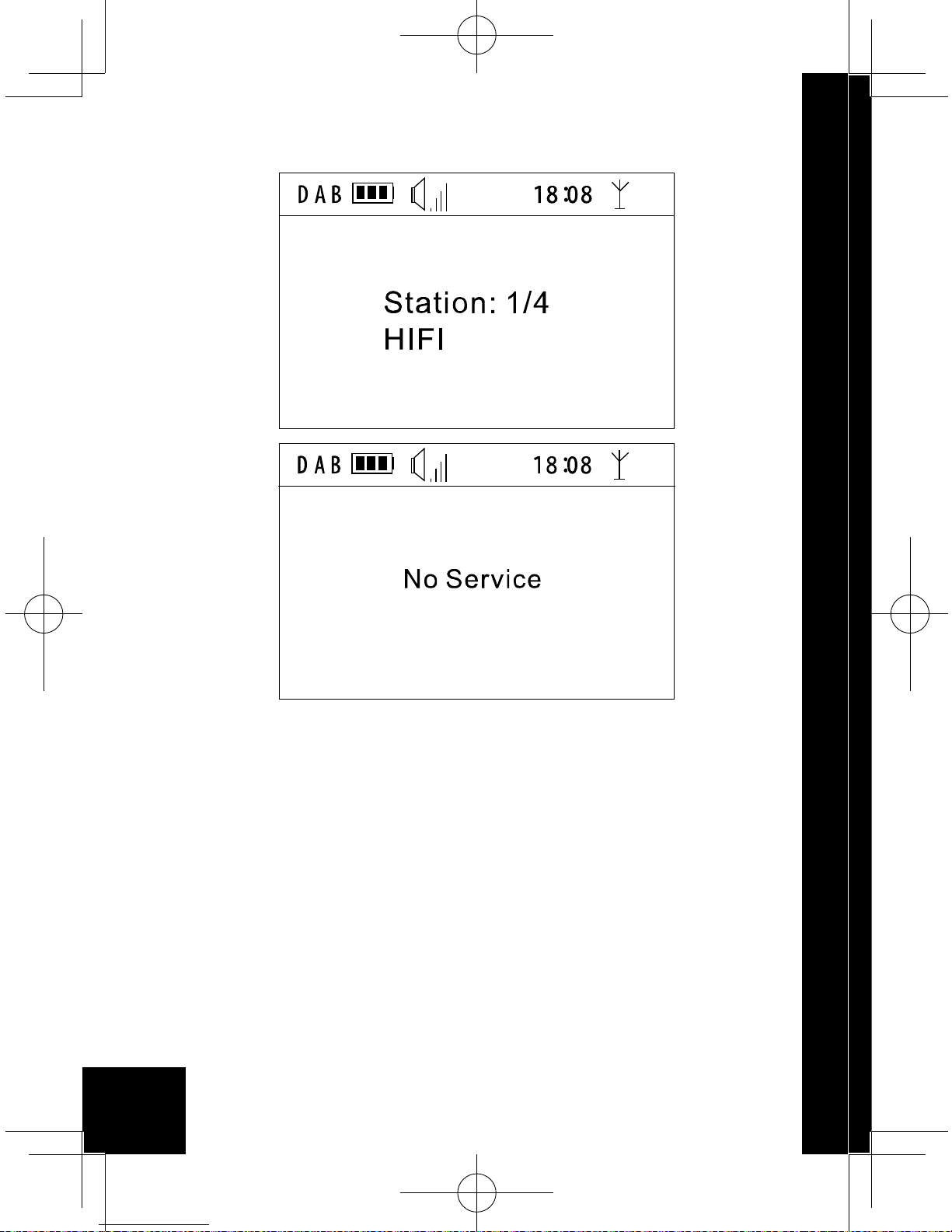

4.1 Playing Screen
There are three modes: DAB, FM and MP3.
Battery icon: Displays the battery charge level.
VOL: Displays the current volume.
11:01: Displays the current system time.
Signal icon: Displays the signal strength.
In the DAB or FM mode, following a short press of the Enter
Button, the radio information will be displayed on the screen,
(Note: only FM stations with RDS will have information that
can be displayed on the screen).
Example as below:

10
4.2 Menu Screen
A menu screen displays four options, with the currently
selected option shows ‘>’. If more than four options are
available, use the Up/Down Button to select it.
Make System Setup in the FM or DAB mode

11
Example: Adjust the Brightness, is for increasing the
brightness, is for decreasing the brightness.
4.3 Information Screen
Information screens are used to display messages to the
user.
Example as below:
It will back to the Main interface after 10 seconds if there is
no radio station found.

12
4.4 Query Screen
A query screen is used to offer the user a choice, you can
respond with Yes (Select) or No (Back).
Example Query Screen:

13
5. Main Menu
Main Menu Structure
When the radio is powered on for the rst time, it will show
the <Main Menu> after the start-up screen, there are 4 items:
<DAB>, <FM>, <MP3> and <System Setup>. Users can
select <DAB>, <FM> or <MP3> mode.
Users can also select <System Setup> to set system
parameters, please refer to the <System Menu> to study how
to set the system parameters.

14
When the DAB mode is selected, the radio will play the
station that was selected last time. When it is powered on for
the rst time, it will search for DAB stations automatically and
when the search is nished, the radio will store the list of DAB
stations and display the number of received stations. It will
play the rst station in the list.
When the FM mode is selected, the radio will display the FM
screen and will play the station that was selected last time.
When it is powered on for the rst time, the default frequency
is 87.5MHz.
When MP3 mode is selected, the radio will display the MP3
Menu.
6. Mode Switching
Under any menu, with a short press of the Power Button, it
will switch among DAB, FM and MP3 modes.
Each mode starts with a welcome interface, which will last for
1 second. As shown below:
Access to DAB mode:
Welcome to DAB
Access to FM mode:

15
Welcome to FM
Access to MP3 mode:
Welcome to MP3
6．DAB Menu
DAB Menu Structure.

16
6.1 Preset List
Display a list of preset stations. The preset stations are stored
in the memory of the DAB radio. A maximum of 30 presets
can be stored.
6.2 Station List
Display a list of received stations. The preset stations are
stored in the memory of the DAB radio. A maximum of 30
presets can be stored.
6.3 Local Scan
Searches for local stations using the part of band III allocated

17
to the region. When <Local Scan> is selected, the radio will
search for radio stations automatically and display the search
progress and when the search is nished, the radio will store
the list of DAB stations and display the number of radio
stations found. Then it will play the rst station in the list.
6.4 Manual Tune
Select a frequency under <Manual Tune>, then press the
Enter Button to manually search for radio stations on that
frequency.
You can step through the list of frequencies and each time,
the radio will search for all stations at that frequency. The
process will take a few seconds and when search nished,
the screen will display the number of radio stations found and
will play the rst station found. If no stations are found, it will
display “0”. When the search is nished, the radio will display
the Playing Screen.
6.5 Region
You can select the appropriate region from the following:
China, Korea, AU&Europe and UK.
The different regions use the following frequency bands:

China Band: 7A-11D 176.720 MHZ-213.856 MHZ

18

Korea Band: 7A-13C 175.280 MHZ -214.736 MHZ

AU&Europe Band: 5A-13F 174.928 MHZ -239.200 MHZ

UK Band: 11B-12D 218.640 MHZ -229.072 MHZ
6.6 DRC
Dynamic Range Control: Some broadcasts contain information
to allow the radio to compress the dynamic range of the audio
to assist listening in noisy conditions. The DRC can be set to
three states: high, low and off. The default is off.
6.7 Record
In the DAB mode, you can record your favourite programs.
The recordings can be stored into the TF card.
In the DAB mode, select the <Record> menu, it will offer
the storage options to TF card if present. If TF card is not
present, a warning “No card” will appear. Having selected
the desired storage option, the display will change to say
“Preparing” press the Enter Button to start to record. Press
the Enter Button to pause recording and press the M Button
to stop recording. If you stop the recording and then press the
Enter Button, a new recording will start. Press the M Button
can exit the recording screen.
6.8 Sort
The stations stored in the <Station List> can be stored either
according to the frequency or in alphanumeric order(which is
the default setting).
6.9 System Setup
Please refer to <System Setup Menu introduction and
operation> of this manual.
6.10 Main Menu
Please refer to <Main Menu introduction> of this manual.
