mcmurdo Smartfind G8 AIS User manual

Smartfind G8 AIS
Smartfind G8
Smartfind E8
EPIRB-AIS
USER MANUAL

This manual is applicable to the Smartfind G8 AIS, Smartfind G8 and Smartfind
E8 EPIRBs. The G8 models contain a GNSS receiver for improved positional
accuracy; some parts of this manual are applicable only to the G8 models and are
marked accordingly.
ONLY IN EMERGENCY
FALSE ALERTS
ENDANGER LIVES.
1. Remove the EPIRB
completely from its
bracket (left) or
enclosure (right).
The enclosure is
spring loaded to auto-
matically release the
EPIRB if your vessel
sinks.
2. If time permits, lift
the red “ON”cover,
then press the
activation button for 2
seconds.
3. Uncoil the EPIRB’s
lanyard and tie it to the
life raft. Throw the
EPIRB into the water
(it will self-activate if
you did not have time
to press the activation
button).

CONTENTS
1SAFETY NOTICES ...........................................................1
1.1 Use.............................................................................................1
1.2 Testing, maintenance and disposal............................................1
1.3 Hazards......................................................................................1
1.4 EC Declaration of Conformity.....................................................1
1.5 FCC Compliance........................................................................1
1.6 Response time ...........................................................................1
1.7 Disclaimer...................................................................................1
2MANDATORY REGISTRATION .......................................2
2.1 Overview ....................................................................................2
2.2 How to register...........................................................................2
3DESCRIPTION..................................................................3
3.1 EPIRB controls and indicators ...................................................4
3.1.1 Top view ........................................................................4
3.1.2 Back view ......................................................................5
3.2 Carry handle...............................................................................6
3.3 Manual bracket...........................................................................7
3.4 Float-free enclosure ...................................................................8
3.4.1 Automatic activation ......................................................8
3.4.2 Manual activation...........................................................8
4EMERGENCY PROCEDURE............................................9
4.1 Abandon ship! ............................................................................9
4.1.1 Float-free enclosure.....................................................10
4.2 Release from manual bracket ..................................................10
4.3 Release from float-free enclosure............................................11
4.4 Manual activation .....................................................................12
4.5 Optimising onboard performance.............................................13
4.6 Deactivation..............................................................................14
4.7 Stowage ...................................................................................15
4.7.1 Manual bracket............................................................15
4.7.2 Float-free enclosure.....................................................16
5FALSE ALERTS .............................................................18
5.1 Notify rescue services..............................................................18
5.2 Deactivate the EPIRB...............................................................18
5.3 Faulty EPIRB............................................................................18
6INSTALLATION ..............................................................19
6.1 Manual bracket.........................................................................19
6.1.1 Siting............................................................................19

6.1.2 Mounting procedure.....................................................19
6.1.3 Mounting instruction plate............................................20
6.2 Float-free enclosure..................................................................21
6.2.1 Siting............................................................................21
6.2.2 Mounting procedure.....................................................22
6.2.3 Mounting instruction plate............................................23
6.2.4 HRU expiry date...........................................................23
6.2.5 Marking vessel name...................................................23
7MAINTENANCE ............................................................. 24
7.1 Servicing schedule....................................................................24
7.2 Self-test & inspection................................................................25
7.2.1 Short self-test...............................................................25
7.2.2 Long self-test (GNSS variants only) ............................26
7.3 Mechanical inspection ..............................................................27
7.4 HRU replacement .....................................................................28
7.5 Battery maintenance.................................................................31
7.5.1 Battery replacement.....................................................31
7.5.2 Battery removal............................................................31
7.6 Transportation...........................................................................33
7.7 GMDSS inspections..................................................................33
8END OF LIFE STATEMENT........................................... 34
8.1 Disposal....................................................................................34
9TECHNICAL SPECIFICATION....................................... 35
10 PRODUCT WARRANTY ................................................ 36
10.1 Orolia Ltd Warranty Registration ..............................................36
10.2 Warranty Statement..................................................................36
11 HOW DOES IT WORK? ................................................. 38
12 COSPAS-SARSAT SATELLITE SYSTEM..................... 39
12.1 The Search And Rescue (SAR) process..................................39
12.2 Global Navigation Satellite System (GNSS).............................40
12.3 MEOSAR Compatibility Explained............................................40
13 HOW TO REGISTER YOUR EPIRB............................... 42
13.1 Emergency contact...................................................................42
13.2 Registration Information for Australia & New Zealand..............43
13.2.1 Advice for EPIRB purchase or transfer........................43
13.3 Online warranty registration......................................................44
13.4 Radio licence ............................................................................44
13.5 Sale or transfer .........................................................................44

Page 1
1 SAFETY NOTICES
1.1 Use
An EPIRB (Emergency Position Indicating Radio Beacon) is for use in maritime
emergencies and is approved for these contingencies. It is not designed or
recommended for use on land or in the air.
Use the EPIRB only in situations of grave and imminent danger. False alerts
endanger lives. Help to prevent them; understand how to activate and deactivate
your equipment. Intentional false alerts may involve penalties.
Read the complete manual before installing, testing or using the EPIRB.
Ensure the EPIRB is registered with your local authorities (Flag State nation) –see
page 2.
1.2 Testing, maintenance and disposal
Ensure you test the EPIRB monthly –see page 25.
The EPIRB contains no user serviceable parts. The battery pack contains lithium
metal batteries. Do not incinerate, puncture, deform or short-circuit. If you need to
dispose of batteries or the complete EPIRB –see page 34. Return to your dealer
for service –see page 24.
1.3 Hazards
This EPIRB emits radio frequency radiation when activated. It is advisable not to
handle the antenna while the EPIRB is activated.
It is not advisable to stare directly at the strobe lights.
1.4 EC Declaration of Conformity
Hereby Orolia Ltd declares that this EPIRB is in compliance with the essential
requirements and other relevant provisions of the Marine Equipment Directive
(MED) –96/98/EC. A copy of the Declaration of Conformity can be obtained online
from: http://www.mcmurdomarine.com/documents
1.5 FCC Compliance
This device complies with the GMDSS provisions of Part 80 of the FCC rules.
1.6 Response time
The function of the EPIRB is to send an alert to COSPAS-SARSAT satellites as
described on page 39. How soon an alert is received depends on the positions of
the satellites at the time and can be influenced by overhead obstructions aboard
the vessel. Rescue time following an alert depends on the overall performance of
the Search and Rescue organisations which is outside the control of Orolia Ltd.
1.7 Disclaimer
Orolia Ltd reserves the right to change this specification at any time without notice
and hereby specifically disclaims liability for any consequences of such action.

Page 2
2 MANDATORY REGISTRATION
WARNING!
You must register your EPIRB with the appropriate authorities.
Failure to register may slow the rescue and lead to loss of life.
In the USA failure to register may result in a fine.
In the UK you are legally required to register your EPIRB.
2.1 Overview
Every EPIRB is pre-programmed with a unique identity before it reaches the
customer. This is performed by the manufacturer or, in some cases, the
distributor. The identity includes a 3 digit country code. This is the country that
takes responsibility for storing that particular EPIRB’s registration details. In
most cases, this is the country to which the vessel is flagged. The country
programmed into your EPIRB can be found from its rear identity label. You
must register with this country.
MV BELLANA
EPIRB 1
HEX ID: 1D1400063F81FE0
FLAG 232 G BRITAIN
SERIALISED 000012
CATEGORY 1 –AUTO
Class 2 –20/+55 C (-4/+131 F)
S/N: 701-21221 TAC: 000
When you activate your EPIRB in an emergency, the nearest maritime search
and rescue coordination centre (MRCC) will receive the message and decode
the country code. They will then access the registration database for that
country and expect to find details of your vessel, its radio equipment and who
to contact. If they fail to find this information, this may slow down any rescue.
2.2 How to register
Please refer to page 42 for detailed information about the registration process.
Vessel
Unique
Identity
Number
(UIN)
Country

Page 3
3 DESCRIPTION
This EPIRB is a powerful self-contained distress transmitter and once
activated it will operate for at least 48 hours. It operates best while floating in
water. Although it can be operated on board a vessel or in a life raft, it is not
recommended to do so.
The EPIRB can be mounted to the vessel using one of two options:
Manual bracket, or
Float-free enclosure
EPIRB EPIRB in manual bracket Float-free enclosure

Page 4

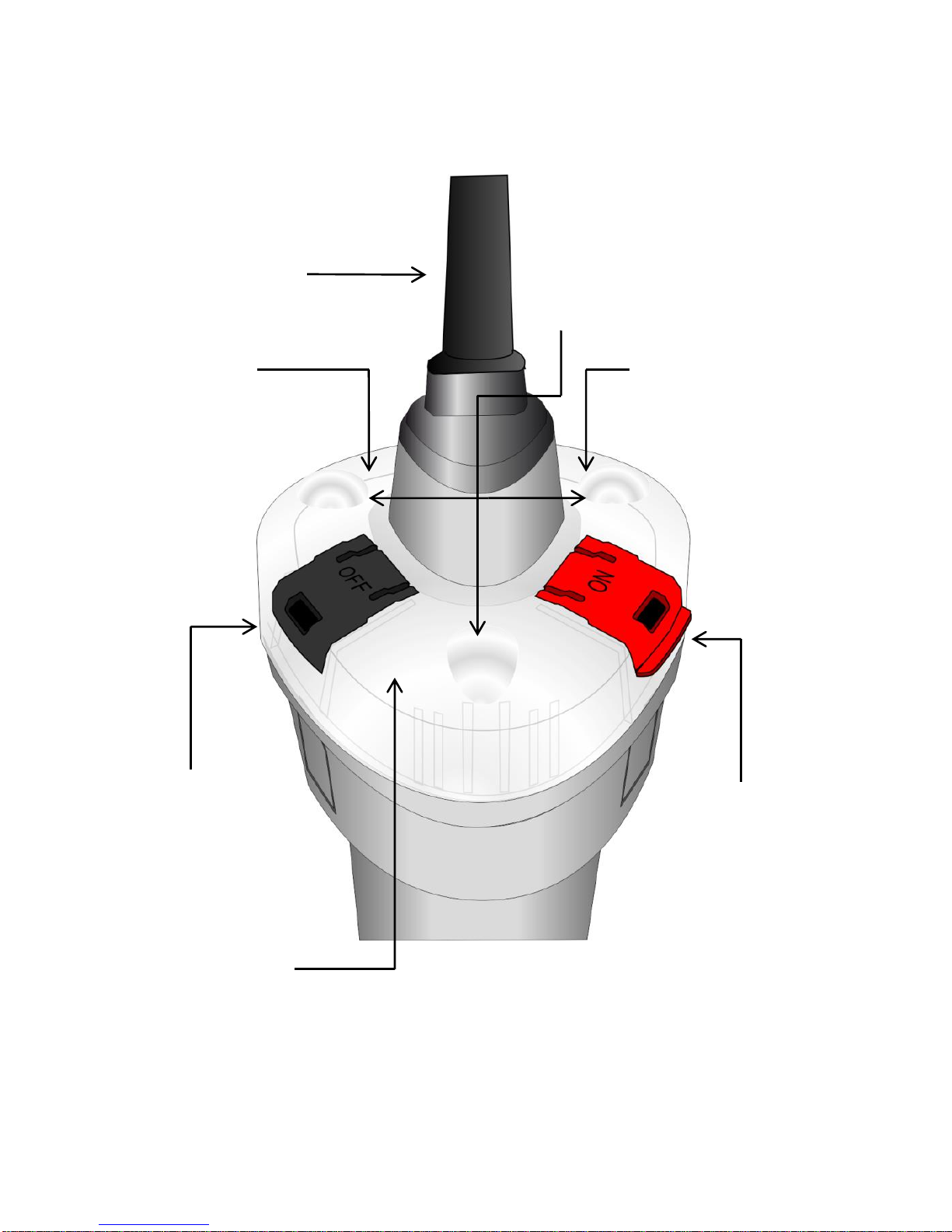

3.1 EPIRB controls and indicators
3.1.1 Top view
ON button
Activate EPIRB by
lifting the red cover and
pressing the ON button
for >2 seconds.
OFF button
Deactivate EPIRB
by lifting the grey
cover and pressing
the OFF button for
>2 seconds.
Strobe lights
Three high intensity LEDs.
When EPIRB is activated, the
strobe lights flash, providing a
visual means of locating the
EPIRB.
Green LED
Indicates
correct/normal
function.
Red LED
Slow flash:
acquiring GNSS location.
Rapid flash:
EPIRB malfunction.
Antenna
Must be vertical
and have a clear
view of the sky for
optimum
performance.
GNSS Antenna
(under dome)
Must have a clear view
of the sky for optimum
performance.
