Sennheiser GP SK 3202 User manual

GP SK 3202
Bedienungsanleitung
Instructions for use
Notice d‘emploi
Istruzioni per l‘uso
Instrucciones para el uso
SK3200_516571_0507_SP5.book Seite 1 Dienstag, 25. März 2008 12:00 12

1
Contents
Important safety instructions ............................................ 2
Delivery includes ................................................................... 4
The SK 3202 portable transmitter ..................................... 5
Operating elements .............................................................. 7
Putting the SK 3202 into operation ................................. 10
Using the SK 3202 portable transmitter ......................... 12
Care and maintenance ....................................................... 15
If a problem occurs ... ......................................................... 16
Specifications ...................................................................... 17
Type appovals ..................................................................... 19
Manufacturer Declarations ............................................... 20
Thank you for choosing Sennheiser!
We have designed this product to give you reliable operation over many
years. Over 60 years of accumulated expertise in the design and manufac-
ture of high-quality electro-acoustic equipment have made Sennheiser a
world-leading company in this field.
Please take a few moments to read these instructions carefully, as we want
you to enjoy your new Sennheiser products quickly and to the fullest.
SK3200_516571_0507_SP5.book Seite 1 Dienstag, 25. März 2008 12:00 12

2
Important safety instructions
These instructions contain important safety information.
yPlease read these instructions carefully and completely
before using the portable transmitter.
yHeed all warnings.
yFollow all instructions.
yMake these instructions easily accessible to all users at
all times. Always include these instructions when pass-
ing the portable transmitter on to third parties.
yNever open the portable transmitter. If units are opened
by customers in breach of this instruction, the warranty
becomes null and void.
yKeep the portable transmitter away from any heat
sources and never expose it to direct sunlight!
yKeep liquids and small parts which conduct electricity
away from the portable transmitter.
yOnly charge the rechargeable batteries at ambient tem-
peratures between 10 °C and 40 °C. Only use the
GP L 3202 charger to charge the batteries. Immediately
stop the charging process of an obviously defective port-
able transmitter/rechargeable battery.
yAfter use, insert the portable transmitter into a charger
or turn it off. When the portable transmitter is not used
for an extended period, recharge the batteries about
every three months.
yOnly use a clean dry cloth to clean the portable transmit-
ter.
SK3200_516571_0507_SP5.book Seite 2 Dienstag, 25. März 2008 12:00 12

3
yOnly use attachments/accessories specified by Sennhe-
iser.
yRefer all servicing to qualified service personnel. Servic-
ing is required if the portable transmitter has been dam-
aged in any way, such as liquid has been spilled, objects
have fallen inside, the portable transmitter has been
exposed to rain or moisture, does not operate properly or
has been dropped.
yDispose of units with exhausted rechargeable batteries
which cannot be recharged as special waste or return
them to your specialist dealer.
Intended use of the portable transmitter
“Intended use” means that the portable transmitter should
be used within the operating conditions and limitations de-
scribed in this instruction manual.
“Improper use” means modifiying the portable transmitter,
using the portable transmitter other than as described in
these instructions, or under operating conditions which dif-
fer from those described herein.
SK3200_516571_0507_SP5.book Seite 3 Dienstag, 25. März 2008 12:00 12

4
Delivery includes
1 SK 3202 portable transmitter
1 neck strap
1 antenna
Quick Start Guide
(a detailed instruction manual can be found in PDF format
on the CD (see chapter 5) and in the on-
line help)
In order to be able to configure and use the portable trans-
mitter, you also require the following equipment and soft-
ware (not included in the delivery):
y1 microphone (see “Suitable microphones” Page 6)
yEK 3202 receivers
yL 3202 chargers for configuration and for charging the
rechargeable batteries in the portable transmitter and
receivers
y“Visitor Profiler” software module (included with the
SYS software package) for configuring the
portable transmitter and receivers
y1 computer
SK3200_516571_0507_SP5.book Seite 4 Dienstag, 25. März 2008 12:00 12

5
The SK 3202 portable transmitter
The SK 3202 is a portable stereo transmitter, allowing you
to offer personal guided tours using your system.
The SK 3202 ensures excellent speech intelligibility even
over longer distances. There will be no crowding around the
guide; other visitors will not be disturbed by the guided
tour (and vice versa). The visitors to the tour can enjoy
complete freedom of movement.
A few mouse clicks are all that is required to configure the
portable transmitter and any number of receivers for a
guided tour. The portable transmitter is easy to use.
During a guided tour, the portable transmitter does not in-
terfere with the reception of Storage and Live Events. Using
the portable transmitter, the receivers participating in the
guided tour can be seamlessly switched between the guid-
ed tour and any Events.
Suitable receivers
The SK 3202 portable transmitter only works with the Sen-
nheiser EK 3202 receivers.
SK3200_516571_0507_SP5.book Seite 5 Dienstag, 25. März 2008 12:00 12

6
Suitable microphones
You can connect one of the following Sennheiser micro-
phones (not included) to the portable transmitter:
yClip-on microphones with 3-pin screw locking LEMO plug:
MKE 2-4 Gold C,
MKE plat-4-C,
ME 102 (only with Cable KA 100S-4),
ME 104 (only with Cable KA 100-4),
ME 105 (only with Cable KA 100-4)
yHeadmic:
HS 2
yHand-held microphone:
e935 (with XLR-3 to 3-pin screw locking LEMO adapter
cable)
In addition, you can connect an audio source to the LINE
socket (3.5 mm stereo) of the transmitter.
SK3200_516571_0507_SP5.book Seite 6 Dienstag, 25. März 2008 12:00 12

7
Operating elements
POWER LED
FUNCTION key
MUTE key
READY LED
LEVEL+ key
LINE key
4-pin connector strip
MIC key
Numeric keys
LEVEL– key
ANT antenna socket
LINE LED
LINE socket (3.5 mm stereo)
MIC LED
MIC microphone socket
Belt clip
















SK3200_516571_0507_SP5.book Seite 7 Dienstag, 25. März 2008 12:00 12

8
Meanings of the four LEDs
LED Status Meaning
POWER LED 
READY LED 
both lit Portable transmitter is switched
on. Capacity of the built-in re-
chargeable battery is sufficient.
both off Portable transmitter is turned off.
POWER LED flashes red
slowly
Built-in rechargeable battery is al-
most flat. Portable transmitter
does not react to key presses.
off Built-in rechargeable battery is
flat. Portable transmitter is
turned off.
READY LED off Portable transmitter is not com-
municating with the receivers.
flashes slowly Tour interruption is activated.
flashes
rapildy
Portable transmitter expects an
entry.
LINE LED lit green Line input is switched on.
lit yellow Line input sensitivity is correctly
adjusted.
lit red Line input is overmodulated
(clipping). Thus, the audio signal
in the receivers is distorted.
flashes red Line input is muted during sensi-
tivity adjustment.
off Portable transmitter is not com-
municating with the receivers.
SK3200_516571_0507_SP5.book Seite 8 Dienstag, 25. März 2008 12:00 12

9
MIC LED lit green Microphone input is switched on.
lit yellow Mic input sensitivity is correctly
adjusted.
lit red Mic input is overmodulated
(clipping). Thus, the audio signal
in the receivers is distorted.
flashes red
rapidly
Mic input is muted or tour inter-
ruption is activated.
off Portable transmitter is not com-
municating with the receivers.
LED Status Meaning
SK3200_516571_0507_SP5.book Seite 9 Dienstag, 25. März 2008 12:00 12

10

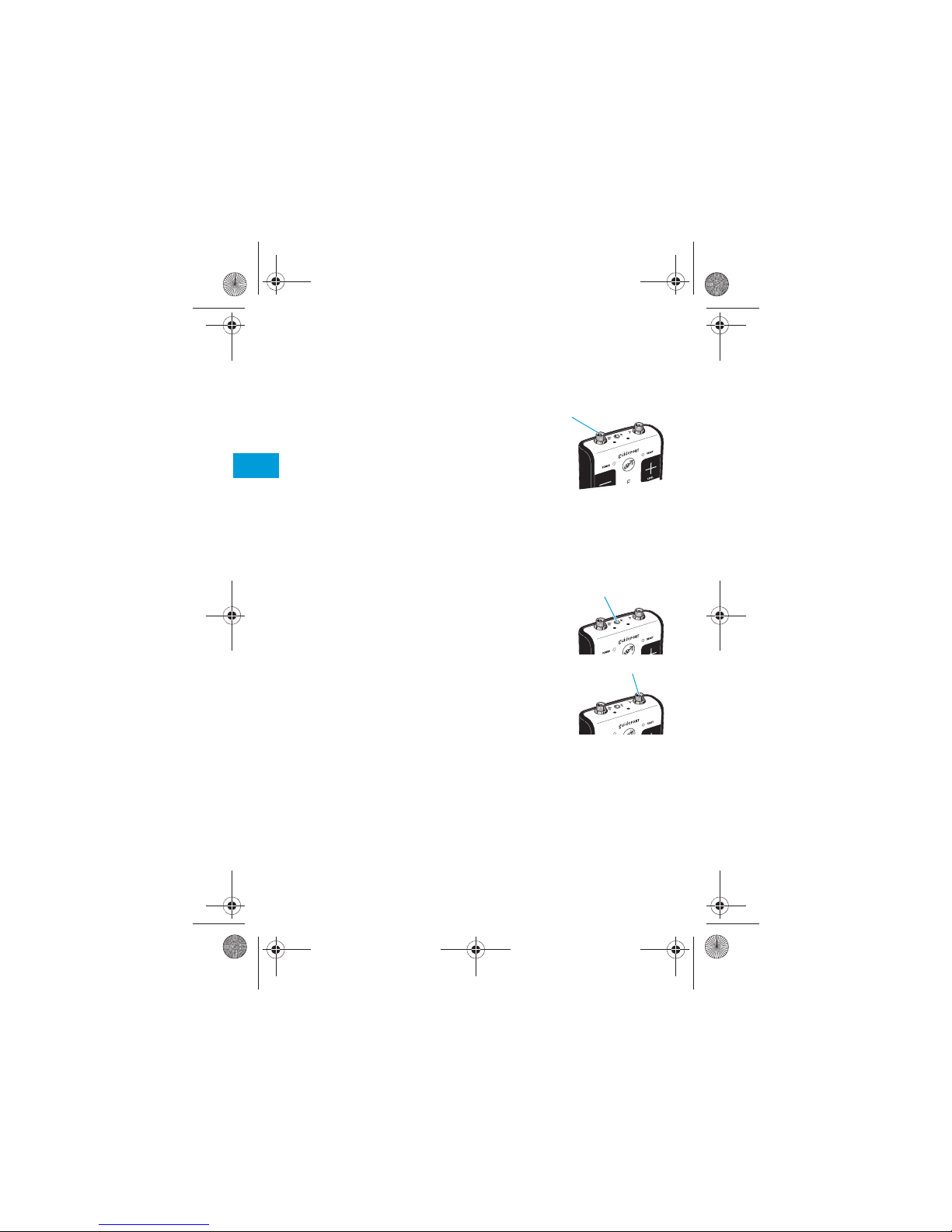

Putting the SK 3202 into operation
Connecting the microphone
왘
Connect the plug from the micro-
phone cable to the MIC socket
 .
왘Lock the plug by screwing down the
coupling ring.
Connecting a line source
You can connect an external audio source such as a CD play-
er (or other audio device) to the portable transmitter. For
this, you require a cable with a 3.5 mm stereo jack plug.
왘Connect the line output of the audio
device to the LINE socket .
Connecting the antenna
왘Connect the supplied antenna to
the ANT antenna socket .
왘Lock the antenna by screwing down
the coupling ring.
Charging the rechargeable battery
왘Insert the portable transmitter into any charging com-
partment of the L 3202 charger.
All LEDs go off. The portable transmitter turns off auto-
matically. The charge status of the rechargeable battery
is indicated by the LEDs on the charger and in the
“Receiver Display” area of the “Charger Manager” mod-



SK3200_516571_0507_SP5.book Seite 10 Dienstag, 25. März 2008 12:00 12

11
ule.
Note:
Charging takes approx. 4 hours. With a fully charged
rechargeable battery, the portable transmitter’s operat-
ing time is approx. 8 hours.
Adjusting the sensitivity of the microphone input
왘Make sure that the microphone is connected and then
speak in a normal voice.
왘Keep the MIC key pressed and
simultaneously press the LEVEL+
key or the LEVEL– key sev-
eral times so that the MIC LED 
always lights up yellow. The MIC
LED should only briefly light
up red during the loudest pas-
sages.
Adjusting the sensitivity of the line input
왘Connect the external audio source, turn it on and start
playback.
왘Keep the LINE key pressed and
simultaneously press the LEVEL+
key or the LEVEL– key sever-
al times so that the LINE LED al-
ways lights up yellow. The LINE
LED should only briefly light up
red during the loudest passages.






SK3200_516571_0507_SP5.book Seite 11 Dienstag, 25. März 2008 12:00 12

12
Using the SK 3202 portable transmitter
Intended
operation
What to do LED indications/Result
Configuring
the portable
transmitter
See “Visitor Profiler” software module.
Automatic
turn-on
Remove the portable
transmitter from the
charger.
The POWER LED and
the READY LED light
up.
Manual
turn-on
Briefly press the FUNC-
TION key .
Automatic
turn-off
Insert the portable
transmitter into the
charger.
The POWER LED and
the READY LED go
off.
Manual
turn-off
Press the MUTE key 
for 5 seconds.
Muting the
microphone
Briefly press the MUTE
key .
The MIC LED flashes
red.
Doing a
guided tour
The maximum distance
between the receivers
and the portable trans-
mitter must not exceed
20 m.
The receivers do not re-
act to identifiers or key
presses and do not re-
produce any Events.
Temporarily
interrupting a
tour, auto-
matically trig-
gering an
Event
Press the FUNCTION
key for 3 seconds
while you are in the
magnetic field of the
identifier which triggers
the desired Event.
The READY LED 
flashes green slowly.
The receivers start re-
producing the corre-
sponding Event.
SK3200_516571_0507_SP5.book Seite 12 Dienstag, 25. März 2008 12:00 12

13
Temporarily
interrupting a
tour, manual-
ly triggering
an Event
Briefly press the FUNC-
TION key , then enter
the three-figure Event
number via the numeric
keys .
The READY LED 
flashes green. The re-
ceivers start reproduc-
ing the corresponding
Event.
Deactivating
the tour inter-
ruption
Before starting the tour,
use the “Visitor Profiler”
software module to set a
max. interruption time.
If the maximum inter-
ruption time has ex-
pired, Event
reproduction is auto-
matically stopped.
Set up a System Event
with the ID number 97
and position the identifi-
er(s).
Event reproduction is
automatically stopped
by an identifier.
Press the MIC key 
(only works if no Live
Event is transmitted and
if the receivers do not
perform a download).
The READY LED 
flashes green. All re-
ceivers stop reproduc-
ing the Event and
receive the portable
transmitter’s signal
again.
Finishing the
guided tour
Simultaneously press
the FUNCTION key 
and the MUTE key for
3 seconds.
The READY LED , the
LINE LED and the
MIC LED go off.
Intended
operation
What to do LED indications/Result
SK3200_516571_0507_SP5.book Seite 13 Dienstag, 25. März 2008 12:00 12

14
Attaching the portable transmitter to clothing
The portable transmitter is best at-
tached to clothing (e.g. belt, waist-
band, pocket) with the belt clip .
In addition, you can attach a neck
strap to the belt clip and wear
the portable transmitter around
your neck.
ATTENTION! Danger of short-circuit!
If you put the portable transmitter into a
pocket with small parts which conduct
electricity such as coins, etc., these can
short out the 4-pin connector strip .
왘Keep small parts which conduct electric-
ity away from the portable transmitter.

SK3200_516571_0507_SP5.book Seite 14 Dienstag, 25. März 2008 12:00 12

15
Care and maintenance
ATTENTION! Water can damage the electronics of the
portable transmitter!
Water or other liquid entering the housing
of the portable transmitter can cause a
short-circuit and damage the electronics.
왘Only use a clean dry cloth to clean the
portable transmitter. Do not use any
cleansing agents or solvents.
SK3200_516571_0507_SP5.book Seite 15 Dienstag, 25. März 2008 12:00 12

16
If a problem occurs ...
If a problem occurs that is not listed in the above table or if the problem
cannot be solved with the proposed solutions, please contact your local
Sennheiser agent for assistance.
Problem Possible cause Possible solution
No audio is heard by the receiver(s)
Portable transmitter’s re-
chargeable battery is flat
(POWER LED is off)
Recharge the rechargeable
battery (see page 10)
Portable transmitter is
muted (MIC LED flashes
red rapidly)
Deactivate the muting
function (see page 12)
Tour interruption is acti-
vated (READY LED 
flashes green slowly), but
the selected Event has fin-
ished playing.
Deactivate the tour inter-
ruption function (see
page 13)
Guided tour is finished
(LINE LED and MIC
LED are both off)
Reconfigure the portable
transmitter and the receiv-
ers and restart the tour
Volume on the receiver is
adjusted too low
Increase the volume on the
receiver
Transmitter is out of range
(approx. 20 m)
Reduce the distance be-
tween receiver and porta-
ble transmitter
Portable transmitter and
receiver are not on the
same channel
Set the portable transmit-
ter and the receivers to the
same channel
Receivers’s rechargeable
battery is flat
Recharge the rechargeable
battery (see page 10)
SK3200_516571_0507_SP5.book Seite 16 Dienstag, 25. März 2008 12:00 12

17
Specifications
General
Temperature range –10 °C to +50 °C
Dimensions 113 x 65 x 30 mm (incl. belt clip)
Weight (incl. re-
chargeable batter-
ies)
approx. 180 g
Firmware update via “Charger Manager” software module
Electrical characteristics
Power supply built-in NiMH rechargeable battery pack
with two AA size cells, 1.2 V, 2100 mAh
Max. current con-
sumption
220 mA
Typ. operating time approx. 8 h
Charging time of re-
chargeable batteries
approx. 4 h
RF characteristics
Transmission frequency
range
2.401920 to 2.481408 GHz
Identifier receiving fre-
quency
127 kHz
Frequency adjustment one of 93 channels via the “Visitor
Profiler” software module
Channel grid 864 kHz
Channel spacing 2.592 MHz (every third channel)
Modulation FSK (Frequency Shift Keying)
SK3200_516571_0507_SP5.book Seite 17 Dienstag, 25. März 2008 12:00 12

18
Frequency deviation ±350 kHz
Data rate 1024 kbit/s
Radiated RF power USA: 1 mW,
Europa 10 mW
Microphone connection
1 x 3-pin Lemo
Frequency response 80–14,000 Hz, –3 dB cut-off frequency
Max. input level 7 mVrms at max. input gain
270 mVrms at min. input gain
THD <1 % at 7 mVrms input level,
max. input gain
<1 % at 270 mVrms input level,
min. input gain
Signal-to-noise ratio ≥65 dB (A)
Line connection
1 x 3.5 mm stereo jack socket
Frequency response 80–14,000 Hz, –3 dB cut-off frequency
Max. input level 0.55 Vrms at max. input gain
1.4 Vrms at min. input gain
THD <1 % at 0.55 Vrms input level,
max. input gain
<1 % at 1.4 Vrms input level,
min. input gain
Signal-to-noise ratio ≥65 dB (A)
RF characteristics
SK3200_516571_0507_SP5.book Seite 18 Dienstag, 25. März 2008 12:00 12

19
Type appovals
Charger connection
4-pinconnector
strip
Charging the rechargeable batteries
For communication with the “Charger Manager”
and “Visitor Profiler” software modules via the
charger
Antenna connection
1 x 1-pin coaxial Lemo
Area Conformity
USA: FCC-Part 15, 15.249
FCC ID: DMOSK3202
Canada: RSS-210
IC: 2099A-SK3202
EU: according to R&TTE
EN 60065
ETSI EN 300 440-1/-2
ETSI EN 301 489-1/-3
SK3200_516571_0507_SP5.book Seite 19 Dienstag, 25. März 2008 12:00 12
