MDTechShop 2016-9501-C6 User manual

Assembly Instruction
Bumper for Carson 3-cell lights 6x3
for TAMIYA 2-axle truc s (1: 14)
Best.-Nr.: 2016-9501-C6
Version 2.0 – 20.05.2017
MDTechShop – Torfstrasse 7 – 71229 Leonberg - Email: team@m techshop. e
General Description
This polystyrene-mille parts set for a bumper as an accessory was esigne
for the TAMIYA trucks (1:14).
The bumper can be mounte on the vehicle frame. As mounting serving two
specially evelope retaining plates, which is positione flush right behin the
original Tamiya Traverse.
There are recesses for six Carson 3-cell lights
(Carson lights are not included).
Assembly Procedure
Before you put the parts together please rea the assembly instructions
carefully an pay attention to the assembly sequence an test the fitting
accuracy of the parts before gluing them together.
It is helpful to fix the parts at first only on a few points with super-glue an
after a check along the e ges fully with super-glue or a polystyrene-glue.
The parts are ma e of polystyrene, if you use super-glue in combination with
activator spray, please be aware that the activator spray can estroy
polystyrene – because of that you shoul use it very carefully or use only
polystyrene-glue.
MDTechShop – Torfstrasse 7 – 71229 Leonberg - Email: team@m techshop. e

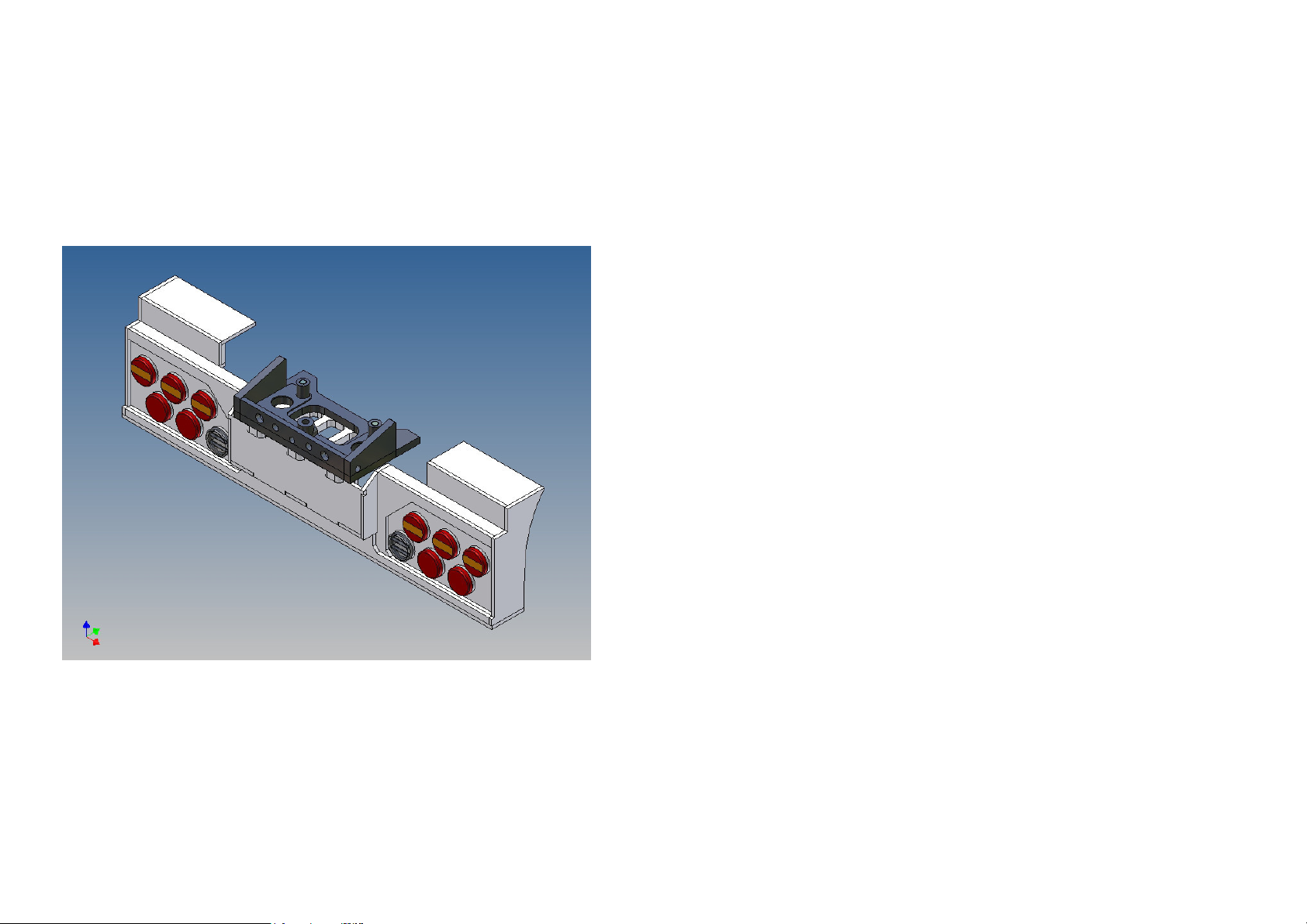

Abbildung ähnlich /
Similar to Figure

Bei Mercedes Actros
1851 verwenden /
Use for Mercedes
Actros 1851

rechts s iegelbildlich
zusammensetzten /
make the right art
reversed together

Blick von Unten: 3x8mm Schrauben benutzen (nicht enthalten) /
View from Below: 3x8mm screws (not included)

Annotation:
Goo luck an have fun - your MDTechShop team
www.MDTechShop. e
For questions or replacement part requests please sen a short e-mail.
Warning:
This is not a toy! It contains small parts! Keep it away from young
children!
MDTechShop – Torfstrasse 7 – 71229 Leonberg - Email: team@m techshop. e
