Meatest M641 User manual

M641 Programmable RTD Simulator
Operation manual

M641 Programmable RTD Simulator MEATEST
3 Revision 23, FW 2.000 Operation manual
Content
1. BASIC INFORMATION....................................................................................................................... 5
2. PREPARATION FOR USE .................................................................................................................. 5
2.1. INSPECTING PACKAGE CONTENTS, SELECTING THE INSTALLATION LOCATION ..................................... 5
2.2. POWER ON ...................................................................................................................................... 5
2.3. WAR -UP TI E .............................................................................................................................. 6
2.4. SAFETY PRECAUTIONS ..................................................................................................................... 6
3. DESCRIPTION ..................................................................................................................................... 7
3.1. FRONT PANEL ................................................................................................................................. 7
3.2. REAR PANEL ................................................................................................................................... 9
4. OPERATION .......................................................................................................................................10
4.1. CONNECTION AND DISCONNECTION OF OUTPUT TER INALS .............................................................10
4.2. WIRES CONNECTION .......................................................................................................................10
4.3. SETTING THE FUNCTION .................................................................................................................10
4.4. SETTING THE VALUE OF OUTPUT SIGNAL .........................................................................................17
4.5. PARA ETER SETTINGS (SETTINGS ENU) ........................................................................................18
4.6. PRESET ENU ................................................................................................................................18
4.7. AIN ENU ...................................................................................................................................19
4.8. CALIBRATION ODE ......................................................................................................................21
5. PERFORMANCE VERIFICATION TEST ........................................................................................24
6. REMOTE CONTROL .........................................................................................................................25
6.1. RS232 INTERFACE .........................................................................................................................25
6.2. GPIB INTERFACE (OPTION) ............................................................................................................26
6.3. LAN INTERFACE (OPTION) .............................................................................................................27
6.4. USB INTERFACE (OPTION) ..............................................................................................................28
6.5. CO AND SYNTAX .......................................................................................................................29
6.6. SCPI CO AND TREE ...................................................................................................................30
6.7. STANDARD STATUS DATA STRUCTURES .........................................................................................32
6.8. SCPI STANDARD CO ANDS ........................................................................................................34
6.9. SCPI CO ANDS ..........................................................................................................................38
6.10. SCPI ERROR CODES .......................................................................................................................63
6.11. CO PATIBLE CO ANDS ..............................................................................................................64
6.12. DE O PROGRA ............................................................................................................................65
7. MAINTENANCE .................................................................................................................................66
7.1. FUSE REPLACING ............................................................................................................................66
7.2. EXTERNAL SURFACE CLEANING ......................................................................................................66
8. MODULE 19” (VERSION M641 VXX1X)..........................................................................................66
9. TECHNICAL DATA ............................................................................................................................67
10. ORDERING INFORMATION – OPTIONS .......................................................................................69
CERTIFICATE OF CONFORMITY ...........................................................................................................70

MEATEST M641 Programmable RTD Simulator
Operation manual 4
Figures
Figure 1 Starting Screen ......................................................................................................... 6
Figure 2 Front panel ............................................................................................................... 7
Figure 3 Display..................................................................................................................... 7

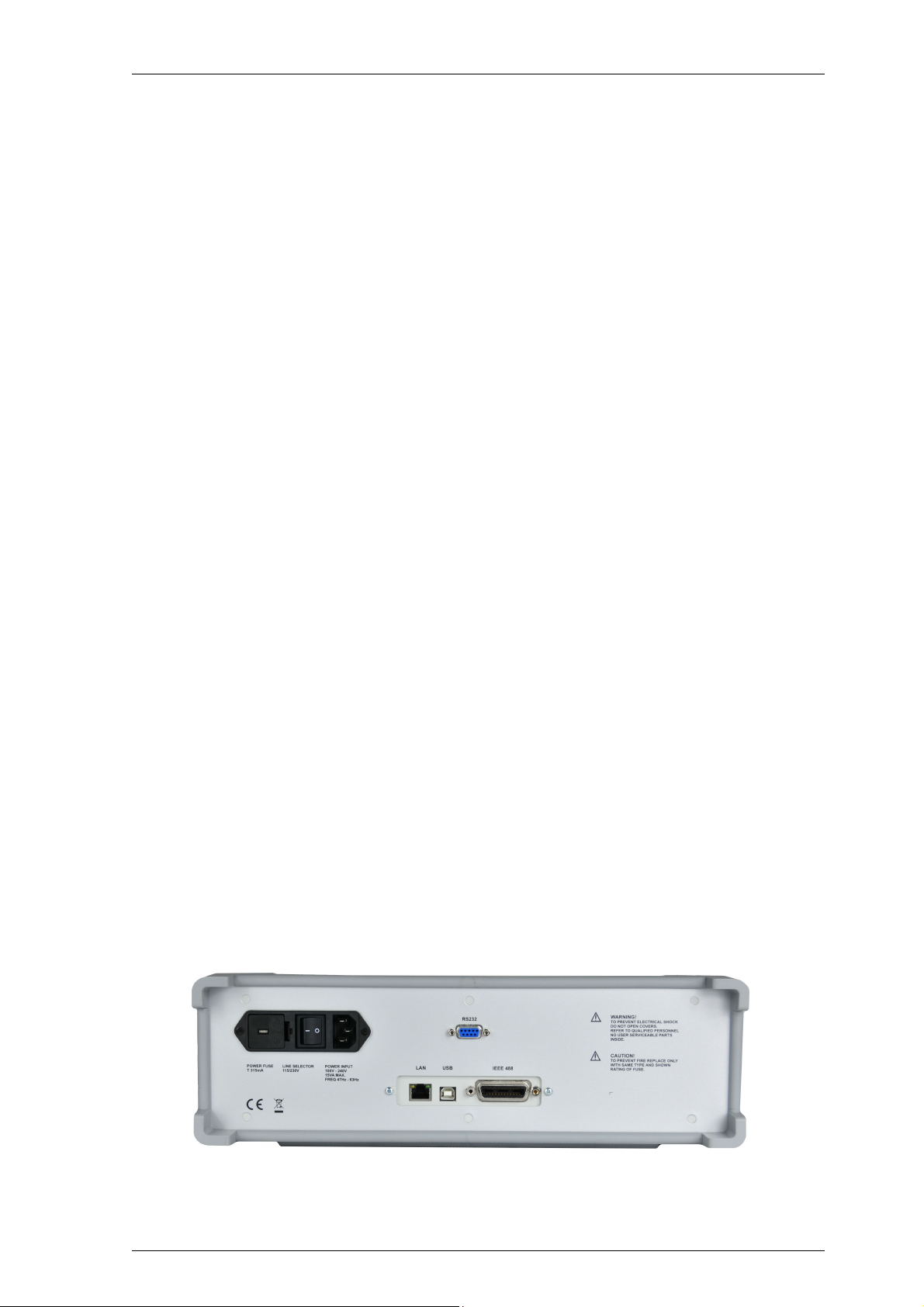

Figure 4 Rear panel ................................................................................................................ 9

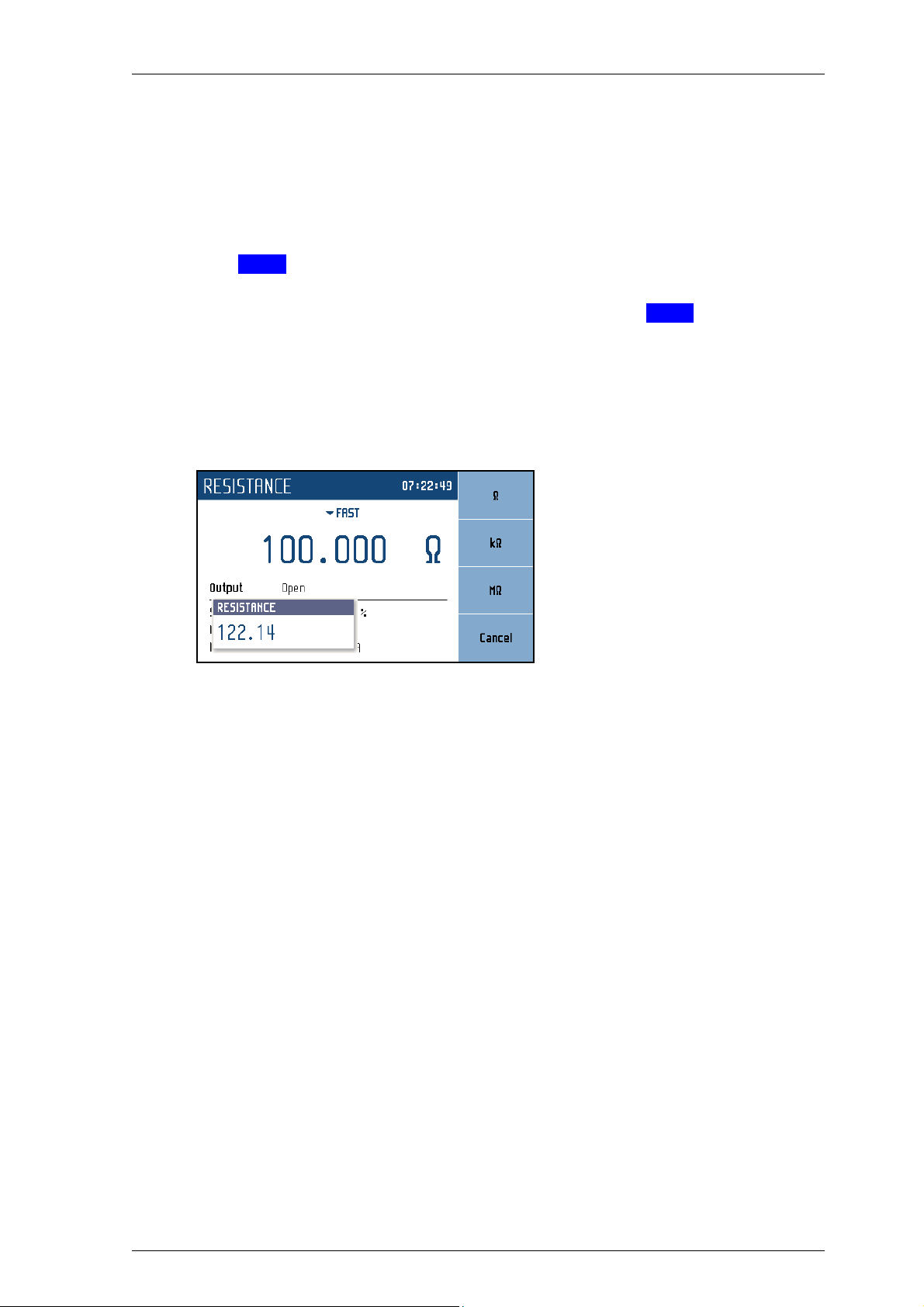

Figure 5 Resistance screen ................................................................................................... 10

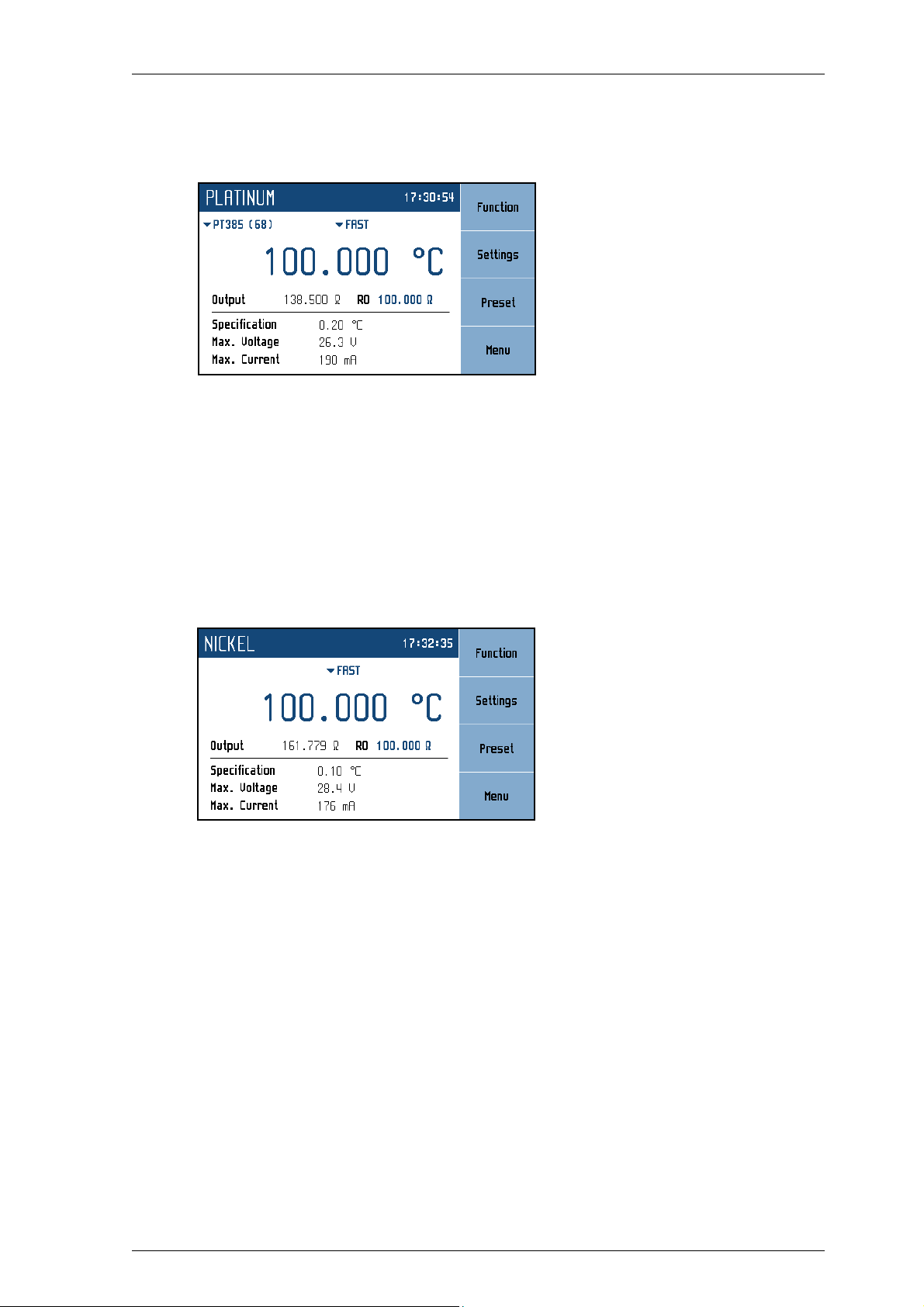

Figure 6 Platinum screen ...................................................................................................... 11
Figure 7 Nickel screen ......................................................................................................... 11

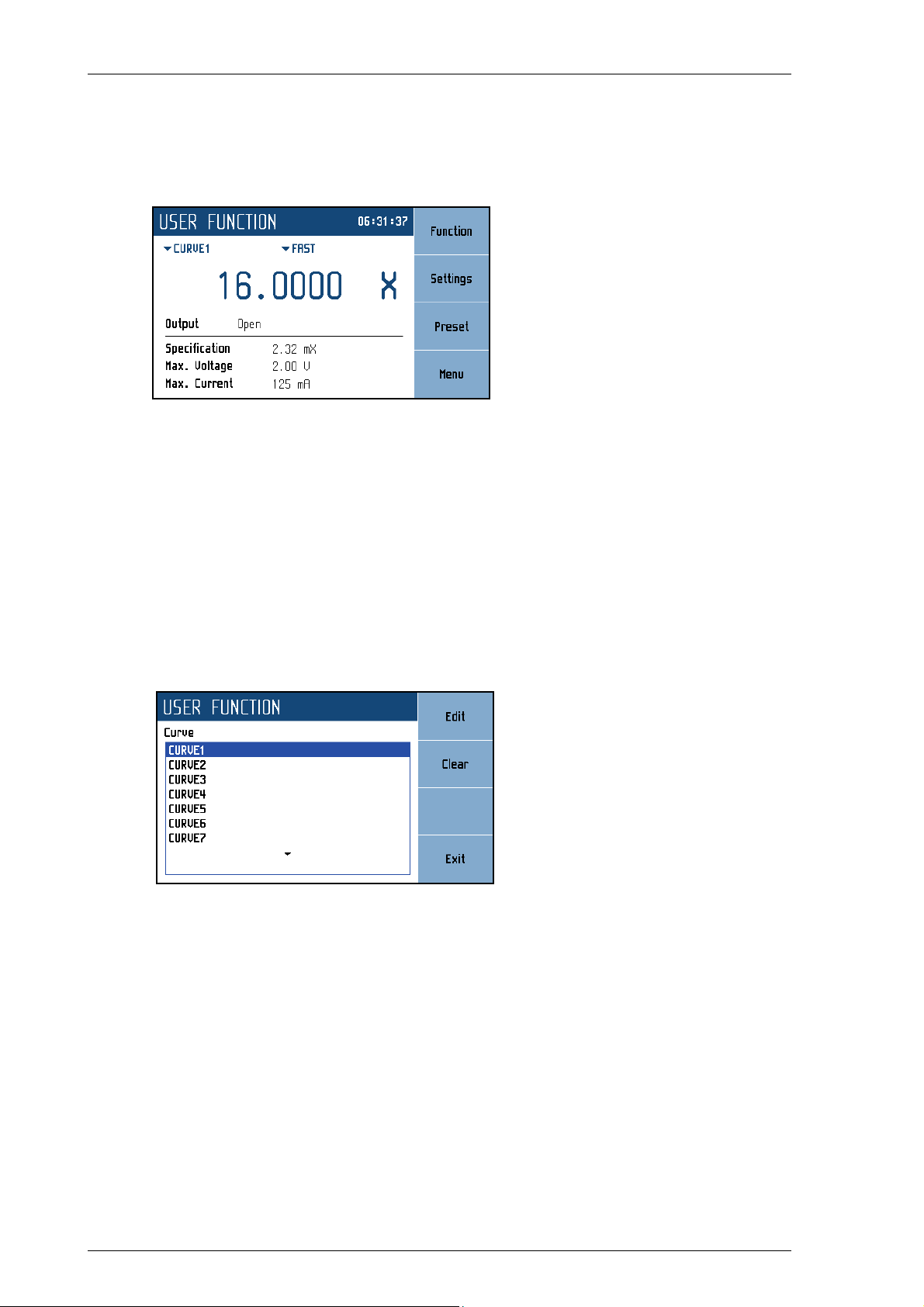

Figure 8 User function screen ............................................................................................... 12
Figure 9 User function list .................................................................................................... 12
Figure 10 New user function ................................................................................................ 13
Figure 11 User function point editing ................................................................................... 13
Figure 12 User function edit ................................................................................................. 14
Figure 13 Timing screen ...................................................................................................... 14
Figure 14 Time sequence list ................................................................................................ 15
Figure 15 New sequence ...................................................................................................... 15
Figure 16 Timing sequence point editing .............................................................................. 16
Figure 17 Timing sequence edit ........................................................................................... 16
Figure 18 Numeric value entry ............................................................................................. 17
Figure 19 Settings menu ....................................................................................................... 18
Figure 20 Preset menu .......................................................................................................... 18

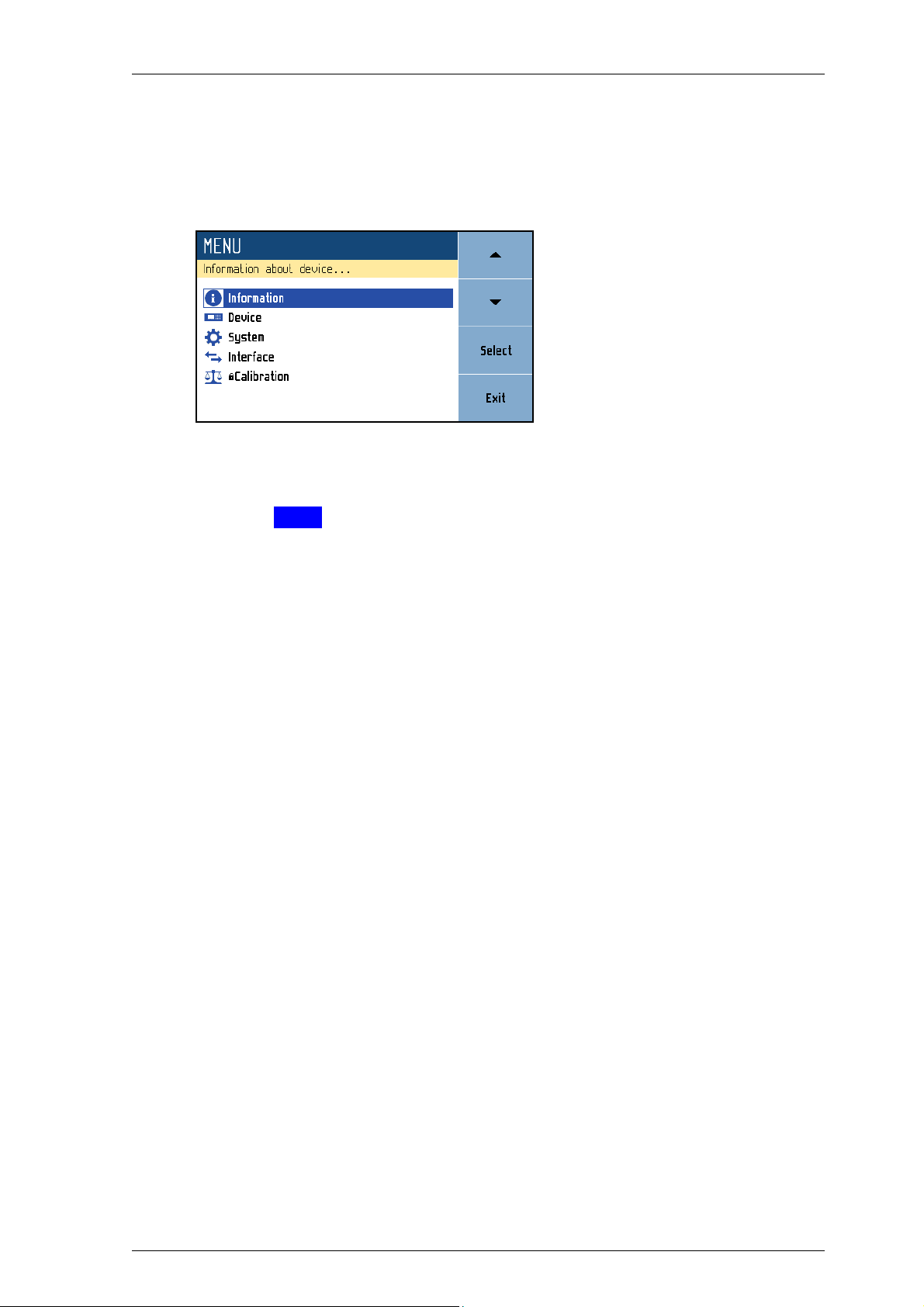

Figure 21 ain menu ........................................................................................................... 19
Figure 22 Password entry ..................................................................................................... 21
Figure 23 Calibration point screen ........................................................................................ 23
Figure 24 RS232 9 pin D-SUB ALE connector ................................................................. 25
Figure 25 IEEE488 connector .............................................................................................. 26
Figure 26 LAN connection 1 ................................................................................................ 27
Figure 27 LAN connection 2 ................................................................................................ 27
Figure 28 USB connector ..................................................................................................... 28
Figure 29 Status register overview ....................................................................................... 32
Figure 30 odule 19" rack, front panel ................................................................................ 66
Tables
Table 1 641 Calibration points .......................................................................................... 22
Table 2 Verification - allowed deviations ............................................................................. 24
Table 3 RS232 cable connection .......................................................................................... 26
Table 4 OUTPut command structure .................................................................................... 41
Table 5 Keyboard codes ....................................................................................................... 60
Table 6 SCPI error codes...................................................................................................... 63
Table 7 641 Resistance accuracy....................................................................................... 68
Table 8 641 Pt simulation accuracy ................................................................................... 68
Table 9 641 Ni simulation accuracy .................................................................................. 68
Table 10 641 Typical frequency response ......................................................................... 68

M641 Programmable RTD Simulator MEATEST
5 Operation manual
1. Basic information
Programmable RTD Simulator 641 is suitable for automated simulation of different resistance
sensors (temperature, pressure, position, force …). Internal design eliminates “zero resistance effect”
which is typical for most resistance decades.
Resistance value is created via appropriate combination of physical resistors. RTD simulator is
equipped with built-in function of direct simulation of most frequent temperature Pt and Ni sensors.
Low thermal voltage relays and stable resistors are used as main parts of the RTD Simulator. Actual
set values are displayed on high resolution TFT display. 641 is sophisticated instrument with its own
re-calibration procedure. The procedure enables to correct any deviation in resistance without any
mechanical adjustment.
Instrument is especially suitable for automatic testing procedures. RS232 line (optionally
IEEE488, USB and Ethernet bus) is used for connecting RTD simulator to the computer.
2. Preparation for use
2.1. Inspecting package contents, selecting the installation location
Basic package includes the following items:
 RTD Simulator 641
 RS232 cable
 CD with demo program
 User’s manual
 Test report
The instrument must be powered by 230/115 V – 50/60 Hz mains. Before powering on the
instruments, place it on a level surface. If the instrument was stored out of range of reference
temperatures, let it stabilize for one hour.
2.2. Power on
 Before connecting the instrument to the mains, check the position of the mains voltage selector
located at the rear panel.
 Plug one end of the power cord into the connector located at the rear panel and connect the other
end of the power cord into a wall outlet.
 Switch on the mains switch located at the rear panel. Display is lit.

MEATEST M641 Programmable RTD Simulator
Operation manual 6
Figure 1 Starting Screen
 The instrument performs internal hardware checks for app. 5 seconds.
 After the tests conclude, the instrument is set to “Startup” preset. This preset is adjustable
however, the instrument will always start with OPEN terminals.
2.3. Warm-up time
The instrument works after it is switched on and the initial checks complete. Specified
parameters are only guaranteed after the instrument warms up for 10 minutes.
2.4. Safety precautions
The instrument has been designed according to EN 61010-1:2011. Safety is ensured by the
design and by the use of specific component types.
The manufacturer is not liable for the damage caused by modification of the construction or
replacement of parts with non-original ones.
Safety symbols used on the equipment
Warning, reference to the documentation

M641 Programmable RTD Simulator MEATEST
7 Operation manual
3. Description
3.1. ront panel
Figure 2 Front panel
On the front panel there are located all main control keys, display and output terminals.
1 Output terminals
Four wire output terminals. easuring (evaluation) circuit can be connected by 2, 3 or 4 wires. Both
sides (red and grey) are floating up to 500Vpk against the case (PE).
2 Ground terminal
Central ground terminal (protective earth) connected to the metal case of the instrument. It is
recommended to connect it to the “grey” output terminals if connected meter is not grounded.
3 Display
Figure 3 Display
A
B1
C1
B1
C2
B1
C3
D1
B1
D2
D3
B1
D4
B1
B2
B1
B1
B1
B3
B1
1 3 4 5 6 8
7 2

MEATEST M641 Programmable RTD Simulator
Operation manual 8
The display is divided into four sections:
A. Information line
 Selected function (RESISTANCE, PLATINU , …)
 Time
B. Main area
This section displays the set-up values of generated signals and the data related to the simulator
status. The section includes the following types of data:
1. Auxiliary parameters
This section displays auxiliary parameters of actually selected function:
 Temperature standard (PT385, PT3916, …)
 Switching mode (FAST, VIA OPEN, …)
 R0 resistance
2. Main alue
There is displayed main value of selected function with the unit. There is displayed also actual
position of cursor ▼▲ if the parameter is in edit mode. Position of cursor can be changed
using keys ◄, ► and parameter can be changed using keys ▲,▼.
3. Output state
There is displayed resistance value connected to the output terminals.
C. Specification
This section displays specification and limits relating to the main value:
1. Specification
This section displays specification of the main value.
2. Maximum oltage
This section displays maximum allowed voltage for the main value.
3. Maximum current
This section displays maximum allowed current for the main value.
D. Softkey labels
The functions of these keys change during operation (depends on selected function and actual
display mode).
4 Softkeys
There are four keys next to the display with variable function. The functions of these keys change
during operation (depends on selected function and actual display mode). These four softkeys appear
in main function window:
Function – Function selection. See chapter 4.3
Settings – Function-specific parameter settings. See chapter 4.5
Preset – One click setup of all function parameters. See chapter 4.6
Menu – General settings and parameters of all functions. See chapter 4.7

M641 Programmable RTD Simulator MEATEST
9 Operation manual
5 OPER (Operate key)
OPER key connects / disconnects selected value to the output terminals. Connected output terminals
are indicated by the lit LED in the key.
6 SHORT (Short key)
Active SHORT key (LED in the key is ON) replaces the main value with the short circuit. Also the
short circuit must be connected to the output terminals by the OPER key.
7 Cursor keys
Using these keys, the cursor can be controlled within allowed limits on the display. The keyboard
includes two buttons (◄, ►) which allow the cursor to be moved to the left or right. When a list is
displayed, (◄, ►) buttons skip through pages. Buttons (▲,▼) allow the user to increase or decrease
the number at the cursor position or move across items in a list.
The central SELECT key is used to select value you want to change (like TAB key).
8 Numeric keyboard
The keyboard allows the entry of numeric values on the display. ENTER button is used to confirm the
selection. CANCEL button can be used to cancel the entry.
Colors on display
Common rules are used for applied color of labels and values.
- Red color - displayed value is measured by the instrument. This color isn’t used in all versions.
- Blue color - parameters or values, which can be set-up or modified directly from front panel
keyboard or via ain menu.
- Black color - fix values, labels, notes, parameters which cannot be modified and for other fix text
with general information purpose.
eaning of softkeys is shown on the right side of display. If there is no description next to the softkey,
the softkey is not active in selected function.
3.2. Rear panel
There are located power cord socket, power line fuse, power line voltage selector 115/230V,
interface connectors RS232 and optionally LAN, USB and IEEE488 on the rear panel.
Figure 4 Rear panel

MEATEST M641 Programmable RTD Simulator
Operation manual 10
4. Operation
4.1. Connection and disconnection of output terminals
Set value is connected (disconnected) to the output terminals after pressing OPER key.
Connected output terminals are indicated by the lit LED in the key.
Disconnected output terminals can be used for “Open terminals” simulation. “Short circuit” is
simulated after pressing SHORT key. Active SHORT key (LED in the key is ON) replaces the main
value with the short circuit. Also the short circuit must be connected to the output terminals by the
OPER key.
4.2. Wires connection
Output resistance is available on R output terminals. Available is 2, 3 and 4-wire connection.
Both sides (red and grey) are floating up to 500Vpk against the case (PE).
Ground terminal is connected to the metal case and to the protective earth (PE).
4.3. Setting the function
Function can be changed after pressing „Function“ softkey. New function is selected using
cursor keys ▲,▼ or display softkeys. Selection must be confirmed by pressing SELECT key or „OK“
softkey.
Device supports following functions:
Resistance
Offers direct setting of exact resistance value.
Figure 5 Resistance screen
Editable parameters:
Resistance value: 10 Ω … 300 kΩ
Switching mode: FAST, S OOTH, VIA OPEN, VIA SHORT

M641 Programmable RTD Simulator MEATEST
11 Operation manual
Platinum
Offers direct setting of temperature of simulated platinum thermometer.
Figure 6 Platinum screen
Editable parameters:
Temperature: -200 °C … +850 °C (-328 F … 1562 F)
R0 value: 100 Ω … 1 kΩ
Temperature standard: PT385 (68), PT385 (90), PT3916, PT3926, PT User
Switching mode: FAST, S OOTH, VIA OPEN, VIA SHORT
Nickel
Offers direct setting of temperature of simulated nickel thermometer.
Figure 7 Nickel screen
Editable parameters:
Temperature: -60 °C … +300 C (-76 F … 572 F)
R0 value: 100 Ω … 1 kΩ
Switching mode: FAST, S OOTH, VIA OPEN, VIA SHORT

MEATEST M641 Programmable RTD Simulator
Operation manual 12
User function
Offers simulation of conversion curve defined by a table. User can define more conversion curves.
Values between defined points are linearly interpolated.
Figure 8 User function screen
Editable parameters:
ain value: according to the function
User function: curves defined by the user
Switching mode: FAST, S OOTH, VIA OPEN, VIA SHORT
Function is defined by table of user values and corresponding resistance values. This table is called
„Curve“ and is editable. aximum number of tables is 64 with each table having up to 100 values.
Tables can be defined via remote control as well. anual table setup can be done in Menu  De ice
 User function cur e:
Figure 9 User function list
enu shows a list of all previously defined tables (curves). Curve names can be customized. Softkeys
on the right hand side of the panel have these functions:
Edit – edit selected curve. Table can be selected using cursor keys where ◄, ► skip through pages.
Clear – clear all curve data and set it to default (plain) state. essage prompt will appear before final
curve clearance.
Exit – close the curve list and return previous menu.

M641 Programmable RTD Simulator MEATEST
13 Operation manual
Creating a new table
Pressing the Edit softkey upon plain curve opens this submenu:
Figure 10 New user function
Curve name – table name is set using ▲,▼ (character selection) and ◄, ► (position) cursor keys.
Name may be 8 characters long at most. Softkey „A <-> a“ switches between uppercase and
lowercase of selected character. Table name has to be set before proceeding to the next step using
SELECT key.
Unit – user function unit abbreviation is set in the same way as table name only it can be just up to
two characters long. Unit abbreviation has to be set before proceeding to the next step using the
SELECT key.
Lookup table – a place where you define user function using values in Ω. Table must contain at least
two “user function value → Ω value” points so that a slope of the function can be calculated. Range in
user function mode is given by actual resistance range of the simulator. Browsing through the table is
done by ▲,▼ cursor keys. Editing is done using these contextual softkeys:
Add – create a new point.
Figure 11 User function point editing
Value – user function value in user units. Press the SELECT key to proceed.
Resistance – corresponding Ω value. Range is given by the actual resistance range of the
simulator.
Edit – show the “Equation” panel for selected point to allow editing.
Delete – delete selected point.
Cancel – deactivate the Lookup Table and allow for curve saving.
Save – closes the table and saves current settings.
Cancel – closes the table and does not save current settings.

MEATEST M641 Programmable RTD Simulator
Operation manual 14
Editing an existing table
Existing table can be edited in the same way as it can be created. Editable entries (Curve name, Unit,
Lookup table points) are selected using the SELECT key.
Figure 12 User function edit
Timing
Offers simulation of time-varying resistance defined by a table. User can define more time curves.
Figure 13 Timing screen
Editable parameters:
Timing table: table defined by the user
Switching mode: FAST, S OOTH, VIA OPEN, VIA SHORT
Sequence is defined by table of time intervals and corresponding resistance values, all of which can be
edited. aximum number of tables is 64 with each table having up to 100 time intervals. Sequence is
started by pressing OPER button or sending OUTP ON command via remote control. Final state of
every sequence is OPEN. anual table setup can be done in Menu  De ice  Timings:

M641 Programmable RTD Simulator MEATEST
15 Operation manual
Figure 14 Time sequence list
enu shows a list of all sequences. Softkeys on the right hand side of the panel have these functions:
Edit – edit selected sequence. Sequence can be selected using cursor keys where ◄, ► skip through
pages.
Clear – clear all sequence data and set it to default (plain) state. essage prompt will appear before
final clearance of the sequence.
Exit – close the sequence list and return previous menu.
Creating a new table
Pressing the Edit softkey upon plain sequence opens this submenu:
Figure 15 New sequence
Preset name – table name is set using ▲,▼ (character selection) and ◄, ► (position) cursor keys.
Name may be 8 characters long at most. Softkey „A <-> a“ switches between uppercase and
lowercase of selected character. Table name has to be set before proceeding to the next step using
SELECT key.

MEATEST M641 Programmable RTD Simulator
Operation manual 16
Timing table – a list of values in Ω and their durations in seconds. Browsing through the table is done
by ▲,▼ cursor keys. Editing is done using these softkeys:
Add – create a new point.
Figure 16 Timing sequence point editing
Duration – duration of selected resistance (from 2 ms to 10 000 s). Press the SELECT key
to proceed.
Resistance – corresponding Ω value. Range is given by the actual resistance range of the
simulator.
Edit – show the “Timing edit” panel for selected point to allow editing.
Delete – delete selected point.
Cancel – deactivate the Lookup Table and allow for curve saving.
Save – closes the table and saves current settings.
Cancel – closes the table and does not save current settings.
Editing an existing table
Existing table can be edited in the same way as it can be created. Editable entries (Preset name,
Timing table points) are selected using the SELECT key.

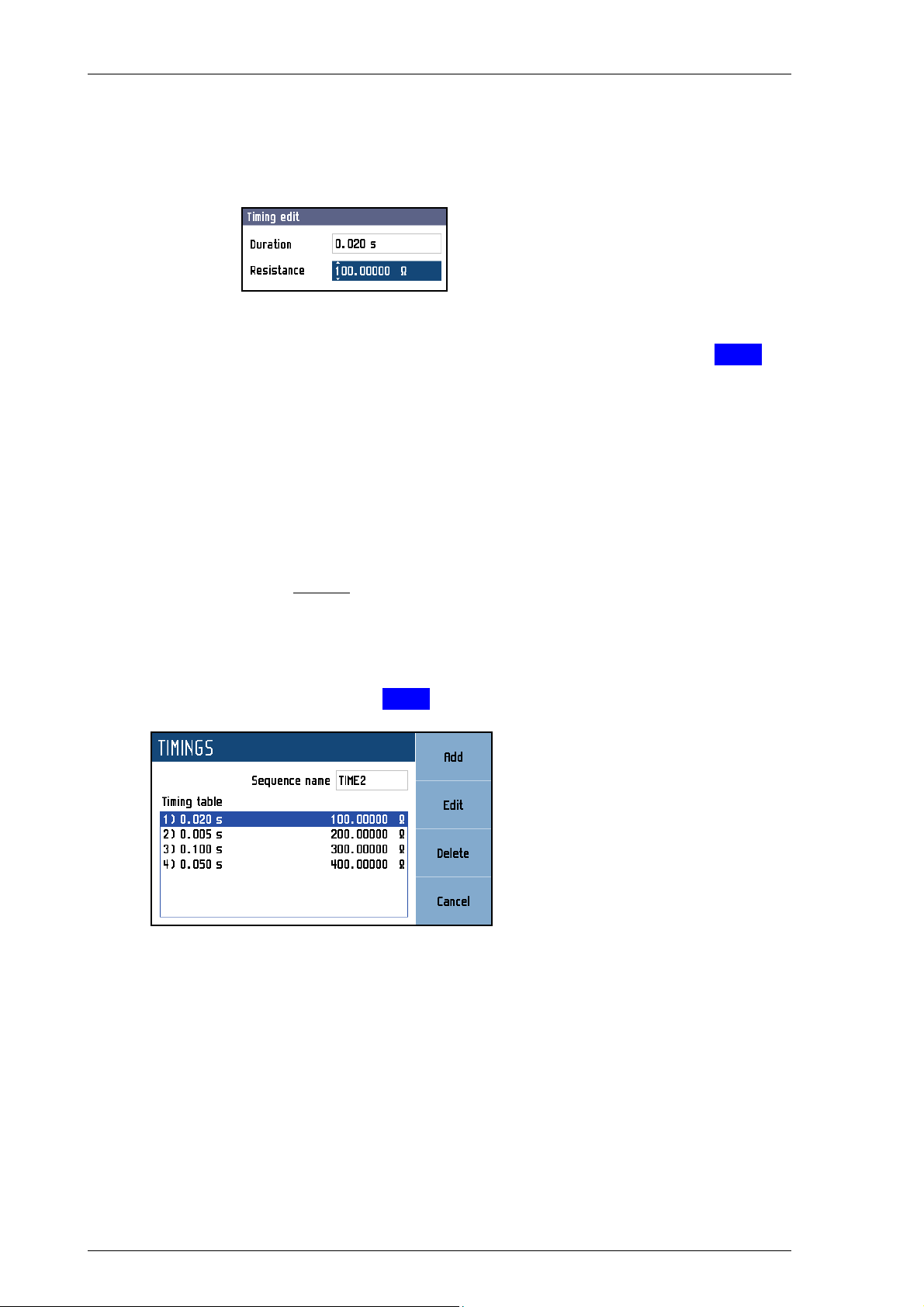

Figure 17 Timing sequence edit

M641 Programmable RTD Simulator MEATEST
17 Operation manual
4.4. Setting the value of output signal
Edit mode
Parameters of output signal can be changed in Edit mode. Only parameters displayed in blue color can
be changed. Display can be switched to edit mode in different ways:
- Pressing numeric button
- Pressing SELECT key
- Pressing cursor button
In edit mode is edited value highlighted by blue background. Pressing the SELECT key you can change
among editable (blue) parameters. Edit mode is finished by pressing CANCEL key.
Entry of the value using numeric keyboard
 Use the numeric keyboard to set the desired value. After the first digit is entered, input
box is displayed. In the upper row of the input box is the name of edited parameter. Using
softkeys you can enter the new value in different units.
Figure 18 Numeric value entry
 Enter desired value.
 After the entry is complete press softkey with requested unit or press ENTER key.
ENTER key inputs the value in basic units (Ω, °C, …).
 Instrument sets the new value.
 The value is copied to the appropriate field in the screen and the input box disappears.
Entry of the value using cursor keys
 Press ◄, ►, ▲ or ▼ key. The display now includes cursor marks which points to the
active digit.
 ▲,▼ keys can be used to change the value. ◄, ► keys can be used to change the position
of active digit.
 To get to the default screen, press CANCEL key.
Note:
 All parameters have limits (high and low). If the entered value is outside these limits
warning message is displayed („Value too high (low)“) and new value is not accepted.

MEATEST M641 Programmable RTD Simulator
Operation manual 18
4.5. Parameter settings (settings menu)
Settings menu is displayed after pressing „Settings“ softkey in main function window. It won’t appear
in editing mode so when in editing mode you have to press “Cancel” first.

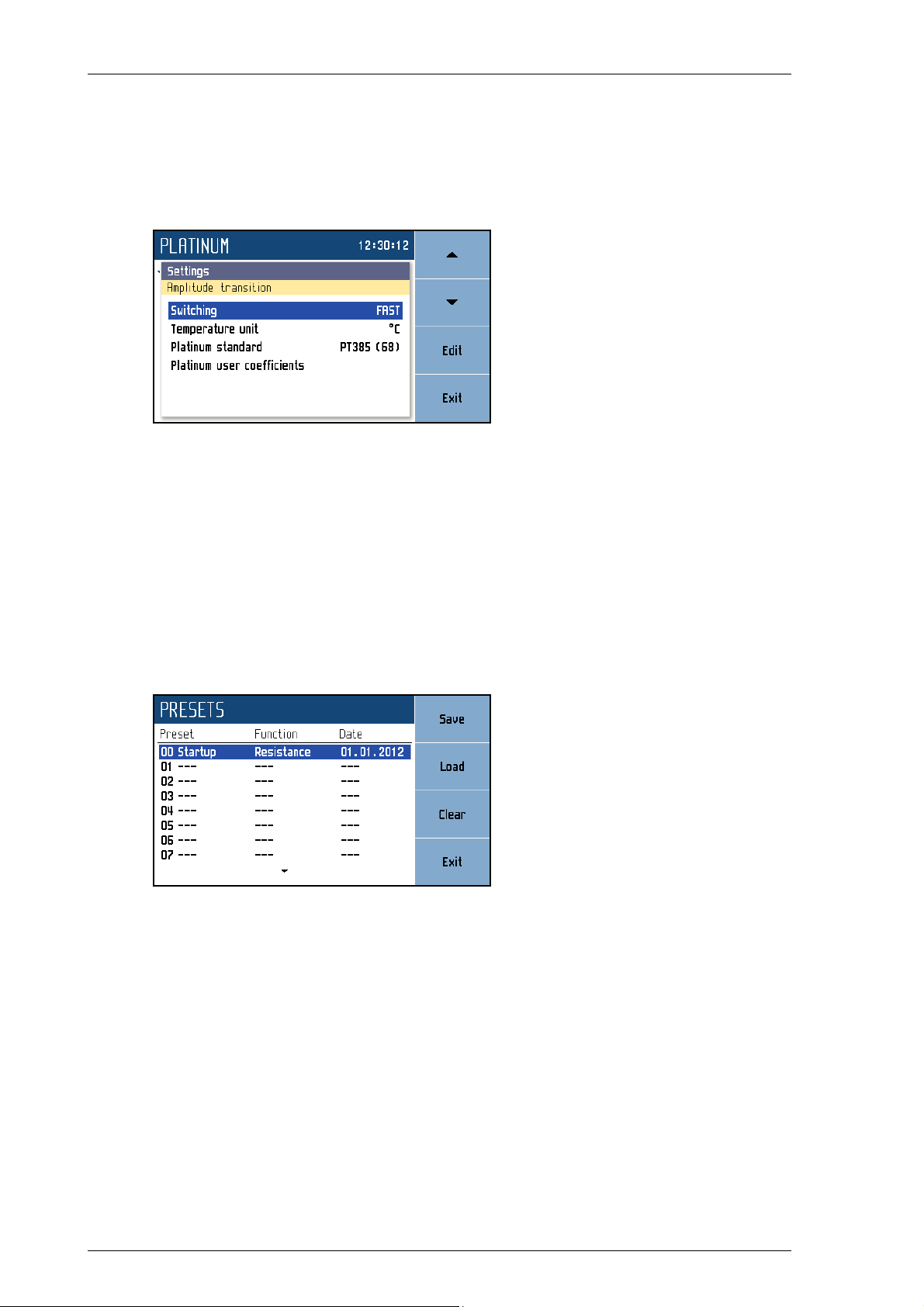

Figure 19 Settings menu
In settings menu you can edit all available auxiliary parameters of the current function. These settings
are discarded on restart so if you’d like to save them for your next calibration session, use the “Preset”
feature.
4.6. Preset menu
Preset menu is displayed after pressing „Preset“ softkey in main function window. It won’t appear in
editing mode so when in editing mode you have to press “Cancel” first.
Figure 20 Preset menu
Presets contain all settings that normally disappear on restart. This includes function parameters for all
functions (see previous chapter), selected function and the main value. Presets doesn’t contain system,
interface or calibration data as well as output state, short state, timing tables and user function tables.
Up to a 100 presets can be stored including a special “Startup” preset which is loaded on every device
startup. Preset can be selected using cursor keys where ◄, ► skip through pages.
Save – Save current device settings to selected preset. Preset name can be edited before final saving.
Load – Load selected preset and return to function window defined by the preset.
Clear – Set selected preset to default factory setup.
Exit – Return to main function window.

M641 Programmable RTD Simulator MEATEST
19 Operation manual
4.7. Main menu
ain menu is displayed after pressing „ enu“ softkey. In main menu you can set all the parameters
available.
Figure 21 Main menu
Required menu item is highlighted using cursor keys ▲,▼ or display softkeys. Highlighted menu is
selected by pressing SELECT key or „Select“ softkey. Only editable items can be selected.
Information
This menu displays information about the device. Items can’t be changed by the user.
Manufacturer
Model
Serial number
Software ersion
Hardware ersion
Device
This menu permits setting operational parameters of device.
Temperature unit
Temperature functions can be expressed in different units. Available units are °C (Celsius), °F
(Fahrenheit) and K (Kelvin).
Switching
Item defines the way how resistance value is changed. Value R1 is changed to value R2 in the time
interval T. Resistance connected to the output terminals can have different values during the time
interval T.
FAST Fastest possible switching method.
T is typically 400us.
Resistance during T is undefined. It can be higher or lower than R1 (R2).
S OOTH 2 steps switching method with smallest possible resistance change.
T is typically 1ms.
VIA OPEN 2 steps switching method. R1 is switched to OPEN and than to R2.
T is typically 1ms.
VIA SHORT 2 steps switching method. R1 is switched to SHORT and than to R2.
T is typically 1ms.

MEATEST M641 Programmable RTD Simulator
Operation manual 20
SHORT value is lower than min (R1, R2).
Platinum standard
Platinum thermometers can be simulated according to the different standards. Available standards are:
PT385 (68) DIN, standard EN60751, temperature scale IPTS68
(A=3.90802e-3, B=-5.80195e-7, C=-4.2735e-12)
PT385 (90) DIN, standard EN60751, temperature scale ITS90
(A=3.9083e-3, B=-5.775e-7, C=-4.18301e-12)
PT3916 Pt3916 temperature curve
(A=3.9692e-3, B=-5.8495e-7, C=-4.2325e-12)
PT3926 Pt3926 temperature curve
(A=3.9848e-3, B=-5.870e-7, C=-4.0e-12)
PT User user defined temperature curve
(A=3.9083e-3, B=-5.775e-7, C=-4.18301e-12) – values can be changed
Platinum user coefficients
This menu permits A, B and C coefficients definition of the PT User platinum standard (see above).
Timings
This menu permits definition of different time dependent resistance curves. Each curve is defined by
the Timing table. Each row in the table contains information about resistance value and duration for
which is this value applied. If the timing function is activated all rows are sequentially executed. User
can define more timing tables with different names. Number of sequences is limited to 64.
User function cur e
This menu permits definition of different conversion curves. Each curve is defined by the Lookup
table. Each row in the table contains information about value of simulated function and appropriate
resistance value. User can define more lookup tables with different names. Typical application is
definition table for simulation of non-standard resistance thermometers. Number of conversion curves
is limited to 64.
System
This menu permits setting system parameters of device.
Language
Language setting.
Backlight
Display backlight level setting.
Beeper olume
Beeper volume level setting.
Keyboard beep
Enables / Disables keyboard beep.
Time
Internal time setting.
Date
Internal date setting
Interface
This menu permits setting parameters of remote control interfaces.
