Mebay BCC2405 User manual

BCC2405
BATTERY CHARGER
USER MANUAL
Software Version
No.
Version
Date
Note
1
V1.0
2019-12-01
Original release.

BCC2405 BATTERY CHARGER USER MANUAL
1
Symbol Description
Symbol
Description
Note
Remind operators to operate correctly, otherwise it may cause
the equipment not to work correctly.
Be care
It is indicated that potential hazards can damage equipment
without proper precautions.
Warning
It is indicated if appropriate preventive measures are not taken,
potentially dangerous situations may result in death, serious
personal injury or significant property losses.
Chongqing Mebay Technology Co.,Ltd
Add: No6-2,Building 4, Gangan Rd, Jiangbei District, Chongqing.
Tel：[phone]
Fax：[phone]
Web：http://www.mebay.cn
http://www.cqmb.cn
E_mail：[email protected]

BCC2405 BATTERY CHARGER USER MANUAL
2
Warning
1. The installation of this equipment must be carried out by professionals.
2. When installing and operating the Charger, please read the entire instruction
manual first.
3. Any maintenance and commissioning of the equipment must be familiar with all the
equipment, safety standards and precautions in advance, otherwise it may cause
personal injury or damage to related equipment.
4. This product is specially designed for charging lead-acid batteries. Because of the
output contains impulse components, it can not be directly used as a power supply
for electronic equipment without lead-acid batteries. Otherwise, it may cause
interference or even damage to electronic devices.
Be Care
1. Please pay attention to prevent water or other liquid from being sprinkled on this
charger.
2. When using this charger, we should pay attention to ventilation and heat
dissipation and keep away from high temperature and heat radiation.

BCC2405 BATTERY CHARGER USER MANUAL
3
Catalogue
1、Summary………………………………………………………………………4
2、Main Features…………………………………………………………………4
3、Charging Principle……………………………………………………………4
4、Specification … ………………………………………………………………4
5、Overall Dimension and Wiring Diagram……………………………………5
6、Installation Instruction …… …………………………………………………6
7、Panels and instructions………………………………………………………6
8、Operation instruction…………………………………………………………7
Notes:
1. All rights reserved. No part of this duplication may be reproduced in any material
form (including photocopying or storing in any medium by electronic means or others)
without the written permission of the copyright holder.
2. MEBAY Technology reserves the rights to change the contents of this document
without prior notice.

BCC2405 BATTERY CHARGER USER MANUAL
4
Summary
The charger is specially designed for the lead-acid battery used in the engine. It
adopts the three-stage intelligent control mode of constant current fast charging,
current limiting and trickle floating charging. It can be charged for a long time without
damage to the battery. It can maintain the full state of the battery and ensure the
service life of the battery. The charger can be used in parallel with the engine
charging generator without disconnecting the charger during the operation of the
engine.
Main Features
The metal shell has good heat dissipation effect and strong anti-interference ability.
Using advanced switching power supply mode, wide AC input voltage range.
Three stage intelligent charging to maintain battery power automatically.
With short circuit and reverse connection protection.
It has charging voltage and charging current fine tune function.
It has LED which can indicate the working state of the charger.

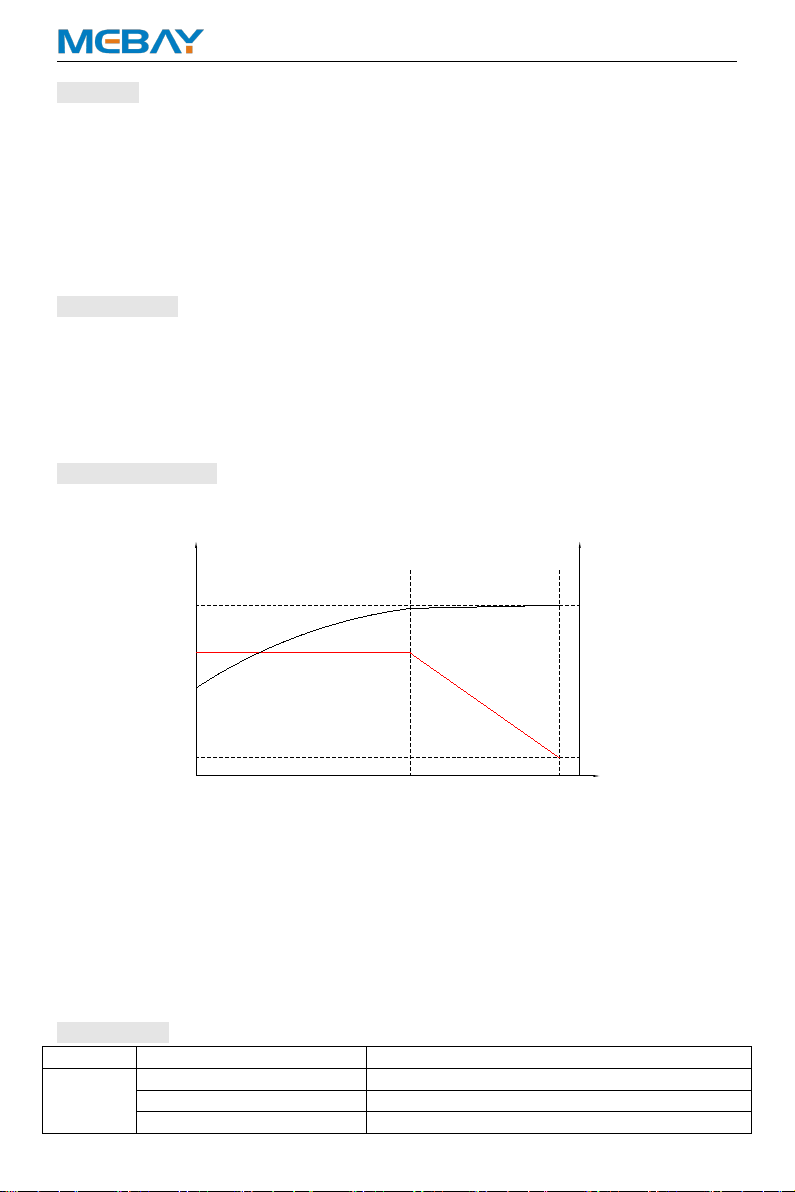

Charging Principle
t
0
0.5
5
CURRENT(A)
Battery Voltage
27.0
27.6
VOLT(V)
Battery Current
Charging Curve
The charger is designed according to the characteristics of the lead-acid battery
used in the engine, and adopts the three-stage intelligent control mode of constant
current fast charging, current limiting and trickle floating charging. When the battery
voltage is lower than the presets value, the charging current decreases with the
increase of the battery voltage and enters the current-limiting charging stage.
Thereafter, the charging current only counteracts the self-discharge of the battery,
and maintains the battery in full state without disconnecting the charger, which has
no effect on the battery life.
Specification
Category
Items
24V
Input
Nominal AC Voltage
AC 95~280V
Max. AC Voltage
AC 90~305V
AC Frequency
50Hz/60Hz

BCC2405 BATTERY CHARGER USER MANUAL
5
Max. Input Power
165W
Max. Input Current
2A
Max. Efficiency
85%
Output
Rated output current
5A (Error ±2%)
Max. Power
135W
No-load Voltage
27.6V, (Error ±1%)
Insulation
Insulation Resistance
Between input and output, input and shell both
are: DC500V 1min RL>500MQ
Insulation Voltage
Between input and output, input and shell both
are: AC 1600V 50Hz 1min Leakage current:
IL3.5mA.
Working
Condition
Working Temperature
-30-55°C
Storage Temperature
-40-85°C
Working Humidity
20%RH-93% RH (No condensation)
Profile
Weight
0.7kg
Dimension
143mmx96mmx55mm (Length*Width*Height)

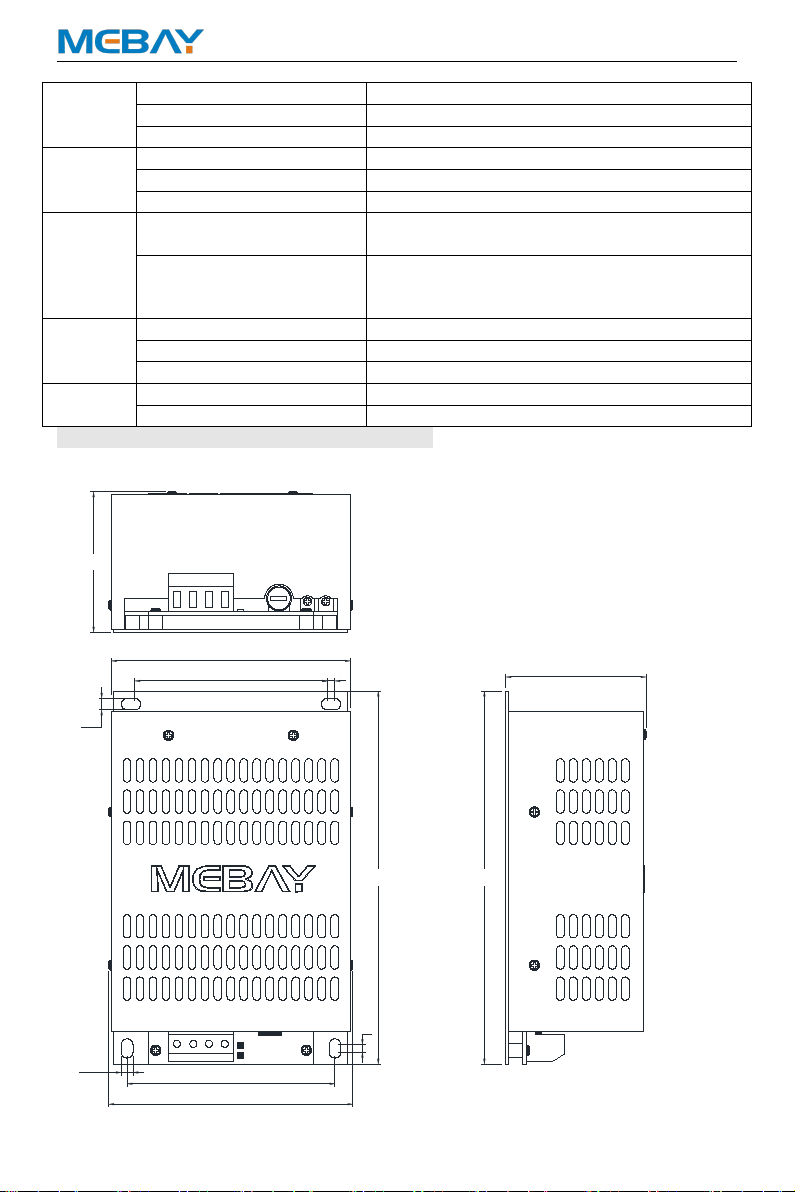

Overall Dimension and Terminal connection
Overall Dimension:
55
96
92
4.5
74 3
80
4.5
3
55
143143

BCC2405 BATTERY CHARGER USER MANUAL
6
Descriptions of terminal connection
No.
Function
Description
Cable cross
sectional area
L
AC input L
AC input, MAX AC95-280V.
1.0mm2
N
AC input N
1.0mm2
B-
Battery B-
Battery positive and negative
1.5mm2
B+
Battery B+
1.5mm2

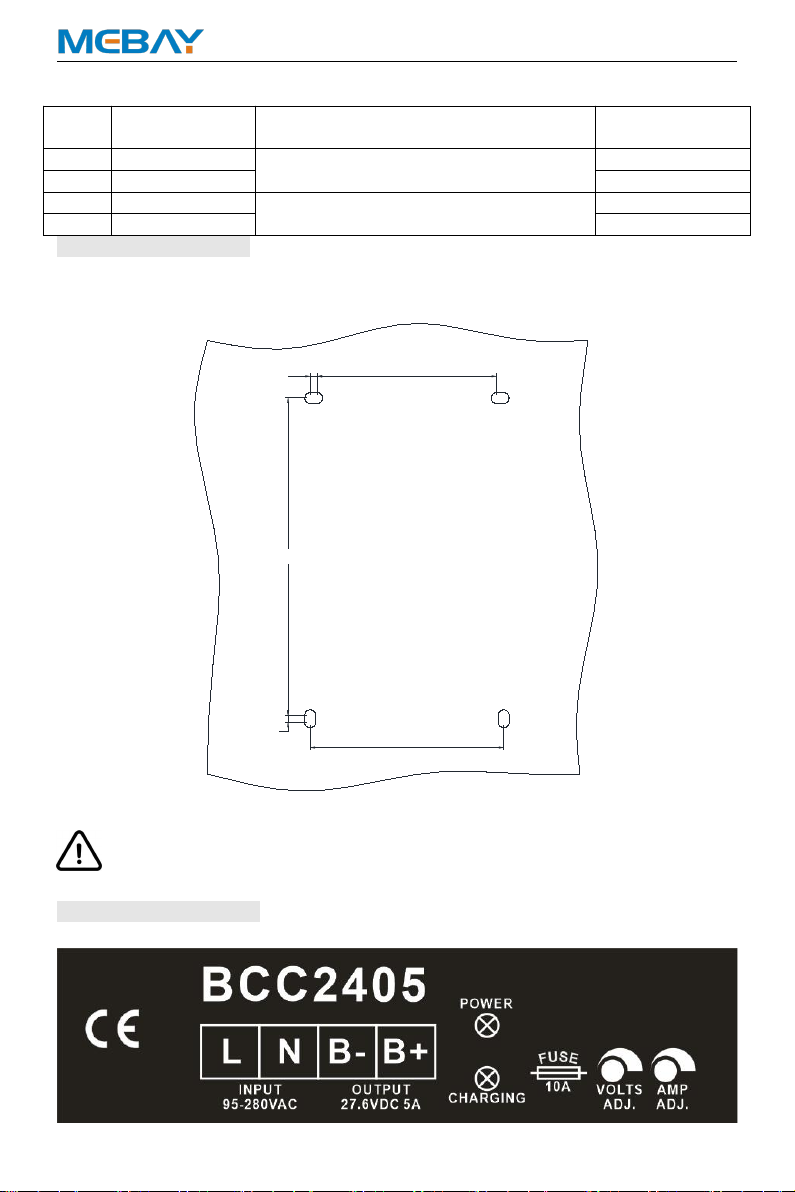

Installation instruction
The battery charger is installed by four screws with the diameter of 4MM.
Installation size as below: W75mm * H132mm
74
80
131
3
3
withstand and voltage test
If you need to test the system voltage withstand, please disconnect all the
charger terminals to avoid high voltage into the damaged charger.
Panels and instructions
Panel diagram

BCC2405 BATTERY CHARGER USER MANUAL
7
POWER indicator function description
Indicator Status
Mani function
Illuminated
The charger works normally.
Eliminated
The charger is not energized or failed.
CHARGING indicator function description
Indicator Status
Main function
Illuminated
The charger is in charging state, and the output current is >0.5A.
Eliminated
The charger is in floating charge state, and the output current is<0.5A.
Operation instruction
Charge voltage regulation:
When the charger is installed on site for voltage regulation, the battery must be
disconnected from the charger and the voltage potentiometer (VOLT) must be
adjusted at the same time as the output voltage of the charger is measured until the
appropriate value is reached.
Clockwise adjustment of the VOLT potentiometer can increase the output voltage
and reduce the output voltage by counterclockwise adjustment.
Charge current regulation:
When adjusting the current, please connect the charger output with the
accumulator group correctly, adjust when the charging voltage is not higher than
25.0V, adjust the current potentiometer (AMP) while measuring the charging current
to achieve the appropriate charging current.
Clockwise adjustment of the AMP potentiometer can increase output current and
counter clockwise adjustment to reduce output current.
Export insurance replacement:
This charger has the output anti-contact anti-insurance FUSE (10A), when the
output is connected back, the insurance will burn out, please connect the battery
correctly, replace the fuse, the charger will return to normal work. The replacement
steps are as follows:
1) Press hard on the slotted screwdriver, screw counter-clockwise and then take out
the fuse.
2) Put a new fuse into the block, press the slotted screwdriver and screw clockwise.
Note: In-proper operation or over tightening may damage the block.
Warning: When replacing the fuse, be sure to disconnect the input power
of the charger to avoid personal injury or equipment damage!
Note:
1) Because there is diode and current-limiting circuit inner the charger, it can be used
together with charging generator, and there is no need to disconnect the charger
when cranking.
2) During gen-set is running, high current will cause voltage drop in charging line, so
recommend separately connecting to battery terminal to avoid disturbance on
sampling precision.
