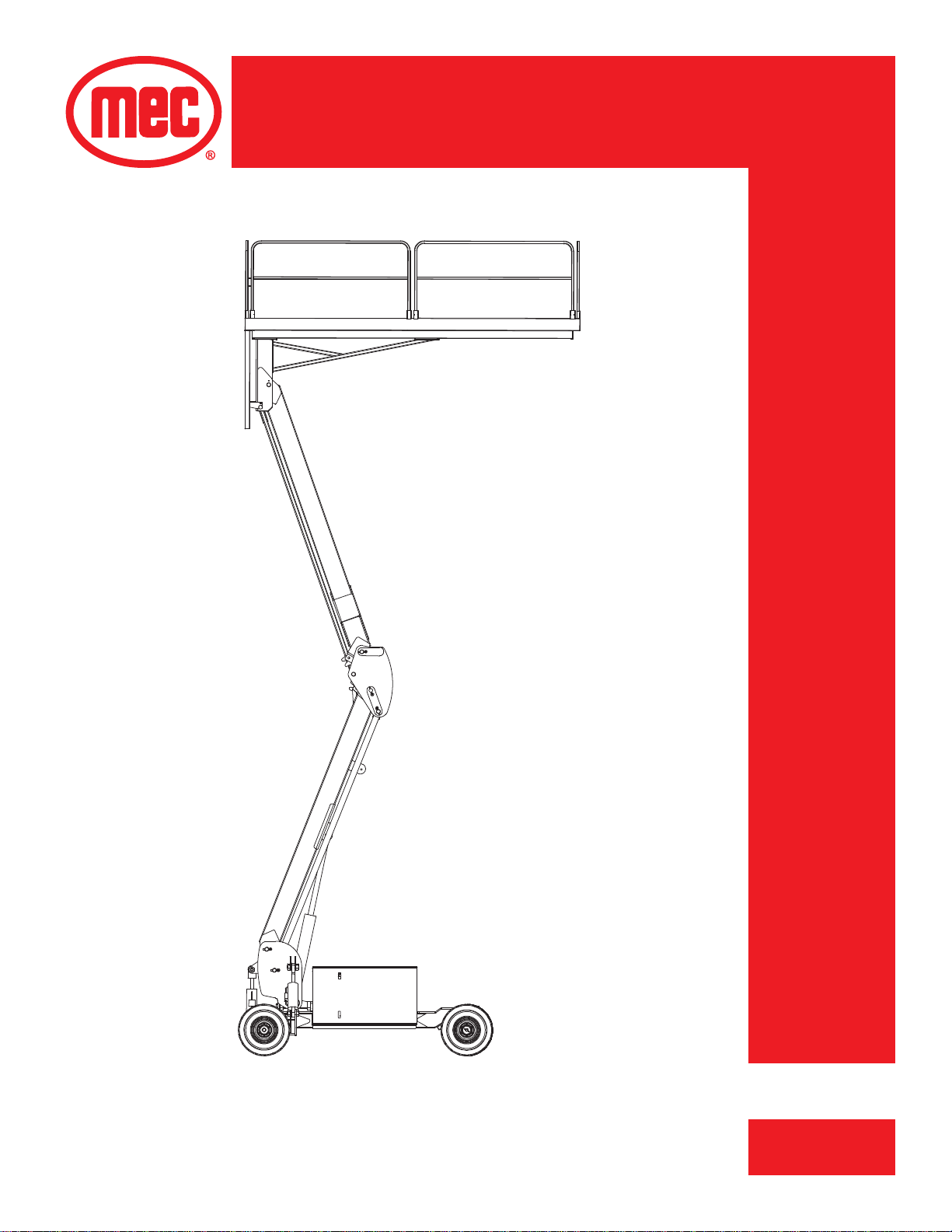

Mec Speed Level 84RT Series User manual

Part # 91857
July 2021
2684RT Serial Number Range - 12800000 - Up
3084RT Serial Number Range - 11800000 - Up
Operator’s Manual
84RT Series Speed Level™

Page i 84RT Series Speed Level™ - Operator’s Manual
July 2021
Revision History
Date Reason for Update
July 2021 Updated To ANSI A92.20-2020
1401 S. Madera Avenue, Kerman, CA 93630 USA
Toll Free: 1-877-632-5438
Phone: [phone]
Fax: [phone]
[email protected]
www.MECawp.com
MEC Aerial Work Platforms

Page ii 84RT Series Speed Level™ - Operator’s Manual
July 2021
Table of Contents
Section 1 - Introduction . . . . . . . . . . . . . . . . 1
Introduction.....................1
Section 2 - Safety . . . . . . . . . . . . . . . . . 2
Safety.......................2
Safety Alert Symbols & Fall Protection . . . . . . . . . . . . . . 3
Section 3 - Specifications . . . . . . . . . . . . . . . 4
Specifications.....................4
Section 4 - Hazards . . . . . . . . . . . . . . . . . 5
Electrocution Hazard . . . . . . . . . . . . . . . . . . . 5
Energized Conductor Contact Hazard. . . . . . . . . . . . . . . 6
Tip-over Hazards . . . . . . . . . . . . . . . . . . . . 8
Fall and Collision Hazards. . . . . . . . . . . . . . . . . . 9
Additional Safety Hazards . . . . . . . . . . . . . . . . . . 10
Section 5 - Jobsite & Workplace Inspection . . . . . . . . . . 11
Jobsite Inspection . . . . . . . . . . . . . . . . . . . . 11
Section 6 - Functions Test & Operating Instructions . . . . . . . . 12
FunctionsTest.....................12
Operating Instructions . . . . . . . . . . . . . . . . . . . 13
Section 7 - Deck Extension . . . . . . . . . . . . . . . 22
DeckExtension....................22
Section 8 - Emergency Systems . . . . . . . . . . . . . 23
Emergency Systems . . . . . . . . . . . . . . . . . . . 23
Section 9 - Fold Down Platform Railings . . . . . . . . . . . 25
Fold Down Platform Railings . . . . . . . . . . . . . . . . . 25
Section 10 - Machine Inspections . . . . . . . . . . . . . 27
Machine Inspections . . . . . . . . . . . . . . . . . . . 27
Pre-Start Inspection Checklist . . . . . . . . . . . . . . . . . 29
Monthly Inspection Checklist . . . . . . . . . . . . . . . . . 30
Quarterly Inspection Checklist. . . . . . . . . . . . . . . . . 31
Annual Inspection Report . . . . . . . . . . . . . . . . . . 32
Section 11 - Maintenance . . . . . . . . . . . . . . . 33
Maintenance.....................33
Routine Maintenance . . . . . . . . . . . . . . . . . . . 35
Lubrication......................36
Section 12 - Component Locations . . . . . . . . . . . . 37
Component Locations . . . . . . . . . . . . . . . . . . . 37
Upper Controls.....................39
LowerControls.....................40

Page iii 84RT Series Speed Level™ - Operator’s Manual
July 2021
Section 13 - Decals . . . . . . . . . . . . . . . . . 41
Decals.......................41
Section 14 - Troubleshooting . . . . . . . . . . . . . . 44
Troubleshooting . . . . . . . . . . . . . . . . . . . . 44
Serial Plate Location . . . . . . . . . . . . . . . . . . . 45
Section 15 - Transport and Lifting Instructions . . . . . . . . . 46
Transport and Lifting Instructions . . . . . . . . . . . . . . . . 46

Page 1 84RT Series Speed Level™ - Operator’s Manual
July 2021
Introduction
This Operator’s Manual has been designed to provide you, the owner, user or operator, with the
instructions and operating procedures essential to properly and safely operate your MEC Aerial Work
Platform for positioning personnel, along with their necessary tools and materials, to overhead work
locations.
This Operator's Manual and other manuals provided by MEC on the
machine must be read and understood prior to operating your MEC Aerial
Work Platform. The operator should not accept operating responsibility
until he/she has read and understands the operator’s manual as well as
having operated the MEC Aerial Work Platform under supervision of an
authorized, trained and qualified operator.
It is essential that the operator of the aerial work platform is not alone at
the workplace during operation.
Modifications of this machine from the original design and specifications
without written permission from MEC are strictly forbidden. A
modification may compromise the safety of the machine, subjecting the
platform occupants and personal around the machine to serious injury or
death.
Your MECAerial Work Platform has been designed, built, and tested to provide safe, dependable
service. Only authorized, trained and qualified personnel shall be allowed to operate or service the
machine.
MEC, as manufacturer, has no direct control over machine application and operation. Proper safety
practices are the responsibility of the owner, user and operator.
If there is a question on application and/or operation contact:
1401 S. Madera Avenue, Kerman, CA 93630 USA
Toll Free: 1-877-632-5438
Phone: [phone]
Fax: [phone]
[email protected]
www.MECawp.com
MEC Aerial Work Platforms
Section 1 - Introduction

Page 2 84RT Series Speed Level™ - Operator’s Manual
July 2021
Safety
DO NOT operate this machine until you have read and understood this manual, have
performed the Workplace Inspection, Pre-Start Inspection and Routine Maintenance, and have
completed all the test operations detailed in the Operating Instructions section.
Failure to read, understand and follow all safety rules, warnings, and instructions could result in
serious injury or death. For your safety and the safety of those around you, you must operate your
machine as instructed in this manual.
MEC designs aerial work platforms to safely and reliably position personnel, along with their
necessary tools and materials, at overhead work locations. The owner/user/operator of the machine
should not accept responsibility for the operation of the machine unless properly trained.
ANSI and other applicable standards identify requirements of all parties who may be involved with
self-propelled elevating work platforms. The Manual of Responsibilities is considered a part of this
machine and can be found in the manual compartment, located at the platform control station. To
ensure safe use of machine, inspections and training specified in ANSI/SIAA92.22 & A92.24 must be
performed at designated intervals as prescribed.
This product can expose you to chemicals known to the State of California
to cause cancer and birth defects or other reproductive harm. For more
information go to www.p65warnings.ca.gov.
Section 2 - Safety Safety

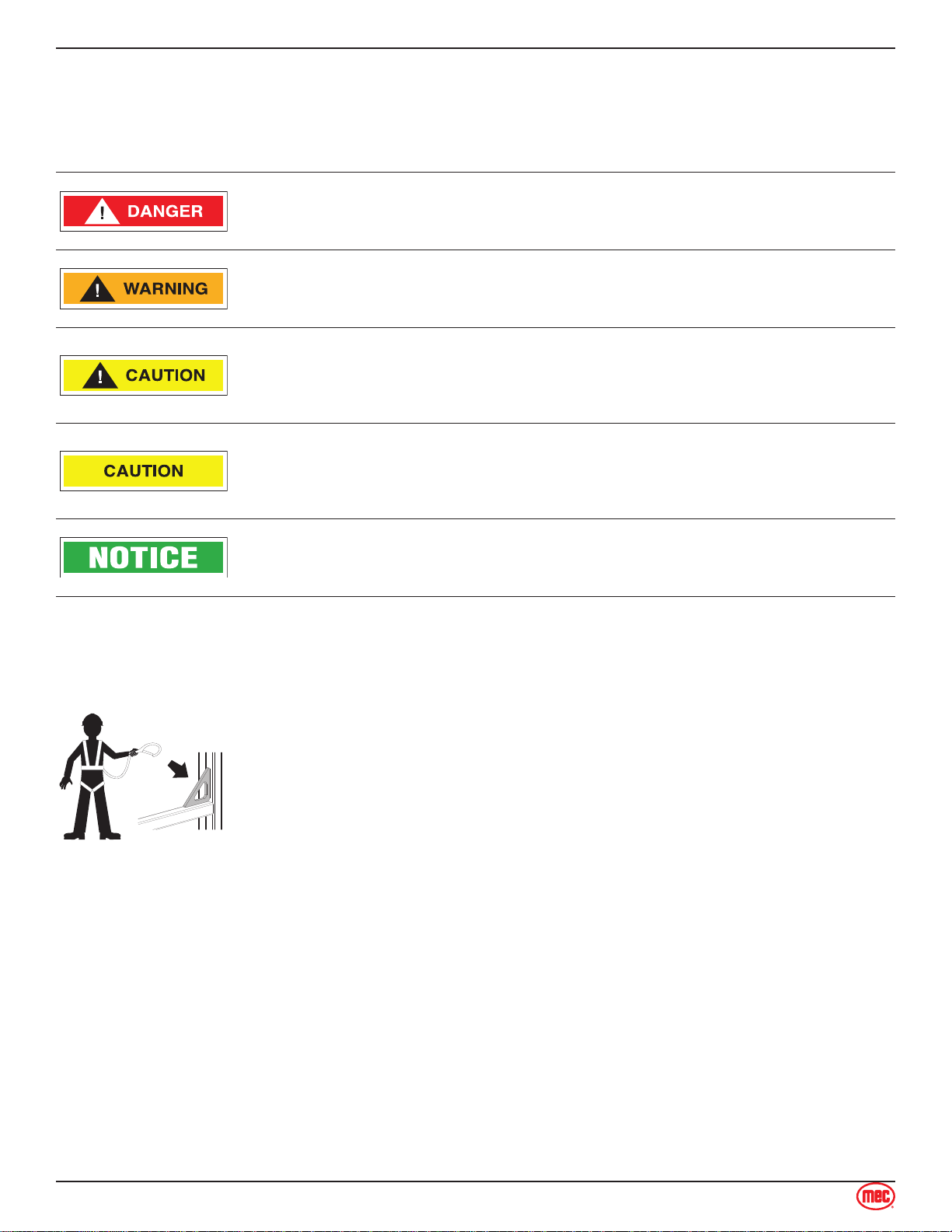

Page 3 84RT Series Speed Level™ - Operator’s Manual
July 2021Section 2 - Safety Safety Alert Symbols & Fall Protection
MEC manuals and decals use symbols, colors and signal words to help you recognize important
safety, operation and maintenance information.
RED and the word DANGER – Indicates an imminently hazardous
situation which, if not avoided, will result in death or serious injury.
ORANGE and the word WARNING – Indicates a potentially hazardous
situation which, if not avoided, could result in death or serious injury.
YELLOW with alert symbol and the word CAUTION – Indicates a
potentially hazardous situation which, if not avoided, may result in minor
or moderate injury.
YELLOW without alert symbol and the word CAUTION – Indicates a
potentially hazardous situation which, if not avoided, may result in
property damage.
GREEN and the word NOTICE – Indicates operation or maintenance
information.
Fall Protection
ART_4713
Operators must comply with employer, job site and governmental rules
regarding the use of personal protective equipment.
If required by your employer or job site, use personal fall protection
equipment (PFPE) when operating this machine.
All PFPE must comply with applicable governmental regulations, and must be
inspected and used in accordance with the PFPE manufacturer’s instructions.
Fall restraint must be properly attached to a designated anchorage point
when driving or operating the machine. Attach only one fall restraint to each
anchorage point.

Page 4 84RT Series Speed Level™ - Operator’s Manual
July 2021
Specifications
2684RT 3084RT
Working Height* 32 ft* 10.0 m* 36 ft* 11.0 m*
Platform Height 26 ft 7.9 m 30 ft 9.0 m
Stowed
Height Rails Up 107 in 2.72 m 105 in 2.67 m
Rails Folded Down 72 in 1.83 m 70 in 1.78 m
Maximum Occupants 5 5
On Slide-out Extension 2 N/A
Lift Capacity 1,700 lbs 770 kg 1,500 lbs 680 kg
Slide-Out Deck Capacity 700 lbs 320 kg N/A
Platform
Dimensions
Length (Inside Rails) 12 ft 2 in 3.71 m 14 ft 4.27 m
Length (Platform Extended) 16 ft 2 in 4.93 m N/A
Platform Width (Inside Rails) 72 in 1.83 m 72 in 1.83 m
Guardrail Height 43.5 in 1.1 m 43.5 in 1.1 m
Toeboard Height 6 in 15 cm 6 in 15 cm
Overall Length 13 ft 2 in 4.0 m 14 ft 6 in 4.4 m
Overall Width 84 in 2.13 m
Wheel Base 100 in 2.54 m
Wheel Track 72 in 1.83 m
Turning
Radius Inside 8 ft 2.44 m
Outside 16 ft 8 in 5.08 m
Ground Clearance 10 in 25 cm
Machine Weight** (Unloaded) (Approximate) 7,800 lb** 3,535 kg** 8,100 lb** 3,674 kg**
Drive System
(Proportional) Speed - Platform Elevated 0-0.5 mph 0-0.8 km/h
Speed - Platform Lowered 0-3.2 mph 0-5 km/h
Lift/Lower Speeds (Approximate) 35 sec/40 sec
Gradeability 40% 22°
Ground Pressure/Wheel (Maximum) 90 psi 6.3 kg/cm294 psi 6.6 kg/cm2
Wheel Load 2,855 lb 1,295 kg 2,965 lb 1,345 kg
Wind Speed (Maximum) 28 mph 45 km/h (12.5 m/s)
Tire Size - Standard 26 x 12D / 380 NHS
Tire Pressure 55 psi / 3.79 bar
Wheel Lug Nut Torque 75-85 ft/lb 102-115 Nm
Hydraulic
Pressure
Main System 3,200 psi 220 bar
Lift System 2,800 psi 193 bar
Steering System 2,000 psi 138 bar
Hydraulic Fluid Capacity 23 gallon 87 liters
Engine Diesel: Kubota D1105E, 25HP (18.6 kW), Liquid Cooled
Dual Fuel: Kubota D752e 22 HP (16.4 kW), Liquid Cooled
Fuel Capacity 15 gallon 57 liters
Ambient Operating Range -22° F (-30° C) minimum; 122° F (50° C) maximum
Leveling Side/Side 14°
Fore/Aft 10°
Operating Inclination Manual and self-leveling, side/side to 14°, fore/aft to 10°
Brakes Dual Rear Wheel Multi-disc
Meets requirements of ANSI A92.20-2020 and CSAB354.6-2019. Speed Level™ is a trademark of MEC.
*Working Height adds 6 feet (2 m) to platform height.
**Weight may increase with certain options or country standards.
Section 3 - Specifications Specifications

Page 5 84RT Series Speed Level™ - Operator’s Manual
July 2021
Electrocution Hazard

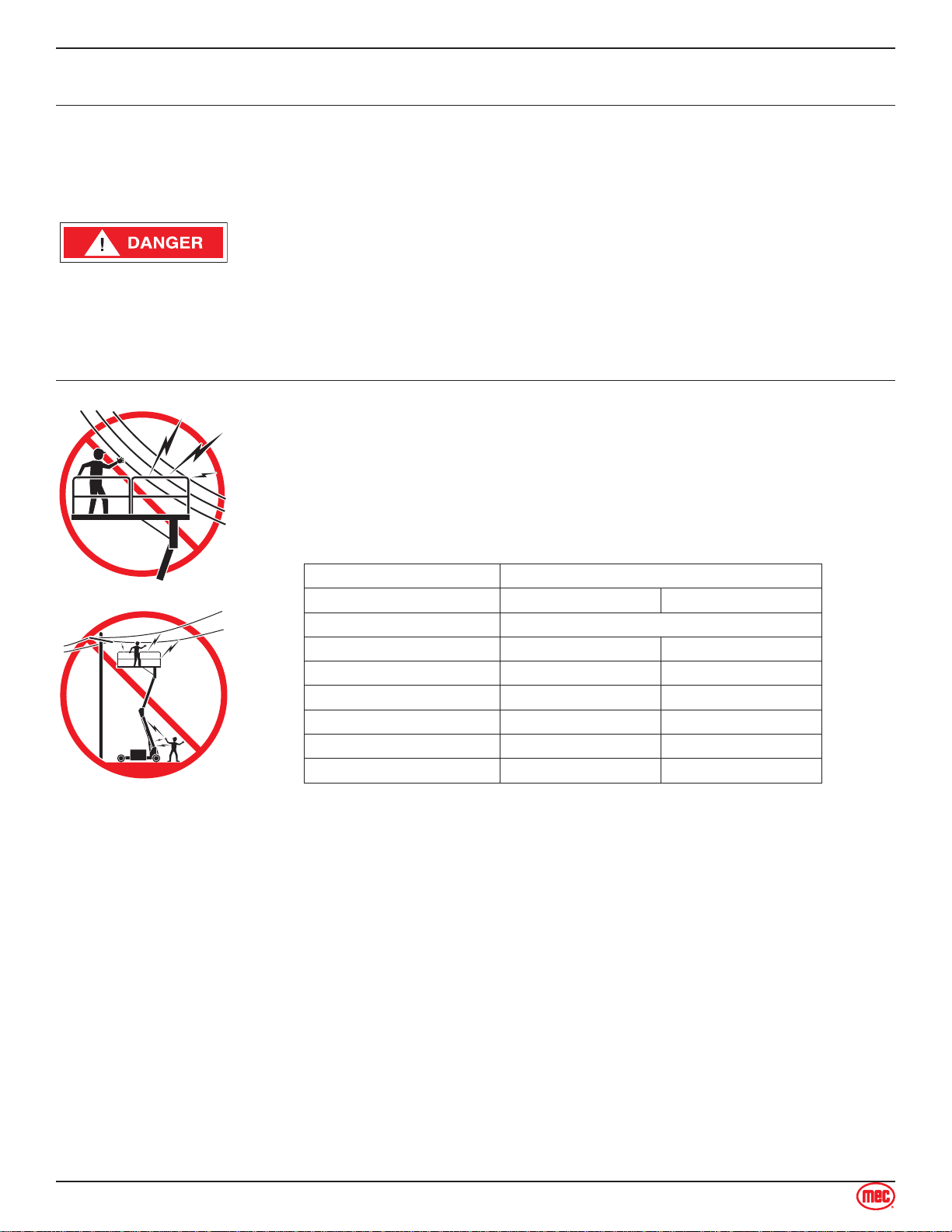

ELECTROCUTION HAZARD!!! THIS MACHINE IS NOT INSULATED!
DEATH OR SERIOUS INJURY will result from contact with or inadequate
clearance from any electrically charged conductor.
You must maintain a CLEARANCE OF AT LEAST 10 FEET (3.05 m)
between any part of the machine, or its load, and any electrical line or
apparatus carrying over 300 Volts up to 50,000 Volts. One foot (30.5 cm)
additional clearance is required for every additional 30,000 Volts.
Observe Minimum Safe Approach Distance.
ART_3061
ART_3060
DO NOT work in close proximity to, or in contact with, energized power lines
and electrical equipment. This machine is not insulated and WILL NOT protect
the operator from injury or the machine from damage.
Refer to Table and all applicable governmental regulations for the minimum
safe distances from energized power lines and electrical equipment.
Voltage Minimum Safe Approach Distance
Phase to Phase Feet Meters
0 to 300 Volts Avoid Contact
Over 300V to 50kv 10 3.05
Over 50KV to 200KV 15 4.60
Over 200KV to 350KV 20 6.10
Over 350KV to 500KV 25 7.62
Over 500KV to 750KV 35 10.67
Over 750KV to 1000KV 45 13.72
DO NOT touch the machine if it contacts energized power lines.
Personnel in the platform:
Move away from the platform rails,
DO NOT attempt to operate the machine, and
DO NOT touch any part of the machine until energized power lines are shut off.
Personnel on the ground:
DO NOT approach the machine and
DO NOT touch or attempt to operate the machine until energized power lines are turned off.
Do not operate the machine during electrical storms or lightning.
DO NOT use the machine as a ground for welding unless properly equipped with a weld line to
platform option.
•
•
•
•
•
Section 4 - Hazards Electrocution Hazard

Page 6 84RT Series Speed Level™ - Operator’s Manual
July 2021Section 4 - Hazards Energized Conductor Contact Hazard
ART_3265
No go zone
Spotter
required
zone
Personal
protection
barriers
FRONT VIEW
(a) Distribution lines up to and including 133 kV
SIDE VIEW
6.4
6.4
3
3Sag
Variations
in sag
(b) Transmission lines greater than 133 kV
No go zone Spotter
required
zone
Sway
10
10
8
8
FRONT VIEW SIDE VIEW
Sag
Variations
in sag
Sag
Sag
LEGEND
CLEARANCES FROM LIVE AERIAL CONDUCTORS
= No shading, in the front views, indicates no proximity requirements
= Light shading indicates spotter is required
= Heavy shading indicates the NO GO ZONE
(a) Affected area
Min. volts
Min. volts
Max. volts
Higher voltage
Lower voltage
(b) Avoid simultaneous contact across
areas of high potential difference
5000 V
20000 V
15000 V
10000 V
5000 V
