Page 1 Titan BoomTM 40-S - Operator’s Manual
October 2020
Introduction
This Operator’s Manual has been designed to provide you, the owner, user or operator, with the
instructions and operating procedures essential to properly and safely operate your MEC Aerial Work
Platform for positioning personnel, along with their necessary tools and materials, to overhead work
locations.
This Operator's Manual and other manuals provided by MEC on the
machine must be read and understood prior to operating your MEC Aerial
Work Platform. The operator should not accept operating responsibility
until he/she has read and understands the operator’s manual as well as
having operated the MEC Aerial Work Platform under supervision of an
authorized, trained and qualified operator.
It is essential that the operator of the aerial work platform is not alone at
the workplace during operation.
Modifications of this machine from the original design and specifications
without written permission from MEC are strictly forbidden. A
modification may compromise the safety of the machine, subjecting the
platform occupants and personal around the machine to serious injury or
death.
Your MECAerial Work Platform has been designed, built, and tested to provide safe, dependable
service. Only authorized, trained and qualified personnel shall be allowed to operate or service the
machine.
MEC, as manufacturer, has no direct control over machine application and operation. Proper safety
practices are the responsibility of the owner, user and operator.
If there is a question on application and/or operation contact:
1401 S. Madera Avenue, Kerman, CA93630 USA
Toll Free: 1 - 877 - 632 - 5438
Phone: 1 - 559 - 842 - 1500
Fax: 1 - 559 - 842 - 1520
[email protected]
www.MECawp.com
MEC Aerial Work Platforms
Section 1 - Introduction

Page 2 Titan BoomTM 40-S - Operator’s Manual
October 2020
Safety
DO NOT operate this machine until you have read and understood this manual, have
performed the Workplace Inspection, Pre-Start Inspection and Routine Maintenance, and have
completed all the test operations detailed in the Operating Instructions section.
Failure to read, understand and follow all safety rules, warnings, and instructions could result in
serious injury or death. For your safety and the safety of those around you, you must operate your
machine as instructed in this manual.
MEC designs aerial work platforms to safely and reliably position personnel, along with their
necessary tools and materials, at overhead work locations. The owner/user/operator of the machine
should not accept responsibility for the operation of the machine unless properly trained.
ANSI and other applicable standards identify requirements of all parties who may be involved with
self-propelled elevating work platforms. The Manual of Responsibilities is considered a part of this
machine and can be found in the manual compartment, located at the platform control station. To
ensure safe use of machine, inspections and training specified in ANSI/SIAA92.22 & A92.24 must be
performed at designated intervals as prescribed.
This product can expose you to chemicals known to the State of California
to cause cancer and birth defects or other reproductive harm. For more
information go to www.p65warnings.ca.gov.
Section 2 - Safety Safety

Page 3 Titan BoomTM 40-S - Operator’s Manual
October 2020Section 2 - Safety Safety Alert Symbols & Fall Protection

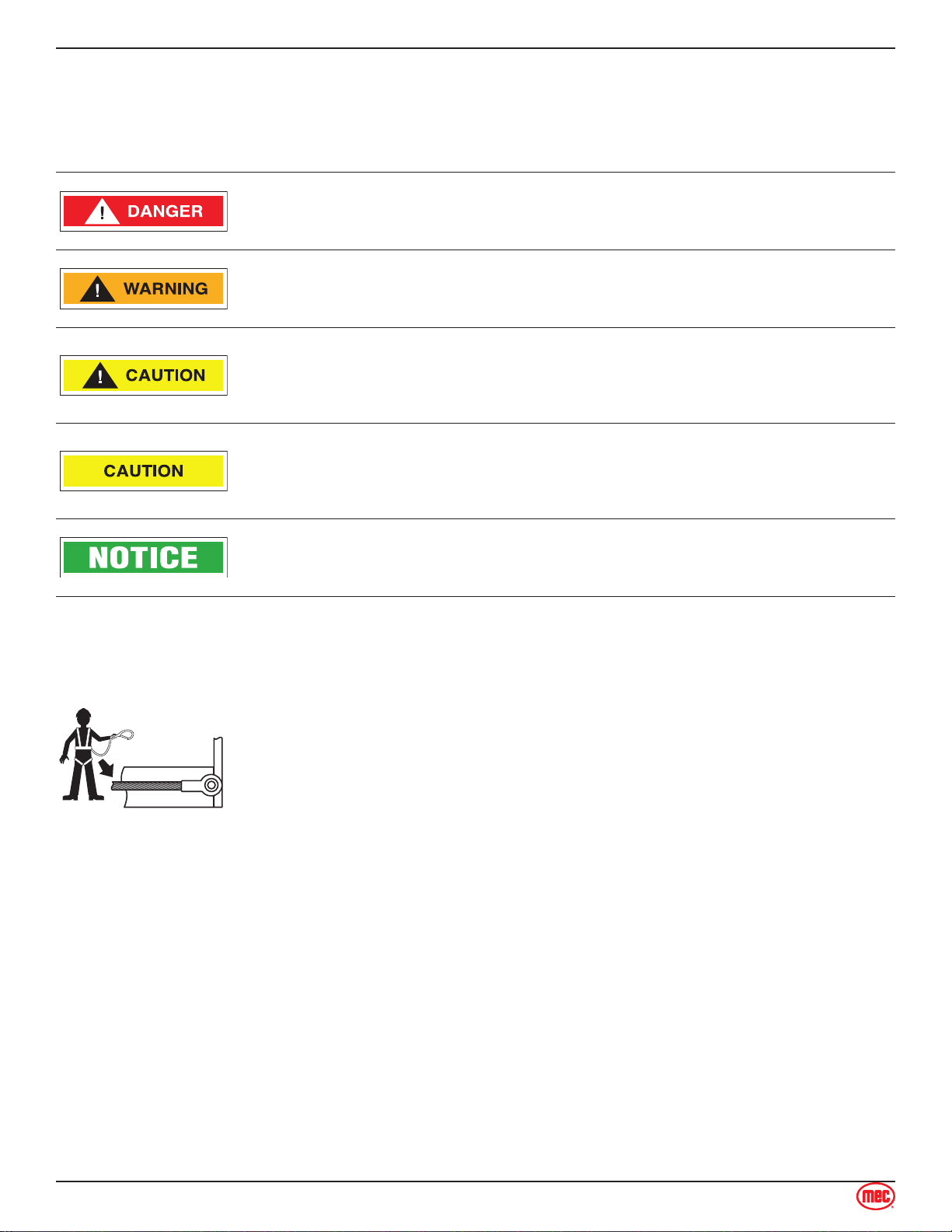

MEC manuals and decals use symbols, colors and signal words to help you recognize important
safety, operation and maintenance information.
RED and the word DANGER – Indicates an imminently hazardous
situation which, if not avoided, will result in death or serious injury.
ORANGE and the word WARNING – Indicates a potentially hazardous
situation which, if not avoided, could result in death or serious injury.
YELLOW with alert symbol and the word CAUTION – Indicates a
potentially hazardous situation which, if not avoided, may result in minor
or moderate injury.
YELLOW without alert symbol and the word CAUTION – Indicates a
potentially hazardous situation which, if not avoided, may result in
property damage.
GREEN and the word NOTICE – Indicates operation or maintenance
information.
Fall Protection
Maximum
4 Occurrences
Art_3473
Personal fall protection equipment (PFPE) is required when operating this
machine.
All PFPE must comply with employer and job site rules and applicable
governmental regulations, and must be inspected and used in accordance with
the PFPE manufacturer’s instructions.
ALWAYS wear approved fall protection, properly attached to an anchor cable,
when operating the machine.

Page 4 Titan BoomTM 40-S - Operator’s Manual
October 2020
Specifications
Working Height* 46 ft 14.2 m
Platform Height 40 ft 12.2 m
Maximum Drive Height 30 ft 9.1 m
Maximum Forward Reach w/ Stabilizers 26 ft 6 in 8 m
Machine Weight** (Unloaded) 24,250 lb 11,000 kg
Lift Capacity
Total 4,000 lb 1,800 kg
Load Zone 3,000 lb 1,350 kg
Personnel & Tools
Evenly Distributed 1,000 lb 450 kg
Maximum Occupants 4
Stowed Height Rails Up 118 in 3 m
Rails Folded Down 84 in 2.13 m
Overall Length 22 ft 6 in 6.9 m
Overall Width 96 in 2.44 m
Wheel Base 152 in 3.85 m
Wheel Track 82 in 2.08 m
Platform
Dimensions
Length 22 ft 6.7 m
Platform Width 90 in 2.28 m
Loading Height 72 in 1.83 m
Turning Radius,
(4 Wheel Steer) Inside 8 ft 2.4 m
Outside 19 ft 5.8 m
Ground Clearance 18 in 46 cm
Lift/Lower Speeds 50 sec / 50 sec
Extend/Retract Speeds 30 sec / 30 sec
Platform Translation Speed 15 sec
Drive Speed
(Proportional) Stowed 0-4.0 mph 0-6.4 km/h
Raised or Extended 0-0.5 mph 0-0.8 km/h
Gradeability Stowed, Downhill 40% / 22°
Stowed, Uphill 40% / 22°
Approach Angle 38% / 21°
Breakover Angle 40% / 22°
Platform Rotation 180° (+90°, -90°)
Frame Level 10° each side
Maximum Operating Wind Speed 28 mph 12.5 m/sec
(45 km/h) Engine Kubota V2403-T
Ground Pressure/Wheel (Maximum) 160 psi 11.2 kg/cm2Fuel Type Diesel
Maximum Wheel Load 9,600 lbs 4,350 kg Fuel Capacity 32 gal 120 liter
Tire Size 37 in. od 0.94 m od Alternator 40 amp
Wheel Lug Nut Torque 150 ft/lb 203 Nm Battery Two 1,000 CCA 12V
Hydraulic Pressure Drive System 4,350 psi 300 bar Noise Level 92 dB @ 1m
Main System 3,000 psi 207 bar Control System 12V DC
Hydraulic Fluid Capacity 40 gal 150 liter Brakes 4 wheel multi disc
Meets requirements of ANSI 92.20-2020 and CSA B354.6-2019.
*Working Height adds 6 feet (2 m) to platform height.
**Weight may increase with certain options.
Specifications
Section 3 - Specifications

Page 5 Titan BoomTM 40-S - Operator’s Manual
October 2020
Electrocution Hazard
ELECTROCUTION HAZARD! THIS MACHINE IS NOT INSULATED!
DEATH OR SERIOUS INJURY will result from contact with or inadequate
clearance from any electrically charged conductor.
You must maintain a CLEARANCE OF AT LEAST 10 FEET (3.05 m)
between any part of the machine, or its load, and any electrical line or
apparatus carrying over 300 Volts up to 50,000 Volts. One foot (30.5 cm)
additional clearance is required for every additional 30,000 Volts.
Observe Minimum Safe Approach Distance.
Art_4193
Art_3467

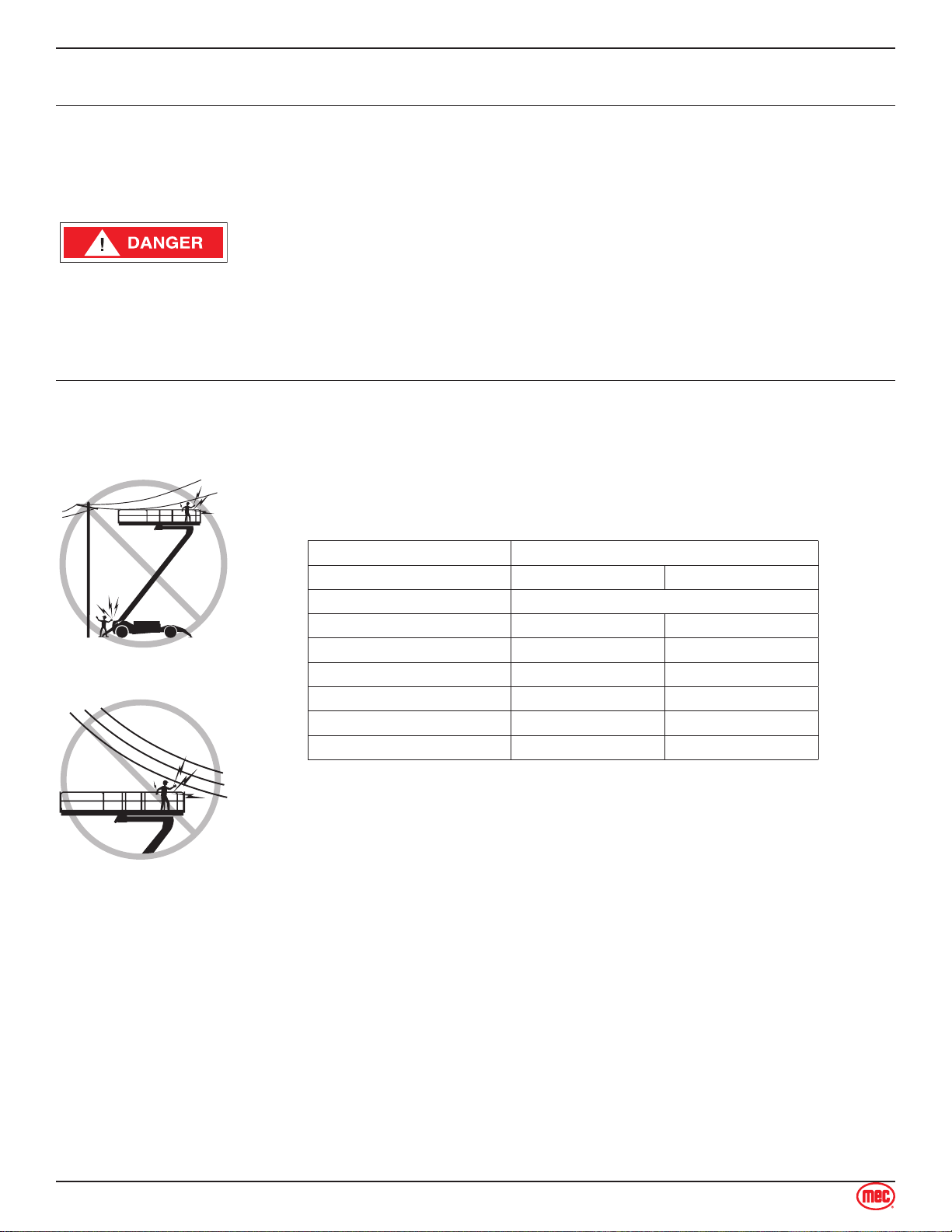

This machine is not electrically insulated and will not provide protection from
contact with or proximity to electrical current.
Maintain safe distances from electrical power lines and apparatus in
accordance with applicable government regulations and the following chart:
Voltage Minimum Safe Approach Distance
Phase to Phase Feet Meters
0 to 300 Volts Avoid Contact
Over 300V to 50kv 10 3.1
Over 50KV to 200KV 15 4.6
Over 200KV to 350KV 20 6.1
Over 350KV to 500KV 25 7.6
Over 500KV to 750KV 35 10.7
Over 750KV to 1,000KV 45 13.7
Allow for platform movement, electrical line sway or sag and beware of strong
or gusty winds.
Keep away from the machine if it contacts energized power lines. Personnel
on the ground or in the platform must not touch or operate the machine until
energized power lines are shut off.
Do not use the machine as a ground for welding.
Electrocution Hazard
Section 4 - Hazards

Page 6 Titan BoomTM 40-S - Operator’s Manual

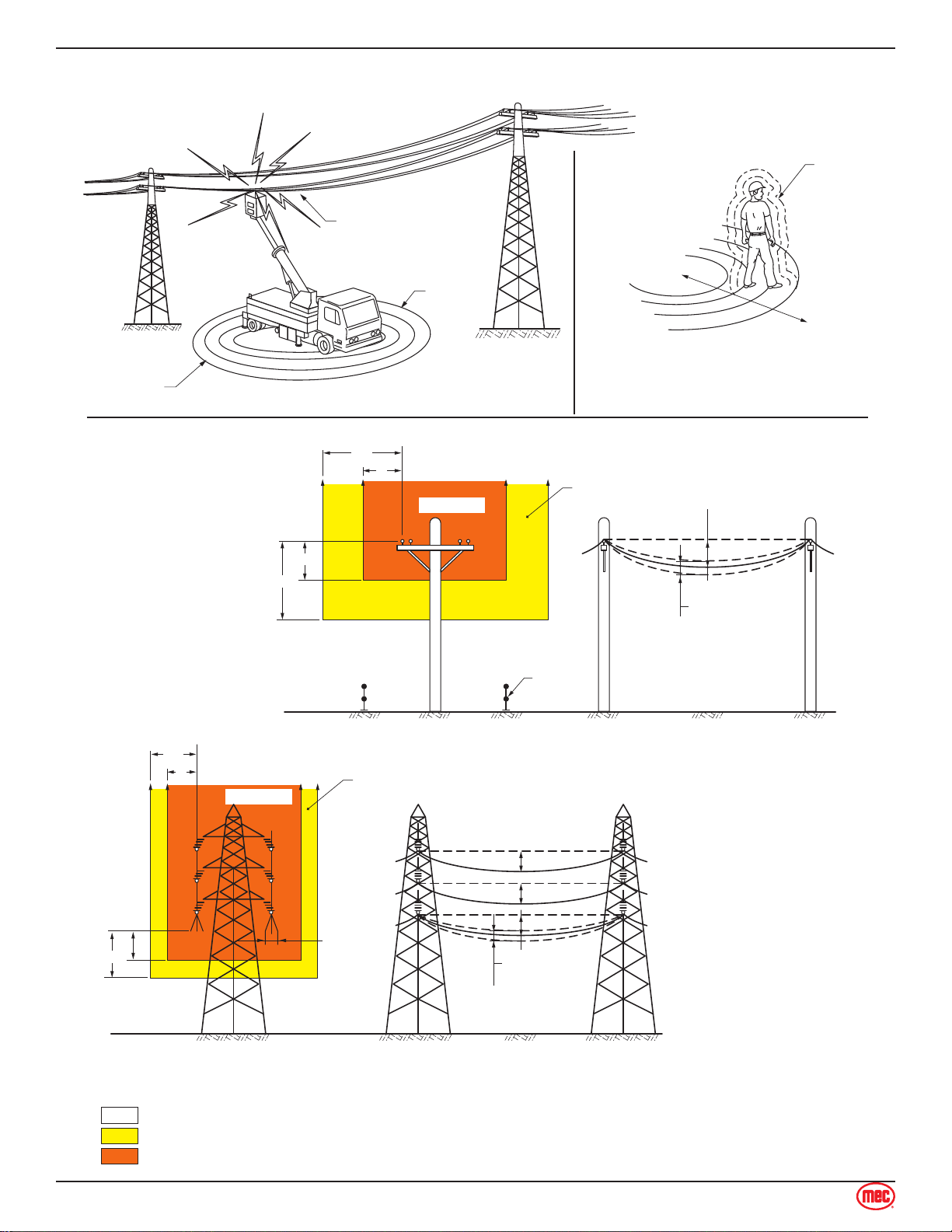

October 2020Section 4 - Hazards Minimum Safe Approach Distance
ART_3265
No go zone
Spotter
required
zone
Personal
protection
barriers
FRONT VIEW
(a) Distribution lines up to and including 133 kV
SIDE VIEW
6.4
6.4
3
3Sag
Variations
in sag
(b) Transmission lines greater than 133 kV
No go zone Spotter
required
zone
Sway
10
10
8
8
FRONT VIEW SIDE VIEW
Sag
Variations
in sag
Sag
Sag
LEGEND
CLEARANCES FROM LIVE AERIAL CONDUCTORS
= No shading, in the front views, indicates no proximity requirements
= Light shading indicates spotter is required
= Heavy shading indicates the NO GO ZONE
(a) Affected area
Min. volts
Min. volts
Max. volts
Higher voltage
Lower voltage
(b) Avoid simultaneous contact across
areas of high potential difference
5000 V
20000 V
15000 V
10000 V
5000 V
