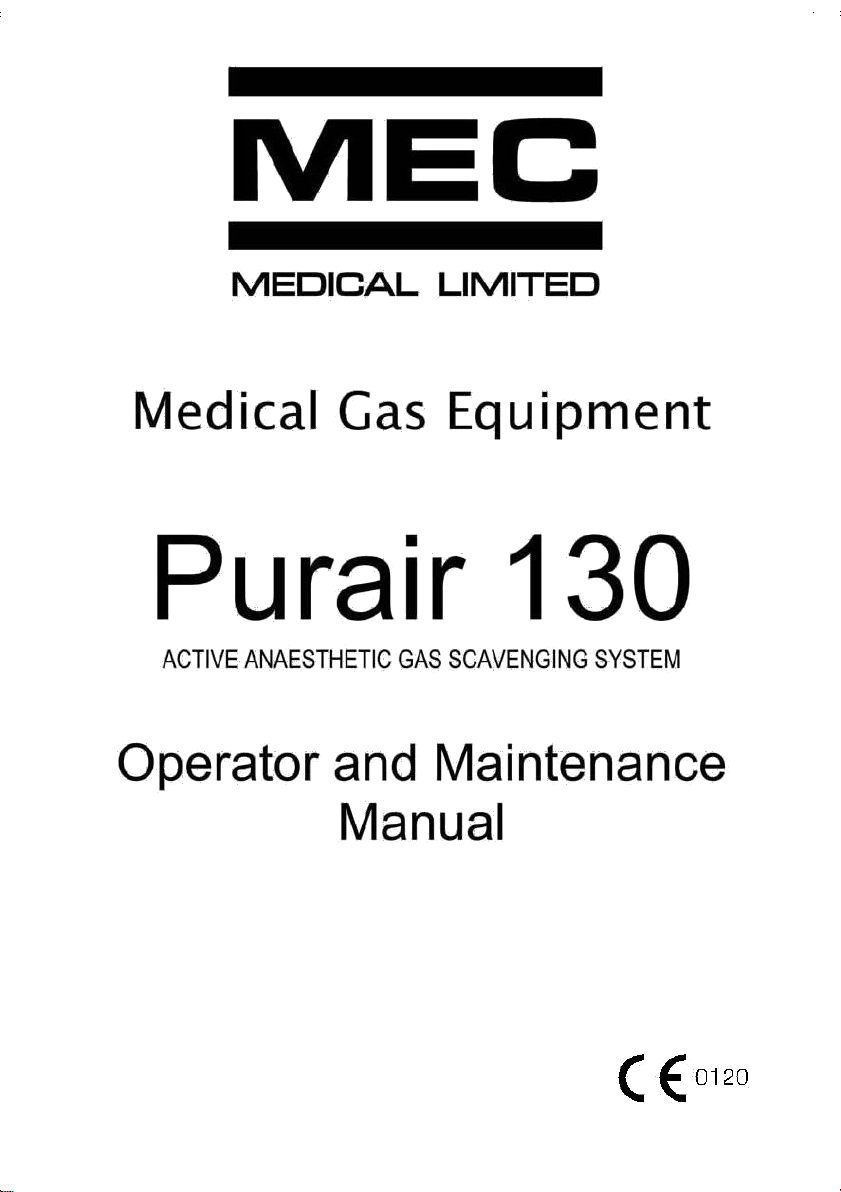

Mec Purair 130 Installation instructions

MEC Medical Limited
Unit 3, Trust Industrial Estate
Wilbury Way
Hitchin
Hertfordshire. SG4 0UZ
[e-mail]
www.mecmedical.com
P130UM/R001
ISSUE 10/Sep2017

Read this manual before operating the machine.
The user must be familiar with the machine and its
various functions before using it on a patient.
Recommended operating environment Temperature: 15°C-25°C
Humidity: Max relative humidity 90% (up to 31°C) decreasing
linearly to 50% relative humidity at 40°C Altitude: Max 2,000m.
Storage/transport temperature -20°C to 45°C (-4°F to 113°F).
Store all components in a cool, dry place when not in use.

Purair 130 AGSS Table of Contents
Table of Contents
Section 1 - Introduction .......................................................................
Foreword ........................................................................................ 5
Notices ...................................................................................... 6
Hazard Notices ......................................................................... 7
User Responsibility................................................................... 8
Servicing Policy ........................................................................ 9
Warnings and Cautions.......................................................... 10
Symbols and Abbreviations ................................................... 11
Section 2 - Description ....................................................................... 13
Pre Use checkout procedure...................................................... 13
Section 3 - Installing and Operating the Purair 130 AGSS ...........15
Installing the Purair 130 AGSS ................................................... 15
Section 4 - Servicing Procedure ....................................................... 17
Disassembly................................................................................. 17
Cleaning ....................................................................................... 19
Re-assembly of the Receiver Unit .............................................. 19
Servicing the Air Mover Assembly ..............................................20
Section 5 - Troubleshooting .............................................................. 21
Section 6 - Appendix ........................................................................... 22
Spares List ................................................................................... 22
Pressure Relief Valve Specification............................................ 23
Operator and Maintenance Manual 3

List of Figures Purair 130 AGSS
List of Figures
Figure 1 Purair 130 AGSS .............................................................. 12
Figure 2 Float Positions .................................................................. 13
Figure 3 Installing the Purair 130 AGSS........................................14
Figure 3A Installation ........................................................................ 15
Figure 4 Disassembly ..................................................................... 18
Figure 5 Motor Housing ..................................................................20
4Operator and Maintenance Manual

Purair 130 AGSS 1. Introduction
1. Introduction
Foreword
This manual is intended for users of the Purair 130 AGSS (Anaesthetic
Gas Scavenging System) and contains detailed information and
operating instructions. It also includes cleaning and sterilisation
methods, basic trouble-shooting and maintenance procedures.
Personnel operating the Purair 130 AGSS must become thoroughly
familiar with the instructions contained in this handbook prior to using the
device with patients.
The Purair 130 AGSS is intended for use by a qualified practitioner under the
direction of a qualified anaesthetist. When the unit is connected to a patient, it
is recommended that a licensed medical practitioner be in attendance at all
times.
The Purair 130 AGSS is classified as a Class 1 electrical item which includes
an electrical earth.
Operator and Maintenance Manual 5

1. Introduction Purair 130 AGSS
Notices
Product Improvement
MEC has a policy of continued product improvement and therefore
reserves the right to make changes which may affect the
information contained in this manual without giving prior notice.
Responsibilities of the Manufacturer
The Manufacturer accepts responsibility for the effects on safety,
reliability and performance of the equipment only if:
assembly operations, extensions, adjustments, modifications
and repairs are carried out by persons with written
authorisation from the manufacturer and, 

the equipment is used in accordance with the instructions
contained in this manual. 
Disclaimer
Assembly operations, extensions, adjustments, modifications and repairs
to the Purair 130 AGSS unit made by unauthorised personnel
automatically void all warranties and specifications. The prevention of
tampering is solely the responsibility of the user.
Conventions
The terms left, right, clockwise and anti-clockwise refer to the Purair
130 AGSS when viewed from the front.
Copyright
© 2001 MEC. All rights reserved. The information contained within this
publication may not be used for any purpose other than that for which it
was originally supplied. This publication may not be reproduced in part or
in whole without the written consent of MEC.
Valve System
Patent No: 2228419A
CE Marking
The product is labelled with the CE mark.
6Operator and Maintenance Manual

Purair 130 AGSS 1. Introduction
Note to Service Personnel
The contents of this manual are not binding. If any significant difference is
found between the product and this manual, please contact MEC for
further information at the address on the front cover.
It is recommended that the equipment is serviced at regular intervals
(eg. every 6 months) by qualified service personnel using genuine
spare parts for all servicing and repairs.
The power cable is only to be replaced by qualified persons with parts
supplied by MEC Medical Ltd.
Contact MEC sales and they will advise of a suitable engineer.
Hazard Notices
This manual contains important information. Statements preceded with
the following symbols are of special significance.
Warning Notices Denote a potential hazard to the health and
safety of users and/or patients. These notices clearly state
the nature of the respective hazard and the means by which
it can be avoided.
Warning notices appear in full in the preliminary pages and
are highlighted at their point of application in the manual.
Cautionary Notices denote a potential hazard to the
physical integrity of equipment but NOT a danger to
personnel. These notices clearly state the nature of the
hazard and the means by which it can be avoided.
Cautionary notices appear in full in the preliminary pages and
are highlighted at their point of application in the manual.
Operator and Maintenance Manual 7

1. Introduction Purair 130 AGSS
Relevant or helpful information.
Additional copies of this O & M manual can be obtained from MEC
(Quote Part number P130UM/R001 - Purair 130 AGSS Manual).
It is recommended that all relevant documentation, including the
Operator and Maintenance Manual, accompanying labels and/or inserts,
is immediately available to all prospective users of the equipment.
User Responsibility
The performance of this product conforms with the description thereof
contained in this manual and accompanying labels and/or inserts when
the product is set up, operated, maintained and serviced in accordance
with the instructions provided.
The product must be checked periodically.
A defective product must not be used.
Parts that are broken, missing, plainly worn, distorted or contaminated
must be replaced immediately. Should such repair or replacement
become necessary, the manufacturer recommends that a verbal or
written request for service advice is communicated either to MEC or to an
authorised distributor.
It is recommended that this product, including any of its parts, is
repaired only by trained personnel in accordance with written
instructions provided by MEC.
The product must not be altered without the prior written approval of MEC.
The user of this product shall have sole responsibility for any
malfunction which results either from alteration by anyone other than
authorised, fully trained personnel or from improper use, faulty
maintenance, improper repair or damage.
Specification
Equipment specification
Class 1.
The system is for use in an environment
<25oc and 90% RH.
Voltage
230V 50Hz.
Operating Current
0.4amps.
Power
100VA.
8Operator and Maintenance Manual

Purair 130 AGSS 1. Introduction
Servicing Policy
Warning: Only Engineers trained to repair and/or service this
type of equipment should attempt to repair and/or service the Purair 130
AGSS. It must only be repaired and/or serviced in accordance with
written instructions provided by MEC. An improper repair and/or service
could result in patient injury.
Requests for servicing facilities, advice or assistance must be
addressed either to MEC or an authorised distributor.
Contact MEC sales or an authorised distributor and they will advise of a
suitable installer.
Warranty repairs must only be performed by MEC or authorised distributors.
Do not use malfunctioning equipment. Parts listed in this manual can
be replaced only by Engineers trained to repair and/or service this type
of equipment.
After repair, the equipment must be tested to verify that it operates
correctly. If assistance is required, contact MEC or the nearest
authorised distributor.
In the event that the Purair 130 AGSS is to be transported to MEC or an
authorised distributor, it should be securely packed with suitable protection
for transit, in the original packaging if possible, and shipped pre-paid.
Enclose the following items as applicable:
A letter describing in detail any difficulties experienced with the
equipment. 

Warranty information, such as a copy of the invoice or other
applicable documentation. 

Purchase Order number to cover repair of equipment not under
warranty. 

Serial number (located on the label at the base of the receiver
unit: part number (2) ). 

Contact name and telephone number. 

Operator and Maintenance Manual 9

1. Introduction Purair 130 AGSS
Warnings and Cautions
Warning Notices
1. This manual and all its associated documents must be
studied thoroughly before any attempt is made to set up,
operate or service any part of the Purair 130 AGSS. Failure to
do so may result in patient injury.
2. Only Engineers trained to repair and/or service this type of
equipment should attempt to repair and/or service the Purair
130 AGSS and it must be repaired and/or serviced only in
accordance with written instructions provided by MEC. An
improper repair and/or service could result in patient injury.
3. Check all components for damage. Any damaged
components must be replaced before reassembly with MEC
approved parts.
4. WARNING: To avoid the risk of electric shock, this equipment
must only be connected to a supply mains with a protective
earth.
Cautionary Notices
4. Ensure that the Purair 130 AGSS system is securely
supported before connecting the hoses.
5. The installation shall not be positioned in such a way where it
is difficult to operate the disconnection device (mains plug).
10 Operator and Maintenance Manual

Purair 130 AGSS 1. Introduction
Symbols and Abbreviations
Operator and Maintenance Manual 11

1. Introduction Purair 130 AGSS
Extraction Hose
Air Mover
Male Adaptor
‘V’ Bracket
Receiver
Unit
Figure 1
The Purair 130 AGSS
12 Operator and Maintenance Manual
Pressure
Relief
Valve
Hook
Top Cage
Filter
Float Window
Switch
Disposable
Transfer
Tube
Assembly
Plug
Patient Inlet
Connection for
Disposable
Transfer
Tube Assembly

Refer to Figure 1.
The Purair 130 is a high flow system with > 75 l/min, high flow rate which is used for the
extraction to atmosphere of waste anaesthetic gases exhaled from the patient breathing
system during anaesthesia.
The Purair 130 is a stand-alone system that is either ON or OFF. The float is purely a go/no-
go indicator and as such MUST ALWAYS be in the ‘MAX’ position, as described in this
manual. Any deviation from the ‘MAX’ position must be investigated following the
troubleshooting guide as in section 5.
The receiver unit incorporates a transparent window so that the position of the float and the
condition of the filter can be observed. Typical position of the float is illustrated in Figure 2.
The filter should be kept visibly clean to prevent flow restriction through it.The mesh size is
150µm.
The disposable transfer hose assembly is used to connect the receiver unit to the patient
breathing system. The disposable transfer hose compromises a 30mm male adaptor (single
patient use), a 22mm corrugated transfer tube (single patient use and a pressure relief valve.
The male adaptor is used to connect the transfer hose to the receiver unit patient inlet.
The pressure relief valve issued to connect the Purair 130 to the patient breathing system.
The pressure relief valve is not autoclaveable.
A complete Purair 130 comprises of a receiver unit/air break (designed to conform to BS EN
ISO 80601-2-13-2012), air mover , disposable (single patient use only) transfer tube
assembly with a 10cm H²O pressure relief valve, extraction / venting hose and wall venting
kit.
Pre Use Checkout Procedure
Checkout procedure to be followed daily before each use
The anaesthetic gas scavenging system should be switched on and functioning. Ensure that
the tubing is attached to the appropriate expiratory port of the breathing system or ventilator.
The top of the float becomes visible at approximately 50 l/min and reaches the top at
approximately 100 l/min

2. Description Purair 130 AGSS
14 Operator and Maintenance Manual

Purair 130 AGSS 3. Operation
3. Installing and Operating the Purair 130 AGSS
Installing the Purair 130 AGSS
1. Determine a location for installing the Purair 130 AGSS where the
unit will be free from any obstructions and can be safely used.
Ensure that the system is securely supported
before connecting the hoses.
2. Install the Purair 130 AGSS referring to Figure 3 and Figure 3A.
a. With packing pieces (1A) (x4) located between (1) and wall,
screw item (1) with item (3) onto vertical flat wall at required
position, approximately 1.25m above floor level.
b. Carefully push fit (4) fully onto (2) through 'O'-ring seal (5)
and place complete assembly onto item (1).
c. Mark item (4) fixing hole locations (x 2) on wall ensuring that
the complete assembly is both horizontal and vertical. Contact
MEC sales or an authorised distributor and they will advise of
a suitable installer.

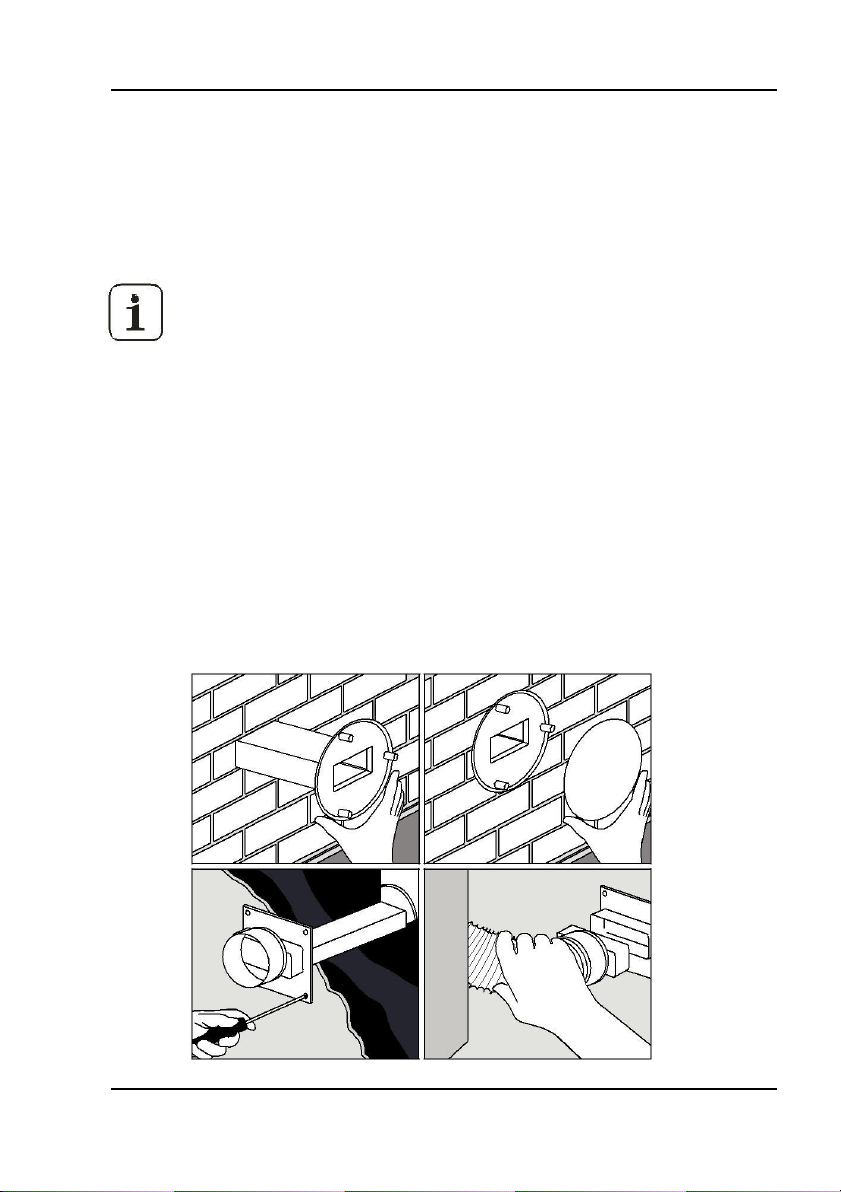

Figure 3A Installation
Operator and Maintenance Manual 15

3. Operation Purair 130 AGSS
d. When marked, remove complete assembly from (1), then drill
and plug wall accordingly.
e. With wall drilled and plugged, refit complete assembly back onto
(1) and screw (4) (x2) onto wall.
f. Fit extraction vent (6) as shown in Figure 3A.
g. Push (6) onto (4) and connect other end of (6) onto extraction exit.
The extraction hose (6) is not to exceed 6.5 metres length
overall. Ensure there are no kinks in the minimum length.
h. Plug (7) into 13 amp 220/240V electrical socket and switch
ON control item (8).
i. With system in operation, check that the float level (9) rises above the
minimum level indicator as marked on assembly (See Figure 2).
Ensure hoses are fully extended and the float indication is
at the top.
Operating the Puair 130 AGSS
1. Connect the pressure relief valve on the disposable transfer hose
to either the patient breathing system APL valve or the breathing
circuit expiratory valve.
2. Connect the male adaptor on the disposable transfer hose to
the patient inlet on the receiving system.
3. Check that the float is visible in the float window, as illustrated in
Figure 2. If the float is not visible, refer to Section 5 – Troubleshooting.
4. Switch the Purair 130 AGSS on using the on/off switch on the
air mover enclosure.
The power cable is only to replaced by qualified persons with parts
supplied by MEC Medical Ltd. Contact MEC sales and they will
advise of a suitable engineer.
The equipment must be isolated from the mains supply by removing
the plug from the mains source.
16 Operator and Maintenance Manual

Purair 130 AGSS 4. Servicing and Maintenance
4. Servicing Procedure
Servicing procedures are confined to a visual inspection, cleaning
and replacement of worn or damaged components.
Warning: Only Engineers trained to repair and/or service this
type of equipment should attempt to repair and/or service the
AGSS and it must be repaired and/or serviced only in
accordance with written instructions provided by MEC. An
improper repair and/or service can result in patient injury. The
power cable is only to replaced by qualified persons with parts
supplied by MEC Medical Ltd.
The System can be partly disassembled in order to replace
an individual component. It is not always necessary to
complete a full Servicing procedure.
Disassembly (refer to Figure 3, page 14)
1. Disconnect the Purair 130 AGSS from the mains power supply.
2. Disconnect the Extraction Hose (6) from the Air Mover (4).
3. Remove the Air Mover (4) from the Receiving Unit (2) by loosening
the mounting screws and lifting off.
4. Disconnect the Transfer Hose Assembly from the patient breathing
system and the male adaptor from the patient inlet connection.
5. Remove the Receiving Unit (2) from its mounting.
Under normal circumstances, the unit should not need to
be disassembled further than this.
Disassembly (refer to Figure 4, page 18)
1. Stand the Receiver Unit on a clean, flat surface. Hold the Centre Swivel
(21) to prevent it from rotating and unscrew the Top Cage (10). Remove
the Float Window (12) and the Filter (11) from inside the Top Cage (10).
Remove the top ‘O’ Ring (13) from the Guide Rod (16) followed by the
Float Assembly (14), the lower ‘O’ Ring (13) and the Valve Disc (15).
Operator and Maintenance Manual 17

4. Servicing and Maintenance Purair 130 AGSS
Figure 4 – Disassembly
18 Operator and Maintenance Manual

Purair 130 AGSS 4. Servicing and Maintenance
1. The filter (11) should be rinsed with water from the concave (hollow)
side, to remove lint and debris, and may then be steam autoclaved
as required (recommendation once every week).
2. Wash all other receiver components in a mild detergent (such as Turbex
Ltd USF-4) The Mild Cleaning detergent should not contain acid, ammonia
or ammonium must be used. Do not use any cleaning solutions that
contain chlorine, aromatics, moisturisers, or scented oils. Use a lint-free
cloth to dry.
3. No PPE is required for these operations as no dangerous or irritating
substances are used.
4. Check the air mover assembly. (See page 20 for Servicing).
5. Clean the PRV with isopropyl alcohol. DO NOT AUTOCLAVE.
Ensure that isopropyl alcohol complies with Regulation EC No
1907/2006 Art.31
WARNING: It is possible the system may eventually fail if
cleaning is not carried out as and when instructed.
Re-assembly of the Receiver Unit.
WARNING: Check all components for damage. Any
damaged components must be replaced before reassembly.
1. Place the Valve Disc (15) on the Guide Rod (16) then slide ‘O’ Ring
(13) down to locate in the lower groove.
2. Place the Float Assembly (14) on the Guide Rod (16) – note orientation
of the Float Assembly (14) with the concave side upwards. Slide ‘O’ Ring
(13) down Guide Rod (16) to locate in upper groove.
3. Position the Float Window (12) on the Centre Swivel (21) with the recess
downwards, locating on shoulder. Place the Filter (11) in the top of the
Float Window (12) and screw the Top Cage (10) onto the Centre Swivel
(21) until hand tight.
4. Fit the Air Mover (4) Assembly into the Receiver Unit (2).
5. Verify that all components are assembled correctly.
Operator and Maintenance Manual 19
