Safety rules
This machine is designed with a number of integrated safety devices. To avoid personal
injury it is essential that the safety devices are not bypassed or in any other way put out of
action.
General safety rules
• The machine should be connected according to the instructions.
• The machine may not by used by juveniles.
• Installation work and servicing should be carried out by staff trained to use this machine.
• The door switch on the machine may not be bypassed under any circumstances.
• Leakage in the system, eg, due to worn lid gasket, must be repaired immediately.
• Personnel concerned must study valid handbooks and service manuals prior to any
repairs or service work.
• All plug-in leads must be unplugged from all of the circuit boards of the control system
before any welding on or close to the dishwasher is started.
• The machine may not be sprayed with water.
• Caution must be observed when using corrosive detergents.
• Safety precautions must be observed when using hot water or steam.
• Getinge 9900 may only be used for what it is designed and intended for , see operating
instructions.
• The machine must not without permission from Getinge, be modified or rebuilt so that the
function or effect changes.
Service in washing chamber
When serving the washing chamber, bring the key to the emergency shutdown.
Power cut-off device
The machine can be provided with a separate main switch in the power supply line, easily
accessible on the wall.
Caution symbols
This manual contains certain warnings, instructions and advice of such importance that they
are particularly emphasized. The configuration and use of the appertaining symbols are as
follows:
This symbol indicates a warning in the text. It gives warning of dangers
which could lead to minor or major injury to the person and even to a
fatality.
It is also used in warnings to avoid damage to the machine.
This symbol indicates a warning (in the text) concerning the handling of
ESD-sensitive components. Misuse may cause damage to the appliance or
PCB.
This symbol indicates a warning in text included in the manual concerning
hot surfaces on the machine. Such warnings refer to hazards that can result
in more or less serious injury and in some cases fatal injury.

4
OperatinginstructionsGetinge 9900-series
0103
Getinge 9900- series
The Getinge 9900-series is a fully automatic washer disinfector for the cleaning
and disinfecting of contaminated dishware in hospitals, laboratories and the
pharmaceutical industry.
The machine is provided with four spray arms and can be equipped with a
variety of accessories for different cleaning requirements.
Several options are available with regard to installation to suit the range of use
intended:
•Electric or steam heating.
•Connection of distilled or deionized water.
•With or without built-in drying system.
•Single or double doors for barrier mounting
•Freestanding or pit mounted
•Service space, right or left from door soiled side.
Door lock
(electronically interlocked)
Strainer with handles
Control panel
Emergency shutdown
with key
Upper spray arm
Lower spray arm
Drying module with
sterile filter
Water inlet
Service space
Washing chamber
Docking for wahing cart/
injection cart

5
Getinge 9900-seriesOperatinginstructions
0103
Programming device
The machine is fitted with an electronic programmable device which can contain
a maximum of 60 different programs. Six of these programs can be chosen using
the program selection buttons.
A number of standard programs are included in the programming device on
delivery (see section, Standard programs). These programs can be modified to
suit individual customer requirements. Furthermore, completely new individual
programs can be programmed directly into the machine from the machine control
panel. If desired, the whole or parts of a standard program can be used as the
basis for programming.
Programming may only be carried out by authorized personnel.
Door function
Getinge 9900 is provided with either one or two doors. Doors are of the vertical
sliding type.
Two doors are used when you want to have an interlocking function between
clean and soiled side of the machine. It works as follows:
Both doors can never be open at the same time. Before start, the door on the
soiled side is unlocked and the door on the clean side is locked. When the start
button is pressed, both doors are locked. The door on the clean side can not be
opened until a complete disinfection is accomplished. The door o n the soiled
side stays locked. When the door on the clean side is opened, the goods
removed and the door is closed, this door is locked and the door on the soiled
side is unlocked to run the next process.

6
OperatinginstructionsGetinge 9900-series
0103
Dispenser system
In its standard version the machine has two different dispenser systems. One
system for alkaline detergent and one system for rinse-aid or acidic detergent. The
size of the dispenser dose can be individually set for each program and each
separate part of the program.
The machine cannot be started if the detergent bottle is empty. The message
”FILL DETERGENT”will be displayed when the detergent bottle becomes empty.
A third dispenser system can be installed if required, eg, for chemical disinfection
of heat-sensitive dishware.

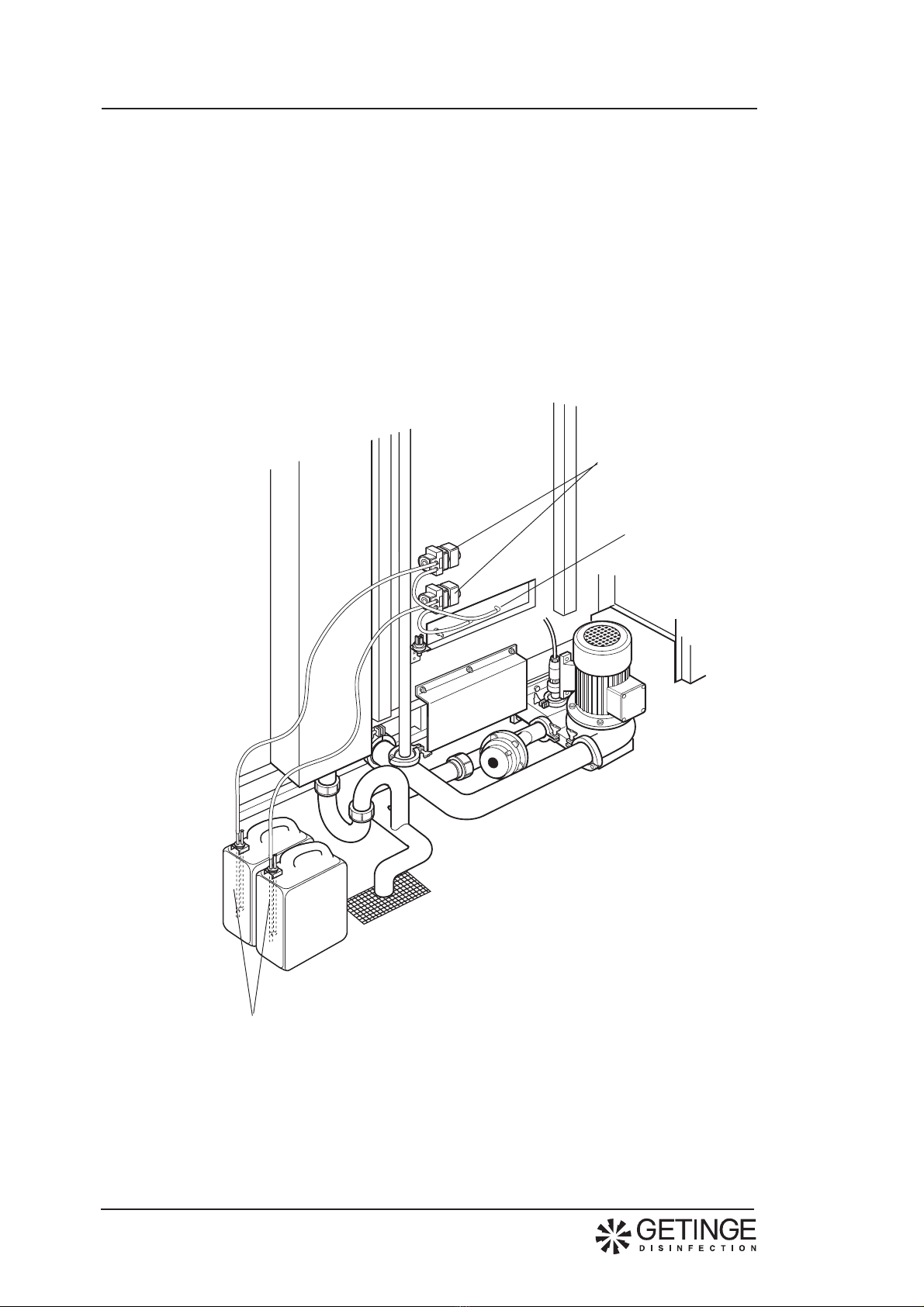

Level sensors, are
placed in the detergent
bottle
Dosing pumps
Connection of
dosing hoses to the
washing chamber

7
Getinge 9900-seriesOperatinginstructions
0103
L
M
K
L
H
J
IK
ABC
DEF
G
Rinsing P01
047°C 00:30
Programming buttons (see
”Service instructions”)
Remaining
program time
Operation

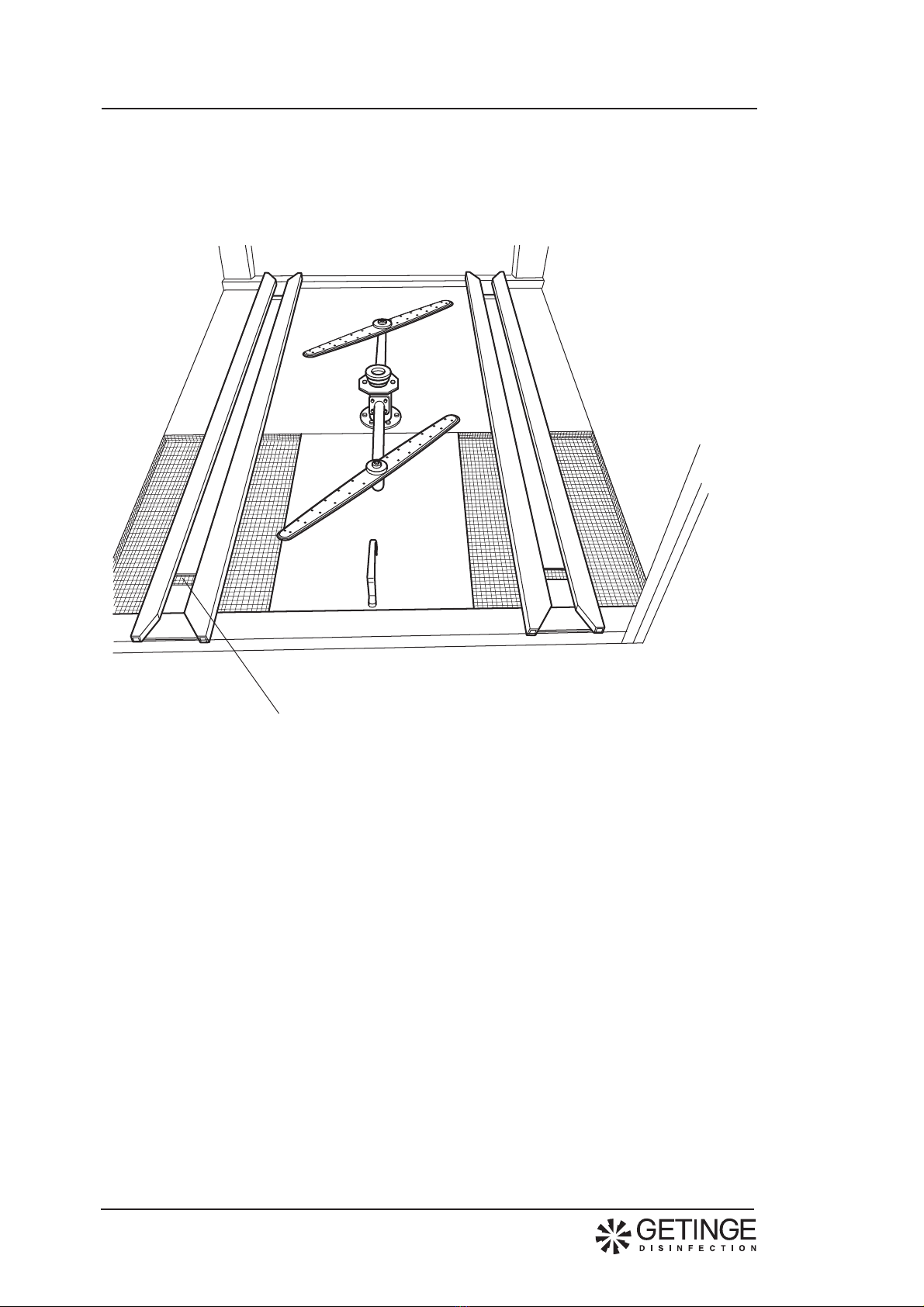

•Place the dishware in the trolley and roll it into the machine. The carriageway
has tracks that indicates where the washing cart shall be placed (See picture
under heading Maintenance, page 10).
•Ensure that the spray arms can rotate freely without touching the dishware.
Close the door.
•Choose a program using the program selector buttons A- F. The upper line
of the display will then show the name and number of the program chosen. If
no program is available under the program button that was chosen, the
message ”NOT PROGRAMMED”will be displayed.
•Press the Gbutton. The yellow lamp will light throughout the program
sequence, and the current phase of the program, eg, ”Rinsing”, the actual
temperature and the remaining program time will be displayed.
•On completion of the program, the green lamp will light and the door will be
unlocked (door on the cleaned side if fitted with two doors).
•Empty the machine (and close the door on the cleaned side if fitted with two
doors).
•If the same program is to be repeated it is not necessary to press a program
selector button, just press the Gbutton.
•The yellow lamp will flash for 10 seconds when the Gbuttom is pressed.
During this period the program can be interrupted by pressing Gonce more.
Note.
The display window goes dark after 30 minutes and i automatically
activated again on starting or when choosing a program.

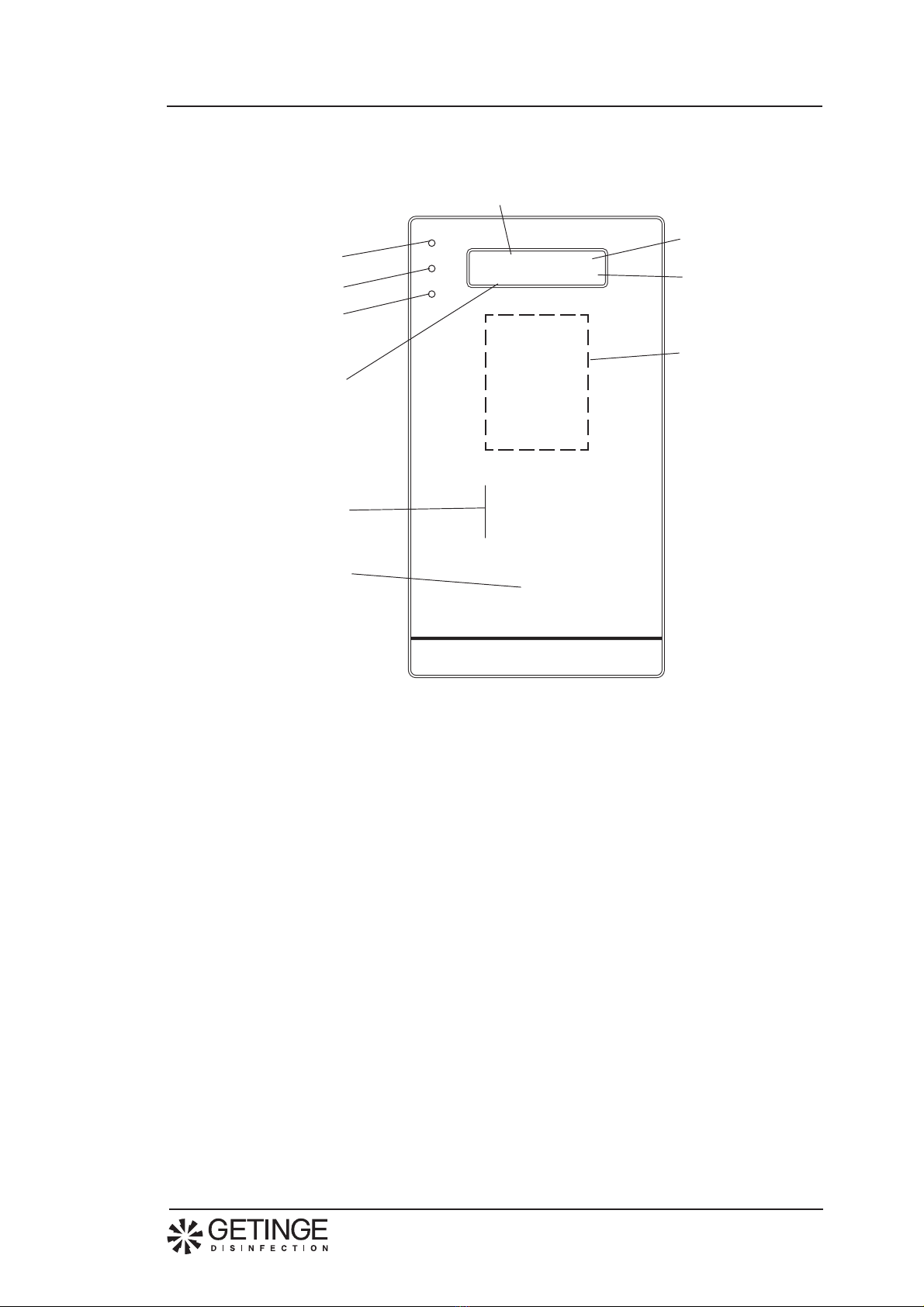

Yellow: Process in progress
Green: Process completed
Red: Not disinfected
Actual temperature
in washing chamber
Program selection
buttons
Washing program
start button
Program number
Before starting: Selected program
During process: Program phase (eg, ”Rinsing”)

8
OperatinginstructionsGetinge 9900-series
0103

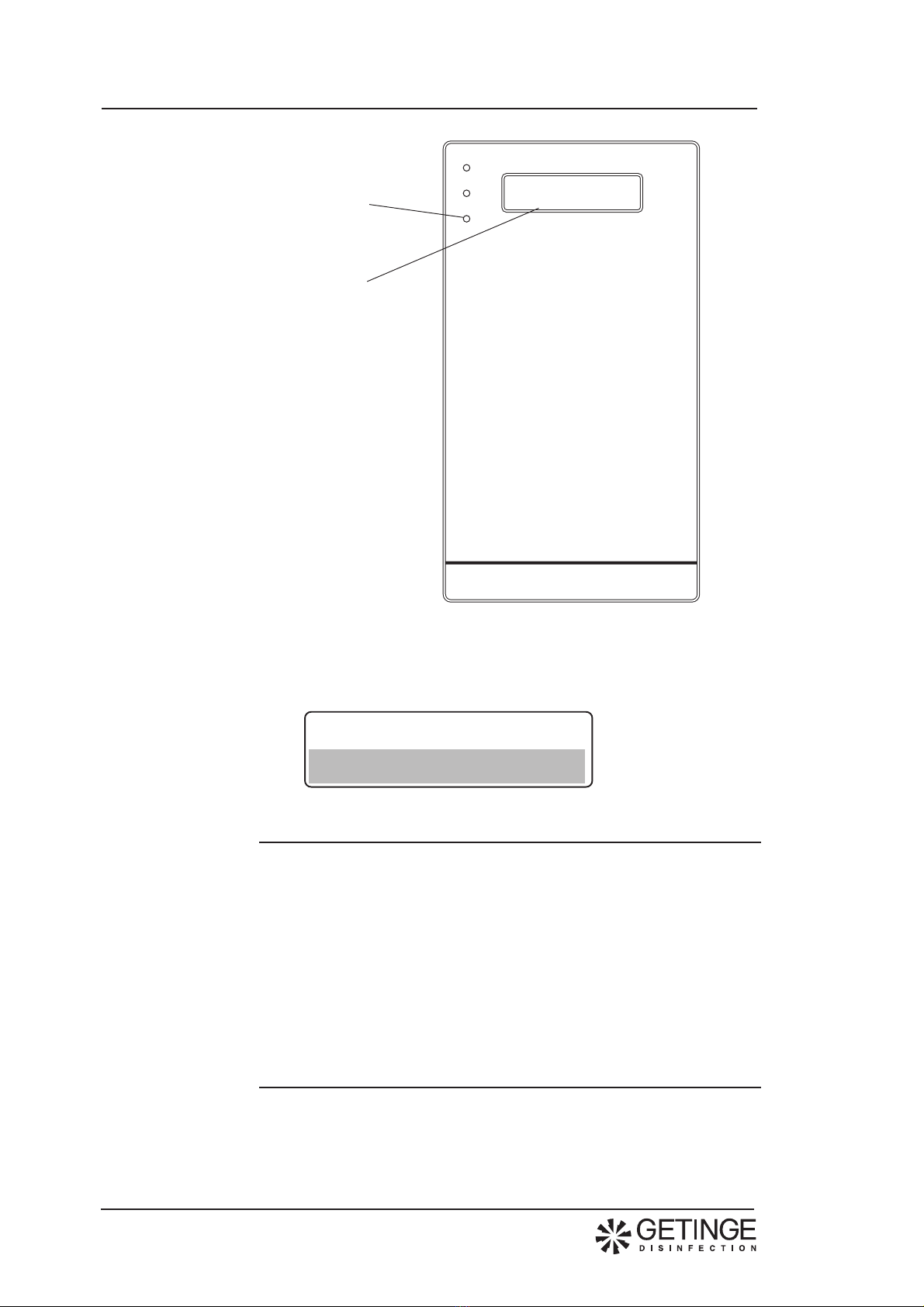

Error indication
Red lamp: Not disinfected
P01
Fill detergent 1
Error message or error code
P01
Fill detergent 1
the error is rectified. The following error messages can occur:
CHOOSE PROGRAM Gbutton has been pressed before
choosing a program.
NOT PROGRAMMED No program available for the program
button A- Fchosen.
CLOSE THE DOOR Gbutton pressed while door is open.
FILL DETERGENT 1Detergent bottle 1 is empty and the
Gbutton has been pressed.
FILL DETERGENT 2Detergent bottle 2 is empty and the
Gbutton has been pressed.
FILL DETERGENT3Detergent bottle 3 is empty and the
Gbutton has been pressed.
Note.
When the error message ”Fill detergent” appers, there is always
sufficient detergent left for one program.
Red lamp lights
If the red lamp lights at K, this is an indication that disinfection is aborted
because the temperature is too low. Contact maintenance personnel.
Error messages
Error messages are displayed in clear text. The machine cannot be started until
V337
L
M
K
L
H
J
IK
ABC
DEF
G

9
Getinge 9900-seriesOperatinginstructions
0103
Error code: 05
Error codes (F-Codes)
The error codes indicate a serious malfunction in the washing sequence. Such
errors must be attended to by authorized personnel.
The following error codes can appear:
Code Fault Comments
1 Filling with water too slow Water level sensor notactivatedwithin 10
minutesfromcommencementoffilling.
2 Heating of water too slow Water notheated 10°C frominitial
temperaturewithin 8minutes from
commencementofheating.
3 Draining not working. Water levelsensor stillactivated atend of
programmeddraining period.
4 Drying air temperature too low. Air temperature below 62°C after 15
minutesdrying.
5 Faultytemperature sensor. Displayed temperature below 0°C or
above 110 °C.
7 Motorcircuit breaker triggered. Motorcircuit breaker for the circulation
pumpis triggered.
8 Doormalfunction, soiledside. Sensor “Door closed” in lock not activated.
9 Doormalfunction, cleanside. Sensor “Door closed” in lock not activated.
11 Conductivity Conductivityout of preset range
Acknowledgement of error code
After rectifying an error, press the Gbutton for at least 5 seconds to reset the
code.

10
OperatinginstructionsGetinge 9900-series
0103
Maintenance
Daily
•Check that no object has fallen to the bottom of the washing chamber and is
left lying there.
•Ensure that the spray arms can rotate freely. Ensure that the holes in the
spray arms are not clogged.
Clean the spray arms as required by unscrewing the centre nut, lift off the arm
and flush clean. Ensure that the spray arm rotates freely after refitting.
•Remove and clean the coarse filter in the bottom of the flushing chamber.
•Check that there is detergent/rinse aid in the containers.
•Ensure that the dishware rack docks properly against the water connections.
Marking for position of the washing cart

11
Getinge 9900-seriesOperatinginstructions
0103
If necessary
The washing chamber
The washing chamber should be kept free of limescale deposits. Remove
remaining deposits by spraying on a normal acid-based detergent. Then run a
program to cleanse the washing chamber (if the correct dosage of descaling
compound is used, this should not normally be necessary).
Use protective equipment when you are cleaning the machine
The exterior
The front and side walls can be cleaned and disinfected with an alcohol-based
detergent, surgical spirit, or normal detergent. The control panel can be cleaned
in the same way.
Remove marks with ordinary stain-remover for stainless steel.
If the disinfector is used without automatic descaling, the steam generator must
be checked regularly for limescale deposits.

12
OperatinginstructionsGetinge 9900-series
0103
Maintenance
How often maintenance will be required depends to a great extent on the quality
of the water supply and how often the machine is used. The period between
each maintenance should be determined in each particular case. We recommend,
however, that the following maintenance measures should be performed once or
twice every year.
Periodic maintenance
May only be performed by authorized personnel.
This machine is connected to mains power supply and some
components are live.
Component Interval
Inspect Replace as Replace Replace every
every year required every year two years
Door gasket ••
Hoses between ••
dosing pump
and detergent bottle
Hose between dosing ••
pump and machine
Hose in hose pump ••
Filter in input media ••
Overheating protection ••
Spray arm bearings ••
Sterile filter in dryer •••
Thermostat in dryer ••
Hoses to dryer ••
Printer ribbon •• option

13
Getinge 9900-seriesOperatinginstructions
0103

This product is manufactured by:
GETINGE DISINFECTION AB, Ljungadalsgatan 11, Box 1505, 351 15 Växjö, Sweden
