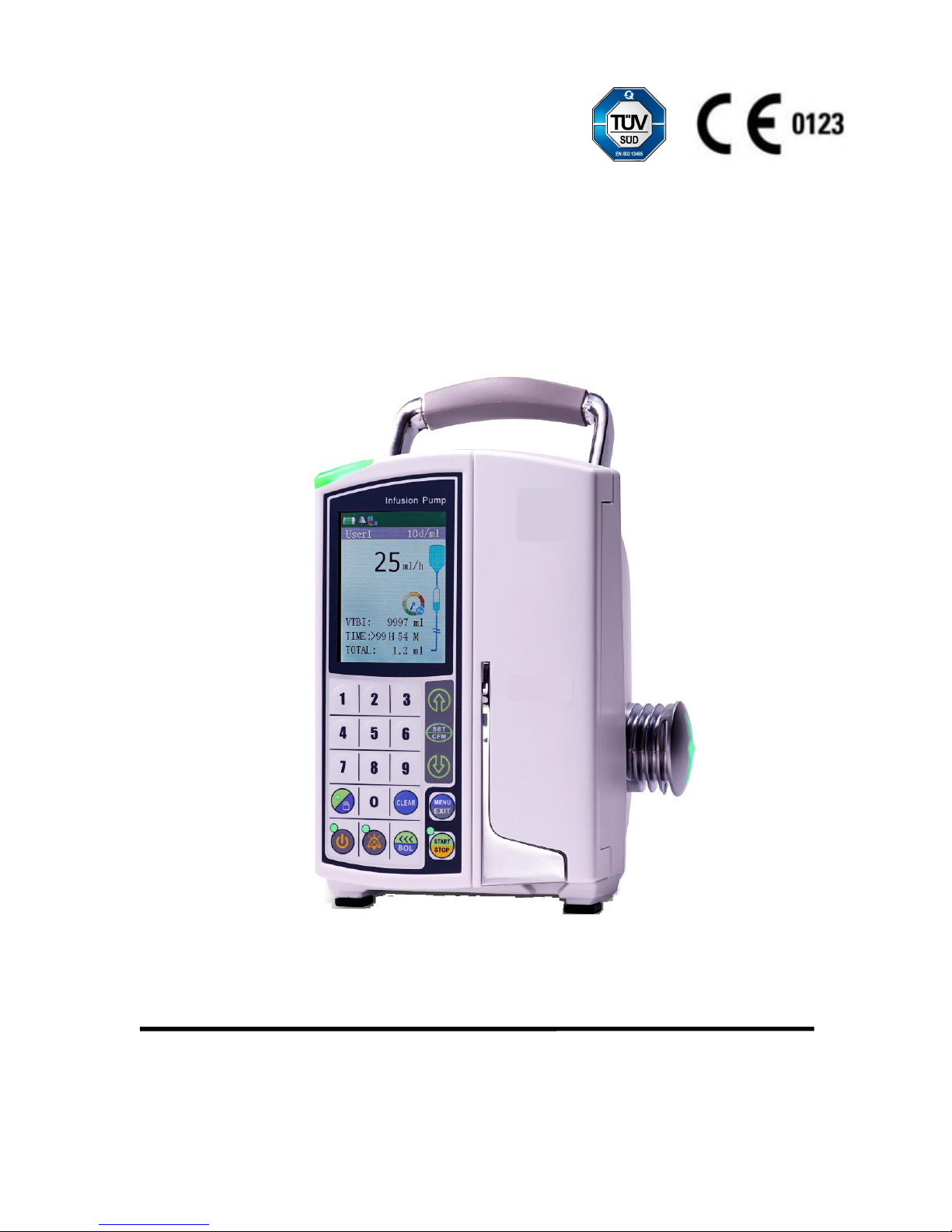

Jorvet J1060Q User manual

INFUSION PUMP
User Manual
Version: 3.1

- 1 -
CONTENTS
Introduction............................................................................................................................................................... - 3 -
Safety Tips................................................................................................................................................................. - 3 -
Chapter 1 Overview................................................................................................................................................- 5 -
1.1 Scope of application.................................................................................................................................... - 5 -
1.2 Technical Parameters...................................................................................................................................- 5 -
1.3 Product specifications................................................................................................................................. - 6 -
1.4 Work environment.......................................................................................................................................- 6 -
Chapter 2 Components description........................................................................................................................ - 7 -
Exterior components names description........................................................................................................... - 7 -
Infusion tube parts description.......................................................................................................................... - 7 -
Main information displayed on LCD................................................................................................................ - 8 -
Infusion pump structure.................................................................................................................................... - 8 -
Chapter 3 Assembling
Packing list........................................................................................................................................................ - 9 -
Pump Installation...............................................................................................................................................- 9 -
IV Set Installation............................................................................................................................................- 12 -
Chapter 4 Operation............................................................................................................................................. - 13 -
Function key description................................................................................................................................. - 13 -
Operation Flowchart........................................................................................................................................- 14 -
Volume mode operation...................................................................................................................................- 15 -
VTBI/Rate/Time..............................................................................................................................................- 15 -
Rate/Time........................................................................................................................................................ - 16 -
Simple Rate..................................................................................................................................................... - 16 -
Program mode................................................................................................................................................. - 17 -
Dose/weight mode...........................................................................................................................................- 19 -
Drug library mode........................................................................................................................................... - 20 -
Chapter 5 Special functions..................................................................................................................................- 22 -
Bolus................................................................................................................................................................- 22 -
Auto Bolus.......................................................................................................................................................- 22 -
Manual Bolus.................................................................................................................................................. - 22 -
IV set management..........................................................................................................................................- 23 -
Add IV set........................................................................................................................................................- 26 -
Remove IV Set................................................................................................................................................ - 27 -
Chapter 6 General operation................................................................................................................................ - 28 -
Stop..................................................................................................................................................................- 28 -
Power off......................................................................................................................................................... - 28 -
Standby............................................................................................................................................................- 28 -
(Piggyback)..................................................................................................................................................... - 28 -
Purge................................................................................................................................................................- 28 -
Mute.................................................................................................................................................................- 28 -
Clear alarm...................................................................................................................................................... - 28 -
Clear the VI..................................................................................................................................................... - 29 -
Battery life check.............................................................................................................................................- 29 -
Setting fluid warmer........................................................................................................................................- 29 -

- 2 -
Pre-alarm setting of infusion completion........................................................................................................- 29 -
Bottom occlusion pre-alarm setup.................................................................................................................. - 29 -
key lock (auto).................................................................................................................................................- 29 -
key lock (manual)............................................................................................................................................- 29 -
Chapter 7 History record check............................................................................................................................- 32 -
Check history records in machine...................................................................................................................- 32 -
Export history record.......................................................................................................................................- 32 -
Chapter 8 Security characteristic and alarm........................................................................................................ - 33 -
Trouble shooting..............................................................................................................................................- 33 -
Chapter 9 Routine check...................................................................................................................................... - 35 -
Chapter 10 Machine performance parameter General specifications..................................................................- 36 -
Response time of occlusion alarm...................................................................................................................- 36 -
Chapter 11 Electrical specification...................................................................................................................... - 37 -
Chapter 12 Storage and transport.........................................................................................................................- 38 -
User's Guide and Manufacturer’s Statement of Anti-electromagnetic Interference I............................ - 39 -
User’s guide and manufacturer’s statement of anti-electromagnetic interference II............................. - 40 -
Infusion accuracy characteristic..............................................................................................................- 42 -
System statement.....................................................................................................................................- 43 -
Product and service information............................................................................................................................. - 44 -

- 3 -
Introduction
Thank you for choose our company product Infusion Pump. Please carefully read and understand this
manual before use. Regularly check and maintain the pump to avoid possible injury or risks.
Safety Tips
1. Infusion Pump is not explosion proof type or portable device.
2. Infusion Pump cannot be used in the condition with mixed gases of flammable anesthetic gases,
oxygen, or ammonia.
3. Infusion Pump can only be used by professional. Patients are not allowed to use.
4. Prevent patients from excessive or insufficient flow induced injury by the following methods: set
infusion parameters correctly, use the calibrated infusion device.
5. If there is any anomaly, suspend using should be taken as the preferred safety measure.
6. To avoid malfunction, keep the device away from strong electromagnetic source or noise when using,
such as NMR equipment, microwave generating devices, radiation equipment (X-ray, CT, etc).
7. To avoid malfunction, keep this device away from the high-frequency surgical instruments (such as
rack, cable, electrode feeder plates, etc.), the distance should be at least 25cm; at least 1m away from
the cell phone.
8. Do not use other voltages. Only use the specified voltages on nameplate of Infusion Pump, or may
cause damage or fire.
9. Do not throw batteries into fire or heat them, otherwise it will result in electrolyte leakage, fire, or
explosion.
10. Do not tear up the shell of batteries; otherwise it will cause an explosion or chemical burn hazard.
11. When plugging or unplugging the AC power, grip the plug firmly. Do not touch it with wet hands.
12. It is not recommended to share an outlet with other electrical equipments.
13. Never disassemble or modify the device arbitrarily.
14. Check the device daily. If not used for a long time, be sure that the functions are normal before
re-use.
15. If any anomaly or function loss, discontinue use and contact the supplier in a timely manner.
Otherwise the user shall take sole responsibility for any consequences.
16. Avoid vibration, bumps, direct sunlight or strong light.
17. Avoid direct contact with blowing hot, wet air from heating, electric stove or humidifier.
18. Avoid using the device in the following places: chemical storage place, dusty place,
vibration/shaking and damp places.
19. Infusion pump is class IIb in electrical safety classification. When in doubt in wiring the protective
earth conductor, it must be operated by the internal power supply.
20. Infusion pump cannot be used in parallel with other brands of pumps.
21. The alarm sound pressure range of the pump is 47-71 db, and the noise in the operating
environment cannot exceed 60 db.
22. Strictly in accordance with User’s Manual of infusion pump in use and maintenance.
23. Infusion pump using infrared drop sensor, does not apply to dark infusion tubing.

- 4 -
24 The infusion pump is apply to 20d/ml, 60d/ml tubing, if the tubing type was set in Abnormal, there is
a big risk of accuracy deviation. Please make sure the tubing type settings are correct!
25. If not be adjusted based on different tubing type and different drug liquid, it may cause large
deviations in infusion accuracy.
26. if alarms are presented, the related medical personnel should be take the related solutions in time
and restart the infusion pump.
27. In clinical use, what kind of drugs can be used for heating fluids, how many degrees Celsius in
temperature should be rise, you must consult your doctor and strictly follow the doctor's advice

- 5 -
Chapter 1 Overview
1.1 Scope of application
It is applicable to accurate, constant and continuous intravenous infusion in medical institutions.
1.2 Technical Parameters
IV Set Options /Size: Open System for common widely-used brand of 10d/ml、15d/ml、20d/ml、60d/ml
(3.4mm～4.5mm), Also can be customized for dedicated IV set
Infusion Mode:
KVO: Adjustable from 1ml/h - 20ml/h
Infusion Rate: 20 d/ml IV set：0.1～1200ml/h；1.0～400d/min
60 d/ml IV set ：0.1～150ml/h；1.0～150d/min
0.1 ml/h increments; 1d/min increments
Infusion mode
Description
Operation
Remark
Volume mode（ml/h）
Choose mode needed
VTBI/time/rate
VTBI / rate
VTBI / time
Time / rate
Simple rate mode
Rate:0.1 ~1200ml/h
VTBI：0~9999ml
Time：1min~99h59min
VOL：0.1~9999ml
Drop mode（Drops/min）
Only For Option
Choose mode needed
VTBI / time / rate
VTBI / rate
VTBI / time
Time / rate
Simple rate mode
Rate: 1d/min ~ 400d/min
（10d/ml、15d/ml、20d/ml）
Rate: 1d/min ~ 150d/min
(60 d /ml)
VTBI：0~9999ml
Time：1min~99h59min
VOL：0.1~9999ml
Program mode
Choose mode needed
VTBI / rate
Pause time
8 stages of programming
Can stop infusion to program
Weight mode
Choose mode needed
Dose/weight
Drug Library mode
Choose mode needed
Dose/ rate
Rate
Can import drug library
49 kinds of drugs inside
machine
Bolus
Automatic
VTBI / rate
Rate：0.1~1200ml/h adjustable
VTBI：1~9999ml adjustable
Default 600ml/h，2ml
Manual
VTBI / rate
KVO
Opens automatically as
infusion is completed
Whether displays KVO
volume and rate setting
1~20ml/h adjustable
1ml/h default

- 6 -
Bolus: Two way: 1) Short Press Bolus Key to into setup menu (adjustable from 1.0～1200ml/h)
2) Long Press Bolus key to automatic running last time setup rate.
Accuracy: Infusion rate accuracy: ±2% (after drops 150 drips)
Infusion Flow rate accuracy: ±5% (using calibrated standard PVC IV set)
Occlusion Pressure: Up position: -100mmhg～-300mmgh; ±20%; 3 level option
Down position: 200mmhg～1200mmhg；±20%; 21 level option
Preset Volume Range: 1-9999ml
Purge: 600ml/h
Bubble Detection: Detected by ultrasonic sensor with adjust setting , 50μL ~ 800μL.
Alarm: Bubble, Door open, Finish, Pause overtime, Leakage, Empty, low Battery, Battery damage, Motor
reverse, IV Set size Error, Pressure failure, Motor failure, Flow Rate Error, Fluid Warmer failure, Down
Occlusion, Up Occlusion，internal communication fail
CPU: Dual
Lock Key: By manual lock to avoid misuse
Programmable: Infusion can be programmed in 8 segments
Library : Built-in 49 common drugs, could up to 1000 kinds of drug
History Record: 1500 event records, 200 modified records;
Records can be exported in LAN
Piggyback: User changes parameters without switching off
Fluid Warmer(optional): Relieve uncomfortable such as pain, vessel convulsion when infuse cold fluid
1.3 Product specifications
Power dissipation: 25VA
Display: Color LCD
Power supply: AC100-240V, 50Hz/60Hz (not recommended to share an outlet with other electrical
equipment, household power outlet is applicable.)
Battery: Ni-MH battery, DC9.6V, 2000mAh (after fully charged, it can last about 6 hours at 25ml/h.)
Protection: Class IIb, Type CF, IPX4, with internal power supply
Net weight: 2.0Kg
Dimensions: 130mm × 120mm × 195mm (not including protrusions)
1.4 Work environment
Operating temperature: +5 ℃~ +40 ℃
Relative humidity: 20~90% (Non-condensing)
Atmospheric pressure: 70kPa ~106kPa

- 7 -
Chapter 2 Components description

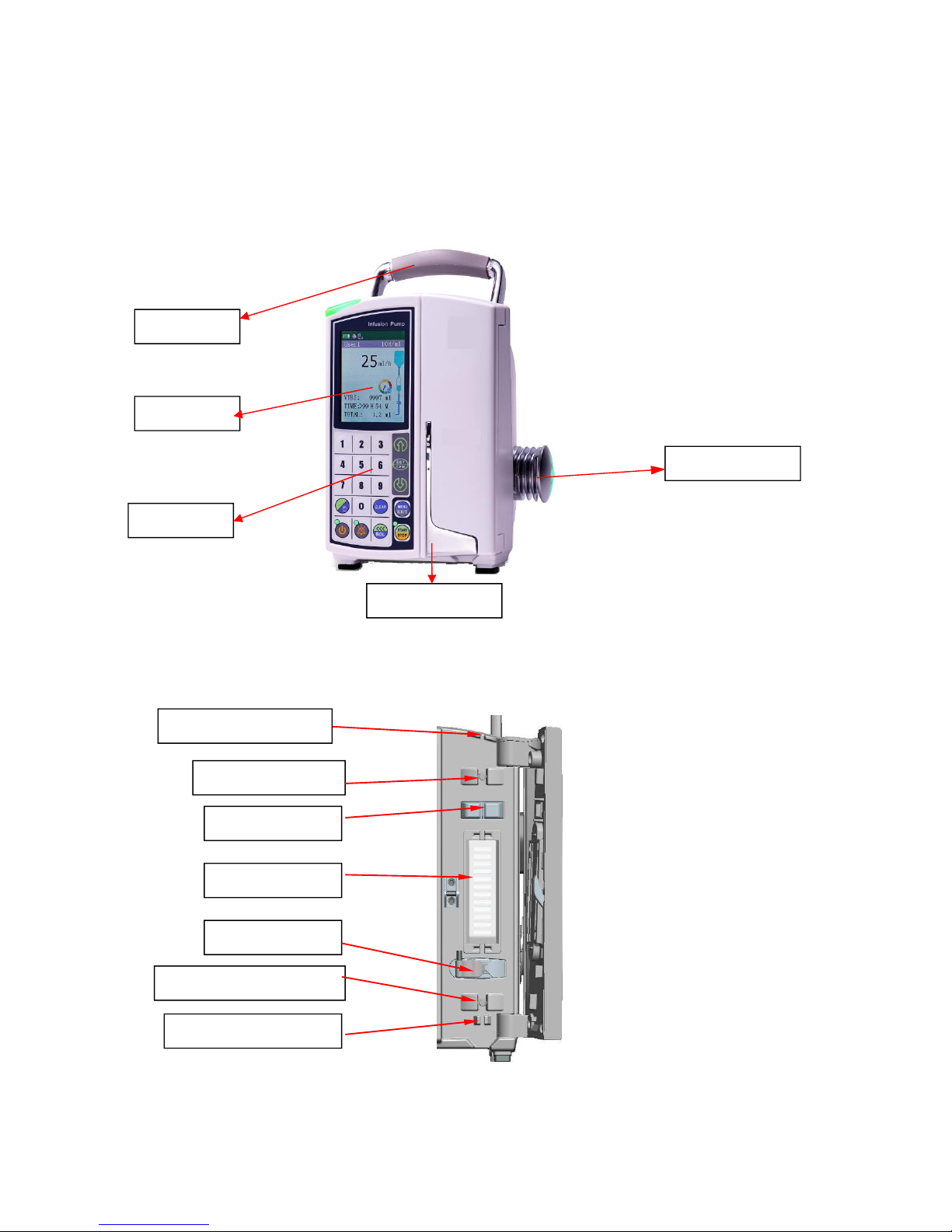

Exterior components names description
Infusion tube parts description
Handle
LCD
Key
Fluid warmer
Infusion set guide slot
Bubble sensor
Bottom pressure sensor
Infusion set guide slot
Up pressure
Peristaltic pump
Roller clamp
Door latch

- 8 -

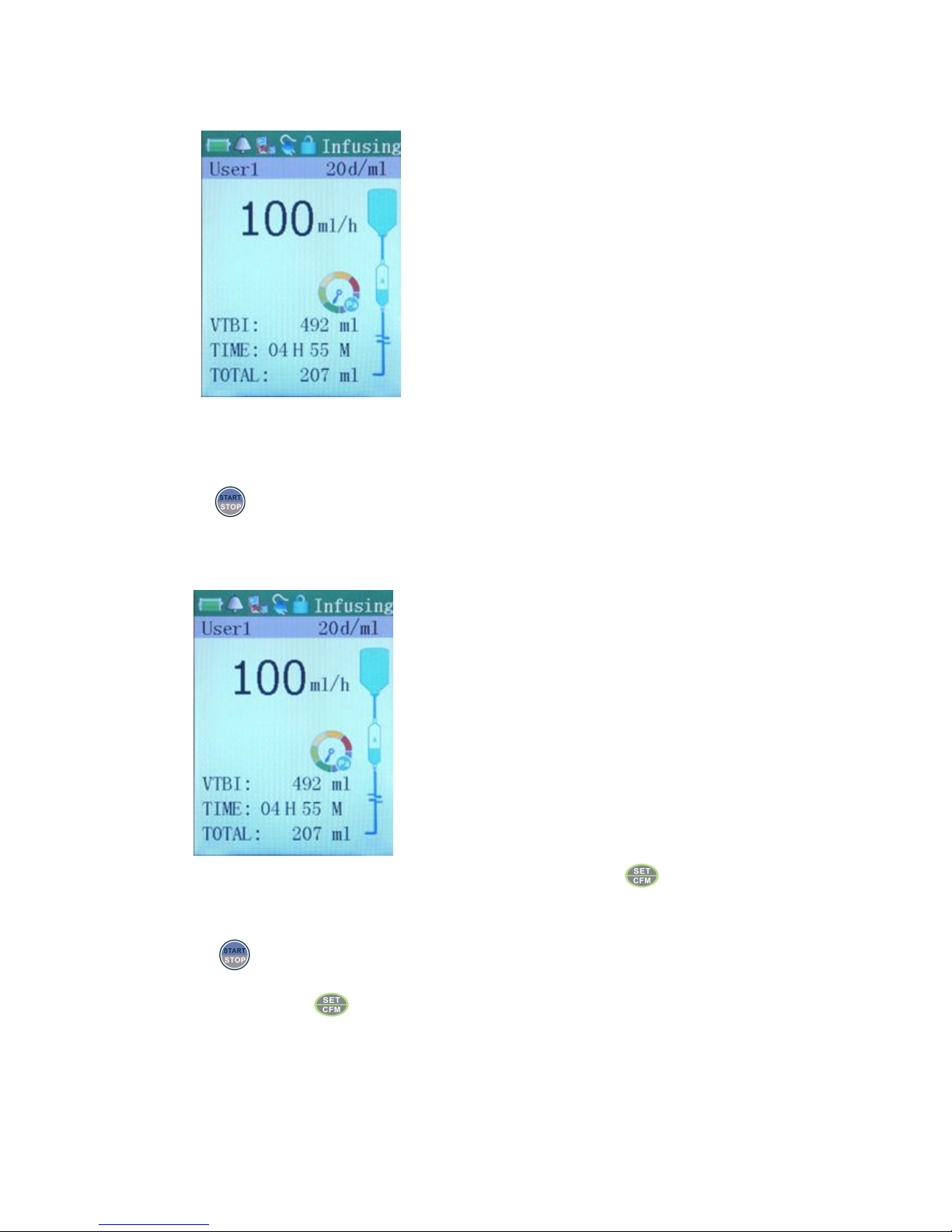

Main information displayed on LCD
（1）Machine status bar: battery status icon, sound status icon, networking status icon, AC supply status
icon, infusion status icon, pressure status icon, IV Set brand, specification, and fluid warmer
temperature.
（2）Infusion parameter.
Infusion pump structure
Figure 4
Machine status bar
Battery status
Infusion set info
Flow rate
VTBI
Volume infused
Sound status
AC status
Working status
Keypad lock status
Infusion status
Pressure status
Time needed

- 9 -
Chapter 3 Assembling
Packing list
Please check the follow contents when unpacking:
（1）Infusion pump body……………………………... 1 set
（2）Drop sensor……………………………………… 1 set
（3）Power cord………………………………………. 1 set
（4）User’s manual…………………………………... 1 copy
Pump Installation
Horizontal installation on bracket
Figure 5

- 10 -
Vertical installation on bracket
Installation on cylinder

- 11 -
Installation on square tube
Tips: infusion pump can be placed and used on a flat top, such as bedside cabinet top; do not move a working
pump.
Infusion pump socket description
（1）Plug the corresponding plugs into the rear sockets of infusion pump according to the icon shown on
pump back.
Notes: if the drop sensor is not connected, “drop sensor failure will
alarm.
（2）If not use the drop sensor, can clamp the sensor on the locking
handle.
Notes: the drop sensor should be placed stably to avoid the risk of damage when movement,
transportation and storage.
AC socket
Network
socket
Drop sensor
socket

- 12 -
IV Set Installation
（1）Under normal conditions, insert an ordinary PVC
IV set into the outlet of infusion bottle/bag.
（2）Slightly squeeze Murphy’s dropper with fingers, to
make its 1/3 volume fill with liquid (see figure 9)
Notes：To ensure normal drip, never fill the dropper with water,
otherwise the infusion pump cannot detect drip drops and will cause
alarm; if the volume is less than 1/4, the bubble will easily go into
the infusion tube and cause bubble alarm.
Notes: Please make sure that the air filter and inlet tube of infusion bottle/bag are smooth, otherwise it may
cause vacuum inside, then up occlusion happens, and prompt alarm.
Purge the air inside the infusion tube, make sure
no bubble inside, then close the adjustable clamp
of ordinary PVC set to prevent loss of liquid.
Open the infusion pump door, turn the locking
clamp (F) to the left to put the infusion tube.
Put the infusion set into guide slot A between
the liquid bottle/bag and the device.

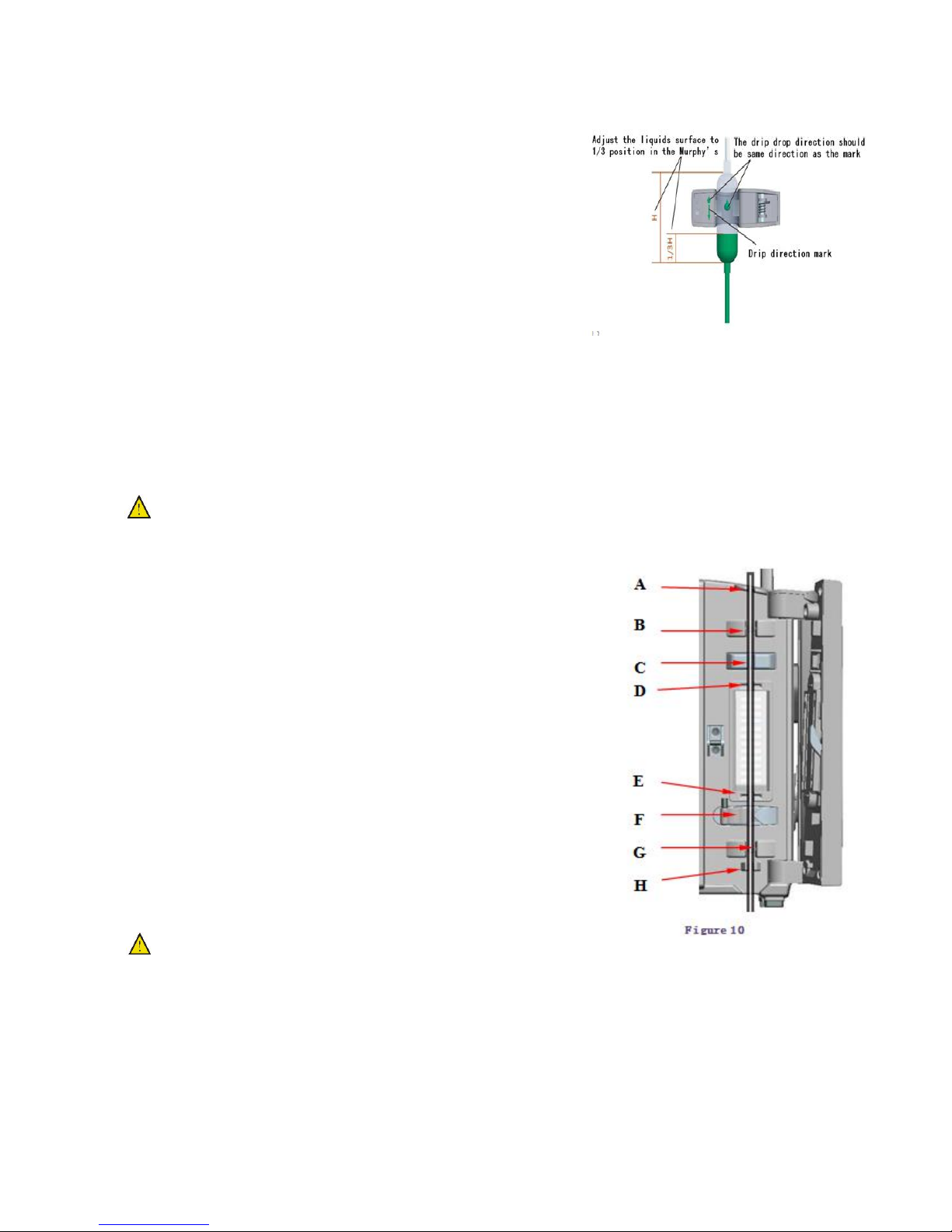

Put the infusion tube into the guide slots B,C,D,E,
F, G and H vertically, so that the infusion tube can
be a straight line, as shown in figure 10.
Close the pump door tightly, then open the
infusion set adjustable clamp.
Notes：1. Make sure the infusion tube is put into the
bottom of ultrasonic sensor (guide slot C),
otherwise bubble alarm would happen.
2. Make sure no liquid drips in the Murphy’s dropper this moment (i.e. no leakage).

- 13 -
Chapter 4 Operation
Function key description
Function keys concentrate upon the front housing, operated easily, the functions are as follows:
Function key
Description
On/Off
Used for boot and shutdown, long press for 1 second to boot, and long press 1 second to shut
down on the condition of no infusion.
Mute
Used when alarm happens, press it, the top left indicator of Mute lights up, and then the mute
status will last 2 minutes. Meanwhile it has mute key function, lasts 2 minutes.
Purge/BOLUS
On the condition of pause, long press to purge air inside tube; in process of infusion, press it
to enter BOLUS setting interface, then can start BOLUS infusion after setting parameters.
CFM/Set
Used to confirm and save the items chose. In the menu, press it to enter next level menu.
Press it in process of infusion, can reset infusion rate.
Menu/Exit
On the condition of pause, press it to enter the menu for parameter setting; and press it to
return to the previous menu; on the condition of standby, press it to exit the standby.
Start/Stop
Press it to start infusion on the condition of pause; and press it to stop infusion in process of
infusion.
Clear
On the condition of alarm, press it to cancel the sound-light alarm; on the condition of
inputting parameters, press it to set parameters to 0.
Lock/Dot
In process of infusion, long press for 1 second to lock or unlock. On the condition of pause,
long press to enter standby status.
Up
Used to move the cursor upwards.
Down
Used to move the cursor downwards.
AC
indicator
Used to indicate AC power connection.
Figure 11

- 14 -
Operation Flowchart
Infusion operational processes
Power On
Connect the power wire, then the light indicator lights up, the AC power is connected, long
press the power button for 3 seconds to start up.
Machine launches self-check after starting up, the contents of self-check include: whether the
batteries is normal, whether the system is normal, whether the pressure sensor is normal, etc., after
self-check completed, machine would enter infusion standby interface, waiting for user to input
infusion parameters.
Notes：Not connect the AC power supply or the AC power is interrupted, machine would switch to battery
power supply automatically, infusion pump would prompt AC falls off; working on the condition of
battery power supply, pay attention to the risks of battery power off, so please connect the AC power
supply as soon as possible.
Pump installation
Power on
IV Set installation
Parameters setting
Purge bubbles
Venous puncture
Start infusion

- 15 -
Volume Mode
Infusion Mode Selection
Press in stop, display infusion mode interface. If the present mode is volume mode, so not need to
select mode.
Choose “volume mode” with up or down key.
Press , then return to infusion interface after volume mode is chosen.
VTBI/Rate/Time
Move the cursor to corresponding input boxes of rate, VTBI and time with the up or down key.
Set rate.
Set VTBI
Set time. (if need)
Press
Notes: set every two of these three parameters, the rest one will be calculated automatically, the machine would
calculate another parameter with the two last input parameters. And infusion would begin according to the
two last input parameters.

- 16 -
Rate/Time
Move the cursor to corresponding input boxes of rate and time with the up or down key.
Set rate.
Set time.
Press .
Simple Rate
Move the cursor to VTBI input box with the up or down key, long press for 1 seconds. The VTBI value
would be displayed “OFF”.
Set rate.
Press .
Notes：1. Choose simple infusion mode, should first move the cursor to VTBI input box with the up or down
key, long press for 1 seconds. The VTBI value would be displayed “OFF”. Press any numeric
key (0-9), “OFF” would disappear, exit the simple infusion mode.
2. Drop sensor plays a role in monitoring during simple infusion mode, it would prompt the alarm of
empty when detecting no liquid drips.

- 17 -
Program Mode
Custom can himself define 8 stages of program mode to infuse automatically. Allow to suspend
programming in process of infusion, but KVO would be launched during programming pause. If the rate of
previous program is less than 1ml/h, then the KVO begins according to the rate of previous program; if the
rate of previous program is greater than 1ml/h, then the KVO begins according to the rate of 1ml/h.

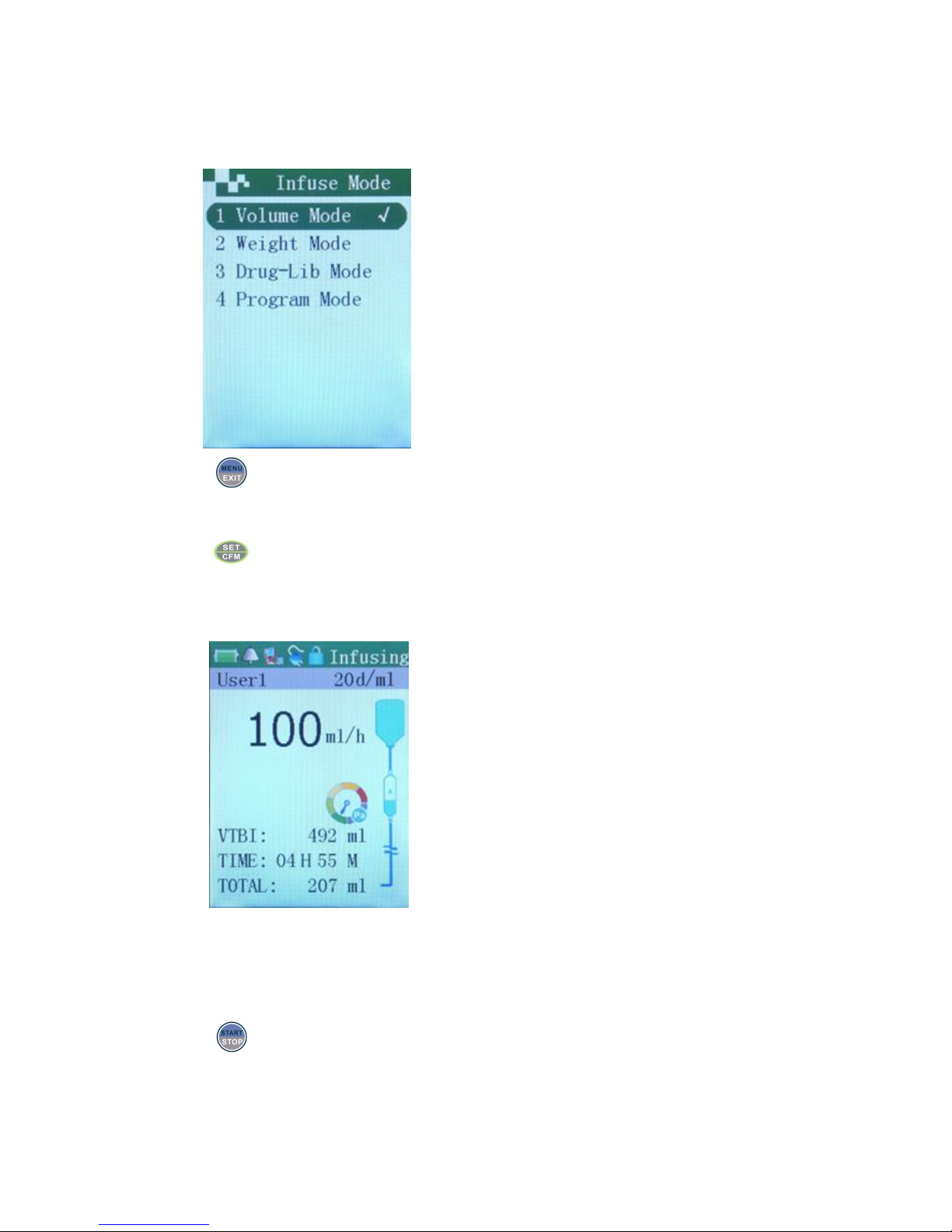

Infusion mode selection
Press in starting up status, display infusion mode interface.
Choose “program mode” with up or down keys.
Press to enter program mode interface.

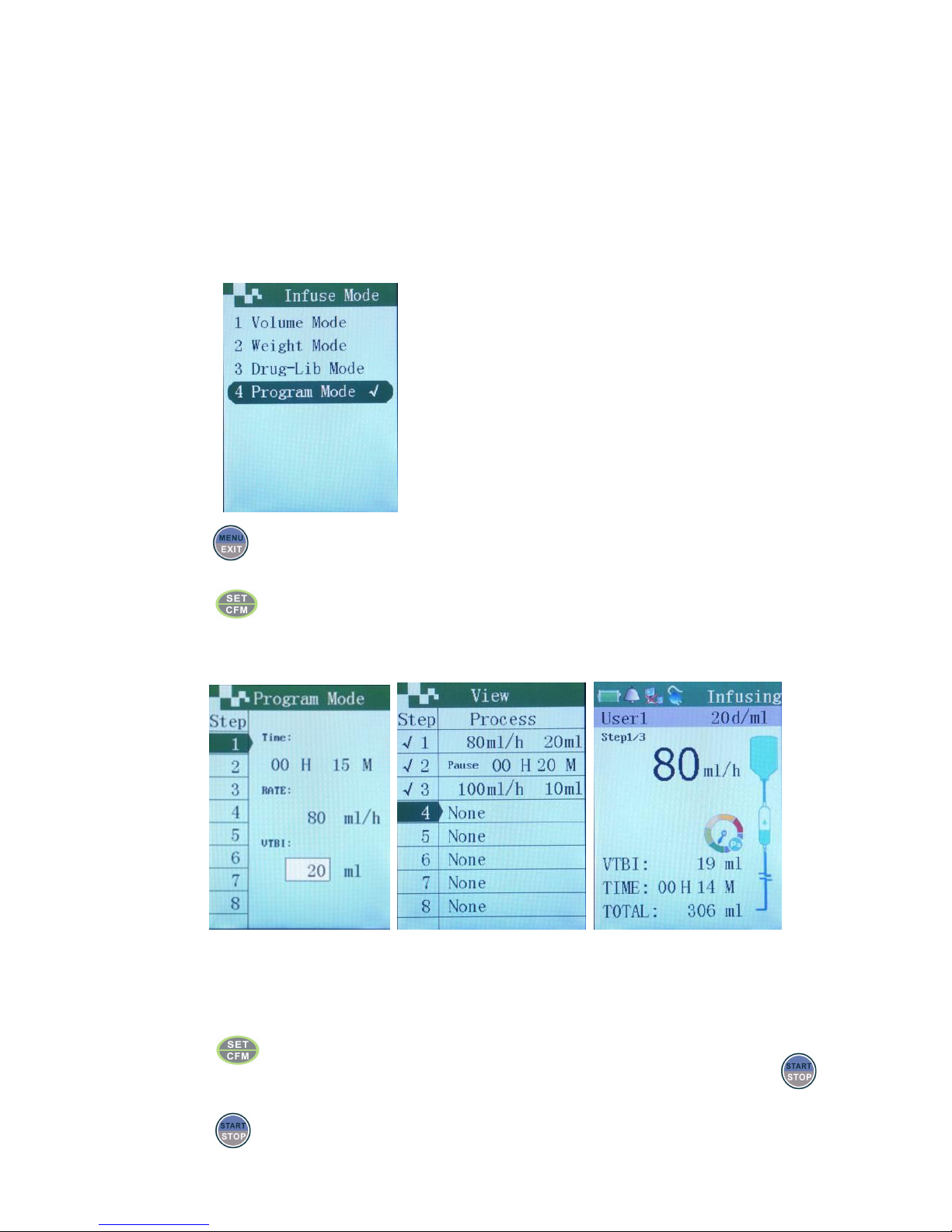

VTBI/Rate Setting
Programming interface Preview interface Infusion interface
Move the cursor to corresponding input boxes of VTBI and rate with the up or down keys.
Set VTBI.
Set rate.
Press to save the programming stage.
Program another infusion stage by following the above method. If no need continue, then press , and
enter the overview interface, in order to check whether each programming stage is correct.
Press to begin program infusion.

- 18 -
Pause stage program
Move the cursor to corresponding input boxes of time, VTBI and rate with the up or down keys.
Set time needed to pause.
Set VTBI to zero.
Set rate to zero.
Press .
Preview and modification of each programming stage
When no need more program infusion parameters, press to enter the overview interface, check
whether the parameters of each programming stage are correct; if some parameters of certain stage are
found, then move the cursor with the up and down key to the wrong stage, press to correct.
Choose incorrect stage
After correcting, press to enter the overview interface again.
Press to start programming infusion.

- 19 -
Dose/weight mode
Infusion mode selection
Press in starting up status, display infusion mode interface.
Use the up and down keys to choose “weight mode”. Press key.
Notes：If the present interface is weight mode, can press directly to enter parameters input interface of
weight mode.
Parameters input in weight mode
Move the cursor to corresponding input boxes with the up or down keys.
Dose unit selection. When dose unit flashes, press to choose the dose needed with the up and down
key.
Input dose value, press or the down key.
Input weight. Press or the down key.
Chose drug unit. The box of drug unit flashes, use upward and downward keys to choose unit needed, then
press .
Input drug amount. First input value, press or down key.
Input drug concentration (if needed). First input value, then press or down key.
Input the VTBI. Press .
Press to begin weight mode infusion.
Notes：VTBI ≤ DRUG＋SOL.VOL
