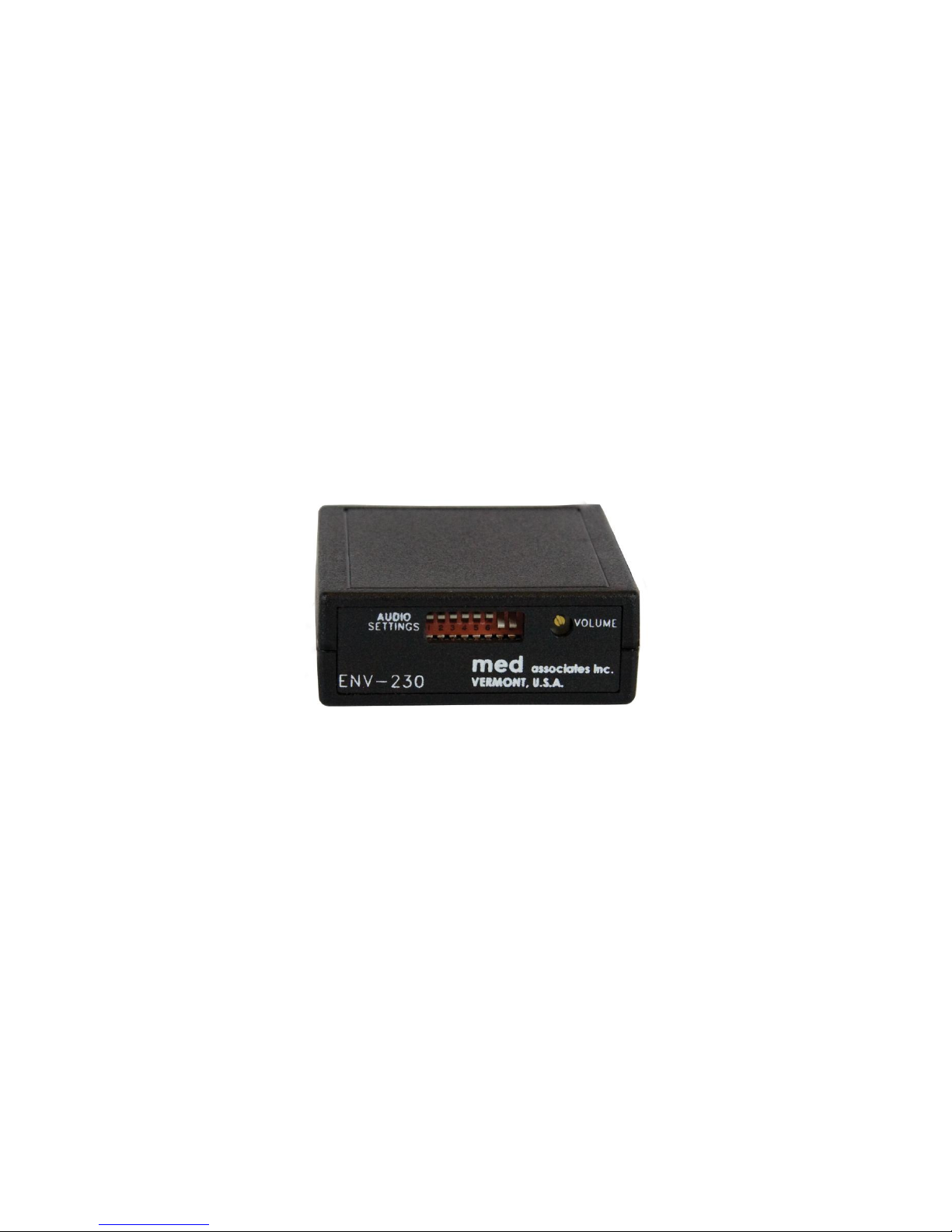

MED Associates ENV-230 User manual

ENV-230
MULTIPURPOSE SOUND GENERATOR
USER’S MANUAL
DOC-033
ENV-230 USER’S MANUAL
Rev.1.3
Copyright © 2012
All Rights Reserved
MED Associates, Inc.
P.O. Box 319
St. Albans, Vermont 05478
www.med-associates.com

M E D A S S O C I A T E S I N C . E N V - 2 3 0 M U L T I P U R P O S E S O U N D G E N E R A T O R
i
THIS PAGE INTENTIONALLY LEFT BLANK

M E D A S S O C I A T E S I N C . E N V - 2 3 0 M U L T I P U R P O S E S O U N D G E N E R A T O R
ii
Table of Contents
Chapter 1............................................................................................................. 1
Overview.................................................................................................................................1
Chapter 2............................................................................................................. 2
Sound Modes ..........................................................................................................................2
Click Mode...........................................................................................................................2
White Noise Mode ..............................................................................................................2
Pure Tone Mode .................................................................................................................2
Chapter 3............................................................................................................. 3
Sound Mode Selection ...........................................................................................................3
Sound Duration Selection ..................................................................................................3
Volume Adjustment ............................................................................................................4
Sound Mode Selection........................................................................................................4
Chapter 4............................................................................................................. 5
Installation .............................................................................................................................5
Contact Information ..............................................................................................................5

M E D A S S O C I A T E S I N C . E N V - 2 3 0 M U L T I P U R P O S E S O U N D G E N E R A T O R
- 1 -
Rev 1.3 C opyright © 2012
MED Associates, Inc.
CHAPTER 1
Overview
The ENV-230 is a convenient multipurpose sound generator that is able to produce three
different types of sound: white noise, clicks and pure tones. The ENV-230 is programmed as a
simple output device from MED-PC IV (see MED-PC IV Programmer’s Guide, DOC-003) that
allows the user to adjust both the volume and d uration of each sound.

M E D A S S O C I A T E S I N C . E N V - 2 3 0 M U L T I P U R P O S E S O U N D G E N E R A T O R
- 2 -
Rev 1.3 C opyright © 2012
MED Associates, Inc.
CHAPTER 2
Sound Modes
Sound modes are selected using the Sound Mode Selection switches. Turning the Volume
Adjustment potentiometer left and right controls the volume of each sound, and the Duration
Selection switches are used to control the duration of the sound. See Figure 2.1 for an
illustration of these controls.

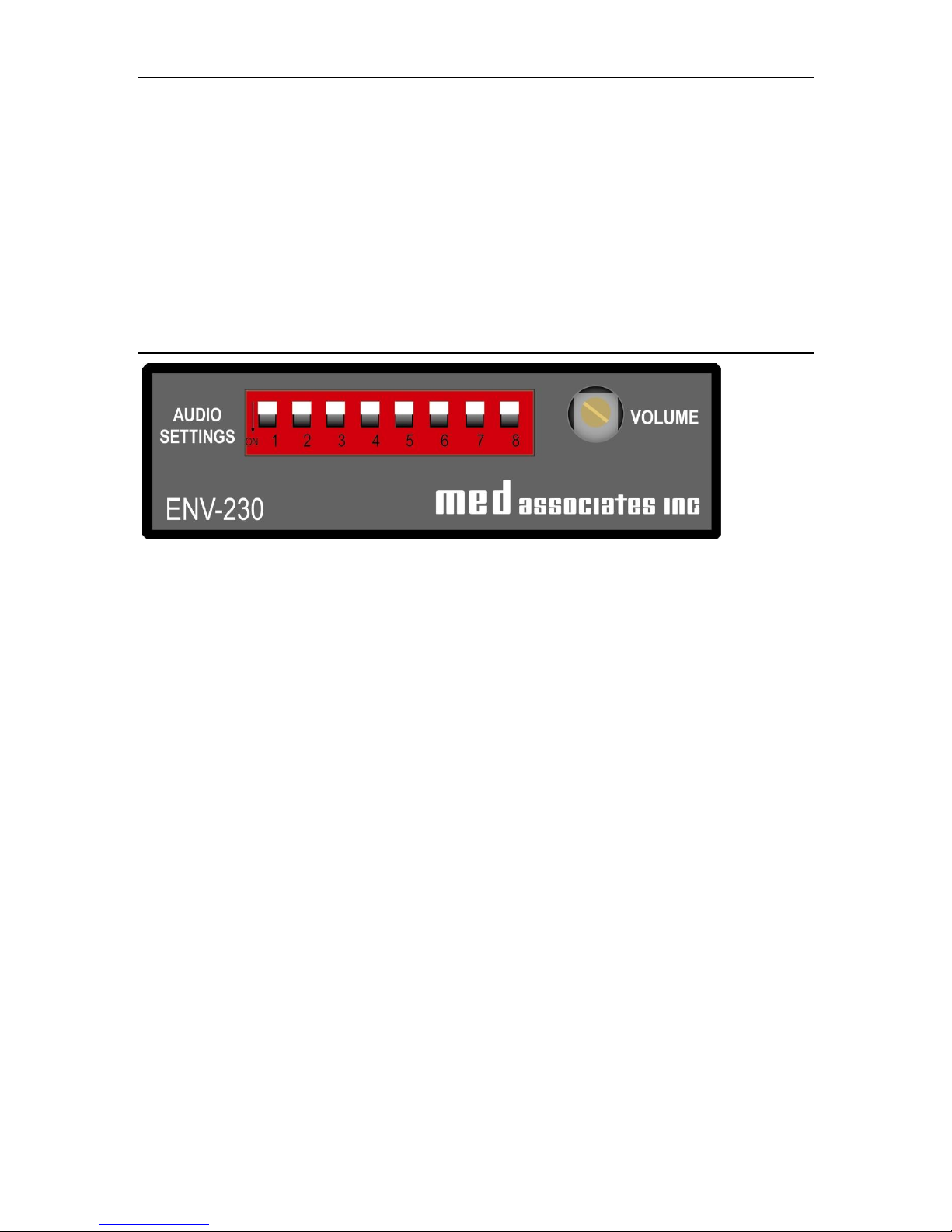

Figure 2.1 –ENV-230 Front
Cli ck Mod e
Click mode produces a continuous stream of clicks separated by 100 ms when the output is
activated.
White Noi se Mode
This mode produces white noise when the output is activated.
Pure Tone Mode
This mode produces a pure tone when the output is activat ed. The Sound Mode Selection
switches may be used to control the frequency of the pure tone. The frequency options are
shown in Table 3.1.

M E D A S S O C I A T E S I N C . E N V - 2 3 0 M U L T I P U R P O S E S O U N D G E N E R A T O R
- 3 -
Rev 1.3 C opyright © 2012
MED Associates, Inc.
CHAPTER 3
Sound Mode Selection

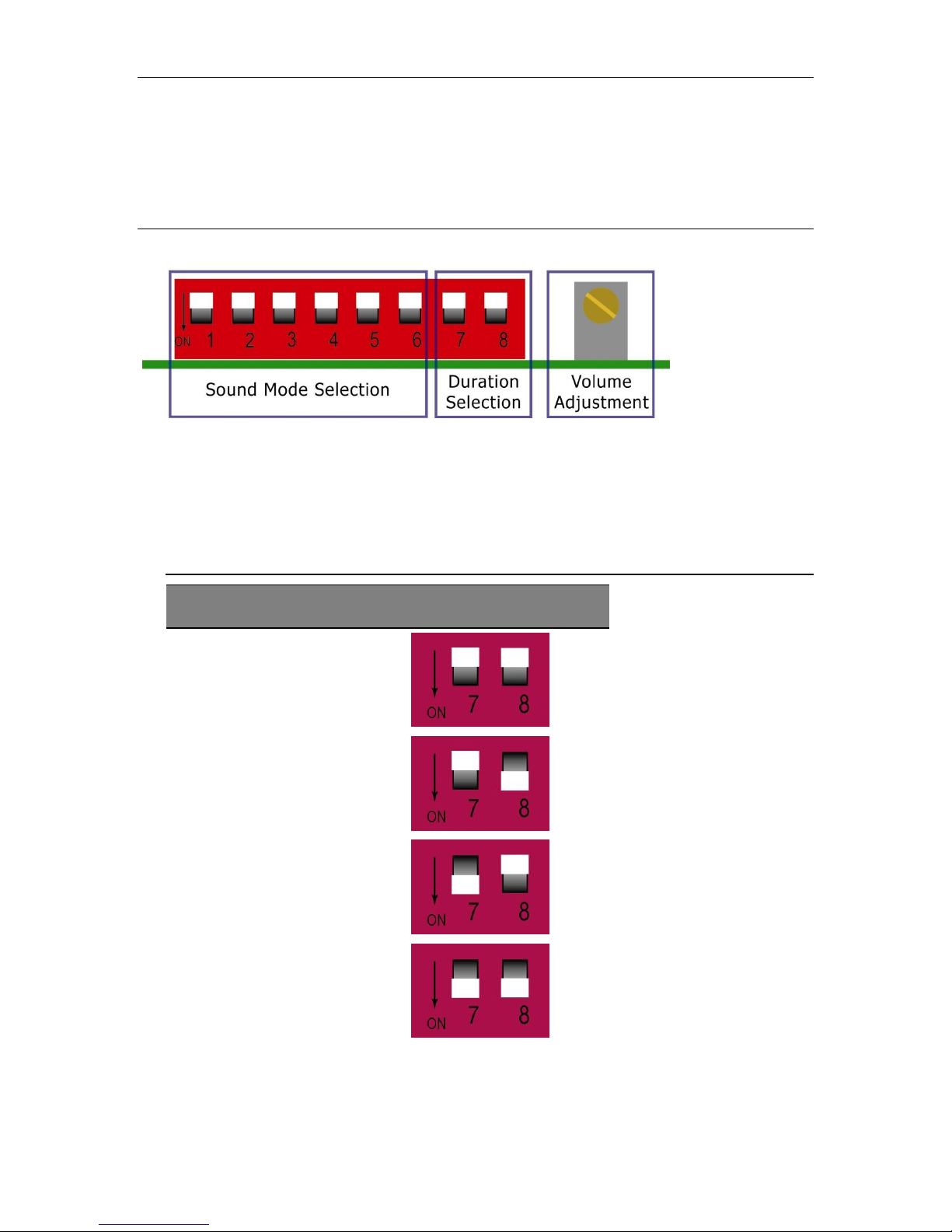

Figure 3.1 –ENV-230 Controls
Sound D uration Sel ecti on
Set the sound duration using Duration Selection switches as shown in Table 3.1.
Table 3.1 - Sound Duration Selection
Sound Duration
Duration Selection Switches
Continuous ON
0.5 Second ON
1.0 Second ON
Follows MED Operate
(sound remains on as
long as the output from
MED-PC is on).

M E D A S S O C I A T E S I N C . E N V - 2 3 0 M U L T I P U R P O S E S O U N D G E N E R A T O R
- 4 -
Rev 1.3 C opyright © 2012
MED Associates, Inc.
Volume A dj ustment
Turn the Volume Adjustment potentiometer ( Figure 3.1) until the desired volume level is
reached.
Sound Mode Selection
Select a sound mode by setting Sound Mode Selection switches as shown in Table 3.2.
Table 3.2 - Sound Mode Selection
Sound Mode
Sound Mode Selection Switches
Click
White Noise
Pure Tone
(kHz)
(kHz)
1
6
1.5
8
2
9
2.5
10
3
12
3.5
15
4
20
5

M E D A S S O C I A T E S I N C . E N V - 2 3 0 M U L T I P U R P O S E S O U N D G E N E R A T O R
- 5 -
Rev 1.3 C opyright © 2012
MED Associates, Inc.
CHAPTER 4
Installation

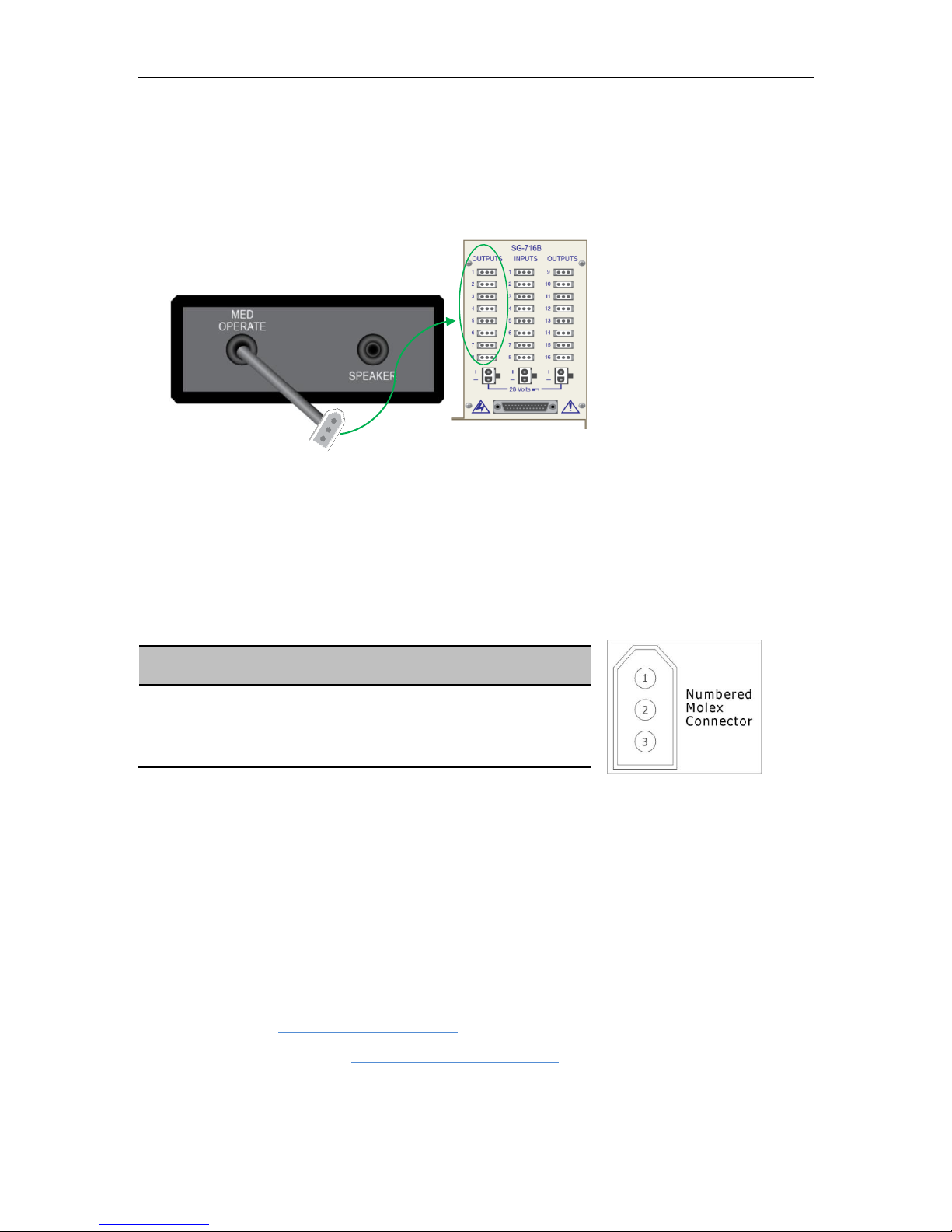

Figure 4.1 - Back of the ENV-230
Attach the speaker cable to the SPEAKER connector on the back of the ENV -230. Insert the
speaker panel into an available bay on the operant conditioning chamber. Connect the TO MED
OPERATE cable on the back of the ENV-230 to any available output on the standard MED
connection panel. The ENV-230 is compatible with speakers that have the following MED part
numbers: ENV-224AM, ENV-324W and ENV-224BM.
Molex Pin #
Function
Wire Color
1
28V Ground
Black
2
Operate
White
3
+28 Volts
Red
APPENDIX A
Contact Information
Please contact MED Associates, Inc. for information regarding any of our products.
Visit our website at www.med-associates.com for contact information.
For technical questions, email [e-mail].
