Knock down Perching Stool with PU Seat, Back & Arms -
PIU-90625, PU Seat, Back & Steel Arms – PIU-90626,
PU Seat with Steel Back & Arms – PIU-90627 and
PU Seat with Steel Arms – PIU-90628
Assembly Instruc�ons and User Guide
PIU-
Thank you for choosing this Perching stool with PU seat and steel back and arms. This user guide should be read
carefully before use as it contains important informa�on about the products safe opera�on and maintenance.
90626
WARNING: Max User Weight: 165kg (26st)
PIU-90627
PIU-90628

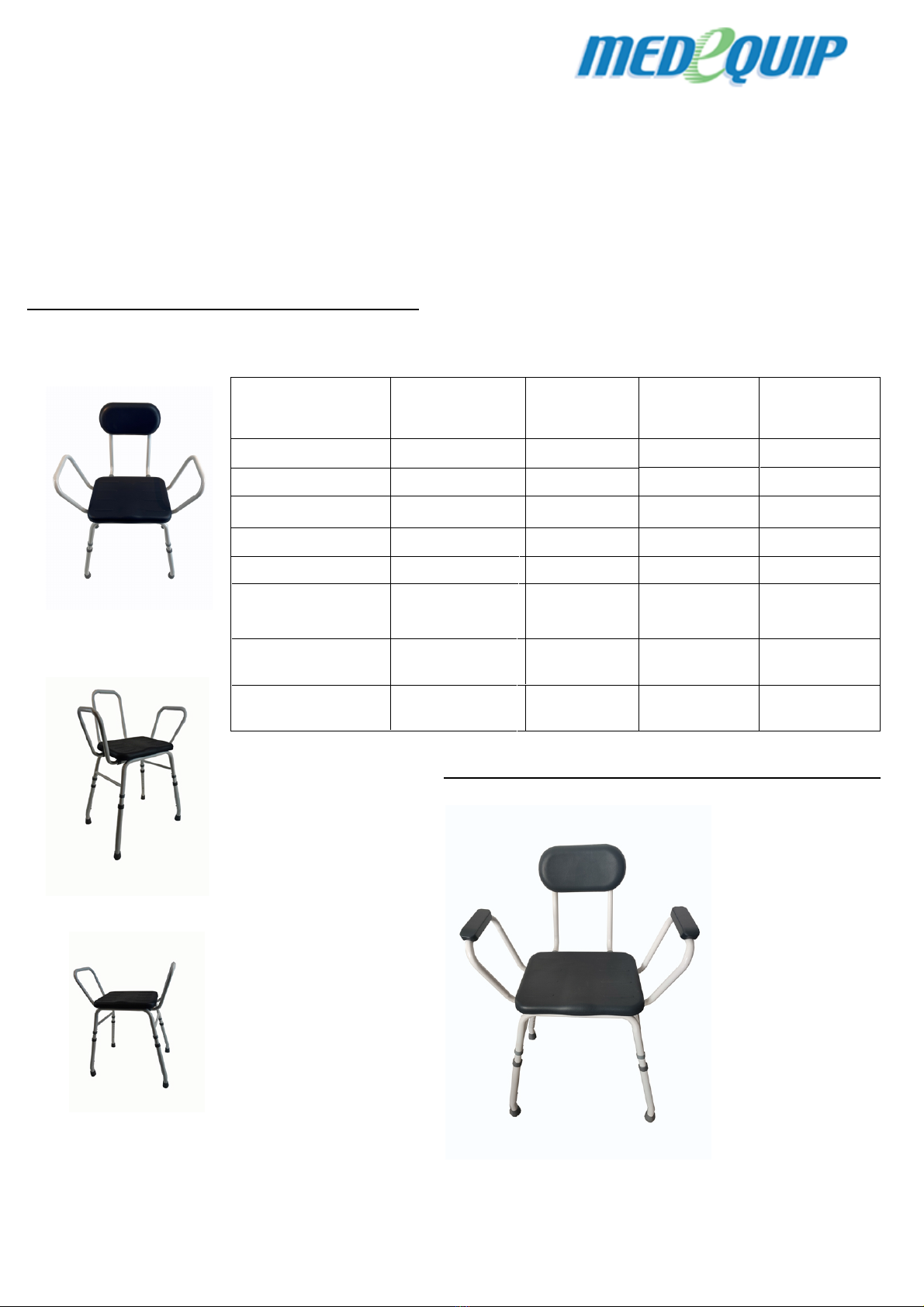

Product Details
and Dimensions
PIU-90626 PIU-90627 PIU-90628
Width 560-635 mm 560-635 mm 560-635 mm
Depth 450-460 mm 450-460 mm 450-460 mm
Seat Width 325 mm 325 mm 325 mm
Seat Depth 265 mm 265 mm 265 mm
Seat Height 545-685 mm 545-685 mm 545-685 mm
Width between
Arms 505 mm 505 mm 505 mm
Height of Arms
from Seat 175 mm 175 mm 175 mm
Maximum User
Weight 165kg (26st) 165kg (26st) 165kg (26st)
PIU-90625
560-635 mm
450-460 mm
325 mm
265 mm
545-685 mm
480 mm
175 mm
165kg (26st)
PIU-90625

Medequip Assistive Technology Ltd Unit 2, Heathrow Summit Centre, Skyport Drive, Harmondsworth, UB7 0LJ
Tel: [phone] Fax: [phone] website: www.medequipuk.com
Check that all
parts are present.
No tools are
required for
assembly.
Fit the legs first
Seat
Please follow the instructions 1 - 6 for PIU-90628 & 1 - 7 for PIU-90627, PIU-90626 & PIU-90625
1

Medequip Assistive Technology Ltd Unit 2, Heathrow Summit Centre, Skyport Drive, Harmondsworth, UB7 0LJ
Tel: [phone] Fax: [phone] website: www.medequipuk.com
Insert the legs onto the seat base sockets.
Line up the small brass button, push the
button in and push the leg into the socket.
When the leg is seated
properly the button will pop up
into the hole and lock it in place
Fit the other three legs and stand the
stool upright
2
3
4

Medequip Assistive Technology Ltd Unit 2, Heathrow Summit Centre, Skyport Drive, Harmondsworth, UB7 0LJ
Tel: [phone] Fax: [phone] website: www.medequipuk.com
Fit the arms next.
The arms have a distinctive shape.
The red arrow indicates the front
The blue arrow indicates the back of the
seat, identifiable by the sockets for the
back.
Fit the second arm and whilst
pressing the buttons slide the arms in
until they lock in place.
5
6

Medequip Assistive Technology Ltd Unit 2, Heathrow Summit Centre, Skyport Drive, Harmondsworth, UB7 0LJ
Tel: [phone] Fax: [phone] website: www.medequipuk.com
Fit the back in the same way
Use of the Perching Stool
•When moving always lift the perching stool by placing your hands on the tubular metal frame beneath the
seat.
•Do not allow children or unauthorised persons to play with the equipment or use without proper
supervision.
•Do not rock back and forth or sideways when using the stool as this will cause excessive stress and possible
damage and failure which may cause injury.
•Do not use the perching stool outside the home or on uneven surfaces (such as in the garden) as this will
cause stress to the legs and possible damage which may cause injury.
•Do not place fingers or foreign objects into any of the exposed tubular sections as this can lead to serious
injury.
Cleaning
Prior to cleaning the chair please remove all pin clips and the four extension legs with the ferrules fitted. Clean
these items separately to the main frame.
Clean the upholstery using a non-abrasive soft cloth with a mild detergent. Abrasive cleaners and/ or abrasive
cleaning pads will seriously damage the upholstery beyond repair.
7

Medequip Assistive Technology Ltd Unit 2, Heathrow Summit Centre, Skyport Drive, Harmondsworth, UB7 0LJ
Tel: [phone] Fax: [phone] website: www.medequipuk.com
Operation Instructions
To adjust the height, remove the ‘E’ clip from the extension leg and extend all legs evenly to the desired height
ensuring you do not exceed the last punched hole of the extension leg.
Once you have achieved the desired height; reinstall the ‘E’ clip, ensuring that it has passed through the
extension leg and that it fits neatly and snugly around the outside leg.
Note the perching stool is designed to slant to the front. Do not adjust any of the legs to make the seat level as
this will cause excessive stress to the legs compromising user safety and possibly leading to permanent damage
of the perching stool, including fracture of the tubular and other sections.
Check
Periodically check to ensure all components are present, correctly assembled and suitably tightened.
