Medisana MediTouch 2 User manual

GB
0483
EXACT
MDD 93/42/EWG
Art. 79034
Blood glucose monitor
®
MediTouch 2
Quick Reference Guide
for self-testing

WARNING
®
Before using the MediTouch 2 blood glucose monitor from
MEDISANA for the first time, read the instruction manual carefully.
The quick reference guide is only intended for use once you are
already completely familiar with how to use the monitor and with all
its features and accessories.
All parts of the blood glucose monitor set can come into contact with
blood and therefore present a source of potential infection.
This system is intended for taking an adult’s blood glucose test from the finger tip, alternatively
from the ball of the hand or lower arm. Thereby it is a matter of a fast, electro-chemical determi-
nation of the blood glucose level. The FAD-binding glucose-dehydrogenase converts the glucose
in human blood to gluconolactone. The device measures the current, which is released by this
reaction and which is in proportion to the blood glucose volume.
The system is intended for external use (in vitro) and can be used for self-testing by persons with
diabetes or in clinical settings by healthcare professionals as an aid to monitor the effectiveness
of diabetes control.
The system is not suitable for diagnosing diabetes for children younger than 12 years.
For use on older children ask your doctor.
It is not suitable for diagnosing diabetes or for testing the blood glucose levels of newborn babies.
Indended use
•
•
Contraindications
•
•

1 Inserting batteries
2 Setting the time and date (initial settings)
3 Performing a test with control solution
4 Inserting the lancet in the lancing device
5 Performing a blood glucose test
6 Discarding used lancets
7 Accessing and deleting test results
8 Data transfer to personal computer via USB
9 Error display
Contents
...............................................................................
........................................
.............................................
.........................................
.......................................................
.....................................................................
..................................................
....................................
........................................................................................
4
5
6
8
10
12
13
14
15
3

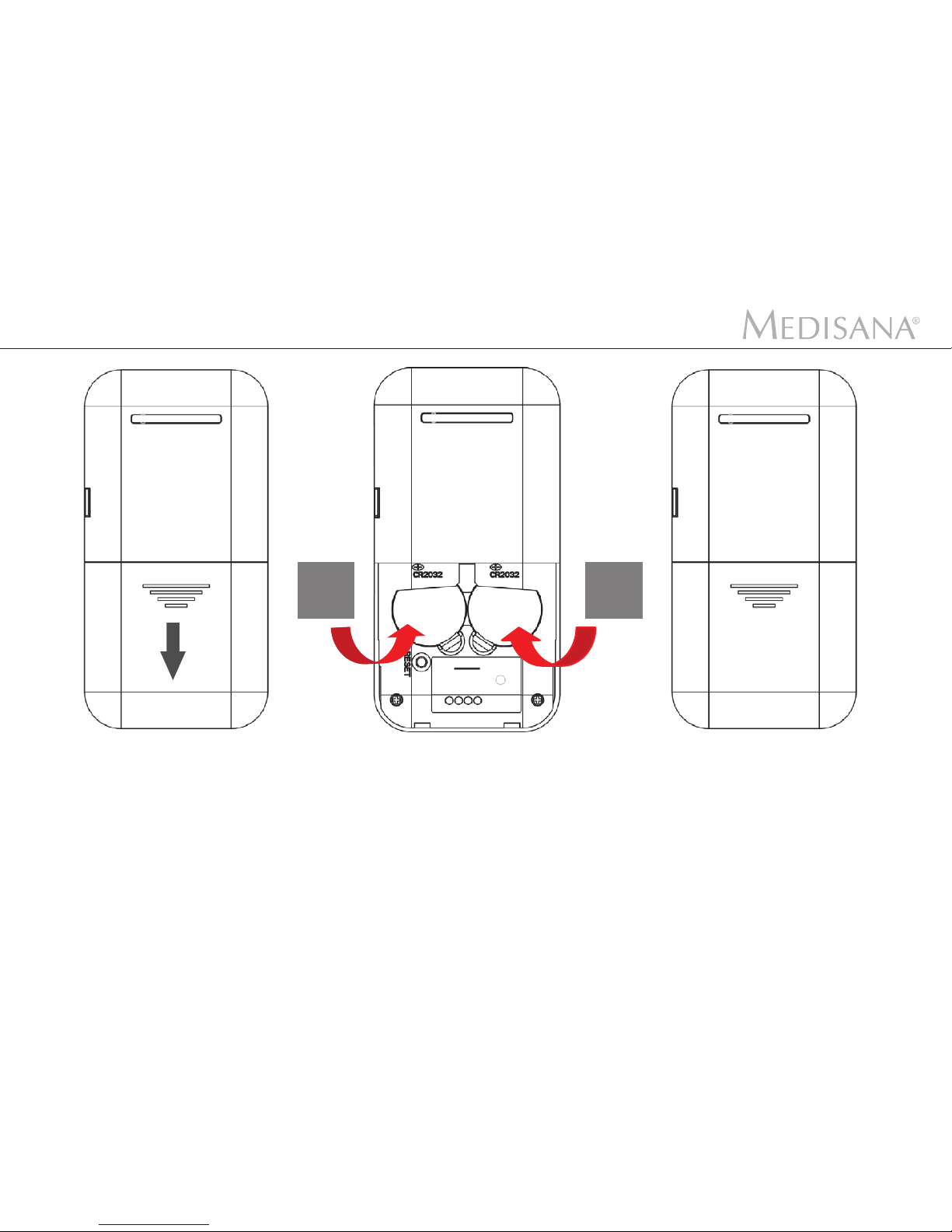

1. Open the battery com-
partment on the back
side of the device by
sliding the lid in the
direction of the arrow.
4
1 Inserting batteries
2. Insert two batteries as
shown. The device will
emit a short beep after
correct insertion.
3. Close the lid of the
battery compartment.
It will "snap" into its place.

2 Setting the time and date (initial setting)
5

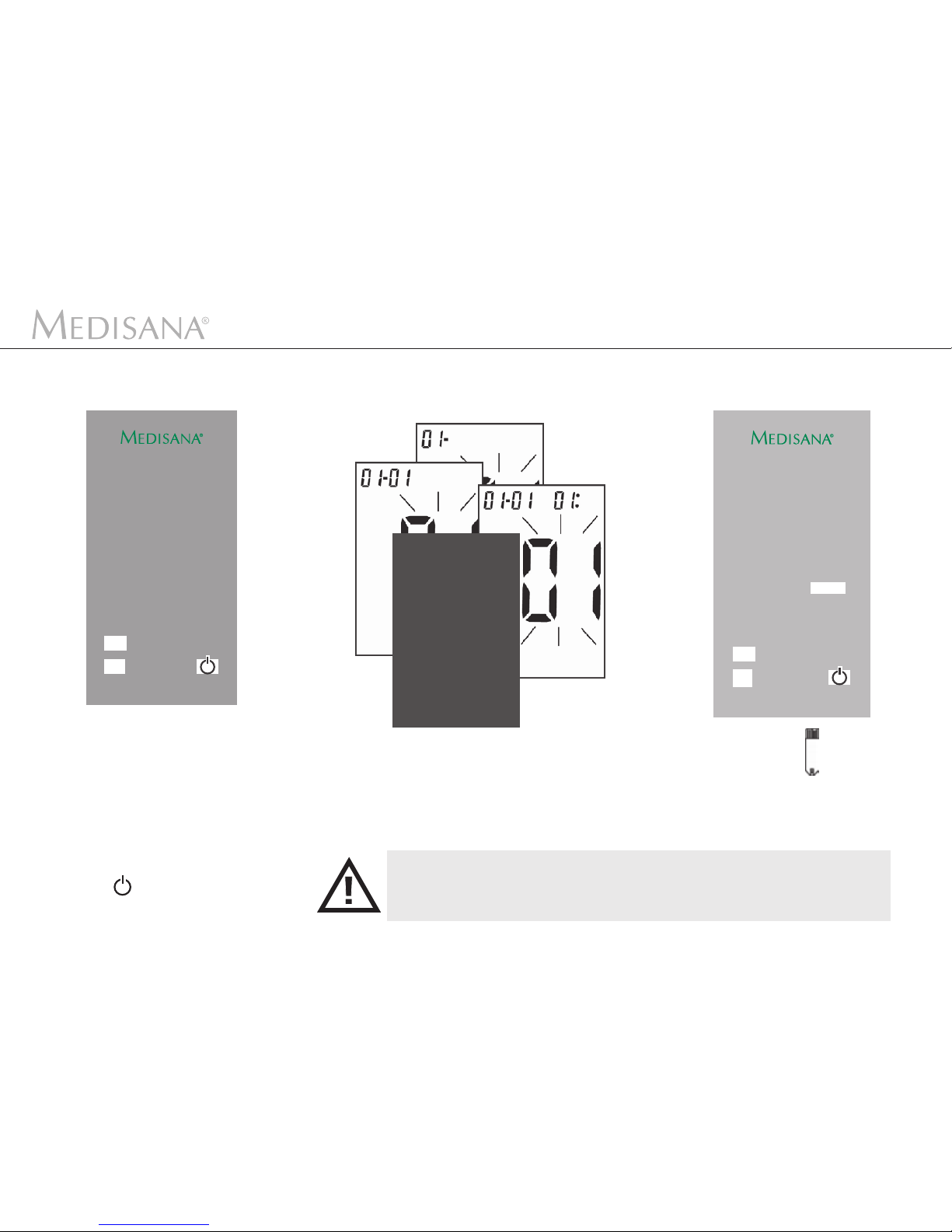

1. After insertion of the batteries
the monitor switches on
automatically.
The correct setting of time and date is especially important, if you intend to use the memory
function of the device.
2. The last two digits of the year
flash in the display. Press
to set the correct value and
press to confirm.
3. Repeat step 2, to enter the
date and time. The area
flashes for the setting being
made at the time.
4. The icon appears in
the display.
The device is now ready
for the test with control
solution.
The unit of measure (mg/dL or mmol/L) is installed
in the device. If you want to change the unit of
measure, contact the customer service.
>>
mmol/L
>

6
3 Performing a test with control solution
You need the device, a test strip and the control solution.
1. Insert a test strip into the
monitor in the direction
of the arrow.
The -symbol
appears automatically.
2. Press the - button, until
the symbol (control solution
measurement mode) appears.
The drop symbol flashes.
Press to confirm the
setting.
3. Place the device on a flat and
even surface, e.g. like a table.
4. Remove the cap of the control
solution bottle and wipe the tip
of the bottle with a tissue.
The measurement results in the control solution measurement mode will not
be recorded in the memory for blood glucose readings.
mmol/L mmol/L mmol/L
> > >
>

7
5. Press the container so that a
tiny droplet forms on the tip of
the container.
6. Place the drop onto the blood
sample area on the end of the
test strip.
7. Do not get any control solution
on the top of the test strip.
8. When a sufficient amount of
control solution has been ab-
sorbed by the reaction cell you
will hear a beep and in the display
" " will be shown.
9. The monitor starts a countdown
of approx. 5 seconds which is
shown in the display.
10. In the display, a test result
appears. Before you re-
move the test strip, check
whether the result lies
within the range indicated
on the test strips container.
11. After that, remove the test
strip and throw it away.
3 Performing a test with control solution
mmol/L
mmol/L
mmol/L
> >
Sample illustration for a target range
on the test strips container
5.4 - 7.2 mmol/L

8
4 Inserting the lancet in the lancing device
1. Wash your hands with soap
and warm water. Rinse and
dry thoroughly. If needed,
you can also rub the area
of skin you have chosen for
the blood sample with a
special cleansing pad.
2. Open the lancing device by twisting
the protective cap in a clockwise
direction and then remove it. Insert
the lancet all the way (without turning
it) into the lancing device. Twist off
the protective cap on the lancet
carefully.
3. Replace the protective
cap on the lancing de-
vice and tighten by
turning it in an anti-
clockwise direction.
To use the AST cap,
consult the instruction
manual.

Markings for lancing depths
4 Inserting the lancet in the lancing device
9
4. Set the appropriate lancing
depth, as described in the
instruction manual.
5. Set the lancing device by
extending it until it clicks
into place. If it does not
click, it is probably already
in position from when you
inserted the lancet.
6. The lancing device is ready
to use. Do not lance your
finger before the monitor and
test strips are ready to use.
1) Consult the following for the suitable lancing depth: 1 - 2 for soft or thin skin,
3 - 4 for normal skin and 5 - 6 for thick or callous skin.
2) Never use a lancet or a lancing device that belongs to another person. Sharing
lancing devices and lancets may transmit blood borne pathogens, such as
viral hepatitis.

10
5 Performing a blood glucose test
1. Insert a test strip into the monitor in the
direction of the arrow. The symbol
appears automatically.
2. Press to set (before a meal),
(after a meal) or (before
a meal with alarm after 2 hours) and
press to confirm.
3. When the blood drop
symbol flashes in
the display, take a
drop of blood from your
finger tip. Massage the
area gently to stimulate
the blood circulation.
4. Place the lancing de-
vice on a finger tip
(preferably at the side)
and press the trigger
button.
Make sure, that the
blood droplet does not
smudge.
mmol/L
mmol/L
mmol/L
> >
>

11

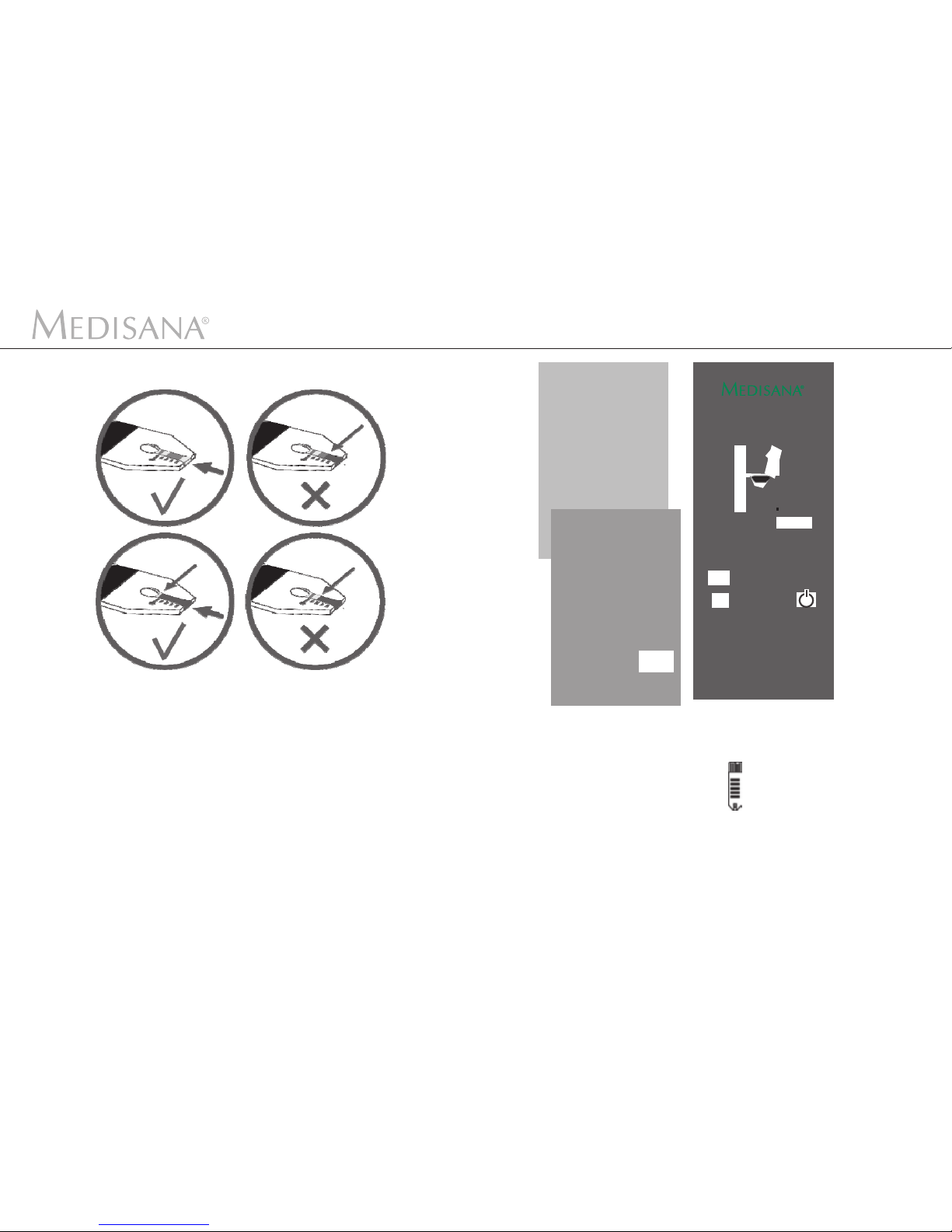

5. Place the drop onto the blood sample area
on the end of the test strip. Pay attention,
that not any blood gets on the top of the
test strip.
To receive a correct test result, be sure to
apply enough blood into the test strip's blood
sample area - see the confirmation window
as per drawing above.
6. When a sufficient amount of blood has been
absorbed by the reaction cell you will hear a
beep and in the display " " is shown.
7. The device will count down from 5 seconds
(shown in display). After that, "OK" is shown
and then the result appears in the display.
5 Performing a blood glucose test
mmol/L
mmol/L
>

12
6 Discarding used lancets
1. Open the lancing device by
twisting the protective cap in
a clockwise direction and
then remove it.
2. Take out the used lancet
(without touching it directly)
and stick it into its protective
cover.
3. Move the sliding switch, loca-
ted on the other side of the
trigger button, which ejects
the lancet. Dispose of the
lancet in a container for bio-
hazard material carefully to
avoid harming other people.
4. After discarding, wash your
hands with soap and warm
water. Rinse and dry tho-
roughly.

13
7 Accessing and deleting test results

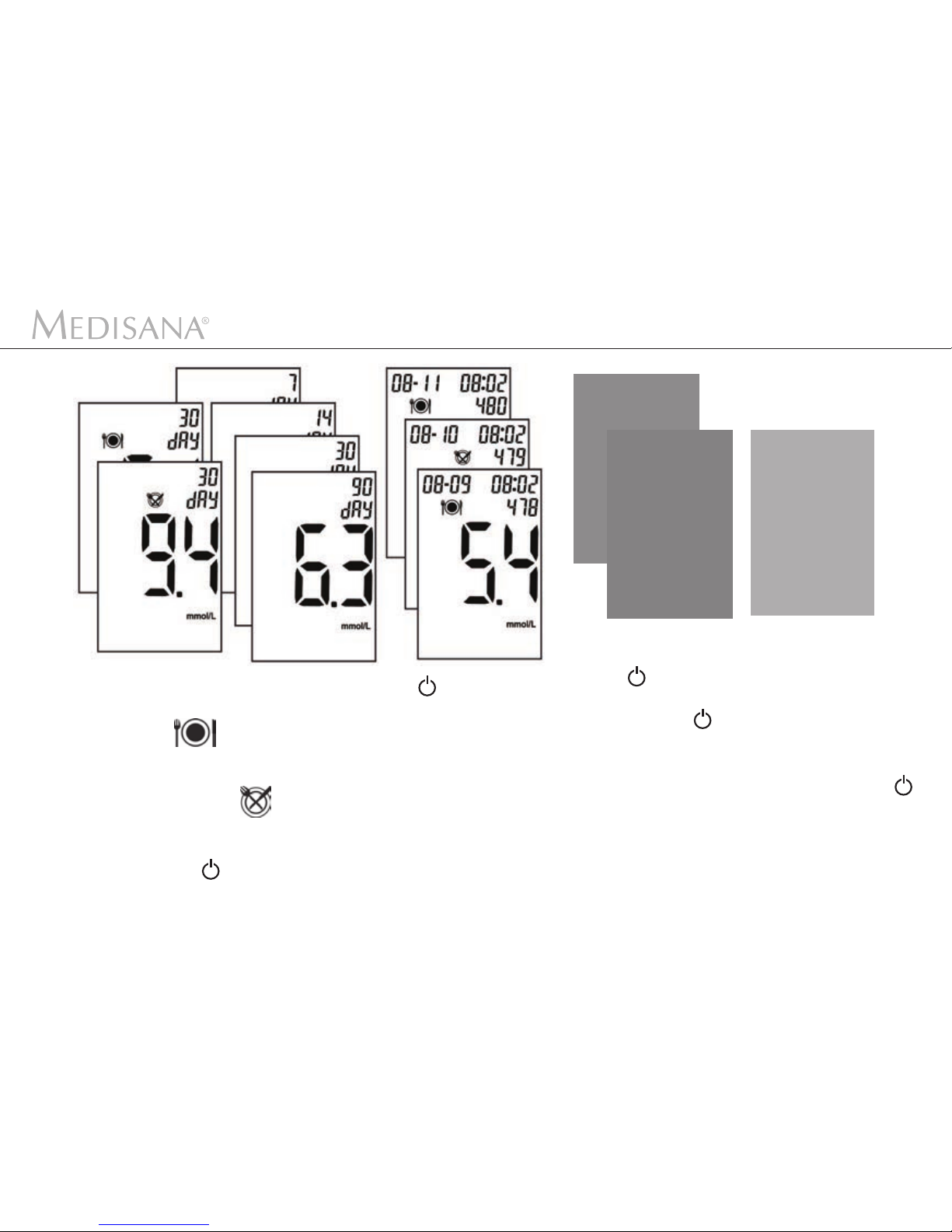

1. Press to display the 30-
day-average of the values
saved under . Further
pressing of displays the
30-day-average value of the
saved values under ,
then the total average values
of the past 7/14/30/90 days.
Press and hold for 2 se-
conds to cancel this mode.
2. Press to access the
display mode for single
values in memory. Press
to display the saved
test results one after the
other in sequence of 480
to 001 - in other words
the latest entry will be
displayed first and the
oldest last.
3. To delete a test result, simulta-
neously press and hold and
for 3 seconds. “dEL” appears
in the display.
4. Presss to delete the result.
The display shows "OK".
5. Press to further display other
saved values. Press and hold
for 2 seconds to cancel this
mode. If no button is pressed,
the monitor switches off auto-
matically after approx. 1,5 minu-
tes.
>
>>
>
>

14
8 Data transfer to personal computer via USB
1. Connect the monitor to your
personal computer with the
USB-cable. The -
symbol appears in the
display.
2. The transfer of your
measured values to the
®
VitaDock app resp. online
will be started automatically
if the software has been
installed properly. Please
check the instruction manual
for further details.
3. After successful transfer,
"OK" appears in the display
and the device emits an
acoustic signal.
> > >

15
9 Error display
Cause
Remedy
Damp / used
test strip
Replace with a
new test strip.
Low batteries
Replace with
new batteries.
Memory Error
First replace the
batteries. If error
005 appears again,
get in touch with
the service centre.
System error
First replace the
batteries. If error
001 appears again,
get in touch with
the service centre.
mmol/L

16
9 Error display
Test result is higher than
33.3 mmol/L
Repeat the test. If the result
does not change, consult your
doctor.
Test result is lower than
1.1 mmol/L
Repeat the test. If the result
does not change, consult
your doctor.
Test result is higher than
14.0 mmol/L
Repeat the test. If the result
does not change, consult your
doctor. The result may be an
indication to a diabetical keto-
acidosis. The wording "Ketone"
appears in the display.
mmol/L mmol/L mmol/L
mmol/L

17
"Ht" / "Lt" appears. Ambient temperature is
too high or too low, not within the required
range of 10°C - 40°C (50°F - 104°F).
The user is warned about a potentially
incorrect test result if the test proceeds.
Move your monitor to a place with a
temperature between 10°C and 40°C
(50°F - 104°F).
Blood sample or control solution quantity
is not enough.
Repeat the test with a new test strip and
sufficient sample quantity. If same problem
occurs again, get in touch with the service
centre.
9 Error display
mmol/L

For service, accessories and
spare parts please refer to
the contact on the separate
leaflet.

MEDISANA AG
Jagenbergstraße 19
41468 NEUSS
Germany
eMail: [e-mail]
Internet: www.medisana.de
79034GBsh V1.4 09/2013
