Medistrom Pilot-12 Lite User manual

PRODUCT MANUAL
Medistrom Pilot-12 Lite
Medistrom Pilot-24 Lite
Battery and Backup Power Supply
Thank you for purchasing the Medistrom
CPAP Battery Portable Power Supply.
Please read this product manual carefully
before putting the equipment into
operation for the rst time.
Manual Version: EU 03-11-2020

2
Contents
English
1. PILOT-12 LITE
1.1 Pilot-12 Lite Package Contents 4
1.2 Pilot-12 Lite PAP Device Compatibility 4
1.3 IMPORTANT PILOT-12 LITE SAFETY USAGE INFORMATION 5
1.4 Pilot-12 Lite Intended Use and Compatibility 5
1.5 Pilot-12 Lite Control Panel 5
1.6 Pilot-12 Lite Setup 6
1.7 Pilot-12 Lite Specications 7
2. PILOT-24 LITE
2.1 Pilot-24 Lite Package Contents 8
2.2 Pilot-24 Lite PAP Device Compatibility 8
2.3 IMPORTANT PILOT-24 LITE SAFETY USAGE INFORMATION 9
2.4 Pilot-24 Lite Intended Use and Compatibility 9
2.5 Pilot-24 Lite Control Panel 10
2.6 Pilot-24 Lite Setup 10
2.7 Pilot-24 Lite Specications 12
3. Care Instructions for Pilot Lite 12
4. Travelling with Pilot-12/24 Lite Battery Backup Power Supply 12
5. Storage and Disposal of your Pilot-12/24 Lite Battery Backup Power Supply 13
6. Warnings and Safety Precautions 13
7. Warranty Information 14
8. Troubleshooting Guide 14
9. Serial Number 16
10.Symbols 16
Français
1. PILOT-12 LITE
1.1 Contenu de l’emballage de Pilot-12 Lite 17
1.2 Compatibilité des périphériques PAP Pilot-12 Lite 17
1.3 Renseignements Importants Sur L’utilisation Sécurisée Du Pilot-12 Lite 18
1.4 Pilot-12 Lite Utilisation prévue et compatibilité 18
1.5 Panneau de conguration Pilot-12 Lite 18
1.6 Conguration du Pilot-12 Lite 19
1.7 Spécications du Pilot-12 Lite 20
2. PILOT-24 LITE
2.1 Contenu de l’emballage du Pilot-24 Lite 21
2.2 Compatibilité des périphériques PAP Pilot-24 Lite 21
2.3 Renseignements Importants Sur L’utilisation Sécurisée Du Pilot-24 Lite 22
2.4 Pilot-24 Lite Utilisation prévue et compatibilité 22
2.5 À propos de votre panneau de contrôle Pilot-24 Lite 23
2.6 Conguration du Pilot-24 Lite 23
2.7 Spécications sur le Pilot-24 Lite 25
3. Instructions d’entretien pour le Pilot Lite 25
4. Voyager avec l’alimentation de secours de la batterie Pilot-12/24 Lite 25
5. Stockage et mise au rebut de l’alimentation de secours de votre batterie Pilot-12/24 Lite 26
6. Avertissements et précautions de sécurité 26
7. Informations sur la garantie 27
8 .Guide de dépannage 27
9. Numéro de série 29
10.Symboles 29

3
Deutsche
1. PILOT-12 LITE
1.1 Pilot-12 Lite Lieferumfang 30
1.2 Pilot-12 Lite PAP-Geräte Kompatibilität 30
1.3 Wichtige Sicherheitshinweise Zur Verwendung Des Pilot-12 Lite 31
1.4 Pilot-12 Lite Bestimmungsgemäße Verwendung und Kompatibilität 31
1.5 Pilot-12 Lite Bedienteil 31
1.6 Pilot-12 Lite einrichten 32
1.7 Pilot-12 Lite Technische Daten 33
1.7 Pilot-12 Lite Technische Daten 34
2. PILOT-24 LITE
2.1 Pilot-24 Lite Lieferumfang 35
2.2 Pilot-24 Lite PAP-Geräte Kompatibilität 35
2.3 Wichtige Sicherheitshinweise Zur Verwendung Des Pilot-24 Lite 36
2.4 Pilot-24 Lite Bestimmungsgemäße Verwendung und Kompatibilität 36
2.5 Über Ihr Pilot-24 Lite Bedienteil 37
2.6 Pilot-24 Lite Einrichten 37
2.7 Pilot-24 Lite Technische Daten 39
3. Pegehinweise für Pilot Lite 39
4. Reisen mit dem Pilot-12/24 Lite als Notstromversorgung 39
5. Lagerung und Entsorgung der Pilot-12/24 Lite Akku-Notstromversorgung 40
6. Warnungen und Sicherheitsvorkehrungen 40
7. Garantiehinweise 41
8. Anleitung zur Fehlerbehebung 41
9. Ordnungsnummer 43
10. Symbole 43
Español
1. PILOT-12 LITE
Sección 1.1 Pilot-12 Lite Contenido del paquete 44
Sección 1.2 Pilot-12 Lite Compatibilidad del dispositivo PAP 44
Sección 1.3 Pilot-12 Lite Información Importante De Seguridad 45
Sección 1.4 Pilot-12 Lite Uso Previsto Y Compatibilidad 45
Sección 1.5 Pilot-12 Lite Panel de control 45
Sección 1.6 Pilot-12 Lite Instalación 46
Sección 1.7 Pilot-12 Lite Especicaciones 47
2. PILOT-24 LITE
Sección 2.1 Pilot-24 Lite Contenido del paquete 48
Sección 2.2 Pilot-24 Lite Compatibilidad del dispositivo PAP 48
Sección 2.3 Pilot-24 Lite Información Importante De Seguridad 49
Sección 2.4 Pilot-24 Lite Uso Previsto Y Compatibilidad 49
Section 2.5 About Your Pilot-24 Lite Panel de control 50
SECTION 2.6 Pilot-24 Lite instalación 50
SECCIÓN 2.7 Pilot-24 Lite Especicaciones 52
3. Instrucciones de cuidado para Pilot Lite 52
4. Viajando con Batería y fuente de poder de respaldo Pilot-12/24 Lite 52
5. Almacenamiento y eliminación de su batería - fuente de poder de reserva Pilot-12/24 Lite 53
6. Advertencias y precauciones de seguridad 53
7. Información de la garantía 54
8. Guía de solución de problemas 54
9. Número de serie 56
10. Símbolos 56

4
NOTE: The Pilot-12 Lite is NOT COMPATIBLE with the Phillips Respironics DreamStation
Go. The Phillips Respironics DreamStation Go is compatible only with the Pilot-24
series batteries. For complete PAP compatibility information including compatibility
for Bi-Level devices, please visit www.medistrom.com or contact Medistrom technical
support at 1-888-407-4791 or email [e-mail]. Medistrom is not
responsible for any damage caused by improper use of the Pilot-12 Lite.
SECTION 1 - PILOT-12 LITE

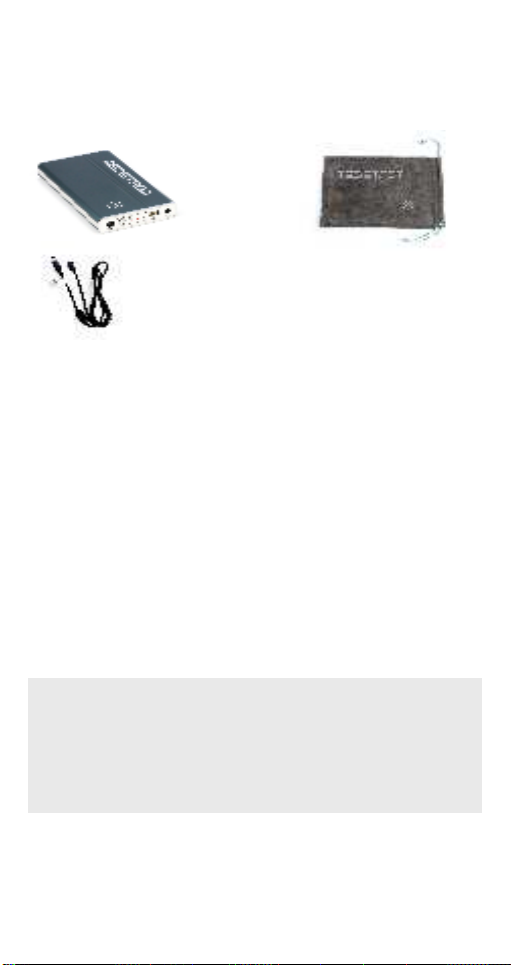

Section 1.1 Pilot-12 Lite Package Contents
THIS PACKAGE INCLUDES:
Pilot-12 Lite Battery Carry Sleeve
DC Out Cable for
Phillips Respironics
DreamStation/System One S60
1) Car Charger for Pilot Lite (SKU #P99ACCPCC)
2) Mixed kit for Pilot-12 Lite (SKU# P12MXDPLK)
Includes:
a. DC Output Cable for IntelliPAP I/ HDM Z1 and HDM Z2
b. Short Charging Adapter Cable for IntelliPAP I/HDM Z1 and HDM Z2
c. DC Output Cable for Intellipap II
3) Solar Panel, 50W (SKU# P99ACCS50)
ADDITIONAL ACCESSORIES FOR PILOT-12 LITE
(SOLD SEPARATELY)
Section 1.2 Pilot-12 Lite PAP Device Compatibility
The Pilot-12 Lite can be used with ONLY the following APAP/CPAP devices:
• Phillips Respironics System One S60
• Phillips Respironics DreamStation
• DeVilbiss IntelliPAP I and IntelliPAP II (cables sold separately, SKU# P12MXDPLK)
• HDM Z1 and HDM Z2 (cables sold separately, SKU# P12MXDPLK)
SUPPORTED PAP DEVICES
Pilot-12 Lite is designed to be charged using the Phillips Respironics
DreamStation, System One S60 and the DeVilbiss IntelliPAP II series original
AC power adapters directly. It can also be charged using the DeVilbiss
IntelliPAP I, HDM Z1 and HDM Z2 series original AC power adapters by
using the corresponding short charging adapter cables (sold separately,
SKU #P12MXDPLK). For more detailed instructions, please see SECTION 1.6
Pilot-12 Lite Setup, Step 1.

5
Section 1.3 IMPORTANT PILOT-12 LITE
SAFETY USAGE INFORMATION
Using a humidier or heated tubing while powering your compatible PAP device
with the Pilot-12 Lite will signicantly decrease the battery run time. For optimal
run times please disable and/or detach any humidiers and heated tubing.
• DO NOT expose battery to temperatures above 40°C / 104°F (Fire Hazard!)
• DO NOT expose battery to temperatures below -10°C / 14°F (Cell Damage
Hazard!)
• DO NOT expose battery to relative humidity above 85% (Electrical Hazard!)
• Normal operating ambient temperatures are 0°C / 32°F to 35°C / 95°F
• Fully charge battery before storage and at least every 6 months thereafter
Section 1.4 Pilot-12 Lite Intended Use and Compatibility
Pilot-12 Lite is manufactured with genuine LG industrial grade rechargeable
lithium ion cells. The Pilot-12 Lite can be used as a backup power source to
prevent interruption to PAP therapy in the case of a power outage.
Pilot-12 Lite can serve as a portable PAP battery during travel by air, land, or sea
when the mains power source is not available.
Pilot-12 Lite is designed to be used with most 12V PAP Devices (Refer to Section
1.2 PAP Device Compatibility).
Pilot-12 Lite has a USB port (output: 5V 2.5A) which can be used to charge
cellphones, tablets and other commonly used handheld devices rated for
receiving the above USB power output.
Section 1.5 Pilot-12 Lite Control Panel
1. Charge Port
Plug the compatible AC adapter into this port (use the short charging adapter cable if
required). Ensure that the AC adapter is plugged into the mains power outlet. Once the
battery is charging the 4 green Charge Level Indicator Lights will turn on.
2. Multi Function Button
Pressing the button once will show the battery’s charge level (if the battery is in Standby
Mode: refer to Stand-by Mode in Section 1.6)
Holding the button for 3 seconds will turn the LED Flashlight On and O
3. Blue “ON” Indicator Light
The light will shine solid blue once the battery is connected and is sending power to a
compatible PAP device. (If this light is ashing, please check the error code in Section 8).
1 2 3 5 6 74

6
4. Green Charge Level Indicator Lights
When the battery is being charged, the lights will blink, and then shine solid green
showing the level of charge going from Lo to Hi. Refer to Section 8 for a guide to charge
levels.
5. LED Flashlight
Can be turned ON and OFF by holding the Multi Function Button for 3 seconds.
Note: If the Pilot Lite battery is not connected to a device, the ashlight will turn OFF
automatically after 10 minutes, otherwise, the ash light will remain ON.
6. USB Port (5V 2.5A Out)
Can be used to charge handheld devices (please check that the output Voltage and
Amperage is compatible with the device that needs charging via the USB before
connecting). Once connected press the Multi Function Button to turn on the battery.
7. DC Out Port
This port is used to connect a compatible PAP device to the battery by using the
matching DC output cable.
Section 1.6 Pilot-12 Lite Setup
NOTE: No power adapters are included with your Pilot-12 Lite Battery and Backup
Power Supply. Refer to section 1.2 (PAP Device Compatibility)
Using Pilot-12 Lite as a Backup Power Supply for PAP devices

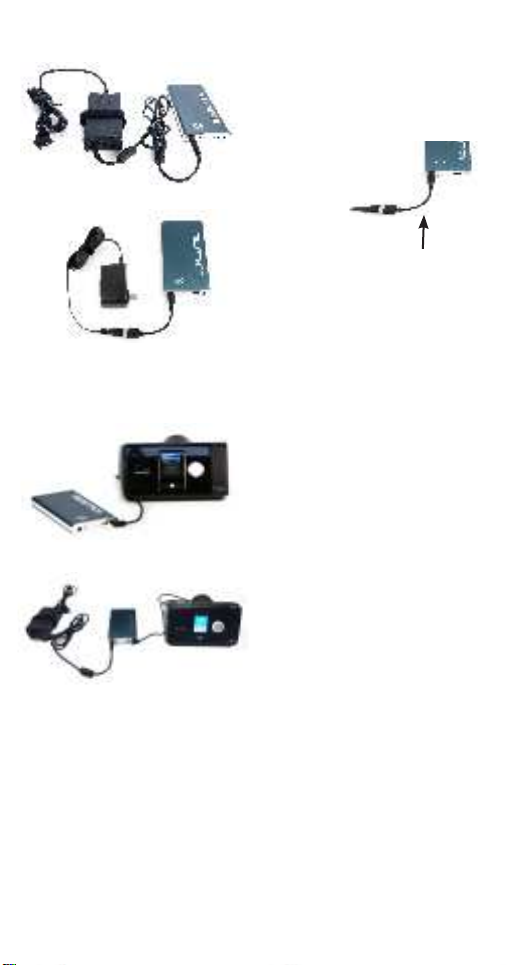

STEP 1 – Connecting Pilot-12 Lite to AC Power Adapter
Plug the power connector from the
Phillips Respironics DreamStation/
System One S60 AC adapter into the
Charge Port of the Pilot-12 Lite and
plug the other end into the power
outlet.
NOTE: Please use the Short Charging
Adapter Cable for the DeVilbiss
IntelliPAP I, HDM Z1 and HDM Z2
series devices (sold separately SKU#
P12MXDPLK)

7
STEP 2 – Connecting Pilot-12 Lite to PAP Device
Plug the L-shaped yellow tipped end of
the DC Out Cable for Phillips Respironics
DreamStation into the DC Out Port of your
Pilot-12 Lite and plug the other black tipped
circular end into the power connector port
of Respironics DreamStation PAP Device.
Stand-by Mode
If the PAP device has been connected but not used within 10 min (or the PAP device is
turned o for 10 min), the Pilot-12 Lite will go into Stand-by Mode to conserve power.
To wake the Pilot-12 Lite press the Multi Function Button.
Charging Pilot-12 Lite
Follow STEP 1 above. Charge times for the Pilot-12 Lite via the Phillips Respironics
System One S60 or DreamStation AC adapter is approximately 2-3 hours. Charge time
via other compatible power adapters may vary.
Using Pilot-12 Lite as a Portable Battery with a compatible PAP device
Follow STEP 2 above. Run times will vary based on prescribed pressure, patient
breathing pattern, mask seal, use of any additional features or attachments such as
pressure relief, heated humidier and heated tubing.
NOTE: For optimal run times while using your Pilot-12 Lite with a compatible PAP
device, please disable and/or detach the humidier and heated tubing and ensure
that you are not experiencing excessive mask leak. Using your PAP device’s humidier
and heated tubing while using the battery as a backup power supply may cause a short
interruption when mains power is lost and the battery takes over.
ATTENTION! Mask leaks or high PAP pressures can greatly decrease run times.
Once the Pilot-12 Lite is connected to your
PAP device, the Charge Level Indicator Lights
will turn on briey and then the On Indicator
Light will turn solid blue. At this point your
PAP device will show that it is receiving
power. If your PAP device is not receiving
power, please check the cable connections
and press the Multi Function Button.
Section 1.7 Pilot-12 Lite Specications
• Capacity: 95Wh
• Cell Type: LG Industrial grade genuine rechargeable lithium ion cells
• Rated Input: 12V, 60W(NORMAL) 80W(MAX)
• Rated Output: DC 12V, 6.5A
• USB Out: 5V, 2.5A
• Life Span: Over 500 full charge/discharge cycles
• Case: Aluminum
• Dimensions: 17cm x 9cm x 2cm, Weight 1.3lbs
• Power Gauge: 4 stage Charge Level Indicator Lights
• Recharge time: 2-3 hours via Respironics DreamStation AC Adapter
(charging via other compatible adapters may be longer)

8
SECTION 2 - PILOT-24 LITE
Section 2.1 Pilot-24 Lite Package Contents
1) Car Charger for Pilot Lite (SKU #P99ACCPCC)
2) DreamStation Go/BMC Luna Kit for Pilot-24 Lite (SKU# P24PDGPLK)
Includes: a. Respironics DreamStation Go DC Output Cable (ATTENTION!
Phillips Respironics DreamStation Go, compatible with Pilot-24 series batteries
ONLY) b. Pilot-24 Lite AC Power Adapter c. 3B Medical Luna DC Output Cable.
3) ResMed S9 Kit for Pilot-24 Lite (SKU# P24R09PLK)
Includes: a. Output Cable for ResMed S9. b. Short Charging Adapter Cable for S9.
4) Apex iCH kit for Pilot-24 Lite (SKU#P24AMIPLK)
Includes: a. Output cable for APEX iCH and Sefam S.Box. b. Short charging
adapter cable for APEX iCH and Sefam S.Box.
5) Medistrom AC Power adapter (SKU# P24ACCACA)
6) Solar Panel, 50W (SKU# P99ACCS50)
ADDITIONAL ACCESSORIES FOR PILOT-24 LITE
(SOLD SEPARATELY)
THIS PACKAGE INCLUDES:
Section 2.2 Pilot-24 Lite PAP Device Compatibility
The Pilot-24 Lite can be used with ONLY the following APAP/CPAP devices:
• ResMed AirSense 10 series
• ResMed AirMini
• Phillips Respironics DreamStation Go series (cables sold separately, SKU#
P24PDGPLK)
• BMC Luna (cables sold separately, SKU# P24PDGPLK)
• ResMed S9 series (cables sold separately, SKU# P24R09PLK)
• Apex iCH series (cables sold separately, SKU#P24AMIPLK)
• SmartMED iBreeze (cables and power adapter sold separately, SKU#
P24AMIPLK and SKU# P24CCAACA)
• Löwenstein Medical prismaSMART series
• Sefam S.Box series devices (cables sold separately, SKU# P24AMIPLK)
SUPPORTED PAP DEVICES
Short Charging
Adapter Cable for
ResMed AirMini
DC Out Cable
for ResMed
AirSense 10
Pilot-24 Lite Battery Carry Sleeve
DC Out Cable
for ResMed
AirMini
DC Output Cable
for Löwenstein
prismaSMART
Short Charging
Adapter Cable for
Löwenstein
prismaSMART

9
NOTE: The Pilot-24 LiteisNOTCOMPATIBLE withthePhillipsRespironicsDreamStation.
The Phillips Respironics DreamStation is compatible only with the Pilot-12 series
batteries. For complete compatibility information including compatibility for Bi-Level
devices, please visit www.medistrom.com or contact Medistrom technical support at
1-888-407-4791 or email [e-mail]. Medistrom is not responsible for
any damage caused by the improper use of the Pilot-24 Lite.
Pilot-24 Lite is designed to be charged using the original ResMed AirSense 10
series AC power adapter directly. It can also be charged using the AirMini series
power adapter by using the AirMini series power adapter by using the short
charging adapter cable for ResMed AirMini and the Löwenstein prismaSMART
series power adapter by using the short charging adapter cable for the
Löwenstein prismaSMART. Charge time via the ResMed AirMini AC adapter is
approximately 7-9 hours.
For faster charging time, please use Medistrom AC Power adapter (SKU#
P24ACCACA). Pilot-24 Lite can be also charged with the ResMed S9 series
original AC power adapter by using the ResMed S9 short charging adapter
cable (sold separately, SKU# P24R09PLK), the Apex iCH via the Apex iCH Short
Charging Adapter Cable (sold separately, SKU # P24AMIPLK), and the Medistrom
Pilot-24 Lite AC adapter (sold separately, SKU# P24ACCACA). For more detailed
instructions on charging, please see SECTION 2.6 Pilot-24 Lite Setup, Step 1.
Section 2.3 IMPORTANT PILOT-24 LITE SAFETY USAGE INFORMATION
Using a humidier or heated tubing while powering your compatible PAP device
with the Pilot-24 Lite will signicantly decrease the battery run time. For optimal
run times please disable and/or detach any humidiers and heated tubing.
• DO NOT expose battery to temperatures above 40°C / 104°F (Fire Hazard!)
• DO NOT expose battery to temperatures below -10°C / 14°F (Cell Damage
Hazard!)
• DO NOT expose battery to relative humidity above 85% (Electrical Hazard!)
• Normal operating ambient temperatures are 0°C / 32°F to 35°C / 95°F
• Fully charge battery before storage and at least every 6 months thereafter
• Please refer to the next section for a list of compatible devices.
Section 2.4 Pilot-24 Lite Intended Use
and Compatibility
Pilot-24 Lite is manufactured with genuine LG industrial grade rechargeable lithium ion
cells. The Pilot-24 Lite can be used as a backup power source to prevent interruption to
PAP therapy in the case of a power outage.
Pilot-24 Lite can serve as a portable PAP battery during travel by air, land, or sea when
the mains power source is not available.
Pilot-24 Lite is designed to be used with most 24V PAP Devices (Refer to Section 2.2
PAP Device Compatibility)
Pilot-24 Lite has a USB port (output: 5V 2.5A) which can be used to charge cellphones,
tablets and other commonly used handheld devices.

10
Section 2.5 Pilot-24 Lite Control Panel
1 2 3 5 6 74
1. Charge Port
Plug the compatible AC adapter into this port (use the short charging adapter cable if
required). Ensure that the AC adapter is plugged into the mains power outlet. Once the
battery is charging the 4 green Charge Level Indicator Lights will turn on.
2. Multi Function Button
Pressing the button once will show the battery’s charge level (if the battery is in Standby
Mode: refer to Stand-by Mode in Section 2.6)
Holding the button for 3 seconds will turn the LED Flashlight On and O
3. Blue “ON” Indicator Light
The light will shine solid blue once the battery is connected and is sending power to a
compatible PAP device. (If this light is ashing please check the error code in Section 8)
4. Green Charge Level Indicator Lights
When the battery is being charged, the lights will blink, and then shine solid green
showing the level of charge going from Lo to Hi. Refer to Section 8 for a guide to charge
levels.
5. LED Flashlight
Can be turned ON and OFF by holding the Multi Function Button for 3 seconds.
Note: If the Pilot Lite battery is not connected to a device, the ashlight will turn OFF
automatically after 10 minutes, otherwise, the ash light will remain ON.
6. USB Port (5V 2.5A Out)
Can be used to charge handheld devices (please check that the output Voltage and
Amperage is compatible with the device that needs charging via the USB before
connecting). Once connected press the Multi Function Button to turn on the battery.
7. DC Out Port
This port is used to connect a compatible PAP device to the battery.
Section 2.6 Pilot-24 Lite Setup
ATTENTION: No power adapters are included with your Pilot-24 Lite Battery and
Backup Power Supply. Please refer to section 2.2 PAP Device Compatibility on
information how to charge your battery.
Using Pilot-24 Lite as a Backup Power Supply for PAP devices

11
STEP 1 – Connecting Pilot-24 Lite to AC Power Adapter
Plug the original ResMed AirSense 10 AC
power adapter into the Charge Port of the
Pilot-24 Lite and plug the other end into the
power outlet.
NOTE: Please use the Short Charging
Adapter Cable for ResMed AirMini or the
Löwenstein prismaSMART (included with
Pilot-24 Lite) to plug the original ResMed
AirMini AC power adapter into the Charge
Port of the Pilot-24 Lite and the Löwenstein
prismaSMART respectively.
STEP 2 – Connecting Pilot-24 Lite to PAP Device
Plug the L-shaped yellow tipped end of
the DC Out Cable for ResMed AirSense 10
Series into the DC Out Port of your Pilot-24
Lite and plug the other black tipped circular
end into the power connector port of your
AirSense 10 PAP device.
Stand-by Mode
If the PAP device has been connected but not used within 10 min (or the PAP device is
turned o for 10 min), the Pilot-24 Lite will go into Stand-by Mode to conserve power.
To wake the Pilot-24 Lite press the Multi Function Button.
Charging Pilot-24 Lite
Follow STEP 1 above. Charge times for the Pilot-24 Lite via the ResMed AirSense 10, S9,
the Löwenstein prismaSMART or the Medistrom Pilot Lite AC adapter is approximately
2-3 hours. Charge time via the ResMed AirMini AC adapter is approximately 7-9 hours.
Once the Pilot-24 Lite is connected to your
PAP device, the Charge Level Indicator
Lights will turn on briey and then the On
Indicator Light will turn solid blue. At this
point your PAP device will show that it is
receiving power. If your PAP device is not
receiving power, please check the cable
connections and press the Multi Function
Button.

12
NOTE: The ResMed AirMini AC adapter can only be used to charge the Pilot-24 Lite
and cannot be used in the Backup Power Supply conguration. To use the ResMed Air
Mini PAP Device in the backup conguration with Pilot-24 Lite please use Medistrom
AC Power Adapter for Pilot-24 Lite (Sold separately, SKU# P24ACCACA) or the original
ResMed AirSense 10 AC power adapter, or the original ResMed S9 power adapter with
the short charging adapter cable, or the original Löwenstein prismaSMART AC power
adapter with the short charging adapter cable.
Using Pilot-24 Lite as a Portable Battery for compatible PAP device
Follow STEP 2 above. Run times will vary based on prescribed pressure, patient
breathing pattern, mask seal, use of any additional features or attachments such as
pressure relief, heated humidier and heated tubing.
NOTE: For optimal run times while using your Pilot-24 Lite with a compatible PAP
device, please disable and/or detach the humidier and heated tubing and ensure
that you are not experiencing excessive mask leak. Using your PAP device’s humidier
and heated tubing while using the battery as a backup power supply may cause a short
interruption when mains power is lost and the battery takes over.
SECTION 2.7 Pilot-24 Lite Specications
• Capacity: 95Wh
• Cell Type: LG Industrial grade genuine rechargeable lithium ion cells
• Rated Input: 24V, 60W (NORMAL), 90W (MAX)
• Rated Output: DC 24V, 3.5A
• USB Out: 5V, 2.5A
• Life Span: Over 500 full charge/discharge cycles
• Case: Aluminum
• Dimensions: 9cm x 17cm x 2cm, Weight 1.3lbs
• Power Gauge: 4 stage Charge Level Indicator Lights
• Recharge time: 2-3 hours (7 to 9 hours via the ResMed AirMini AC Adapter)
SECTION 3 Care Instructions for Pilot Lite
CAUTION! Fully charge your Pilot Lite before storage and at least EVERY 6 MONTHS
thereafter. Failure to do this will be considered negligence and will void the warranty.
CAUTION! Do not expose the battery to liquids of any kind. Keep out of direct sunlight.
If your unit becomes soiled, disconnect it from the power source and the PAP device
and wipe the exterior casing with a clean, dry cloth.
SECTION 4 - Travelling with Pilot-12/24 Lite
Battery Backup Power Supply
The Pilot-12/24 Lite Battery Backup Power Supplies each have a 95Wh capacity. Many
airlines will allow batteries under 100Wh to be taken into the cabin for travel. Please always
consult with your particular airline and ight to conrm that your Pilot-12/24 Lite can be
taken with you in your carry-on prior to travelling. If you plan on charging your Pilot-12/24
Lite with the car charger, please make sure to test the car charger before travelling.
If you plan on travelling and you have not used your Pilot-12/24 Lite in the battery
conguration, we strongly suggest that you test run the unit in the battery conguration
prior to travelling in order to get an idea of what run-time you could expect. For
optimal run times please disable any additional features such as the heated hose, the
humidier, EPR as well as properly adjust your mask to minimize air leakage.

13
SECTION 5 - Storage and Disposal of your
Pilot-12/24 Lite Battery Backup Power Supply
CAUTION! Fully charge your Pilot Lite before storage and at least EVERY 6 MONTHS
thereafter. Failure to do this will be considered negligence and will void the warranty.
Store the Pilot-12 Lite or Pilot-24 Lite in a cool, dark, well ventilated place with normal
temperatures of 0 °C / 32 °F to 35 °C / 95 °F. CAUTION! Keep out of direct sunlight!
The disposal of this unit should be carried out in accordance with applicable laws and
regulations reecting the purchaser’s geographic location. For more information on
where to recycle this product, please call 1-877-723-1297 or visit: www.call2recycle.org
If you have any other inquiries or would like to download the Medistrom Travel
Letter please visit www.medistrom.com or www.choiceonemedical.com. For further
technical support please email [e-mail].
SECTION 6 - Warnings and Safety Precautions
WARNING – When using the Pilot-12 Lite/Pilot-24 Lite, basic precautions should
always be followed including the following:
a) Read all the instructions before using the Pilot-12 Lite/Pilot-24 Lite.
b) To reduce the risk of injury, close supervision is necessary when the Pilot-12
Lite/Pilot-24 Lite is used near children.
c) Do not put ngers or hands into the Pilot-12 Lite/Pilot-24 Lite.
d) Do not expose the Pilot-12 Lite/Pilot-24 Lite to rain or snow.
e) Use of a power supply or charger not recommended or sold by Medistrom may
result in a risk of re or injury to persons.
f) Do not use the Pilot-12 Lite/Pilot-24 Lite in excess of their respective output
ratings. Overloading outputs above rating may result in a risk of re or injury
to persons.
g) Do not use a Pilot-12 Lite/Pilot-24 Lite that is damaged or modied. Damaged
or modied batteries may exhibit unpredictable behavior resulting in re,
explosion or risk of injury to persons.
h) Do not disassemble the Pilot-12 Lite/Pilot-24 Lite. Take it to a qualied service
person when service or repair is required. Incorrect reassembly may result in a
risk of re or injury to persons.
i) Do not expose the Pilot-12 Lite/Pilot-24 Lite to re or excessive temperature.
Exposure to re or temperature above 100°C (212°F).
j) Have servicing performed by a qualied repair person using only identical
replacement parts. This will ensure that the safety of the Pilot-12 Lite/Pilot-24
Lite is maintained.
k) Make sure the Pilot-12 Lite/Pilot-24 Lite is switched o when not in use.
SAVE THESE INSTRUCTIONS.

14
SECTION 7 - Warranty Information
Please contact your CPAP battery dealer for any warranty related issues or you can
contact Medistrom technical support by emailing [e-mail].
Medistrom guarantees that Pilot-12 Lite or Pilot-24 Lite Battery Backup Power Supply
shall remain free from manufacturer defects for twelve months from the date of
purchase. This warranty is not transferrable and will only be available to the original
purchaser.This warranty does not cover physical damage resulting from improper use.
Medistrom reserves the right to choose whether to repair or replace the product.
CAUTION! Fully charge your Medistrom Pilot-12 Lite or Pilot-24 Lite Battery Backup
Power Supply before storage and EVERY 6 MONTHS. Failing to do so will void the
warranty. Medistrom reserves the right to update the warranty policy without notice.
For the most up to date warranty information please visit www.medistrom.com or
contact support by emailing [e-mail].
SECTION 8 - Troubleshooting Guide
NORMAL OPERATION
Green Charge Level Indicator Lights
4 solid green lights Greater than 90% capacity
remaining
3 solid green lights 65% - 90% capacity remaining
2 solid green lights 40% - 65% capacity remaining
1 solid green light 10% - 40% capacity remaining
Green lights ashing consecutively Battery is charging
ERROR CODES
Error Possible Cause Solution
Blue and green
LEDs alternate
ashing
(Over Discharge
State)
Battery has entered
over-discharge
protection to
prevent damage to
the cells.
Contact Medistrom technical support at
1-888-407-4791 (North America), 1-300-
146-358 (Australia) or email support@
medistrom.com
Blue LED
ashing rapidly
accompanied by
short (200ms)
beeping pattern
Incorrect AC
adapter Pilot-12 Lite: use the AC adapter provided
with your Respironics DreamStation or
Respironics System One S60 or other
compatible power adapters (see section
1.3).
Pilot-24 Lite: use the AC adapter provided
with your ResMed S9 or ResMed AirSense
10 or the Medistrom AC adapter (see
section 2.3).
Power source is
damaged Power strip or outlet wiring may be
damaged. Plug AC adapter directly into
wall outlet or try using the battery with a
dierent wall outlet.

15
Blue LED ashing
accompanied by
long (1s) beeping
pattern
The
environmental
temperature is
too high for the
battery to
operate safely
Ensure that the battery is placed
where there is no excess heat. Do not
rest the battery on top of radiators or
electronic devices that may emit heat.
Do not attempt to use the battery in
temperatures exceeding 40° C / 104° F
Blue LED ashing
accompanied by
short (500ms) and
long (1s) alternate
beeping pattern
Incorrect AC
adapter being
used
Pilot-12 Lite: use the AC adapter provided
with your Respironics DreamStation or
Respironics System One S60 or other
compatible power adapters (see section 1.3).
Pilot-24 Lite: use the AC adapter provided
with your ResMed S9 or ResMed AirSense
10 or the Medistrom AC adapter (see section
2.3).
PAP device
connected
to battery is
incompatible
Ensure that the PAP device you are using
is compatible with the Pilot-12 Lite or
Pilot-24 Lite (see sections 1.3 and 2.3
respectively)
Four green LEDs
ashing together
accompanied by
long (1s) beeping
pattern
Incorrect AC
adapter being
used
Pilot-12 Lite: use the AC adapter provided
with your Respironics DreamStation or
Respironics System One S60 or other
compatible power adapters (see section 1.3)
Pilot-24 Lite: use the AC adapter provided
with your ResMed S9 or ResMed AirSense 10
ortheMedistrom ACadapter(seesection 2.3)
If problem persists please contact Medistrom
technical support at 1-888-407-4791 (North
America), 1-300-146-358 (Australia) or email
[e-mail]
Blue LED ashing
accompanied by a
short (500ms) short
(500ms) long (1s)
beeping pattern
PAP device
connected
to battery is
incompatible
Ensure that the PAP device you are using
is compatible with the Pilot-12 Lite or
Pilot-24 Lite (see sections 1.3 and 2.3
respectively)
DC output cable
is damaged Ensure that the cable connecting the Pilot-12 Lite or Pilot-24 Lite to your
compatible PAP device is not damaged
Blue LED ashing
accompanied by
three short (500ms)
beeping pattern
PAP device
connected
to battery is
incompatible
Ensure that the PAP device you are using
is compatible with the Pilot-12 Lite or
Pilot-24 Lite (see sections 1.3 and 2.3
respectively)
Blue LED
periodically ashing
(no pattern)
Maximum
battery power
output
No action required, the battery is
operating correctly. Depending on your
prescribed pressure, enabled PAP device
features and breathing rate the battery
may reach maximum power output which
is indicated by the periodically ashing
blue LED
Blue LED ashing
every 0.5 seconds Battery capacity
is below 5% Charge the battery as soon as possible.
The battery power level is critically low.
Not charging the battery for a prolonged
period will cause it to go into Over
Discharge State.
Battery Not
Providing Power
(PAP Device or USB)
Battery is in
Stand-by Mode Press the Multi Function Button to
wake the battery from Stand-by Mode.
Disconnect all devices and cables.
Plug your DC output cable into the DC
Out port on the battery and press the
Multi Function Button.For USB Devices:
Disconnect all devices and cables. Plug
your DC output cable into the DC Out
port on the battery then plug in your USB
device into the USB Out port and press the
Multi Function Button.

16
Coil whine Battery is being
charged on
lower voltage or
lower wattage
No action required, the battery is operating
correctly. The Pilot-12 Lite and Pilot-24 Lite
are 12V and 24V backup batteries respectively.
You may hear coil whine (a faint buzzing
sound) in later stages of charging if the battery
is charging on lower voltages or on a lower
wattage.
Battery is not
Charging Ambient charging
temperature
too high
The Pilot-12 Lite and Pilot-24 Lite heat up
during regular portable usage.
On more demanding congurations such as
those with high pressures, enabled humidier
and heated tubing, may cause the battery to
heat up past optimal charging temperatures.
Built-in features to maximize cell life will
prevent the battery from charging in this state.
Please allow the battery to cool down for 10-
20min and try charging your battery again.
If errors persist after taking the recommended action(s) contact Medistrom technical
support toll-free at 1-888-407-4791 (North America), 1-300-146-358 (Australia) or via
email at [e-mail]. Do not disassemble the device or attempt to
service the device yourself.
SECTION 9 - Serial Number
Serial Number is 14 digits long. Serial number is located on the sticker on the back of
the battery, and on the front of the packaging.
18010982412345
Digits 1-4 (1801) manufacture date (YYMM)
Digits 5-7 (098) Watt Hour capacity (098Wh)
Digits 8-9 (24) Battery Voltage (24V/ 12V)
Digits 10-14 (12345) production unit number
SECTION 10 - Symbols
Choice One Medical
1 Westside dr., unit 2A,
Toronto, ON M9C 1B3
Canada
Follow instructions before use
Keep Dry
Fragile handle with care
Temperature limitation
Humidity limitation
WEEE wheeled bin
European conformity mark
Advena Ltd.
Tower Business Centre, 2nd Flr,
Tower Street, Swatar, BKR 4013,
Malta
Federal communications commission
Stock keeping unit
Serial number
Batch code
Canadian standards association
Direct Current
Caution
-
10°C
14°F
40°C
104°F
5
85
%
SKU
SN
LOT
