MedViron 32 Overbed Table User manual

medviron.com | 1-844-633-8476
Overbed Tables
User Manual
Doc #: MV-OBT-1002 Rev B

medviron.com | 1-844-633-8476
Thank you for purchasing a medViron Overbed Table.
The medViron Overbed Table is a mobile table with an adjustable height surface designed to
be used with various types of adjustable beds and chairs. This table can meet both patient
and caregiver needs by providing a surface for eating and working, along with personal
storage space.
Please become familiar with all details in this manual before using the overbed table or
beginning maintenance. Procedures should be established for training staff on the proper
use and operation of your medViron Overbed Table.
Safety Alerts:
 This user guide must be read completely before the overbed table is put into use.
 Staff is strongly encouraged to instruct patients on how to use the overbed table.
 The overbed table should only be used on flat surfaces.
 The casters are designed for use in an indoor environment and for travelling on flat,
smooth, clean floors.
 The casters could be damaged when moving the overbed table over rough, uneven,
and dirty surfaces.
 Do not use the overbed table if its construction or casters have been damaged
because this could cause loss of stability.
 Do not sit or lean on the overbed table. Doing so may cause the table to tip which may
result in personal injury, or damage to the table.
 Do not use the overbed table as a support when getting up or as an assist in walking.
 Do not overload the top surface or storage areas in excess of the prescribed limits.
 Exercise caution when operating the activation handle to avoid pinching fingers
between the activation handle and top surface.
 If defects are found on any part of the overbed table, immediately remove the
overbed table from service.
 Only original materials and components may be sued to repair the overbed table.
MedViron will not be liable for any damages that arise from using non-original or
inappropriate materials and components.
 Follow cleaning and preventative maintenance instructions.

medviron.com | 1-844-633-8476
Warnings:
Do not lift the overbed table by the top when it is in the full extension position.
Do not attempt in any manner to alter, adjust, or lubricate the internal contents
of the column, including gas spring and mechanisms. Doing so will void any
related warranty and may cause permanent damage to the overbed table.
Loading the overbed table beyond the safe working load could result in injury, or
cause damage to the overbed table.

medviron.com | 1-844-633-8476
Raising the Overbed Table
To raise the overbed table, place your hand on the underside of the top surface and lift
upward. The activation handle does not need to be used for this operation.
Lowering the Overbed Table
First engage the activation handle by pushing it against the table, then apply downward
pressure on the top surface.

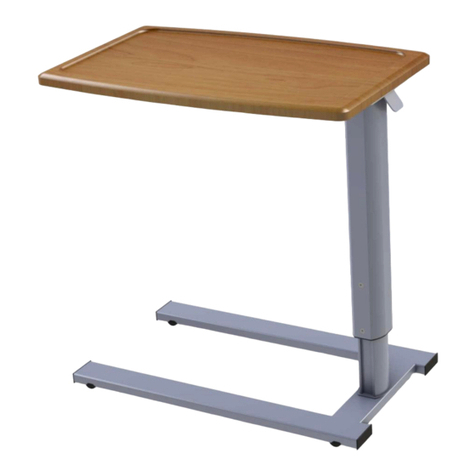

32” Overbed Table
height adjustment activation handle
39” Overbed Table
height adjustment activation handle

medviron.com | 1-844-633-8476
Cleaning and Disinfection
The Centers for Disease Control (CDC) recommends that surfaces should be cleaned
routinely and when dirty or soiled to prevent potentially contaminated objects from serving
as a source of healthcare associated infections. MedViron Overbed Tables can withstand a
wide range of hospital cleaners and disinfectants. Follow the cleaning solution
manufacturer’s instructions when using these products. The CDC recommends using a 5.25%
- 6.15% sodium hypochlorite chlorinated bleach solution (i.e., household bleach) diluted 1:100
with water. Be sure to thoroughly rinse the solution from the surface and remove any
moisture from the surface with a dry cloth.1
Removing Overbed Table Shelves for Cleaning
1 The Centers of Disease Control. Guideline for Disinfection and Sterilization in Healthcare Facilities, 2008 by William A.
Rutala, Ph.D., M.P.H., David J. Weber, M.D., M.P.H., and the Healthcare Infection Control Advisory Committee, Nov. 2008.

medviron.com | 1-844-633-8476
Overbed Table Specifications
Specifications
32” Overbed Table
32” Overbed Table with Shelf
Safe Working Load
25lbs (11.4 kg)
25lbs (11.4 kg)
Width
32” (80 cm)
32” (80 cm)
Depth
19” (48
.3
cm)
18” (46 cm)
Surface Height
27” to 43.25” (
68.6
cm to 1.1 m)
27” to 43.25” (
68.6
cm to 1.1 m)
Base Height
1.625” (
4.2
cm)
1.625” (
4.2
cm)
Weight
45lbs (20.5 kg)
51lbs (23 kg)
Shelf Dimensions
--
24” W x 14” D x 1.125”H
Options
Cup holders,
Vanity mirror
Vanity mirror
Warranty
Limited Lifetime/5
-
yr gas spring
Limited Lifetime/5
-
yr gas spring
Specifications
3
9
” Overbed Table
Safe Working Load
25lbs (11.4 kg)
Width
39” (1 m)
Depth
19” (48.3 cm)
Surface Height
27” to 43.25” (
68.6
cm to 1.1 m)
Base Height
2.1
” (5.3 cm)
Weight
52
lbs (2
3
.5 kg)
, 57 lbs (26 kg) with Two
-
Shelf Pedestal
Shelf Dimensions
4.5” W x 16.5” D x 1.5” H
Options Cup holders, Vanity mirror, Dual-spill containment top,
Two
-
shelf
p
edestal
Warranty
Limited Lifetime/5
-
yr gas spring

medviron.com | 1-844-633-8476
Preventative Maintenance
Preventative maintenance is recommended at a minimum of once per year.
Checklist:
_____ All fasteners are secure.
_____ All casters are secure, free from debris, and roll and swivel freely.
_____ The height-adjustment activation handle operates properly.
_____ Top and side surfaces intact and undamaged.
Maintenance Log
Serial Number
Date Completed
Completed by

medviron.com | 1-844-633-8476
Contact Information
Contact your dealer, sales representative, or medViron Customer Service.
medViron Customer Service
Phone
1
-
844
-
633
-
8476
Fax
1
-
616
-
741
-
9665
Website
medviron.com
Email
[e-mail]
Address medViron
9380 Pentatech Drive
Zeeland, MI 49464
Serial Number
Your medViron Overbed Table serial number is required for all written and verbal
communication. The serial number is located on the steel plate that supports the overbed
table top.
