Meech 994IML User manual

MODEL 994IML
Static Generator
Operating
Manual

Contents
Introduction 3
Inspection 4
Contents 4
Options 4
Features 5
Front Panel 5
Side Panel 5
Installation 6
Mounting 6
Input/ Output Connections 7
Ground post 7
Power Supply 7
HT Outputs 7
 RemoteOn/O󰀨     7
Output / Input Signals 8
Using the 994IML 9
Specication      10
CEApproval      10
Maintenance      11
RepairsAndWarranty     11
994IMLStaticGeneratorCaseandMountingDetail  12
Products shown in this document may be covered by one or more patents, patents applied for
and/or registered designs and/or trade marks. For further information please refer to our Head
O󰀩ceorvisitwww.meech.com.
©MeechStaticEliminatorsLtd.,17.11.17

3
Introduction
The Meech 994IML High voltage generator has been designed to work with the Hydra
In-MouldLabelpinningsystem.Itprovides0-20kV,Negativepolarity,inalightweight
package,poweredby24VDC
Full local and remote control makes it ideal for systems integrators, OEMs and end
users alike.

4
Inspection
The Model 994IML was carefully packed at our factory to protect it from accidental
damage.Nevertheless,werecommendcarefulexaminationofthecartonandcontents
for any damage. If damage is evident, do not destroy the carton or packing material
and immediately notify the carrier of a possible damage claim. Shipping claims must be
made by the consignee to the delivering carrier. In addition, please also notify Meech
International of any damage claims that may be made against the delivery carrier.
Contents:
Included with the Model 994IML
1. Instruction Manual
2. DCpowerplug,2.1mmID
3. 3.5mm mono jack plug for remote on/off
Options
1. MiniDINcontrolcable,2000mm

5

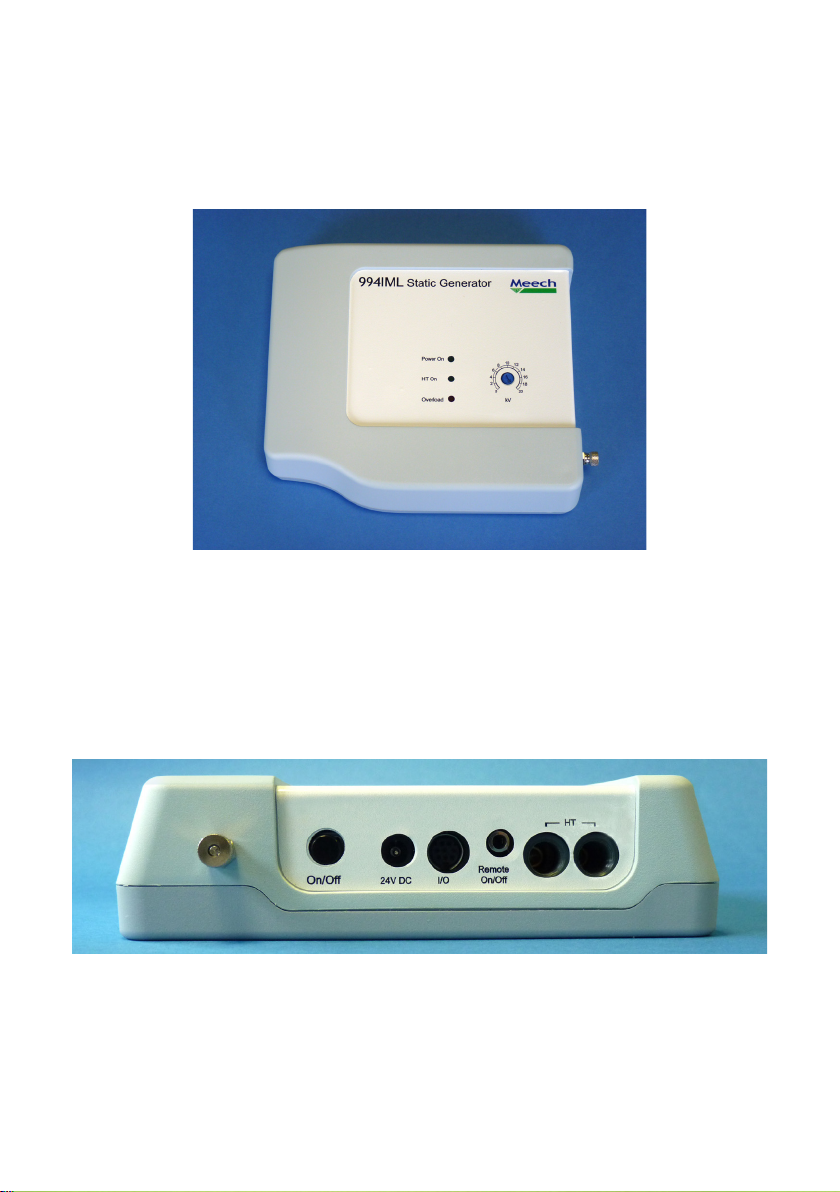

Features
Front Panel
1. Power LED
2. HT On LED
3. Overload LED
4. RotaryVoltageControl
Side Panel
1. Ground post
2. On/O󰀨Switch
3. 24VDCInlet.CentrePositive
4. 8WayMiniDINControlinterface
5. RemoteOn/O󰀨.
6. HT Outputs.
1  23 456
1 4
2
3

6
Installation
Important.
The 994IML must be electrically grounded. Failure to do so will damage the unit.
Grounding can be achieved either by using the ground post or by using a grounded
24Vsupplyorboth.
994IML
220V AC
24V DC
0V
Power Supply
Grounded 0V Grounding using
ground post
Mounting
Mount the unit using the 5mm keyhole mounts on the rear face in a dry, well ventilated
area.Allowsu󰀩cientspaceforthecablesontherighthandsideoftheunit.

7
Input/ Output Connections
Ground post
To avoid damage, the 994IML must be grounded. Whether or not the electrical supply
is grounded (see page 6), it is strongly recommended that the 994IML should be
grounded using this post.
Power Supply
2.1mm.Centrepositive.24V.Aplugwithsolderterminalsissuppliedforthecustomer’s
use.

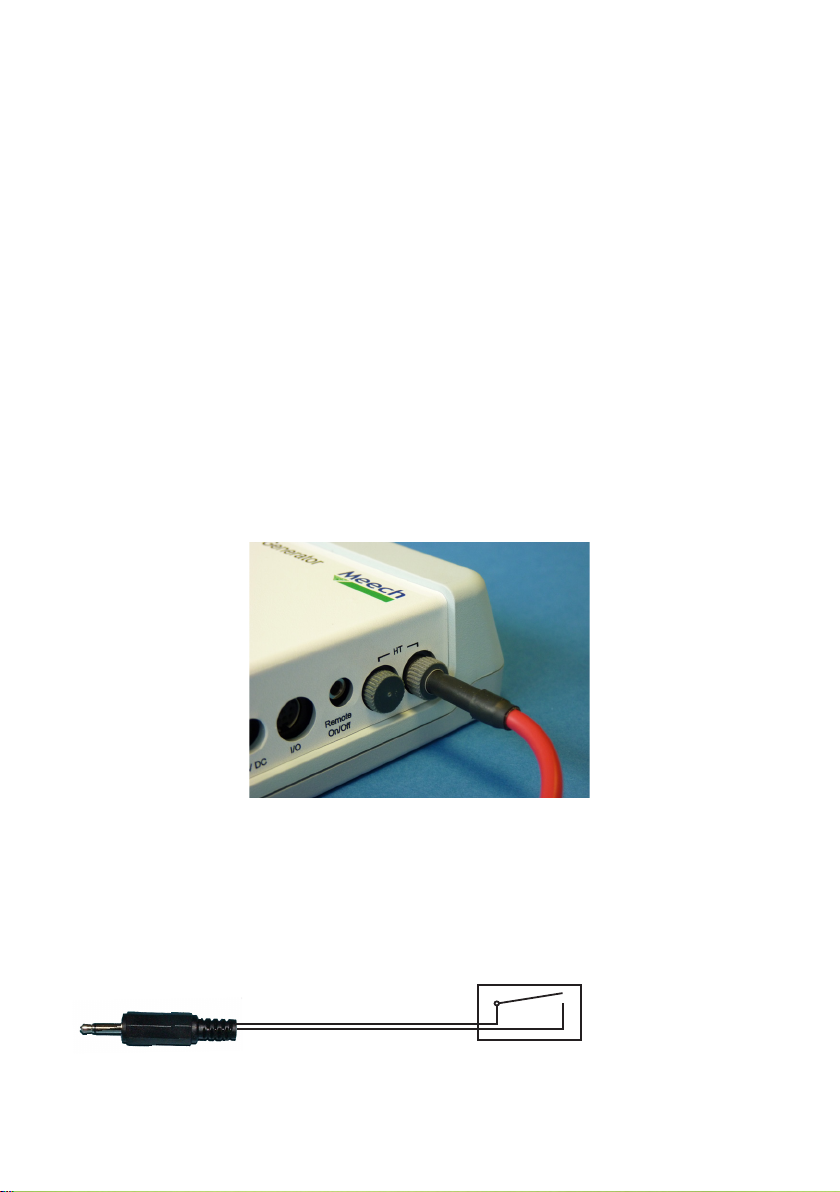

HT Outputs
Connect the Hydra pinning system to the HT output using the proprietary grey HT
connector. Ensure the plug is securely fastened using the locking collar. If only one HT
outputisused,theunusedoutputshouldbeblankedo󰀨withtheplugprovided
RemoteOn/O󰀨
Theoutputofthe994IMLcanbeturnedonando󰀨remotelyviathesocketlocatedon
the connection panel. A 3.5mm Jack plug, supplied with the unit, connected to volt-free
contacts will allow the 994IML to be switched on when the contacts are made.
Relay Contact
(VoltFree)
Notethattheunitcanalsobeturnedonando󰀨remotelyviatheMiniDinconnection.

8
Output / Input Signals
The8WayMiniDINconnectoro󰀨ersthefollowingconnections:
Funcon 2 Metre Cable 5 Metre Extension Cable
Terminal 1 Ground (0V) Black Orange
Terminal 2 Voltage control
0-5V = 0-20kV Brown Red
Terminal 3 Output voltage seng
0-5V = 0-20kV Red Yellow
Terminal 4 Remote ON/OFF. OFF
when grounded (lo) Orange Purple
Terminal 5
Remote voltage control
enabled when
grounded (lo)
Yellow Brown
Terminal 6 Output current
0-5V = 0-500µA Green Green
Terminal 7 5V if unit is overloaded Blue Blue
Terminal 8 5V when HT on Purple Black
Diagram Male Plug
Item Code A900-DATA-CAB-2M A900-DATA-CAB-5M
Drawing F
M
M
TypicalwiringofminiDINcableforRemoteon/o󰀨andHTvoltagecontrol.
1
2
3
4
5
6
7
8
0V
0-5V Input. HT voltage control
Remote on/off open=on
Remote voltage control enable
5
678
4
21
3
1 2
3 4 5
678
