LCG ULTRA WASH ZOOM LCG-MHW730Z User manual

ULTRA WASH ZOOM
LCG-MHW730Z
USER MANUAL
Version 1.0
Be sure to read the USER MANUAL carefully before using this product.
Be sure to keep the USER MANUAL properly for future needs.
Use this product correctly when you can fully understand the User Manual

During the operation the housing becomes hot). Allow the fixture to cool approximately 20 minutes prior to
manipulate with it.
This device falls under protection class I. Therefore it is essential to connect the yellow/green conductor to
earth.
Do not connect this device to a dimmer pack.
WARNING! This unit does not contain an ON/OFF switch. Always disconnect power input cable to
completely remove power from unit when not in use or before cleaning or servicing the fixture.
Make sure that the available voltage is not higher than stated on the rear panel.
Please consider that damages caused by manual modifications to the device are not subject to warranty.
Make sure that the power-cord is never crimped or damaged by sharp edges. Check the device and the
power-cord from time to time.
The manufacturer will not accept liability for any resulting damages caused by the non-observance of this
manual or any unauthorized modification to the device.
Always disconnect from the mains, when the device is not in use or before cleaning it. Only handle the
power-cord by the plug. Never pull out the plug by tugging the power cord.
The electric connection, repairs and servicing must be carried out by a qualified employee.
Do not switch the fixture on and off in short intervals as this would reduce the lamp’s life.
During the initial start-up some smoke or smell may arise. This is a normal process and does not
necessarily mean that the device is defective.
Do not touch the device’s housing bare hands during its operation (housing becomes hot)!
For replacement use lamps and fuses of same type and rating only.
ULTRA WASH ZOOM
14
01
BEFORE YOU INITIAL START - UP!
This device has left our premises in absolutely perfect condition. In order to maintain this condition and to
ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning
notes written in this manual.
Important:
CA UT IO N!
Be careful with your operations.
With a high voltage you can suffera dangerous electric shock when touching the wires!
1.Safety instructions
Thank you for choosing our ULTRA WASH ZOOM . FOR YOUR OWN SAFETY, PLEASE READ THIS USER
MANUAL CAREFULLY
CA UT IO N!
Keep this device away from rain and moisture!
Unplug mains lead before opening the housing!
CA UT IO N ! E YE DAMAGES !
Avoid looking directly into the light source
(meant especially for epileptics) !
10.Maintenance and cleaning
4) Replace the fuseholder in the housing and fix it.
Important! Check the air filters periodically and clean before they become clogged!
Replacing the fuse. Before replacing the fuse, unplug mains lead.
The front objective lens will require weekly cleaning as smoke-fluid tends to building up residues, reducing
the light-output very quickly. The cooling-fans should be cleaned monthly.
Clean two air filters placed in the fixture’s covers and two in the fixture base. Use a vacuum cleaner,
compressed air or you can wash them and put back dry.
The interior of the fixture should be cleaned at least annually using a vacuum-cleaner or an air-jet.
Remove dust and dirt from the fans and cooling vents using a soft brush and vacuum-cleaner.
2) Remove the old fuse from the fuse holder.
After replacing the air filters, reset the elapsed time counter in the menu "Information" (Information--->Air
Filters--->Elapsed Time).
1) Remove the fuse holder on the rear panel of the base with a fitting screwdriver from the housing (anti-
clockwise).
It is absolutely essential that the fixture is kept clean and that dust, dirt and smoke-fluid residues must not
build up on or within the fixture. Otherwise, the fixture‘s light-output will be significantly reduced. Regular
cleaning will not only ensure the maximum light-output, but will also allow the fixture to function reliably
throughout its life.A soft lint-free cloth moistened with any good glass cleaning fluid is recommended,
under no circumstances should alcohol or solvents be used!
3) Install the new fuse in the fuse holder (only the same type and rating).
DANGER !
Disconnect from the mains before starting any
maintenance work
ULTRA WASH ZOOM

Euro Standard UK Standard
USA Standard

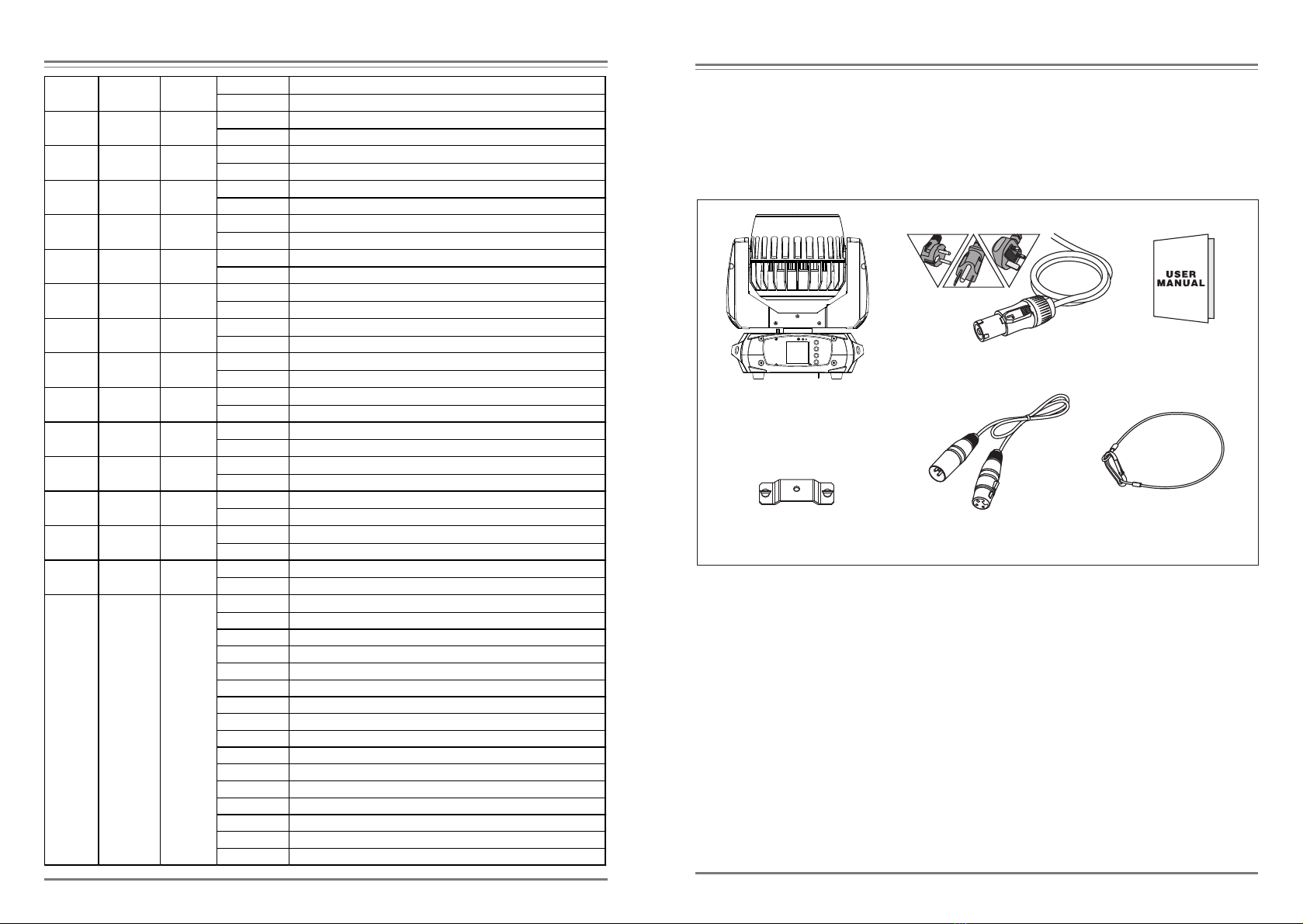

▲ULTRA WASH ZOOM *1
▲Signal Cable *1
▲Power Cable*1
▲Hanging Kit *2
▲Safety Cable*1
▲User Manual*1
13 02
2.UNPACKING
The ULTRA WASH ZOOM adopts 7*30W RGBW 4-IN-1 LED lamp which features high brightness and stability.
Please carefully unpack it when you receive the fixture and check whether it is damaged during the
transportation. And please check whether the following items are included inside the box:
The ULTRA WASH ZOOM is made of a new type of high temperature strength of engineering plastics and cast
aluminum casing with nice outlook . The fixture is designed and manufactured strictly following CE standards,
complying with international standard DMX512 protocol. It’s available independently controlled and linkable with
each other for operation. And it is applicable for large-scale live per formances, theater, studio, nightclubs and
discos.
This manual covers the important information on installation and applications. Meanwhile, please keep this
manual well for future needs.
ULTRA WASH ZOOM ULTRA WASH ZOOM
Green in pixel 4
0..255 Green in pixel 4 saturation control(0-100%)
Blue in pixel 4
0..255 Blue in pixel 4 saturation control(0-100%)
White in pixel 4
0..255 White in pixel 4 saturation control(0-100%)
Red in Pixel 5
0..255 White in pixel 5 saturation control (0-100%)
Green in pixel 5
0..255 Green in pixel 5 saturation control(0-100%)
Blue in pixel 5
0..255 Blue in pixel 5 saturation control(0-100%)
White in pixel 5
0..255 White in pixel 5 saturation control(0-100%)
Red in Pixel 6
0..255 White in pixel 6 saturation control (0-100%)
Green in pixel 6
0..255 Green in pixel 6 saturation control(0-100%)
Blue in pixel 6
0..255 Blue in pixel 6 saturation control(0-100%)
White in pixel 6
0..255 White in pixel 6 saturation control(0-100%)
Red in Pixel 7
0..255 White in pixel 7 saturation control (0-100%)
Green in pixel 7
0..255 Green in pixel 7 saturation control(0-100%)
Blue in pixel 7
0..255 Blue in pixel 7 saturation control(0-100%)
White in pixel 7
0..255 White in pixel 7 saturation control(0-100%)
Special function
0..19 No function
20..29 No function
30..39 No function
40..79 No function
80..89 All Motor reset
90..94 SCAN Motor Reset
95..99 ZOOM Motor Reset
100..119 Internal program 1
120..139 Internal program 2
140..159 Internal program 3
160..179 Internal program 4
180..199 Internal program 5
200..219 Internal program 6
220..239 Internal program 7
240..255 Internal Sound program 1
1622
46
47
48
49
50
37
38
39
40
41
42
43
44
45
35
36

3.TECHNICAL INFORMATION
03
SPECIF ICATIONS:
> LED Quantities:7*30W 4-IN-1 RGBW L EDs, 50000 hours life span
> Input Voltage:AC90-260V 50/60Hz
> Control Signal:DMX512 master-slave and sound activated or auto operation
> Control Channel: 50/22/16 DMX channels USITT DMX-512
> Power Consumption: 240W
> Dimension:287(D)*194(W)*333(H)mm
> Packing Dimension:380(D)*280(W)*420(H)mm
> Net Weight: 6.0kgs
> Gross Weight: 8.8kgs
Features
> Low power consumption
> Pixel each LED controllable individually
> 8/16 bit smooth and precise resolution for PAN/TILT movement
> Scan position memory auto reposition after unexpected movement
> 6-60°Smooth electronic linear zoom
> Built-in running programs
> 0-100% Linear LED dimmer
> 1.8' TFT LCD display
> 1-25T/sec high speed LED shutter/strobe effect with variable speed
> Preset variable/random strobe and dimming pulse effect
> DMX recorder and edit function integrated
> High resolution graphic LCD display
> POWERC ON connector IN
> 3-Pin XLR connectors IN/OUT
> Constant temperature readout and management function
> -35°C ~ 45°C max ambient temperature
> IP20 protection rating
ULTRA WASH ZOOM
12
ULTRA WASH ZOOM
152..159 static scene20
160..167 static scene21
168..175 static scene22
176..183 static scene23
184..191 static scene24
192..199 static scene25
200..207 static scene26
208..215 static scene27
216..223 static scene28
224..231 static scene29
232..239 static scene30
240..247 static scene31
248..255 static scene32
000..023 No function
024..137 Forward speed from zero speed to fast speed
138..141 Stop movement
142..255 Reverse speed from zero speed to fast speed
Red in Pixel 1
0..255 Red in pixel 1 saturation control (0-100%)
Green in Pixel 1
0..255 Green in pixel 1 saturation control (0-100%)
Blue in Pixel 1
0..255 Blue in pixel 1 saturation control(0-100%)
White in pixel 1
0..255 White in pixel 1 saturation control(0-100%)
Red in pixel 2
0..255 Red in pixel 2 saturation control(0-100%)
Green in pixel 2
0..255 Green in pixel 2 saturation control(0-100%)
Blue in pixel 2
0..255 Blue in pixel 2 saturation control(0-100%)
White in pixel 2
0..255 White in pixel 2 saturation control(0-100%)
Red in Pixel 3
0..255 Red in pixel 3 saturation control (0-100%)
Green in pixel 3
0..255 Green in pixel 3 saturation control(0-100%
Blue in pixel 3
0..255 Blue in pixel 3 saturation control(0-100%)
White in pixel 3
0..255 White in pixel 3 saturation control(0-100%)
Red in Pixel 4
0..255 Red in pixel 4 saturation control (0-100%)
2121
28
29
30
31
32
33
34
22
23
24
25
26
27
Dynamic Patterns
(If channel Patterns is in the interval 032 – 255)

04
4.PHOTOMETRICS DIAGRAM
5.OPERATION INSTRUCTIONS
●
●
●
●
●
●
●
●
●
●
●
●
●
The ULTRA WASH ZOOM is for beam&wash effect for on-site decoration purpose.
Don’t turn on the fixture if it’s been through severe temperature difference like after transportation
because it might damage the light due to the environment changes. So make sure to operate the fixture
until it is in normal temperature.
This light should be keep away from strong shaking during any transportation or movement.
Don’t pull up the light by only the head, or it might cause damages to the mechanical parts.
Don’t expose the fixture in overheat, moisture or environment with too much dust when installing it. And
don’t lay any power cables on the floor. Or it might cause electronic shock to the people.
Make sure the installation place is in good safety condition before installing the fixture.
Make sure to put the safety chain and check whether the screws are screwed properly when installing
the fixture.
Make sure the lens are in good condition.It’s recommended to replace the units if there are any damages
or severe scratch.
Make sure the fixture is operated by qualified personnel who knows the fixture before using.
Keep the original packages if any second shipment is needed.
Don’t try to change the fixtures without any instruction by the manufacturer or the appointed repairing
agencies.
It is not in warranty range if there are any malfunctions from not following the user manual to operate or
any illegal operation, like shock short circuit, electronic shock , lamp broke, etc.
ULTRA WASH ZOOM
1m 3m 5m 7m
Distance
6° (LUX)
6°
20460
31592
56287
49115
146795
4733
5909
6499
10231
30305
1807
2439
4240
3966
8880
1014
1359
2260
2187
6086
R
G
B
W
RGBW
60°
60° (LUX)
1434
2641
4259
4408
12320
205
338
619
624
1943
105
138
247
228
739
47
64
107
110
272
R
G
B
W
RGBW
ULTRA WASH ZOOM
11
Patterns
000..015 No function
016..031 Static patterns
032..043 Dynamic Scene1
44.055 Dynamic Scene2
056..067 Dynamic Scene3
068..079 Dynamic Scene4
080..091 Dynamic Scene5
092..103 Dynamic Scene6
104..115 Dynamic Scene7
116..127 Dynamic Scene8
128..139 Dynamic Scene9
140..151 Dynamic Scene10
152..163 Dynamic Scene11
164..175 Dynamic Scene12
176..187 Dynamic Scene13
188..199 Dynamic Scene14
200..211 Dynamic Scene15
212..223 Dynamic Scene16
224..235 Dynamic Scene17
236..247 Dynamic Scene18
248..255 Dynamic Scene19
Static patterns or patterns speed
000..007 static scene1
008..015 static scene2
016..023 static scene3
024..031 static scene4
032..039 static scene5
040..047 static scene6
048..055 static scene7
056..063 static scene8
064..071 static scene9
072..079 static scene10
080..087 static scene11
088..095 static scene12
096..103 static scene13
104..111 static scene14
112..119 static scene15
120..127 static scene16
128..135 static scene17
136..143 static scene18
144..151 static scene19
21 21
2020
Static Patterns
(If channel Patterns is in the interval 016 – 031)

05
6.INSTALLATIONS
Cautions:
For added protection mount the fixtures in areas
outside walking paths, seating areas, or in areas were
the fixture might be reached by unauthorized
personnel.
Before mounting the fixture to any surface, make sure
that the installation area can hold a minimum point
load of 10 times the device’s weight.
Fixture installation must always be secured with a
secondary safety attachment, such as an appropriate
safety cable.
Never stand directly below the device when mounting,
removing, or servicing the fixture.
from a ceiling, or set on a flat level surface (see
illustration below). Be sure this fixture is kept at least
0.5m (1.5 f t) away from any flammable materials
(decoration etc.).
Always use and install the supplied safety cable as a
safety measure to prevent accidental damage and/or
injury in the event the clamp fails.
Mounting points:
Overhead mounting requires extensive experience,
including amongst others calculating working load
limits, a fine knowledge of the installation material
being used, and periodic safety inspection of all
installation material and the fixture. If you lack these
qualifications, do not attempt the installation yourself.
Improper installation can result in bodily injury.
Be sure to complete all rigging and installation
procedures before connecting the main power cord to
the appropriate wall outlet.
Clamp Mounting:
ULTRA WASH ZOOM provides a unique mounting
bracket assembly that integrates the bottom of the base,
and the safety cable rigging point in one unit
(see the illustration below). When mounting this
fixture to truss be sure to secure an appropriately
rated clamp to the included omega bracket using a
M10 screw fitted through the center hole of the
“Hanging Kit”. As an added safety measure be sure to
attached at least one properly rated safety cable to
the fixture using on of the safety cable rigging point
integrated in the base assembly .
INSTALLATION DIAGRAM
1/4 Turn
Hanging Kit
Satety Clamp
1/4 Turn
Safety Cable
ULTRA WASH ZOOM
10
ULTRA WASH ZOOM
154..167 Red+Blue+White
168..181 Red+Green+White
182..195 Red+Blue+Green+White
196..202 2700K
203..209 3200K
210..216 3500K
217..223 5000K
224..230 5500K
231..237 6000K
238..244 6500K
245..251 7000K
252..255 8000K
Foreground dimmer
000..255 Foreground dimmer 0 – 100%.
Background color for patterns
0..0 No Function
1..13 Red
14..27 Green
28..41 Blue
42..55 White
56..69 Red+White
70..83 Green+White
84..97 Blue+White
98..111 Green+Blue
112..125 Red+Blue
126..139 Red+Green
140..153 Green+Blue+White
154..167 Red+Blue+White
168..181 Red+Green+White
182..195 Red+Blue+Green+White
196..202 2700K
203..209 3200K
210..216 3500K
217..223 5000K
224..230 5500K
231..237 6000K
238..244 6500K
245..251 7000K
252..255 8000K
Background dimmer
000..255 Background dimmer 0 – 100%.
16 16
17
18
1919
17
18

06
7.CONTROL CONNECTION
DMX IN
POWER IN
DMX IN
DMX OUT
POWER IN Fuse
Power Switch
ULTRA WASH ZOOM
ULTRA WASH ZOOM
09
84..97 Blue+White
98..111 Green+Blue
112..125 Red+Blue
126..139 Red+Green
140..153 Green+Blue+White
154..167 Red+Blue+White
168..181 Red+Green+White
182..195 Red+Blue+Green+White
196..202 2700K
203..209 3200K
210..216 3500K
217..223 5000K
224..230 5500K
231..237 6000K
238..244 6500K
245..251 7000K
252..255 8000K
Color Temp
0..15 No Function
16..45 Below 3200K
46..75 3200K - 3500K
76..105 3500K - 5000K
106..135 5000K - 5500K
136..165 5500K - 6000K
166..195 6000K - 6500K
196..225 6500K - 7000K
226..255 7000K - 8000K
Visual Tungsten Lamp
0..15 No Function
16..255 Tungsten lamp effect is gradually enhanced
Foreground color for patterns
0..0 No Function
1..13 Red
14..27 Green
28..41 Blue
42..55 White
56..69 Red+White
70..83 Green+White
84..97 Blue+White
98..111 Green+Blue
112..125 Red+Blue
126..139 Red+Green
140..153 Green+Blue+White
13 13 13
16 16
14
15
14
15
14
15

07
8.MENU OPERATIONS
LCD DISPLAY
MENU
UP
DOWN
ENTER
Dmx Address
Channel Mode
Auto Run
Music Control
Reset Default
Signal Set
Reset
Channel
Calibration
A001~AXXX
Ch22
Ch16
Internal Program1~9
Master/Alone
Internal Program1~9
Master/Alone
Yes/No
Reverse Pan (On/Off)
Reverse Tilt (On/Off)
Select Pan 540°/360°/630°
Select Tilt 270°/90°/180°
Mic SEN 0~99%
OFF Signal Mode (On/Off)
Total Reset
Scan Reset
Zoom Reset
PAN=XXX……
PAN=XXX……
(Manual)
MANU
Advanced
DMX address setting
22 Channel mode
Auto run
Sound Control
Reset Default
Reverse Pan
Reverse Tilt
Pan Degree,default is 540°
Tilt Degree,default is 270°
MIC Sensitivity Setting
Total Reset
Scan Reset
Zoom Reset
Channel Control
Calibration
MENU Description
(Access Code 088)
O F F at original status and
ON at reset status when no
DMX signal
DMX
( Function Mode
)
Wire
Wireless
WDMX&Out
Wire
Wireless
WDMX&Out
SET
(Fixture Set)
Mic sensitivity
OFF Signal Mode
ADV
ULTRA WASH ZOOM
08
9.DMX PROTOCOL
ULTRA WASH ZOOM
Value Function
50 22 16
Pan
0..255 PAN Movement
Pan-fine
0..255 Fine control of Pan movement
Tilt
0..255 Tilt Movement
Tile-fine
0..255 Fine control of Tilt movement
Speed pan/tile
0..225 max to min speed
226..235 blackout by movement
236..255 no function
Dimmer
0..255 Dimmer 0%...100%
Shutter
0..31 Shutter closed
32..63 shutter open
64..95 Strobe effect slow to fast
96..127 shutter open
128..159 Pulse-effect in sequences slow to fast
160..191 shutter open
192..223 Random strobe effect slow to fast
224..255 shutter open
Red
0..255 0-100% Red dimmer from dark to bright
Green
0..255 0-100% Green dimmer from dark to bright
Blue
0..255 0-100% Blue dimmer from dark to bright
White
0..255 0-100% White dimmer from dark to bright
Zoom
0..255 In(near) to out(far)
Virtual color
0..0 No Function
1..13 Red
14..27 Green
28..41 Blue
42..55 White
56..69 Red+White
70..83 Green+White
13 13 13
1
2
3
4
5
6
7
8
9
10
11
12
1
2
3
4
5
6
7
8
9
10
11
12
Mode/Channel
1
2
3
4
5
6
7
8
9
10
11
12
Ch50
16 Channel mode
50 Channel mode
