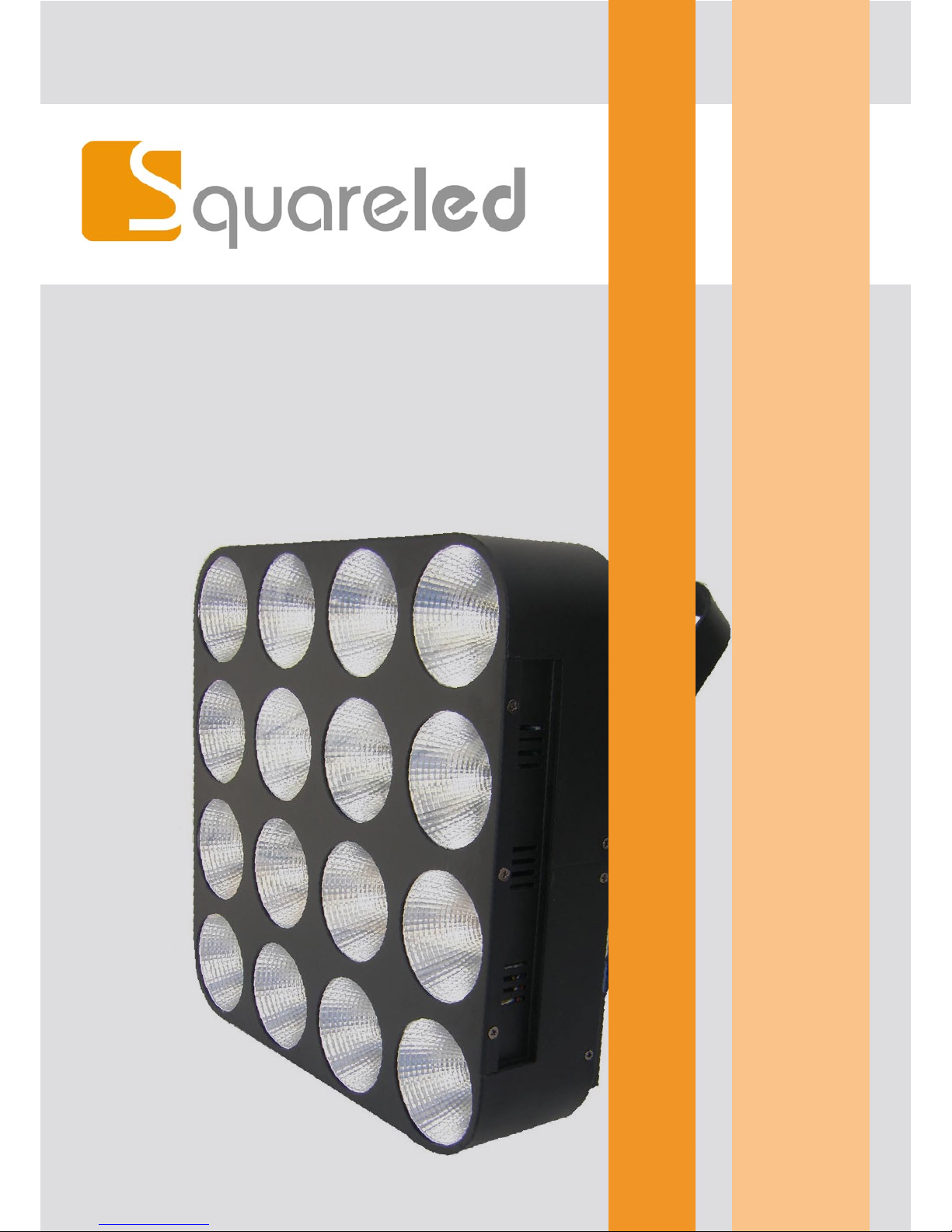

Squareled LED MATRIX 16X30W COB BLINDER User manual

SquareLED LED MATRIX 16X30W COB BLINDER

Manual | SquareLED LED MATRIX 16X30W COB BLINDER
1. Introduction
When you get this product, please take it from carton carefully to make sure whether all the accessories are in
and damaged or not. When you nd that there are any parts or wrong sign with the carton, or non-operation,
please inform us and to keep the carton and shipping bill completely.
Please check the manual book before you operate the light. The rating current of the light listed which shows
the average current-consume under the normal circumstances.
All the lights must be oered shoot-through circuit, it could not be connected dimmer circuit, although the
dimmer channels are completely for 1-100% switch.
Warning! Conrm the voltage to select switch which can be matched the circuit with the light. If it is
dierent from the supply power and light, it will damage the light! All the light must be connected the
earth, not all the lights have the switch to be selected. Please connect the correct voltage!
Packing List
LED Matrix Light
Power cable
User manual
2. Safety Instructions
Please read these instructions carefully, it includes important information about the light’s installati-
on, usage and maintenance of this product.
Please conrm the same voltage to the light. The light could not be water-proof, it only allow to be used in
door. Don’t expand the light in wet or rain day, to avoid re or damaged light.
Please conrm there is no ammable material around the light.
The light must be set up the ventilating place. The distance is = 51 cm around approach material. To check the
air passage is OK at any time. The Maximum temperature is = 40 °C. (104 °F).
When the lights has problems, please stop to use to contact the supplier. Don’t repair it by yourself!
Don‘t connect by a dimmer. To conrm the power wire is straight and non-damaged. Don‘t pull it directly.
Don‘t look at the bulb when the light is working to avoid any hurt.
»
»
»

Manual | SquareLED LED MATRIX 16X30W COB BLINDER
3. Features
96/48/24/6 DMX channels.
RGB 3-in-1 COB LED light source
life long is 50000-10000 hours.
Variable electronic dimmer(0-100%).
Control mode: Auto,sound, DMX512 mode
Cool: temperature protector
4. DMX Channel
DMX Channel (96/48CH)
Channel 96CH 48CH
1 Dimmer Red (1)
2 Switching the LEDs/Strobe Green (1)
3 Mix color Blue (1)
4 Auto mix color Red (2)
5 Color change Green (2)
6 Red color fade Blue (2)
7 Green color fade Red (3)
8 Blue color fade Green (3)
9 Red + green color fade Blue (3)
10 Red + blue color fade Red (4)
11 Green + blue color fade Green (4)
12 Sound control Blue (4)
13 Red (1, 2, 3, 4) Red (5)
14 Green (1, 2, 3, 4) Green (5)
15 Blue (1, 2, 3, 4) Blue (5)
16 Red (5, 6, 7, 8) Red (6)
17 Green (5, 6, 7, 8) Green (6)
18 Blue (5, 6, 7, 8) Blue (6)
19 Red (9, 10, 11, 12) Red (7)
20 Green (9, 10, 11, 12) Green (7)
21 Blue (9, 10, 11, 12) Blue (7)
»
»
»
»
»
»

Manual | SquareLED LED MATRIX 16X30W COB BLINDER
22 Red (13, 14, 15, 16) Red (8)
23 Green (13, 14, 15, 16) Green (8)
24 Blue (13, 14, 15, 16) Blue (8)
25 Red (1, 5, 9, 13) Red (9)
26 Green (1, 5, 9, 13) Green (9)
27 Blue (1, 5, 9, 13) Blue (9)
28 Red (2, 6, 10, 14) Red (10)
29 Green (2, 6, 10, 14) Green (10)
30 Blue (2, 6, 10, 14) Blue (10)
31 Red (3, 7, 11, 15) Red (11)
32 Green (3, 7, 11, 15) Green (11)
33 Blue (3, 7, 11, 15) Blue (11)
34 Red (4, 8, 12, 16) Red (12)
35 Green (4, 8, 12, 16) Green (12)
36 Blue (4, 8, 12, 16) Blue (12)
37 Red (1, 2, 5, 6) Red (13)
38 Green (1, 2, 5, 6) Green (13)
39 Blue (1, 2, 5, 6) Blue (13)
40 Red (9, 10, 13, 14) Red (14)
41 Green (9, 10, 13, 14) Green (14)
42 Blue (9, 10, 13, 14) Blue (14)
43 Red (11, 12, 15, 16) Red (15)
44 Green (11, 12, 15, 16) Green (15)
45 Blue (11, 12, 15, 16) Blue (15)
46 Red (3, 4, 7, 8) Red (16)
47 Green (3, 4, 7, 8) Green (16)
48 Blue (3, 4, 7, 8) Blue (16)
49 Red (1)
50 Green (1)
51 Blue (1)
52 Red (2)
53 Green (2)
54 Blue (2)
55 Red (3)
56 Green (3)
57 Blue (3)

Manual | SquareLED LED MATRIX 16X30W COB BLINDER
58 Red (4)
59 Green (4)
60 Blue (4)
61 Red (5)
62 Green (5)
63 Blue (5)
64 Red (6)
65 Green (6)
66 Blue (6)
67 Red (7)
68 Green (7)
69 Blue (7)
70 Red (8)
71 Green (8)
72 Blue (8)
73 Red (9)
74 Green (9)
75 Blue (9)
76 Red (10)
77 Green (10)
78 Blue (10)
79 Red (11)
80 Green (11)
81 Blue (11)
82 Red (12)
83 Green (12)
84 Blue (12)
85 Red (13)
86 Green (13)
87 Blue (13)
88 Red (14)
89 Green (14)
90 Blue (14)
91 Red (15)
92 Green (15)
93 Blue (15)

Manual | SquareLED LED MATRIX 16X30W COB BLINDER
94 Red (16)
95 Green (16)
96 Blue (16)
DMX Channel (24/6CH)
Channel 24CH 6CH
1 Red (1, 2, 3, 4) Red (1)
2 Green (1, 2, 3, 4) Green (1)
3 Blue (1, 2, 3, 4) Blue (1)
4 Red (5, 6, 7, 8) Red (2)
5 Green (5, 6, 7, 8) Green (2)
6 Blue (5, 6, 7, 8) Blue (2)
7 Red (9, 10, 11, 12) Red (3)
8 Green (9, 10, 11, 12) Green (3)
9 Blue (9, 10, 11, 12) Blue (3)
10 Red (13, 14, 15, 16) Red (4)
11 Green (13, 14, 15, 16) Green (4)
12 Blue (13, 14, 15, 16) Blue (4)
13 Red (1, 5, 9, 13) Red (5)
14 Green (1, 5, 9, 13) Green (5)
15 Blue (1, 5, 9, 13) Blue (5)
16 Red (2, 6, 10, 14) Red (6)
17 Green (2, 6, 10, 14) Green (6)
18 Blue (2, 6, 10, 14) Blue (6)
19 Red (3, 7, 11, 15) Red (7)
20 Green (3, 7, 11, 15) Green (7)
21 Blue (3, 7, 11, 15) Blue (7)
22 Red (4, 8, 12, 16) Red (8)
23 Green (4, 8, 12 ,16) Green (8)
24 Blue (4, 8, 12, 16) Blue (8)
When the channel is opening, please conrm the chanel 1st is phase-in.

Manual | SquareLED LED MATRIX 16X30W COB BLINDER
5. Setup
Fixture linking
When you control the light‘s master/slave or DMX 512 signal agreement, the lights can be connected by signal
wire which the distance is = 500 m,The maximum connect lights are 32pcs more or less, and adapt DMX light
pair to segregate the signal zoom equipment, in order to protect the light’s signal won’t be interrupted by
other signal. Moreover, it won’t aect by the signal wire’s length
Data connect
Data cable is connected by DMX data wire, and XLR. Please use hi-quality data cable signal wire, it won’t be
interrupted by magnetic.
Characteristics of DMX data cable
2 conductors’ double tree lace and shield.
The maximum capacitance of the conductors-30 pF/ft.
The maximum capacitance of the conductor and shield -55 pF/ft.
The maximum resistance is 20 ohms/1000ft.
The nominal impedance 100-140 ohms.
DMX opt coupler segregate signal zoom equipment’s 3 pin(5 pin) XLR plug.
Setting up a DMX signal connect
As following pictures show, please connect the rst light to the signal cable which is with XLR by DMX
controller, then, connect light in series.
The light must be set up the ventilating place. To conrm there is nothing to hinder the heat dissipation place.
When the light is hanged, please choose a safety wire.
»
»
»
»
»
»

Manual | SquareLED LED MATRIX 16X30W COB BLINDER
6. Operating instructions
Menu congure

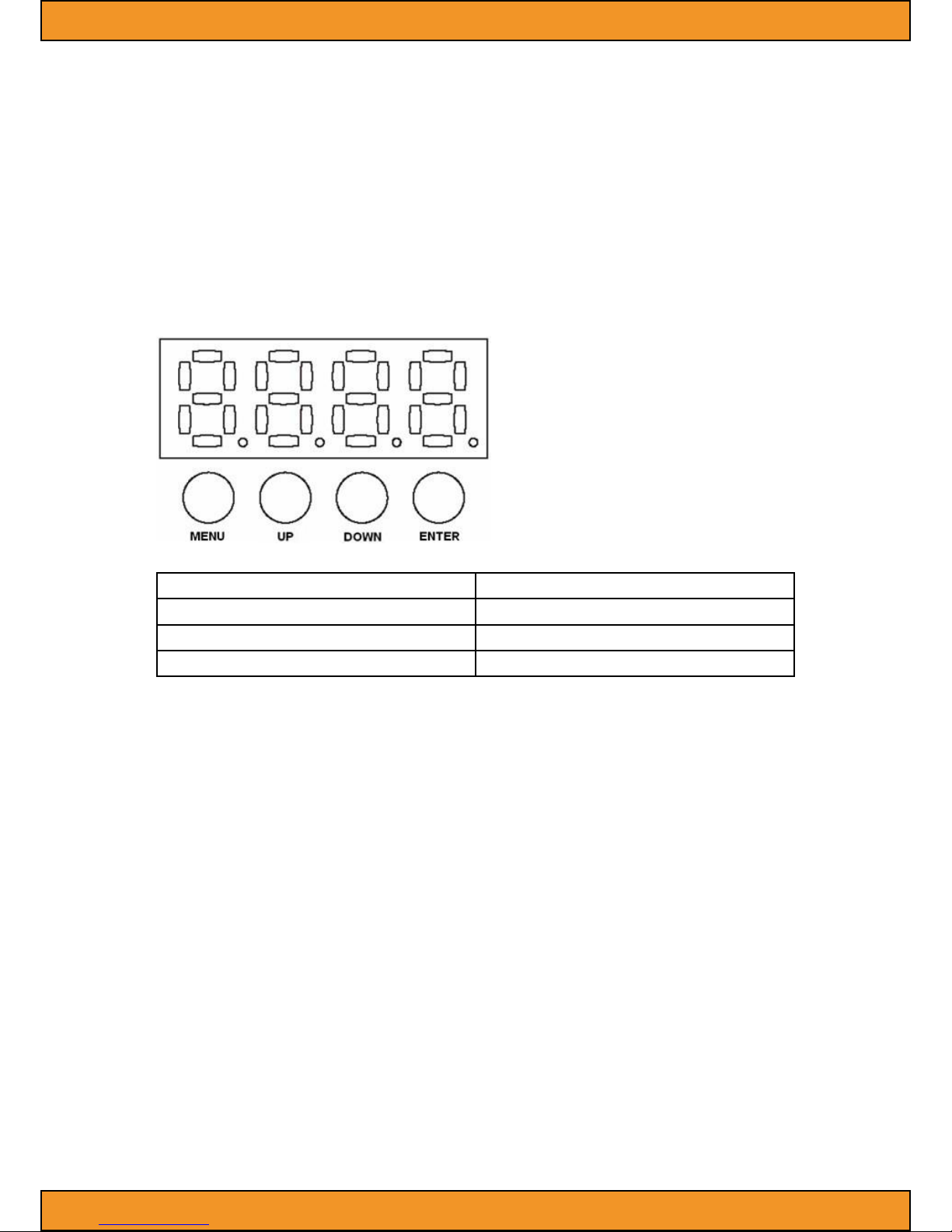

There are 4 buttons located in the bottom of the LED digital display when you check the menu congure of the
bottom of light. Show as follow:
Button Funktion
<Enter> Each operation to be conrmed
<Up>-<Down> Up-Down
<Menu> Menu option
Please choose ”ENTER” return to the main menu to save the address code or mode after you set up.
When the light is lighting, the display of the address code or mode is same as the last time when you
operated.

Manual | SquareLED LED MATRIX 16X30W COB BLINDER
Menu function map
Menu Strobe Control
Dimmer Control
DMX512 Control
Sound Control
Perform Control
Channel Number Set
Factory Set
Red Dimmer Value: 000-010
Strobe Speed: 001-010
Blue Dimmer Value: 000-010
Green Dimmer Value: 000-010
Red Dimmer Value: 000-010
Address Control
Green Dimmer Value: 000-010
Blue Dimmer Value: 000-010
Sensitive Value: 001-010
Perform Speed: 001-010
Channel Number: 09/048/024/006
Factory Value: 000-001
User congurations
Set-up 1pcs light‘s menu mode (Auto-running)
Press the MENU, such as the grafic shows the menu function
Use the UP/DOWN buttons to choose the right one to confirm.
To set Master-slave mode
Press the MENU, same as the grafic showsthe menu function
Master: set any one of lights to auto sound or strobe control mode
Slave: Set them to DMX mode and their address code to 1.
Each master-slave group can be one and only light in master, ensure lights under this group without connec-
tion with any DMX controller.
»
»
»
»
»

Manual | SquareLED LED MATRIX 16X30W COB BLINDER
To set DMX mode
The light can connect to the DMX controller to receive its signal indication, which control by DMX controller.
DMX value is referenced by „DMX Channel Values“
DMX channel values
DMX Channel (96CH)
Channel Value Function
1 0-255 Dimmer
0-100%
2
0-10
11-30
31-200
201-250
251-255
Switching the LEDs/Strobe
LED OFF
Neutral
Strobe with increase speed
Random Strobe with increase speed
Neutral
3
0-2
2-41
42-83
84-125
126-167
168-209
210-251
252-255
Mix color
No function
Red: 100%, Blue: 0, Green: 0-100%
Red: 100%-0, Blue: 0, Green: 100%
Red: 0, Blue: 0-100%, Green: 100%
Red: 0, Blue: 100%, Green: 100%-0
Red: 0, Blue: 0-100%, Green: 0
Red: 100%, Blue: 100%, Green: 0-100%
Red: 100%, Blue: 100%, Green: 100%
4
0-2
3-255
Auto Mix Color
No function
From slow to fast
5
0-2
3-255
Color Chance
No function
Color change with increasing speed
6
0-2
3-255
Red Color Fade
No function
Color fade with increasing speed
7
0-2
3-255
Green Color Fade
No function
Color fade with increasing speed

Manual | SquareLED LED MATRIX 16X30W COB BLINDER
8
0-2
3-255
Blue Color Fade
No function
Color fade with increasing speed
9
0-2
3-255
Red + Green Color Fade
No function
Color fade with increasing speed
10
0-2
3-255
Red + Blue Color Fade
No function
Color fade with increasing speed
11
0-2
255
Green + Blue Color Fade
No function
Color fade with increasing speed
12
0-255
Sound Control
No function
Sound control
13
0-255
Red (1, 2, 3, 4)
0-100%
14
0-255
Green (1, 2, 3, 4)
0-100%
15
0-255
Blue (1, 2, 3, 4)
0-100%
16
0-255
Red (5, 6, 7, 8)
0-100%
17
0-255
Green (5, 6, 7, 8)
0-100%
18
0-255
Blue (5, 6, 7, 8)
0-100%
19
0-255
Red (9, 10, 11, 12)
0-100%
20
0-255
Green (9, 10, 11, 12)
0-100%
21
0-255
Blue (9, 10, 11, 12)
0-100%
22
0-255
Red (13, 14, 15, 16)
0-100%
23
0-255
Green (13, 14, 15, 16)
0-100%
24
0-255
Blue (13, 14, 15, 16)
0-100%

Manual | SquareLED LED MATRIX 16X30W COB BLINDER
25
0-255
Red (1, 5, 9, 13)
0-100%
26
0-255
Green (1, 5, 9, 13)
0-100%
27
0-255
Blue (1, 5, 9, 13)
0-100%
28
0-255
Red (2, 6, 10, 14)
0-100%
29
0-255
Green (2, 6, 10, 14)
0-100%
30
0-255
Blue (2, 6, 10, 14)
0-100%
31
0-255
Red (3, 7, 11, 15)
0-100%
32
0-255
Green (3, 7, 11, 15)
0-100%
33
0-255
Blue (3, 7, 11, 15)
0-100%
34
0-255
Red (4, 8, 12, 16)
0-100%
35
0-255
Green (4, 8, 12, 16)
0-100%
36
0-255
Blue (4, 8, 12, 16)
0-100%
37
0-255
Red (1, 2, 5, 6)
0-100%
38
0-255
Green (1, 2, 5, 6)
0-100%
39
0-255
Blue (1, 2, 3, 5)
0-100%
40
0-255
Red (9, 10, 13, 14)
0-100%
41
0-255
Green (9, 10, 13, 14)
0-100%
42
0-255
Blue (9, 10, 13, 15)
0-100%
43
0-255
Red (11, 12, 15, 16)
0-100%
44
0-255
Green (11, 12, 15, 16)
0-100%

Manual | SquareLED LED MATRIX 16X30W COB BLINDER
45
0-255
Blue (11, 12, 15, 16)
0-100%
46
0-255
Red (3, 4, 7, 8)
0-100%
47
0-255
Green (3, 4, 7, 8)
0-100%
48
0-255
Blue (3, 4, 7, 8)
0-100%
49
0-255
Red (1)
0-100%
50
0-255
Green (1)
0-100%
51
0-255
Blue (1)
0-100%
52
0-255
Red (2)
0-100%
53
0-255
Green (2)
0-100%
54
0-255
Blue (2)
0-100%
55
0-255
Red (3)
0-100%
56
0-255
Green (3)
0-100%
57
0-255
Blue (3)
0-100%
58
0-255
Red (4)
0-100%
59
0-255
Green (4)
0-100%
60
0-255
Blue (4)
0-100%
61
0-255
Red (5)
0-100%
62
0-255
Green (5)
0-100%
63
0-255
Blue (5)
0-100%
64
0-255
Red (6)
0-100%

Manual | SquareLED LED MATRIX 16X30W COB BLINDER
65
0-255
Green (6)
0-100%
66
0-255
Blue (6)
0-100%
67
0-255
Red (7)
0-100%
68
0-255
Green (7)
0-100%
69
0-255
Blue (7)
0-100%
70
0-255
Red (8)
0-100%
71
0-255
Green (8)
0-100%
72
0-255
Blue (8)
0-100%
73
0-255
Red (9)
0-100%
74
0-255
Green (9)
0-100%
75
0-255
Blue (9)
0-100%
76
0-255
Red (10)
0-100%
77
0-255
Green (10)
0-100%
78
0-255
Blue (10)
0-100%
79
0-255
Red (11)
0-100%
80
0-255
Green (11)
0-100%
81
0-255
Blue (11)
0-100%
82
0-255
Red (12)
0-100%
83
0-255
Green (12)
0-100%
84
0-255
Blue (12)
0-100%

Manual | SquareLED LED MATRIX 16X30W COB BLINDER
85
0-255
Red (13)
0-100%
86
0-255
Green (13)
0-100%
87
0-255
Blue (13)
0-100%
88
0-255
Red (14)
0-100%
89
0-255
Green (14)
0-100%
90
0-255
Blue (14)
0-100%
91
0-255
Red (15)
0-100%
92
0-255
Green (15)
0-100%
93
0-255
Blue (15)
0-100%
94
0-255
Red (16)
0-100%
95
0-255
Green (16)
0-100%
96
0-255
Blue (16)
0-100%
DMX Channel (48CH)
Channel Value Function
1
0-255
Red (1)
0-100%
2
0-255
Green (1)
0-100%
3
0-255
Blue (1)
0-100%
4
0-255
Red (2)
0-100%
5
0-255
Green (2)
0-100%

Manual | SquareLED LED MATRIX 16X30W COB BLINDER
6
0-255
Blue (2)
0-100%
7
0-255
Red (3)
0-100%
8
0-255
Green (3)
0-100%
9
0-255
Blue (3)
0-100%
10
0-255
Red (4)
0-100%
11
0-255
Green (4)
0-100%
12
0-255
Blue (4)
0-100%
13
0-255
Red (5)
0-100%
14
0-255
Green (5)
0-100%
15
0-255
Blue (5)
0-100%
16
0-255
Red (6)
0-100%
17
0-255
Green (6)
0-100%
18
0-255
Blue (6)
0-100%
19
0-255
Red (7)
0-100%
20
0-255
Green (7)
0-100%
21
0-255
Blue (7)
0-100%
22
0-255
Red (8)
0-100%
23
0-255
Green (8)
0-100%
24
0-255
Blue (8)
0-100%
25
0-255
Red (9)
0-100%

Manual | SquareLED LED MATRIX 16X30W COB BLINDER
26
0-255
Green (9)
0-100%
27
0-255
Blue (9)
0-100%
28
0-255
Red (10)
0-100%
29
0-255
Green (10)
0-100%
30
0-255
Blue (10)
0-100%
31
0-255
Red (11)
0-100%
32
0-255
Green (11)
0-100%
33
0-255
Blue (11)
0-100%
34
0-255
Red (12)
0-100%
35
0-255
Green (12)
0-100%
36
0-255
Blue (12)
0-100%
37
0-255
Red (13)
0-100%
38
0-255
Green (13)
0-100%
39
0-255
Blue (13)
0-100%
40
0-255
Red (14)
0-100%
41
0-255
Green (14)
0-100%
42
0-255
Blue (14)
0-100%
43
0-255
Red (15)
0-100%
44
0-255
Green (15)
0-100%

Manual | SquareLED LED MATRIX 16X30W COB BLINDER
45
0-255
Blue (15)
0-100%
46
0-255
Red (16)
0-100%
47
0-255
Green (16)
0-100%
48
0-255
Blue (16)
0-100%
DMX Channel (24CH)
Channel Value Function
1
0-255
Red (1, 2, 3, 4)
0-100%
2
0-255
Green (1, 2, 3, 4)
0-100%
3
0-255
Blue (1, 2, 3, 4)
0-100%
4
0-255
Red (5, 6, 7, 8)
0-100%
5
0-255
Green (5, 6, 7, 8)
0-100%
6
0-255
Blue (5, 6, 7, 8)
0-100%
7
0-255
Red (9, 10, 11, 12)
0-100%
8
0-255
Green (9, 10, 11, 12)
0-100%
9
0-255
Blue (9, 10, 11, 12)
0-100%
10
0-255
Red (13, 14, 15, 16)
0-100%
11
0-255
Green (13, 14, 15, 16)
0-100%
12
0-255
Blue (13, 14, 15, 16)
0-100%
13
0-255
Red (1, 5, 9, 13)
0-100%

Manual | SquareLED LED MATRIX 16X30W COB BLINDER
14
0-255
Green (1, 5, 9, 13)
0-100%
15
0-255
Blue (1, 5, 9, 13)
0-100%
16
0-255
Red (2, 6, 10, 14)
0-100%
17
0-255
Green (2, 6, 10, 14)
0-100%
18
0-255
Blue (2, 6, 10, 14)
0-100%
19
0-255
Red (3, 7, 11, 15)
0-100%
20
0-255
Green (3, 7, 11, 15)
0-100%
21
0-255
Blue (3, 7, 11, 15)
0-100%
22
0-255
Red (4, 8, 12, 16)
0-100%
23
0-255
Green (4, 8, 12, 16)
0-100%
24
0-255
Blue (4, 8, 12, 16)
0-100%
DMX Channel (6CH)
Channel Value Function
1
0-255
Dimmer
0-100%
2
0-10
11-30
31-200
201-250
251-255
Switching the LEDs/Strobe
LED OFF
Neutral
Strobe-eect with increasing speed
Random strobe with increasing speed
Neutral
3
0-255
Red
0-100%
4
0-255
Green
0-100%

Manual | SquareLED LED MATRIX 16X30W COB BLINDER
5
0-255
Blue
0-100%
6
0-127
128-255
Sound Control
No function
Sound control
LED rangement
4 8 12 16
3 7 11 15
2 6 10 14
1 5 9 13
5. Specications
Model number: SquareLED LED MATRIX 16X30W COB BLINDER WHITE
Input Voltage: AC100V - 240V 50 Hz/60Hz
Lamp resource: 16 pcs 30W RGB LED
Control model: Auto, sound, DMX512 signal
Max temperature: 104°F (40°C)
Outside size: 360x385x190 mm
N.W: 10 kg
