MegaLite Indi PAR RW300 User manual

USER MANUAL
Table of Contents
Safety Information…………………………………………………………..…………………….3
Specifications……………………………………………………………………………………...4
Main Power Connection………………………………………………………………………….5
DMX-512 Connection…………………………………………………………………...………..5
Main Control Menu..............................................................................................................6
DMX Profile.........................................................................................................................8
Rigging the Fixture………………………………………………………………………………..9
Cleaning & Maintenance.....................................................................................................9
Parts List.............................................................................................................................9

Check that the unit has not been damaged during transport
Protection Against Fire
1. Maintain a minimum of 1 foot distance from any type of flame.
3. Replace fuse only with the specified type and rating.
4. Do Not install the unit to close to a heat source.
5. Make sure cable are properly secured
6. Maximum surface operating temperature 140º.
Protection Against Electrical Shock
1. Disconnect power before servicing.
2. For connection to main power supply proceed to page 5.
3. This unit must be earthed. (electronically grounded)
4. This unit is IP 65 rated (do not submerge unit into water)
Protection Against Mechanical Hazards
1. Use safety chain when hanging unit.
2. Use quality clamps or bolts when positioning unit
3. Do not open unit while it is on, risk of electrical shock.
3

4
7300– Indi Par RW300

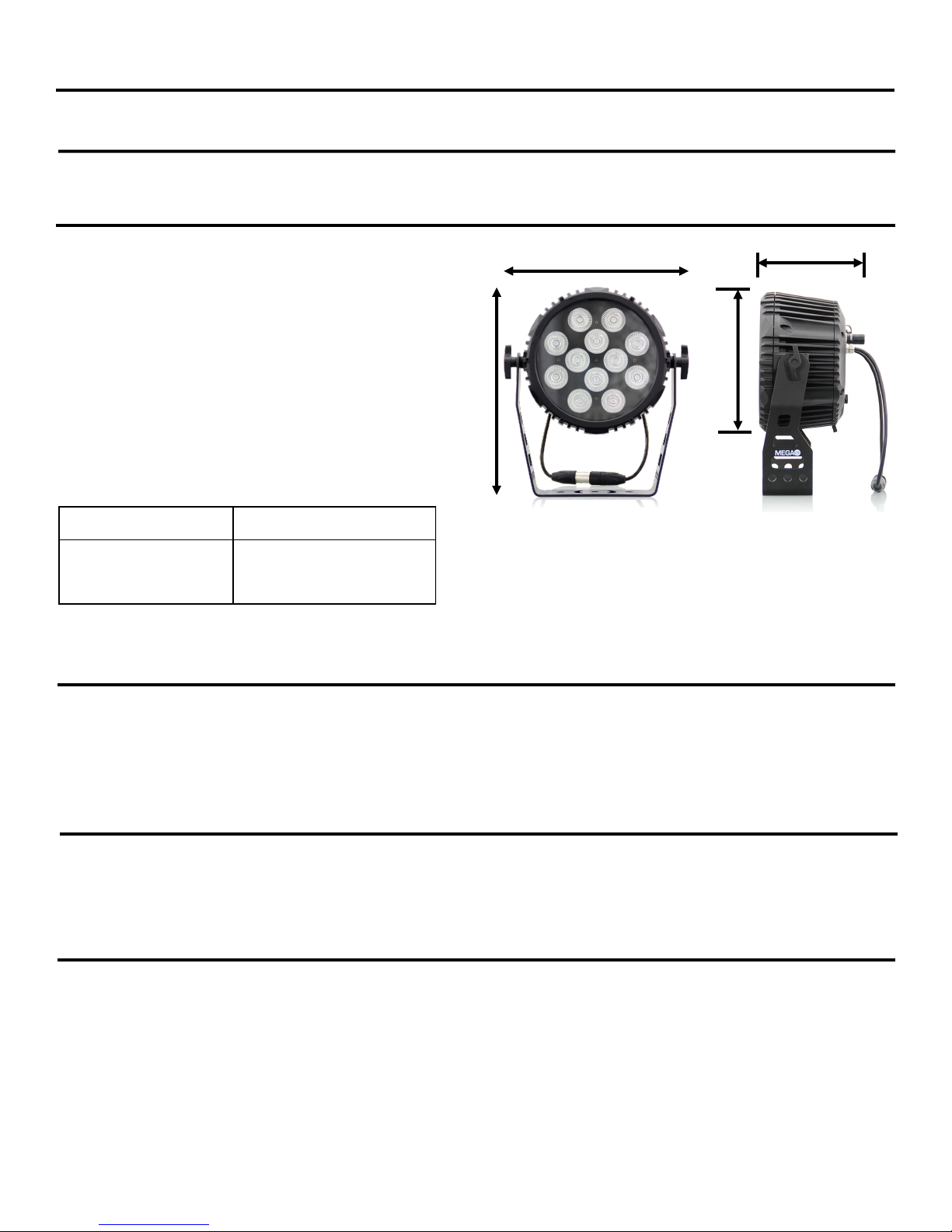

Mechanical Specifications
Fixture Packaging
Size: 13.12” x 11.85” x 5.75”
Weight: 7lb
Size: 13.5” x 11.25” x 7.5”
Weight: 8.75lb
Electrical Specifications
Protocol: DMX 512
DMX Modes: Mode 3 Channels R,G,B
Mode 4 Channels Dimmer, R,G,B
Mode 6 Channels Dimmer, R,G,B, Strobe, Macro
Control Options: Display preset setting, Master Slave Function
Control & Programming
DMX Connectors: Neutrik 3 pin XLR NC3FXX-HD-D and NC3MXX-HD-D
IP 67 connectors in and out
Power connection: Weather Sealed Neutrik True Power NAC3FX-W Connections
to Nema 5-15 adapter (included)
Weather Covers for unused connections (included)
Thermal: Maximum ambient temperature 104°
Maximum surface temperature 140°
Fastening System: Single Yoke
Display: Digital
Lens Angle: 15º
Ip Rating: IP65
LED Quantity: 12 Tri Color LED’s Red, Green, Blue
LED Watts: 3W
LED Lifetime: 40 to 80 thousand hours average
Refresh Rate: 6000 Hz
Part Numbers
12”
Technical Information
9.5”
7”
13.12”
Charging Cycles: 300
Battery Life at Full: 8Hr average
Battery Life Colors: 12Hr average
Battery Information
Power Input Voltage: 110V-240 50/60 Hz
Ballast: Electronic auto switching
Power Consumption: Watts: 57
Amps: .75
Wireless DMX: Wireless solutions built in receiver

5
Caution!
1. Do not connect fixture to a dimmer system.
2. This unit has Auto switching power supply. It will respond to 110V or 220V automatically
3. This unit must be earthed. (electronically grounded)
The occupation of the connection-cable is as follows:
This fixture is equipped with an electronic power supply that will let the unit operate from 100V to 240V from 50Hz to 60Hz
The fixture is equipped with Neutrik NC3FXX-HD and NC3MXX-HD IP 67 3 pin XLR Sockets for DMX input and output.
The sockets are wired in parallel. Only use a shielded twisted pair cable designed for RS-485 and 3 pin XLR plugs and
connectors in order to connect the controller with the fixture or the fixture with another.
Caution!
At the last fixture the DMX signal needs to be terminated with a terminator. Solder a 120 Ohm re-
sistor between the (-) and the (+) signal into a 3 pin XLR plug and plug it in to the last fixture on
the signal run. Pre-manufactured terminator plugs are available for
purchase from your Mega-Lite dealer (P-DMX-T).
Cable (USA) Cable (EU) Pin 110V
Black Brown
White
DMX-512 Connection
Green
Light Blue
Yellow/Green
Live
Neutral
Ground
L
N
220V
L
L
1
2
3
2
3
1
DMX—input DMX—output
1. Shield
2. Signal (-)
3. Signal (+)
LN
Main Power Connection

Display Menu
6
DMX
001
—Mega Lite—
Indi Par
To Set the DMX Start Channel press and hold the Mode Use the ▲ or ▼ to se-
lect the desired DMX Start Channel and press Mode to confirm your setting.
Chan Mod
3CH
To set the desired operational channel mode press and hold Mode Use the ▲ or
▼ to select the desired DMX profile operational mode from 3,4 or 6 and press
Enter to confirm your setting.
Note: Operational mode are located on Page 8 of the manual.
Dimmer
Mode
This function will give you access to the LED Dimming curves. Press and hold
Mode. Use the ▲ or ▼ to select the LED dimming operational curve from 0 that
will not have a dimming time to 3 that will have the longest dimming time, press
Mode to confirm your setting.
Auto
This function will give you access to the Preprogramed Chases Press and hold
Mode. Use the ▲ or ▼ to select the programed chase, press Mode to confirm
your setting. Use the ▲ or ▼ to select the desired speed of the Chase from 1 to
15 press Mode to confirm
Color
Set
This function will give you access to set a color via display. Press and hold Mode
Use the ▲ or ▼ to select the desired color. Press Mode use the ▲ or ▼ to se-
lect intensity from 0 to 255. You can repeat this process to get any color combi-
nation.
(Note) once color is set you can power up and the last color set will automatically
come on.
Red
000
Green
000
Blue
000
Battery This function will give you access to check on the percentage of battery power
available

7
Slave
On Slave Mode the fixture will copy the functions on the Master unit.
(note) must be connected via DMX cable
Wireless
Set To Set the Wireless DMX press and hold the Mode Use the ▲ or ▼ to select the
wireless DMX on or off.
Press the Function button from your Mega Air wireless transmitter.
Set the display on your fixture to the DMX screen and set the DMX start channel
to the desired channel.
(note) If fixture is not connecting try to unlink transmitter by pressing and holding
the function button on the transmitter until the connection button starts to flash.
Then press the function button quickly to reconnect.

8
Indi Par RW300 DMX Profile
3Ch
DMX Chanel Function Description Value
1LED Color Red LED intensity 0-255
2LED Color Green LED Intensity 0-255
3LED Color Blue LED Intensity 0-255
4Ch
DMX Chanel Function Description Value
1Dimmer Dimmer Off to Full 0-255
2LED Color Red LED intensity 0-255
2LED Color Green LED Intensity 0-255
3LED Color Blue LED Intensity 0-255
6Ch
DMX Chanel Function Description Value
1Dimmer Dimmer Off to Full 0-255
2LED Color Red LED intensity 0-255
3LED Color Green LED Intensity 0-255
4LED Color Blue LED Intensity 0-255
5Strobe Strobe (slow to fast) 0-196
Random Strobe (slow to fast) 197-255
No Function 0-1
Color fade (slow to fast) 2-19
Color Snap (slow to fast) 20-39
Random (slow to fast) 40-59
Yellow 60-79
Purple 80-99
6Macro Aqua 100-119
Orange 120-139
Red Pulse 140-159
green Pulse 160-179
Blue Pulse 180-199
Yellow Pulse 200-219
Aqua Pulse 220-229
White Pulse 230-249
White LED Full 250-255

9
Installation Maintenance: The operator has to make sure that the unit is operating safely and has the installa-
tions and electronics checked by an expert every year.
The following points have to be considered during the inspection:
1) All screws used for installing the device or part of the device have to be tightly connected and must not be corroded.
2) There must not be any deformations on the housing, fixation and installation spots (ceiling, suspension, trussing).
3) The electronic power supply cables must not show any damages, material fatigue (e.g. porous cables) or sediments.
Further instructions depending on the installation spot and usage have to be adhered by a skilled installer and any
safety problems have to be removed.
Note: There is no serviceable parts inside the device except for the LED’s. Maintenance and service operations are
to be carried out by authorized dealers.
Replacing the fuse: Only replace the fuse with the same type and rating.
Replacing the power cable: If the power cable of this device becomes damaged, it has to be replaced by author-
ized dealers or trained professional only.
Should you have further questions , please contact your dealer.
Parts List
7300-MPCB Main PCB card
7300-PS Power Supply
7300-DIS Display
7300-LEDMOD LED Module
7300-LED Replacement LED
Caution!
1. The installations must be carried out by an authorized dealer or trained professional.
2. Unit may cause severe injures if you have doubts concerning the safety do not install.
3. Unit is to be 24inches away from flammable materials (decoration material)
4. Use high quality installation equipment to hang unit.
When rigging a unit it is very important that you follow common safety procedures. Rigging requires extensive experi-
ence including but not limited to calculating working loads, material being used and periodic safety inspections. If you
lack these qualifications, do not attempt the installation yourself, instead use a professional structural rigger.
When rigging the unit always be secured with a secondary safety attachment. The installation location of the fixture has
got to be built in the way that it can hold 10 times the weight for 1 hour with out any harming. Installation should be
checked at least one time a year by a skilled person.
7300-FG Frontal Glass
7300-BAT Replacement Battery
Rigging the fixture
Cleaning and Maintenance
7220-KN Knob Set

Mega-Lite
18668 Hwy 16 N.,
Helotes, TX 78023
Ph 210-684-2600 Fax [phone]
www.mega-lite.com / [e-mail]
Warranty Information
Warranty Conditions
-Unless otherwise stated in writing, your product is covered by a one year parts and labor limited warranty.
-LEDs are not guaranteed to match in color temperature or output.
-It is the owner’s responsibility to furnish receipts or invoices for verification of purchase, date, and reseller or distributor.
If purchase date cannot be provided, date of manufacture will be used to determine warranty period.
-Goods returned under warranty must follow the proper authorization procedure and must be accompanied by a copy of
the original invoice and Return Authorization Number given by MSI.
-Goods repaired under warranty will be returned to the owner with the freight prepaid by MSI via the most economical
means of shipment.
-Repair or replacement as provided for under this warranty is the exclusive remedy of the consumer. MEGA SYSTEMS
INC. makes no warranties, express or implied, with respect to any product, and Mega Systems specifically disclaims any
warranty of merchantability or fitness for a particular purpose. Mega Systems shall not be liable for any indirect, inci-
dental or consequential damage, including lost profit, sustained or incurred in connection with any product or caused by
product defect or the partial or total failure of any product regardless of the form of action, weather in contract, tort
(including negligence), strict liability or otherwise, and weather or not such damage was foreseen or unforeseen.
-Warranty is void if the product is misused, damaged, modified in any way, or for unauthorized repairs or parts. This
warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
