MegaLite Axis User manual

USER MANUAL
Table of Contents
Safety Information……………………………………………………………………………………………. 3
Specifications……………………………………………………………………………………………………..4
Main Power Connection…………………………………………………………………………………..6
DMX-512 Connection…………………………………………………………………...……………...... 6
Rigging the Fixture…………………………………………………………………………………………….7
DMX Profile......................................................................................................................... 8
Main Control Menu........................................................................................................10
Cleaning & Maintenance.............................................................................................11
Parts List............................................................................................................................11

Check that the unit has not been damaged during transport
Protection Against Fire
1. Maintain a minimum of 1 foot distance from any type of flame.
3. Replace fuse only with the specified type and rating.
4. Do Not install the unit to close to a heat source.
5. Make sure cable are properly secured away from unit movement.
6. Maximum surface operating temperature 104º.
Protection Against Fire
1. Disconnect power before lamp replacement or servicing.
2. For connection to main power supply proceed to page 6.
3. This unit must be earthed. (electronically grounded)
4. Do not expose unit to rain or moisture.
Protection Against Mechanical Hazards
1. Use safety chain when hanging unit.
2. Use quality clamps or bolts when positioning unit
3. Do not open unit risk of electrical shock.
3

4
Specifications
Part Numbers
Fixture Lamp Flight Case
1060 - AXIS LED Spot LPHL - Phlatlight 60W P-1030DUALCASE
Mechanical Specifications
Fixture Packaged for Shipping
Size: 16.75”L x 16”W x 20.5”H
Weight: 39 lbs
Size: 20”L x 19.25”W x 22.5”H
Weight: 46 lbs
Pan: 530° Tilt: 280°
DMX Connectors: 3-pin XLR connectors
Thermal: Maximum ambient temperature 40° C
Maximum surface temperature 80° C
Fastening System: 2 clamp placement attachments
Electrical Specifications
Power supply: Auto Switch100V-240V 50/60 HZ
Power consumption: .93 amps
110 watts
Ballast: Electronic
LAMP: Phlatlight LED 60W
16 ” ( with handles ) 16 ”
8”
16.75 ”
5.25
15.25
17.5 ”
Focus: Motorized focus
Prism: 3-Facet prism rotating in both directions at different speeds
Dimmer: Electronic dimming of the lamp.
Shutter: Electronic strobe of lamp 9 flash per second
Electromechanical Effects
3”

5
Color
Gobo’s
DMX Channels
Channel Function Channel Function Channel Function
1 Pan 7 Static Gobo Wheel 13 Shutter / Strobe
2 Pan Fine 8 Rotating Gobo Wheel 14 Control
3 Tilt 9 Gobo Rotation
4 Tilt Fine 10 Prism / Prism Rotation
5 Pan/Tilt Speed 11 Focus
6 Control 12 Dimmer
1: Open
2: Red
3: Yellow
4: Purple
5: Green
6: Orange
7: Blue
8: Light Blue
9: Light Green
1: Open
2: Gobo 1
3: Gobo 2
4: Gobo 3
5: Gobo 4
6: Gobo 5
7: Gobo 6
8: Gobo 7
Dichroic Glass Gobo: Diameter 25 mm Image 20 mm Thickness 2 mm max
1: Open
2: Gobo 8
3: Gobo 9
4: Gobo 10
5: Gobo 11
6: Gobo 12
7: Gobo 13
8: Gobo 14
9: Gobo 15
10: Gobo 16
Rotating Gobo Wheel Static Gobo Wheel

6
Main Power Connection
Caution!
1. Do not connect fixture to a dimmer system.
2. This unit must be earthed. (electronically grounded)
3. Replace fuse only with the specified type and rating.
The occupation of the connection-cable is as follows:
1
2
3
1
3
2
DMX-512 Connection
This device is equipped with a auto switching power supply that will allow you to work from 100V-240V 50/60Hz
The fixture is equipped with 3 pin XLR Sockets for DMX input and output. The sockets are wired in parallel. Only use a shielded
twisted pair cable designed for RS-485 and 3 pin XLR plugs and connectors in order to connect the controller with the fixture or
the fixture with another.
DMX—input DMX—output
1. Shield
2. Signal (-)
3. Signal (+)
Caution!
At the last fixture the DMX signal needs to be terminated with a terminator. Solder a 120
Ohm resistor between the (-) and the (+) signal into a 3 pin XLR plug and plug it in to the
last fixture on the signal run. Pre-manufactured terminator plugs are available for
purchase from your Mega-Lite dealer (HOS-DMXT).
Cable (USA) Cable (EU) Pin 110V
Black Brown
White
Green
Light Blue
Yellow/Green
Live
Neutral
Ground
L
N
L
L
220V
L
L
N
110V
Connection
220V
Connection
N
L
N

7
Rigging the fixture
Caution!
1. The installations must be carried out by an authorized dealer or trained professional.
2. Unit may cause severe injures if you have doubts concerning the safety do not install.
3. Unit is to be 24inches away from flammable materials (decoration material)
4. Use high quality installation equipment to hang unit.
When rigging a unit it is very important that you follow common safety procedures. Rigging requires extensive experience includ-
ing but not limited to calculating working loads, material being used and periodic safety inspections. If you lack these qualifica-
tions, do not attempt the installation yourself, instead use a professional structural rigger.
When rigging the unit always be secured with a secondary safety attachment. The installation location of the projector has got to
be built in the way that it can hold 10 times the weight for 1 hour with out any harming. Installation should be checked at least
one time a year by a skilled person.

8
Axis LED Spot DMX Profile
DMX Channel Function Description Value
1 Pan Pan Course 0-255
2 Pan Fine Pan Fine 0-255
3 Tilt Tilt Course 0-255
4 Tilt Fine Tilt fine 0-255
Fast 0-84
5 Pan/Tilt Speed Mid 85-170
Slow 171-255
Open 0-16
Red 17-33
Yellow 34-50
UV Filter 51-67
Green 68-84
6 Colors Orange 85-101
Blue 102-118
Light Blue 119-135
Light Green 136-152
Forward Rainbow Effect (fast to slow) 161-255
Open 0-9
Gobo 1 10-19
Gobo 2 20-29
Gobo 3 30-39
Gobo 4 40-49
Gobo 5 50-59
Gobo 6 60-69
Gobo 7 70-79
Gobo 8 80-89
7 Static Gobo 9 90-99
Gobo Wheel Gobo 9 with variable gobo shaking 100-114
Gobo 8 with variable gobo shaking 115-129
Gobo 7 with variable gobo shaking 130-144
Gobo 6 with variable gobo shaking 145-159
Gobo 5 with variable gobo shaking 160-174
Gobo 4 with variable gobo shaking 175-189
Gobo 3 with variable gobo shaking 190-204
Gobo 2 with variable gobo shaking 205-219
Gobo 1 with variable gobo shaking 220-224
Gobo Wheel rotation slow to fast 225-255

Open 0-9
Gobo 1 10-19
Gobo 2 20-29
Gobo 3 30-39
Gobo 4 40-49
Gobo 5 50-59
Gobo 6 60-69
Gobo 7 70-79
8 Rotating Gobo 7 with variable gobo shaking 80-99
Gobo Gobo 6 with variable gobo shaking 100-119
Gobo 5 with variable gobo shaking 120-139
Gobo 4 with variable gobo shaking 140-159
Gobo 3 with variable gobo shaking 160-179
Gobo 2 with variable gobo shaking 180-199
Gobo 1 with variable gobo shaking 200-219
Gobo Wheel rotation slow to fast 220-255
No Function 0
Gobo indexing 1-40
9 Gobo Rotation Clockwise rotation (slow to fast) 41-158
Counter Clockwise rotation (slow to fast) 159-255
No Function 0
Engaged prism 1-4
10 Prism Rotation Clockworks rotation (fast to slow) 5-127
No Rotation 128-132
Counter Clockworks rotation (fast to slow) 133-255
11 Focus Focus 0-255
12 Dimmer Dimmer 0% to 100% 0-255
Close 0-31
Open 32-63
Strobe (slow to fast) 64-95
13 Shutter/ Open 96-127
Strobe Pulse strobe (slow to fast) 128-158
Open 159-191
Random Strobe (slow to fast) 192-223
Open 224-255
No Function 0-199
14 Control Reset (hold for 3 sec) 200-219
No Function 220-255
9

9

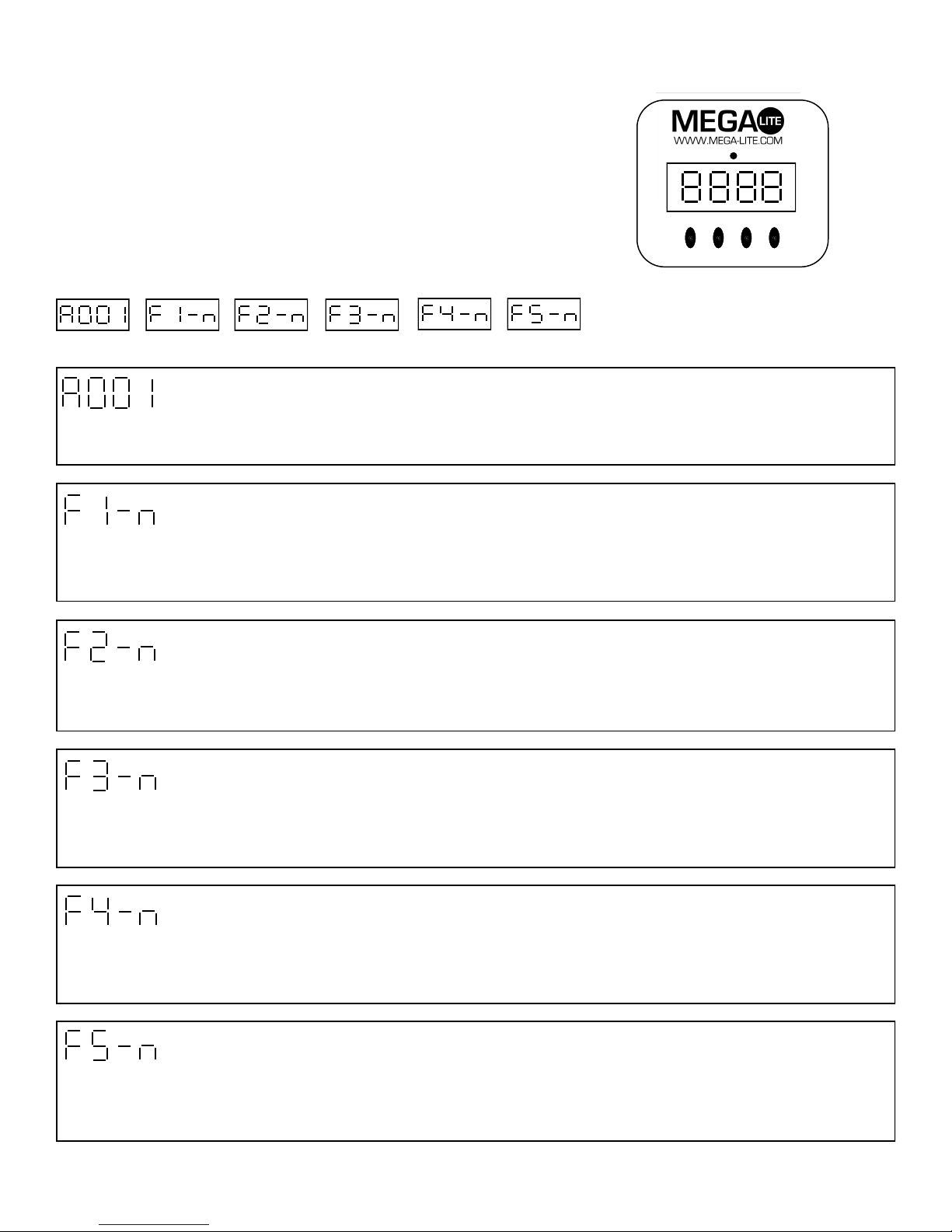

Main Control Menu
The control board on the fixture base is your interface to access and control
all the functions on the unit. Its digital display gives you a code view of the
options and functions. The following will explain each function and its options.
MODE
MODE
ENTER
ENTER
DOWN
DOWN
UP
UP
DMX
DMX Address Color Control
0-512
DMX Address
Reverse Pan
Use the up/down keys to select the required DMX start channel. Press Enter to confirm or Mode to exit and return to main
menu. The display will flash if there is no DMX signal been received from the console.
Reverse Tilt
This function allows you to invert the Pan direction. Use the up/down keys to select, Yto invert pan and Nnot to invert the pan.
Press Enter to confirm or Mode exit and return to the main menu.
Color Control
This function allows you to invert the Tilt direction. Use the up/down keys to select, Yto invert tilt and N not to invert the tilt.
Press Enter to confirm or Mode exit and return to the main menu.
This function allows you to chose from Bi-Color placement or Fixed Color placement. Use the up/down keys to select, Yto select
bi-color mode or Nto select fixed color mode . Press Enter to confirm or Mode exit and return to the main menu.
Demo Mode
This option allows you to turn on the demo mode. Use the up/down keys to select, Yto turn on demo mode and N not to turn off
the demo mode. Press Enter to confirm or Mode exit and return to the mail menu.
Reset
This option allows you to reset the fixture and re-home all the motor setting. Use the up/down keys to select, Yto Reset and N
not to reset the fixture. (note: after you reset the fixture you must also set it to Nto stop resetting or it will continue to reset)
Press Enter to confirm or Mode exit and return to the main menu.
Reverse Pan Reverse Tilt Demo Mode Reset

Cleaning and maintenance
Installation Maintenance: The operator has to make sure that the unit is operating safely and has the installations and electron-
ics checked by an expert every 2 years.
The following points have to be considered during the inspection:
1) All screws used for installing the device or part of the device have to be tightly connected and must not be corroded.
2) There must not be any deformations on the housing, fixation and installation spots (ceiling, suspension, trussing).
3) Mechanically moved parts like axles and other must not show any traces of wearing and must not rotate with unbalances.
4) The electronic power supply cables must not show any damages, material fatigue (e.g. porous cables) or sediments. Further
instructions depending on the installation spot and usage have to be adhered by a skilled installer and any safety problems
have to be removed.
Disconnect from mains before starting maintenance operation!
Caution Danger to life!
We recommend a frequent cleaning of the device. Please use a moist, lint free cloth. Never use alcohol or solvents!
1) The objective lens will require periodic cleaning on usage and environment. Environment with foggers will require more peri-
odic cleaning as fog fluid tends to build up residues, reducing the light output.
2) The cooling-fans should be cleaned monthly. DO NOT blow high pressure air into fans as incorrect rotation can damage the
fans operation.
3) The gobos, dichroic color filters and internal lenses may be cleaned with soft brush using soapy water.
4) The interior of the fixture should be cleaned using a vacuum.
5) We recommend proper lubrication of the motor wheel. The quantity of the oil must not be excessive in order to avoid oil run
outs when motor wheel rotates
Note: There is no serviceable parts inside the device except for the fuse. Maintenance and service operations are to be carried
out by authorized dealers.
Replacing the fuse: Only replace the fuse with the same type and rating.
Replacing the power cable: If the power cable of this device becomes damaged, it has to be replaced by authorized dealers only
In order to avoid hazards.
Should you have further questions , please contact your dealer.
10
Parts List
1060-MPCB Main PCB Card
1060-DC Driver Card
1060-LD Lamp Driver Card
1060-DIS Display Card
9051 Dual Axis 250or Axis LED Spot Case
1060-SFAN Fan 2.5X2.5
LPHL Phlatlight LED Lamp
1060-PRISM Prism
1060-QRM Quick Release Mount Set
1060-FAN Fan 3X3
1060-PS Power supply
1030-ARMB Arm Body Set
1030-DISB Display Body Set
1030-HEADB Head Body Set
1060-MC Motor Color
1060-PL Primary Lens
1060-MRG Motor Rotating Gobo
1060-MGR Motor Gobo Rotator
1060-MFG Motor Fixed Gobo

Mega-Lite
5718 Kenwick St
San Antonio, TX 78238
Ph 210-684-2600 Fax [phone]
www.mega-lite.com / [e-mail]
