PSDK IR10 User manual
IR10 Infrared Laser Zoom Spotlight
2021.01.08
User Manual
1
Contents
Ⅰ. Introduction of Infrared Laser Zoom Spotlight
Ⅱ. Disclaimer and warning
Ⅲ. The introduction of IR10
Ⅳ. How to use the CZZN software
Ⅴ. To upgrade the firmware
2
2
3
6
12
Ⅰ. Introduction of Infrared Laser Zoom Spotlight
The product is suitable for criminal investigation, armed police, Marine police,
squat and guard investigation, concealed evidence collection, national security, drug
control, public security or border defence and other tasks.
It uses the DJI Skyport V2 universal adapter ring, no extra power, plug and play,
perfect for DJI M300 RTK and M210 V2 UAVs.
Ⅱ. Disclaimer and warning
Cautions
Thank you for purchasing our products. The content mentioned in this article is
related to your safety, legal right and responsibilities. Before using this product,
please read this article carefully to ensure that the product has been set up correctly.
Ignoring the instructions and warnings in this article to operate may cause harm to
you and your friends, may also damage the product. The right to interpret this
document and all related documents shall remain with us. All updates are subject to
change without prior notice. Please visit www.gzczzn.com for the latest product
information.
1. IR10 belongs to the Class Ⅳ not visible laser. When the laser lamp is turned on, it
is strictly prohibited to look directly at or observe the laser beam with optical
instruments.
2
NOTE
1. The IR10 is installed in the same way as other DJI payloads. Please verify that the
adapter ring is installed correctly.
2. Before the drone takes off, the IR10's power and zoom Angle will be limited to less
than 50%; Power and zoom Angle can reach 100% after take off.
3
2. In normal use, flammable objects are strictly prohibited within 100cm in front of
the lens to prevent fire.
3. In case of hardware problems, please return to the factory for maintenance, and
do not disassemble without authorization, otherwise the adverse effects on the
products will be borne by yourself.
Ⅲ. The introduction of IR10
IR10 Infrared Laser Zoom Spotlight，It uses the latest fiber laser, emitting light
power up to 12W, the maximum infrared supplementary light distance of 1000
meters. Cooperate with DJI H20/H20T and other PTZ cameras with night view mode
(IR mode), the whole process can be clear filling light, the picture quality is
transparent, with excellent smoke through the rain haze effect. The infrared light can
not be detected by human eyes, which can realize covert detection beyond visual
range.
Ⅲ. The introduction of IR10
Through DJI SkyPortV2.0 interface, it can be directly mounted on DJI M200V2,
M300RTK and other series of UAV for use, for reconnaissance, search and rescue,
patrol inspection and other fields to provide users beyond the visual insight of the
night. By using CZZN APP hover window +DJI Pilot APP, you can open the night view
mode of DJI H20 or H20T with one click, control the switch, adjust zoom multiple,
brightness and IR10 fine-tuning modes. And the IR10 can automatically follow the
PTZ camera's rotation. The IR10 fuselage is fan-less and fully sealed, providing
excellent waterproof and dustproof performance. It works reliably in harsh weather
conditions and is the perfect partner for the DJI M300 RTK industry UAV.
1.Gimbal protection cover 2.Memory card slot
3.DJI xport Gimbal 4. Light export
1
2
34
4
Description of parameters
Model
Electrical interface
Size /mm
Weight /g
Power /W
IR10
DJI SKYPORT V2.0
L186*W128*H158
800±5
≤40
5
Optical power /W
FOV/°
Light wavelength /nm
Lighting distance /m
Safe distance /m
12±0.5
0.56-45
808
≥1000
≥90
Separate control Angle
GimbalⅠ: IR10
GimbalⅡ : DJI H20T
GimbalⅠ: DJI H20T
GimbalⅡ : IR10
GimbalⅠ: IR10
GimbalⅡ : DJI H20
IGimbalⅠ: DJI H20
GimbalⅡ : IR10
Working temperature
Pitch Angle
Horizontal
-125°~+40°
±320°
-125°~+40°
-25°~+45°
-125°~+40°
-15°~+12°
-125°~+40°
±45°
-125°~+40°
±45°
-20°C~+50°C
Pitch Angle
Horizontal
Pitch Angle
Horizontal
Pitch Angle
Horizontal
Pitch Angle
Horizontal
Pitch Angle
Horizontal
Ⅳ. How to use the CZZN software
1. Click on this button
2. Click CZZN APP (The APP can be downloaded from the official website
www.gzczzn.com)
6
3. Enter the main interface of CZZN and click to enter the device (Steps 3-5 are
required for the first use only)
4. After entering the main interface, click General Settings, and click IR10
Floating Window.
7
5. Click Allow to appear on other apps, then return to use
6. Click "Yes" to confirm
8
7. The typeface IR10 is displayed in the lower left corner, indicating that IR10 has
been successfully identified. You can proceed to the next step.
9
8、Click the night view mode in the hover button, and DJI H20 or DJI H20T will
call up the night view mode with one click. GimbalⅠ and Gimbal Ⅱ
synchronization effect.
9. Click the floating window to turn on the light button to adjust the zoom
multiple and brightness.
10
Warning: Do not look directly at the light outlet before turning on the light

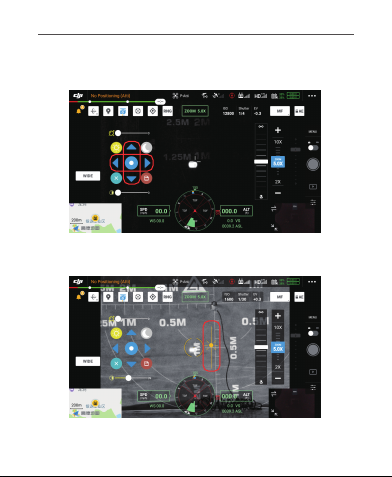

10. Adjust the spot to the appropriate size, use this button to merge the
center of IR10 spot with the center of DJI H20 or DJI H20T and click Save.
Maximum fine adjustment is ±10° per adjustment.
11
11. When observing the target, in case of over-exposure of the camera, you
can slide the exposure button to adjust it.
Ⅴ. To upgrade the firmware
To learn about IR10 firmware updates or to download the latest version of the
firmware, please visit the CZZN website: www.gzczzn.com.
If IR10 cannot work properly due to the firmware update of UAV, please contact the
local agent or manufacturer in time.
成至 技术支持
www.gzcczn.com
If you have any questions or suggestions about
the instruction manual, please contact us via the
12
