VG-ERS200A 200W LED Profile Spot Light User Manual VG-ERS200A 200W LED Profile Spot Light User Manual
200W LED Profile Spot Light
VG-ERS200A(3200k/5600k)
CE RoHS
User Manual
Please read this user manual before using this product！
Keep it for further reference!
http://www.vangaa.com

VG-ERS200A 200W LED Profile Spot Light User Manual VG-ERS200A 200W LED Profile Spot Light User Manual
INDEX
ⅠINTRODUCTION................................................................. 01
ⅡDESCRIPTION OF THE DEVICE …….. .................................... 02
ⅢINSTALLATION ................................................................ 05
ⅣOPERATION .................................................................. 10
ⅤAPPENDIX ........................................................................ 12
Thank you for using our product! Please read this manual carefully and completely. For
technical reference in future, please keep this user manual well. This user manual contains
all installation and operation information of this LED Profile Spot Light, it’s very useful for
user to install and operate the light. Please strictly abide by the relevant instruction for the
installation and operation.
This light has very beautiful appearance. This is a professional LED Fixed Lens Profile Spot
Light. It uses high CRI and high power LED integrated lamp (COB lamp) as the light
emitting element. So the light has high light efficiency, good color rendering, low glare
value, long lifespan, energy conservation, environmental protection and other advantages.
The light has high brightness, uniform light, which is very suitable for meeting room, studio
and other places. Using DMX signal to realize the linear dimmer, more convenience. This
light is saving energy and protecting environment, pure color temperature, it is a very
suitable substitute of the traditional 750 profile light.
This light meets the following criteria:
GB7000.1-2007/IEC60598-1:2003
GB7000.217-2008/IEC60598-2-17:1984+A2:1990
ⅠINTRODUCTION
Thank you for having chosen our 200W led profile spot light. You will see you have acquired
a powerful and versatile device.
Unpack your 200W led profile spot
Delivery includes
200W LED Profile Spot Light 1pc
01

VG-ERS200A 200W LED Profile Spot Light User Manual VG-ERS200A 200W LED Profile Spot Light User Manual
Gobo frame 1pc
DMX cable 1pc
Power cable 1pc
User Manual 1pc
ⅡDESCRIPTION OF THE DEVICE
1. Profile
With the idea of energy saving and environment protection, the device use lower power
loss and extremely high efficiency led. The device housing cover is made of used the new
high strength heat resistance engineering plastics, with beautiful shape and smooth lines.
The designing and manufacturing is in compliance with IEC standard. The device is suitable
in the large-scale theatrical performance, the theater, the performance hall, the bar night
club and so on.

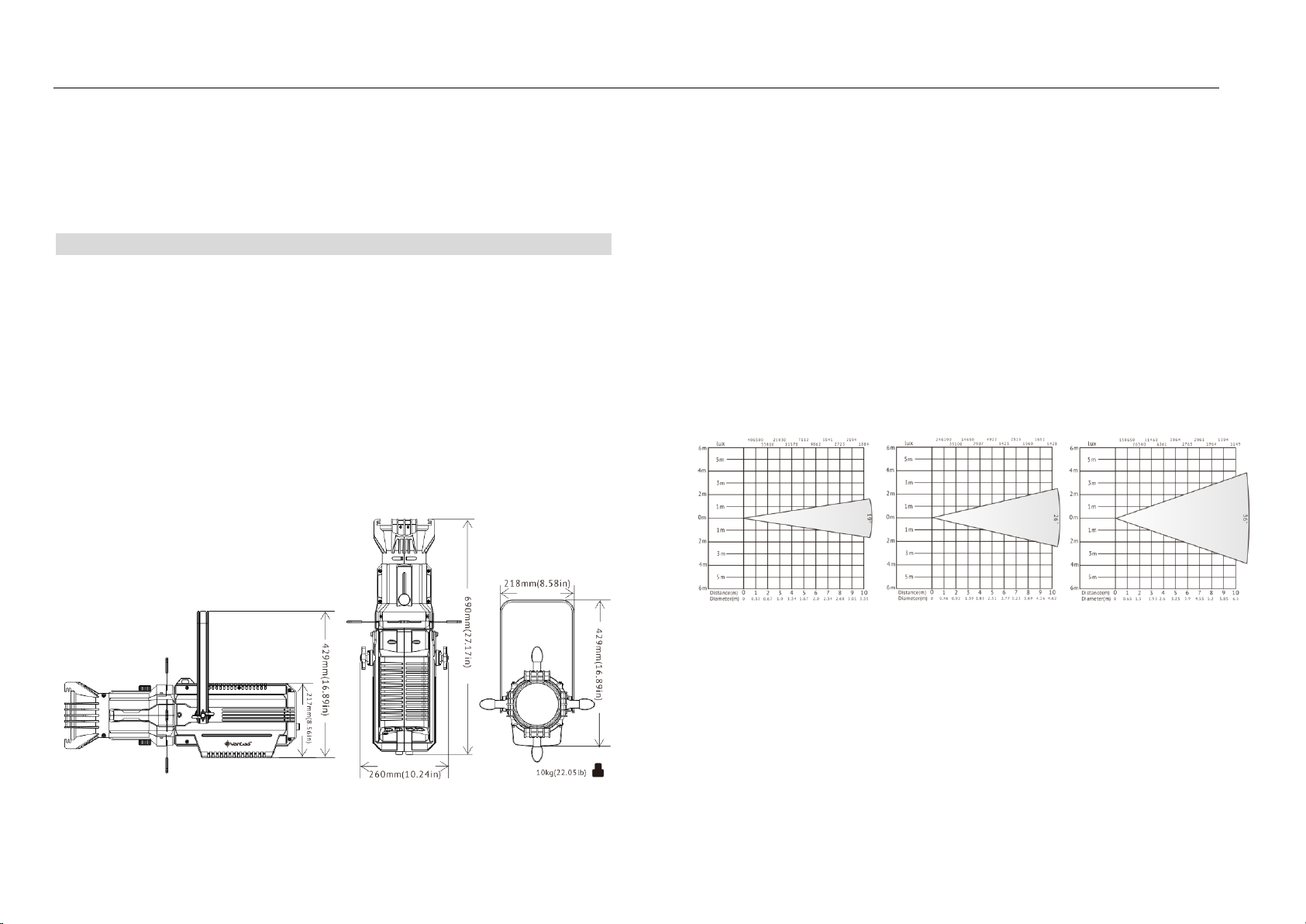

2. Overview
All dimensions are in millimeters
3. Specification
Light source: 200W LED
Power supply: AC100V-240V, 50/60Hz
Power consumption: 200W
DMC Chanel: 1CH
Color temperature: 3200K/5600K
CRI: Ra≥95
Fan speed automatic detection system
Small volume, light weight
High quality optical system
Different lens available (14°/19°/26°36°/50°)
Net weight: 10.5kg
4. Photographic chart
5. Safety warning
①Warning:
Every person involved with the installation, operation and maintenance of this device
has to be qualified
User must follow the instructions of this manual
Unqulified person cannot open the housing cover and operate the device, or the
dealer will not accept liability for any result defects or problems.
03
02

VG-ERS200A 200W LED Profile Spot Light User Manual VG-ERS200A 200W LED Profile Spot Light User Manual
The device against rain and moisture
②Warning note
Power Supply AC100v-240v,50HZ/60HZ
Make sure the power switch is off, the power plug, outlet and the earth connection is
in well condition before connecting the device with the mains
Please use qualified power plug and outlet. Never connect the power cord of this
device with other electrical equipment.
During move and installation. make sure the device not crashed with metal parts and
other materials
Always disconnect from the mains, when the device is on installation and dismantled
The minimum distance between light-output and the illuminated surface must be
more than 50cm
The device must only be installed on a non-flammable surface. In order to safeguard
sufficient ventilation, leave 50 cm of free space around the device. Please note that
heat-sensitive objects may be deformed or damaged by the emitted heat.
During the operation the housing becomes very hot! Do not operate the device for 15
minutes after switching off.
The maximum ambient temperature Ta-45℃must never be exceeded. The maximum
housing temperature Tb-80℃must never be exceeded
For indoors use
Replace any visible cracked protective shield, filter and lens
The protective shield, filters and lens will require weekly cleaning as smoke “fluid
tends to building up to residues, reducing the light”Can put very quickly.
ⅢINSTALLATION
1. Installation
When installation, keep the device far away the heat sensitive objects and explosives
sensitive objects, leave at least 50cm of free space around the device.
When installation, keep the device far away the heat sensitive objects and explosives
sensitive objects, leave at least 50cm of free space around the device.

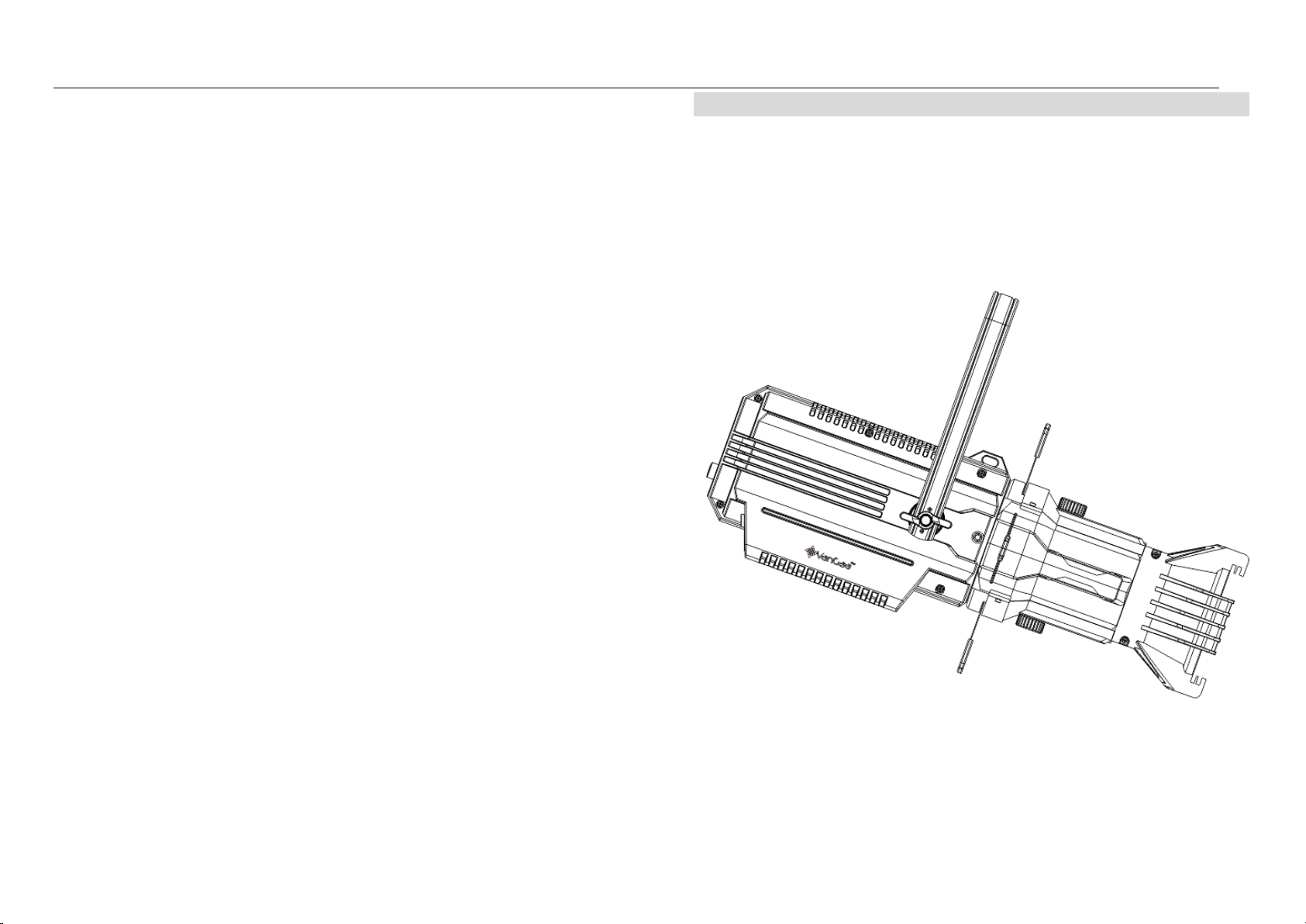

When rigging the devices on the truss and the head face to the floor. Insert the quick-
lock fasteners of the first mounting holder into the respective holes on the bottom of
the device. Tighten the quick-lock fasteners fully clockwise. Install the second
mounting holder. And the safety rope must be used at same time.
05
04

VG-ERS200A 200W LED Profile Spot Light User Manual VG-ERS200A 200W LED Profile Spot Light User Manual
Please use qualified safety-rope, which can hold at least 10times the weight of the
fixture. You must only use only safety-ropes with quick links with screw cap.
Pull the safety-rope through the hole on the bottom of the base and over the trussing
system etc. Insert the end in the quick link and tighten the fixation screw. A safety
rope which already hold the strain of a crash or which already hold the strain of a
crash or which is defective must not be used again
2. Dmx512 Connection
Please use xlr-xlr wires connect the dmx out put of the controller with the dmx input of
the first device, and connect the DMX output of the first device with the dmx input of
the second device, always connect one output with the input of the next device until
all devices are connected.
Please use qualified xlr-xlr dmx cables
3. Connection with mains
The person involved with the power connection must be qualified, and has the
electrical engineering certificate.
Connect the device to the mains with the power plug.
The earth has to be connected.
Power consumption 100w, input power supply ac100v-240v, 50/60HZ.
4. The use of color mains
Take out the color frame. Loose the screws insert the color and lock the screws again
Insert the color in the slot
07
06

VG-ERS200A 200W LED Profile Spot Light User Manual VG-ERS200A 200W LED Profile Spot Light User Manual

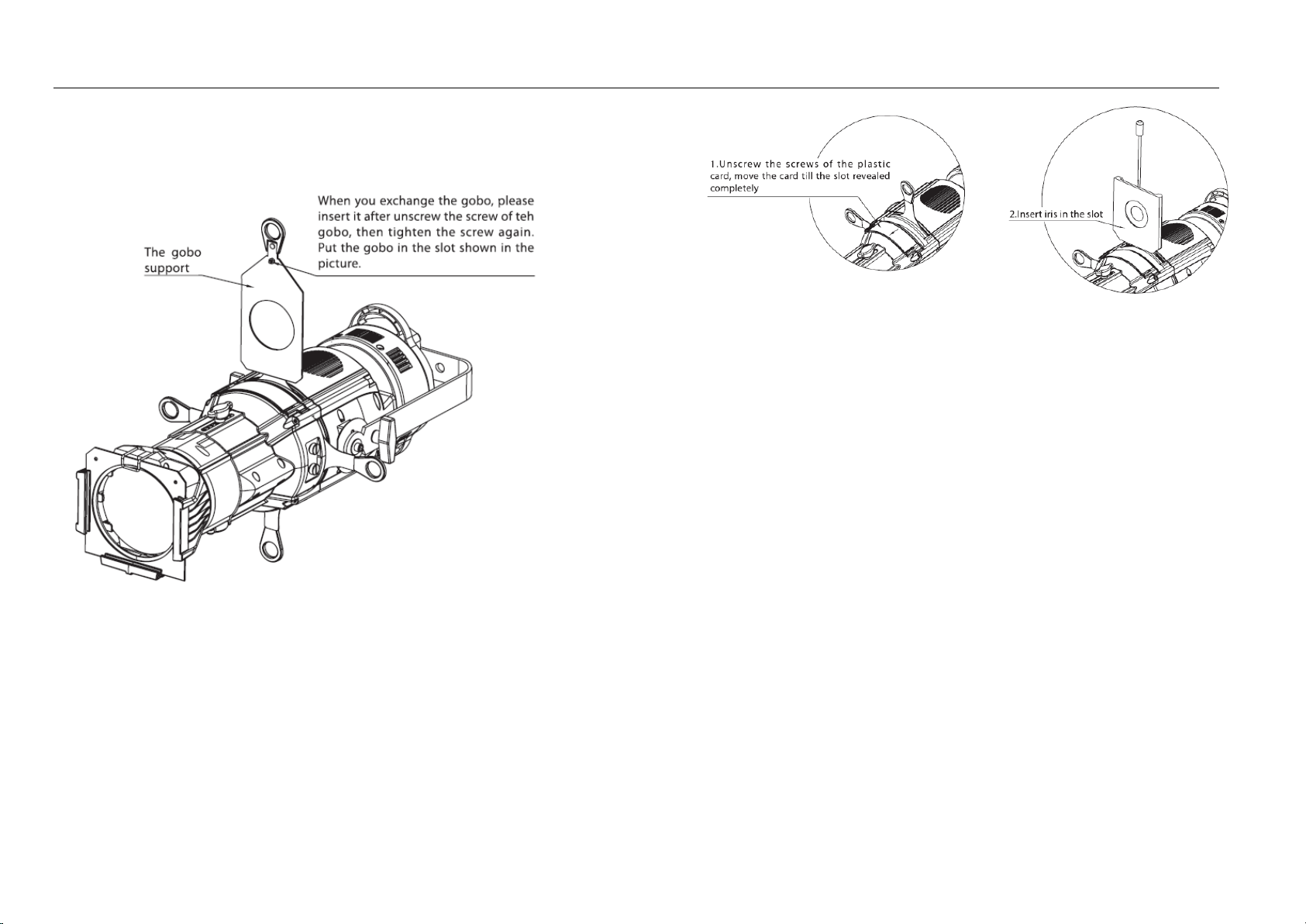

5. The use of gobo frame
Take out the gobo frame ,loose the screws, insert the gobo and lock the screws again
Insert the gobo in the slot
6. Use iris
Iris is not included when the projector leave factory, user can purchase the iris if needed
Loose the screws and insert the iris.
7. Replacing fuse
Before replacing the fuse, unplug mains lead.
Procedure:
Step1: Unscrew the fuse holder on the rear panel with a fitting screwdriver from housing
(anti-clockwise)
Step2: Remove the old fuse in the fuse holder
Step3: Install the new fuse in the fuse holder.
Step4: Replace the fuse holder in the housing and fix it.

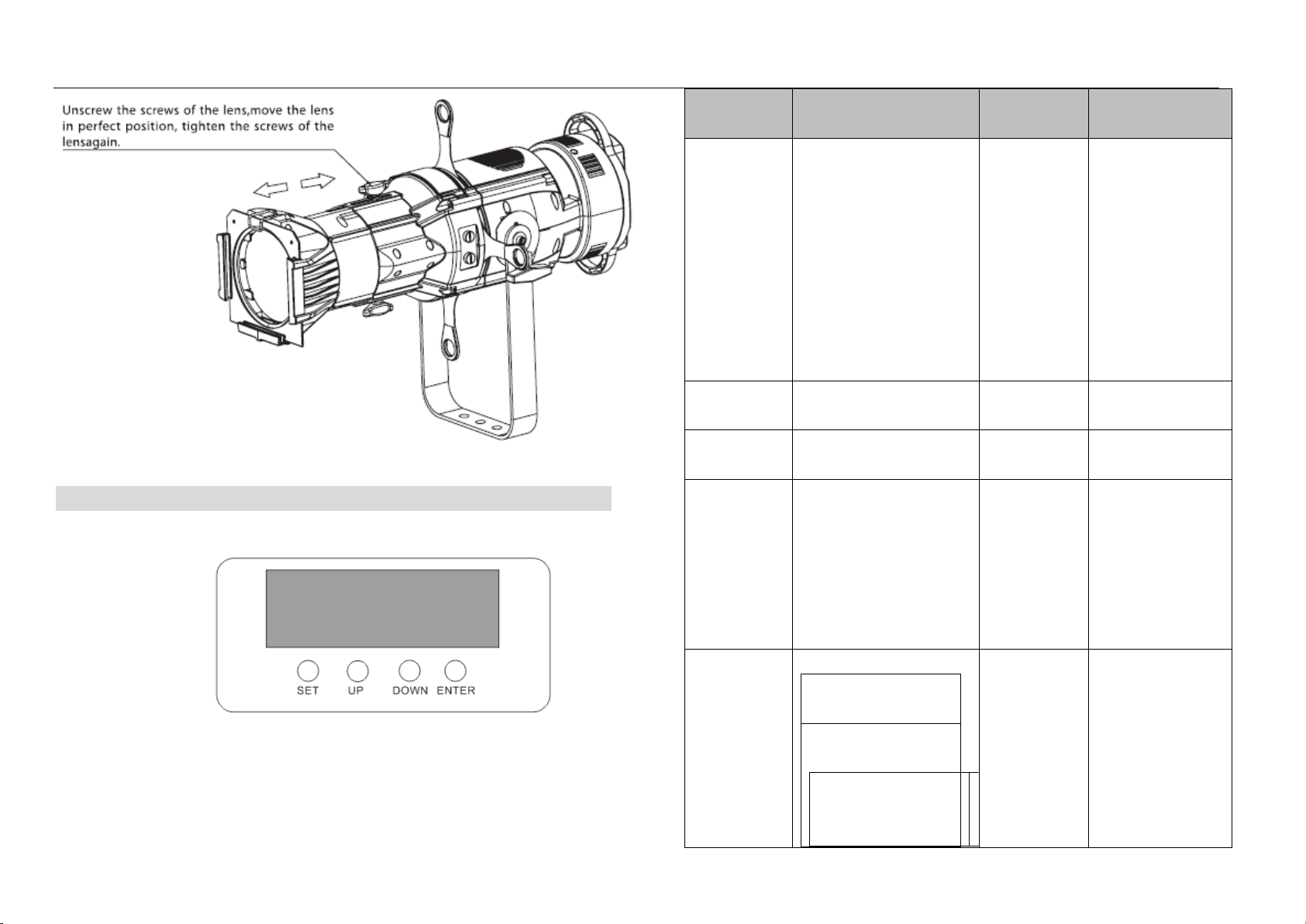

8. Focus
The objective lens cylinder is usually shrinked before leaving factory after connect the
projector to the mains, user may loose the screws and pull out the lens cylinder, till the
white light output circular is clearly presented, locking tightly the two screws again.
When the projection distance is changed, user can follow previous operating steps
and focus the projector.
09
08

VG-ERS200A 200W LED Profile Spot Light User Manual VG-ERS200A 200W LED Profile Spot Light User Manual
ⅣOPERATION
1. Description of the keys
SET.
UP.
DOWN.
ENTER.
2. Menu
LCD SHOW
Function Instruction
Operation of
Buttons
Supplementary
Instruction
T=xxxC
◆The temperature of LED
bulb radiator in real time
(Celsius)
◆If there is no this
temperature shows, means
the temperature sensor
failure
◆If the value over 80,
please check the wind path
is normal or not
No Signal
Couldn't receive the DMX
512 signal
RX DMX
Received the DMX 512
signal
Address
Address setting
Press UP,
DOWN button
to set the
address you
need, then
press ENTER
to save.
Mode
Working mode option
Mode
= DMX
Mode
= Alone scene ↓
Set alone scene
Dimmer 1
Dimmer,
dimmer=0-255
= 000
Press UP,
DOWN button
to choose the
menu you
need, then
press ENTER
to save.
10
11

VG-ERS200A 200W LED Profile Spot Light User Manual VG-ERS200A 200W LED Profile Spot Light User Manual
3. Basic setting
SETTING DMX 512 MODE
Press ENTER when the display show the title information;
Press UP/DOWN to choose the Mode menu, then press ENTER into;
Press UP/DOWN to choose 01 Channel DMX or 01 Chanel DMX menu, then press ENTER
to save;
Press MENU/SET back the title mode(the second line will shows 01CH or 01CH
Address=001), the setting is ok.
SETTING POWER ON,LIGHT ON
Press ENTER when the display show the title information;
Press UP/DOWN to choose the Mode menu, then press ENTER into;
Press UP/DOWN to choose Alone scene menu, then press to save;
Press UP/DOWN to choose Set auto mode Color Temperature menu, then press ENTER
into the option of color temperature;
Press UP/DOWN to choose Set auto mode Dimmer menu, then press ENTER into the
adjust function of the LED;
Press UP/DOWN to adjust the brightness (=000 light off, =255 Max brightness), after the
setting, press ENTER to save;
Press twice MENU/SET button to back the title mode(the second line will shows Master
Auto), the setting is ok.
*The sound active mode based on the light has the sound active mode or not, this is
a option function. Please contact sales manager when you need it.
4. DMX channel chart
CHANNEL
DMX VALUE
FUNCTION
CH1
000←→255
Linear dimmer, 0-100%
ⅤAPPENDIX
Problem and solution
Problem
Reason
Resolution
Device not work
No power
AC100-240V, 50/60Hz
Check the power connection, and
make sure device connect the mains
in well condition.
Check if the switch is on.
Check if the fuse is good.
LED Bulb is off
LED bulb damaged
Replacing LED bulb
LED drive board damaged
Replacing LED drive board
Temperature switch damaged
Replacing temperature switch
Fans not work
Fans damaged
Replacing fans
Caution
Unqualified person involved with installation, operation and maintenance of this
device is prohibited
If any above mentioned problem happened, or unknown problem happened, please
contact manufacturer or distributor for assistance.
Please keep this manual as a reference.
Thanks again for your business. We truly appreciate it!
