Meissen Keramik GENERA User manual

INSTRUCTION MANUAL
for the GENERA Manual Shower Toilet
meissen-keramik.com

Thank you for purchasing MEISSEN KERAMIK shower toilet.
IMPORTANT:
Read and understand this manual before installing and using this product! The illustrations in this
manual are for reference only and may differ from the actual appearance of the product.

Table of contents
Chapter 1 Safety principles .............................2
1.1 Symbols and their meaning . .................................................... 2
1.2 Intended use . ................................................................. 3
1.3 Precautions for use . ........................................................... 4
Chapter 2 List of parts .................................5
Chapter 3 First startup .................................6
3.1 Checking the functioning of the washing nozzle . ................................... 6
3.2 Checking the temperature of the wash water ....................................... 7
Chapter 4 Use ........................................9
4.1 Activating and deactivating the wash function...................................... 9
4.2 Setting the water temperature................................................... 10
Chapter 5 Cleaning and maintenance ....................11
5.1 Shower toilet cleaning ......................................................... 11
5.2 Removing and cleaning the washing nozzle inside ................................. 11
5.3 Unplugging and plugging in the toilet seat ........................................ 15
Chapter 6 Troubleshooting . ............................16
Chapter 7 Technical data . .............................17

2
Rozdział 1 Safety principles
To ensure safe and trouble-free use of the shower toilet, read the user manual and observe the
safety rules!
1.1 Symbols and their meaning
Caution This symbol indicates hazards that may lead to
injury and/or damage to the shower toilet or other
property if ignored.
Meaning of symbols:
OBLIGATORY
Action
PROHIBITED
Action

3
1.2 Intended use
If you have any questions about the operation of the device, please contact the
customer service infoline. To avoid product failure and damage due to improper use,
please read this manual.
Children and persons who do not understand the intended use of the product, or who
have physical, sensory, mental or other disabilities, may use the product only if it has
been explained to them how they can use it safely or under the supervision.
The shower toilet is not a toy – children must not play with the product as this can
lead to injuries or death.
The device must be connected to the water supply system. Do not use the shower
toilet if it is not working properly.
In the event of a malfunction or failure, close the shut-off valve to cut off the water
supply and stop using the shower toilet. Contact the customer service helpline.
Malfunctions and faults can manifest themselves as:
- a crack or damage to the product
- water leakage from pipes or the appliance
Using a damaged appliance may result in ooding or other damage.
Do not lift the product by gripping the lid.
Caution
Use clean and softened water for supply to ensure proper product operation. Using hard or dirty
water can cause damage or malfunction of the washing system.
Do not allow children to play, stand or sit on the lid. Do
not place heavy objects on it.
This may lead to injuries or damage to the appliance.
Do not install the appliance in a room where the
temperature is below 4°C.
This may damage the appliance.

4
Do not force the lid or seat to close.
This may cause damage to the product.
Do not use aggressive, concentrated or abrasive clean-
ing agents.
This may damage the product.
Do not lean against the lid. This may cause damage or
injury.
Do not supply contaminated water, seawater or
untreated water to the appliance, as this may cause
infection or skin irritation.
1.3 Precautions for use
Connect the appliance to the water supply system using the new hoses supplied with the product.
Do not use used or aftermarket hoses to connect the shower toilet. Prevent the spray nozzle from
contamination or blocking. Do not use accessories that are not recommended by the manufacturer.

5

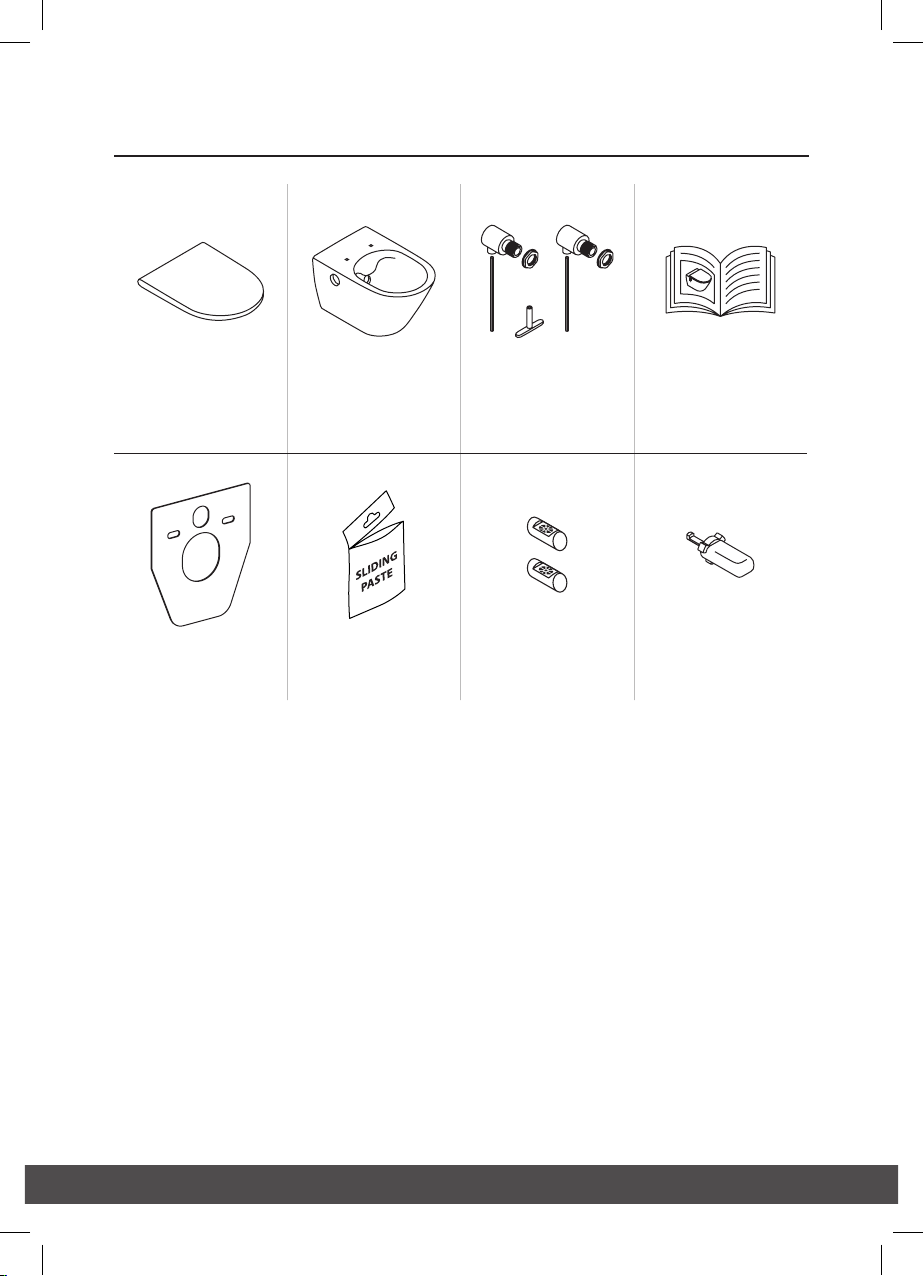

Chapter 2 List of parts
A. Toilet seat A. Ceramic bowl with
shower system
C. Bowl mounting kit. D.Installation Instructions
and Operating
Instructions
E. Foam pad F. Slide paste G. Additional washing
nozzle tips
H.Tool for removing the
washing nozzle

6
Chapter 3 First startup

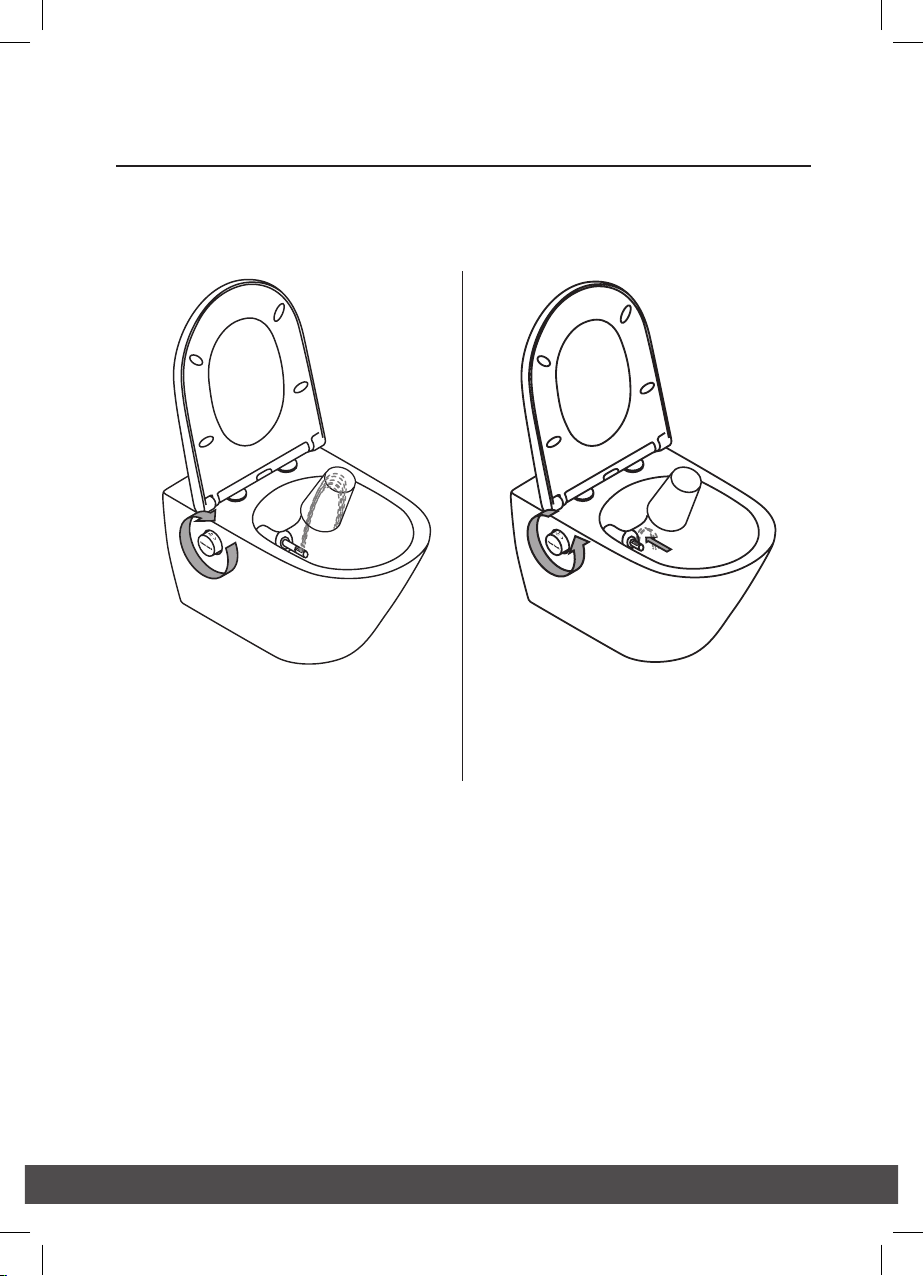

3.1 Checking the functioning of the washing nozzle
Check the functioning of the washing nozzle before rst use. Before checking, prepare a cup or
other vessel to block the water stream from the wash nozzle.
A.While holding the cup upside down at the height of
the extended nozzle, turn the knob that activates
the wash water jet forward. When you turn the
knob, the nozzle should slide out and water should
ow from it. Block the stream with the cup so that
the water ows inside the shower toilet bowl.
B.Then turn the knob back to close the water supply.
Check to see if the nozzle has retracted.
If the nozzle does not work properly, contact the service center.

7
3.2 Checking the temperature of the wash water
Maximum wash water temperature should not exceed 42°C.
In the default setting of the thermostat knob (Meissen Keramik
logo on the knob set horizontally), the wash water temperature
should be approx. 38°C
To check the water temperature, prepare a cup or other vessel to block the water stream from the
wash nozzle.
A. Turn the thermostat knob all the way forward to set
the maximum wash water temperature.
B. While holding the cup upside down at the height of
the extended nozzle, turn the knob that activates
the wash water jet forward.

8
C. Check the temperature of the water coming out of
the wash nozzle. If its value exceeds 42°C, contact
the service center.
D. Turn the knob back to close the water supply.

9
Chapter 4 Use

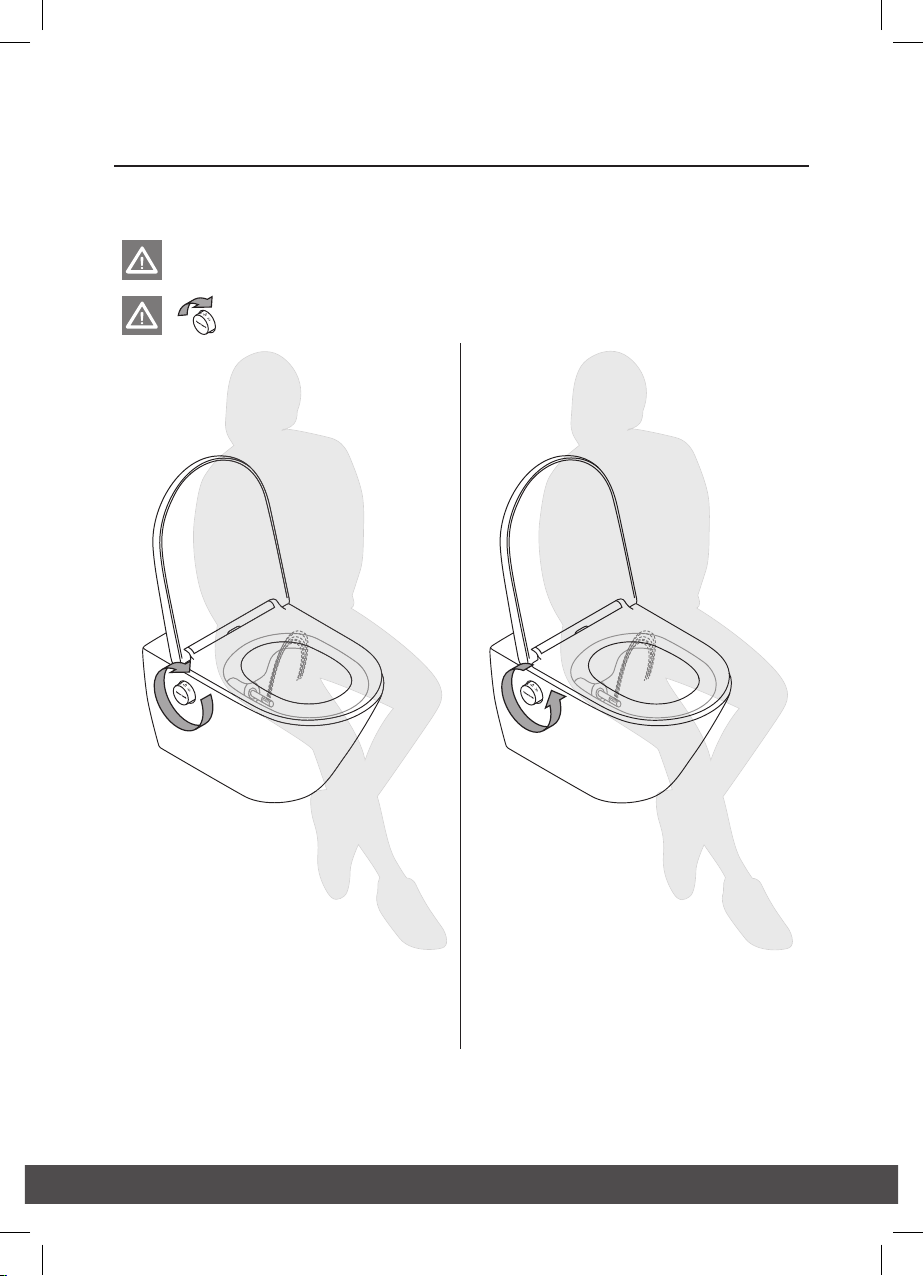

4.1 Activating and deactivating the wash function
Start the wash function when the user is sitting on the seat part of the toilet seat. Otherwise,
activating the wash function poses a risk of ooding the bathroom or toilet.
Opening and closing the nozzle should be done slowly to stabilize the thermostat water
temperature and to ush the wash nozzle.
A. To activate the wash function, while sitting on the
seat, turn the knob that activates the wash water
stream forward. When the knob is turned, the wash
nozzle will slide out of the ceramic part, starting a
stream of water.
B. Turn the wash nozzle knob all the way back to
complete the cleaning process.

10
4.2 Setting the water temperature
The water temperature is regulated by a thermostatic valve. It takes time to reach a certain
temperature depending on the temperature of the mains water.
A. To increase the temperature, turn the thermostat
knob forward.
B. To reduce the temperature, turn the thermostat
knob backwards.

11
Chapter 5 Cleaning and maintenance
5.1 Shower toilet cleaning
Clean the appliance and wipe out any dirt on a regular basis. If the product is not cleaned regularly,
it can lead to dirt buildup that is dicult to remove. Do not use abrasive cleaning agents or those
containing chlorine or acids. Follow the instructions of the cleaning agent manufacturer. Rinse the
cleaning nozzle after each use of cleaning agents, so that the cleaning agent residue does not remain
on the nozzle because it may cause skin irritation during subsequent washing.
5.2 Removing and cleaning the washing nozzle inside
A. To remove the wash nozzle, turn the wash water jet
knob slightly forward so that the nozzle slides out
at low water pressure.
B. Then grab the wash nozzle with your hand and turn
the wash water jet knob backward to close the jet.

12
C. Carefully remove the wash nozzle tip. D. Then release the wash nozzle to retract it.
E.1
E.2
E. Using the wrench provided with the wash bowl, remove the ring that stabilizes the wash nozzle.

13
An improperly or inaccurately tted ring can
cause the wash nozzle to jam during use.
F. Then use a brush or cloth to wipe around the wash
nozzle and the wash nozzle stabilizer ring.
G. After cleaning, place the wash nozzle stabilizer
ring back in place, making sure it is in the correct
position. The tab on the ring should be at the
bottom.
H. Then turn the wash water jet activation knob
forward so that the nozzle slides out at low water
pressure.
I. Grab the nozzle and turn the water spray knob
backward to close the spray.

14
Improper or inaccurate seating of the
nozzle tip can cause the wash nozzle to
jam during use.
J. Fit the tip onto the wash nozzle, noting its position. K. Release the nozzle to retract it.

15
5.3 Unplugging and plugging in the toilet seat

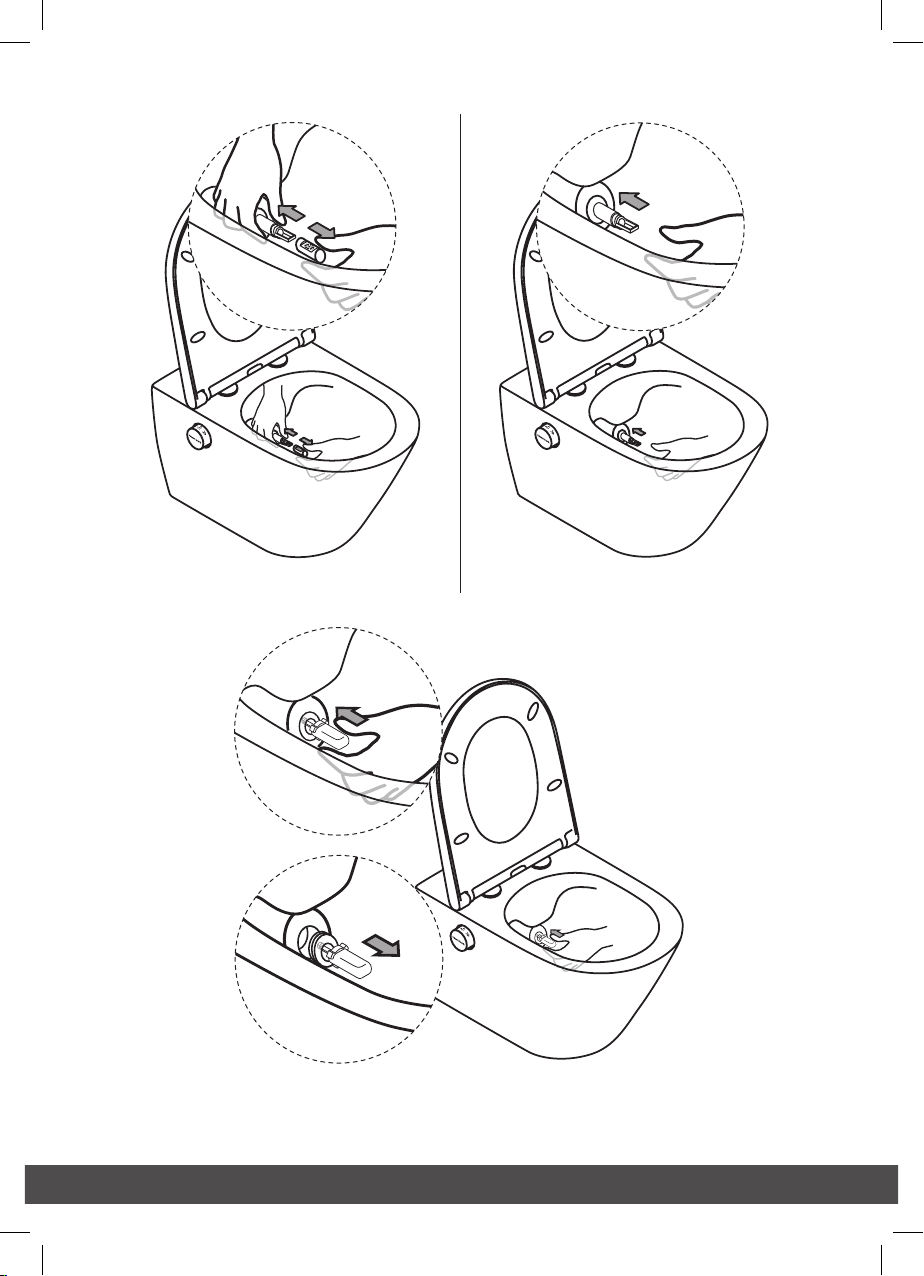

A.To release the toilet seat press the seat release
button and pull the seat up.
B.To mount the toilet seat to the base, set it on the
metal pegs.
If the wash bowl is exposed to temperatures below 4°C, shut off the water supply and
remove the hoses supplying water to the bowl.

16

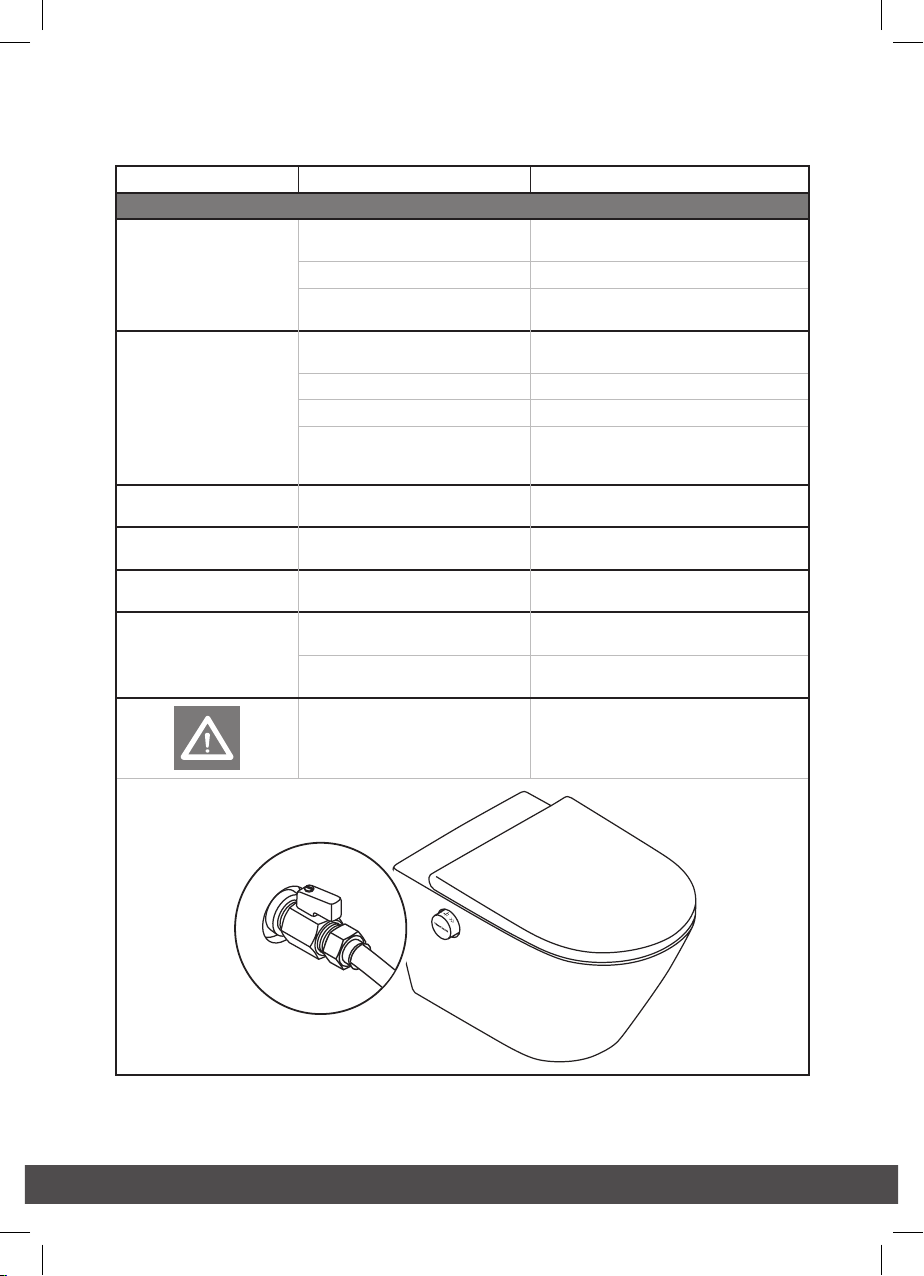

Rozdział 6 Troubleshooting
Condition Possible cause Solution
Standard wash / Feminine wash
Water does not ow from
the nozzle or the spray
nozzle does not extend
No water supply Wait for the water supply in the water
supply system to be restored
The water shut-off valve is closed Open the water shut-off valve
Abnormalities in the water supply
to the appliance Call a plumbing service
Water spray intensity too
weak
Too low water pressure in the water
supply system
Make sure the water pressure is at least
2 bar
Clogged or scaled nozzle Clean the cleaning nozzle
Clogged lter on water inlet line Clean or replace the water lter
Abnormalities in the water supply
to the appliance Call a plumbing service
The water ow is too
strong Screw on the supply valve
Too warm water The thermostat knob has been set
too high
Set the water temperature lower by turning
the thermostat knob backwards.
Water temperature
exceeds 45°C Incorrect thermostat calibration Call the customer service helpline or call service
No temperature control
available
No hot water or cold water supply Check that hot and cold water supplies are
provided
Thermostat malfunction Call the customer service helpline or call
service
Water ows or drips from the
ceramic part
Close the supply valve or main water
supply. Next, call the customer service
helpline or call a service technician.

17
Rozdział 7 Technical data
Model
Maximum wash water temperature 42oC
Required feed water pressure 2.0~6.0 bar
Maximum wash water consumption 5 l/min
Maximum hot feed water temperature 70oC
Net weight of the shower toilet 30 kg
Compliance with standards EN997, EN1717, EN33
Dimensions of the shower toilet 560x335x360
Thank you for trusting us
meissen-keramik.com
