SX1018HP Ethernet Managed Blade Switch
User Guide for HP c-Class BladeSystems
PNs: SX1018HP
Rev 1.0

Document Number: 4159
Rev 1.0
Mellanox Technologies
2
Mellanox Technologies
350 Oakmead Parkway Suite 100
Sunnyvale, CA 94085
U.S.A.
www.mellanox.com
Tel: [phone]
Fax: [phone]
Mellanox Technologies, Ltd.
Beit Mellanox
PO Box 586 Yokneam 20692
Israel
www.mellanox.com
Tel: [phone]
Fax: [phone]
© Copyright 2013. Mellanox Technologies. All Rights Reserved.
Mellanox®, Mellanox logo, BridgeX®, ConnectX®, CORE-Direct®, InfiniBridge®, InfiniHost®, InfiniScale®,
MLNX-OS®, PhyX®, SwitchX®, UFM®, Virtual Protocol Interconnect® and Voltaire® are registered trademarks of
Mellanox Technologies, Ltd.
Connect-IB™, FabricIT™, Mellanox Open Ethernet™, MetroX™, MetroDX™, ScalableHPC™, Unbreakable-Link™ are
trademarks of Mellanox Technologies, Ltd.
All other trademarks are property of their respective owners.
NOTE:
THIS HARDWARE, SOFTWARE OR TEST SUITE PRODUCT (“PRODUCT(S)”) AND ITS RELATED
DOCUMENTATION ARE PROVIDED BY MELLANOX TECHNOLOGIES “AS-IS” WITH ALL FAULTS OF ANY
KIND AND SOLELY FOR THE PURPOSE OF AIDING THE CUSTOMER IN TESTING APPLICATIONS THAT USE
THE PRODUCTS IN DESIGNATED SOLUTIONS. THE CUSTOMER'S MANUFACTURING TEST ENVIRONMENT
HAS NOT MET THE STANDARDS SET BY MELLANOX TECHNOLOGIES TO FULLY QUALIFY THE
PRODUCTO(S) AND/OR THE SYSTEM USING IT. THEREFORE, MELLANOX TECHNOLOGIES CANNOT AND
DOES NOT GUARANTEE OR WARRANT THAT THE PRODUCTS WILL OPERATE WITH THE HIGHEST
QUALITY. ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT
ARE DISCLAIMED. IN NO EVENT SHALL MELLANOX BE LIABLE TO CUSTOMER OR ANY THIRD PARTIES
FOR ANY DIRECT, INDIRECT, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES OF ANY KIND
(INCLUDING, BUT NOT LIMITED TO, PAYMENT FOR PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES;
LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY
THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE
OR OTHERWISE) ARISING IN ANY WAY FROM THE USE OF THE PRODUCT(S) AND RELATED
DOCUMENTATION EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

SX1018HP Ethernet Managed Blade Switch HW User Manual Rev 1.0
Mellanox Technologies 3
Table of Contents
Revision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Documentation Feedback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
HP contact information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
About this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Chapter 1 Preparing for Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
1.1 Audience. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
1.2 Kit contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
1.3 Mellanox SX1018HP Ethernet Switch Connector Bays . . . . . . . . . . . . . . . . 10
1.4 Mellanox SX1018HP Ethernet Switch LEDs. . . . . . . . . . . . . . . . . . . . . . . . . 12
Chapter 2 Hardware Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.1 Installing the Mellanox SX1018HP Ethernet Switch. . . . . . . . . . . . . . . . . . . 13
2.2 Installing and Removing Cables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Chapter 3 Configuring the Switch the First Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Chapter 4 Removing the Mellanox SX1018HP Ethernet Switch for Service. . . . . . . . 22
Chapter 5 Regulatory Compliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
5.1 Regulatory Compliance Identification Numbers . . . . . . . . . . . . . . . . . . . . . . 23
5.2 Federal Communications Commission Notice. . . . . . . . . . . . . . . . . . . . . . . . 23
5.3 Modifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
5.4 Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
5.5 Canadian notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
5.6 European Union regulatory notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
5.7 Japanese class A notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
5.8 BSMI Notice. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
5.9 Korean class A notice. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
5.10 Chinese notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Rev 1.0
Mellanox Technologies
4
List of Figures
Figure 1: SX1018HP Ethernet Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Figure 2: HP BLade System Onboard Administrator . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Figure 3: QSFP Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Figure 4: Breakout or Fanout Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Figure 5: Port Splitting Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Figure 6: Switch LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Figure 7: Removing a Divider from the HP BladeSystem c7000 Enclosure Bay . . . . . 13
Figure 8: Install Blade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Figure 9: QSFP+ Cable Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Figure 10: Cable Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Figure 11: Cable Connected . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Figure 12: Removing the Blade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Figure 13: For EU harmonized telecommunications products . . . . . . . . . . . . . . . . . . . . 24
Figure 14: For EU non-harmonized telecommunications products . . . . . . . . . . . . . . . . 24

SX1018HP Ethernet Managed Blade Switch HW User Manual Rev 1.0
Mellanox Technologies 5
List of Tables
Table 1 Document Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Table 2 Reference Documents and Web Sites. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

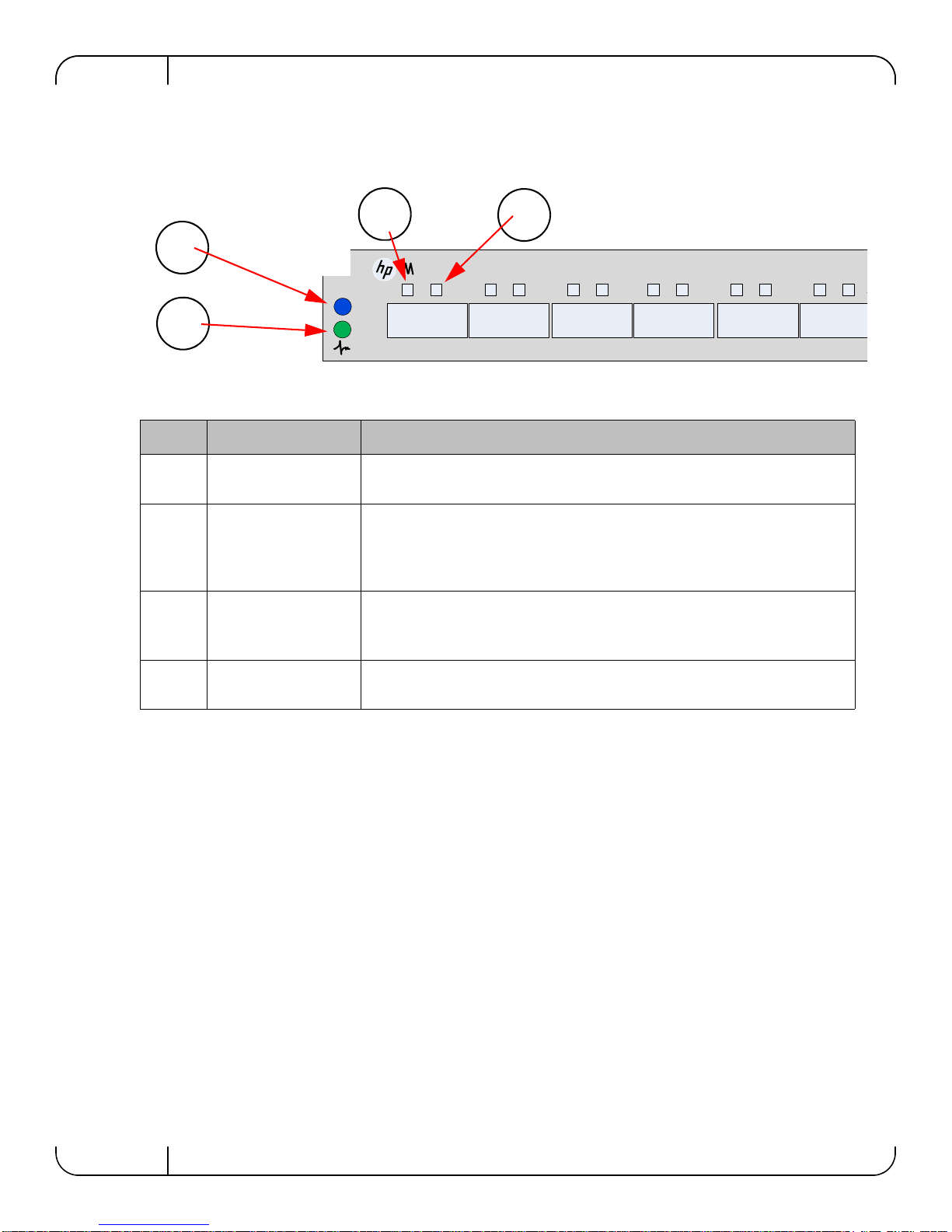

Table 3 LED Assignments. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

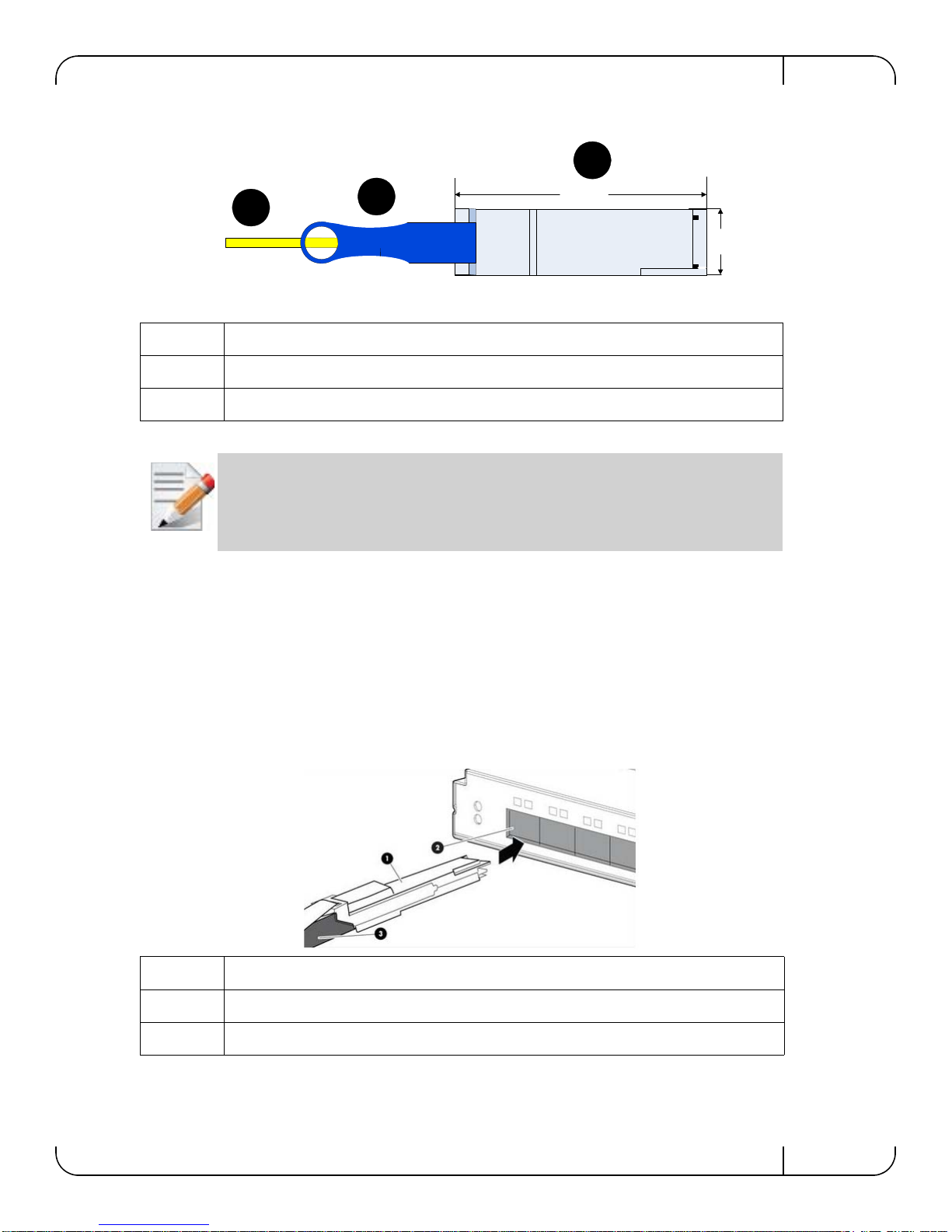

Table 4 QSFP Cable Connector Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Table 5 Serial Terminal Program Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Table 6 Configuration Wizard Session - DHCP Configuration (Example) . . . . . . . . 17
Table 7 Configuration Wizard Session - Static IP Configuration . . . . . . . . . . . . . . . . 19
Table 8 Configuration Wizard Session - Zeroconf Configuration. . . . . . . . . . . . . . . . 20

Rev 1.0
Mellanox Technologies
6
Revision
Documentation Feedback
HP is committed to providing documentation that meets your needs. To help us improve the doc-
umentation, send any errors, suggestions, or comments to Documentation Feedback
([e-mail]).
Include the document title and part number, version number, or the URL when submitting your
feedback.
HP contact information
For United States and worldwide contact information, see the Contact HP website
(http://www.hp.com/ ).
In the United States:
• To contact HP by phone, call 1-800-334-5144. For continuous quality improvement,
calls may be recorded or monitored.
• It you have purchased a Care Pack (service upgrade), see the Support & Drivers website
(http://www8.hp.com/us/en/support-drivers.html). If the problem cannot be resolved at the web-
site, call 1-800-633-3600. For more information about Care Packs, see the HP website 
((http://www.hp.com/services/carepack).
Table 1 - Document Revision History
Date Revision Description of changes
April 2013 1.0 Initial release

SX1018HP Ethernet Managed Blade Switch HW User Manual Rev 1.0
Mellanox Technologies 7
About this Manual
This manual describes the installation and basic use of the Mellanox SX1018HP switch which is
based on the SwitchX-2 switch device.
Related Documentation
Additional Documentation available from Mellanox:
All of these documents can be found on the Mellanox Website. They are available either through
the product pages or through the support page with a login and password.
Conventions
Throughout this manual, the name and the term switch are used to describe the switch unless
explicitly indicated otherwise.
Table 2 - Reference Documents and Web Sites
Document Name Description
HP BladeSystem Technical
Resources You can download the documentation for components referenced in this
installation guide from the HP Blade System Technical Resources web-
site:
http://www.hp.com/go/bladesystem/documentation
Check the HP BladeSystem Technical Resources Website frequently for
updates.
HP BladeSystem Onboard
Administrator User Guide http://www.hp.com/support/
BladeSystem_Onboard_Administrator_UG_en
Various HP BladeSystem
Onboard Administrator Manuals http://www.hp.com/support/
BladeSystem_Onboard_Administrator_Manuals_en
HP BladeSystem Onboard
Administrator CLI User Manual http://www.hp.com/support/
BladeSystem_Onboard_Administrator_CLI_UG_en
HP BladeSystem Onboard
Administrator - How to Make
"SHOW ALL" Inventory Report
http://www.hp.com/support/
BladeSystem_Onboard_Administrator_SHOW_ALL_Inv_Rpt_en
HP CLI Reference Manual http://www.hp.com/support/MLNX-OS_CLI_SX1018HP_UG_en
HP MLNX-OS User Manual http://www.hp.com/support/
MLNX_OS_EthernetManagedBladeSwitch_UG_en
HP SW release Notes for the
MLNX-OS software http://www.hp.com/support/MLNX-OS_SX1018HP_RN_en

Rev 1.0
Mellanox Technologies
8
The following icons are used throughout this document to indicate information that is important
to the user.
This icon indicates information that is helpful to the user.
This icon indicates a situation that can potentially cause damage to hardware or soft-
ware.
BEWARE! This icon indicates a situation that can potentially cause personal injury or
damage to hardware or software.
This icon makes a recommendation.

SX1018HP Ethernet Managed Blade Switch HW User Manual Rev 1.0
Mellanox Technologies 9
1 Preparing for Installation
1.1 Audience
This document is intended for HP service representatives and other persons trained to install
hardware options in HP BladeSystem configurations. Such persons are expected to understand
the hazards of working in this environment and to take suitable precautions to minimize danger
to themselves and others.
1.2 Kit contents
The kit contains the following items:
• Mellanox SX1018HP Ethernet Switch for HP c-Class BladeSystems—689638-B21 (see Figure
1)
• Warranty documentation
Figure 1: SX1018HP Ethernet Switch
Additional information
Mezzanine NIC installation determines interconnect bay assignments for switch installation. For
more information on the association between the mezzanine connector and the interconnect bays,
see the following documents under Mezzanine-to-Interconnect Mappings on the HP BladeSys-
tem Technical Resources website:
• HP BladeSystem c7000 Enclosure Setup and Installation Guide:
http://www.hp.com/go/bladesystem/documentation
For specific port connections for each server blade, see the HP BladeSystem Onboard Adminis-
trator User Guide. Connections differ by server blade type. The information contained in this
document explains the cabling between the SX1018HP Ethernet Switch and the network
switches.
The HP Onboard Administrator screen example (see Figure 2) is a reference for port mapping.
This kit does not include cables. You must order the cables separately.
Your particular switch might look slightly different.
181716151413121110123456 789
UID P L/A P L/A P L/A P L/A P L/A P L/A P L/A P L/A P L/A P L/A P L/A P L/A P L/A P L/A P L/APL/APL/APL/A
hp ellanox SX1018HP Ethernet Switch

Preparing for InstallationRev 1.0
Mellanox Technologies
10
Figure 2: HP BLade System Onboard Administrator
You can install up to 18 cables in the uplink ports on the SX1018HP Ethernet Switch.
1.3 Mellanox SX1018HP Ethernet Switch Connector Bays
Figure 3: QSFP Connectors
1.3.1 Uplink Ports
The ports labelled 1 to 18 are external uplink ports. You can install up to 18 40GbE QSFP+
cables or combinations of 40 GbE and 10GbE ports. The maximum number of 10GbE ports
available using this switch and breakout cables is 34.
1.3.2 Breakout Cables
Splitting the Data Stream Using Breakout (Fanout) Cables.
Specific ports can be split by using a QSFP 1X4 breakout cable to split one 40 GbE port into 4
lanes (4 SFP+ connectors 10GbE each). These 4 lanes then go, one lane to each of the 4 SFP+
connectors. Some ports can be split into 2 10 Gb/s ports, using lanes 1 and 2 only. When a QSFP
40GbE is supported in interconnect bays 3 to 8 only.
Your screen image might vary by switch type.
181716151413121110123456 789
UID P L/A P L/A P L/A P L/A P L/A P L/A P L/A P L/A P L/A P L/A P L/A P L/A P L/A P L/A P L/APL/APL/APL/A
hp ellanox SX1018HP Ethernet Switch

SX1018HP Ethernet Managed Blade Switch HW User Manual Rev 1.0
Mellanox Technologies 11
port is split into 2 10Gb/s ports, then only SFP+ connectors #1 and #2 are used. Connectors #3
and #4 are left unconnected.
Figure 4: Breakout or Fanout Cable
Figure 5: Port Splitting Options
1.3.3 Mini USB
The mini USB in between uplink ports 9 and 10 is a debug port. This is for use by HP FAEs and
qualified service technicians only.
12 34 5 6 7 89 10 1112 1314 151617 18
This port is split-able into 4 10Gb/s SFP+ ports
This port is split-able into 2 10Gb/s SFP+ ports
This port is unmapped

Preparing for InstallationRev 1.0
Mellanox Technologies
12
1.4 Mellanox SX1018HP Ethernet Switch LEDs
Figure 6: Switch LEDs
The logical link activity LED flashes with greater frequency as network activity increases.
Table 3 - LED Assignments
Item Description Status
1Unit ID LED Blue = Activated
Off = Deactivated
2Internal health LED Green = Normal
Amber = Component degraded
Off = Power off
3Physical Link LED Off = no link
Green = Physical link up
Blinking green = error detected.
4Logical Link Activity
LED Amber = no traffic
Blinking amber = traffic
123456
UID P L/A P L/A P L/A P L/A P L/A P L/A
ellanox SX1018HP Ethernet Switch
1
2
34

SX1018HP Ethernet Managed Blade Switch HW User Manual Rev 1.0
Mellanox Technologies 13
2 Hardware Installation
This chapter contains the following sections:
• Installing the Mellanox SX1018HP Ethernet Switch
• Installing and removing cables in the Mellanox SX1018HP Ethernet Switch
2.1 Installing the Mellanox SX1018HP Ethernet Switch
2.1.1 Prepare the Interconnect Module Bay in the HP BladeSystem c7000 Enclosure
To prepare the interconnect module bay in the HP BladeSystem c7000 enclosure, follow
these steps:
1. Remove any devices or blanks.
2. To remove the divider, press the divider release button and slide the divider out of the inter-
connect module bay (see Figure 7).
Figure 7: Removing a Divider from the HP BladeSystem c7000 Enclosure Bay
3. Press the divider release button.
4. Slide divider out from the interconnect module bay.
All panels and doors should be in place and securely fastened while the unit is in opera-
tion for proper cooling and for EMI emissions control.

Hardware InstallationRev 1.0
Mellanox Technologies
14
2.1.2 Install the Mellanox SX1018HP Ethernet Switch into the HP BladeSystem Enclo-
sure
To install the Mellanox SX1018HP Ethernet Switch into the HP BladeSystem c7000 enclo-
sure, follow these steps:
1. Slide the Mellanox SX1018HP Ethernet Switch all the way into the HP BladeSystem c7000
enclosure (see Figure 8).
2. Push the blade handle in until it is in the locked position (see Figure 8). The blade handle is
locked when you can not pull it back out without pushing the blade handle release.
Figure 8: Install Blade
2.2 Installing and Removing Cables
Figure 9 shows a cable with a QSFP+ connector used with the Mellanox SX1018HP Ethernet
Switch. QSFP+ connector to QSFP+ connector cables are used to connect multiple Mellanox
SX1018HP Ethernet Switches together. For example, you might connect two or more c-Class
interconnect modules together, for example, when another switch is installed in another HP Blad-
eSystem c7000 enclosure that is mounted in the same rack. The Mellanox SX1018HP Ethernet
Switches are connected together by the QSFP+ to QSFP+ cables to form a high-performance net-
work.

SX1018HP Ethernet Managed Blade Switch HW User Manual Rev 1.0
Mellanox Technologies 15
Figure 9: QSFP+ Cable Connector
2.2.1 Installing a Cable in the Mellanox SX1018HP Ethernet Switch
To install a cable in the Mellanox SX1018HP Ethernet Switch, follow these steps:
1. Align the cable QSFP+ connector with the Mellanox SX1018HP Ethernet Switch port ( Fig-
ure 10).
2. Insert the QSFP+ connector into the Mellanox SX1018HP Ethernet Switch port (Figure 10)
until it is fully engaged and locked.
Figure 10: Cable Installation
Table 4 - QSFP Cable Connector Description
1Cable
2QSFP+ connector release pull tab
3QSFP+ connector
The cables are not included in this kit and must be purchased separately.
1QSFP+ connector
2Mellanox SX1018HP Ethernet Switch - port # 1
3Cable
72mm
max
18.35
mm
12
3

Hardware InstallationRev 1.0
Mellanox Technologies
16
Figure 11: Cable Connected
You can install up to 18 cables in the Mellanox SX1018HP Ethernet Switch. It is not necessary to
install the cables in any particular order.
2.2.2 Removing a Cable from the Mellanox SX1018HP Ethernet Switch
To remove a cable from the Mellanox SX1018HP Ethernet Switch, pull the QSFP+ connector
release tab (Figure 9) which releases the connector while using your other hand to remove the
connector from the switch port.
To completely remove the cable, it might be necessary to remove a releasable cable tie on the HP
c-Class blade cable management bracket.
If it is necessary to remove a releasable cable tie from the cable management bracket to fully
release a QSFP+ connector from the switch, reverse the installation procedure documented in the
cable management bracket installation guide.
1Cable installed in port 1 of the Mellanox SX1018HP Ethernet Switch.
2Mellanox SX1018HP Ethernet Switch.

SX1018HP Ethernet Managed Blade Switch HW User Manual Rev 1.0
Mellanox Technologies 17
3 Configuring the Switch the First Time
The procedures described in this chapter assume that you have already installed and powered-on
your switch according to the instructions in this document.
Step 1. If you are not already connected to the Onboard Administrator, connect to the Onboard Admin-
istrator of the Chassis using the serial port to your laptop. 
For more information see the http://www.hp.com/support/
BladeSystem_Onboard_Administrator_UG_en
Step 2. Connect to the HP Onboard Administrator and run “connect interconnect <slot number 1-7>”.
Step 3. Configure a serial terminal program (for example, HyperTerminal, minicom, or Tera Term) on
your host PC with the settings described in Table 5.
Step 4. Login (from a serial terminal program) as admin and use admin as password. This starts the
Mellanox configuration wizard.
Step 5. Go through the Mellanox configuration wizard. Table 6 shows an example of a wizard session.
No remote IP connection is available at this stage.
Table 5 - Serial Terminal Program Configuration
Parameter Setting
Baud Rate 9600
Data bits 8
Stop bits 1
Parity None
Flow Control None
Table 6 - Configuration Wizard Session - DHCP (Sheet 1 of 2)Configuration (Example)
Wizard Session Display Comments
Mellanox configuration wizard
Do you want to use the wizard
for initial configuration? yes
You must perform this configuration the first time you
operate the switch or after resetting the switch. Type ‘y’
and then press <Enter>.
Step 1: Hostname? [switch] If you wish to accept the default hostname, then press
<Enter>. Otherwise, type a different hostname and press
<Enter>.

Configuring the Switch the First TimeRev 1.0
Mellanox Technologies
18
Step 2: Use DHCP on mgmt0
interface? [no] yes Perform this step to obtain an IP address for the switch. (mgmt0 is the management port of the switch.)
If you wish the DHCP server to assign the IP address,
type ‘yes’ and press <Enter>.
If you type ‘no’ (no DHCP), then you will be asked
whether you wish to use the ‘zeroconf’ configuration or
not.
If you enter ‘no’ (no Zeroconf), then you need to enter a
static IP, and the session will continue.
Step 3: Enable IPv6? [yes] The management interface will be able to use IPv6
addresses.
Step 4: Enable IPv6 auto-config
(SLAAC) on mgmt0 interface?
[no]
This turns on auto-configuration of the IPv6 addresses.
This is unsuitable for DHCPv6.
Step 5: Enable DHCPv6 on
mgmt0 interface? [no] To enable DHCPv6 on the MGMT0 interface.
Step 6: Admin password (Press
<Enter> to leave unchanged)?
<new_password>
Step 6: Confirm admin pass-
word? <new_password>
To avoid illegal access to the machine, please type a pass-
word and then press <Enter>. Then confirm the password
by re-entering it.
Note that password characters are not printed.
You have entered the following
information:
<A summary of the configura-
tion is now displayed.>
To change an answer, enter the
step number to return to or hit
<enter> to save changes and exit.
Choice: <Enter>
Configuration changes saved.
The wizard displays a summary of your choices and then
asks you to confirm the choices or to re-edit them.
Either press <Enter> to save changes and exit, or enter the
configuration step number that you wish to return to.
Note:
To re-run the configuration wizard run the command
“configuration jump-start” in Config mode.
Table 6 - Configuration Wizard Session - DHCP (Sheet 2 of 2)Configuration (Example)
Wizard Session Display Comments

SX1018HP Ethernet Managed Blade Switch HW User Manual Rev 1.0
Mellanox Technologies 19
.
Table 7 - Configuration Wizard Session - Static IP Configuration
Wizard Session Display - Static IP Configuration (Example)
Mellanox configuration wizard
Do you want to use the wizard for initial configuration? yes
Step 1: Hostname? [switch]
Step 2: Use DHCP on mgmt0 interface? [yes] no
Step 3: Use zeroconf on mgmt0 interface? [no]
Step 4: Primary IP address? [for example 192.168.10.4] 10.10.10.10
Mask length may not be zero if address is not zero (interface eth0)
Step 5: Netmask? [0.0.0.0] 255.255.255.0
Step 6: Default gateway? [for example 192.168.10.1] 10.10.10.255
Step 7: Primary DNS server?
Step 8: Domain name?
Step 9: Enable IPv6? [yes]
Step 10: Enable IPv6 autoconfig (SLAAC) on mgmt0 interface? [no]
Step 11: Admin password (Enter to leave unchanged)?
To change an answer, enter the step number to return to.
Otherwise hit <enter> to save changes and exit.
Choice:
Configuration changes saved.
To return to the wizard from the CLI, enter the "configuration jump-start"
command from configure mode. Launching CLI...
switch>

Configuring the Switch the First TimeRev 1.0
Mellanox Technologies
20
Step 6. Before attempting a remote (for example, SSH) connection to the switch, check the mgmt0
interface configuration. Specifically, verify the existence of an IP address. To check the current
mgmt0 configuration, enter the following commands:
The following is an example of the output:
Table 8 - Configuration Wizard Session - Zeroconf Configuration
Wizard Session Display - IP Zeroconf Configuration (Example)
Mellanox configuration wizard
Do you want to use the wizard for initial configuration? yes
Step 1: Hostname? [switch]
Step 2: Use DHCP on mgmt0 interface? [yes] no
Step 3: Use zeroconf on mgmt0 interface? [no] yes
Step 4: Default gateway? [For example:192.168.10.1]
Step 5: Primary DNS server?
Step 6: Domain name?
Step 7: Enable IPv6? [yes]
Step 8: Enable IPv6 autoconfig (SLAAC) on mgmt0 interface? [no]
Step 9: Admin password (Enter to leave unchanged)?
To change an answer, enter the step number to return to.
Otherwise hit <enter> to save changes and exit.
Choice:
Configuration changes saved.
To return to the wizard from the CLI, enter the "configuration jump-start"
command from configure mode. Launching CLI...
switch>
switch > enable
switch # configure terminal
switch (config)# show interfaces mgmt0
Interface mgmt0 state
Admin up: yes
Link up: yes
IP address: 192.168.10.4
Netmask: 255.255.255.0
Speed: 1000Mb/s (auto)
Duplex: full (auto)
Interface type: ethernet
