Members Mark Hastings 5pc Gas Fire Pit Set ACE00422-5SC Owner's manual

THIS ASSEMBLY MANUAL CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Assembly Instructions & User's Manual
for
Members Mark Hastings 5pc Gas Fire Pit Set
Item Number:
Model Number: ACE00422-5SC
Customer Assistance : 1-800-416-3511
or Email: [email protected]
(spare/replacement parts)
Page 1
Need Assistance? Visit us at: samsclub.com/membersmarkhelp

Need Assistance? Visit us at: samsclub.com/membersmarkhelp
Page 2
Table of Contents
Quality Statement.............................................................3
Important Safety Information.............................................3
Before Assembly..............................................................3
Package Contents............................................................4
Product Information..........................................................5
Care & Use and Storage Instructions..................................12
Warranty Information........................................................12
Spring Rocker
Components................................................................6
Hardware....................................................................6
Tools..........................................................................6
Step1..........................................................................7
Fire Pit
Components...............................................................8
Hardware...................................................................8
Tools..........................................................................8
Step1-Step7............................................................9-11

Before Assembly
Important Safety Information
Please read all instructions carefully before assembling this furniture.
For your safety, assembly by two or more adults is strongly recommended.
Use only vendor-supplied hardware to assemble this item. Using unauthorized
hardware could jeopardize the structural integrity of the item.
Hardware may loosen overtime. Periodically check that all connections are tight.
Need Assistance? Visit us at: samsclub.com/membersmarkhelp
Page 3
Quality Statement
Remove all parts and hardware from the box. Place all items on a carpeted or
scratch-free work surface, as this will avoid damaging parts during assembly.
The shipping box can provide an ideal work surface if none is available.
Use the components and hardware lists below to identify, inventory and
separate each of the hardware and components included.
To avoid accidentally discarding small components or hardware, do not dispose
of any packaging or contents of the shipping carton until assembly is complete.
DO NOT USE power tools unless it is explicitly identified in this manual as
required for use during assembly. Power tools can damage the fasteners,
hardware and/or components.
Do not fully tighten all fasteners / screws until all parts are in place. Failure to
follow these instructions may cause the fasteners / screws to misalign during
assembly.

Need Assistance? Visit us at: samsclub.com/membersmarkhelp
1Set / 3Ctn
Box1of3：
Box2of3：
Component QuantityDescription
ASpring Rocker 4
Component QuantityDescription
A
B
C
1
A
Page 4

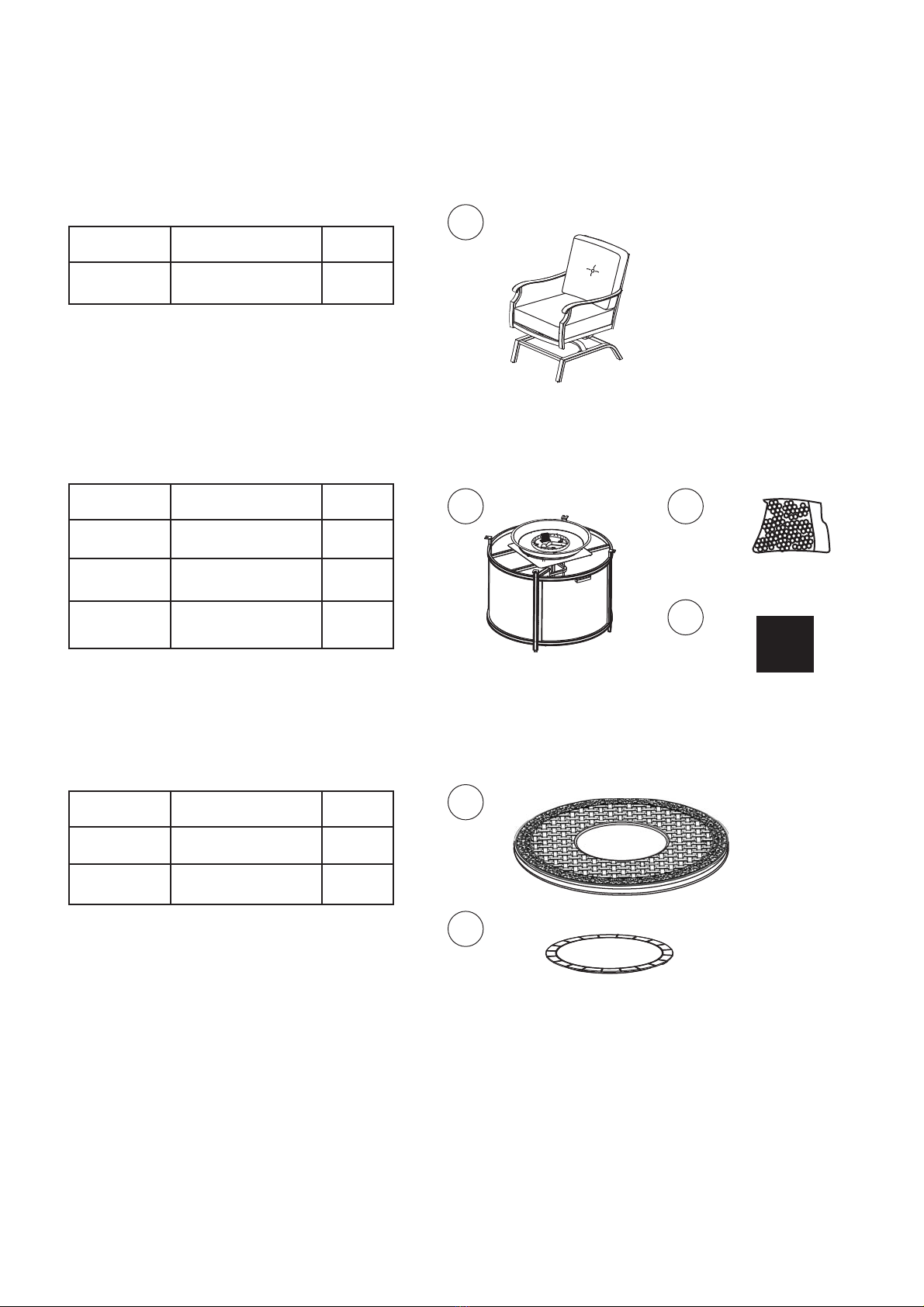

Package Contents
A
Box3of3：
Component QuantityDescription
A
B
1
A B
1
5
Furniture Cover
C
Firepit Base
Fire Ice
B
Burner Cover
Firepit Table Top
1

ARW09200
A
45.75" RD *24.5" H
A
ACE00422 26" W *31 5" D *35" H.
Spring Rocker

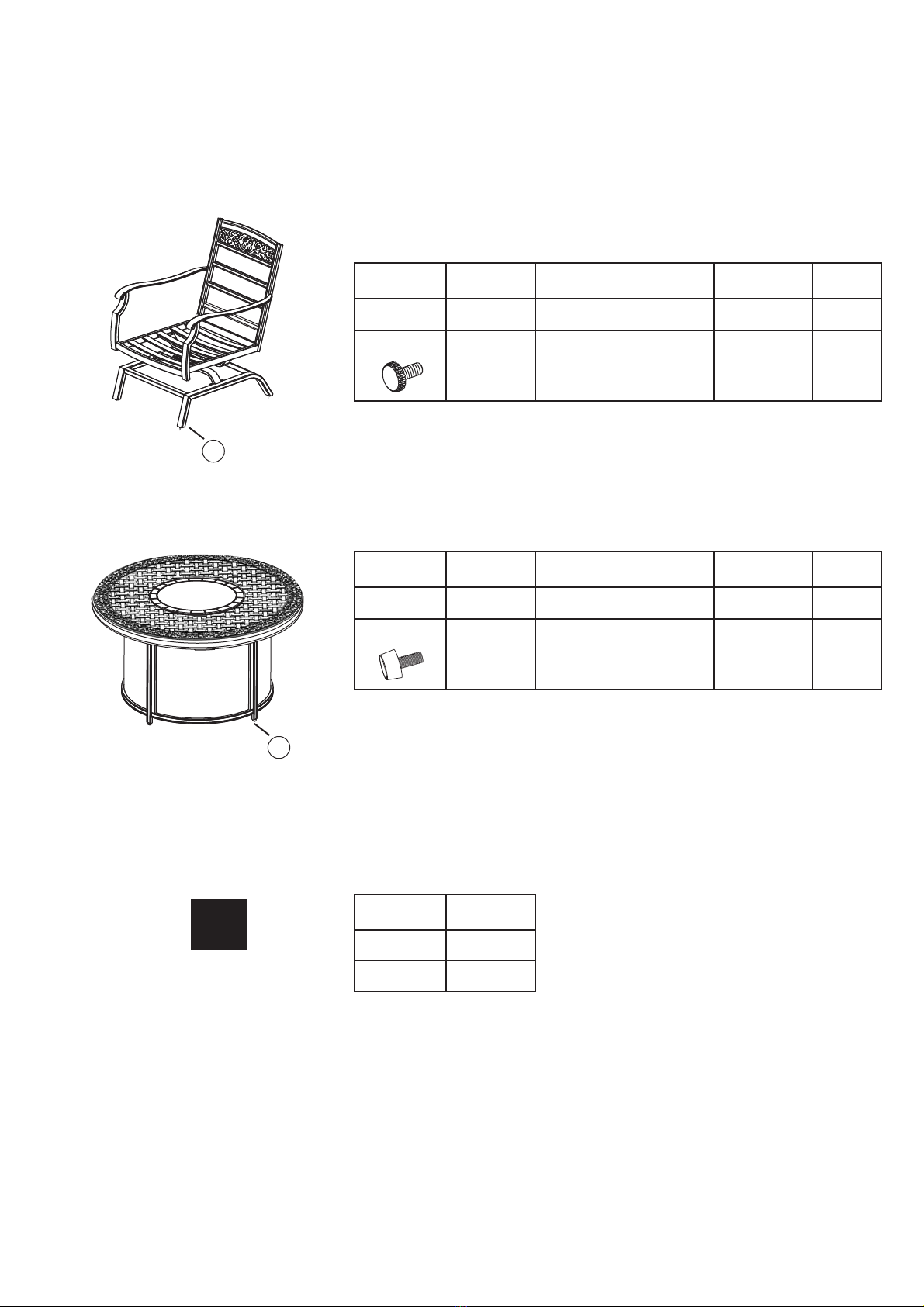

Product information
Need Assistance? Visit us at: samsclub.com/membersmarkhelp
Page 5
250lb per seat
Firepit Table
FC0607
Description DimensionsPart No. Weight
Capacity
Factory
Assembly
A.Foot Cap
N/A N/A Y
FC0553
Description DimensionsPart No. Weight
Capacity
Factory
Assembly
N
A.Foot Cap
N/A N/A Y
N/A
N
Description Part No.
ZZW04612
Spring Rocker's
Cover
ZZT02112
Firepit Table's
Cover

(H1)
5/16"X42MMBOLT
Qty: 4
PART NO:HW0931
(H2)
Qty: 4
Ø8.0 X 2.3 MM SPRING WASHER
PART NO:HW0003
(H3)
Qty: 2
"U" METAL PLATE
PART NO:HW0644
(H4)
Qty:
5/16" NUT
PART NO:HW0015
4
(H5)
Qty:
ROCKER PLATE
(
G0375
FACTORY ASSEMBLY)
PART NO:
2
Components
Hardware
A.
Part No.AR20624
Qty 1
CHAIR FRAME
Tools
Page 6
Need Assistance? Visit us at: samsclub.com/membersmarkhelp
(H7)
HEX WRENCH-2
HW0008
Qty:
PART NO:
1
(H6)
HEX WRENCH-1
HW000
Qty:
PART NO:
1
7
B.
Part No.AR20625
Qty 1
BASE & ROCKER ASSEMBLY

"U" BAR
(H3)
U" METAL PLATE
Qty: 2
(H7)
HEX WRENCH-2
Qty: 1
(H6)
HEX WRENCH-1
Qty: 1
(H4)
5/16" NUT
Qty: 4
(H2)
Ø8.0 X 2.3 MM SPRING WASHER
Qty: 4
(H1)
5/16"X42MMBOLT
Qty: 4
A
B
Need Assistance? Visit us at: samsclub.com/membersmarkhelp
Page 7

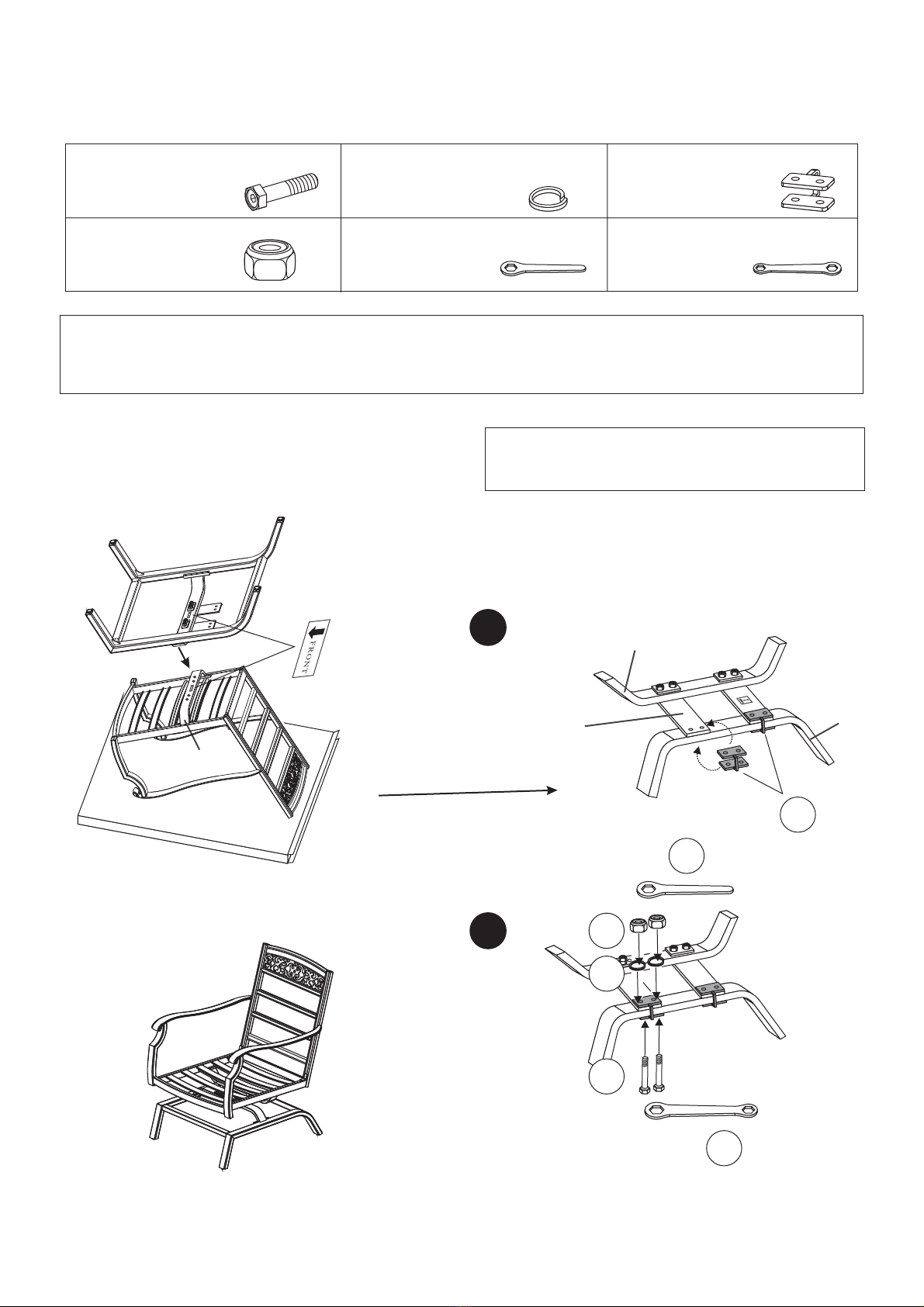

Step 1
outer carton
CAUTION: Failure to place the “U” metal plates (H3) under the rocker plates and above the “U” bar
exactly as shown in the diagram will cause the bolt heads and nuts to damage the structure of the
rocker plates and the “U” bar. Damage due to over tightened bolts or improper assembly could
cause injury.
CAUTION: MAKE SURE THE ARROW LABELS
ON THE ROCKER PLATE POINT TOWARD THE
FRONT OF CHAIR DURING ASSEMBLY.
"U" BAR
ROCKER PLATE
ROCKER
ASSEMBLY
H3
H6
H7
H1
H4
H2

Components
A. FIRE PIT TABLE TOP
Part No.FP3135
Qty 1
B FIRE PIT TABLE BASE
Part No.
Qty 1
.
FP3136
C.
FP3137
BURNER COVER
Part No.
Qty 1
D. BURNER PAN PROTECTIVE
RING
Part No.
Qty 1
FP3138
E.
FP2147
FIRE ICE
Part No.
Qty 1
Page 8
Need Assistance? Visit us at: samsclub.com/membersmarkhelp
Hardware
(H2)
(FACTORY ASSEMBLY)GAS VALVE
PART NO: FP2330
Qty: 1
(H3)
(FACTORY ASSEMBLY)
THERMOCOUPLE
PART NO: FP2331
Qty: 1
(H4)
(FACTORY ASSEMBLY)
FLEX CONNECTOR
PART NO: FP2332
Qty: 1
(H5)
(FACTORY ASSEMBLY)
ELECTRODE
PART NO: FP2333
Qty: 1
(H6)
(FACTORY ASSEMBLY)
IGNITION MODULE
PART NO: FP2334
Qty: 1
(H7)
(FACTORY ASSEMBLY)
Qty:
LP REGULATOR HOSE
PART NO: FP2250
1
(H8)
(FACTORY ASSEMBLY)
Qty: 2
LP TANK RETAINING KNOB
PART NO:FP0585
(H9)
PROPANE ORIFICE
PART NO: FP2103
1
(FACTORY ASSEMBLY)
Qty:
(H1)
CONTROL KNOB
PART NO: FP2329
Qty: 1
(FACTORY ASSEMBLY)
Tools
(H19)
HEX BOLT DRIVER
Qty:
PART NO:HW0006
1
(H18)
HEX BOLT DRIVER
HW09
Qty:
PART NO: 00
1
(H10)
M4 BOLT
Qty: 3
(FACTORY ASSEMBLY)
PART NO:HW0898
(H13)
“AA” BATTERY(1.5V)
Qty:
PART NO: HW0905
1
(H14)
AIR SHUTTER
PART NO: FP1922
1Qty:
(H15)
NATURAL GAS ORIFICE
PART NO: FP1919
1Qty:
(H17)
Qty:
Ø20 X Ø6.5 X 2.0 MM WASHER
PART NO:
4
HW0594
(H12)
CHAIN
PART NO: FP3141
Qty: 1
(FACTORY ASSEMBLY)
(H16)
1/4”X20MMBOLT
Qty:
PART NO:HW0802
4
(H11)
ORIFICE HOLDER
Qty:
(FACTORY ASSEMBLY)
PART NO: FP3573
1

H17
H19
H16
Note: holes do not go through to
the top of table. Holes shown for
illustration purposes only.
Step 1
Step 2
(H16)
1/4"X20MMBOLT
Qty: 4
(H17)
Qty: 4
Ø20XØ6.5X2.0MM
WASHER
(H19)
Qty: 1
HEX BOLT DRIVER
There are three factory assembled M4 screws in the firepan/burner assembly. Remove
those three screws in order to remove the burner pan protective ring.
Need Assistance? Visit us at: samsclub.com/membersmarkhelp
Step1-Step7
Page 9

H18
H10
BURNER PAN
IGNITION WELL
NOTE: Bolts must be
FULLY tightened.
Place the burner pan protective ring, into the burner as shown in the . Secure the
burner pan protective ring to the burner pan by using three M4 screws.
diagram
Place the firepit table in its final position. There must be a minimum of 24 inches of
clearance from the side of the table top to any combustible walls.
(H10)
M4 BOLT
Qty: 3
(H18)
HEX BOLT DRIVER
Qty: 1
Need Assistance? Visit us at: samsclub.com/membersmarkhelp
Pour ALL the fire ices into the burner pan. The burner MUST be completely covered to
ensure the appliance functions properly and safely. Remove any fire ice on top of the
ignition well.
Step 3
Step 4
Step 5
Page 10

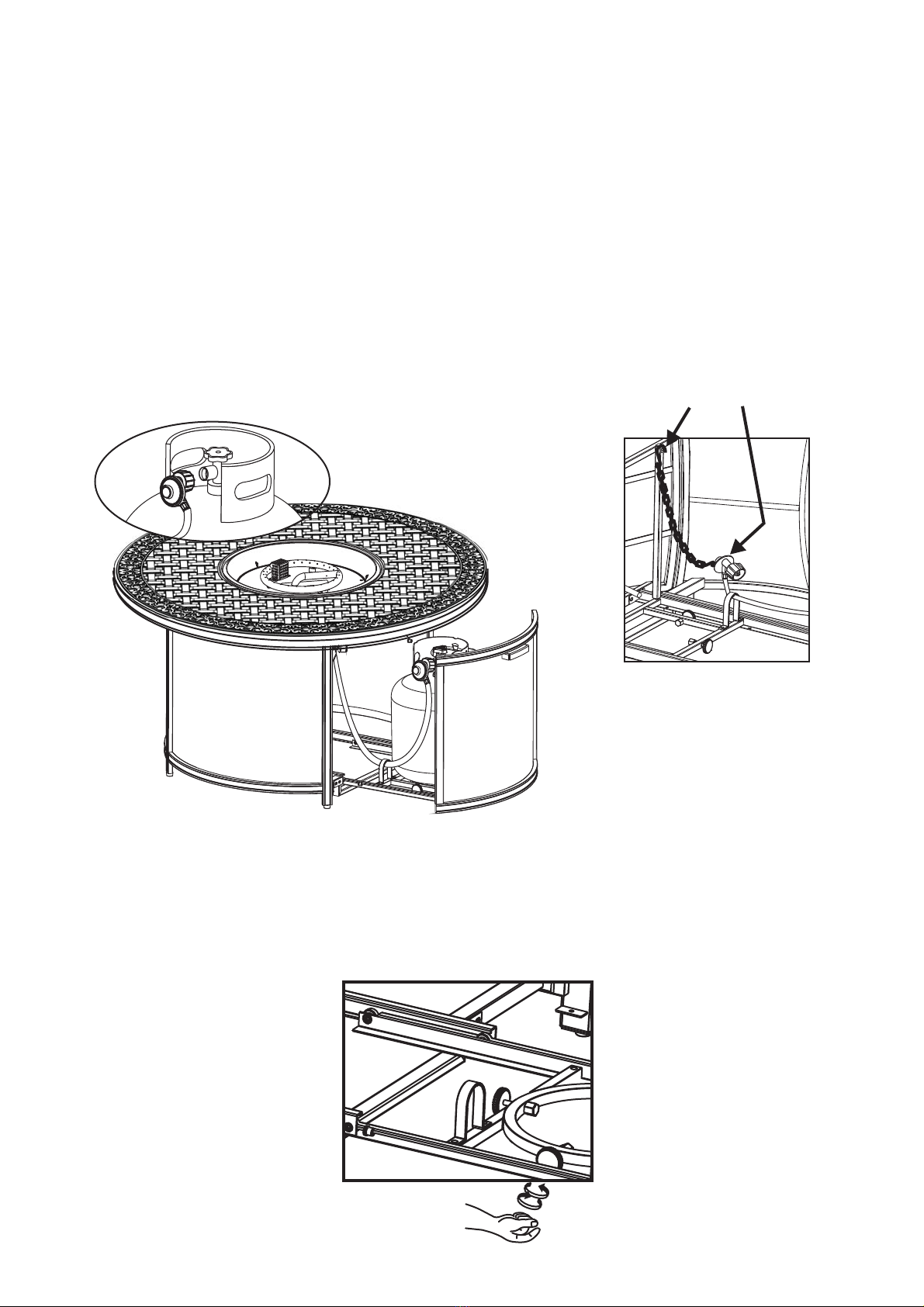

Open the door and place the LP tank in the bottom frame. Connect the regulator. Turn the
black handle clockwise to tighten. Turn the handle counterclockwise to remove. The hose
must point down. Open the control door and check that the valve is turned all the way
clockwise to the “OFF” position. Open the tank valve. Apply a solution of soapy water to
the tank-regulator connection and to the valve-hose connection to check for leaks. If soap
bubbles continue to form, the connection has a leak. If a leak is found, close the tank valve
and tighten all connections. NEVER USE A FLAME TO CHECK FOR LEAKS.
Tighten the threaded knobs found on the tank tray so that the LP tank cannot move from
side to side. Do not remove the plastic cap from the end of the threaded section.
Please do not remove the chain from the fire
pit base frame end or from the valve end when
the valve is disconnected from cylinders.
Need Assistance? Visit us at: samsclub.com/membersmarkhelp
Step 6
Step 7
Page 11

CARE AND MAINTENANCE
FRAMES
FABRICS (CUSHIONS/SLINGS)
STRAPS
Cleaning
Maintenance
Cleaning -
Maintenance
Cleaning -
Maintenance -
- Use mild soap and warm water. Do not use abrasive materials, cleansers or bleach
products. Rinse with clean water and dry thoroughly.
- Periodically clean and dry thoroughly. Be sure to drain any water accumulated
inside the frames. To thoroughly drain frames, remove foot caps and tilt the frames, if necessary, to
remove all water. This is critical. Water allowed to accumulate inside the frames and then
exposed to sub-freezing temperatures can cause damage to the frame tubing. Always clean, drain
and dry thoroughly before storing for the winter. For best results, always store or cover your
furniture when not in use. We recommend commercially available outdoor furniture covers. Any
small nicks or scratches can be covered with a light application of touch-up paint.
** When cleaning or moving large or heavy items, always have two people work together. Never
drag furniture.
Wipe minor spills immediately. Clean with mild soap, warm clean water and soft cloth.
Do not use abrasive materials, cleansers or bleach products. Although fabric has been treated to
resist stains, occasional use of commercially available fabric cleaners may be necessary. Follow
manufacturer's instructions.
- The best way to maintain the beauty of cushions and slings is to store them in a dry
area and out of the elements when not in use or cover with commercially available outdoor
furniture covers.
Furniture covers are a great way to protect your set from harsh elements of weather and UV light.
However, it is important to ensure furniture and covers are free of moisture and debris before
covering. It is also necessary to promptly uncover furniture after rain and during periods of high
humidity to prevent moisture build up. Failure to do so can lead to permanent surface and finish
damage.
Wash frequently with mild soap, warm water and a soft cloth. Rinse thoroughly with
warm, clean water. Do not use abrasive materials, cleansers or bleach products.
Periodic application of commercially available vinyl cleaners and vinyl protectors will
enhance the look and prolong the life of straps. If your strap chair has cushions, make sure any
vinyl protectors applied are completely dry before placing cushion back on the chair.
Need Assistance? Visit us at: samsclub.com/membersmarkhelp
Care & Use Instructions
Warranty Information
This product component has a 5 year guarantee against defects in material and/or workmanship. If
you have any questions regarding the warranty or spare / replacement parts, please call our toll-
free number 1-800-416-3511 or email us at [email protected]
NOTE: Please consider recycling all applicable packaging material.
Page 12

Distributed by Sam's West Inc.
2101 SE Simple Savings Dr.
Bentonville, Arkansas 72716-0745
Made in China
Page 13
Need Assistance? Visit us at: samsclub.com/membersmarkhelp
