Universal E-stop System Quick Start Guide
iv

1
Universal E-stop System Quick Start GuideUniversal E-stop SystemQuick Start Guide
Chapter 1 Quick start
Important safety instructions
To ensure the best from the product, please read this manual carefully.
Keep it in the safe place for future reference.
To reduce the risk of electric shock, do not remove the cover from the
unit. No user serviceable parts inside. Refer servicing to qualified
personnel.
Power and connections
This unit must be connected to a 24V DC PSU supplied.
Do not plug in or attempt to operate an obviously damaged
unit.
General care
Do not force switches or external connections.
Do not attempt to clean the unit with chemical solvents or
aerosol cleaners, as this may damage the unit. Use a clean dry
cloth.
Do not use around flammable gas. All electrical equipment can
generate sparks that can ignite flammable gas.
Keep the equipment dry. The system has not been made
weatherproof. Do not use with wet hands.
Keep away from pets and children.
Location
Installation of this unit should be away from sources of excessive heat,
vibration, and dust.
Intellectual property
This product includes confidential and/or trade secret property.
Therefore, you may not copy, modify, adapt, translate, distribute, reverse
engineer, or decompile contents thereof.

Universal E-stop System Quick Start Guide
2
Overview
Thank you for using the Universal E-Stop System from Mark Roberts
Motion Control (MRMC). The Universal E-Stop System is a safety relay
PLC between RT-14 and MRMC Motion Control and Broadcast rigs and
is fully integrated with the Flair Motion Control Software.
The Universal E-Stop System has the following main features:
Can be used as a safety PLC for a single robot. Multiple robots
using the Universal E-stop can be easily "daisy-chained" to
create a global E-stop system
An arbitrary number of additional E-stop buttons can be
attached and deployed in the customer setup

Universal E-stop System Quick Start Guide
3
Connecting the cables
Universal E-stop System with a Single Robot
RT-14
E-STOP
Jumper
[19788]
Jumper
[15843]
Jumper
[14823] To Rob ot
Controller
or umbilical
ROBOT
POWER IN
To
Additional
hardware
24V PSU
Safety PLC
E-stop Relay
Desk
top
E-stop
box
[19782]
Hand held
box or bypass
jumper
XLR cable
[18826]
Cable
[18833]
The two E-stop Status Non-safe connectors provide Auxiliary relay
output and can be connected to additional non-MRMC or custom device.
Any hardware that is plugged with these two connectors will be stopped
when the E-stop button connected with the Universal E-stop system is
pressed but the reverse is not true. In other words, the Universal E-stop
System will not accept any feedback from such devices.

Universal E-stop System Quick Start Guide
4
Safety Relay PLC LEDs
LED/Key Description
Blue On indicates that the Safety Relay has power.
Green On indicates that the E-stop is enabled and the
robot can be engaged. Off indicates that the E-stop
is pressed and robot is disengaged and cannot be
re-engaged.
Red On indicates that the RT-14 Bypass key is in
horizontal position and RT-14 is bypassed. In this
condition both the software E-Stop (from Flair) and
the HHB E-stop have no effect. For safety reasons,
always ensure that this LED is off unless RT-14 is
bypassed temporarily on purpose.

Universal E-stop System Quick Start Guide
5

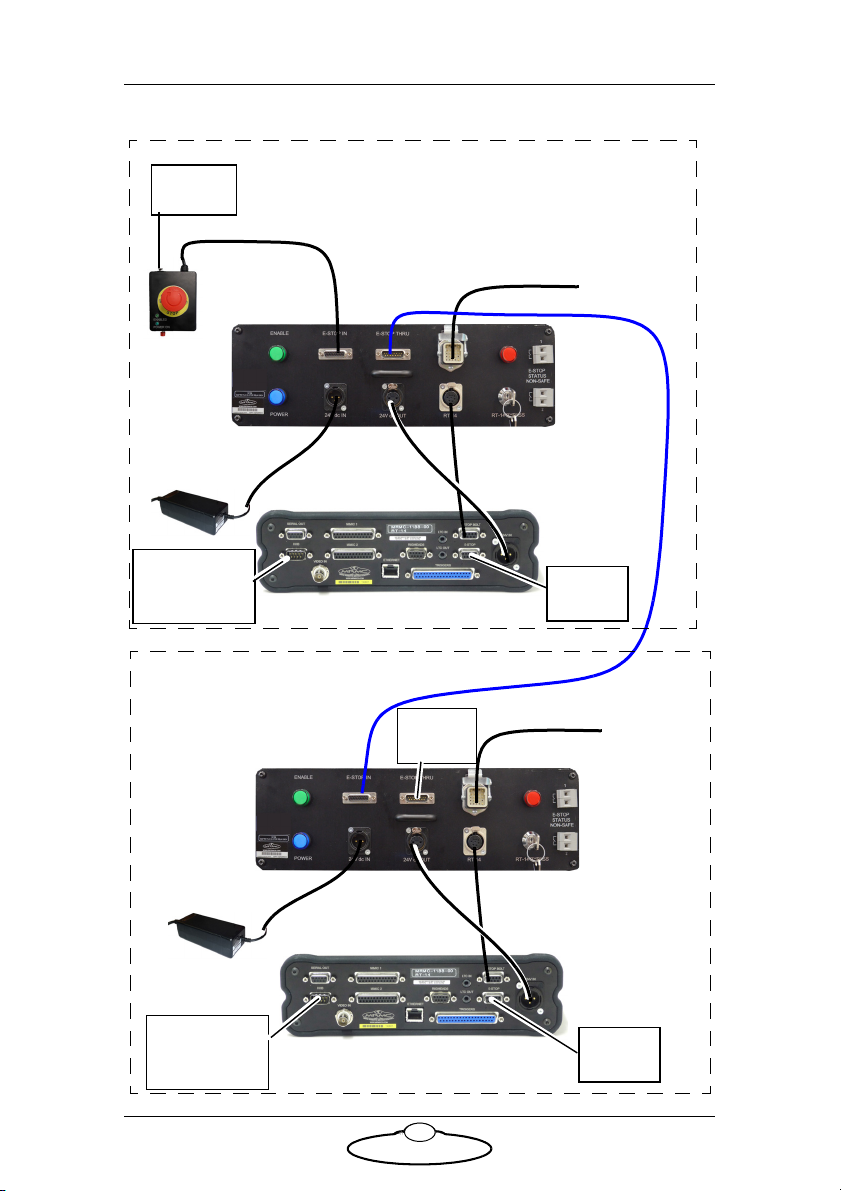

Universal E-stop System with Multiple Robots
Universal E-stop System with robot two
RT-14
E-STOP
Jumper
[14823]
Desk
top
E-stop
box
[19782]
To Robot
Controller or
umbilical
ROBOT
POWER IN
24V PSU
Safety PLC
E-stop Relay
RT-14
E-STOP
To Robot
Controller or
umbilical
ROBOT
POWER IN
24V PSU
Safety PLC
E-stop Relay
Jumper
[19788]
Universal E-stop System with robot one
Hand held
box or bypass
jumper
Hand held
box or bypass
jumper
XLR cable
[18826]
Cable
[18833]
XLR cable
[18826]
Cable
[18833]
[19862]
Jumper
[15843]
Jumper
[15843]

Universal E-stop System Quick Start Guide
6
Any number of Universal E-stop Systems can be added to the chain as
long as the one at the beginning of the chain has the Desk top E-stop box
plugged into E-Stop In and the one at the end of the chain has a jumper
plugged into E-stop Thru connector.

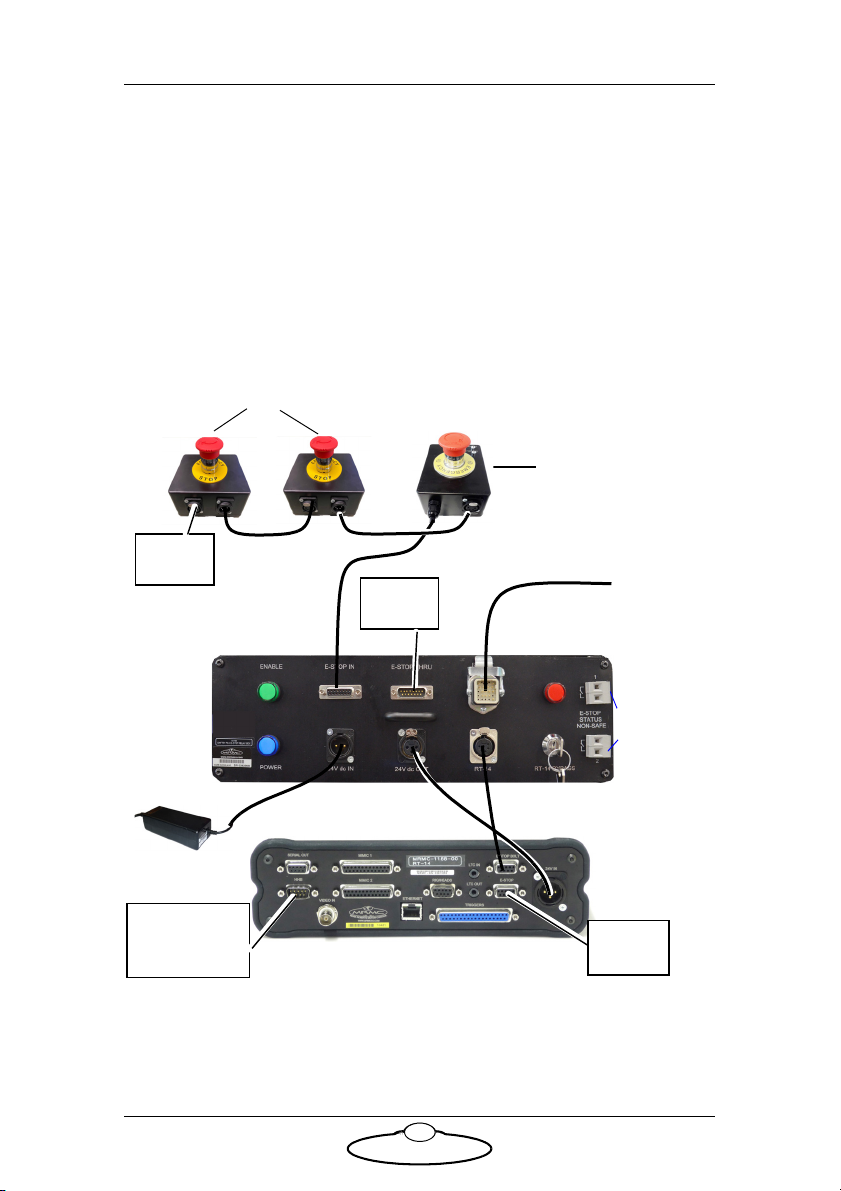

E-stop Button Expansion
Only one main E-stop box [19782] is used per safety relay box, which is
plugged to the E-stop In connector.
When using multiple desk top E-stop boxes, E-stop Extension Cable
[18466] is used to ‘chain’ the E-stop boxes.
RT-14
Jumper
[19788]
To Robot
Controller
or umbilical
ROBOT
POWER IN
Additional
hardware
24V PSU
Safety PLC
E-stop Relay
Jumper
[14823]
Any number of desk top e-stop
boxes [18519] can be added to the
chain as long as the one at the end
of the chain has the jumper
[14823] plugged into it.
Desk-top E-stop
box [19782]
(Must be first in
the chain)
XLR cable
[18826]
Cable
[18833]
Hand held
box or bypass
jumper
Jumper
[15843]

Universal E-stop System Quick Start Guide
7

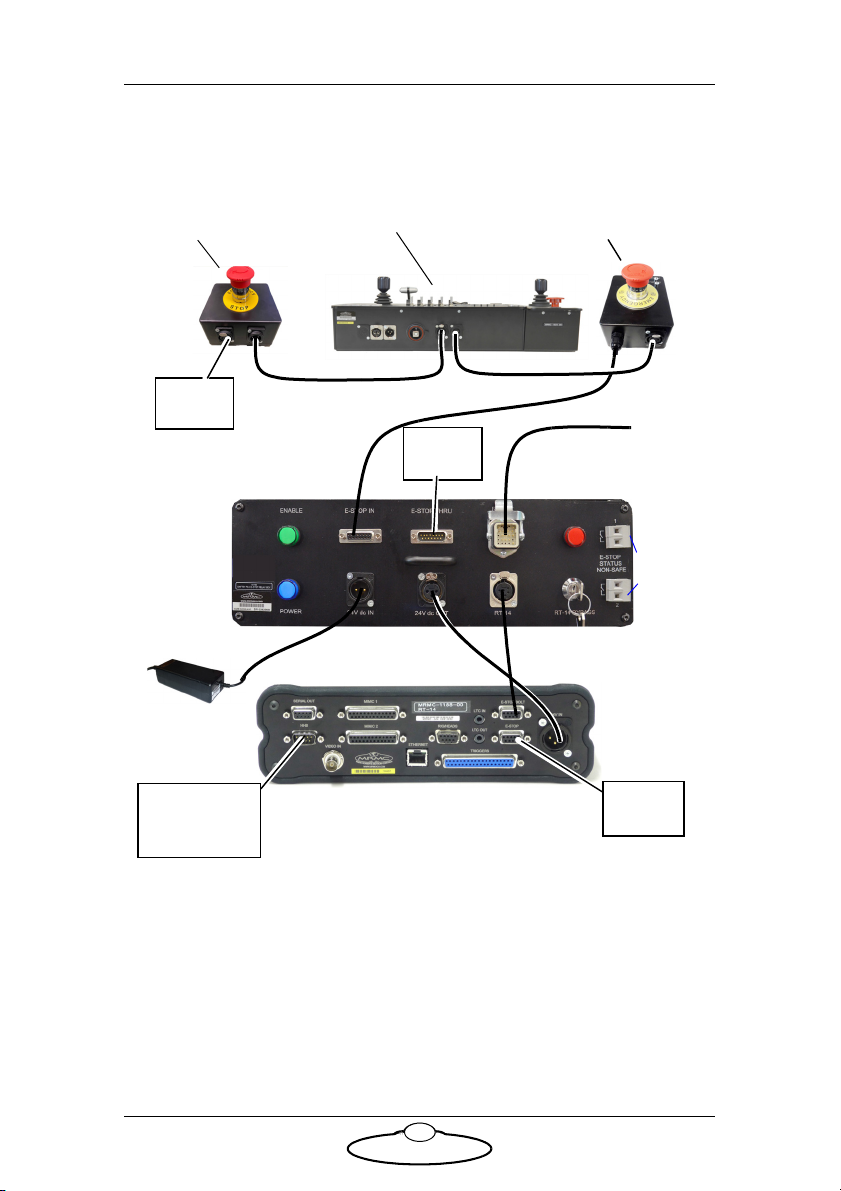

You can even use Broadcast Panel with Ear [MRMC-1525-xx] for robot
operation and emergency stops as well. Again any number of Broadcast
Panel with Ear and desk top E-stop boxes [18519]’s can be added to the
chain in any order as long as the unit at the end of the chain has jumper
[14823] plugged into it.
RT-14
Jumper
[19788]
To Robot
Controller
or
umbilical
ROBOT
POWER IN
E-stop
Non-Safe
24V PSU
Safety PLC
E-stop Relay
Jumper
[14823]
Broadcast Panel with Ear
[MRMC-1525-xx]
Desk-top E-stop
box [19782]
(must be first in
the chain)
Desk-top E-stop
box [18519]
Hand held
box or bypass
jumper
XLR cable
[18826]
Cable
[18833]
Jumper
[15843]

Universal E-stop System Quick Start Guide
8
Universal E-stop Bypass Operation
You can bypass the Universal E-stop system temporarily for
troubleshooting a fault in the system or to move the arm when Flair PC is
not connected for example to move the arm in transport position. To do
so, connect the Bypass E-stop button via E-stop Robot Cable in the
umbilical to the Robot Controller.
To Robot
Controller
Bypass E-stop
button
[20529]
E-stop Robot Cable via
Umbilical
Bypassing the Universal E-stop System is for temporary use
only. Robot will enable as soon as E-stop button is reset.
This will also bypass the software E-stop and any other
hardware E-stops and the robot will have no controlled
E-stop action.

Universal E-stop System Quick Start Guide
9
RT-14 Bypass Operation
By setting the key in the horizontal position, you can bypass
the RT-14. In this mode the E-stop can be enabled even if the
RT-14 is not connected or not loaded, or Flair is not running,
or the HHB is unplugged. The red led indicates that this
mode is active.
E-STOP
Jumper
[19788]
Jumper
[14823] To Rob ot
Controller
or umbilical
ROBOT
24V PSU
Safety PLC
E-stop Relay
Desk
top
E-stop
box
[19782]
Bypassing RT-14 will make the safety circuit IGNORE the
software E-stop and the HHB E-stop that is plugged into
RT-14. This should be used only temporarily and the key
put back in vertical position soon after.
