Memorex MX3700 User manual

DIGITAL AM/FM RADIO TOP LOADING CD
PLAYER STEREO CASSETTE RECORDER
MODEL: MX3700
BEFOREOPERATINGTHISPRODUCT,
PLEASE READ THESE INSTRUCTIONS COMPLETELY
Untitled-1 9/23/02, 3:34 PM1

E-2
WARNING:
To reduce the risk of fire or electric shock, do not expose it is appliance to rain or moisture.
CAUTION:
Use of controls or adjustments or performance of procedures other than those specificed may result in
hazardous radiation exposure.
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
To reduce the risk of electric shock, do not remove cover (or back).
No user serviceable parts inside. Refer servicing to qualified service personnel
The lightning flash with arrowhead symbol within an equilateral symbol, with an
equilateral triangle, is intended to alert user to the presence of uninsulated “dangerous
voltage” within the products enclosure that may be of sufficient magnitude to constitute
a risk of electric shock to persons
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenace (servicing) instruction in the literature
accompanying the appliance.
CAUTION
For Compact Disc Units only.
INVISIBLE LASER RADIATION WHEN OPEN AND
INTERLOCK FAILED OR DEFEATED.
AVOID DIRECT EXPOSURE TO LASER BEAM.
Untitled-1 9/23/02, 3:34 PM2

E-3
IMPORTANT SAFEGUARDS
CAUTION :
•Read all of these instructions.
•Save these instructions for later use.
•Follow all warnings and instructions marked on the audio equipment.
1. READ INSTRUCTIONS
All the safety and operating instructions should be read before the product is operated.
2. RETAIN INSTRUCTIONS
The safety and operating instructions should be retained for future reference.
3. HEED WARNINGS
All warnings on the product and in the operating instructions should be adhered to.
4. FOLLOW INSTRUCTIONS
All operating and use instructions should be followed.
5. WATER AND MOISTURE
The product should not be used near water – for example, near a bathtub, washbowl, kitchen sink,
laundry tub, in a wet basement, or near a swimming pool, etc.
6. CARTS AND STANDS
The product should be used only with a cart or stand that is
recommended by the manufacturer.
6A. An appliance and cart combination should be moved with care. Quick
stops, excessive force, and uneven surfaces may cause the appliance
and cart combination to overturn.
7. WALL OR CEILING MOUNTING
The product should be mounted to a wall or ceiling as recommended by the manufacturer.
8. HEAT
The product should be situated away from heat sources such as radiators, heat registers, stoves, or
other products ( including amplifiers ) that produce heat.
9. VENTILATION
The product should be situated so that its location or position does not interfere with its proper
ventilation. For example, the product should not be situated on a bed, sofa, rug, or similar surface that
may block the ventilation openings; or, placed in a built-in installation, such as a bookcase or cabinet
that may impede the flow of air through the ventilation openings.
10. POWER SOURCES
The product should be connected to a power supply only of the type described in the operating
instructions or as marked on the product.
11. GROUNDING OR POLARIZATION
Precautions should be taken so that the grounding or polarization means of a product is not defeated.
12. POWER-CORD PROTECTION
Power-supply cords should be routed so that they are not likely to be walked on or pinched by items
placed upon or against them, paying particular attention to cords at plugs, convenience receptacles,
and the point where they exit from the product.
13. CLEANING
The product should be cleaned only as recommended by the manufacturer.
14. POWER LINES
An outdoor antenna should be located away from power lines.
Untitled-1 9/23/02, 3:34 PM3

E-4
15. OUTDOOR ANTENNA GROUNDING
If an outside antenna is connected to the receiver, be sure the antenna system is grounded so as to
provide some protection against voltage surges and built up static charges. Section 810 of the National
Electrical Code, ANSI/NFPA 70 provides information with respect to proper grounding of the mast and
supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding
conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements
for the grounding electrode. See Figure.

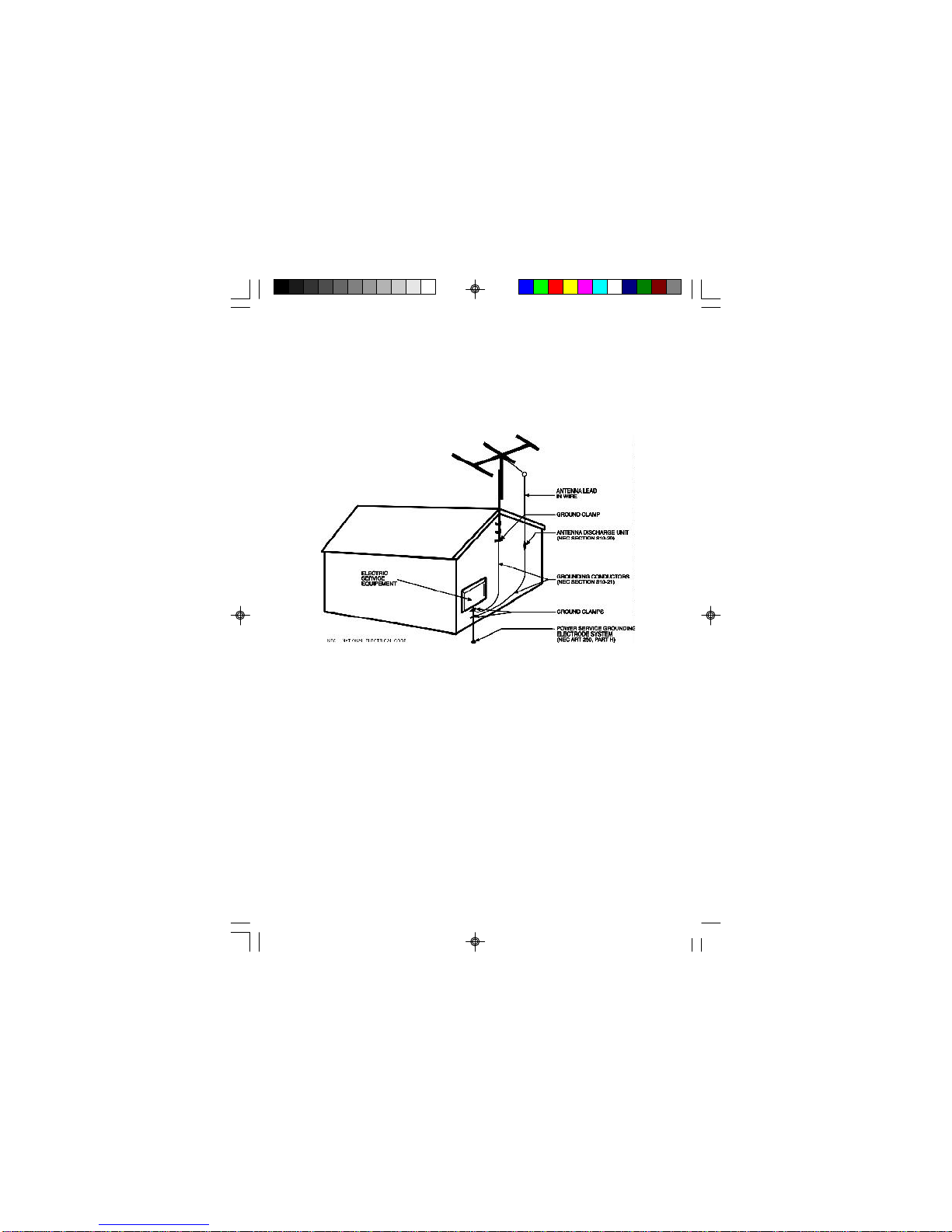

EXAMPLE OF ANTENNA GROUNDING AS PER
NATIONAL ELECTRICAL CODE
16. NONUSE PERIODS
The power cord of the product should be unplugged from the outlet when left unused for a long period
of time.
17. OBJECT AND LIQUID ENTRY
Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through
openings.
18. DAMAGE REQUIRING SERVICE
The product should be serviced by qualified service personnel when:
A. The power-supply cord or the plug has been damaged; or
B. Objects have fallen or liquid has been spilled into the product; or
C. The product has been exposed to rain; or
D. The product does not appear to operate normally or exhibits a marked change in performance; or
E. The product has been dropped, or the enclosure damaged.
19. SERVICING
The user should not attempt to service the product beyond that described in the operating instructions.
All other servicing should be referred to qualified service personnel.
20. NOTE TO CATV SYSTEM INSTALLER
This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that
provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be
connected to the grounding system of the building, as close to the point of cable entry as practical.
PRINTED IN HONG KONG
Untitled-1 9/23/02, 3:34 PM4

E-5
LOCATION OF CONTROLS
1. SPEAKER
2. REMOTESENSOR
3. POWERBUTTON
4. STANDBYINDICATOR
5. CD DOOR
6. DISPLAY
7. CLASSICINDICATOR
8. POPINDICATOR
9. ROCKINDICATOR
10.CD DOOR OPEN BUTTON
11.ROCKBUTTON
12.POPBUTTON
13.CLASSICBUTTON
14.CASSETTEDOOR
15.RECORDKEY
16.PLAYKEY
17.REWIND KEY
18.FAST FORWARD KEY
19.STOP/EJECTKEY
20.PAUSEKEY
21.HEADPHONEJACK
22.REPEAT / M.UP BUTTON
23.CD PROGRAM/TUNER MEMORY BUTTON /TIME SET
24.TUNER DOWN/CD SKIP TRACK (BACK) / TIME( )
25.STOPBUTTON
26.PLAY/PAUSEBUTTON
27.TUNER UP/CD SKIP TRACK (FORWARD) / TIME( )
28.BANDSELECTOR
29.RANDOMBUTTON
30.CD SYNCHO DUBBING BUTTON
31.AUXBUTTON
32.TAPEBUTTON
33.VOLUMEUP/DOWNBUTTON
34.TUNERBUTTON
35.CDBUTTON
36.SPEAKER JACKS (L/R)
37.AUXINPUT
38.AC POWER CORD
39.FMANTENNA LEAD
40.FMMODE/BEAT CUTSELECTOR
CAUTION
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN
THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
THIS UNIT SHOULD NOT BE ADJUSTED OR REPAIRED BY ANYONE EXCEPT QUALIFIED SERVICE
PERSONNEL.
PRESET EQUALIZER
THE QUALITY OF TONE CAN BE ADJUSTED BY THE PRESET SOUND EQUALIZER WHICH HAS BEEN
SET INTO 3 MODES (ROCK, POP CLASSIC). BY PRESSING THE CORRESPONDING EQ BUTTON YOU
CAN CHOOSE ONE OF YOUR FAVORITE MODE ACCORDING TO YOUR MUSIC STYLE.
Untitled-1 9/23/02, 3:34 PM5

E-6
CLOCKSETTING
•SELECT TO TAPE/AUX PRESS THE PROGRAM/TIME SET BUTTON ONCE THE HOURS START
FLASHING
•PRESS THE TUNING BUTTON( OR )TOADJUST
THEHOURS.
•PRESSTHE PROGRAM/TIMESET BUTTONAGAIN. THE
MINUTESSTART FLASHING.
•PRESS THE TUNING BUTTON ( OR )TO
ADJUST THE MINUTES.
•PRESS THE PROGRAM/TIME SET BUTTON OR WAIT A
FEW SECONDS AND THE CLOCK WILL START RUNNING.
LISTENING TO RADIO
MANUAL TUNING
1. PRESS TUNER BUTTON TO SELECT TUNER MODE.
2. PRESS BAND BUTTON TO THE DESIRED BAND.
3. PRESS THE TUNING “UP” BUTTON OR “DOWN BUTTON UNTIL DESIRED STATION IS REACHED.
4. ADJUST THE VOLUME CONTROL TO THE APPROPRIATE LEVEL AS DESIRED.
AUTO TUNING
1. FOLLOW STEPS 1,2 OF “MANUAL TUNING”.
2.PRESS UP ORDOWN BUTTON CONTINUOUSLYTO START THE AUTOMATIC TUNING.
3. TO TERMINATE AUTO TUNING, PRESS THE UP OR DOWN BUTTON AGAIN.
PRESET STATIONS
THIS UNIT EQUIPPED 10 PRESET STATIONS FOR FM AND AM 10 STATIONS FOR AVAILABLE. ONCE
THEY ARE PRESET, BROADCASTING CORRESPONDED TO THOSE CAN READILY BE ENJOYED BY
SIMPLYPRESSING THEPRESET STATIONBUTTON.
1. PRESS THE TUNER MODE.
2. YOUR DESIRED STATION CAN BE RECEIVED BY “MANUAL TUNING” OR “AUTO TUNING”.
3. PRESSTHE MEMORY /PROGRAM BUTTON, TOENABLE PROGRAM STATE.
4. PRESS THE M-UP / REPEAT BUTTON, TO ADJUST PRESET STATION NUMBER.
5. FREQUENCY IS WRITTEN IN THE PRESET MEMORY BY PUSHING MEMORY / PROGRAM
BUTTON ONCE AGAIN.
6. REPEATSTEP 2TO STEP5 TOENTER ADDITIONALCHANNELS INTOPROGRAM.
7. TO RETURN NORMAL TUNER MODE, LEAVE KEYS FREE.
*REMARKS: THERE ARE 5 SECONDS FOR PROGRAM STATE. AFTER 5 SEC. THIS STATE
WOULDRELEASE AUTOMATICALLY.
Untitled-1 9/23/02, 3:34 PM6

E-7
CALLING THE PRESET STATIONS
PRESS THE M-UP/ REPEAT KEY TO SELECT THE PRESET STATION IN ORDER.
FM & FM-STEREO RECEPTION
•SET FM MODE SELECTOR AT “MONO” POSITION, PROGRAMS ARE RECEIVED IN MONO MODE.
IN PARTICULAR WHEN STEREO SIGNALS ARE WEAK ,IT IS PREFERABLE TO RECEIVE THE
PROGRAMIN MONO.
•SETFM MODE SELECTORAT “STEREO” POSITIONFOR RECEIVING STEREOPROGRAMS.
PLAYING COMPACT DISC
GETTING START
1. PRESS THE CD MODE. PRESS THE CD DOOR OPEN BUTTON AND PUT A DISC INTO THE
COMPACT DISC COMPARTMENT, THEN CLOSE THE COMPARTMENT.
2. THE DISPLAY WILL SHOW “00” FOR A FEW SECONDS, THEN THE TOTAL NUMBER OF TRACKS
AND THE TOTAL PLAYING TIME OF THE DISC.
3. “DISC” WILL BE DISPLAYED WHEN THERE IS NO DISC INSIDE THE COMPARTMENT.
GENERAL OPERATION
PLAY/PAUSEBUTTON PRESS ONCE TO START PLAY, PRESS ONCE AGAIN TO STOP THE
DISC PLAY TEMPORARILY.
WHEN CD PLAYER IS PAUSED, DISPLAY IS BLINKING.
STOPBUTTON PRESSTO STOPPLAY.
SKIPBUTTON PRESS ONCE TO SKIP TO NEXT TRACK OR BACK TO PREVIOUS
TRACK .
UP/ AND
DOWN
RANDOMPLAY PRESS CONTINUOUSLY TO EXECUTE REW / F.F. RELEASED TO
TERMINATEREW /F.F.
RANDOMPLAY PRESS ONCE, THE DISPLAY WILL SHOW A “RANDOM”.
PRESS THE PLAY BUTTON TO PLAY THE DISC IN RANDOM ORDER.
WHEN CD IS PLAYING IN RANDOM MODE, PRESS UP/ TO
SELECT ANOTHER TRACK RANDOMLY.
PRESSTHE RANDOMBUTTON AGAINTO TERMINATETHE RANDOM
DISPLAY.
*DURING CD PLAY, RANDOM PLAY IS STARTED BY PRESSING THE RANDOM BUTTON ONCE.
IF RANDOM FUNCTION IS SELECTED WHEN PROGRAM EXIST, RANDOM FUNCTION CAN NOT BE
SET AND RANDOM IS FLASHING. (FLASHING MEANS “PROGRAM MEMORY IS EXIST”)
PROGRAMMED PLAY
UP TO 20 TRACKS CAN BE PROGRAMMED FOR DISC PLAY IN ANY ORDER. BEFORE USE, BE SURE
TOPRESSTHESTOPBUTTON.
Untitled-1 9/23/02, 3:34 PM7

E-8
1. PRESS THE CD BUTTON.
2. PRESS THE MEMORY PROGRAM BUTTON, THE DISPLAY WILL SHOW BLINKING “TRACK” AND
“MEMORY”. MOREOVER, IT WILL INDICATE PROGRAM NO. AND DIGITS FOR TRACK NO. TO BE
PROGRAMMED.
3. SELECT A DESIRED TRACK BY USING THE SKIP BUTTONS.
4. PRESS THE MEMORY/PROGRAM BUTTON TO ENTER THE TRACK INTO THE PROGRAM.
5. REPEATSTEP 2 AND3 TO ENTER ADDITIONAL MEMORIESINTO THE PROGRAM,IF
NECESSARY.
6. WHEN ALL THE ORDER YOU HAVE PROGRAMMED PRESS PLAY/PAUSE BUTTON TO PLAY THE
DISC IN THE ORDER YOU HAVE PROGRAMMED, THE DISPLAY WILL SHOW THE PROGRAM
INDICATOR“MEMORY” TOIDENTIFY THISFUNCTION.
7. PRESS STOP BUTTON TO TERMINATE PROGRAM PLAY.
*REMARKS: THERE ARE 5 SECONDS FOR MEMORY WRITING ENABLE STATE, AFTER THAT THE
STATE WOULD RELEASED AUTO MAGICALLY.
NOTE:
(1) THE PROGRAM MEMORY WILL BE CLEARED WHEN THE POWER BUTTON IS SET TO “OF”
,WHEN CD MODE IS CHANGED TO OTHER MODES, OR WHEN EJECT BUTTON IS
PRESSED.
(2) DURING PROGRAM PLAY, PRESS UP/ BUTTON TO SELECT THE PROGRAMMED
TRACK IN ORDER.
(3) PROGRAMREPEAT
YOUCAN REPEAT ALLPROGRAMMED TRACKS ENDLESSLYBY THIS FUNCTION.
1. FOLLOW STEP 1 TO STEP 5 IN PROGRAM PLAY.
2. PRESS M-UP/REPEAT BUTTON.
3. TO CANCEL REPEAT PLAY , PRESS THE M-UP / REPEAT BUTTON AGAIN.
REPEAT PLAY
SINGLE TRACK REPEAT PLAY(ONLY AVAILABLE FOR NORMAL PLAYING)
YOU CAN REPEAT A PARTICULAR TRACK OF THE DISC ENDLESSLY BY THIS FUNCTION.
1. SELECT A DESIRED TRACK BY SKIP BUTTONS
2. PRESS M-UP/REPEAT BUTTON TWICE.
3. THE DISPLAY WILL SHOW A FLASHING “REPEAT” ,AND REPEAT FUNCTION WOULD BE
INITIALIZED.
4. PRESSPLAY/PAUSE BUTTONTO START.
5. TO CANCEL REPEAT PLAY. PRESS THE M-UP / REPEAT BUTTON ONCE AGAIN.
* REMARKS: TO REPEAT THE TRACK THAT IS PLAYING .PRESS THE M-UP/REPEAT BUTTON
TWICE. ALL TRACKS REPEAT PLAY (AVAILABLE FOR BOTH NORMAL PLAYING AND
PROGRAMMED PLAYING)
YOUCAN REPEAT THEENTIRE DISC ENDLESSLYBY THIS FUNCTION.
1. PRESS M-UP / REPEAT BUTTON ONCE.
2. THE DISPLAY WILL SHOW “REPEAT”.
3. PRESS PLAY / PAUSE BUTTON TO START.
4. TO CANCEL REPEAT PLAY,PRESS THE M-UP / REPEAT BUTTON TWICE.
Untitled-1 9/23/02, 3:34 PM8

E-9
LISTENING TO TAPE
GENERAL OPERATION
STOP/EJECTKEY PRESS TO STOP ALL DECK OPERATIONS. PRESS AGAIN TO
THECASSETTE DOORS.
FAST FORWARD KEY & PRESS TO START RAPID TAPE WINDING IN EITHER FORWARD OR
FAST REWIND KEY REVERSE DIRECTION. PRESS STOP/EJECT KEYS WHEN THE
CASSETTESPOOLS STOPTURNING.
PLAYKEY PRESS TO START TO START PLAYING A TAPE .
PAUSEKEY PRESS TO STOP TAPE OPERATION TEMPORARILY . PRESS AGAIN
TORESUMETAPEOPERATION.
RECORDKEY PRESS TOGETHER WITH PLAY KEY TO START RECORDING.
PLAYBACK
-PRESS THE TAPE BUTTON.
-PUTIN YOURCASSETTE TAPE.
-PRESSPLAYKEYTO ACTIVATEPLAYBACK.
-ADJUST THE VOLUME CONTROL TO THE DESIRED LEVEL.
-USE PAUSE KEY WHEN YOU WANT TO STOP PLAYBACK TEMPORARILY.
-PRESSSTOP/EJECT KEYWHEN FINISHED.
RECORDING
A. RECORDING FROM RADIO
•PRESS THE TUNER BUTTON.
•TUNEIN YOUR STATIONAND PUT INYOUR CASSETTE TAPE.
•PRESS RECORD KEY AND THE PLAY KEY OF DECK AT THE SAME TIME TO START RECORDING
•PRESS STOP / EJECT KEY WHEN FINISHED. NOTED: IF BEAT NOISE IS PRESENT WHEN
RECORDING. ADJUST THE POSITION OF THE BEAT CUT SWITCH ON REAR PANEL (FOR AM
BANDONLY).
B. RECORDING FROM A COMPACT DISC
1. PRESS THE CD SYNCHRO MODE BUTTON TO “OFF”
2. PRESS CD BUTTON AND LOAD THE CD TO BE RECORDED.
3. LOAD A BLANK CASSETTE TAPE .
4. PRESS THE PAUSE BUTTON, THEN PRESS THE REC BUTTON.
RECORDING FUNCTION IS STAND BY.
5. SELECT THE TRACK NUMBER IF REQUIRED. FOR PROGRAMMED RECORDING, (AS DESCRIBED
UNDER PROGRAMMED PLAY OF CD).
6. ACTIVATE THE CD PLAYER, AND THEN PRESS (TO RELEASE )THE PAUSE BUTTON TO START
RECORDING.
7. TO STOP RECORDING, PRESS THE STOP BUTTON OF CD PLAYER AT FIRST ,AND PRESS
THESTOP/EJECT BUTTONOF THETAPE DECK.
SYNCHRONOUS RECORDING
(CD - TAPE SYNCHRONOUS DUBBING )
THISRECORDING SYSTEMSTARTS DISCPLAY ANDCASSETTE RECORDINGAT THESAME TIME.
ON: PRESS THE CD SYNCHRO. MODE BUTTON .THE CD SYNCHRO. DUBBING IS “ON”.
OFF: RELEASE THE CD SYNCHRO. MODE BUTTON. THE CD SYNCHRO. DUBBING IS “OFF”.
RECORDING FROM TRACK NO.1
1. PRESS THE CD SYNCHRO MODE BUTTON TO ”ON”
2. PRESS CD BUTTON AND LOAD A DISC INTO THE CD PLAYER.
3. PLAY THE TRACK PREPARED FOR RECORDING.
4. PRESS RECORD KEY AND THE PLAY KEY AT THE SAME TIME OF THE CASSETTE DECK TO
Untitled-1 9/23/02, 3:34 PM9

E-10
START RECORDING. CD PLAYER RESTARTS TO PLAY THE TRACK AT THE BEGINNING
AUTOMATICALLY.
5. TO PAUSE RECORDING, PRESS STOP/EJECT KEY OF THE CASSETTE DECK. THE CD PLAYER
PAUSESIMULTANEOUSLY.
6. PRESS BOTH RECORD KEY AND THE PLAY KEY OF THE CASSETTE DECK AGAIN TO CONTINUE
RECORDING.
7. TOFINISH RECORDING, STOPPLAYING CD ,PRESSSTOP/EJECTS KEY OF THE CASSETTE
DECK.

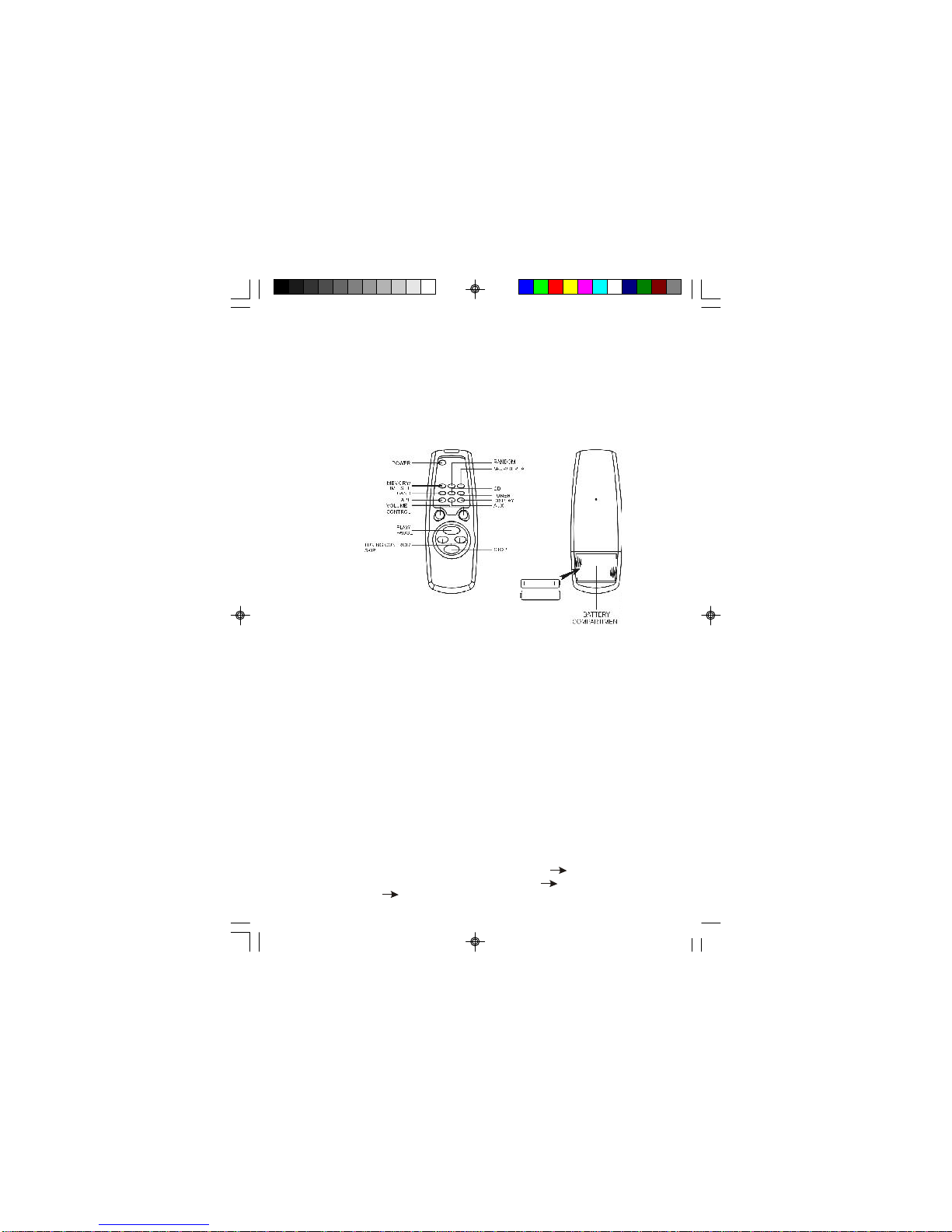

REMOTE CONTROL TRANSMITTER
CONTROL FUNCTIONS
BATTERY INSTALLATION
THE INFRARED TRANSMITTER REQUIRES 3.0 VOLTS FOR OPERATION.
BUTTON DESCRIPTION
PLAY/PAUSE -IN CD MODE, PRESS ONCE TO START PLAYBACK. PRESS ONCE AGAIN
TO STOP THE DISC PLAY TEMPORALLY.
STOP -PRESSTO TERMINATECD PLAYBACK.
TUNER -PRESS TO SELECT TUNER MODE.
TAPE -PRESSTO SELECTTAPE MODE.
CD -PRESSTO SELECTCD MODE.
AUX -PRESSTO SELECTAUX MODE.
BAND -PRESS TO SELECT TUNER BAND.
MEMORY -PRESS TO ENABLE PROGRAM STATE FOR TUNER OR CD .
RANDOM -PRESS TO ENABLE RANDOM PLAY FOR CD
M-UP(REPEAT) -IN TUNER MODE ,PRESS TO SELECT THE PRESET STATION IN ORDER. IN
CD MODE ,PRESS TO ENABLE REPEAT PLAY.
TUNING/SKIP(-) -IN TUNER MODE ,PRESS TO PREVIOUS TRACK. PRESS CONTINUOUSLY
TO EXECUTE REW. IN TUNER MODE, THIS BUTTON CAN BE USED FOR
AUTO DOWN TUNING OR MANUAL DOWN TUNING.
TUNING/SKIP(+) -IN CD MODE, PRESS ONCE , PRESS ONCE TO SKIP TO NEXT TRACK.
PRESS CONTINUOUSLY TO EXECUTE FWD. IN TUNER MODE ,THIS
BUTTON CAN BE USED FOR AUTO UP TUNING OR MANUAL UP TUNING.
POWER -TO TURN THE UNIT ON OR STAND BY.
VOLUME(+/-) -INCREASE (+) OR DECREASE (-)THE VOLUME.
DISPLAY -IN THE TUNER MODE: FREQUENCY DISPLAY CLOCKDISPLAY
-IN THE CD MODE: PLAYING TIME DISPLAY REMAININGTIME DISPLAY
CLOCK
Untitled-1 9/23/02, 3:34 PM10

E-11
SPECIFICATION
POWER SOURCE
AC: 120V~60Hz
RADIO FREQUENCY COVERAGE
FM: 87.5-108MHz
AM: 520-1710kHz
RECORDING SYSTEM
RECORDINGSYSTEM AC BIAS
ERASINGSYSTEM MAGNETIC ERASE
GENERAL
SPEAKER 4Ohms
POWEROUTPUT 5WATT AT 10% T.H.D. PER CHANNEL
HEADPHONES: 3.5mm STEREO JACK PLUG, 8-32Ω
CD PLAYER
PICKUP: 3-BEAM, SEMICONDUCTORLASER
ENCODING: 1-BIT LINEAR 8 X OVERSAMPLING
Untitled-1 9/23/02, 3:34 PM11

SYMPTOMS POSSIBLE CAUSES POSSIBLE SOLUTIONS
CD PLAYER
CD PLAYER WILL NOT
OPERATE FUNCTION SELECTOR SWITCH NOT SET TO CD POSITION SET FUNCTION SELECTOR SWITCH TO CD POSITION.
CD NOT INSTALLED OR
INSTALLED UPSIDE DOWN. INSERT CD WITH LABEL SIDE UP.
CD SKIP WHILE PLAYING. DISC ISDIRTY OR SCRATCHED. WIPE DISC WITH A SOFT CLOTH
OR TRY ANOTHER DISC.
RADIO
FM STEREO INDICATOR
DOESN’T LIGHT STATION NOT PROPERLY TUNED. RETUNE THE FM STATION.
BAND/FM MODE SWITCH IS SET
TO FM POSITION OR STATION IS
BROADCASTING IN MONO.
SET BAND/FM MODE SWITCH TO
FM STEREO POSITION OR TUNE
TO A STEREO BROADCAST
STATION.
NOISE OR SOUND
DISTORTEDON AM OR FM
BROADCASTS
FM PIGTAIL ANTENNA NOT
EXTENDED OR WEAK STATION. FM – EXTEND THE PIGTAIL ANTENNA.
AM – ROTATE UNIT UNTIL BEST
RECEPTION IS OBTAINED.
NO SOUND STATION NOT PROPERLY TUNED. RETUNE AM OR FM STATION.
FUNCTION SELECTOR SWITCH
NOT SET TO RADIO POSITION. SET FUNCTION SELECTOR SWITCH RADIO POSITION.
VOLUME CONTROL IS AT
MINIMUM POSITION. INCREASE VOLUME.
CASSETTE
NO SOUND FUNCTION SELECTOR SWITCH
NOT SET TO TAPE POSITION. SET FUNCTION SELECTOR SWITCH TO TAPE POSITION.
NO RECORDING ON TAPE. CHECK CASSETTE.
CASSETTE DOES NOT PLAY
THE PLAYBACK PLAY BUTTON IS NOT PRESSED OR THE TAPE MUST BE REWIND. PRESS THE PLAY BUTTON OR REWIND THE TAPE.
SOUND DISTORTION OR
SLOW ERRATIC SPEED. DIRTY HEAD, TAPE TOO OLD OR WORN OUT. CLEAN THE HEAD OR REPLACE PRE-RECORDED CASSETTE
TAPE.
WEAK OR DISTORTED
RECORDING. CASSETTE TAPE IS POOR QUALITY OR BATTERIES ARE
WEAK.
CHANGE TO ANOTHER
CASSETTE TAPE.
CHECK BATTERIES.
GENERAL
NO SOUND AC CORD NOT CONNECTED
PROPERLY OR WEAK OR DEAD
BATTERIES.
CHECK AC CORD CONNECTIONS
OR REPLACE WEAK OR DEAD
BATTERIES.
HEADPHONE PLUGGED INTO
PHONE JACK. REMOVE HEADPHONE PLUG FROM JACK.
VOLUME CONTROL SET TO
MINIMUM. INCREASE THE VOLUME
TROUBLESHOOTING GUIDE
BEFORE REQUESTING SERVICE, PLEASE REFER TO THE FOLLOWING CHART FOR THE SYMPTOM
AND POSSIBLE SOLUTION.
Customer Service : 1-800-919-3647
Untitled-1 9/23/02, 3:34 PM12

LIMITED WARRANTY
AUDIO
We at MEMOREX believe you will be pleased with your new Product. Please read this Warranty
carefully. Memorex warrants this product to be free from manufacturing defects including original parts
and workmanship for a period of ninety (90) days from the date of original purchase in, and if used in,
the United States.
Should you find your unit is not operating properly during the terms of full coverage of this warranty,
ninety (90) days, you should contact your original place of purchase for an exchange with a valid receipt.
If necessary, Memorex will provide one of the following options (at Memorex’s discretion), providing the
manufacturing defect is verified along with the date of purchase.
–Repair service for ninety (90) days from date of original purchase at no charge for labor and parts
at their authorized warranty service facility, providing the manufacturing defect is verified along
with the date of purchase.
–Replacement of defective unit with either a new, refurbished, or equivalent model at no charge
for ninety (90) days from date of original purchase.
This warranty is void if the product is:
A) Damaged through negligence, abuse, misuse, accident, or acts of God.
B) Used in commercial applications or rentals.
C) Modified or repaired by anyone other than Memorex or their expressly authorized representative.
D) Damage resulting from the improper connection to equipment of other manufacturers.
This warranty does not cover:
A) Cost incurred in the shipping of the product to and from the Memorex authorized repair facility
listed.
B) Damage or improper operation caused by the failure to follow the operating instructions
provided with the product.
C) Routine adjustments to the product, which can be performed by the customer as outlined in
the owner’s manual.
D) Signal reception problems caused by external factors.
E) Products not purchased in the United States.
F) Damage to the products used outside the United States.
G) Damage to audiocassette tapes.
H) Damage to Compact Discs.
In the event that service is required under this warranty, please contact CUSTOMER SERVICE at
1-800-919-3647 or contact our website at www.memorex.com.
THIS WARRANTY IS NON-TRANSFERABLE AND APPLIES SOLELY TO THE ORIGINAL PURCHASER
AND DOES NOT EXTEND TO SUBSEQUENT OWNERS OF THE PRODUCT. ANY APPLICABLE IMPLIED
WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED IN DURATION
TO A PERIOD OF THE EXPRESSED WARRANTY AS PROVIDED HEREIN BEGINNING WITH THE
DATE OF THE ORIGINAL PURCHASE AT RETAIL AND NO WARRANTIES, WHETHER EXPRESSED
OR IMPLIED SHALL APPLY TO THE PRODUCT THEREAFTER. MEMOREX MAKES NO WARRANTY
AS TO THE FITNESS OF THE PRODUCT FOR ANY PARTICULAR PURPOSE OR USE.
THE EXTENT OF MEMOREX’S LIABILITY UNDER THIS LIMITED WARRANTY IS THE REPAIR OR
REPLACEMENT PROVIDED ABOVE AT THE SOLE DISCRETION OF MEMOREX. IN NO EVENT
SHALL MEMOREX’S LIABILITY EXCEED THE PURCHASE PRICE PAID BY THE PURCHASER. UNDER
NO CIRCUMSTANCES SHALL MEMCORP BE LIABLE FOR ANY LOSS, DIRECT, INDIRECT,
INCIDENTAL, FORESEEN, UNFORESEEN, SPECIAL, OR CONSEQUENTIAL DAMAGE ARISING OUT
OF OR IN CONNECTION WITH THE USE OF THIS PRODUCT.
THIS WARRANTY IS VALID ONLY IN THE UNITED STATES. THIS WARRANTY GIVES YOU SPECIFIC
LEGAL RIGHTS, HOWEVER, YOU MAY HAVE OTHER RIGHTS WHICH MAY VARY FROM STATE TO
STATE. SOME STATES DO NOT ALLOW LIMITATIONS ON IMPLIED WARRANTIES OR EXCLUSION
OF CONSEQUENTIAL DAMAGE, THEREFORE THESE RESTRICTIONS MAY NOT APPLY TO YOU.
© 2000, Memorex is a registered trademark of Memorex Telex N.V.
Untitled-1 9/23/02, 3:34 PM13

MEMCORP Inc.
7145 West 20 th Avenue Hialeah, FL 33014 U.S.A.
© 2000, Memorex is a trademark of Memorex Telex. N.V.
Printed in Hong Kong
Visit Our Website : www. Memorex. com
Untitled-1 9/23/02, 3:34 PM14
