Menda HEPA Vac Service manual

Figure 1: Menda® Vacuums
Description
The Menda HEPA Vac and Service Vac are a
compact, high performance, field service vacuum. This
model has been specifically designed with ease of
portability in mind. The powerful 600-watt motor can
handle almost any job. It is for those technicians who
require a small, lightweight vacuum for use in and
around sensitive electronic equipment such as copy,
pick & place, & SMT machines, telecom equipment,
computers and printers. The standard 99.97% efficient
@ .3 micron HEPA filter cartridge is ideal for fumes,
atmospheric dust, lead, glass, pollens, soot, drywall
dust, and all color toner. The filter is fully contained for
safe, easy disposal. An alternative is Menda now also
has an environmentally friendly filter that is less
expensive. Instead of the HEPA filter we offer a
corrugated shell with replaceable bags. This filter is
suitable for most electronic applications. This is the
standard filter that comes with the Service Vac.
The HEPA Vac and Service Vac are safe for ESD
susceptible electronics. The electronic line filter
prevents EMI/RFI noise, and the utensils are static
dissipative. The internal ground-wire in the flex-hose
and enclosure virtually eliminate static charge
generation from utensils.
Note: The Menda®HEPA Vac and Service Vac are
designed for commercial use only. Keep the body of the
vacuum 12” (30cm) away from all ESD sensitive items.
Inspection
Remove the HEPAVac or Service Vac from the shipping
carton and inspect for exterior damage.
TB-4003 March 2009 Page 1 of 2
HEPA Vac and Service Vac Commercial
Vacuum Operation and Maintenance
TECHNICAL BULLETIN TB-4003
Items included with model 35852/35844
• 1 99.97% @ .3 Micron HEPA Filter Cartridge
• 1 6' Flex-Hose (Toner Proof and Static Dissipative)
• 1 12" Goose Neck Attachment
• 1 Crevice Attachment
• 1 Crevice Attachment Brush
• 1 Detachable Power Cord (110V Only)
Items included with model 35846
• 1 6' Flex-Hose (Toner Proof and Static Dissipative)
• 1 12" Goose Neck Attachment
• 1 Crevice Attachment
• 1 Crevice Attachment Brush
• 1 Detachable Power Cord (110V Only)
• 1 Corrugated Shell and 2 Replaceable Bags
Optional Accessories
•35855 Replacement 99.97% @ .3 Micron HEPA Filter
Cartridge
•35847 Filter for Service Vac Pack of 5 bags, & Cardboard
Shell Filter
•35856 Carrying Case
•35857/35845 HEPA Vac Kit (includes HEPA Vac,
carrying case, micro tool kit, and spare filter)
Operation
Attach the flex-hose securely to the front of the vacuum.
Figure 2: Attaching flex-hose
Select the proper attachment. Insert the attachment to
the other end of the hose. Insert the female end of the
power cord into the AC receptacle at the rear of the
vacuum. Plug the power cord into an electrical outlet
that is properly grounded in accordance with all local
codes and ordinances. The power switch is located at
the top of the vacuum.
Filter Change-Out Instructions
Unplug the HEPA Vac or Service Vac from the electrical
power. Remove the flex-hose. Sit the vacuum upright,
resting the back of the unit with the inlet door facing you.
3651 Walnut Avenue, Chino, CA 91710
Phone: [phone] • Fax [phone] • Web Site: MendaPump.com
Made in America
© 2009 DESCO INDUSTRIES INC.
Employee Owned

With thumb and forefinger, pull out the curved side tabs
of the inlet door until they are free from the latching
mechanism on the body of the vacuum. Then pull the
door toward you, being careful not to damage the
ground wire (door may hang by ground wire while the
new filter is being inserted).

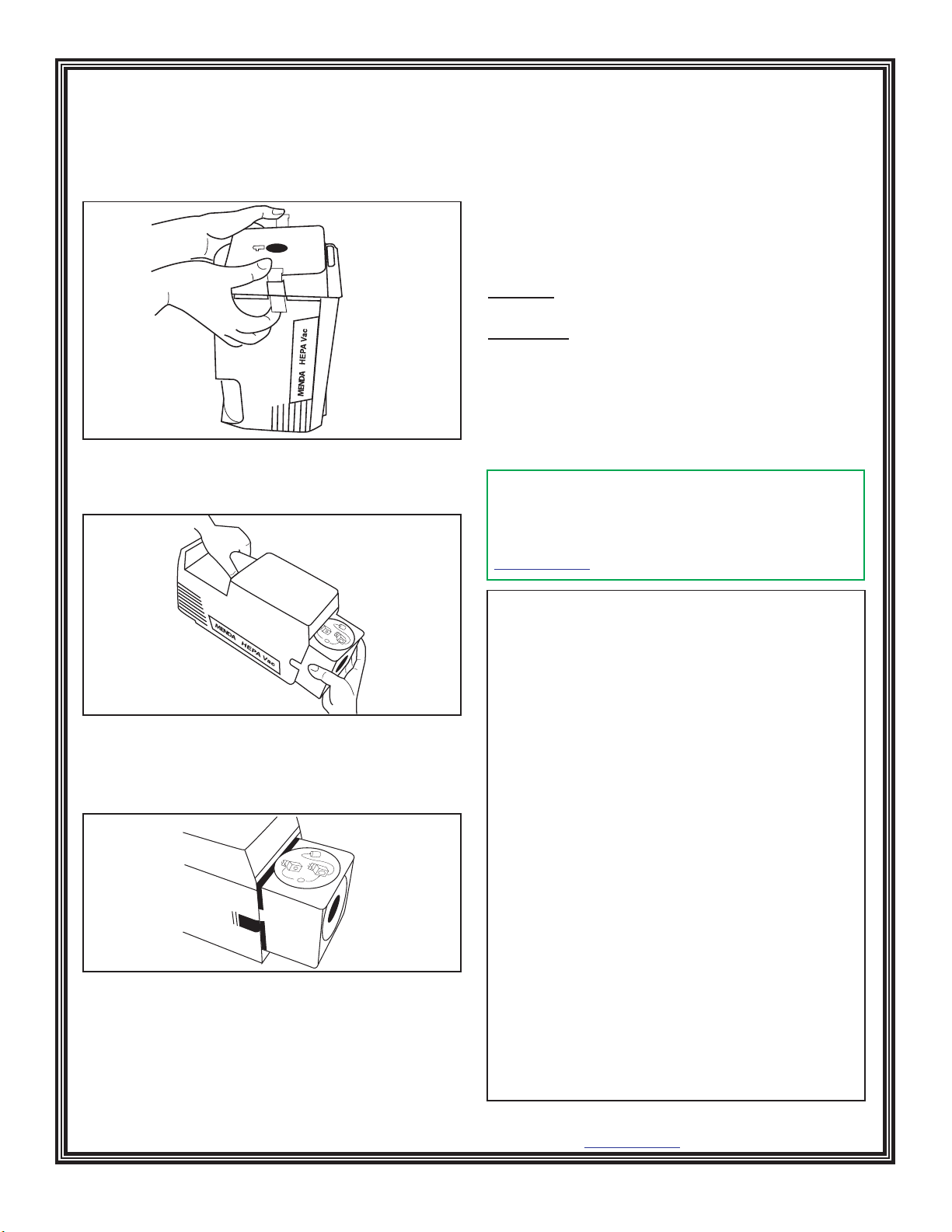

Figure 3: Lifting out the cartridge.
Grasp the handle of the vacuum, tilt it forward at a 45
degree angle, and slide the filter cartridge out.
Figure 4: Sliding the cartridge out.
Dispose of the filter in an appropriate manner. Reinstall
a new filter cartridge with the pleated paper end toward
the motor. The label on the filter should be facing up.
Figure 5: Reinstalling the filter cartridge.
Replace the filter door, carefully aligning it, first the top,
then the bottom. Press firmly on the side tabs, pushing
them past the second notch.
3651 Walnut Avenue, Chino, CA 91710
Phone: [phone] • Fax [phone] • Web Site: MendaPump.com
TB-4003 Page 2 of 2
Limited Warranty
Menda expressly warrants that for a period of one (1) year from the date
of purchase, Menda HEPA Vacs and Service Vacs will be free of defects
in material (parts) and workmanship (labor). Within the warranty period,
the product will be tested, repaired, or replaced at Menda’s option, free
of charge. Call our Customer Service Department at 909-627-2453
for
a Return Material Authorization (RMA) and proper shipping instructions
and address. Include a copy of your original packing slip, invoice, or
other proof of purchase date. Any unit under warranty should be shipped
prepaid to the Menda factory. Warranty repairs will take approximately
two weeks.
If your unit is out of warranty, call Customer Service at
909-627-2453
for a Return Material Authorization (RMA) and proper shipping
instructions and address. Menda will quote repair charges necessary to
bring your unit up to factory standards.
Warranty Exclusions
THE FOREGOING EXPRESS WARRANTY IS MADE IN LIEU OF ALL
OTHER PRODUCT WARRANTIES, EXPRESSED AND IMPLIED,
INCLUDING MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE WHICH ARE SPECIFICALLY DISCLAIMED. The express
warranty will not apply to defects or damage due to accidents, neglect,
misuse, alterations, operator error, or failure to properly maintain, clean
or repair products.
Limit of Liability
In no event will Menda or any seller be responsible or liable for any injury,
loss or damage, direct or consequential, arising out of the use of or the
inability to use the product. Before using, users shall determine the
suitability of the product for their intended use, and users assume all risk
and liability whatsoever in connection therewith.
© 2009 DESCO INDUSTRIES INC.
Employee Owned
RoHS Compliance Statement
None of the following materials are intentionally added in
manufacturing this product: lead, mercury, cadmium, hexavalent
chromium, polybrominated biphenyls (PBB) or polybrominated
diphenyl ethers (PBDE) as outlined in the Directive 2002/95/EC
Article 4.1. See Desco Industries Inc. letter on-line at
MendaPump.com.
Transporting Instructions
Unplug the detachable power cord from the outlet and
vacuum. Remove any attachments and the flex-hose
and return the vacuum and attachment to their shipping
container, unless you have the optional carrying case.
Insert the orange plug into the end of the door to prevent
spillage.
Specifications
Noise Level: 84 decibels
Hepa Vac
Suction: Approx. 50”/H20
Service Vac
Suction: Approx. 40”/H20
The Hepa Vac and Service Vac motors are 600 Watts. It
has approximately one quart capacity.
The hose jacket is made out of conductive material
called santoprene and the hose ends are ESD safe
polypropylene material.
