Mercia Garden Products 05DTMBAX0307DD-V1 Instruction manual

REGISTER FOR YOUR
ANTI-ROT
GUARANTEE TODAY
PLEASE SCAN HERE:
**Protim Aquatan T5 (621)**
Your building has been dip treated with Aquatan.
Aquatan is a water-based concentrate which is diluted with water, the building as been treated by the correct
application of Aquatan solution and then allowed to dry.
Aquatan is a decorative nish to colour the wood, which is applied industrially to timber fence panels and
garden buildings.
Aquatan undiluted contains: boric acid, sodium hydroxide 32% solution, aqueos mixture of sodium dioctyl
sulphosuccinat and alcohols: 2, 4, 6-trichlorophenol.
Measure
under the
head
Measure
overall
length
Screws & Nails Bolts To identify the
xings required
for each step use a
measuring tape.
05DTMBAX0307DD-V1
DIP TREATED MATCHBOARD APEX 3X7 DOUBLE DOOR BIKE STORAGE
2mm Drill bit
x2 Winter = High Moisture = Expansion
Summer = Low Moisture = Contraction
All buildings should be
erected by two adults
For ease of assembly, you
MUST pilot drill all screw
holes and ensure all screw
heads are countersunk.
For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
CAUTION
Every eort has been made during the
manufacturing process to eliminate the
prospect of splinters on rough surfaces of the
timber. You are strongly advised to wear gloves
when working with or handling rough sawn
timber.
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand (not supplied) including a Phillips screw-
driver, Stanley knife, Wood saw, Step ladder, Hammer and a Drill with 2mm bit.
- Ensure there is plenty of space and a clean dry area for assembly.
LOCATION FOR YOUR GARDEN BUILDING
A minimum of 60cm should be left around the perimeter of your garden building to allow access for maintenance,
annual treatment and to allow air ow around the building.
Where possible you should avoid placing your garden building underneath large trees to prevent the tree causing
damage to the building.
TIMBER
As with all natural materials, timber can be aected during various weather conditions. For the duration of heavy
or extended periods of rain, swelling of the wood panels may occur. Warping of the wood may also occur during
excessive dry spells due to an interior moisture loss. Unfortunately, these processes cannot be avoided but can be
helped. It is suggested that the outdoor building is sprayed with water during extended periods of warm sunshine
and sheltered as much as possible during rain or snow.
Once your garden building has been installed it will need to be treated as soon as possible and annually to prevent
the timber from deteriorating and to waterproof it. This is required to maintain the anti-rot guarantee.
Dip Treated buildings - Require a preservative treatment to protect against rot and decay and a waterproof treat-
ment to prevent water ingress
Pressure Treated buildings - Require a waterproof treatment to prevent water ingress
Log Cabins - Are supplied untreated and require a preservative and waterproong treatment.
BUILDING A BASE
When thinking about where the building and base is going to be constructed:
Ensure that there will be access to all sides for maintenance work and annual
treatment.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to diagrams for the base
dimensions, The base should be slightly smaller than the external measurement of the building, i.e. The cladding
should overlap the base, creating a run o for water. It is also recommended that the oor be at least 25mm above
the surrounding ground level to avoid ooding.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Whilst all products manufactured are made to the highest standards of Safety and in the case of childrens
products independently tested to EN71 level, we cannot accept responsibility for your safety whilst erecting or
using this product.
For ease of assembly, you
will need a tape measure to
check dimensions of
components.
P 1
Please retain product label and instructions for future reference
General Instructions

P 2
05DTMBAX0307DD-V1

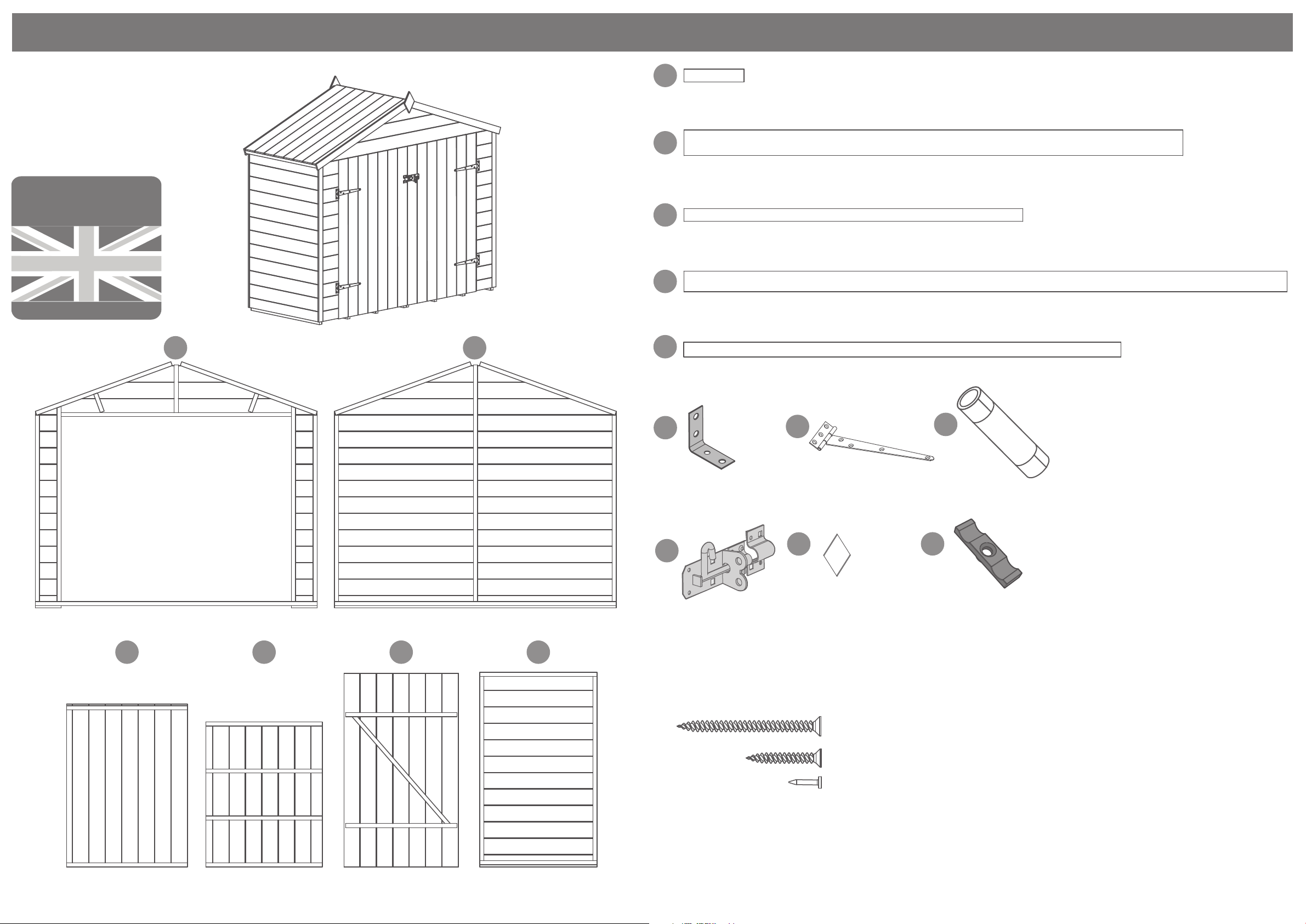

Overall Dimensions:
Width = 2096mm
Depth = 873mm
Height = 1798mm
Base Dimensions:
Width = 1976mm
Depth = 795mm
Please retain product label and instructions for future reference
Before assembly
please make sure you have a
suitable base ready to erect your
building
MADE IN GREAT BRITAIN
21
Door Gable Qty 1
AI-05S11MBAGDD1922X1678-V1
Plain Gable Qty 1
AI-05S11MBAGP1922X1678-V1
6
Plain Side Qty 2
AI-S11MBPP800X1327-V1
5
Door Qty 2
AI-S11FBMBZBD781X1320-V1
4
Floor Qty 2
AI-R11MBF795X988-V1
3
Roof Qty 2
AI-S11MBOHAR1110X825-V1
7
Bolt Block 28x28x132mm Qty 4
FS2828-132mm
8
Fascia 12x56x1095mm Qty 4
s1256-1095mm
9
Ridge Bar 28x28x744mm Qty 1
FS2828-744mm
10
Cover Trim 12x45x1324mm Qty 4
S1245-1324mm
14
Felt
PI-01-0025
15
Pad Bolt Qty 1
PI-07-0035
17
Turn Button Qty 2
PI-07-0034
12
Corner Brace Qty 2
PI-07-0012
13
T-Hinge Qty 4
PI-02-1043
11
Door Trim 12x27x1261mm Qty 2
S1227-1261mm
Nail Bag
There may be extra screws present in the nail bag
50mm Screw x 29
Felt Tacks x 30
30mm Screw x 107
16
FInial Qty 2
SHED DIAMOND FINIAL

P 3
Please retain product label and instructions for future reference
Pre Assembly

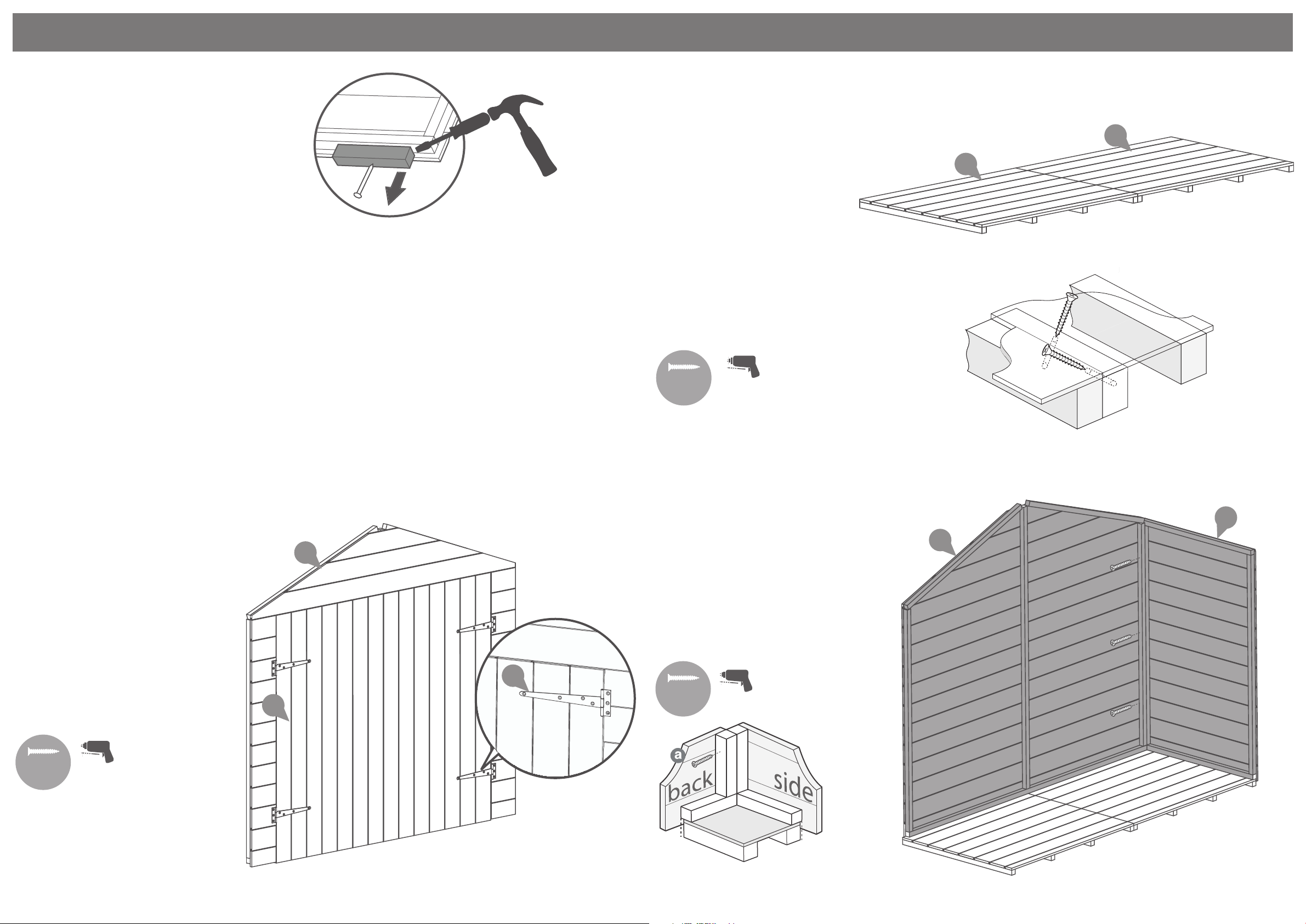

Before assembling remove the transportation
blocks from the bottom of each panel.
Take care removing the blocks as to not damage
the panels. Tap with a at headed screwdriver
and hammer.
Dispose of the blocks once removed.
Parts Needed - No. 1 Qty 1
No. 5 Qty 2
No. 13 Qty 4
Place the door gable (No. 1) on to a at
surface and place both doors (No. 5)
into the door apeture.
Locate the four t hinges (No. 13) onto
the doors and door gable ensuring they
sit over the door framing. Fix the hinges
to the door and door gable using
7x30mm screws per hinge.
28 x 30mm Screws
Step 1
1
5
13
30mm
screw Pre drill
hole
IMPORTANT: Pre-drill before xing screws.
Parts Needed - No. 4 Qty 2
Place the oors (No. 4) on a rm and
level base, ensure the base has suitable
drainage, free from areas where water
can collect (see front page for base
requirements).
Position the oors side by side as
shown in the diagram. Fix together
using 4 x 50mm screws alternating the
xing poisiton along the length of the
oor.
5 x 50mm Screws
Step 2
Pre drill
hole
50mm
screw
4
4
IMPORTANT: Pre-drill before xing screws.
Do not secure the building
to the oor until the roof is
tted.
Fix the corner with 3x
50mm screw as shown in
diagram.
Step 3
Parts Needed - No. 2 Qty 1
No. 6 Qty 1
3 x 50mm Screws
Pre drill
hole
50mm
screw
IMPORTANT: Pre-drill before xing screws.
2
6

P 4
For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand (not supplied) including a Phillips screw-
driver, Stanley knife, Wood saw, Step ladder, Hammer and a Drill with 2mm bit.
- Ensure there is plenty of space and a clean dry area for assembly.
LOCATION FOR YOUR GARDEN BUILDING
A minimum of 60cm should be left around the perimeter of your garden building to allow access for maintenance,
annual treatment and to allow air ow around the building.
Where possible you should avoid placing your garden building underneath large trees to prevent the tree causing
damage to the building.
TIMBER
As with all natural materials, timber can be aected during various weather conditions. For the duration of heavy
or extended periods of rain, swelling of the wood panels may occur. Warping of the wood may also occur during
excessive dry spells due to an interior moisture loss. Unfortunately, these processes cannot be avoided but can be
helped. It is suggested that the outdoor building is sprayed with water during extended periods of warm sunshine
and sheltered as much as possible during rain or snow.
Once your garden building has been installed it will need to be treated as soon as possible and annually to prevent
the timber from deteriorating and to waterproof it. This is required to maintain the anti-rot guarantee.
Dip Treated buildings - Require a preservative treatment to protect against rot and decay and a waterproof treat-
ment to prevent water ingress
Pressure Treated buildings - Require a waterproof treatment to prevent water ingress
Log Cabins - Are supplied untreated and require a preservative and waterproong treatment.
BUILDING A BASE
When thinking about where the building and base is going to be constructed:
Ensure that there will be access to all sides for maintenance work and annual
treatment.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to diagrams for the base
dimensions, The base should be slightly smaller than the external measurement of the building, i.e. The cladding
should overlap the base, creating a run o for water. It is also recommended that the oor be at least 25mm above
the surrounding ground level to avoid ooding.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Whilst all products manufactured are made to the highest standards of Safety and in the case of childrens
products independently tested to EN71 level, we cannot accept responsibility for your safety whilst erecting or
using this product.
Please retain product label and instructions for future reference
Do not secure the building
to the oor until the roof is
tted.
Fix the corners of the Door
Gable (No.1) and the Plain
Panels (No.6) with 3x 50mm
screw a shown in diagram.
Step 4 IMPORTANT: Pre-drill before xing screws.
Parts Needed - No. 1 Qty 1
No. 6 Qty 1
9 x 50mm Screws 6
1
Pre drill
hole
50mm
screw
Step 5 IMPORTANT: Pre-drill before xing screws.
Parts Needed - No. 9 Qty 1
No. 12 Qty 2
Locate the Ridge Bar (No.9) in line
with the central framing of the gable
tops (No.1 & 2).
Fix in place with one Corner Brace
(No.12) at each end, using 4x30mm
screws per brace.
8 x 30mm Screws
Pre drill
hole
50mm
screw
9
12
A
Step 6 IMPORTANT: Pre-drill before xing screws.
Parts Needed - No. 3 Qty 2
Attach the roof (No. 3) using 7 x 30mm
screws on each side.
Secure the roofs (No.3) into place using
7 x 30mm screws, ensure the roof sits
square over the building and the screws
go through the roof (No.3) into the
panel framing below.
14 x 30mm Screws
Pre drill
hole
30mm
screw
3
3
Step 7 IMPORTANT: Pre-drill before xing screws.
12 x 50mm Screws
Pre drill
hole
50mm
screw
Secure the building to the
oor using 12 x 50mm
screws.

P 5
Please retain product label and instructions for future reference
Step 8
HANDLE
WITH CARE
12
3
4
14
Parts Needed - No. 14 Qty 1
Cut one strip of felt (No. 14) to
2320mm length and place it over the
roof. Fix the felt in place with felt tacks
spaced 100mm apart.
30 x Felt Tacks
Felt
tacks
Step 9
Parts Needed - No. 8 Qty 4
No. 16 Qty 2
Fit the fascias (No.8) to the roof over
the felt and secure in place with 40mm
screws as shown.
Pre drill to avoid splitting.
Attach the nial (No.16) to the fascias
at the front and the back of the
building using 2 x 30mm screws per
nial.
16 x 30mm Screws
IMPORTANT: Pre-drill before xing screws.
30mm
screw Pre drill
hole
16
16
8
8
8
8
10
10
10
Step 10 IMPORTANT: Pre-drill before xing screws.
30mm
screw Pre drill
hole
Parts Needed - No. 10 Qty 1
Fit the Cover Trims (No.10) to the front and
back of the building as shown in the
illustration using 30mm screws. Trim the
length of the cover trims to the required size
before tting if necessary.
Pre drill to avoid splitting.
12x30mm Screws

P 6
Please retain product label and instructions for future reference
Step 11
Parts Needed - No. 7 Qty 4

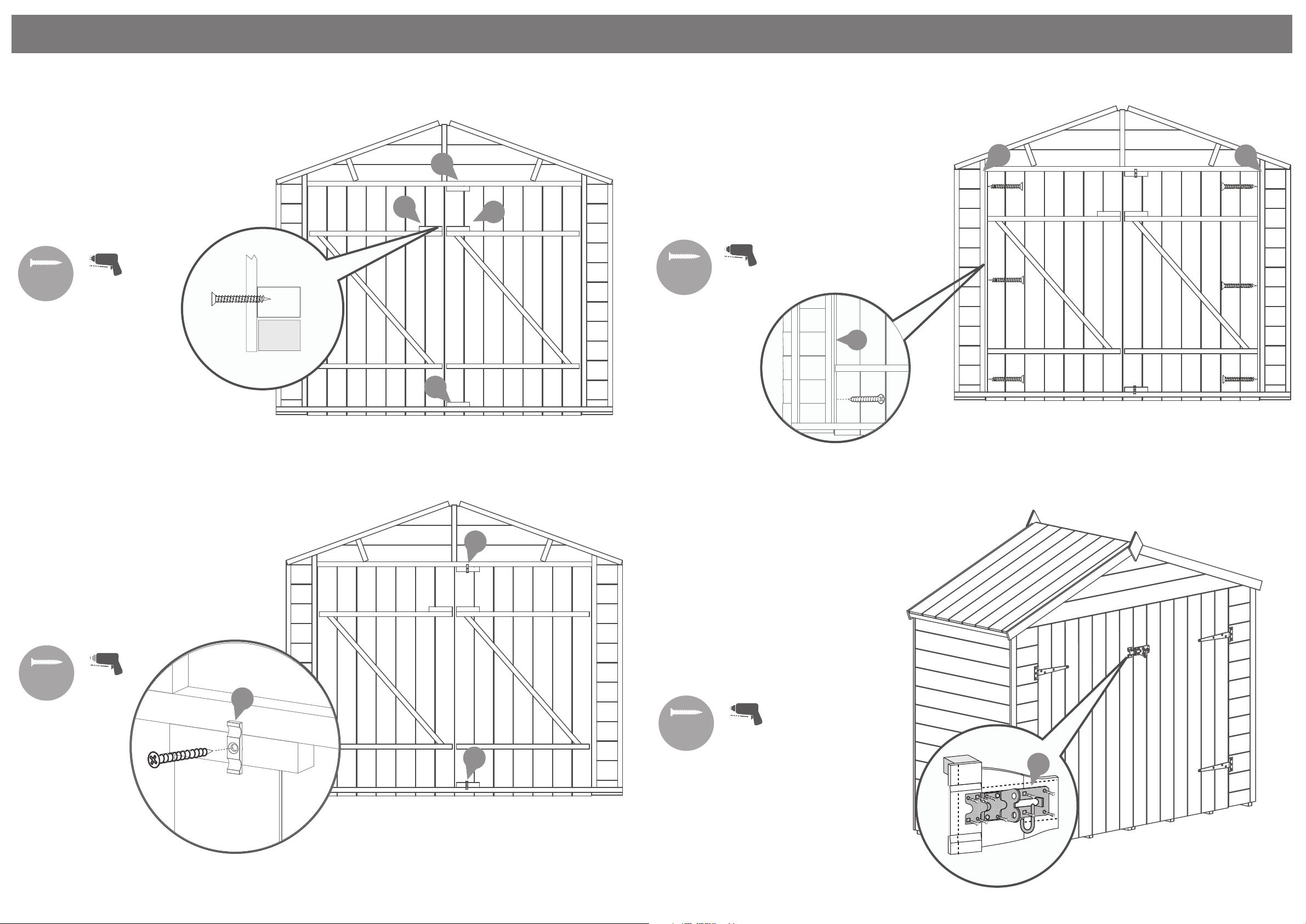

Attach the bolt blocks (No. 7) to the
doors using 2 x 30mm screws, in the
positions illustrated. Screw through the
door cladding into the blocks using
30mm screws.
8 x 30mm Screws
30mm
screw Pre drill
hole
IMPORTANT: Pre-drill before xing screws.
7
7
7
7
Step 12
Parts Needed - No. 17 Qty 4
Fix the turn buttons (No. 17) to the bolt
blocks at the top and bottom of the
door using a 30mm screw per turn
button.
2 x 30mm Screws
30mm
screw Pre drill
hole
IMPORTANT: Pre-drill before xing screws.
17
17
17
Step 13
Parts Needed - No. 11 Qty 2
Locate the Door strips (No.11) onto the
door gable and x into place using
3x30mm screws. Ensure that the screw
is parallel with the door frame when
xing, as shown in the close up view.
6 x 30mm Screws
Pre drill
hole
IMPORTANT: Pre-drill before xing screws.
11
30mm
screw
11
11
15
Step 14
Parts Needed - No. 15 Qty 4
Fix the pad bolt (No. 15) to the door
using 8 x 30mm screws. Ensure the pad
bolt lines up with the block on the
back.
Attach the retainer to the opposite
door in-line with the bolt block (No.15)
using 4 x 30mm screws.
12x 30mm Screws
30mm
screw Pre drill
hole

P 7
Please retain product label and instructions for future reference

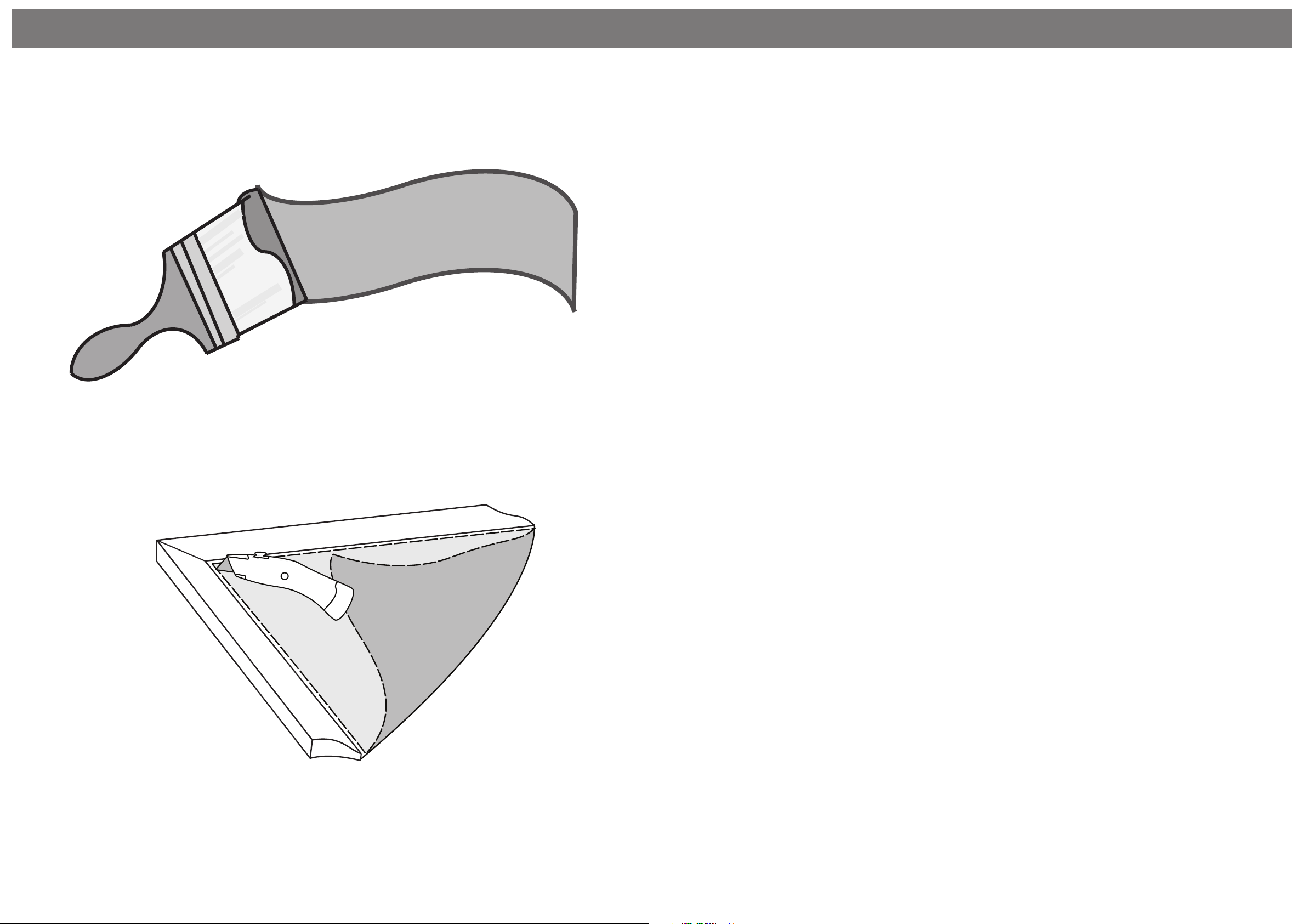

It is ESSENTIAL that you apply wood
treatment immediately after the building
has been assembled.
AFTER TREATMENT:
score around protective
cover on glazing and
carefuly peel
covering back

P 8




















































2





1












3
4














P 9



















¡




1




2























¡



