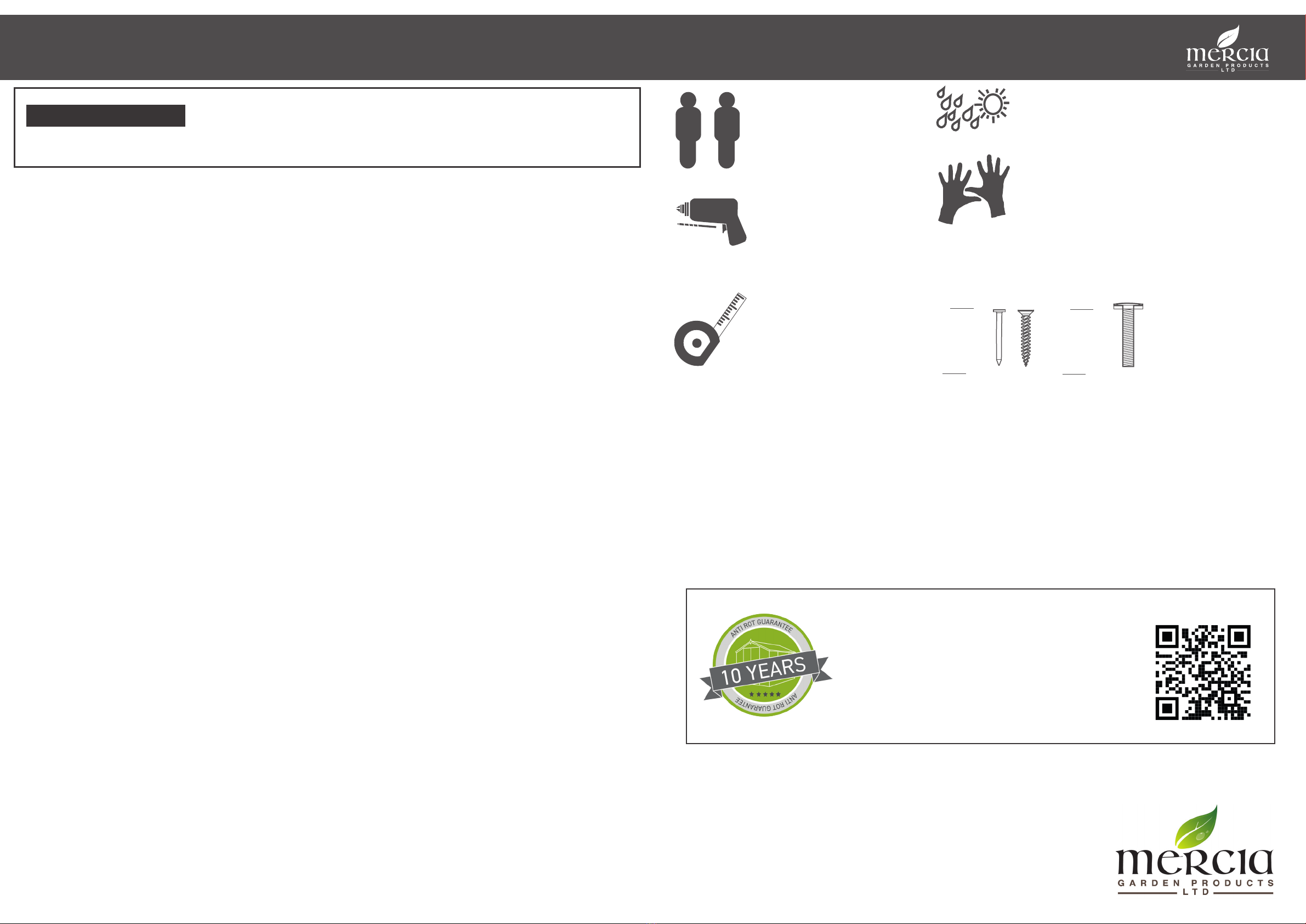

Mercia Garden Products 05DTOVPN0305DD-V1 User manual










 
















  



2mm Drill bit
x2 





























































 

















































ANY QUESTIONS?
Scan the QR code to
contact us via our customer
portal.
PLEASE SCAN HERE:


 

8
Some steps within this set of instructions come with an added video guide for your
convenience. These can be accessed via the QR code and used to aid you in constructing that
step. See below for how to use.
You can also nd all the videos on our youtube channel:
https://www.youtube.com/@merciagardenproducts8716/videos

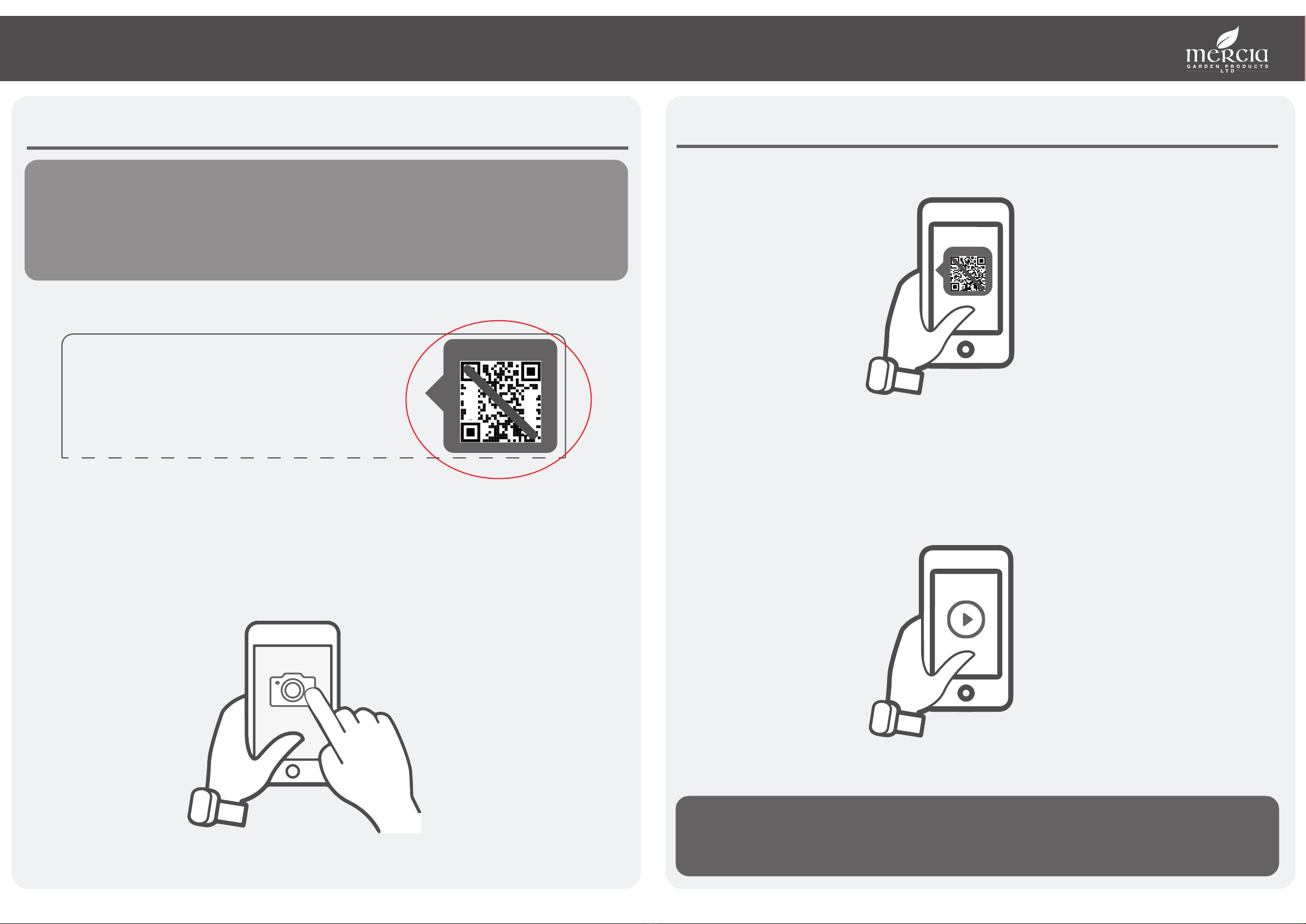

ACCESSING VIDEO GUIDES...
1.Find the QR code within the instruction step...
2. Open camera app...
3. Scan QR code...
4. Watch the video...
On your personal smart device (phone, tablet etc), open your camera app or QR code scanner
app.
To scan the QR code, hold the camera over the QR code so that it can be seen on the screen.
Once the QR code has been registered, follow the prompts on your device to open the video.
(This will vary depending on your device.)
Please note: Ensure to use the back camera of your smart device as this will scan the QR code more
accurately.

The video guide will now be displayed on your smart device.
Parts Needed- No. QTY 1
No. QTY 1
No. QTY 1
Step..... 
Within the instruction step, there will be an icon in the top right that has a QR code in. This
is where the video can be accessed from.
Please note: not every step has a video guide.
Disclaimer: The garden building constructed in the video guides may be
constructed dierently to your building. Please ensure to read your instructions
carefully to avoid error.
ACCESSING VIDEO GUIDES...

 

Before assembly
please make sure you have a
suitable base ready to erect your
building
MADE IN GREAT BRITAIN
Overall Dimensions:
Width = 1429mm
Depth = 955mm
Height = 1419mm
Base Dimensions:
Width = 1395mm
Depth = 910mm
8
Door Strip - 7 x 45 x 1264mm QTY 2
S745-1264MM
9
Large Fascia - 7 x 60 x 1429mm QTY 1
S760-1429MM
10
Small Fascia - 7 x 60 x 945mm QTY 2
S760-945MM
12
13
Turn Button QTY 1
PI-07-0034
Hasp & Staple QTY 1
PI-07-0207
14
Felt
PI-01-0025
15
1
Front Panel QTY 1
AI-R11OVPPBSF1425X142-V1
Left Gable QTY 1
AI-05R11OVPGL915X1390-V1
Blue Label
2
Right Gable QTY 1
AI-05R11OVPGR915X1390-V1
Green Label
3
Plain Panel QTY 1
AI-R11OVPP1425X1246-V1
4
Floor QTY 1
AI-R11OSBF1395X910-V1
5
Roof QTY 1
PI-03-0083
67
Door QTY 2
AIR11FBMBZBD665X1260-V1
11
Door Block - 28x28x140mm QTY 1
FS2828140MM
T-Hinge QTY 4
PI070021
50mm Screw x 19
Felt Tacks x48
30mm Screw x 63
Nail Bag
There may be extra screws present in the nail bag
Contents:
Blue Label Green Label

 

Pre Assembly
Before assembling remove the transportation blocks from the bottom of each panel.
Take care removing the blocks as to not damage the panels. Tap with a at headed
screwdriver and hammer.
Dispose of the blocks once removed.
PLEASE SCAN HERE:
5
IMPORTANT: Pre-drill before xing screws.
Step 1
Parts Needed - No. 5 QTY 1
Place the oor (No.5) onto a rm and level
base.
Ensure the base has suitable drainage & is
free from areas where standing water can
collect.
Step 2
Parts Needed - No. 4 QTY 1
- No. 3 QTY 1
Place the plain panel (No.4) and the
right gable (No.3) onto the oor and
secure at the corner with 3x50mm
screws.
Do not secure the building to the
oor until the roof is tted.
3x50mm Screws
Pre drill
hole
50mm
screw
a
a
a
4
3
IMPORTANT: Pre-drill before xing screws.
a
Pre drill
hole
50mm
screw
a
2
a
a
IMPORTANT: Pre-drill before xing screws.
Step 3
Parts Needed - No. 2 QTY 1
Place the left gable (No.2) onto the
oor and secure at the corner with
3x50mm screws.
Do not secure the building to the
oor until the roof is tted.
3x50mm Screws
a

 

Pre drill
hole
50mm
screw
IMPORTANT: Pre-drill before xing screws.
Step 4
Parts Needed - No. 1 QTY 1
Locate the front panel (No.1) in
between the gables.
Secure in place with 4x50mm screws
from the inside of the building.
*Ensure to align the framing with
the edge of each gable.
4x50mm Screws
1
Pre drill
hole
30mm
screw
IMPORTANT: Pre-drill before xing screws.
Step 5
Parts Needed - No. 8 QTY 2
Locate the door strips (No.8) to the
front of the building, ensuring the
strip sits ush to the edge of the Gable
framing and that there is no overhang
inside the building.
Secure in place using 3x30mm screws
per strip.
6x30mm Screws 8
8
30mm
screw
Pre drill
hole
IMPORTANT: Pre-drill before xing screws.
Step 6
Parts Needed- No.12 QTY 4
No.7 QTY 2
Locate two T Hinges (No.12) onto each Door
(No.7) as shown, ensuring to align the hinge
with the framing behind.
Secure the hinges in place using 4x30mm
screws per hinge, ensuring that the screws go
through the cladding and into the framing
behind.
16x30mm Screws
12
12
12
12
7
7
IMPORTANT: Pre-drill before xing screws.
7
7
12
30mm
screw
Pre drill
hole
Step 7
Locate the Doors (No.7) into to the space at the
front of the building. Ensure there is a 2mm gap
in between the doors and the building.
Secure the T-Hinges to the Door strips (No.8)
using 3x30mm screws per hinge, ensuring the
screws go through the cladding into the framing.
12x30mm Screws
PLEASE SCAN HERE:

 

Pre drill
hole
30mm
screw
IMPORTANT: Pre-drill before xing screws.
Step 8
Parts Needed - No. 6 QTY 1
Place the roof sheet
(No.6) on top of
the building and x into place with
10x30mm screws.
10x30mm Screws
6
Pre drill
hole
50mm
screw
b
b
IMPORTANT: Pre-drill before xing screws.
Step 9
Once the roof is xed, secure the
building to the oor using 3x50mm
screws per panel, in alignment with
the oor joists.
9x50mm Screws
b
b
HANDLE
WITH CARE
12
3
4
Felt
tacks
15
Step 10
Parts Needed - No. 15 Qty 1
Cut the felt
(No.15) in to one sheet
measuring: 1530mm (L) x 1000mm (W)
and lay onto the roof.
* Ensure the felt has an equal overhang
around the building.
Fix the felt down using felt tacks at
100mm intervals.
48 x Felt Tacks
100mm

 

Pre drill
hole
30mm
screw
IMPORTANT: Pre-drill before xing screws.
Step 11
Parts Needed - No. 10 QTY 2
- No. 9 QTY 1
Attach the large (No.9) and small
(No.10) Fascias to the front and sides
of the building, xing into place
using 9x30mm screws.
9x30mm Screws
9
10
10
30mm
screw
Pre drill
hole
11
IMPORTANT: Pre-drill before xing screws.
Step 12
Parts Needed - No. 11 QTY 3
Internally, attach the Door Block
(No.11) to the top of the secondary
door (No.7) using 2x30mm screws.
Ensure to screw through the external
cladding into the block behind.
2x30mm Screws
IMPORTANT: Pre-drill before xing screws.
Pre drill
hole
a
b
30mm
screw
Step 13
Parts Needed - No. 13 QTY 2
- No. 14 QTY 1
Locate the turn button (No. 13) to
the top of the left hand door, ensur-
ing the turn button catches the Front
Panel (No. 1). Secure to the door
using 1x30mm screw.
Fit the hasp and staple (No.14) on to
the doors centrally with 7x30mm
screws, making sure to screw into the
door framing.
8x30mm Screws
13
14
14
b
13
a
It is ESSENTIAL that you apply wood
treatment immediately after the building
has been assembled.

