Mercia Garden Products 05DTOVPN0365DD-V1 User manual

REGISTER FOR YOUR
ANTI-ROT
GUARANTEE TODAY
PLEASE SCAN HERE:
**Protim Aquatan T5 (621)**
Your building has been dip treated with Aquatan.
Aquatan is a water-based concentrate which is diluted with water, the building as been treated by the correct
application of Aquatan solution and then allowed to dry.
Aquatan is a decorative nish to colour the wood, which is applied industrially to timber fence panels and
garden buildings.
Aquatan undiluted contains: boric acid, sodium hydroxide 32% solution, aqueos mixture of sodium dioctyl
sulphosuccinat and alcohols: 2, 4, 6-trichlorophenol.
Measure
under the
head
Measure
overall
length
Screws & Nails Bolts To identify the
xings required
for each step use a
measuring tape.
05DTOVPN0365DD-V1
DIP TREATED OVERLAP PENT 3X6.5 DOUBLE DOOR STORAGE
2mm Drill bit
x2 Winter = High Moisture = Expansion
Summer = Low Moisture = Contraction
All buildings should be
erected by two adults
For ease of assembly, you
MUST pilot drill all screw
holes and ensure all screw
heads are countersunk.
For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
CAUTION
Every eort has been made during the
manufacturing process to eliminate the
prospect of splinters on rough surfaces of the
timber. You are strongly advised to wear gloves
when working with or handling rough sawn
timber.
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand (not supplied) including a Phillips screw-
driver, Stanley knife, Wood saw, Step ladder, Hammer and a Drill with 2mm bit.
- Ensure there is plenty of space and a clean dry area for assembly.
LOCATION FOR YOUR GARDEN BUILDING
A minimum of 60cm should be left around the perimeter of your garden building to allow access for maintenance,
annual treatment and to allow air ow around the building.
Where possible you should avoid placing your garden building underneath large trees to prevent the tree causing
damage to the building.
TIMBER
As with all natural materials, timber can be aected during various weather conditions. For the duration of heavy
or extended periods of rain, swelling of the wood panels may occur. Warping of the wood may also occur during
excessive dry spells due to an interior moisture loss. Unfortunately, these processes cannot be avoided but can be
helped. It is suggested that the outdoor building is sprayed with water during extended periods of warm sunshine
and sheltered as much as possible during rain or snow.
Once your garden building has been installed it will need to be treated as soon as possible and annually to prevent
the timber from deteriorating and to waterproof it. This is required to maintain the anti-rot guarantee.
Dip Treated buildings - Require a preservative treatment to protect against rot and decay and a waterproof treat-
ment to prevent water ingress
Pressure Treated buildings - Require a waterproof treatment to prevent water ingress
Log Cabins - Are supplied untreated and require a preservative and waterproong treatment.
BUILDING A BASE
When thinking about where the building and base is going to be constructed:
Ensure that there will be access to all sides for maintenance work and annual
treatment.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to diagrams for the base
dimensions, The base should be slightly smaller than the external measurement of the building, i.e. The cladding
should overlap the base, creating a run o for water. It is also recommended that the oor be at least 25mm above
the surrounding ground level to avoid ooding.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Whilst all products manufactured are made to the highest standards of Safety and in the case of childrens
products independently tested to EN71 level, we cannot accept responsibility for your safety whilst erecting or
using this product.
For ease of assembly, you
will need a tape measure to
check dimensions of
components.
P 1
Please retain product label and instructions for future reference
General Instructions

05DTOVPN0365DD-V1
Overall Dimensions:
Width = 1952mm
Depth = 981mm
Height = 1224mm
Base Dimensions:
Width = 1900mm
Depth = 920mm
Before assembly
please make sure you have a
suitable base ready to erect your
building
MADE IN GREAT BRITAIN
P 2
05DTOVPN0365DD-V1
Please retain product label and instructions for future reference
8
Roof Support - 28x28x871mm QTY 1
F2828-871MM
9
Door Frame - 28x28x1085mm QTY 2
F2828-1085MM
10
Door Side Frame - 28x28x1118mm QTY 1
F2828-1118MM
11 Eaves Frame - 28x28x969mm QTY 2
F2828-969MM
12
Cover Trims - 45x12x1178mm QTY 2
S1245-1178MM
13
Door Side Cover Trim - 28x12x1178mm QTY 1
S1228-1178MM
14
15
Back Cover Trim - 45x7x1094mm QTY 3
S745-1094MM
Floor QTY 2
AI-R11OSBF950X920-V1
5
Door QTY 2
AI-R11FBOVFLD525X1110-V1
6
Roof QTY 2
PI-03-0322
7
Right Gable QTY 1
AI-05R11OVPGR925X1188-V1
2
Left Gable QTY 1
AI-05R11OVPGL925X1188-V1
3
Back Panel QTY 2
AI-R11OVPP925X1096-V1
4
1
Front Panel QTY 1
AI-R11OVPP765X1186-V1
20
17
T-hinge QTY 4
PI-07-0021
19
Turn Button QTY 2
PI-07-0034
18
“L” Bracket QTY 1
PI-07-0012
Felt
PI-01-0025
21
Hasp and Staple Lock QTY 1
PI-07-0207
16
Fascia - 45x7x976mm QTY 4
S745-976MM
Door Block - 28x28x140mm QTY 2
F2828-140MM
Nail Bag
There may be extra screws present in the nail bag
50mm Screw x 39 20mm Screw x 2
30mm Screw x 97 Felt Tacks x 50

P 3
Please retain product label and instructions for future reference
Pre Assembly
Before assembling remove the transportation
blocks from the bottom of each panel.
Take care removing the blocks as to not damage
the panels. Tap with a at headed screwdriver
and hammer.
Dispose of the blocks once removed.
Step 1
Parts Needed - No. 5 QTY 2
5
5
Pre drill
hole
50mm
screw
Place the two oors (No.5) onto a rm and
level base upside down.
Secure the oors (No.5) together using
3x50mm screws, xing in an alternating
pattern as shown in the illustration.
Once tted, turn the oor assembly the
right way up.
Ensure the base has suitable drainage & is
free from areas where standing water can
collect.
3x50mm Screws
IMPORTANT: Pre-drill before xing screws.
a
Step 2
Parts Needed - No. 4 QTY 2
- No. 2 QTY 1
IMPORTANT: Pre-drill before xing screws.
2
4
4
a
Pre drill
hole
50mm
screw
Place the back panels (No.4) and
the right gable (No.2) onto the
oor and secure in place using
6x50mm screws.
Do not secure to the oor until the
roof is xed.
6x50mm Screws
Step 3
Parts Needed - No. 1 QTY 1
- No. 3 QTY 1
IMPORTANT: Pre-drill before xing screws.
aa
Pre drill
hole
50mm
screw
a
a
a
a
a
3
1
Following the same method
outlined in step 2, place the front
panel (No.1) and the left gable
(No.3) onto the oor and secure in
place using 6x50mm screws.
*The door opening can be posi-
tioned at either side of the build-
ing depending on your needs and
preferences.
Do not secure to the oor until the
roof is xed.
6x50mm Screws
a

P 4
For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand (not supplied) including a Phillips screw-
driver, Stanley knife, Wood saw, Step ladder, Hammer and a Drill with 2mm bit.
- Ensure there is plenty of space and a clean dry area for assembly.
LOCATION FOR YOUR GARDEN BUILDING
A minimum of 60cm should be left around the perimeter of your garden building to allow access for maintenance,
annual treatment and to allow air ow around the building.
Where possible you should avoid placing your garden building underneath large trees to prevent the tree causing
damage to the building.
TIMBER
As with all natural materials, timber can be aected during various weather conditions. For the duration of heavy
or extended periods of rain, swelling of the wood panels may occur. Warping of the wood may also occur during
excessive dry spells due to an interior moisture loss. Unfortunately, these processes cannot be avoided but can be
helped. It is suggested that the outdoor building is sprayed with water during extended periods of warm sunshine
and sheltered as much as possible during rain or snow.
Once your garden building has been installed it will need to be treated as soon as possible and annually to prevent
the timber from deteriorating and to waterproof it. This is required to maintain the anti-rot guarantee.
Dip Treated buildings - Require a preservative treatment to protect against rot and decay and a waterproof treat-
ment to prevent water ingress
Pressure Treated buildings - Require a waterproof treatment to prevent water ingress
Log Cabins - Are supplied untreated and require a preservative and waterproong treatment.
BUILDING A BASE
When thinking about where the building and base is going to be constructed:
Ensure that there will be access to all sides for maintenance work and annual
treatment.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to diagrams for the base
dimensions, The base should be slightly smaller than the external measurement of the building, i.e. The cladding
should overlap the base, creating a run o for water. It is also recommended that the oor be at least 25mm above
the surrounding ground level to avoid ooding.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Whilst all products manufactured are made to the highest standards of Safety and in the case of childrens
products independently tested to EN71 level, we cannot accept responsibility for your safety whilst erecting or
using this product.
Please retain product label and instructions for future reference
Step 4
Parts Needed - No. 9 QTY 1
IMPORTANT: Pre-drill before xing screws.
9
Pre drill
hole
50mm
screw
Place the rst door frame (No.9)
inbetween the gable and the front panel
and secure in place using 3x50mm
screws.
*Ensure to screw through the framing
into the oor bearers
**The door opening can be positioned
at either side of the building depending
on your needs and preferences.
3x50mm Screws
10
Pre drill
hole
50mm
screw
Attach the door side rail (No.10) to
the front panel with 3x50mm
screws.
*Ensure the door side rail sits on
top of the bottom framing.
**The door opening can be posi-
tioned at either side of the build-
ing depending on your needs and
preferences.
3x50mm Screws
Step 5
Parts Needed - No. 10 QTY 1
IMPORTANT: Pre-drill before xing screws.
Step 6
Parts Needed - No. 9 QTY 1
- No. 18 QTY 1
IMPORTANT: Pre-drill before xing screws.
a
b
9
18
Pre drill
hole
20mm
screw
30mm
screw
50mm
screw
a
b
Using 2x20mm screws x the “L”
bracket (No.18) to one end of the
remaining door frame.
Place the assembled rail (No.9)
onto the side door rail and secure
through the top using 1x50mm
screw and to the gable (through
the ”L” bracket) using 2x30mm
screws.
2x20mm Screws
2x30mm Screws
1x50mm Screws
Step 7
Parts Needed - No. 8 QTY 1
IMPORTANT: Pre-drill before xing screws.
Place the roof support bar (No.8)
centrally in the building and secure
into place with 2x50mm screws,
xing through the top rail and the
back panel.
2x50mm Screws
50mm
screw
8
Pre drill
hole

P 5
Please retain product label and instructions for future reference
Step 8
Parts Needed - No. 12 QTY 2
- No. 13 QTY 1
IMPORTANT: Pre-drill before xing screws.
12 13
Pre drill
hole
30mm
screw

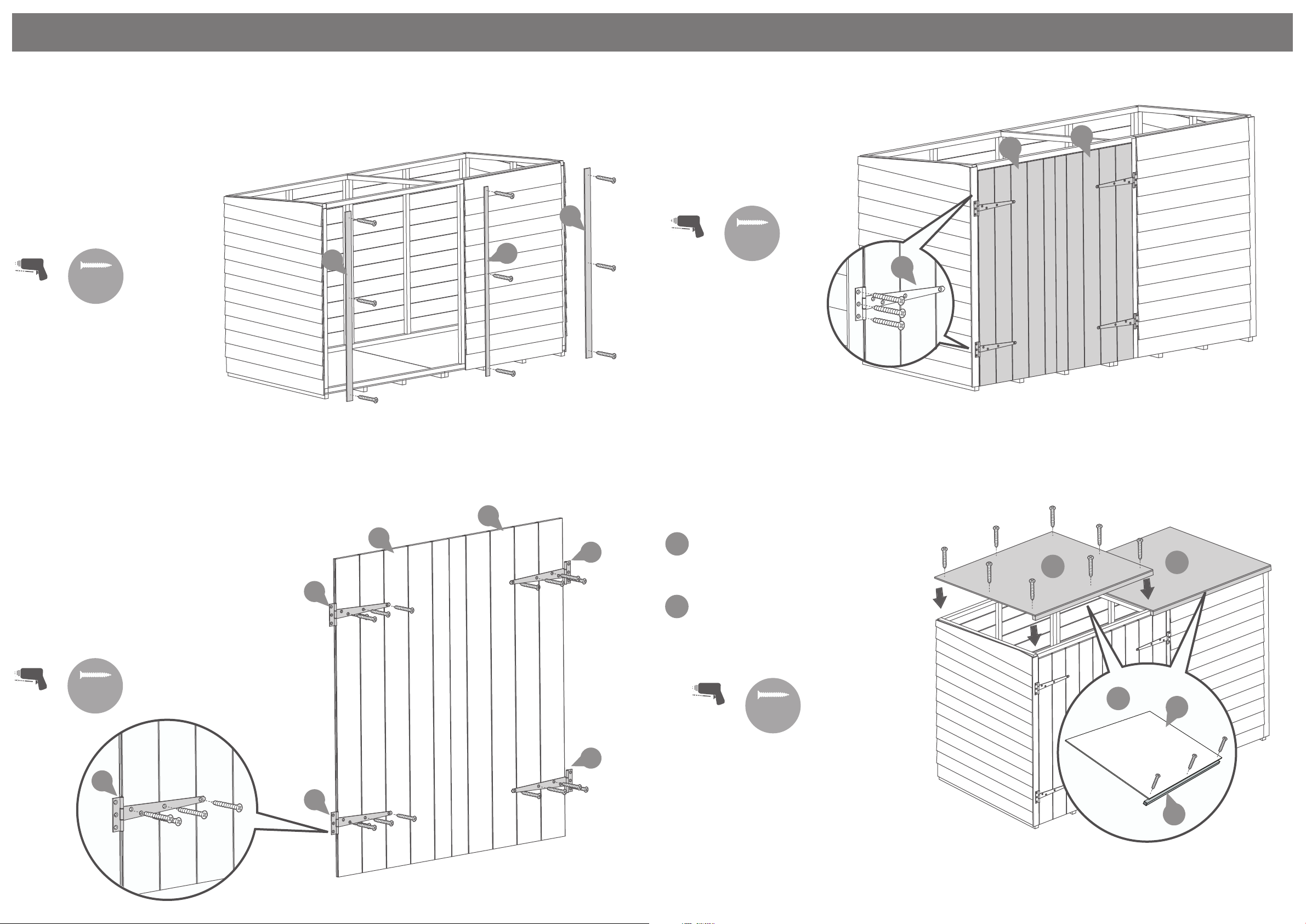

Fix the cover trims (No.12) to the
gables sides, and the door side cover
trim (No.13) to the inner door
framing, securing into place using
3x30mm screws per trim.
9x30mm Screws
12
Attach two t-hinges (No.17) to each
door (No.6), securing through to the
door framing with 4x30mm screws
per hinge.
16x30mm Screws
Pre drill
hole
30mm
screw
Step 9
Parts Needed - No. 6 QTY 2
- No. 17 QTY 4
IMPORTANT: Pre-drill before xing screws.
6
6
17
17
17
17
17
Step 10
IMPORTANT: Pre-drill before xing screws.
Align each door (No.6) into the door
gap and secure at either side using
using 3x30mm screws per t-hinge
(No.17).
12x30mm Screws
66
Pre drill
hole
30mm
screw
17
7
11
a
bb
b
Pre drill
hole
30mm
screw
Secure the eaves framing (No.11) to
each roof sheet (No.7), ush to the edge,
using 3x30mm screws.
Rest the assembled roof sections on top
of the building and x into place with
8x30mm screws per roof.
22x30mm Screws
a
Step 11
Parts Needed - No. 7 QTY 2
- No. 11 QTY 2
IMPORTANT: Pre-drill before xing screws.

P 6
Please retain product label and instructions for future reference
Step 12
IMPORTANT: Pre-drill before xing screws.

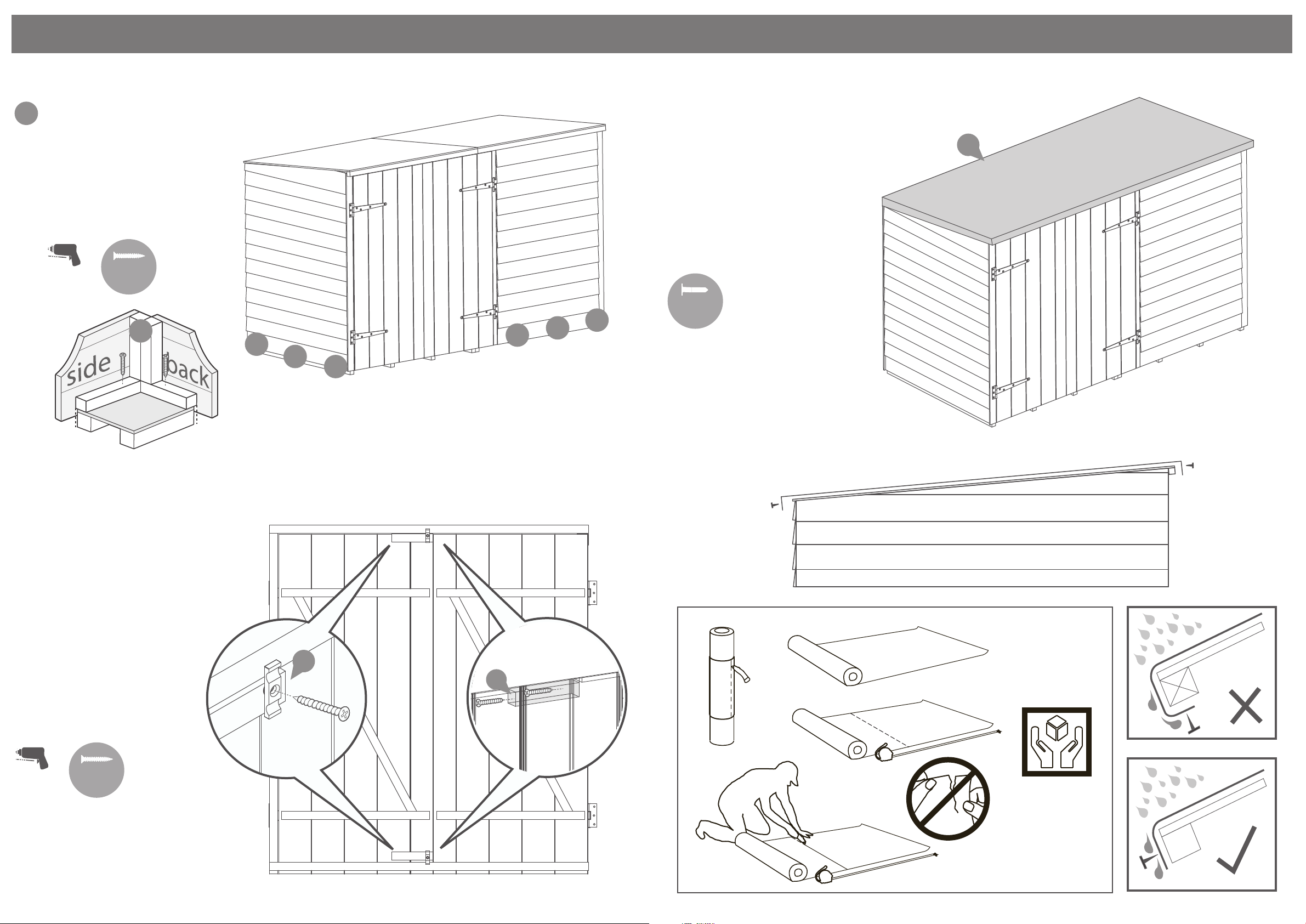

Once the roof is xed, secure the
building to the oor
with15x50mm screws.
*Ensure to screw through the
framing into the oor bearers.
15x50mm Screws
b
b
bbb
Pre drill
hole
50mm
screw
b
b
b
Step 13
IMPORTANT: Pre-drill before xing screws.
19
Pre drill
hole
30mm
screw
16
Parts Needed - No. 16 QTY 2
No. 19 QTY 2
Line up the door block (No. 16) at
the top and bottom of the
secondary door. Fix with 2 x30mm
screws through the outside of the
door into the block.
Attach a turn button (No.19) to the
top and bottom door blocks using
1x30mm screw per turn button.
6x30mm Screws
Step 14
20
Felt
tacks
Cut the felt (No.20) to 2050mm and
lay onto the roof.
* Ensure there is approximately
50mm of overhang around the
building.
Fix into place using 50x felt tacks at
100mm intervals.
50 x Felt Tacks
HANDLE
WITH CARE
12
3
4

P 7
Please retain product label and instructions for future reference
14
14
14
Pre drill
hole
30mm
screw

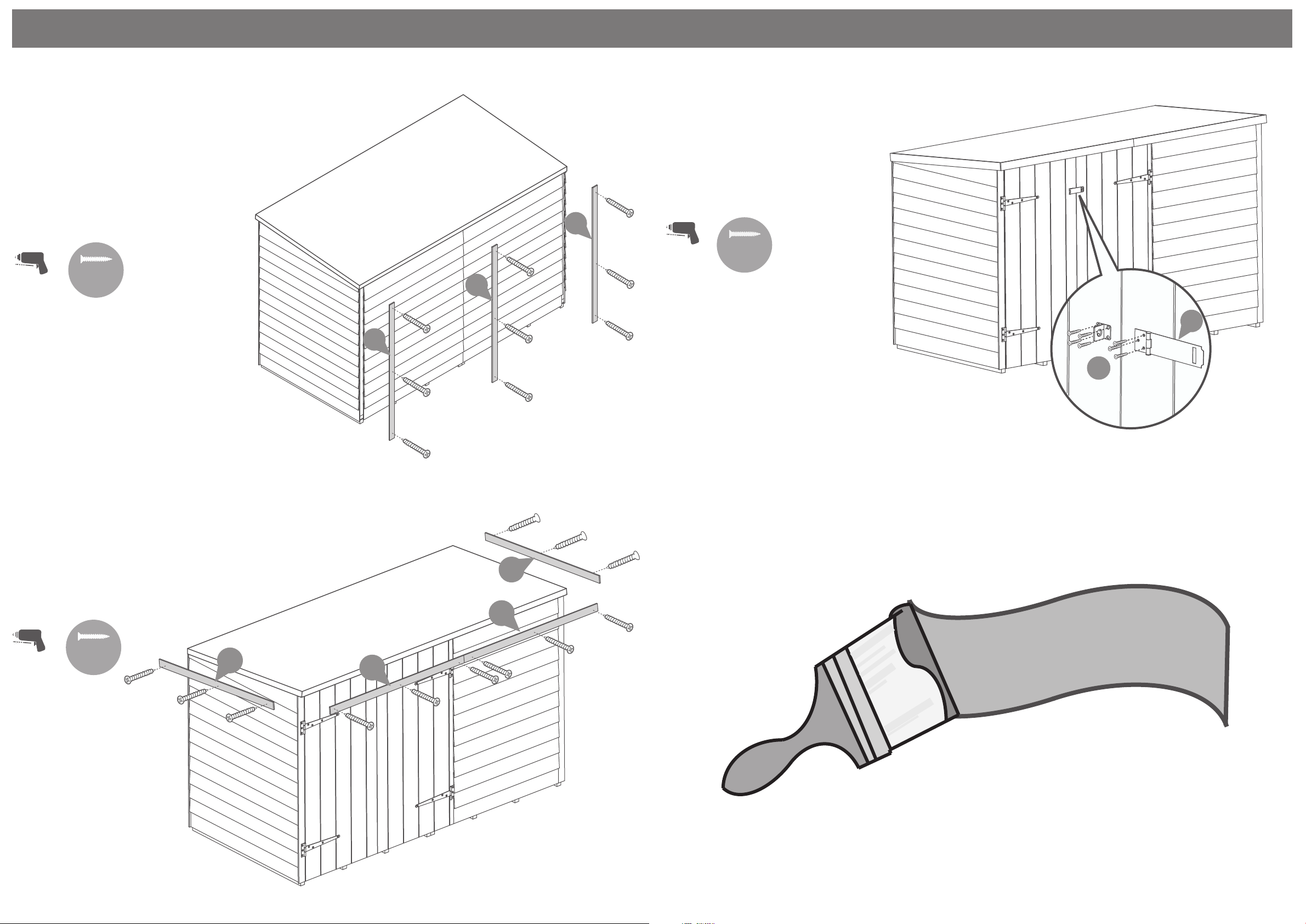

Fix the cover trims (No.14) to the
back corners of the building and
across the joint at the back, securing
each trim into place with 3x30mm
screws
9x30mm Screws
Step 15
Parts Needed - No. 14 QTY 2
IMPORTANT: Pre-drill before xing screws.
15
15
15
15
Pre drill
hole
30mm
screw
Fix the fascias (No.15) around the
top of the building, make sure to trap
the felt inbetween. Secure each trim
in place with 3x30mm screws.
12x30mm Screws
Step 16
Parts Needed - No. 15 QTY 4
IMPORTANT: Pre-drill before xing screws.
Screw the Staple (No.21) to the left
Door, Make sure the Hasp (No.21) is in
line with the staple and screw into the
right Door.
9x30mm Screws
Pre drill
hole
30mm
screw
Step 17
Parts Needed - No. 21 QTY 1
IMPORTANT: Pre-drill before xing screws.
21
b
It is ESSENTIAL that you apply wood
treatment immediately after the building
has been assembled.

P 8




















































2





1












3
4














P 9



















¡




1




2























¡



