Mercia Garden Products 05DTOVPN0306DD-V1 User manual
2mm Drill bit
x2
ANY QUESTIONS?
Scan the QR code to
contact us via our customer
portal.
PLEASE SCAN HERE:
Before assembly
please make sure you have a
suitable base ready to erect your
building
MADE IN GREAT BRITAIN
Overall Dimensions:
Width = 1810mm
Depth = 859mm
Height = 1958mm
Base Dimensions:
Width = 1762mm
Depth = 749mm
9
Door Block - 28x28x140mm QTY 2
F2828-140mm
8
Eaves Frame - 28x28x1786mm QTY 1
F2828-1786mm
10
Fascia - 12x95x1810mm QTY 2
S1295-1810mm
11
Fascia - 12x95x830mm QTY 2
S1295-830mm
12
Cover Trim - 12x45x1918mm QTY 2
S1245-1918mm
13
Cover Trim - 12x45x1818mm QTY 2
S1245-1818mm
14 15 16 17
Turn Button QTY 2
PI-07-0034
T-Hinge QTY 4
PI-07-0021
Hasp and Stable
Lock QTY 1
PI-07-0207
Felt
2
13
Plain Panel QTY 1
AI-R11OVPP1762X1919-V1
Plain Gable Left QTY 1
AI-05R11OVPGL697X1919-V1
Front Panel QTY 1
AI-05R11OVDD1762X1819-V1
4
Plain Gable Right QTY 1
AI-05R11OVPGR697X1919-V1
5
OSB Floor QTY 1
AI-R11OSBF1762X749-V1
7
Roof Sheet QTY 1
PI-03-0027
6
Door QTY 2
AI-R11FBMBZBD636X1660-V1
Nail Bag
There may be extra screws present in the nail bag
30mm Screw x 67
50mm Screw x 24
40mm Screw x 14
10mm Felt Tacks x 80
Building Contents:
Blue Label
Green Label
Pre Assembly
Before assembling remove the transportation
blocks from the bottom of each panel.
Take care removing the blocks as to not damage
the panels. Tap with a at headed screwdriver
and hammer.
Dispose of the blocks once removed.
16
IMPORTANT: Pre-drill before xing screws.
Step 1
Parts Needed - No. 2 QTY 1
No. 6 QTY 2
No. 16 QTY 4
Place the front panel (No.2) on to a at
surface and place both doors (No.6) into
the door aperture.
Locate the four T-Hinges (No.16) onto the
doors and front panel ensuring they sit
over the door framing. Fix the hinges to
the door and front panel using 7x30mm
screws per hinge.
28x30mm Screws
Pre drill
hole
30mm
screw
2
6
6
Step 2
Parts Needed - No. 5 QTY 1
Place the Floor (No. 5) on a rm and level
base, ensure base has suitable drainage free
from areas where standing water can collect.
(see front page on base requirements).
5
3
3

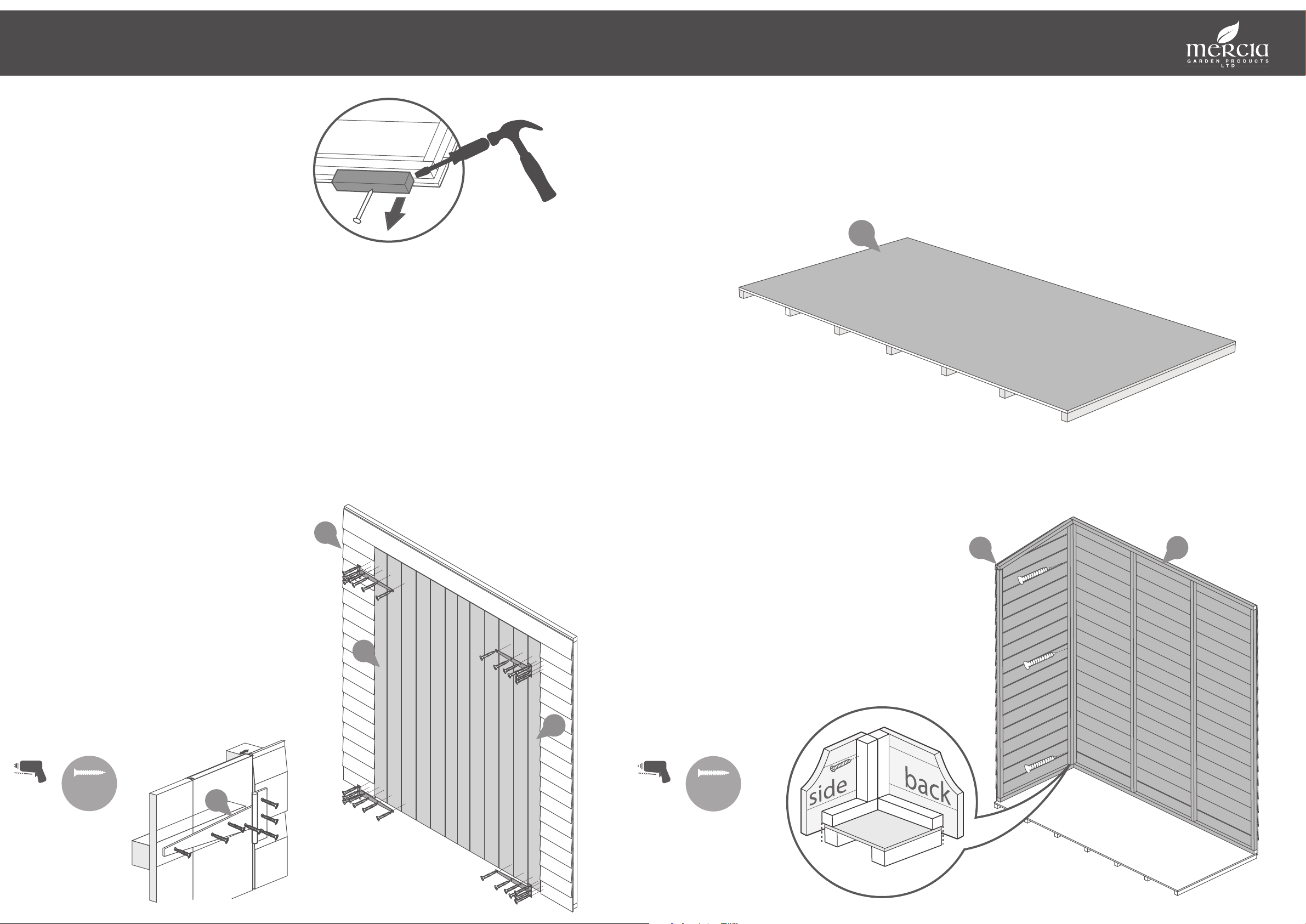

Step 3
Parts Needed - No. 1 QTY 1
No. 3 QTY 1
Place the Rear Panel (No.1) and the Plain
Gable Left (No.3) onto the Floor (No.5),
ensuring there is equal spacing between
the oor and cladding on all sides.
Fix the corners with 3x50mm screws as
shown in diagram.
Do not secure the building to the oor
until the roof is tted.
3x50mm screws
IMPORTANT: Pre-drill before xing screws.
Pre drill
hole
50mm
screw
1
Pre drill
hole
4
Step 4
Parts Needed - No. 2 QTY 1
No. 4 QTY 1
Place the Front Panel (No. 2) and the Plain
Gable Right (No.4) onto the Floor (No.5),
ensuring there is equal spacing between the
oor and cladding on all sides.
Fix the corners with 3x50mm screws per
corner, as shown in diagram.
Do not secure the building to the oor until
the roof is tted.
9x50mm screws
50mm
screw
2
IMPORTANT: Pre-drill before xing screws.
a
a
a
a
a
a
a
a
a
a
Step 5
Parts Needed - No. 7 QTY 1
No. 8 QTY 1
Fix the Eaves Frame (No. 8) to the
longest edge of the Roof Sheet
(No.7) using 4x30mm screws.
Place the Roof into position,
ensuring the Eaves Frame (No. 8) ts
butt against the Front Panel
cladding.
Fix in place using 10x30mm screws,
as shown in the diagram. Ensure
there is no more than 300mm
between each screw.
14x30mm screws
Pre drill
hole
30mm
screw
IMPORTANT: Pre-drill before xing screws.
7
8
7
8
Pre drill
hole
Step 6
Once the roof is tted, x the
panels to the oor internally using
50mm screws in line with the oor
bearers.
12x50mm screws
50mm
screw
IMPORTANT: Pre-drill before xing screws.
b
b
b
b
b
b
b

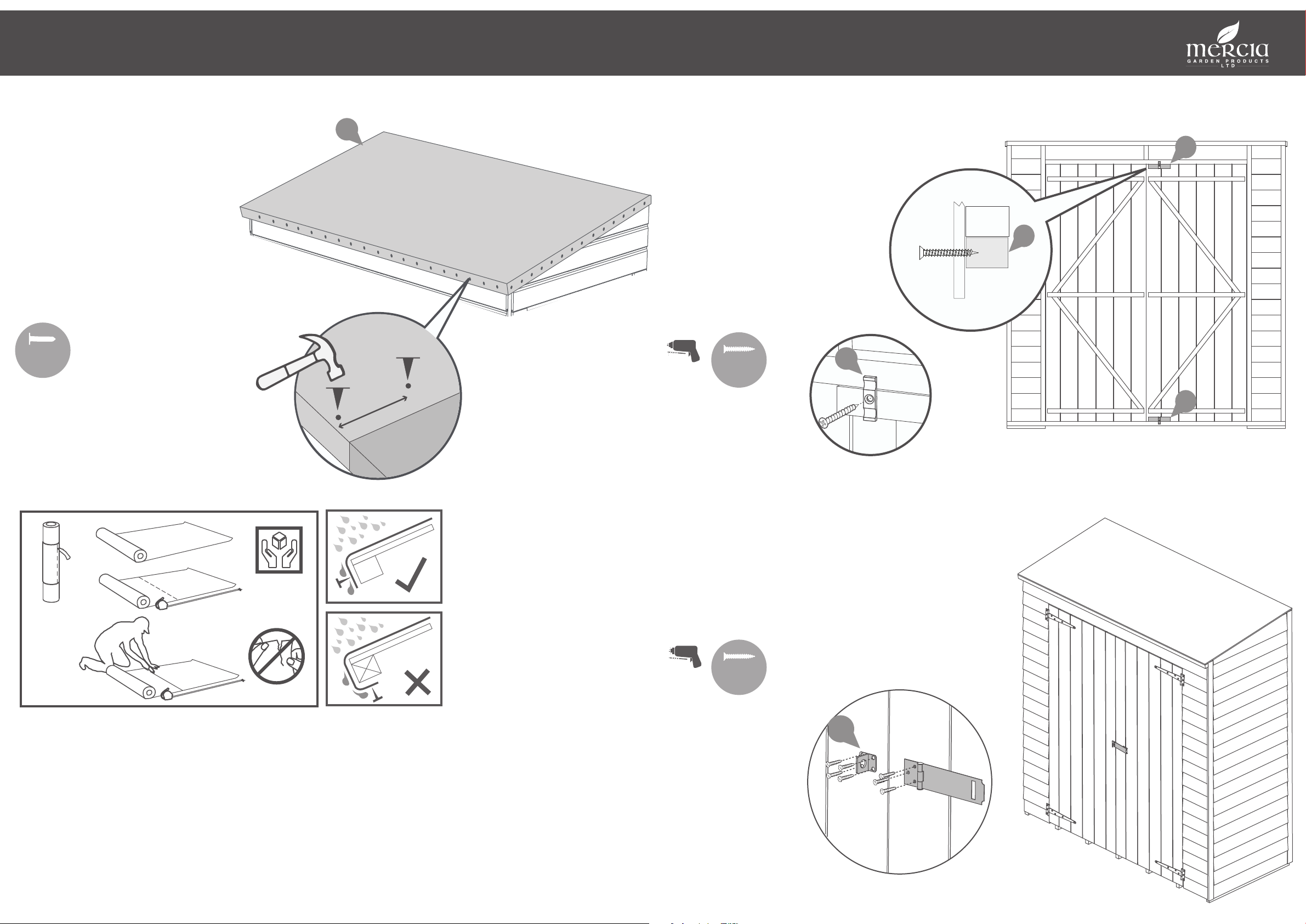

Step 7
Parts Needed - No. 17 QTY 1
Cut the Felt (No. 17) into one sheet
measuring 1890mm and lay onto the
roof as shown in the diagram.
Ensure there is 50mm of overhang
around each side.
Fix in place using felt tacks at 100mm
internals.
80 x Felt Tacks
Felt
tacks
17
100mm
HANDLE
WITH CARE
1 2
3
4
Pre drill
hole
Step 8
Parts Needed - No. 9 QTY 2
No. 14 QTY 2
Attach the Door Blocks (No.9) to the
doors using 2x30mm screws, in the
positions illustrated. Screw through
the door cladding into the blocks
using 30mm screws
Fix the Turn Buttons (No. 14) to the
Door Blocks (No.9) using 1x30mm
screw per turn button.
6x30mm screws
14
IMPORTANT: Pre-drill before xing screws.
30mm
screw
9
9
9
15
IMPORTANT: Pre-drill before xing screws.
Pre drill
hole
30mm
screw
Step 9
Parts Needed- No.15 QTY 1
Screw the Staple (No.15) to the left
Door, Make sure the Hasp (No.15) is
in line with the staple and screw into
the right Door.
7x30mm screws.
IMPORTANT: Pre-drill before xing screws.
Step 10
Parts Needed - No. 12 QTY 2
No. 13 QTY 2
Fix the Smaller Cover Trims (No. 13) to
the front of the building using
3x30mm screws per trim.
Fix the Larger Cover Trims (No. 12) to
the back of the building using
3x30mm screws per trim.
12x30mm screws
Pre drill
hole
30mm
screw
13
13
12
12
Step 11
Parts Needed - No. 10 QTY 1
No. 11 QTY 2
Locate Fascias (No. 11) onto the sides
of the building and x in place using
3x40mm screws per fascia.
Locate Fascias (No. 10) onto the back
and front of the building and x in
place using 4x40mm screws.
Fascias should be ush to the top of the
roof to allow water run o.
14x40mm screws
Pre drill
hole
40mm
screw
IMPORTANT: Pre-drill before xing screws.
11
11
10
10
It is ESSENTIAL that you apply wood
treatment immediately after the building
has been assembled.
¡
¡
ANY QUESTIONS?
Scan the QR code to
contact us via our customer
portal.
PLEASE SCAN HERE:
¡
¢
¢£
¡
£
1
2
3
4
5
6
7
8
9
¤
¥
¤
2
1
¦
3
4
¥
£
¦
¡
¥
