Mercury SMARTCRAFT User manual

90-8M0174152 eng APRIL 2021 © 2021 Mercury Marine Page 1 / 5
SMARTCRAFT CONNECT GATEWAY
MANUAL
IMPORTANT: This document guides our dealers, boatbuilders, and company service personnel in the proper installation or
service of our products. If you have not been trained in the recommended servicing or installation procedures for these or
similar Mercury Marine products, have the work performed by an authorized Mercury Marine dealer technician. Improper
installation or servicing of the Mercury product could result in damage to the product or personal injury to those installing or
operating the product.

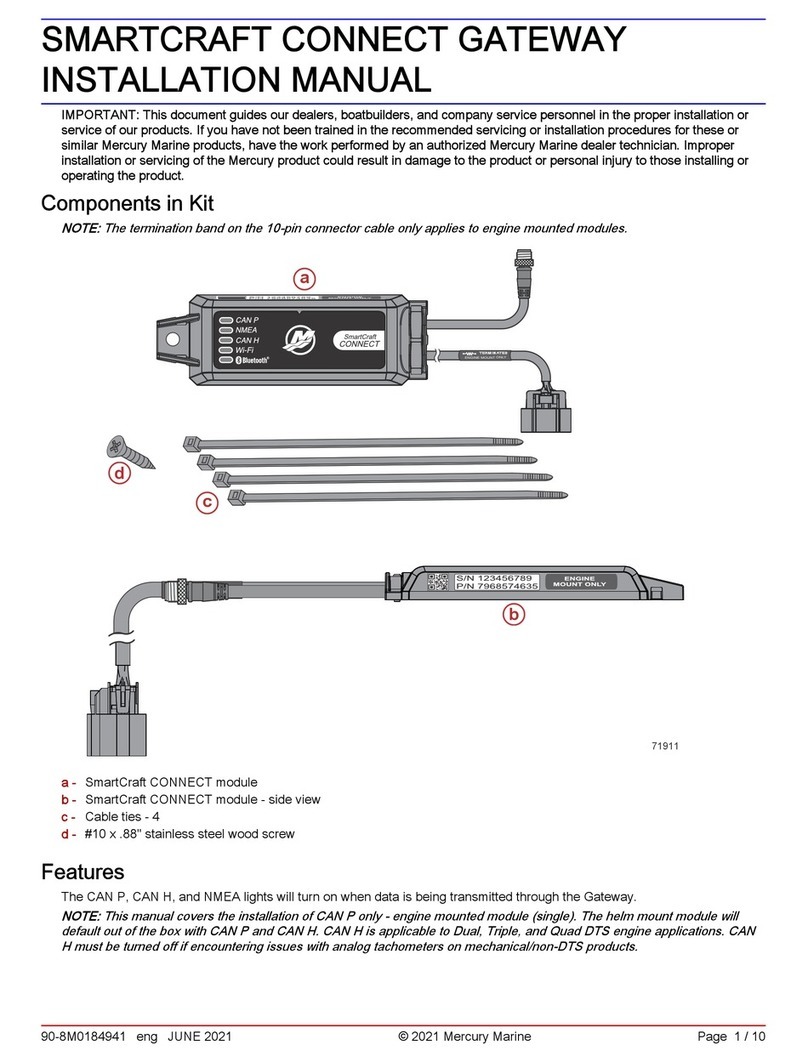

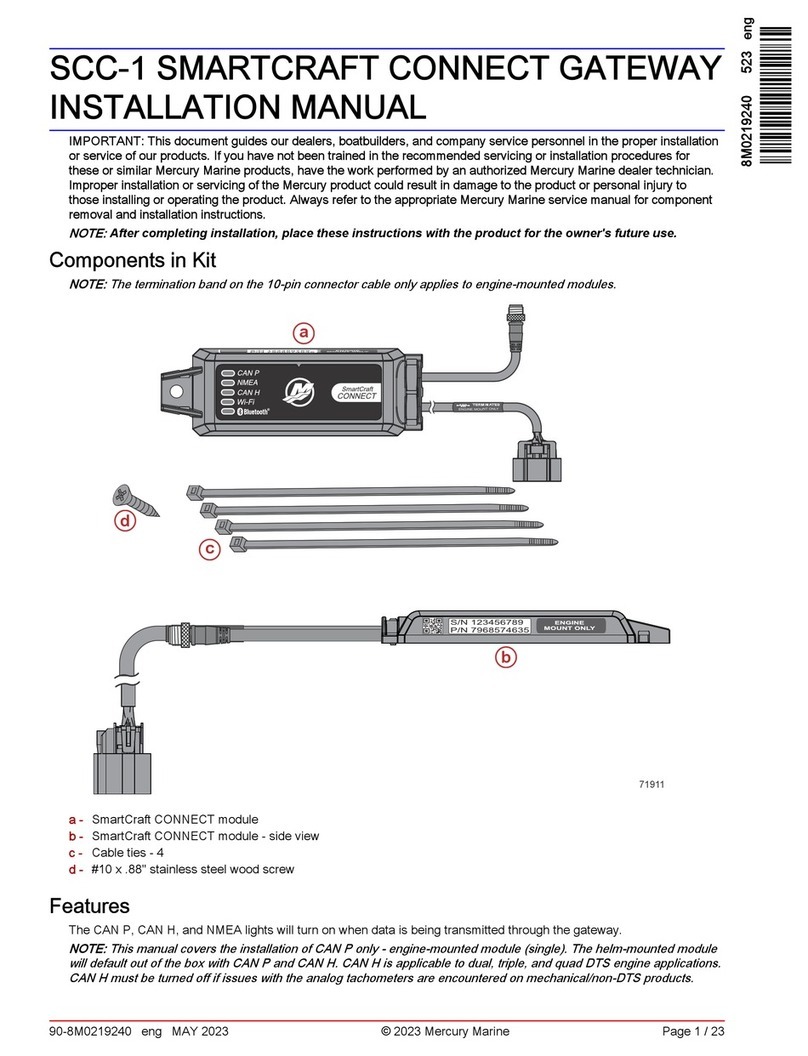

Components in Kit
NOTE: The termination band on the 10‑pin connector cable only applies to under cowl mounted modules.
a - SmartCraft CONNECT module
b - SmartCraft CONNECT module ‑ side view
c - Cable ties ‑ 4
d - #10 x .88" stainless steel wood screw
Features
The CAN P, CAN H, and NMEA lights will turn on when data is being transmitted through the Gateway.
NOTE: This manual covers the installation of CAN P only ‑ engine mounted module (single). The helm mount module will
default out of the box to CAN P, and must be dealer or OEM configured to use CAN H. CAN H is applicable to Dual, Triple,
and Quad DTS engine applications.
a
b
c
d
71911
TERMINATED
ENGINE MOUNT ONLY

SMARTCRAFT CONNECT GATEWAY MANUAL
Page 2 / 5 © 2021 Mercury Marine 90-8M0174152 eng APRIL 2021
SmartCraft CONNECT Module—Single‑ through Quad‑Engine
NOTE: The Connect module does not provide power for any device on the NMEA 2000 network. The NMEA 2000 network
will require its own power source. The NMEA 2000 network power input must have appropriate circuit protection for the
devices on the NMEA 2000 network.
NOTE: The termination band on the 10‑pin connector cable only applies to under cowl mounted modules.
a - CAN P connection light
b - NMEA connection light
c - CAN H connection light
d - Wi‑Fi connection light
e - Bluetooth® connection light
f - NMEA 2000® connector
g - 10‑pin connector
Module Harness Connections
1. Connect the SmartCraft CONNECT module in one of the two following ways:
a. Connect the CAN 10‑pin harness connector to the SmartCraft junction box. Refer to the following diagram.
b. Connect the CAN 10‑pin harness connector to the helm harness SmartCraft 10‑pin connection using a male‑male
adapter harness.
TERMINATED
ENGINE MOUNT ONL
Y
a
b
d
e
c
f
g
71912

SMARTCRAFT CONNECT GATEWAY MANUAL
90-8M0174152 eng APRIL 2021 © 2021 Mercury Marine Page 3 / 5
2. Connect the module NMEA 2000 harness connector to the NMEA 2000 network.
a - 120‑ohm termination resistor
b - Chartplotter
c - SmartCraft CONNECT module
d - NMEA 2000 fused power source
e - SmartCraft junction box
Troubleshooting
LED Lighting
The device contains 5 LEDs for indicating the status of CAN P, NMEA, CAN H, Wi‑Fi, and Bluetooth®.
1. CAN P
•Flashing: The LED will flash continuously once power is applied.
•Solid: Once the bus communication is established, the LED will remain on.
2. NMEA
•Flashing: The LED will flash continuously once power is applied.
•Solid: Once the bus communication is established, the LED will remain on.
3. CAN H
NOTE: The CAN H LED will not function on engine mount models.
•Flashing: The LED will flash continuously once power is applied.
•Solid: Once the bus communication is established, the LED will remain on.
4. Wi‑Fi
•Off: No connection.
•On: Wi‑Fi connection established.
5. Bluetooth
•Flashing: The Bluetooth LED will flash while in pairing mode, indicating it is not currently connected.
•Solid: The Bluetooth LED will remain on continuously while connected.
SmartCraft CONNECT Module Protocol Description
The software is capable of transmitting (TX) information to, and receiving (RX) information from various parameter group
number (PGN) products.
SmartCraft CONNECT Module Modes
Transmit (TX) Receive (RX)
Transmits Mercury data to NMEA 2000 display devices. Receives data from NMEA 2000 to display on Mercury devices.
Description Value
NMEA 2000 Load Equivalency Number (LEN) 1
120
a
a
b
d
120
71914
e
c
TERMINATED
ENGINE MOUNT ONLY

SMARTCRAFT CONNECT GATEWAY MANUAL
Page 4 / 5 © 2021 Mercury Marine 90-8M0174152 eng APRIL 2021
Mercury Engine Data to NMEA 2000 Capable Products
Signal Special Information NMEA 2000 PGN Mode
Rated RPM 127498/0x1F20A TX
Coolant pressure 127489/0x1F201 TX
Speed over water (paddle and pitot) 128259/0x1F503 TX
RPM (rapid update) 127488/0x1F200 TX
Voltage 127489/0x1F201 TX
Coolant temperature 127489/0x1F201 TX
Fuel pressure 127489/0x1F201 TX
Fuel level (percent, type)
2 tanks per engine up to 4 engines, tank 1 for each engine
is type fuel 0X00, tank 2 for each engine is data not
available 0X0F, Gateway will always assign STBD engine
tanks 1 and 2 to NMEA tanks 0 and 1. PORT engine tanks
1 and 2 to NMEA tanks 2 and 3.
127505/0x1F211 TX
Fuel tank size 127505/0x1F211 TX
Fuel flow 127489/0x1F201 TX
Oil pressure 127489/0x1F201 TX
Oil temperature 127489/0x1F201 TX
Gear temp 127493/0x1F205 TX
Gear pressure 127493/0x1F205 TX
Boost pressure 127488/0x1F200 TX
Trim position 127488/0x1F200 TX
Rudder angle 127245/0x1F10D TX
Depth 128267/0x1F50B TX
Depth offset 128267/0x1F50B TX
Seawater temp 130310/0x1FD06 TX
Engine hours 127489/0x1F201 TX
Manufacturer ID Address claim (0 x 90 = Mercury) 060928/0xEE00 TX
Alarm data
NMEA 2000 alarm data is limited and will only display
"Check Engine" when an alarm is activated. Refer to the
Mercury SmartCraft Gauges for descriptive fault text.
127489/0x1F201 TX
Tabs 130576/0x1FE10 TX
Course over ground 129026/0x9F802 RX/TX
Speed over ground 129026/0x9F802 RX/TX
GPS position 129025/0x1F801 RX
Product info 126996/0x1F014 TX
Gear position 127493/0x1F205 TX
Engine load (diesel) 127489/0x1F201 TX
SmartCraft CONNECT Module to NMEA 2000 Capable Products
Signal Special Information NMEA 2000 PGN Mode
Course over ground (COG) 129026/0x1F802 RX/TX
Speed over ground (SOG) 129026/0x1F802 RX/TX
GPS position (lat/long) 129025/0x1F801 RX/TX
Heading 127250/0x1F112 RX/TX
Waypoint ID 129284/0x1F904 RX/TX
FCC and ISED Regulatory Information
This device complies with Part 15 of the FCC Rules and Innovation, Science and Economic Development Canada
License‑exempt RSS standard(s). Operation is subject to the following two conditions: 1) This device may not cause harmful
interference, and 2) This device must accept any interference received, including interference that may cause undesired
operation.

SMARTCRAFT CONNECT GATEWAY MANUAL
Products of Mercury Marine © MERCURY MARINE. All rights reserved. Reproduction in whole or in part without permission is prohibited. Alpha,
Axius, Bravo One, Bravo Two, Bravo Three, Bravo Four S™, Circle M with Waves Logo, GO BOLDLY, K-planes,
Mariner, MerCathode, MerCruiser, Mercury, Mercury with Waves Logo, Mercury Marine, Mercury Precision Parts,
Mercury Propellers, Mercury Racing, MotorGuide, OptiMax, Pro XS, Quicksilver, SeaCore, Skyhook, SmartCraft,
Sport-Jet, Verado, VesselView, Zero Effort, Zeus, #1 On the Water and We're Driven to Win are registered
trademarks of Brunswick Corporation. Mercury Product Protection is a registered service mark of Brunswick
Corporation. All other marks are the property of their respective owners.
W6250 Pioneer Road
Fond du Lac, WI 54936-1939
90-8M0174152 eng APRIL 2021 © 2021 Mercury Marine Page 5 / 5
Cet appareil est conforme aux normes RSS exemptes de licence d'Innovation, Science et Développement économique
Canada. Son fonctionnement est soumis aux deux conditions suivantes: 1) cet appareil ne doit pas provoquer d'interférences,
et 2) cet appareil doit accepter toute interférence, y compris les interférences susceptibles de provoquer un fonctionnement
indésirable de l'appareil.
Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
RF Exposure Considerations
To comply with FCC and Innovation, Science and Economic Development Canada RF exposure limits for general population /
uncontrolled exposure, the antenna must be installed to provide a separation distance of at least 20cm from all persons and
operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi‑transmitter product
procedures.
Pour se conformer aux limites d'exposition aux RF de la FCC et d'Industrie Canada pour la population générale / exposition
non contrôlée, l'antenne(s) utilisée pour ce transmetteur doit être installé pour fournir une distance de séparation d'au moins
20cm de toutes les personnes et fonctionnant conjointement avec une autre antenne ou émetteur, sauf en conformité avec
les procédures de produits multi‑ émetteur FCC.
