Meridian 341 sedan User manual

Port Engine Serial Number: _________________________________________
Starboard Engine Serial Number: ____________________________________
Hull Identification Number:__________________________________________
Date of Purchase __________________________________________________
Hull Identification Number
•The Hull Identification Number (HIN) is located on the starboard side of the transom.
•Record the HIN (and the engine serial numbers) in the space provided above.
•Please refer to the HIN for any correspondence or orders.
© 2003 Meridian Technical Publications. All rights reserved.
No part of this publication may be reproduced, stored in any retrieval system, or transmitted in any form by any means, electronic, mechanical, photocopying,
recording or otherwise, without prior written permission of Meridian.
Printed in the United States of America.
General Notes
The material in this document is for information only and is subject to change without notice. While reasonable efforts have been made in the preparation of this
document to assure its accuracy, Meridian assumes no liability resulting from errors or omissions in this document, or from the use of information contained herein.
Due to our commitment to product improvement, Meridian reserves the right to make changes in the product design, specifications, and equipment at any time
without notice or obligation. Illustrations and/or photos may show optional equipment.
All Meridian products meet or exceed USCG (Unites States Coast Guard) and/or NMMA (National Marine Manufacturer’s Association) construction standards.
Manufactured with 1,1,1 Trichloroethane, a substance which harms public health and environment during the manufacturing process by destroying ozone in the
upper atmosphere.
Proprietary Rights
This document discloses subject matter in which Meridian has proprietary rights. The information and design disclosed herein were originated by and are the prop-
erty of Meridian. Neither receipt nor possession thereof confers or transfers any right to reproduce, copy, alter or disclose the document or any part thereof, any
information contained therein, or to construct boats or any item from it, except by written permission from or written agreement with Meridian. This document is
to be returned upon request to Meridian.

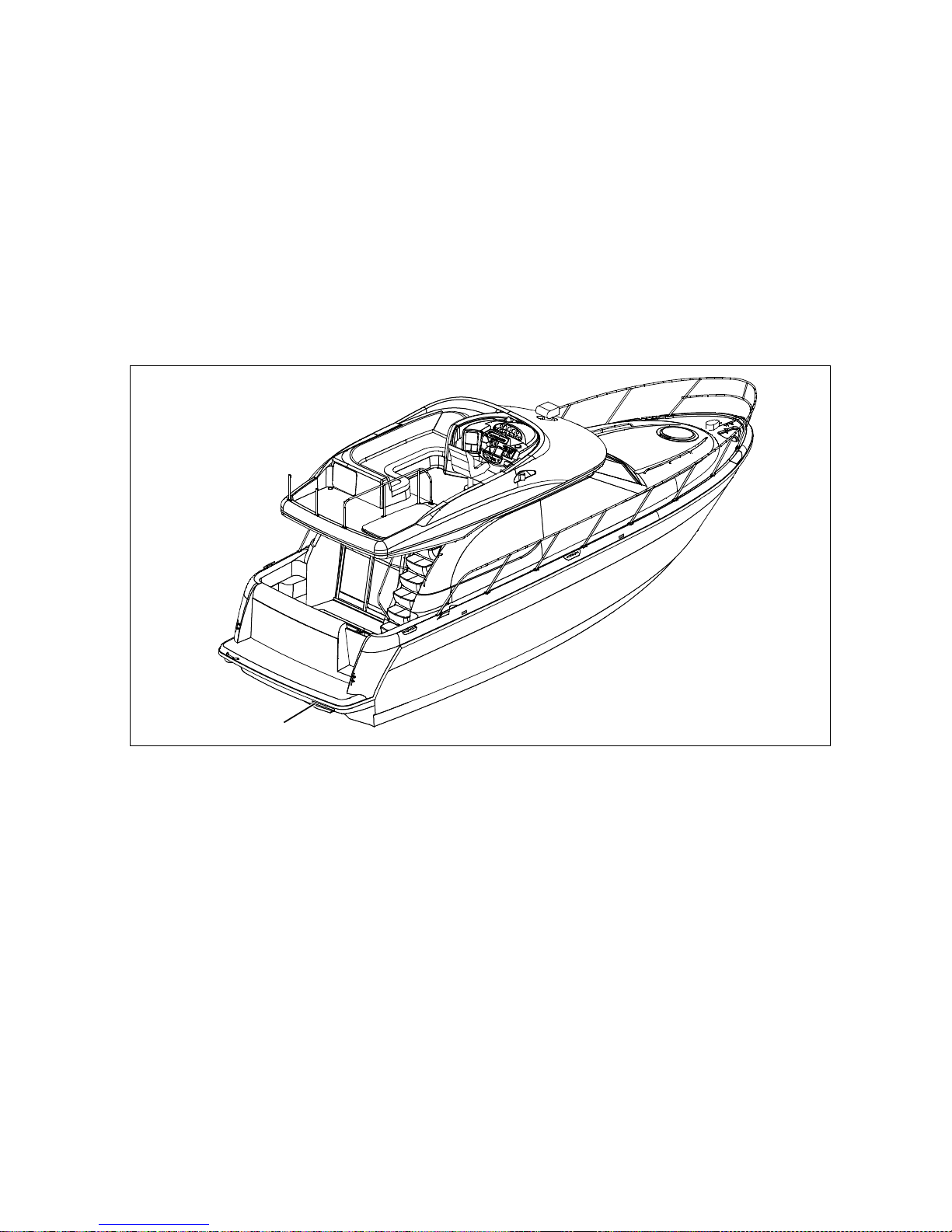

HIN LOCATION

CONTENTS
1 Chapter 1: Welcome Aboard!
1 Dimensions and Tank Capacities
1 Layout View
1 Dealer Service
2 Warranty Information
2 Boating Experience
2 Engines & Accessories Guidelines
2 Engine & Accessories Literature
3 Safety Standards
3 Qualified Maintenance
3 Structural Limitations
4 Special Care For Moored Boats
4 Sacrificial Anodes (Zincs)
5 Boat Lifting
6 Carbon Monoxide (CO)
6 Facts about CO
7 Where and How CO Can Accumulate
7 How to Protect Yourself and Others From CO
8 Trip Checklist
8 Monthly Checklist
8 Annual Checklist
8 Carbon Monoxide Alarm System
9 More Information
10 Chapter 2: Locations
10 Exterior Views
10 Hull Views
11 Forward Deck View
12 Aft Deck Views
13 Helm Stations
14 Component Locations
25 Chapter 3: Propulsion &
Related Systems
25 Engine
26 Exhaust System
27 Engine Room Ventilation System
28 Fuel System
29 Fuel Fills & Vents
30 Fuel Transfer Pump (If Equipped)
30 Fuel Filters
30 Anti-siphon Valve (If Equipped)
31 Oil Change System (If Equipped)
31 Fire Suppression System (If Equipped)
32 Shaft-Transmission Alignment
33 Chapter 4: Controls & Gauges
33 Steering
33 Rudder Stuffing Gland
34 Autopilot (If Equipped)
35 Shift/Throttle Controls
35 Engine Synchronization (If Equipped)
35 Trim Tabs
36 Dual Thruster System (If Equipped)
37 Gauges
37 Cleaning Gauges
37 Gauge Fogging
37 Radio Transmission Interference
37 Twin Engine Readings
37 Fuel Gauge
37 Synchronizer
38 Chapter 5: Navigation &
Communication Equipment
38 Compass
38 Global Positioning System (GPS)
(If Equipped)
39 Radar (If Equipped)
39 VHF Radio (If Equipped)
39 Depth Finder

40 Chapter 6: Plumbing
40 Bilge Pumps
42 Autofloat Switches
43 Seawater Systems
43 Seacocks
43 Seawater Strainers
44 Raw Water Washdown (If Equipped)
45 Freshwater System
46 Freshwater System Winterization
46 Winterizing the Water Heater
47 Water Heater
48 Transom Shower
48 City Water Inlet
49 Drain Systems
49 Deck Drains
50 Sink Drains
50 Shower Drain System
50 Sump Box Cleaning
50 Sump System Winterization
51 Marine Head with Holding Tank
51 Winterizing The Marine Head
52 Macerator (If Equipped)
53 VacuFlush (If Equipped)
54 Chapter 7: Deck Equipment
54 Cleats
54 Windlass (If Equipped)
55 Canvas
56 Chapter 8: Appliances &
Entertainment Systems
56 Refrigerator
56 Electric Stove (If Equipped)
57 Propane Stove (If Equipped)
58 Propane System (If Equipped)
58 Audio & Visual Equipment
59 Dockside Television & Telephone Inlet
60 Chapter 9: Lights
60 Care and Maintenance
60 Interior & Exterior Lights
60 Spotlight (If Equipped)
61 Chapter 10: Heating & Air Conditioning
61 Air Conditioning System (If Equipped)
62 Electric Heaters (If Equipped)
62 Heat Exchanger Cabin Heater (If Equipped)
63 Chapter 11: Electrical Systems
64 12-Volt DC System
64 Batteries
64 Fuses and Circuit Breakers
64 12-Volt Accessory Outlet
64 Battery Switch
65 Alternators
65 Battery Charger
66 120-Volt AC System
66 Shore Power
68 Connecting To Shore Power
69 Generator (If Equipped)
71 Inverter Power (If Equipped)
72 Electrical Routings
72 Deck Electrical Harness
73 Command Bridge Harness
74 12 Volt DC Electrical System
74 Power Inverter (If Equipped)
75 Dual Thrusters (If Equipped)
76 Battery System
76 Bonding Harness
77 Wiring Diagrams
77 120-Volt AC Electrical System
78 12-Volt Auxiliary DC Electrical System
79 Command Bridge 12-Volt DC
Electrical System
80 12-Volt DC Breaker Panel System
81 Engine Electrical System
82 Important Records
83 Float Plan

Hazard Boxes & Symbols
The hazard boxes and symbols shown below are used throughout this Manual to call attention to potentially danger-
ous situations which could lead to either personal injury or product damage. Read ALL warnings carefully and fol-
low all safety instructions.
DANGER!
!
This box alerts you to immediate hazards which WILL cause severe personal injury or death if
the warning is ignored.
This box alerts you to hazards or unsafe practices which COULD result in severe personal
injury or death if the warning is ignored.
WARNING!
!
This box alerts you to hazards or unsafe practices which COULD result in minor personal
injury or cause product or property damage if the warning is ignored.
CAUTION!
!
NOTICE
This box calls attention to installation, operation or maintenance information, which is impor-
tant to proper operation but is not hazard related.
EXPLOSION
HAZARD! NO OPEN FLAME! HOT HAZARD!
ROTATING
PROPELLER HAZARD!
FALLING
HAZARD!
ELECTRICAL
HAZARD!
CO POISONING
HAZARD!
FIRE
HAZARD!
RUN BILGE BLOWERS
FOR 4 MINUTES!

1
341 Sedan •Owner’s Manual
Chapter 1: Welcome Aboard!
•This Owner’s Manual provides information about your yacht that is not covered in the Cruiser & Yacht Owner’s
Manual Supplement.
•Before using your yacht, study this Owner’s Manual, the Cruiser & Yacht Owner’s Manual Supplement, and all
engine and accessory literature carefully.
•Keep this Owner’s Manual and the Cruiser & Yacht Owner’s Manual Supplement on your yacht in a secure, yet
readily available place.
Dimensions and Tank Capacities
Layout View
Dealer Service
•Ask your dealer to explain all systems before taking delivery of your yacht.
•Your dealer is your key to service.
•Contact your dealer if you have any questions or problems with your new yacht.
•If your dealer cannot help, call our customer service hotline: [phone] or send us a FAX: [phone].
•Buy replacement parts from any authorized Meridian dealer.
Overall
Length Bridge Clearance Beam Draft (Hull) Draft (Maximum) FuelCapacity (gal.) Freshwater Capacity (gal.) Waste Holding Tank Capacity (gal.)
35' 0" 13' 6" 11' 8" 2' 6" 3' 2" 224 92 30
LOWER HELM
(IF EQUIPPED)

Chapter 1: Welcome Aboard! 341 Sedan •Owner’s Manual
2
Warranty Information
•Meridian offers an Express Limited Transferable Warranty on each new Meridian purchased through an autho-
rized Meridian dealer.
•A copy of the Express Limited Transferable Warranty was included in your owner’s packet.
•If you did not receive a copy of the Express Limited Transferable Warranty, please contact your dealer or
call 360-403-2198 for a copy.
Boating Experience
If this is your first yacht or if you are changing to a type of yacht you are not familiar with, obtain handling and oper-
ating experience before assuming command of the yacht.
Take one of the boating safety classes offered by the U.S. Power Squadrons or the U.S. Coast Guard Auxiliary. For
more course information, including dates and locations of upcoming classes, contact the organizations directly:
•U.S. Power Squadrons: 1-888-FOR-USPS (1-888-367-8777) or on the Internet at: http://www.usps.org
•U.S. Coast Guard Auxiliary: 1-800-368-5647 or on the Internet at: http://www.cgaux.org
Outside the United States, your selling dealer, national sailing federation or local boat club can advise you of local
sea schools or competent instructors.
Engines & Accessories Guidelines
•Your yacht’s engines and accessories were selected to provide optimum performance and service.
•Installing different engines or other accessories may cause unwanted handling characteristics.
•Should you choose to install different engines or to add accessories that will affect the yacht’s running trim, have
an experienced marine technician perform a safety inspection and handling test before operating your yacht again.
•Certain modifications to your yacht will result in the cancellation of your warranty protection. Always
check with your dealer before making any modifications to your yacht.
Engine & Accessories Literature
•The engines and accessories installed on your boat come with their own operation and maintenance manuals.
•Read and understand these manuals before using the engines and accessories.
•Unless noted otherwise, all engine and accessory literature referred to in this Owner’s Manual is included in your
owner’s packet.
CONTROL HAZARD!
A qualified operator must be in control of the yacht at all times. DO NOT operate your yacht
while under the influence of alcohol or drugs.
WARNING!
!
NOTICE
When storing your yacht please refer to your engine’s operation and maintenance manuals.

341 Sedan •Owner’s Manual Chapter 1: Welcome Aboard!
3
Safety Standards
Your yacht’s mechanical and electrical systems were designed to meet safety standards in effect at the time it was
built. Some of these standards were mandated by law, all of them were designed to insure your safety, and the safety
of other people, vessels and property.
In addition to this Owner’s Manual,please read the Cruiser & Yacht Owner’s Manual Supplement and all acces-
sory instructions for important safety standards and hazard information.
Qualified Maintenance
•Failure to maintain your yacht’s systems (listed in the warning above) as designed could violate the laws in your
jurisdiction and could expose you and other people to the danger of bodily injury or accidental death.
•Follow the instructions provided in the Cruiser & Yacht Owner’s Manual Supplement, this Owner’s Manual, the
engine owner’s manual and all accessory literature.
Structural Limitations
The command bridge is designed to be lightweight for proper yacht balance. The load limit for this platform is 30
pounds per square foot, evenly distributed.
FALLING and ROTATING PROPELLER HAZARD!
NEVER allow anyone to ride on parts of the yacht not designed for
such use.
•Sitting on seat backs, lounging on the forward deck, bow riding, gunwale riding or occupy-
ing the transom platform while underway is especially hazardous and will cause personal
injury or death.
DANGER!
!
ROTATING PROPELLER and CARBON MONOXIDE
POISONING HAZARD!
•NEVER allow anyone to occupy, or hang from, the
back deck or swim platform while the engine(s)
are running.
•Teak surfing, dragging, or water skiing within 20 feet
of a moving watercraft can be fatal.
DANGER!
!
DANGER
PERSONAL SAFETY HAZARD!
ALWAYS secure the anchor and other loose objects before getting underway. The anchor and
other items that are not properly secured can come loose when the yacht is moving and cause
personal injury or death.
DANGER!
!
To maintain the integrity and safety of your yacht, allow only qualified personnel to perform
maintenance on, or in any way modify: The steering system, propulsion system, engine control
system, fuel system, environmental control system, electrical system or navigational system.
WARNING!
!

Chapter 1: Welcome Aboard! 341 Sedan •Owner’s Manual
4
Special Care For Moored Boats
•Whether moored in saltwater or freshwater, your yacht will collect marine growth on its hull bottom.
•This will detract from the yacht’s beauty, greatly affect its performance and may damage the gelcoat.
•There are two methods of slowing marine growth:
1. Periodically haul the yacht out of the water and scrub the hull bottom with a bristle brush and a solution of soap
and water.
2. Occasionally re-paint the hull below the waterline with a good grade of anti-fouling paint.

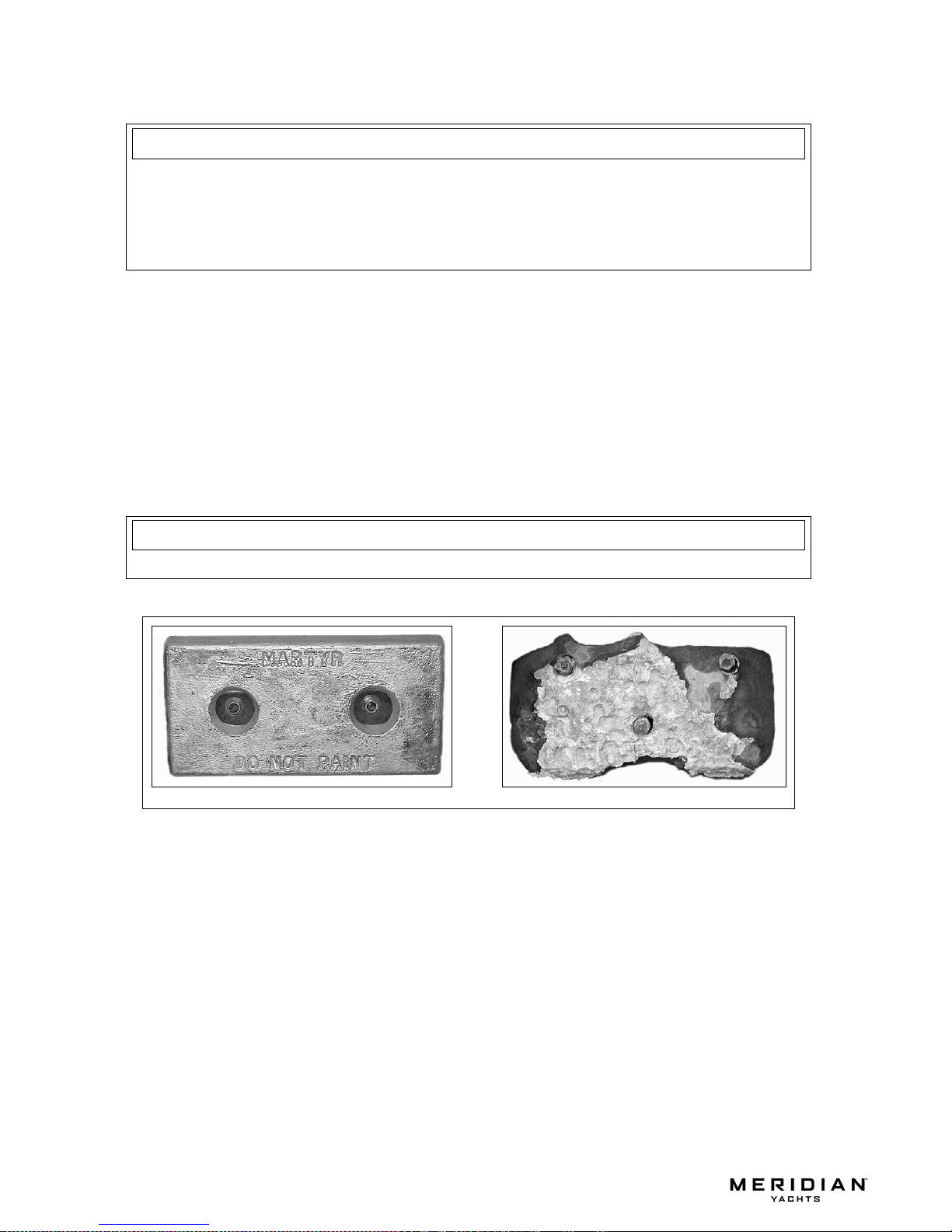

Sacrificial Anodes (Zincs)
Your yacht features sacrificial anodes (zincs) to protect underwater metal parts from excessive deterioration. Check
the zincs regularly and replace them if they have deteriorated more than 70%.
There are many factors that affect the rate at which the zincs deteriorate, including:
•Water temperature
•Salinity
•Water pollution
Stray electrical current from the yacht or dock may cause complete deterioration in just a few weeks. If there is rapid
zinc deterioration, measure the electrolytic corrosion around your yacht with a corrosion test meter. If the zincs are
not bonded correctly, they will not provide protection.
•To help seal thehull bottom and reduce the possibility ofgelcoat blistering on moored boats,
apply an epoxy barrier coating. The barrier coating should be covered with several coats of
anti-fouling paint.
•Many states regulate the chemical content of bottom paints in order to meet environmental
standards. Check with your local dealer about recommended bottom paints, and about the
laws in effect in your area.
NOTICE
Do not paint between the zinc and the metal surface it contacts and do not paint over the zincs.
NOTICE
NEW SACRIFICIAL ANODE DETERIORATED SACRIFICIAL ANODE

341 Sedan •Owner’s Manual Chapter 1: Welcome Aboard!
5
Boat Lifting
•Always follow the lift
equipment’s instructions
and requirements.
•Water in the bilge can shift
and change the balance of
the load.
•If water is present in the
bilge, pump or drain the
water out of the bilge areas
before lifting your yacht.
•When lifting your yacht,
always position the lifting
slings at the port and star-
board, lifting sling label
positions, as shown in the
illustration on the right.
PERSONAL INJURY and /or PRODUCT OR PROPERTY DAMAGE HAZARD!
•Lifting slings may slip on the hull.
•Avoid serious injury or death by securing the lifting slings together before lifting.
WARNING!
!
PERSONAL INJURY and /or PRODUCT OR PROPERTY DAMAGE HAZARD!
•NEVER lift the yacht using the bow and stern eyes.
WARNING!
!
PRODUCT or PROPERTY DAMAGE HAZARD!
•When lifting any yacht, always use a spreader bar. The spreader bar must be equal to the
width of the yacht at each lifting point.
CAUTION!
!

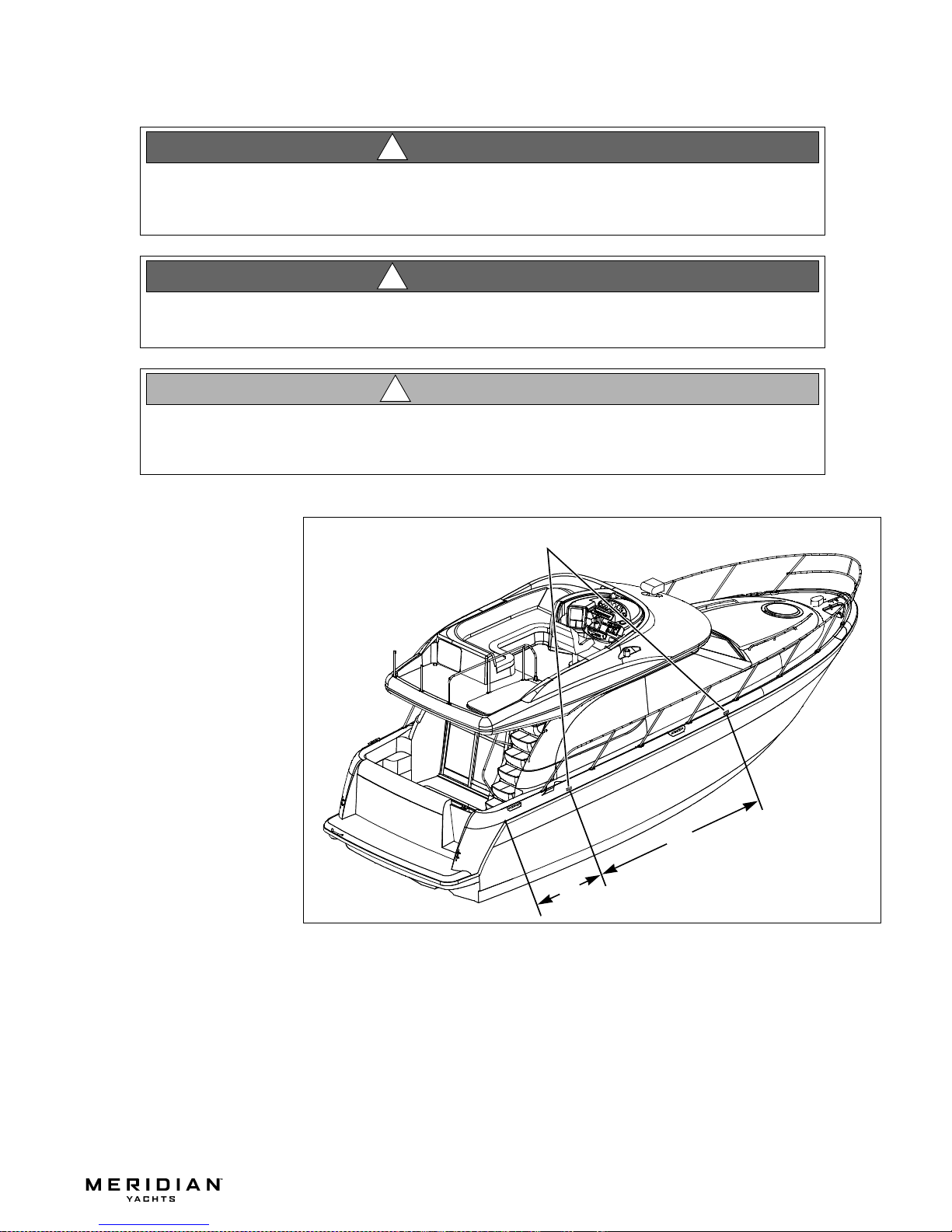

LIFTING SLING LABELS
(TYPICAL PORT & STARBOARD)
49"
142"

Chapter 1: Welcome Aboard! 341 Sedan •Owner’s Manual
6
Carbon Monoxide (CO)
Facts about CO
•CO poisoning causes a significant number of boating deaths each year.
•Called the "silent killer", CO is an extremely toxic, colorless, odorless and tasteless gas.
•CO can harm or even kill you inside or outside your yacht.
•CO can affect you whether you’re underway, moored, or anchored.
•CO symptoms are similar to seasickness or alcohol intoxication.
•CO can make you sick in seconds. In high enough concentrations, even a few breaths can be fatal.
•Breathing CO blocks the ability of your blood to carry oxygen.
•The effects are cumulative, even low levels of exposure can result in injury or death.
Factors That Increase the Effects of CO Poisoning
•Age
•Smokers or people exposed to high concentrations of cigarette smoke
•Consumption of alcohol
•Lung disorders
•Heart problems
•Pregnancy
•Carbon monoxide gas (CO) is colorless, odorless, tasteless, and
extremely dangerous.
•All engines, generators, and fuel burning appliances produce CO
as exhaust.
•Prolonged exposure to low concentrations or very quick exposure to high
concentrations will cause BRAIN DAMAGE or DEATH.
•Teak surfing, dragging, or water skiing within 20 feet of a moving water-
craft can be fatal.
DANGER!
!

341 Sedan •Owner’s Manual Chapter 1: Welcome Aboard!
7
Where and How CO Can Accumulate
Stationary Conditions That Increase CO Accumulations Include:
To correct stationary situations A and/or B:
•Close all windows, portlights and hatches.
•If possible, move your yacht away from source of CO.
Running Conditions That Increase CO Accumulations Include:
To correct running situations C and/or D:
•Trim bow down.
•Open windows and canvas.
•When possible, run yacht so that prevailing winds help dissipate exhaust.
How to Protect Yourself and Others From CO
•Know where and how CO may accumulate in and around your yacht (see above).
•Maintain fresh air circulation throughout the yacht at all times.
•Know where your engine and generator exhaust outlets are located and keep everyone away from these areas.
•Never sit on, or hang onto, the back deck or swim platform while the engine(s) are running.
•Never enter the areas under swim platforms where exhaust outlets are located.
•Although CO can be present without the smell of exhaust fumes, if exhaust fumes are detected on the yacht, take
immediate action to dissipate these fumes.
•Treat symptoms of seasickness as possible CO poisoning. Get the person into fresh air immediately. Seek medical
attention—unless you’re sure it’s not CO.
•Install and maintain CO alarms inside your yacht. Do not ignore any alarm. Replace alarms as recommended by
the alarm manufacturer.
•Follow the checklists provided on the next page.
•Get a Vessel Safety Check.
For information on how to get a free VESSEL SAFETY CHECK, visit www.vesselsafetycheck.org or contact your
local U.S. Coast Guard Auxiliary or United States Power Squadrons®.
•U.S. Coast Guard Auxiliary: 1-800-368-5647 or on the Internet at: http://www.cgaux.org
•U.S. Power Squadrons: 1-888-FOR-USPS (1-888-367-8777) or on the Internet at: http://www.usps.org

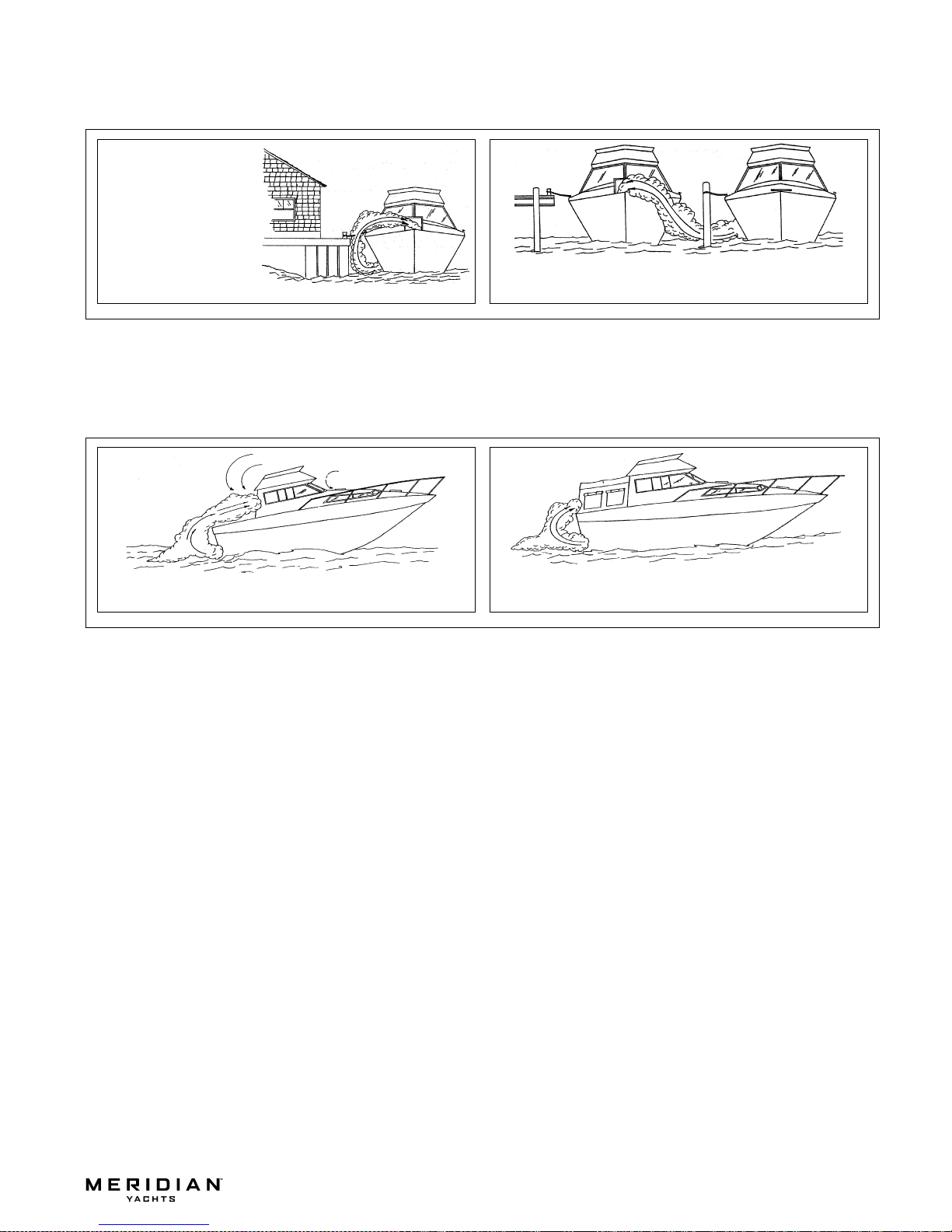

A. Using engine,
generator, or
other fuel
burningdevice
when yacht is
moored in a
confined
space. B. Mooring too close to another boat that is using its
engine, generator, or other fuel burning device.
C. Running yacht with trim angle of bow too high. D. Running yacht without through ventilation (sta-
tion wagon effect).

Chapter 1: Welcome Aboard! 341 Sedan •Owner’s Manual
8
Trip Checklist
❏Make sure you know where the exhaust outlets are located on your yacht.
❏Educate all passengers about the symptoms of CO poisoning and where CO may accumulate.
❏When docked, or rafted with another boat, be aware of exhaust emissions from the other boat.
❏Confirm that water flows from the exhaust outlet when the engines and generator are started.
❏Listen for any change in exhaust sound, which could indicate an exhaust component failure.
❏Test the operation of each CO alarm by pressing the test button.
Monthly Checklist
❏Make sure all exhaust clamps are in place and secure.
❏Look for exhaust leaking from exhaust system components. Signs include rust and/or black streaking, water
leaks, or corroded or cracked fittings.
❏Inspect rubber exhaust hoses for burned, cracked, or deteriorated sections. All rubber hoses should be pliable and
free of kinks.
Annual Checklist
Have a Qualified Marine Technician:
❏Replace exhaust hoses if cracking, charring, or deterioration is found.
❏Ensure that your engines and generators are properly tuned, and well maintained.
❏Inspect each water pump impeller and the water pump housing. Replace if worn. Make sure cooling systems are
in working condition.
❏Inspect all metal exhaust parts for cracking, rusting, leaking, or loosening and check the cylinder head gasket,
exhaust manifold, water injection elbow, and the threaded adapter nipple between the manifold and the elbow.
❏Clean, inspect, and confirm proper operation of the generator cooling water anti-siphon valve (if equipped).
Carbon Monoxide Alarm System
•Your yacht features a carbon monoxide (CO) alarm system.
•Do not disconnect the alarm system.
•Read and understand the manufacturer’s instructions for your CO alarm system. If you did not receive an instruc-
tion manual, call [phone] and one will be mailed to you.
If your yacht is not equipped with a carbon monoxide alarm, consider purchasing one from your dealer or marine
supply store.
DANGER
CARBON MONOXIDE POISONING HAZARD!
•The house battery switch must be in the On position for the CO Monitors
to work.
•If your yacht will be unattended for an extended period of time, turn Off the
house battery or the CO Monitors will drain the house battery.
DANGER!
!
The stereo memory and CO monitor(s) place a small, but constant drain on the battery. If your
yacht will be unattended for an extended amount of time, plug into shore power with the bat-
tery charger turned on, or disconnect the battery if shore power is not an option.
NOTICE

341 Sedan •Owner’s Manual Chapter 1: Welcome Aboard!
9
More Information
For more information about how you can prevent carbon monoxide poisoning on recreational boats and other ways to
boat more safely, contact:
For information on how to get a free VESSEL SAFETY CHECK, visit www.vesselsafetycheck.org or contact your
local U.S. Coast Guard Auxiliary or United States Power Squadrons®.
•U.S. Coast Guard Auxiliary: 1-800-368-5647 or on the Internet at: http://www.cgaux.org
•U.S. Power Squadrons: 1-888-FOR-USPS (1-888-367-8777) or on the Internet at: http://www.usps.org
United States Coast Guard
Office of Boating Safety (G-OPB-3)
2100 Second Street SW
Washington, DC 20593
www.uscgboating.org
1-800-368-5647
National Marine Manufacturers
Association (NMMA)
200 East Randolph Drive
Suite 5100
Chicago, IL 60601-9301
www.nmma.org
312-946-6200
American Boat & Yacht Council, Inc.
(ABYC)
3069 Solomon’s Island Road
Edgewater, MD 21037-1416
www.abycinc.org
410-956-1050

10
341 Sedan •Owner’s Manual
Chapter 2: Locations
Exterior Views

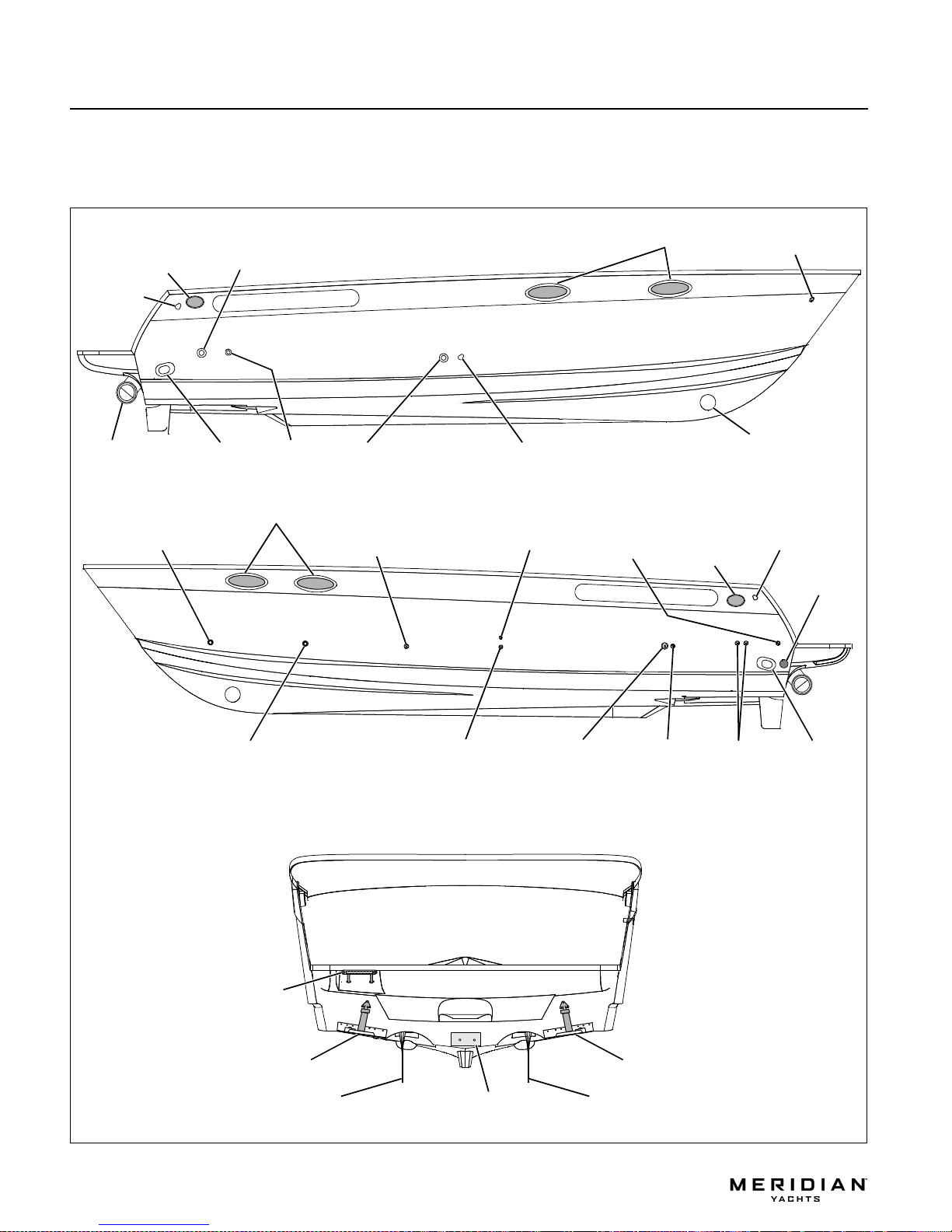

Hull Views
STARBOARD HULLSIDE
SACRIFICIAL
TRIM TAB
RUDDER
ZINC ANODE
BOARDING
PLATE
TRANSOM
LADDER
PORT HULLSIDE
GENERATOR
EXHAUST
EXHAUST
(IF
EQUIPPED)
OUTLET
COMMAND
BRIDGE DRAIN COCKPIT
DRAINS
FUEL TANK
VENT
HEAD SINK
DRAIN
HOLDING
TANK VENT
AIR CONDITIONER OVERFLOW
DRAIN
(IF EQUIPPED)
AFT BILGE
PUMP DRAIN
LOCKER
DRAIN
PORTLIGHTS
COMMAND
BRIDGE
DRAIN
COCKPIT
DRAIN
FUEL TANK
VENT
STERN
THRUSTER EXHAUST OUTLET GALLEY SINK
DRAIN WATER TANK
VENT
BOW
THRUSTER
RUDDER
TRIM TAB
PORTLIGHTS FWD BILGE PUMP, HOT
WATER & SHOWER SUMP
PUMP DRAINS
MID BILGE PUMPS &
ALL AIR CONDITIONER
(IF EQUIPPED) DRAINS
AFT MID BILGE
PUMP DRAIN
ENGINE ROOM
BLOWER VENT
ENGINE ROOM
BLOWER VENT

341 Sedan •Owner’s Manual Chapter 2: Locations
11

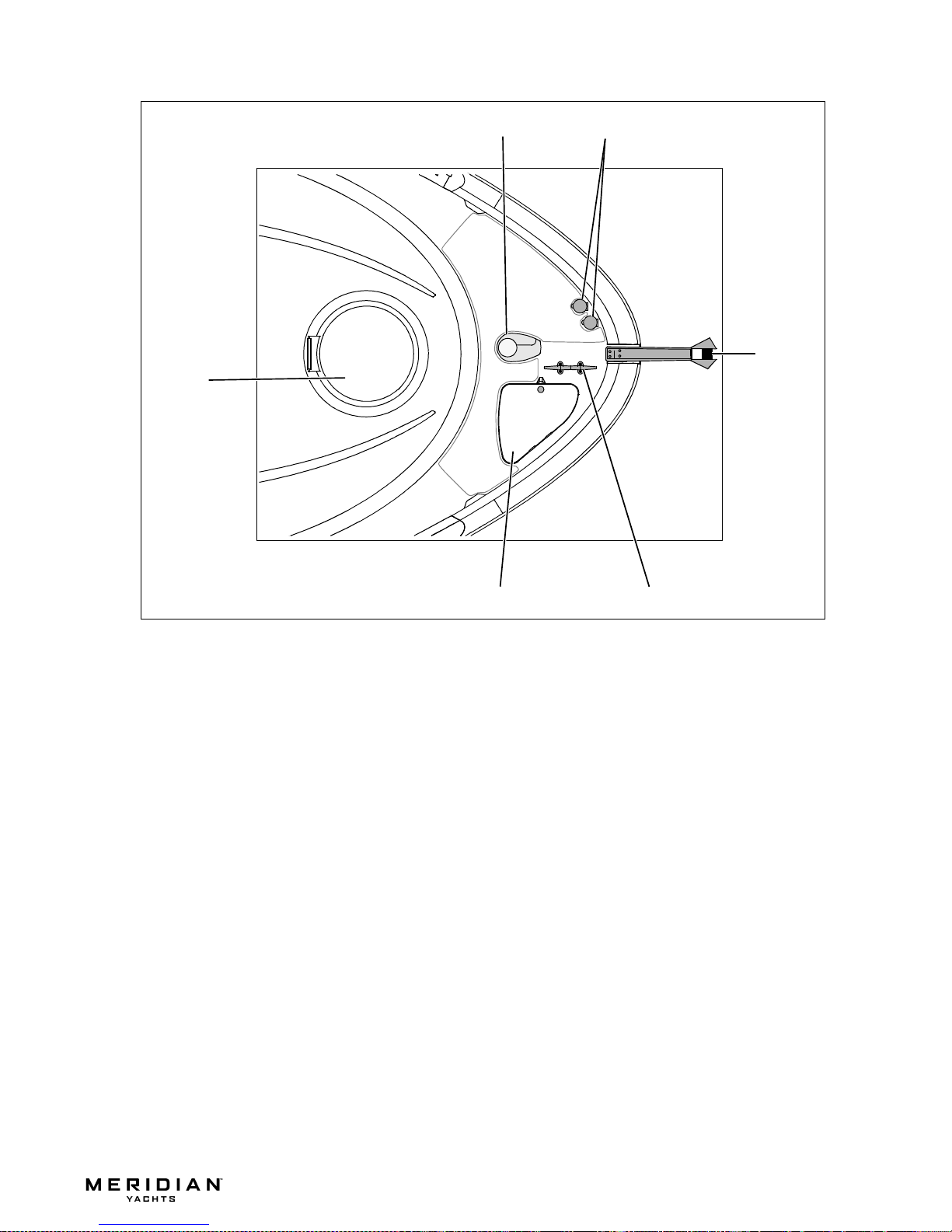

Forward Deck View
DECK
HATCH
ANCHOR LOCKER CLEAT
BOW
ROLLER
ANCHOR WINDLASS WINDLASS
CONTROLS

Chapter 2: Locations 341 Sedan •Owner’s Manual
12

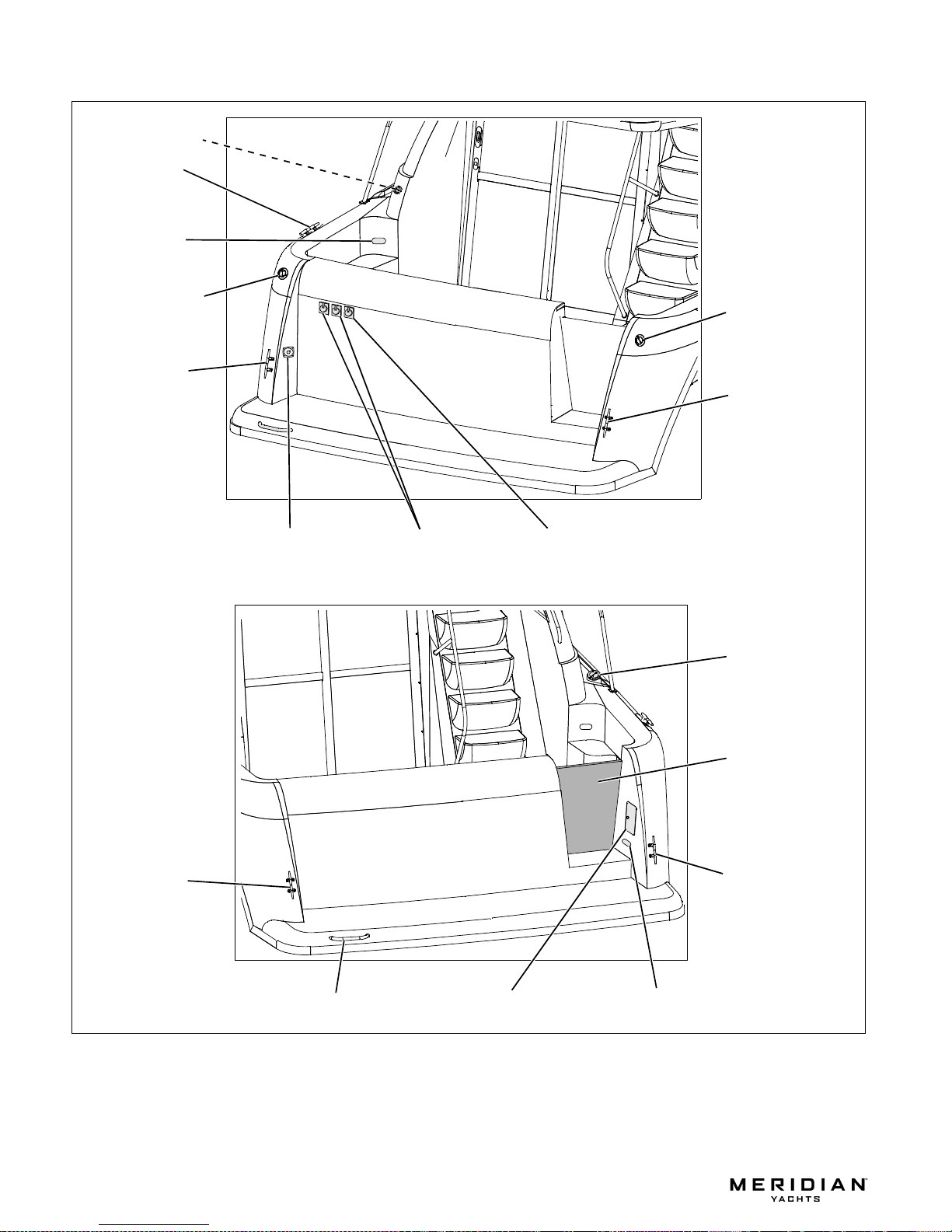

Aft Deck Views
CLEAT
CLEAT
COURTESY
LIGHT
CLEAT
SHORE POWER
INLET(S)
CLEAT
GRAB RAIL COURTESY LIGHT
TRANSOM
DOOR
TRANSOM
SHOWER
CLEAT
CITY WATER
INLET
PORT FUEL TANK
FILL FITTING STARBOARD FUEL
TANK FILL FITTING
DOCKSIDE
CABLE T.V. INLET
(IF EQUIPPED)
FRESHWATER
FILL DECK FITTING
WASTE PUMP-OUT
DECK FITTING

341 Sedan •Owner’s Manual Chapter 2: Locations
13

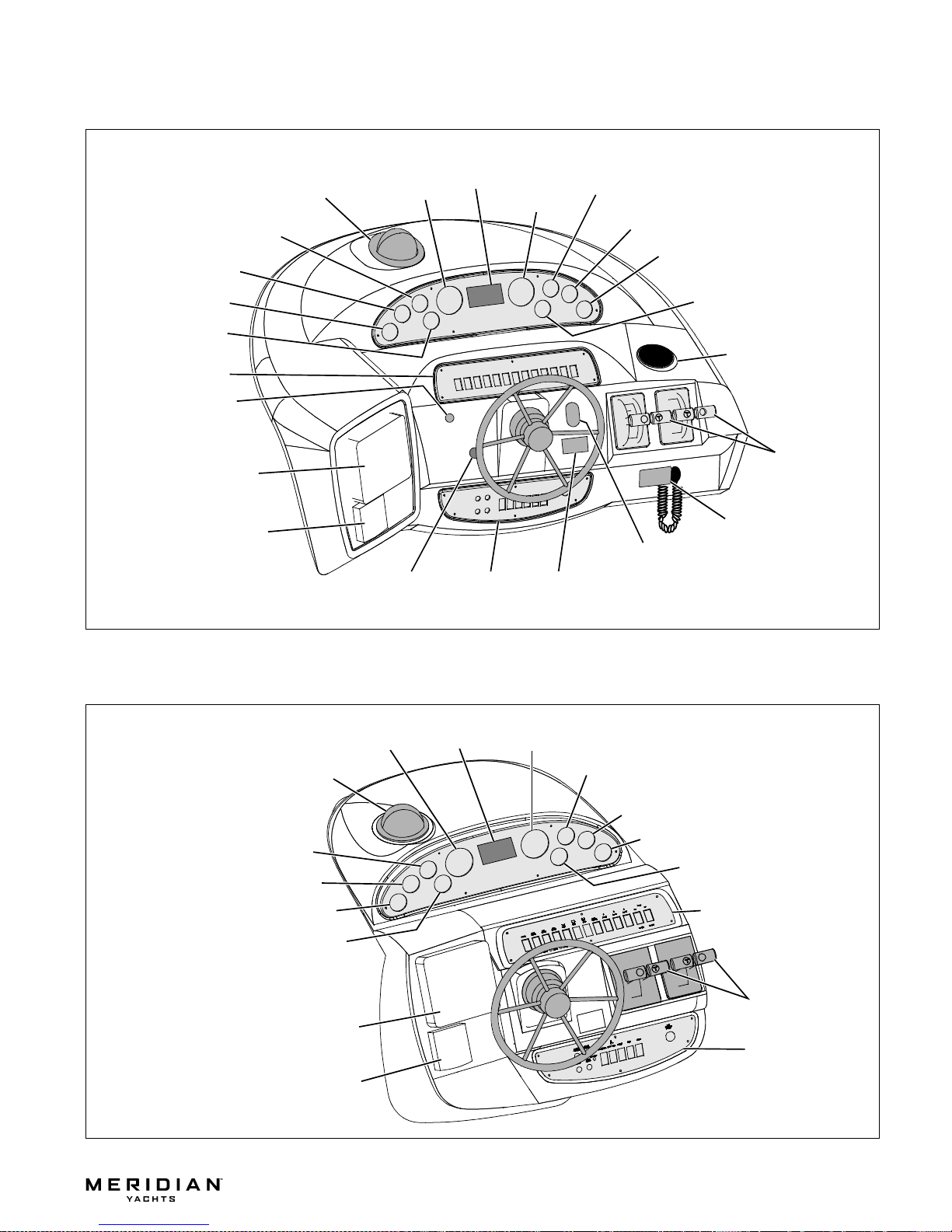

Helm Stations
Upper Helm Station
Lower Helm Station (If Equipped)
ACTUAL LAYOUTS MAY VERY DEPENDING
ON ENGINE AND ACCESSORY OPTIONS
NOTE: TYPICAL HELM LAYOUTS SHOWN
COMPASS
CUP HOLDER
SHIFT/THROTTLE
LEVERS
VHF RADIO
SPOTLIGHT
PANEL
IGNITION
PANEL
SWITCH
PANEL
STEREO
REMOTE
FIRE SYSTEM
DISPLAY
(IF EQUIPPED)
RAYCHART
AUTOPILOT
(IF EQUIPPED)
(IF EQUIPPED) (IF EQUIPPED)
DUAL THRUSTER
CONTROL
(IF EQUIPPED)
DEPTH
FINDER
TACHOMETER TACHOMETER
OIL PRESSURE
GAUGE
VOLTMETER
FUEL
GAUGE
TEMPERATURE
GAUGE
VOLTMETER
TEMPERATURE
GAUGE
FUEL
GAUGE
OIL PRESSURE
GAUGE
IGNITION PANEL
SHIFT/THROTTLE
LEVERS
SWITCH PANEL
COMPASS
TACHOMETER TACHOMETER
FUEL
GAUGE
TEMPERATURE
GAUGE
VOLTMETER
OIL PRESSURE
GAUGE
RAYCHART
(IF EQUIPPED)
AUTOPILOT
(IF EQUIPPED)
ACTUAL LAYOUTS MAY VERY DEPENDING
ON ENGINE AND ACCESSORY OPTIONS
NOTE: TYPICAL HELM LAYOUTS SHOWN
OIL PRESSURE
GAUGE
VOLTMETER
TEMPERATURE
GAUGE
FUEL
GAUGE
DEPTH
FINDER

Chapter 2: Locations 341 Sedan •Owner’s Manual
14

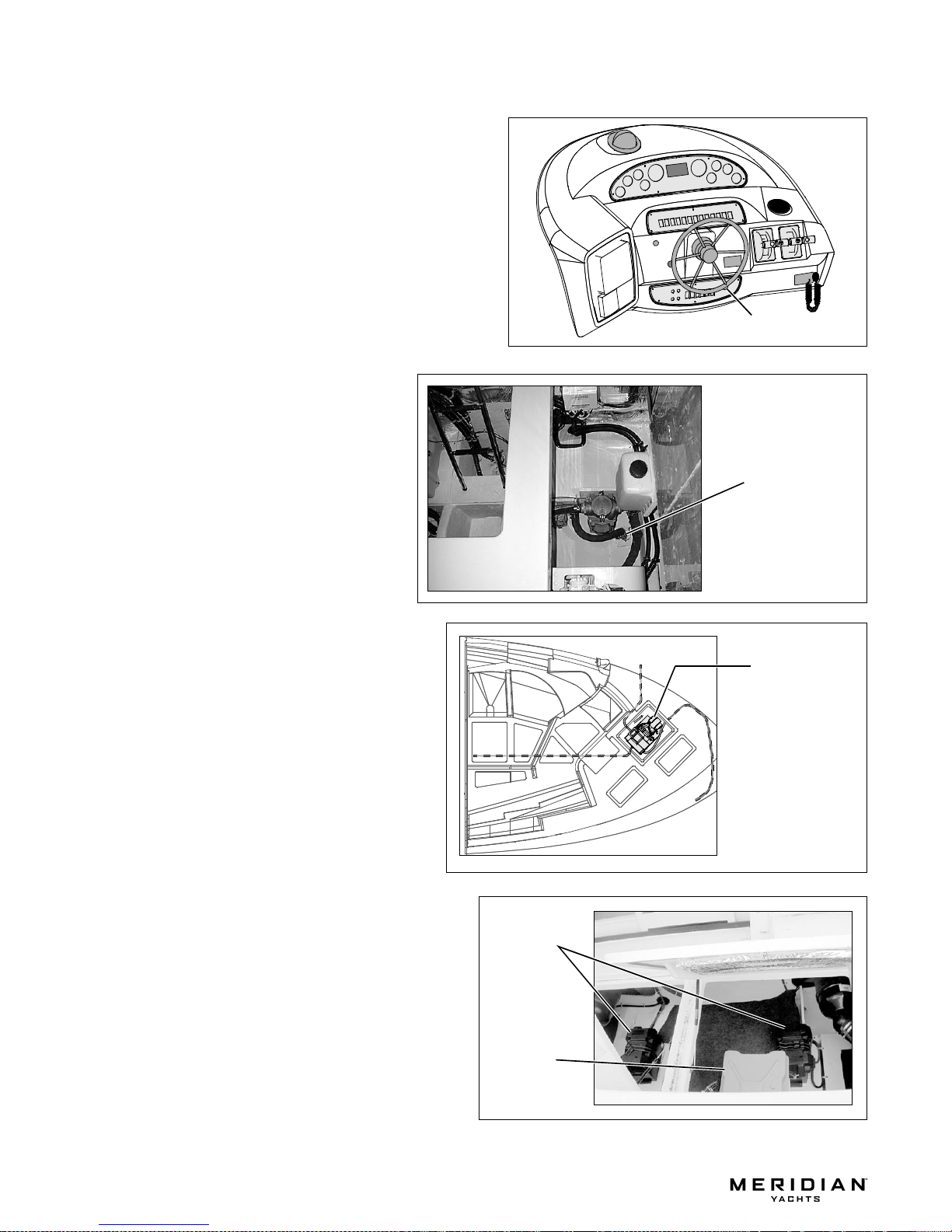

Component Locations
12-Volt Accessory Outlet:
At the helm on the dash ignition panel.
Air Conditioner Seawater Intake Seacock:
Access is through the floor hatch in the salon,
forward of the engine, on the starboard side.
Air Conditioner Unit:
Access is through the storage locker, under the
V-berth mattress.
Batteries:
In the aft machinery room, on the port and
starboard sides.
12 VOLT
RECEPTACLE
AIR CONDITIONER
SEAWATER INTAKE
SEACOCK
AIR CONDITIONER
UNIT
BATTERIES
HOUSE
BATTERY
