Meridian 441 SEDAN User manual

Date of Purchase: _________________________________________
Port Engine Serial Number: _________________________________
Starboard Engine Serial Number: ____________________________
Hull Identification Number:__________________________________
Hull Identification Number
•The Hull Identification Number
(HIN) is located on the starboard
aft corner of the hull, just below
the gunnel.
•Record the HIN (and the engine
serial numbers) in the space pro-
vided above.
•Include the HIN with any corre-
spondence or orders.
© 2008 Meridian Technical Publications. All rights reserved.
No part of this publication may be reproduced, stored in any retrieval system, or transmitted in any form by any means, electronic, mechanical,
photocopying, recording or otherwise, without prior written permission of Meridian.
Printed in the United States of America.
General Notes
The material in this document is for information only and is subject to change without notice. While reasonable efforts have been made in the
preparation of this document to assure its accuracy, Meridian assumes no liability resulting from errors or omissions in this document, or
from the use of information contained herein.
Due to our commitment to product improvement, Meridian reserves the right to make changes in the product design, specifications, and
equipment at any time without notice or obligation. Illustrations and/or photos may show optional equipment.
All Meridian products meet or exceed USCG (United States Coast Guard) and/or NMMA (National Marine Manufacturer’s Association)
construction standards. Manufactured with 1,1,1 Trichloroethane, a substance which harms public health and environment during the
manufacturing process by destroying ozone in the upper atmosphere.
Proprietary Rights
This document discloses subject matter in which Meridian has proprietary rights. The information and design disclosed herein were originated
by and are the property of Meridian. Neither receipt nor possession thereof confers or transfers any right to reproduce, copy, alter or disclose
the document or any part thereof, any information contained therein, or to construct boats or any item from it, except by written permission
from or written agreement with Meridian. This document is to be returned upon request to Meridian.
Part Number
1946257

CONTENTS
Chapter 1: Welcome Aboard!
Dimensions & Tank Capacities 1
Dealer Service 1
Warranty Information 1
Boating Experience 2
Qualified Maintenance 2
Structural Limitations 2
Engine & Accessory Guidelines & Literature 3
Propellers 3
Safety Standards 4
Special Care for Moored Yachts 5
Sacrificial Anodes (Zincs) 5
Yacht Lifting 6
Carbon Monoxide (CO) 7
CO Facts 7
Factors that Increase the Effects of CO Poisoning 7
Where & How CO Can Accumulate 8
How to Protect Yourself & Others From CO 8
CO Checklists 9
CO Monitors 10
More Information 10
Chapter 2: Locations

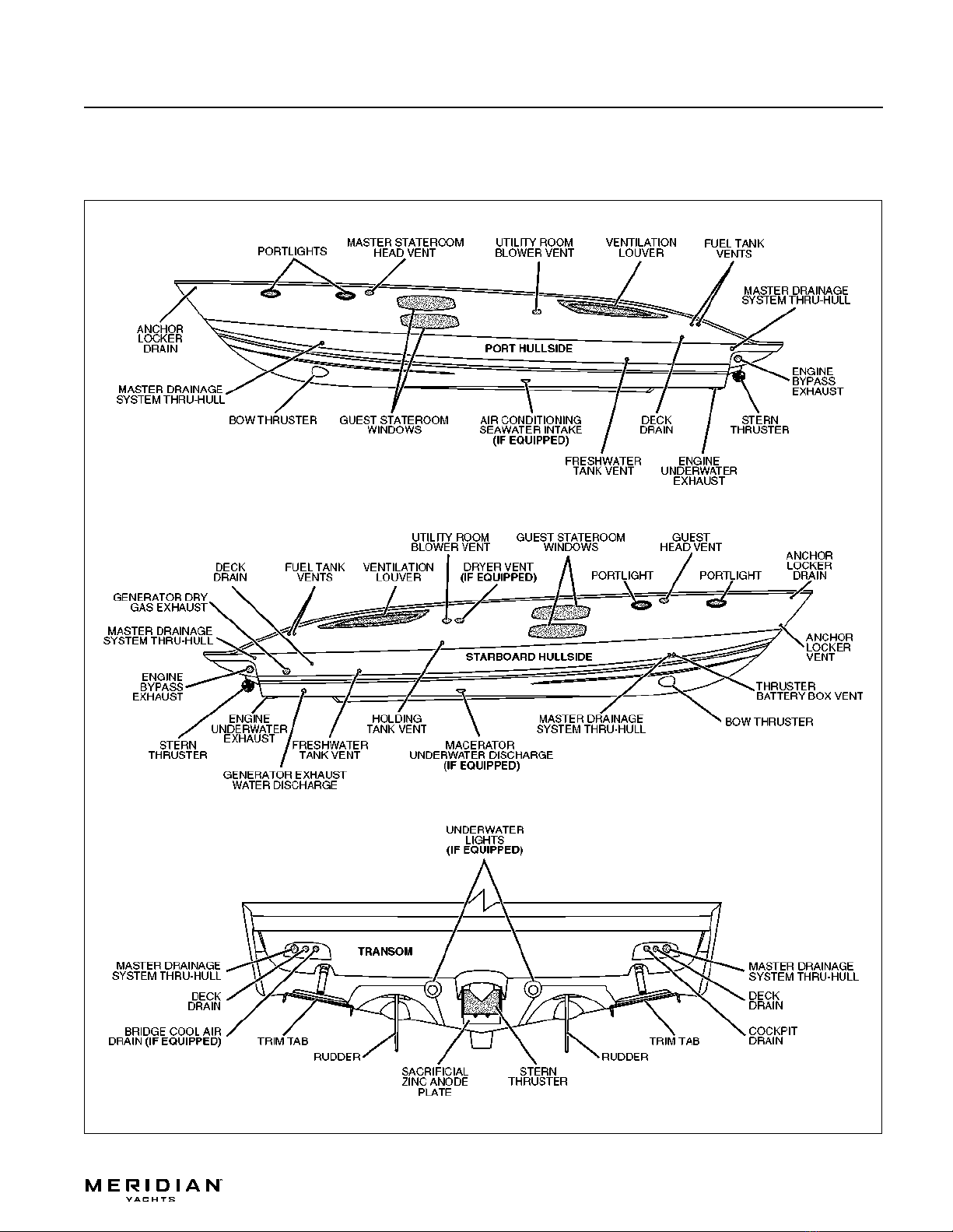

Exterior Views 11
Hull Views 11
Forward & Starboard Deck View 12
Aft Deck View 12

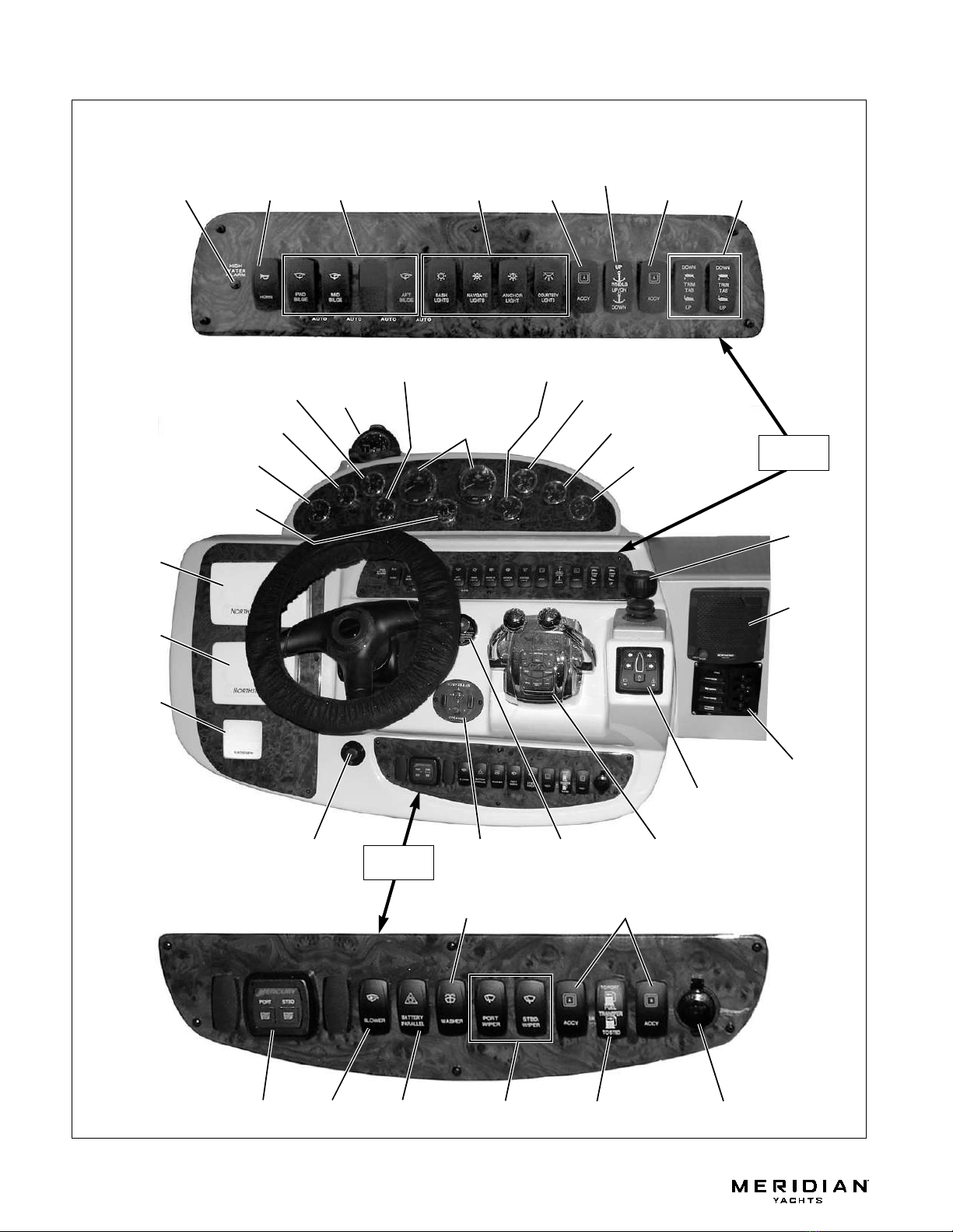

Command Bridge Helm Station 13
Lower Helm Station (If Equipped) 14
Component Locations 15
Chapter 3: Propulsion & Related Systems
Engines 40
Engine Cooling System 40
Exhaust System 41
Fuel System 43
Electronic Fuel Shut-off Valves 44
Fuel Filter/Water Separators 44
Fuel Transfer Pump (If Equipped) 44
Oil Change System (If Equipped) 45
Fire Suppression Systems (If Equipped) 45
Shaft-Transmission Alignment 46
Shaft Log Packless Sealing System 46
Chapter 4: Controls & Gauges
Steering 47
Hydraulic Steering System 47
Rudder Stuffing Gland 47
Autopilot (If Equipped) 48
Shift/Throttle Controls 48
Engine Synchronization (If Equipped) 48
Trim Tabs 49
Dual Thruster System 50
Gauges 51
Cleaning the Gauges 51
Gauge Fogging 51
Radio Transmission Interference 51
Twin Engine Readings 51
Fuel Gauges 51
SmartCraft Gauges 51
Vessel View (If Equipped) 51
Video Monitoring System (If Equipped) 51
Chapter 5: Navigation & Communication Equipment
Compass 52
Depth Finder 52
VHF Radio 52
Radar (If Equipped) 53
Global Positioning System (GPS) (If Equipped) 53
Chapter 6: Plumbing
Bilge Pumps 54
High Water Alarm & Auxiliary Bilge Pump 54
Testing Bilge Pumps 55
Testing Autofloat Switches 55
Seawater Systems 56
Seacocks 56
Seawater Strainers 56
Seawater Washdown (If Equipped) 57
Freshwater System 58
Transom Shower 59
City Water Inlet 59
Freshwater System Winterization 60
Water Heater 61
Winterizing the Water Heater 62
Preparing the Water Heater for Use After Yacht Storage 63
Drain Systems 64
Deck Drains 64
Gray Water Drain System 64
Sump Pump Drain System 64
Sump Box Cleaning 64
Sump System Winterization 64
Master Drainage System View 65
Marine Heads & Holding Tank 66
Vacuum Flush Head System 66
Macerator (If Equipped) 67

Chapter 7: Air Conditioning & Heating
Air Conditioners (If Equipped) 68
Bridge Cool Air (If Equipped) 70
Heat Exchanger Cabin Heater (If Equipped) 71
Electric Heaters (If Equipped) 72
Chapter 8: Deck Equipment
Cleats 73
Windlass 73
Radar Wing (If Equipped) 74
Gangway (Passerelle) (If Equipped) 74
Bimini Tops & Enclosures (If Equipped) 75
Canvas Care 76
Clear Vinyl Care 77
Hard Polycarbonate Bridge Enclosure Care 77
Chapter 9: Appliances & Entertainment Systems
Galley & Salon Appliances 78
Electric Stove 78
Refrigerator 78
Icemaker (If Equipped) 78
Coffeemaker 78
Bridge Appliances 79
Electric Grill (If Equipped) 79
Refrigerator (If Equipped) 79
Audio & Visual Equipment 80
Dockside Television & Telephone Inlet 80
Satellite TV System (If Equipped) 80
Chapter 10: Lights
Care & Maintenance 81
Interior & Exterior Lights 81
Navigation Lights 81
Spotlight 81
Chapter 11: Electrical Systems
12-Volt/24-Volt DC Systems 83
House & Engine Batteries 83
House Battery Watering System 83
Battery Switches 84
Emergency Battery Parallel Switch 84
Fuses & Circuit Breakers 85
12-Volt DC Accessory Outlets (10 AMP) 86
12-Volt DC Accessory Outlets (15-AMP) 86
Alternators 86
Battery Chargers 87
Thruster Battery Converters 87
110-Volt AC System 88
Shore Power 89
Connecting to Shore Power 90
Shore Power Cable Hoist (If Equipped) 90
Parallel Switch (If Equipped with Dual Shore Power) 91
Generator 92
Electrical Routings 94
12-Volt DC Deck Electrical Harnesses 94
12-Volt DC Hull Electrical Harnesses 95
12-Volt DC Command Bridge Electrical Harnesses 96
12-Volt DC Bridge Hardtop Electrical Harness (If Equipped) 97
12-Volt DC Radar Wing Electrical Harness (If Equipped) 98
Battery Systems 99
Bonding Harnesses 100
110-Volt AC Electrical Harnesses 101
Important Records 102
Float Plan 103

Hazard Boxes & Symbols

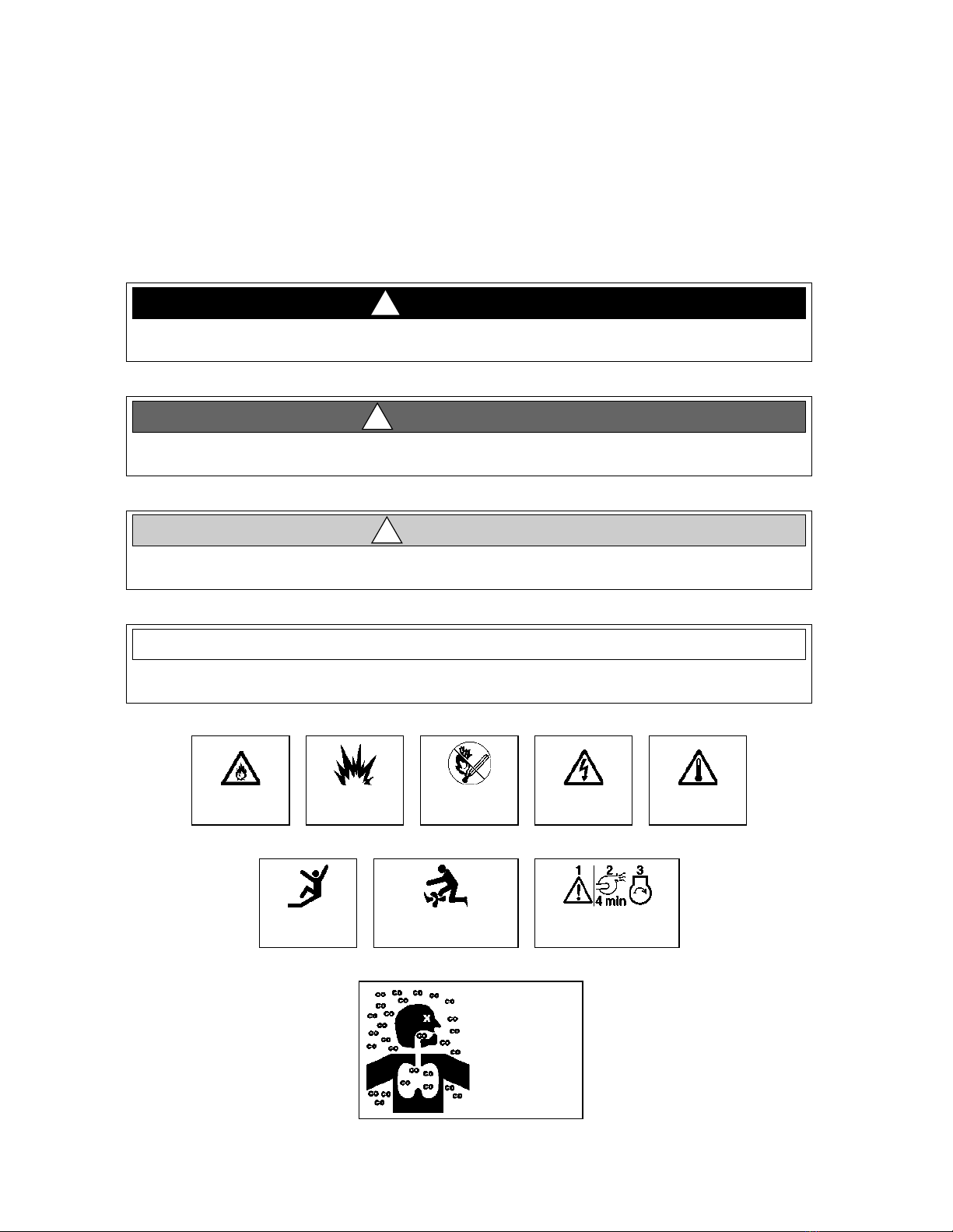

The hazard boxes and symbols shown below are used throughout this supplement to call attention to potentially dan-
gerous situations which could lead to either personal injury or product damage. Read all warnings carefully and fol-
low all safety instructions.
This box alerts you to immediate hazards which WILL cause severe personal injury or death if
the warning is ignored.
DANGER!
!
This box alerts you to hazards or unsafe practices which COULD result in severe personal
injury or death if the warning is ignored.
WARNING!
!
This box alerts you to hazards or unsafe practices which COULD result in minor personal
injury or cause product or property damage if the warning is ignored.
CAUTION
!
This box calls attention to installation, operation or maintenance information, which is impor-
tant to proper operation but is not hazard related.
NOTICE
EXPLOSION
HAZARD!
NO OPEN
FLAME!
HOT
HAZARD!
ROTATING
PROPELLER HAZARD!
FALLING
HAZARD!
ELECTRICAL
HAZARD!
CO POISONING
HAZARD!
FIRE
HAZARD!
RUN BILGE BLOWERS
FOR 4 MINUTES!

1
441 Sedan •Owner’s Manual
Chapter 1: Welcome Aboard!
•This Owner’s Manual provides specific information about your yacht that is not covered in the Cruiser & Yacht
Owner’s Manual Supplement.
•The Cruiser & Yacht Owner’s Manual Supplement contains general information about safe operating practices,
general boating regulations, and general maintenance techniques. Information that is more specific to your
particular yacht is found in this Owner’s Manual.
•Before using your yacht, study this Owner’s Manual, the Cruiser & Yacht Owner’s Manual Supplement, and all
engine and accessory literature carefully. If similar instructions are found in more than one manual, always refer to
the specific manufacturer’s manual (such as the engine manual) for the most complete and accurate information.
•Keep this Owner’s Manual and the Cruiser & Yacht Owner’s Manual Supplement on your yacht in a secure, yet
readily available place.
Dimensions & Tank Capacities
Dealer Service
•Your dealer is your key to service.
•Ask your dealer to explain all systems before taking delivery of your yacht.
•Contact your dealer if you have any questions or problems with your new yacht.
•If your dealer cannot help, call our customer service hotline: [phone] or send us a FAX: [phone].
•Buy replacement parts from any authorized Meridian dealer.
•You can access on-line parts catalogs, links to vendor websites, and other helpful features by logging on
to www.meridiancustomercare.com.
Warranty Information
•Meridian offers a Limited Warranty on each new Meridian purchased through an authorized Meridian dealer.
•A copy of the Limited Warranty was included in your owner’s packet.
•If you did not get a copy of the Limited Warranty, please contact your Meridian dealer or call 360-403-2198 for
a copy.
Overall
Length
Length
Rigged
Bridge
Clearance Beam Draft (Hull)
Draft
(Maximum) Fuel Tanks Freshwater Tanks
Holding
Tank
47' 2" 49' 1/2" 19' 6" 14' 3" 2' 8" 3' 2" 432 Gallons 150 Gallons 55 Gallons

Chapter 1: Welcome Aboard! 441 Sedan •Owner’s Manual
2
Boating Experience
If this is your first yacht or if you are changing to a type of yacht you are not familiar with, for your own comfort and
safety, get handling and operating experience before assuming command of your yacht.
Take one of the boating safety classes offered by the U.S. Power Squadrons or the U.S. Coast Guard Auxiliary.
For more course information, including dates and locations of upcoming classes, contact the organizations directly:
•U.S. Power Squadrons: 1-888-FOR-USPS (1-888-367-8777) or on the Internet at: http://www.usps.org
•In Canada, for the CPS courses call 1-888-CPS-BOAT.
•U.S. Coast Guard Auxiliary: 1-800-368-5647 or on the Internet at: http://www.cgaux.org
Outside the United States, your Meridian dealer, national sailing federation, or local boat club can advise you of local
sea schools or competent instructors.
Qualified Maintenance
Failure to maintain your yacht’s systems (listed in the warning above) as designed could violate the laws in your
jurisdiction and could expose yourself and others to the danger of bodily injury or accidental death.
Follow the maintenance instructions in:
•this Owner’s Manual
•the Cruiser & Yacht Owner’s Manual Supplement
•the engine owner’s manual, and;
•all accessory literature.
Structural Limitations
The command bridge is designed to be lightweight for proper yacht balance. The command bridge load limit, as
shown on the bridge capacity label, is 1000 pounds, evenly distributed.
CONTROL HAZARD!
An experienced operator MUST be in control of your yacht at ALL times. Do NOT operate
your yacht while under the influence of alcohol or drugs.
WARNING!
!
To maintain the safety of your yacht, allow ONLY trained personnel to work on, or change, in
any way, the:
•Steering system
•Propulsion system
•Engine control system
•Fuel system
•Environmental control system
•Electrical system
•Navigation system
WARNING!
!

441 Sedan •Owner’s Manual Chapter 1: Welcome Aboard!
3
Engine & Accessory Guidelines & Literature
•Your yacht’s engines and accessories were selected to provide optimum performance and service.
•Installing different engines or adding accessories may affect your yacht’s running trim.
•If you choose to install different engines or add accessories that may affect your yacht’s running trim, have a
trained marine technician perform a safety inspection and handling test before using your yacht again.
•The engines and accessories on your yacht have their own manuals. Read these manuals before using the engines
and accessories.
Unless noted otherwise, all engine and accessory literature referred to in this Owner’s Manual is included in your
owner’s packet.
While the topics listed below may be included in this Owner’s Manual and in the Cruiser & Yacht Owner’s Manual
Supplement, always refer to the engine manual first for specific information on these important subjects:
Propellers
•Keep the propellers in good repair and at the correct pitch for your particular situation.
•A slightly bent or nicked propeller will adversely affect the performance of your yacht.
BEFORE starting or working on your engines, read the engine manual.
NOTICE
BEFORE using the accessories on your yacht, read the accessory manuals.
NOTICE
BEFORE storing your yacht, refer to your engine and accessory manuals for storage/
winterization instructions.
NOTICE
Certain modifications to your yacht WILL result in cancellation of your warranty protection.
ALWAYS check with your dealer BEFORE making any modifications to your yacht.
NOTICE
•Engine Break-in Procedure
•Engine Starting and Stopping
•Gear Shifting
•Fuel and Oil Recommendations
•Engine Maintenance
•Engine Storage/Winterization
ENGINE DAMAGE HAZARD!
The factory standard propellers may not be the best for your particular yacht and load condi-
tions. Refer to the engine manual for engine RPM ratings. The engines should reach, but NOT
exceed the full rated RPM when full-throttle is applied.
Immediately contact your local Meridian dealer if:
•The engines cannot reach the full rated RPM when full-throttle is applied, or;
•The engines exceed the full rated RPM when full-throttle is applied.
CAUTION
!

Chapter 1: Welcome Aboard! 441 Sedan •Owner’s Manual
4
Safety Standards
•Your yacht’s mechanical and electrical systems were designed to meet safety standards in effect at the time it
was built.
•Some of these standards were mandated by law, and all of them were designed to insure your safety and the safety
of other people, vessels and property.
Read this Owner’s Manual, the Cruiser & Yacht Owner’s Manual Supplement, the engine owner’s manual, and all
accessory instructions for important safety standards and hazard information.
FALLING and ROTATING PROPELLER HAZARD!
•NEVER allow anyone to ride on parts of your yacht NOT designed for
such use.
•Sitting on seat backs, lounging on the forward deck, bow riding, gun-
wale riding or occupying the transom platform while underway is especially hazardous and
WILL cause personal injury or death.
DANGER!
!
FALLING, ROTATING PROPELLER and CARBON
MONOXIDE POISONING HAZARD!
•NEVER allow anyone to occupy, or hang from, the
back deck or transom platform while the engines
are running.
•Teak surfing, dragging, or water skiing within 20 feet
of a moving watercraft can be fatal.
DANGER!
!
DANGER
PERSONAL SAFETY HAZARD!
•ALWAYS secure the anchor and other loose objects BEFORE getting underway.
•The anchor and other items that are NOT properly secured can come loose when your yacht
is moving and cause personal injury or death.
DANGER!
!
A wide variety of components used on this vessel contain or emit chemicals known to the State
of California to cause cancer and birth defects and other reproductive harm.
Examples Include:
•Engine and generator exhaust
•Engine and generator fuel, and other liquids such as coolants and oil, especially used
motor oil
•Cooking fuels
•Cleaners, paints, and substances used for vessel repair
•Waste materials that result from wear of vessel components
•Lead from battery terminals and from other sources such as ballast or fishing sinkers
To Avoid Harm:
•Keep away from engine, generator, and cooking fuel exhaust fumes.
•Wash exposed skin thoroughly with soap and water after handling the substances above.
WARNING!
!

441 Sedan •Owner’s Manual Chapter 1: Welcome Aboard!
5
Special Care for Moored Yachts
•Whether moored in saltwater or freshwater, your yacht will collect marine growth on its hull bottom.
•This will detract from your yacht’s beauty, greatly affect its performance, and may damage the gel coat.
•There are two ways to slow marine growth:
1. Periodically haul your yacht out of the water and scrub the hull bottom with a bristle brush and a solution of soap
and water.
2. Occasionally reapply the anti-fouling paint on your hull bottom. How often your hull needs new anti-fouling
paint depends on many factors. Ask your selling dealer or local marina for advice.
Sacrificial Anodes (Zincs)
Your yacht features sacrificial anodes (zincs) to protect
underwater metal parts from excessive deterioration. Check
the zincs regularly and replace them if they have deterio-
rated more than 70%.
There are many factors that affect the rate at which the zincs
deteriorate, including:
•Water temperature
•Salinity
•Water pollution
•Stray electrical current
Stray electrical current from your yacht, another boat, or the
dock may cause complete deterioration of the zincs in just a
few weeks. If there is rapid zinc deterioration, measure the
electrolytic corrosion around your yacht with a corrosion
test meter.
•Do NOT paint between the zinc and the metal surface it contacts and do NOT paint over
the zincs.
•If the zincs are not bonded correctly, they will NOT provide protection.
NOTICE
NEW SACRIFICIAL ANODE
DETERIORATED SACRIFICIAL ANODE

Chapter 1: Welcome Aboard! 441 Sedan •Owner’s Manual
6
Yacht Lifting
•Always follow the lift
equipment’s instructions
and requirements.
•When lifting your yacht,
always position the lift-
ing slings at the port and
starboard lifting sling
label positions, as shown
in the illustration.
PERSONAL INJURY and/or PRODUCT or PROPERTY DAMAGE HAZARD!
•Lifting slings can slip on the hull, which could cause serious injury or death.
•Reduce the risk of sling slippage by ALWAYS securing the lifting slings together
BEFORE lifting.
WARNING!
!
PERSONAL INJURY and/or PRODUCT or PROPERTY DAMAGE HAZARD!
NEVER lift your yacht using the cleats.
WARNING!
!
PERSONAL INJURY and/or PRODUCT or PROPERTY DAMAGE HAZARD!
•Water in the bilge can shift and change the balance of the load.
•If water is present in the bilge, pump the water out of the bilge areas BEFORE lifting your
yacht.
WARNING!
!
PRODUCT or PROPERTY DAMAGE HAZARD!
•When lifting any boat, ALWAYS use a spreader bar.
•The spreader bar MUST be equal to the width of the boat at each lifting point.
•Make sure your yacht remains level during lifting. Engines can be damaged by water
ingestion if the stern is lifted higher than the bow.
CAUTION
!

441 Sedan •Owner’s Manual Chapter 1: Welcome Aboard!
7
Carbon Monoxide (CO)
CO Facts
•CO poisoning causes a significant number of boating deaths each year.
•Called the "silent killer", CO is an extremely toxic, colorless, odorless and tasteless gas.
•CO can harm or even kill you inside or outside your yacht.
•CO can affect you whether you’re underway, moored, or anchored.
•CO symptoms are similar to seasickness or alcohol intoxication.
•CO can make you sick in seconds. In high enough concentrations, even a few breaths can be fatal.
•Breathing CO blocks the ability of your blood to carry oxygen.
•The effects are cumulative. Even low levels of exposure can result in injury or death.
Factors that Increase the Effects of CO Poisoning
•Age
•Smokers or people exposed to high concentrations of cigarette smoke
•Consumption of alcohol
•Lung disorders
•Heart problems
•Pregnancy
•Carbon monoxide gas (CO) is colorless, odorless, tasteless, and extremely
dangerous.
•ALL engines, generators, and fuel burning appliances produce CO as
exhaust.
•Prolonged exposure to low concentrations or very quick exposure to high
concentrations WILL cause BRAIN DAMAGE or DEATH.
•Teak surfing, dragging, or water skiing within 20 feet of a moving water-
craft can be fatal.
DANGER!
!

Chapter 1: Welcome Aboard! 441 Sedan •Owner’s Manual
8
Where & How CO Can Accumulate
Stationary conditions that increase CO accumulations include:
To correct stationary situations A and/or B:
•Close all windows, portlights and hatches.
•If possible, move your yacht away from source of CO.
Running conditions that increase CO accumulations include:
To correct running situations C and/or D:
•Trim bow down.
•Open windows and canvas.
•When possible, run yacht so that prevailing winds help dissipate exhaust.
How to Protect Yourself & Others From CO
•Know where and how CO may accumulate in and around your yacht (see above).
•Always maintain fresh air circulation throughout your yacht.
•Know where your engine and generator exhaust outlets are located and keep everyone away from these areas.
•Never sit on, or hang onto, the back deck or transom platform while the engines or generator are running.
•Never enter the areas under transom platforms where exhaust outlets are located.
•Although CO can be present without the smell of exhaust fumes, if exhaust fumes are detected on your yacht, take
immediate action to dissipate these fumes.
•Treat symptoms of seasickness as possible CO poisoning. Get the person into fresh air immediately. Seek medical
attention—unless you’re sure it’s not CO.
•Maintain the CO monitors that are installed inside your yacht. NEVER ignore any alarm. Replace monitors
as recommended by the monitor manufacturer.
•Follow the checklists provided on the next page.
•Get a Vessel Safety Check.
For information about free VESSEL SAFETY CHECKS, visit www.vesselsafetycheck.org or contact your local U.S.
Coast Guard Auxiliary or United States Power Squadrons®.
•U.S. Coast Guard Auxiliary: 1-800-368-5647 or on the Internet at: http://www.cgaux.org
•U.S. Power Squadrons: 1-888-FOR-USPS (1-888-367-8777) or on the Internet at: http://www.usps.org
A. Using engine,
generator, or
other fuel
burningdevice
when yacht is
moored in a
confined
space. B. Mooring too close toanother boat that is using its
engine, generator, or other fuel burning device.
C. Running yacht with trim angle of bow too high. D. Running yacht without through ventilation
(station wagon effect).

441 Sedan •Owner’s Manual Chapter 1: Welcome Aboard!
9
CO Checklists
Trip Checklist
❏Educate all passengers about the symptoms of CO poisoning and where CO may accumulate.
❏When docked, or rafted with another boat, be aware of exhaust emissions from the other boats.
❏Make sure you know where the exhaust outlets are located on your yacht.
❏Confirm that water flows from the exhaust outlets when the engines and generator are started.
❏Listen for any change in exhaust sound, which could mean an exhaust component failure.
❏Test the operation of each CO monitor by pressing the test button.
Monthly Checklist
❏Make sure all exhaust clamps are in place and secure.
❏Look for exhaust leaking from exhaust system components. Signs include rust and/or black streaking, water
leaks, or corroded or cracked fittings.
❏Inspect rubber exhaust hoses for burned, cracked, or deteriorated sections. All rubber hoses should be pliable and
free of kinks.
Annual Checklist
Have a Trained Marine Technician:
❏Replace exhaust hoses if cracking, charring, or deterioration is found.
❏Ensure that your engines and generators are properly tuned, and well maintained.
❏Inspect each water pump impeller and the water pump housing. Replace if worn. Make sure cooling systems are
in working condition.
❏Inspect all metallic exhaust components for cracking, rusting, leaking, or loosening. Make sure they check the
cylinder head gasket, exhaust manifold, water injection elbow, and the threaded adapter nipple between the
manifold and the elbow.
❏Clean, inspect, and confirm proper operation of the generator cooling water anti-siphon valve (if equipped).

Chapter 1: Welcome Aboard! 441 Sedan •Owner’s Manual
10
CO Monitors
•NEVER disconnect the CO monitors.
•Read the manufacturer’s instructions for your CO monitors. If you did not get the manufacturer’s instructions,
call [phone] and they will be mailed to you.
More Information
For more information about preventing carbon monoxide poisoning on recreational boats and other boating safety
tips, contact:
For information about free VESSEL SAFETY CHECKS, visit www.vesselsafetycheck.org or contact your local U.S.
Coast Guard Auxiliary or United States Power Squadrons®.
•U.S. Coast Guard Auxiliary: 1-800-368-5647 or on the Internet at: http://www.cgaux.org
•U.S. Power Squadrons: 1-888-FOR-USPS (1-888-367-8777) or on the Internet at: http://www.usps.org
•The 24-hour-load sub-main breaker on the battery management panel must be On for the
CO monitors to work.
•Leave this breaker On at all times unless system maintenance requires turning it Off.
•This breaker bypasses the battery switches. Turning Off the battery switches will Not turn
Off power to this breaker.
•For the location of the battery management panel, see the Component Locations section in
Chapter 2 of this Owner’s Manual.
WARNING!
!
The stereo memory and CO monitors place a small, but constant drain on the house batteries.
If your yacht will be unattended for an extended amount of time, plug into shore power with
the battery charger turned On.
NOTICE
U
nited States Coast Guard
O
ffice of Boating Safety (G-OPB-3)
2
100 Second Street SW
W
ashington, DC 20593
w
ww.uscgboating.org
1
-800-368-5647
National Marine Manufacturers
Association (NMMA)
200 East Randolph Drive
Suite 5100
Chicago, IL 60601-9301
www.nmma.org
312-946-6200
American Boat & Yacht Council, In
c.
(ABYC)
613 Third Street
Suite 10
Annapolis, MD 21403
www.abycinc.org
410-990-4460

11
441 Sedan •Owner’s Manual
Chapter 2: Locations
Exterior Views
Hull Views

Chapter 2: Locations 441 Sedan •Owner’s Manual
12
Forward & Starboard Deck View
Aft Deck View

441 Sedan •Owner’s Manual Chapter 2: Locations
13
Command Bridge Helm Station
NOTE: TYPICAL HELM LAYOUT SHOWN. ACTUAL LAYOUTS MAY
VARY DEPENDING ON ENGINE & ACCESSORY OPTIONS.
VHF RADIO
RADAR
(IF EQUIPPED)
THRUSTER
COMPASS
12-VOLT
RECEPTACLE
FIRE SYSTEM
DISPLAY (IF EQUIPPED)
DEPTH
SHIFT/THROTTLE
CONTROLS
AUTOPILOT
LIGHTS ACCESSORIES
AIR CONDITIONER
VENT (IF EQUIPPED) AIR CONDITIONER VENT (IF EQUIPPED)
4-IN-1 GAUGE
STARBOARD ENGINE
CONTROLS
JOYSTICK
VHF RADIO
SPEAKER
VESSEL VIEW
(IF EQUIPPED)
AUTOPILOT
(IF EQUIPPED)
SMARTCRAFT
PORT ENGINE
4-IN-1 GAUGE
PORT ENGINE
NAVIGATOR DISPLAY
(IF EQUIPPED)
RUDDER
REFERENCE DISPLAY
BILGE PUMPS DEPTH
SWITCH
PANEL
HIGH WATER
ALARM
(IF EQUIPPED)
SYSTEM TACHOMETER SMARTCRAFT
STARBOARD ENGINE
SYSTEM TACHOMETER
CAMERA
(IF EQUIPPED)
SWITCHES: HORN, FUEL
TRANSFER PUMP, ANCHOR
WINDLASS & TRIM TABS
IGNITION
PANEL
BILGE BLOWER
BATTERY PARALLEL
SPOTLIGHT CONTROLS
ENGINE START/STOP
FINDER
12-VOLT PUSH-TO-RESET
CIRCUIT BREAKERS (HELM
SUB-MAIN BREAKER PANEL)
LOCATED BELOW
SWITCH PANEL

Chapter 2: Locations 441 Sedan •Owner’s Manual
14
Lower Helm Station (If Equipped)
NOTE: TYPICAL HELM LAYOUT SHOWN. ACTUAL LAYOUTS MAY
VARY DEPENDING ON ENGINE & ACCESSORY OPTIONS.
RADAR
VHF RADIO
COMPASS
TACHOMETERS
DEPTH
JOYSTICK
WINDSHIELD
WIPERS
BATTERY
PARALLEL FUEL TRANSFER (IF EQUIPPED) 12-VOLT DC ACCESSORY OUTLET
ENGINE
IGNITION BLOWER
WINDSHIELD
WASHER ACCESSORIES
SPEAKER
12-VOLT DC
WINDSHIELD
WIPER BREAKER
PANEL
THRUSTER
CONTROLS
SHIFT/THROTTLE
CONTROLS
SPOTLIGHT
CONTROLS
IGNITION
PANEL
FIRE SYSTEM
DISPLAY
(IF EQUIPPED)
VHF RADIO
PLUG-IN
STARBOARD ENGINE
VOLTMETER
STARBOARD ENGINE
TEMPERATURE
STARBOARD ENGINE
OIL PRESSURE
STARBOARD ENGINE
FUEL
PORT ENGINE
FUEL
PORT ENGINE
OIL PRESSURE
PORT ENGINE
TEMPERATURE
PORT ENGINE
VOLTMETER
RUDDER
REFERENCE
SWITCH
PANEL
HIGH WATER
ALARM BILGE PUMPS LIGHTS TRIM TABSACCESSORYACCESSORY
WINDLASS
AUTOPILOT
(IF EQUIPPED)
DISPLAY
(IF EQUIPPED)
SMARTCRAFT
SYSTEM
HORN
