Meridian 459 User manual

Date of Purchase __________________________________________________
Port Engine Serial Number: _________________________________________
Starboard Engine Serial Number: ____________________________________
Hull Identification Number:__________________________________________
Hull Identification Number
•The Hull Identification Number (HIN) is located
on the starboard side of the transom.
•Record the HIN (and the engine serial numbers)
in the space provided above.
•Please refer to the HIN for any correspondence
or orders.
© 2004 Meridian Technical Publications. All rights reserved.
No part of this publication may be reproduced, stored in any retrieval system, or transmitted in any form by any means, electronic, mechanical, photocopying,
recording or otherwise, without prior written permission of Meridian.
Printed in the United States of America.
General Notes
The material in this document is for information only and is subject to change without notice. While reasonable efforts have been made in the preparation of this
document to assure its accuracy, Meridian assumes no liability resulting from errors or omissions in this document, or from the use of information contained herein.
Due to our commitment to product improvement, Meridian reserves the right to make changes in the product design, specifications, and equipment at any time
without notice or obligation. Illustrations and/or photos may show optional equipment.
AllMeridian productsmeetor exceed USCG (United States CoastGuard) and/or NMMA (National Marine Manufacturer’sAssociation) construction standards.
Manufactured with 1,1,1 Trichloroethane, a substance which harms public health and environment during the manufacturing process by destroying ozone in the
upper atmosphere.
Proprietary Rights
This document discloses subject matter in which Meridian has proprietary rights. The information and design disclosed herein were originated by and are the prop-
ertyof Meridian. Neither receipt nor possession thereof confers or transfers any rightto reproduce, copy,alter ordisclosethe document orany part thereof, any
information contained therein, or to construct boats or any item from it, except by written permission from or written agreement with Meridian. This document is
to be returned upon request to Meridian.
HIN LOCATION

CONTENTS
1 Chapter 1: Welcome Aboard!
1 Dimensions and Tank Capacities
1 Layout View
1 Dealer Service
2 Warranty Information
2 Boating Experience
2 Qualified Maintenance
3 Engines & Accessories Guidelines
3 Propellers
3 Engines & Accessories Literature
4 Safety Standards
5 Special Care For Moored Yachts

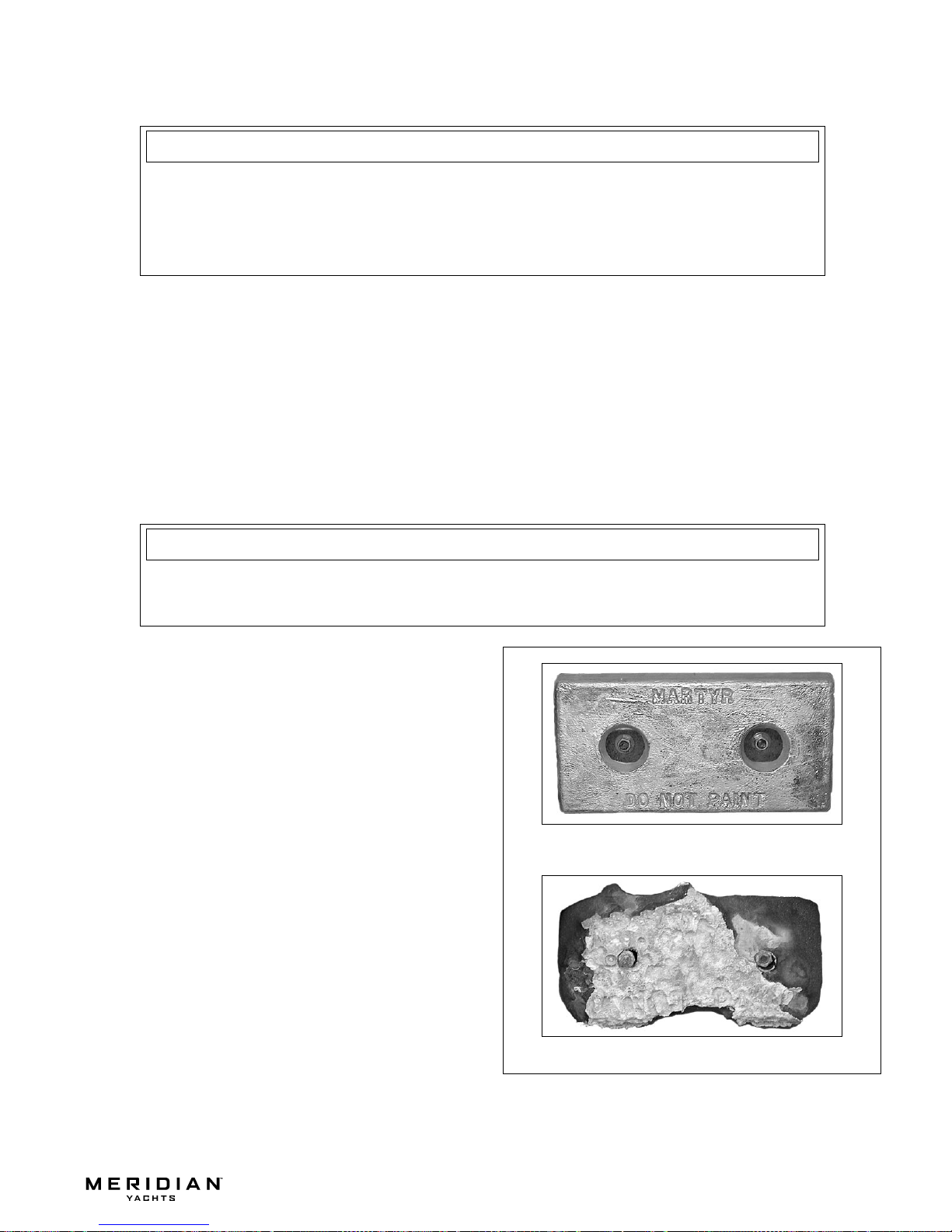

5 Sacrificial Anodes (Zincs)
6 Yacht Lifting
7 Carbon Monoxide (CO)
7 Facts about CO
7 Factors That Increase the Effects of
CO Poisoning
8 Where and How CO Can Accumulate
8 How to Protect Yourself and Others From CO
9 Trip Checklist
9 Monthly Checklist
9 Annual Checklist
9 Carbon Monoxide Alarm System
10 More Information
11 Chapter 2: Locations
11 Exterior Views

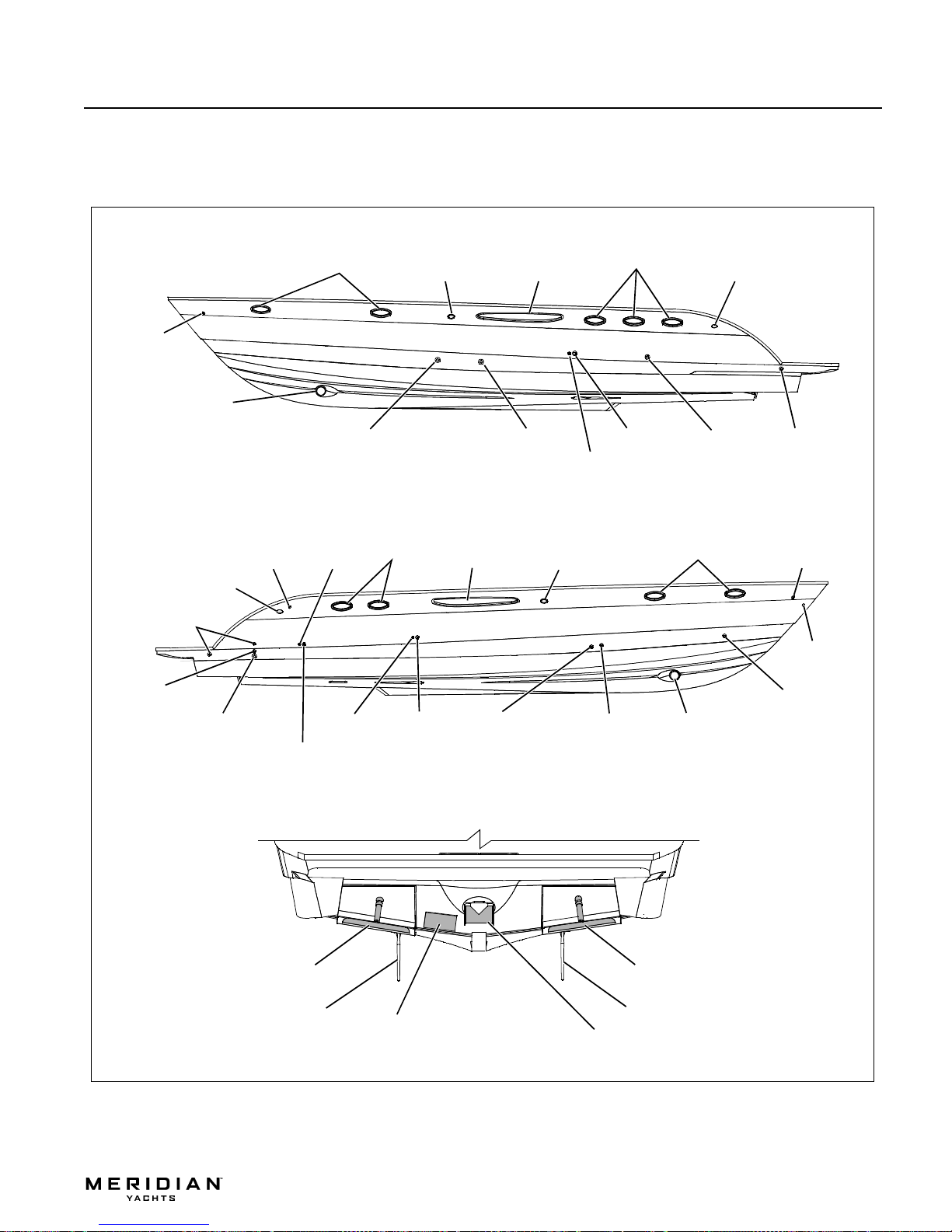

11 Hull Views
12 Forward Deck View
12 Aft Deck Views

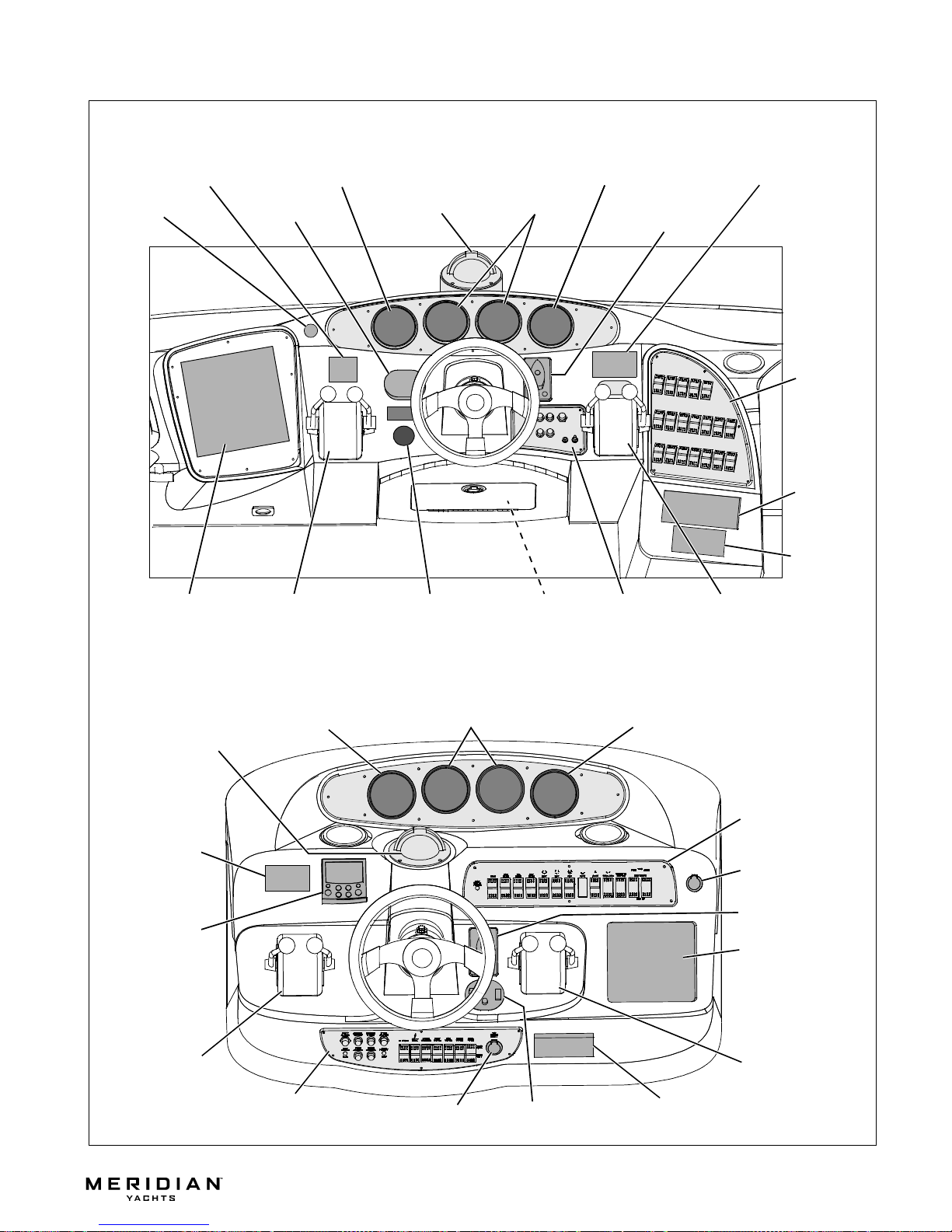

13 Helm Station(s)
14 Component Locations
32 Chapter 3: Propulsion &
Related Systems
32 Engines
32 Engine Cooling System
33 Exhaust System
35 Fuel System
37 Fuel Fills & Vents
37 Anti-siphon Valves (Gas Engines Only)
37 Electronic Fuel Shut-off Valves (Diesel
Engines Only)
38 Gas Engine Fuel Filters
38 Fuel Filter/Water Separators (Diesel
Engines Only)
38 Fuel Transfer Pump (Diesel Engines Only)
(If Equipped)
39 Fire Suppression System (If Equipped)
40 Shaft-Transmission Alignment
40 Shaft Log Packless
Sealing System
41 Chapter 4: Controls & Gauges
41 Steering
41 Rudder Stuffing Gland
42 Autopilot (If Equipped)
42 Shift/Throttle Controls
42 Engine Synchronization (If Equipped)
43 Trim Tabs
44 Dual Thruster System
45 Gauges
45 Cleaning Gauges
45 Gauge Fogging
45 Radio Transmission Interference
45 Twin Engine Readings
45 Fuel Gauge
46 Chapter 5: Navigation &
Communication Equipment
46 Compass
46 Depth Finder
46 VHF Radio (If Equipped)
47 Radar (If Equipped)
47 Global Positioning System (GPS)
(If Equipped)

48 Chapter 6: Plumbing
48 Bilge Pumps
49 Bilge Pump Testing
50 Autofloat Switches
51 Seawater Systems
51 Seacocks
51 Seawater Strainers
52 Seawater Washdown System (If Equipped)
53 Freshwater System
54 Freshwater System Winterization
55 Transom Shower
55 City Water Inlet
56 Water Heater
56 Winterizing the Water Heater
57 Drain Systems
57 Deck Drains
57 Gray Water Drains
57 Sump Pump Drain System
57 Sump Box Cleaning
57 Sump System Winterization
58 Marine Head & Holding Tank
58 VacuFlush Head System
59 Macerator (If Equipped)
60 Chapter 7: Deck Equipment
60 Cleats
60 Windlass
61 Canvas
62 Canvas Care
63 Clear Vinyl Care
64 Chapter 8: Appliances &
Entertainment Systems
64 Refrigerator
64 Electric Stove (If Equipped)
64 Range/Oven (If Equipped)
65 Coffeemaker (If Equipped)
65 Audio & Visual Equipment
65 Dockside Television & Telephone Inlet
66 Chapter 9: Lights
66 Care and Maintenance
66 Interior & Exterior Lights
66 Navigation Lights
66 Spotlight
67 Chapter 10: Heating & Air Conditioning
67 Air Conditioning System (If Equipped)
69 Heat Exchanger Cabin Heat (If Equipped)
69 Electric Heaters (If Equipped)
70 Chapter 11: Electrical System
71 12-Volt DC System
71 Batteries
71 Battery Switches
72 Emergency Battery Parallel Switch
73 Fuses and Circuit Breakers
73 12-Volt Accessory Outlet(s)
73 Alternators
74 Battery Charger or Inverter/Charger
75 110-Volt AC System
76 Shore Power
77 Connecting To Shore Power
78 Shore Power Cable Hoist (If Equipped)
(50-amp/220-Volt Only)
78 Parallel Switch (If Equipped With Dual
Shore Power)
78 Inverter Power (If Equipped)
79 Generator
81 Starting Generator
82 Electrical Routings
82 12-Volt DC Deck Electrical Harness
83 12-Volt DC Hull Electrical System
84 Power Inverter (If Equipped)
85 Battery System
86 Bonding Harness
87 110-Volt AC Electrical Harness
88 Wiring Diagrams
88 Engine Electrical System
89 12-Volt DC Command Bridge
Electrical System
90 12-Volt DC Cabin Electrical System
91 12-Volt DC Auxiliary Electrical System
92 110/220-Volt AC Electrical System
93 110/220-Volt AC Electrical System
(If Equipped)
94 Important Records
95 Float Plan

Hazard Boxes & Symbols
The hazard boxes and symbols shown below are used throughout this manual to call attention to potentially danger-
ous situations which could lead to either personal injury or product damage. Read ALL warnings carefully and fol-
low ALL safety instructions.
This box alerts you to immediate hazards which WILL cause severe personal injury or death if
the warning is ignored.
DANGER!
!
This box alerts you to hazards or unsafe practices which COULD result in severe personal
injury or death if the warning is ignored.
WARNING!
!
This box alerts you to hazards or unsafe practices which COULD result in minor personal
injury or cause product or property damage if the warning is ignored.
CAUTION
!
This box calls attention to installation, operation or maintenance information, which is impor-
tant to proper operation but is not hazard related.
NOTICE
EXPLOSION
HAZARD! NO OPEN FLAME! HOT HAZARD!
ROTATING
PROPELLER HAZARD!
FALLING
HAZARD!
ELECTRICAL
HAZARD!
CO POISONING
HAZARD!
FIRE
HAZARD!
RUN BILGE BLOWERS
FOR 4 MINUTES!

1
459 Motoryacht •Owner’s Manual
Chapter 1: Welcome Aboard!
•This Owner’s Manual provides information about your yacht that is not covered in the Cruiser & Yacht Owner’s
Manual Supplement.
•Before using your yacht, study this Owner’s Manual, the Cruiser & Yacht Owner’s Manual Supplement, and all
engine and accessory literature carefully.
•Keep this Owner’s Manual and the Cruiser & Yacht Owner’s Manual Supplement on your yacht in a secure, yet
readily available place.
Dimensions and Tank Capacities

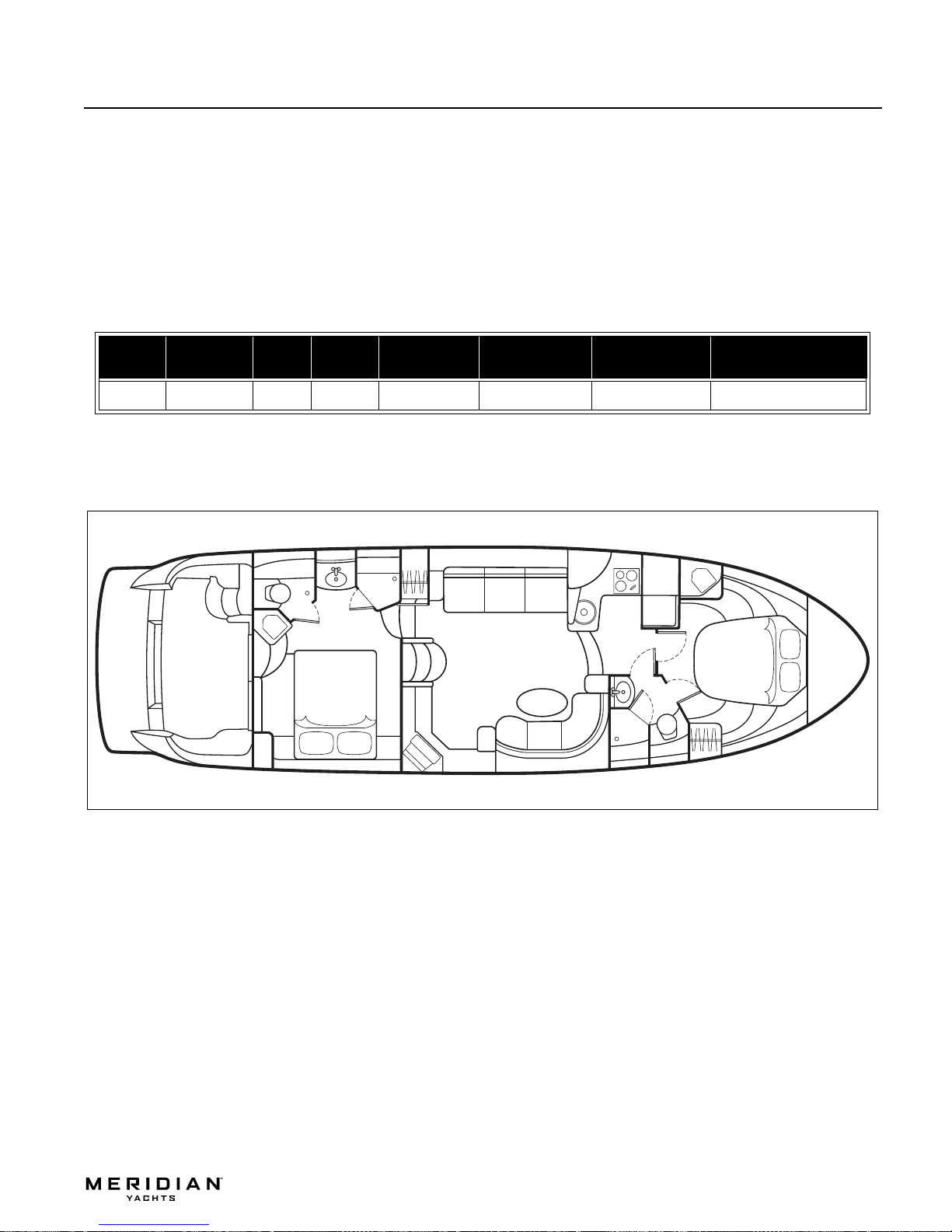

Layout View
Dealer Service
•Your dealer is your key to service.
•Ask your dealer to explain all systems before taking delivery of your yacht.
•Contact your dealer if you have any questions or problems with your new yacht.
•If your dealer cannot help, call our customer service hotline: [phone] or send us a FAX: [phone].
•Buy replacement parts from any authorized Meridian dealer.
Overall
Length Bridge Clearance Beam Draft (Hull) Draft (Maximum) Fuel Capacity Freshwater Capacity Waste Holding Tank Capacity
47' 10" 16' 9" 14' 4" 2' 8" 3' 10" 330 Gallons 90 Gallons 55 Gallons

Chapter 1: Welcome Aboard! 459 Motoryacht •Owner’s Manual
2
Warranty Information
•Meridian offers a Limited Warranty on each new Meridian purchased through an authorized Meridian dealer.
•A copy of the Limited Warranty was included in your owner’s packet.
•If you did not receive a copy of the Limited Warranty, please contact your Meridian dealer or call 360-403-2198
for a copy.
Boating Experience
If this is your first yacht or if you are changing to a type of yacht you are not familiar with, for your own comfort and
safety, obtain handling and operating experience before assuming command of this yacht.
Take one of the boating safety classes offered by the U.S. Power Squadrons or the U.S. Coast Guard Auxiliary.
For more course information, including dates and locations of upcoming classes, contact the organizations directly:
•U.S. Power Squadrons: 1-888-FOR-USPS (1-888-367-8777) or on the Internet at: http://www.usps.org
•In Canada, for the CPS courses call 1-888-CPS-BOAT.
•U.S. Coast Guard Auxiliary: 1-800-368-5647 or on the Internet at: http://www.cgaux.org
Outside the United States, your Meridian dealer, national sailing federation or local boat club can advise you of local
sea schools or competent instructors.
Qualified Maintenance
•Failure to maintain your yacht’s systems (listed in the warning above) as designed could violate the laws in your
jurisdiction and could expose you and other people to the danger of bodily injury or accidental death.
•Follow the instructions provided in the Cruiser & Yacht Owner’s Manual Supplement, this Owner’s Manual, the
engine owner’s manual and all accessory literature.
CONTROL HAZARD!
A qualified operator must be in control of the yacht at all times. Do NOT operate your yacht
while under the influence of alcohol or drugs.
WARNING!
!
To maintain the integrity and safety of your yacht, allow only qualified personnel to perform
maintenance on, or in any way modify the:
•Steering System
•Propulsion System
•Engine Control System
•Fuel System
•Environmental Control System
•Electrical System
•Navigational System.
WARNING!
!

459 Motoryacht •Owner’s Manual Chapter 1: Welcome Aboard!
3
Engines & Accessories Guidelines
•Your yacht’s engines and accessories were selected to provide optimum performance and service.
•Installing different engines or other accessories may cause unwanted handling characteristics.
•Should you choose to install different engines or to add accessories that will affect the yacht’s running trim, have
an experienced marine technician perform a safety inspection and handling test before operating your yacht again.
Certain modifications to your yacht will result in cancellation of your warranty protection.
•Always check with your dealer before making any modifications to your yacht.
Propellers
•Keep the propellers in good repair and at the correct pitch for your particular situation.
•A slightly bent or nicked propeller will adversely affect the performance of your yacht.
Engines & Accessories Literature
•The engines and accessories installed on your yacht come with their own operation and maintenance manuals.
•Read these manuals before using the engines and accessories.
•Unless noted otherwise, all engine and accessory literature referred to in this Owner’s Manual is included in your
owner’s packet.
When storing your yacht please refer to your engine’s operation and maintenance manuals.
NOTICE
ENGINE DAMAGE HAZARD!
The factory standard propellers may not be the best for your particular yacht and load condi-
tions. Refer to the engine manual for engine RPM ratings. The engines should reach, but NOT
exceed the full rated RPM when full-throttle is applied.
Immediately contact your local Meridian dealer if:
•The engines cannot reach the full rated RPM when full-throttle is applied, or;
•The engines exceed the full rated RPM when full-throttle is applied.
CAUTION
!

Chapter 1: Welcome Aboard! 459 Motoryacht •Owner’s Manual
4
Safety Standards
•Your yacht’s mechanical and electrical systems were designed to meet safety standards in effect at the
time it was built.
•Some of these standards were mandated by law, all of them were designed to insure your safety, and the
safety of other people, vessels and property.
In addition to this Owner’s Manual, please read the Cruiser & Yacht Owner’s Manual Supplement and all accessory
instructions for important safety standards and hazard information.
FALLING and ROTATING PROPELLER HAZARD!
•NEVER allow anyone to ride on parts of the yacht NOT designed for
such use.
•Sitting on seat backs, lounging on the forward deck, bow riding,
gunwale riding or occupying the transom platform while underway is especially hazardous
and will cause personal injury or death.
DANGER!
!
ROTATING PROPELLER and CARBON MONOXIDE
POISONING HAZARD!
•NEVER allow anyone to occupy, or hang from, the
back deck or swim platform while the engines
are running.
•Teak surfing, dragging, or water skiing within 20 feet
of a moving watercraft can be fatal.
DANGER!
!
DANGER
PERSONAL SAFETY HAZARD!
ALWAYS secure the anchor and other loose objects before getting underway. The anchor and
other items that are NOT properly secured can come loose when the yacht is moving and cause
personal injury or death.
DANGER!
!

459 Motoryacht •Owner’s Manual Chapter 1: Welcome Aboard!
5
Special Care For Moored Yachts
•Whether moored in saltwater or freshwater, your yacht will collect marine growth on its hull bottom.
•This will detract from the yacht’s beauty, greatly affect its performance and may damage the gelcoat.
•There are two methods of slowing marine growth:
1. Periodically haul the yacht out of the water and scrub the hull bottom with a bristle brush and a solution of soap
and water.
2. Occasionally re-paint the hull below the waterline with a good grade of anti-fouling paint.
Sacrificial Anodes (Zincs)
Your yacht features sacrificial anodes (zincs) to protect
underwater metal parts from excessive deterioration. Check
the zincs regularly and replace them if they have deterio-
rated more than 70%.
There are many factors that affect the rate at which the zincs
deteriorate, including:
•Water temperature
•Salinity
•Water pollution
•Stray electrical current from the yacht or dock may cause
complete deterioration in just a few weeks. If there is
rapid zinc deterioration, measure the electrolytic corro-
sion around your yacht with a corrosion test meter.
•To help seal the hull bottom and reduce the possibility ofgelcoat blistering on moored boats,
apply an epoxy barrier coating. The barrier coating should be covered with several coats of
anti-fouling paint.
•Many states regulate the chemical content of bottom paints in order to meet environmental
standards. Check with your local dealer about recommended bottom paints, and about the
laws in effect in your area.
NOTICE
•Do NOT paint between the zinc and the metal surface it contacts and do NOT paint over
the zincs.
•If the zincs are NOT bonded correctly, they will NOT provide protection.
NOTICE
NEW SACRIFICIAL ANODE
DETERIORATED SACRIFICIAL ANODE

Chapter 1: Welcome Aboard! 459 Motoryacht •Owner’s Manual
6
Yacht Lifting
•Always follow the lift
equipment’s instructions
and requirements.
•When lifting your yacht,
always position the lifting
slings at the port and star-
board lifting sling label
positions, as shown in
the illustration.
PERSONAL INJURY and /or PRODUCT OR PROPERTY DAMAGE HAZARD!
•Lifting slings may slip on the hull.
•Avoid serious injury or death by securing the lifting slings together before lifting.
WARNING!
!
PERSONAL INJURY and /or PRODUCT OR PROPERTY DAMAGE HAZARD!
NEVER lift the yacht using the cleats, or the bow and stern eyes.
WARNING!
!
PERSONAL INJURY and /or PRODUCT OR PROPERTY DAMAGE HAZARD!
•Water in the bilge can shift and change the balance of the load.
•If water is present in the bilge, pump or drain the water out of the bilge areas before lifting
your yacht.
WARNING!
!
PRODUCT or PROPERTY DAMAGE HAZARD!
•When lifting any boat, always use a spreader bar.
•The spreader bar must be equal to the width of the boat at each lifting point.
CAUTION
!
LIFTING SLING LABELS
(TYPICAL PORT & STARBOARD)
234"79"

459 Motoryacht •Owner’s Manual Chapter 1: Welcome Aboard!
7
Carbon Monoxide (CO)
Facts about CO
•CO poisoning causes a significant number of boating deaths each year.
•Called the "silent killer", CO is an extremely toxic, colorless, odorless and tasteless gas.
•CO can harm or even kill you inside or outside your yacht.
•CO can affect you whether you’re underway, moored, or anchored.
•CO symptoms are similar to seasickness or alcohol intoxication.
•CO can make you sick in seconds. In high enough concentrations, even a few breaths can be fatal.
•Breathing CO blocks the ability of your blood to carry oxygen.
•The effects are cumulative, even low levels of exposure can result in injury or death.
Factors That Increase the Effects of CO Poisoning
•Age
•Smokers or people exposed to high concentrations of cigarette smoke
•Consumption of alcohol
•Lung disorders
•Heart problems
•Pregnancy
•Carbon monoxide gas (CO) is colorless, odorless, tasteless, and
extremely dangerous.
•All engines, generators, and fuel burning appliances produce CO
as exhaust.
•Prolonged exposure to low concentrations or very quick exposure to high
concentrations will cause BRAIN DAMAGE or DEATH.
•Teak surfing, dragging, or water skiing within 20 feet of a moving
watercraft can be fatal.
DANGER!
!

Chapter 1: Welcome Aboard! 459 Motoryacht •Owner’s Manual
8
Where and How CO Can Accumulate
Stationary Conditions That Increase CO Accumulations Include:
To correct stationary situations A and/or B:
•Close all windows, portlights and hatches.
•If possible, move your yacht away from source of CO.
Running Conditions That Increase CO Accumulations Include:
To correct running situations C and/or D:
•Trim bow down.
•Open windows and canvas.
•When possible, run yacht so that prevailing winds help dissipate exhaust.
How to Protect Yourself and Others From CO
•Know where and how CO may accumulate in and around your yacht (see above).
•Maintain fresh air circulation throughout the yacht at all times.
•Know where your engine and generator exhaust outlets are located and keep everyone away from these areas.
•Never sit on, or hang onto, the back deck or swim platform while the engines are running.
•Never enter the areas under swim platforms where exhaust outlets are located.
•Although CO can be present without the smell of exhaust fumes, if exhaust fumes are detected on the yacht, take
immediate action to dissipate these fumes.
•Treat symptoms of seasickness as possible CO poisoning. Get the person into fresh air immediately. Seek medical
attention—unless you’re sure it’s not CO.
•Install and maintain CO alarms inside your yacht. Do not ignore any alarm. Replace alarms as recommended by
the alarm manufacturer.
•Follow the checklists provided on the next page.
•Get a Vessel Safety Check.
For information on how to get a free VESSEL SAFETY CHECK, visit www.vesselsafetycheck.org or contact your
local U.S. Coast Guard Auxiliary or United States Power Squadrons®.
•U.S. Coast Guard Auxiliary: 1-800-368-5647 or on the Internet at: http://www.cgaux.org
•U.S. Power Squadrons: 1-888-FOR-USPS (1-888-367-8777) or on the Internet at: http://www.usps.org
a. Using engine,
generator, or
other fuel
burningdevice
when yacht is
moored in a
confined
space. b. Mooring too close to another boat that is using its
engine, generator, or other fuel burning device.
c. Running yacht with trim angle of bow too high. d. Running yacht without through ventilation
(station wagon effect).

459 Motoryacht •Owner’s Manual Chapter 1: Welcome Aboard!
9
Trip Checklist
❏Educate all passengers about the symptoms of CO poisoning and where CO may accumulate.
❏When docked, or rafted with another boat, be aware of exhaust emissions from the other boats.
❏Make sure you know where the exhaust outlets are located on your yacht.
❏Confirm that water flows from the exhaust outlets when the engines and generator are started.
❏Listen for any change in exhaust sound, which could indicate an exhaust component failure.
❏Test the operation of each CO alarm by pressing the test button.
Monthly Checklist
❏Make sure all exhaust clamps are in place and secure.
❏Look for exhaust leaking from exhaust system components. Signs include rust and/or black streaking, water
leaks, or corroded or cracked fittings.
❏Inspect rubber exhaust hoses for burned, cracked, or deteriorated sections. All rubber hoses should be pliable and
free of kinks.
Annual Checklist
Have a Qualified Marine Technician:
❏Replace exhaust hoses if cracking, charring, or deterioration is found.
❏Ensure that your engines and generators are properly tuned, and well maintained.
❏Inspect each water pump impeller and the water pump housing. Replace if worn. Make sure cooling systems are
in working condition.
❏Inspect all metallic exhaust components for cracking, rusting, leaking, or loosening. Make sure they check the
cylinder head gasket, exhaust manifold, water injection elbow, and the threaded adapter nipple between the
manifold and the elbow.
❏Clean, inspect, and confirm proper operation of the generator cooling water anti-siphon valve (if equipped).
Carbon Monoxide Alarm System
•NEVER disconnect the alarm system.
•Read and understand the manufacturer’s instructions for your CO alarm system. If you did not receive an instruc-
tion manual, call [phone] and one will be mailed to you.
DANGER
CARBON MONOXIDE POISONING HAZARD!
•The house battery switch must be in the On position for the CO Monitors
to work.
•If your yacht will be unattended for an extended period of time, turn Off the
house battery switch or the CO Monitors will drain the house battery.
•Immediately turn the house battery switch back On when you reboard
your yacht.
DANGER!
!

Chapter 1: Welcome Aboard! 459 Motoryacht •Owner’s Manual
10
More Information
For more information about how you can prevent carbon monoxide poisoning on recreational boats and other ways to
boat more safely, contact:
For information on how to get a free VESSEL SAFETY CHECK, visit www.vesselsafetycheck.org or contact your
local U.S. Coast Guard Auxiliary or United States Power Squadrons®.
•U.S. Coast Guard Auxiliary: 1-800-368-5647 or on the Internet at: http://www.cgaux.org
•U.S. Power Squadrons: 1-888-FOR-USPS (1-888-367-8777) or on the Internet at: http://www.usps.org
United States Coast Guard
Office of Boating Safety (G-OPB-3)
2100 Second Street SW
Washington, DC 20593
www.uscgboating.org
1-800-368-5647
National Marine Manufacturers
Association (NMMA)
200 East Randolph Drive
Suite 5100
Chicago, IL 60601-9301
www.nmma.org
312-946-6200
American Boat & Yacht Council,Inc.
(ABYC)
3069 Solomon’s Island Road
Edgewater, MD 21037-1416
www.abycinc.org
410-956-1050

11
459 Motoryacht •Owner’s Manual
Chapter 2: Locations
Exterior Views
Hull Views
PORTLIGHTS
ENGINE ROOM
VENT
DECK
DRAIN
AFT SHOWER &
SINK DRAIN
BILGE PUMP
DRAIN
PORTLIGHTS
MULTI-PORT THRU-HULL DRAIN:
GALLEY SINK, BILGE PUMP & UPPER
AIR CONDITIONER
(IF EQUIPPED)
DECK
DRAIN
BOW THRUSTER
COCKPIT
DRAIN
MACHINEY
ROOM VENT
VENTILATION
LOUVER
DISHWASHER DRAIN
(IF EQUIPPED)
PORT HULLSIDE
PORTLIGHTS DECK
DRAIN
DECK
DRAIN ENGINE ROOM VENT PORTLIGHTS
WATER TANK
VENT
FORWARD AIR CONDITIONER
DRAIN (IF EQUIPPED)
ANCHOR
LOCKER
AFT AIR CONDITIONER
DRAIN
(IF EQUIPPED)
HOLDING
TANK VENT SUMP PUMP DRAIN
DRAIN
BOW THRUSTER
DECK
DRAIN
VENTILATION
LOUVER
FORWARD BILGE
PUMP DRAIN
MACHINERY
ROOM VENT
AFT BILGE
PUMP DRAINS
GENERATOR EXHAUST
(IF EQUIPPED)
STARBOARD HULLSIDE
GENERATOR WATER
DISCHARGE
(IF EQUIPPED)
TRIM TABTRIM TAB
STERN THRUSTER
SACRIFICIAL
ZINC ANODE
PLATE
RUDDERRUDDER
TRANSOM
AREA

Chapter 2: Locations 459 Motoryacht •Owner’s Manual
12
Forward Deck View
Aft Deck Views
STARBOARD
NAVIGATION
LIGHT (PORT
SIDE TYPICAL)
STARBOARD
BOW HATCH
WINDLASS
CONTROLS
SPOTLIGHT
ANCHOR
LOCKER
WINDLASS
BOW
HATCH
WIPERS
(IF EQUIPPED)
HORN
FUEL FILL DECK
FITTING (TYPICAL
PORT & STARBOARD)
ANCHOR
ROLLER
WASTE PUMP-OUT
DECK FITTING
ALL-ROUND
LIGHT
RADAR
(IF EQUIPPED)
VHF ANTENNA
FUEL TANK
VENTS
CLEAT
(TYPICAL)
TRANSOM
SHOWER
FRESHWATER FILL
DECK FITTING
CITY WATER INLET
DOCKSIDE TELEVISION
& TELEPHONE INLET
SHORE POWER INLETS
STERN LIGHT
BOARDING LADDERCLEAT

459 Motoryacht •Owner’s Manual Chapter 2: Locations
13
Helm Station(s)
PORT ENGINE
FUEL, VOLT, OIL &
NOTE: TYPICAL HELM LAYOUTS SHOWN.
UPPER HELM
ACTUAL LAYOUTS MAY VARY DEPENDING
ON ENGINE & ACCESSORY OPTIONS
TEMPERATURE GAUGE
STARBOARD ENGINE
FUEL, VOLT, OIL &
TEMPERATURE GAUGE
SWITCH
PANEL
STEREO
VHF RADIO
(IF EQUIPPED)
IGNITION
PANEL
DC PANEL
BREAKERS
RADAR
(IF EQUIPPED)
COMPASS TACHOMETERS &
HOURMETERS
12-VOLT
OUTLET SPOTLIGHT CONTROL
FIRE SYSTEM DISPLAY
(IF EQUIPPED)
AUTOPILOT
(IF EQUIPPED)
DEPTH SOUNDER
(IF EQUIPPED)
THROTTLE
CONTROLS
SHIFTER
CONTROLS
THRUSTER
CONTROL
LOWER HELM (IF EQUIPPED)
PORT ENGINE
FUEL, VOLT, OIL &
TEMPERATURE GAUGE
STARBOARD ENGINE
FUEL, VOLT, OIL &
TEMPERATURE GAUGE
SWITCH PANEL
12-VOLT
OUTLET
RADAR
(IF EQUIPPED)
THRUSTER CONTROL
VHF RADIO
SPOTLIGHT
IGNITION
PANEL
AUTO PILOT
(IF EQUIPPED)
COMPASS
TACHOMETERS &
HOURMETERS
DEPTH
FINDER
(IF EQUIPPED)
SHIFTER
CONTROLS CONTROLS
THROTTLE
(IF EQUIPPED)
CONTROL
12-VOLT
OUTLET

Chapter 2: Locations 459 Motoryacht •Owner’s Manual
14
Component Locations
12-Volt Accessory Outlet - Upper Helm:
•Located just to the left of the gauge panel.
12-Volt Accessory Outlets - Lower Helm (If Equipped):
•One is located just to the right of the switch panel and
one is located on the ignition panel.
12-Volt Accessory Outlet -
Aft Cabin:
•Located on the forward wall.
12-VOLT
OUTLET GAUGE PANEL
12-VOLT
OUTLET
SWITCH
PANEL
12-VOLT
OUTLET
IGNITION
PANEL
12-VOLT
OUTLET
