Meridian FIT-AOXIN-M7S-ABCD2E User manual

HOME GYM MULTI
STATION USER MANUAL
SKU: FIT-AOXIN-M7S-ABCD2E

- 1 -
CONTENTS
Contents ........................................................................................................1
Safety Instruction .......................................................................................2
Product Overview .......................................................................................3
Parts List ........................................................................................................4-9
Assembly Instruction ................................................................................10-32
Daily Care & Maintenance .......................................................................33
• Product may vary slightly from item pictured due to model upgrades.
• Please check the packing details before assembly, if there is any missing part,
contact after-sales service department for support.
• Please read all instructions carefully before using the product. Retain this user
manual for future reference.

- 2 -
Safety Instruction
IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your machine before using your machine. We
assume no responsibility for personal injury or property damage sustained by or through the
use of this product.
1. Please read, understand manual and all warnings, test the usage before using the machine.
It is the responsibility of the owner to ensure that all users of this machine are adequately
informed of all warnings and precautions.
2. Retain this user manual for current and future reference, and make sure all warning labels are
clear and complete.
3. This machine is recommended to be installed by at least two adults.
4. Before beginning this or any exercise program, consult your physician. This is especially
important for persons over age 35 or persons with pre-existing health problems.
5. Keep children and pets away and safe from the machine at all times.
6. Pulleys and cables should be checked for wear frequently and replaced as needed, so as to
avoid any danger to you or the people around.
7. Wear appropriate exercise clothes while using the machine.
8. Inspect and properly tighten all parts of the machine regularly, especially ropes to avoid any
injury. If something is wrong, stop using and contact our after-sales service department for
support.
9. Required Tools: Spanner and Allen wrench

- 3 -

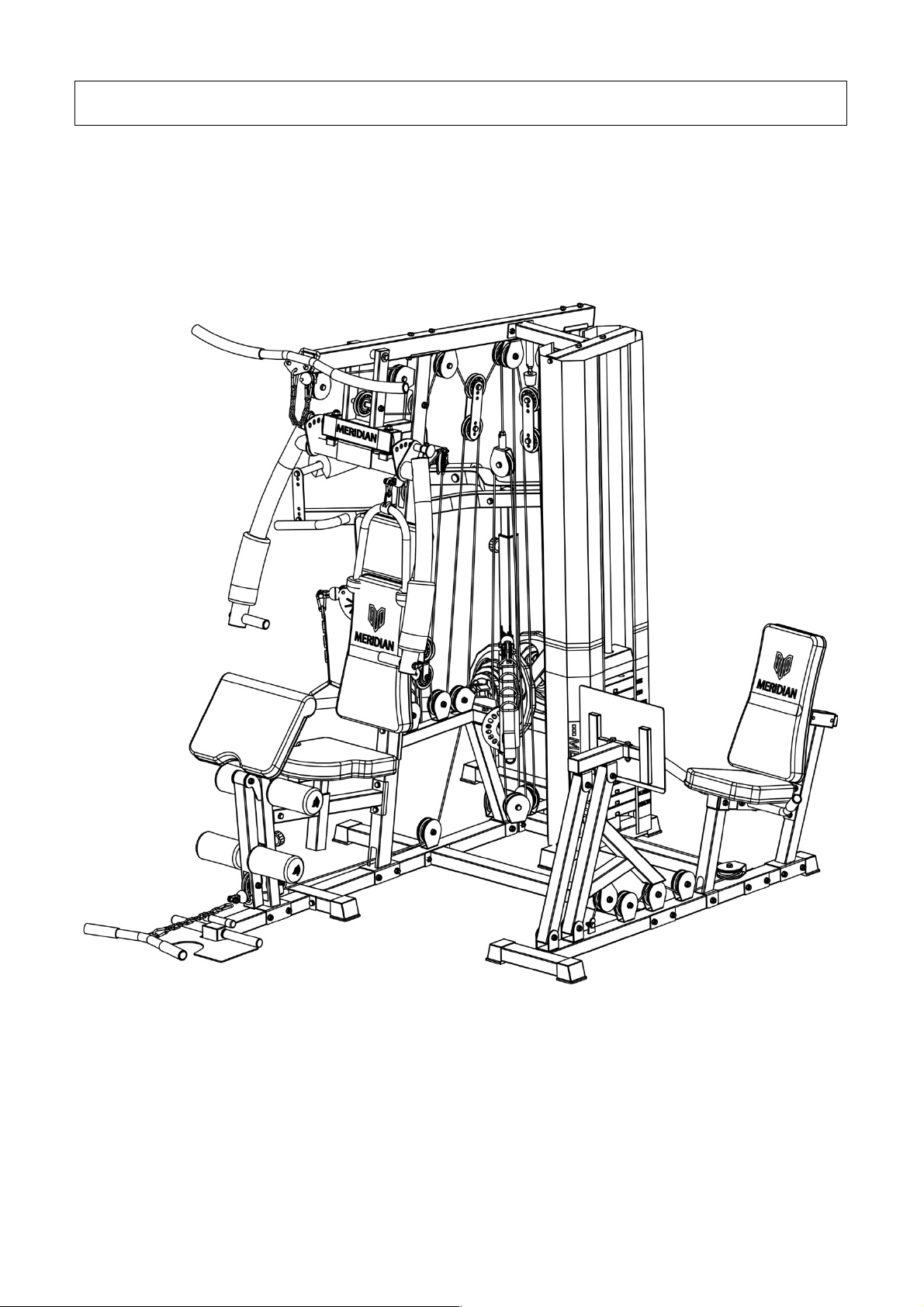

Product Overview
M7S
Executive Standard: GB17498.1

- 4 -
Parts List
No.
Part
Quantity
No.
Part
Quantity
1
Rear base frame
1
31
Foot plate
1
2
Front base frame
1
32
Round tube
1
3
Weight-plate base frame
1
33
Low row bar
1
4
Base junction plate
1
34
Main leg press pivot
1
5
Leg press base frame
1
35
Front leg press pivot
1
6
Side bottom frame
1
36
Foot plate frame
1
7
Front vertical frame
1
37
Foot plate
1
8
Rear vertical dual frame
1
38
9
Top main frame
1
39
Lat bar
1
10
Rear end base frame
1
40
Butterfly connector
1
11
Top pulley frame
1
41
Left butterfly arm set
1
12
Low pulley frame
1
42
Right butterfly arm set
1
13
Low pulley support frame
1
43
Hand grip
2
14
(Low pulley) Free motion arm
2
44
Pulley U-clamp bracket
2
15
Rotatable bracket
2
45
Double pulley U-clamp bracket
1
16
Front leg press seat pad frame
1
46
Single pulley block
1
17
Rear leg press seat pad frame
1
47
Selector rod
1
18
Leg press seat pad frame
1
48
Pulley axle
2
19
Leg press seat adjustable
frame
1
49
Adjustable joint plate
4
20
Left leg extension handle
1
50
Joint plate 11
4
21
Right leg extension handle
1
51
Pulley block
2
22
52
Bracket washer (for #15)
2
23
53
Axle collar
2
24
Leg press back seat frame
1
54
Pivot axle (for #40)
1
25
Guide rods
2
55
Φ17 Powdered metal
bushing
6
26
Leg extension frame
1
56
Φ19 Powdered metal
bushing
6
27
Leg extension connector
1
57
Back pad
2
28
Seat pad T-shaped frame
1
58
Head pad
1
29
Armrest pad frame
1
59
leg extension seat pad
1
30
Leg extension arm
1
60
Armrest pad
1

- 5 -
Parts List
No.
Part
Quantity
No.
Part
Quantity
61
Leg press seat pad
1
91
Φ25 Circlip
2
62
92
Φ8 Washer
18
63
Foam roller tube (440mml)
2
93
Φ10 Washer
196
64
Chain (280mml)
2
94
Φ12 Washer
4
65
Hoist hook
7
95
Φ10 Big washer
2
66
Handle strap (with buckles)
2
96
Φ12 Big washer
1
67
Tightening knob
4
97
Φ10 Arc washer
2
68
Pop pin (102mm)
1
98
M10 Nut
95
69
T-shaped knob
2
99
M12 Nut
3
70
Stabilizer bushing
1
100
M10x20 Socket hex bolt
2
71
(Leg extension) frame
bushing (for #26)
2
101
M5x6 Hex bolt
4
72
Weight Plate Cushion
2
102
M8x16 Hex bolt
12
73
Pulley
40
103
M8x40 Hex bolt
2
74
F50*70 Foot cap
10
104
M8x70 Hex bolt
2
75
Φ25 Guide rod bushing
2
105
M8x85 Hex bolt
2
76
Φ25 Foam Cap
4
106
M10x25 Hex bolt
13
77
Weight plate top cover
1
107
M10x45 Hex bolt
32
78
Weight plate
12
108
M10x65 Hex bolt
9
79
Ab strap
1
109
M10x70 Hex bolt
8
80
Buffer (for #11)
1
110
M10x75 Hex bolt
4
81
Stabilizer latch
1
111
M10x80 Hex bolt
2
82
L-shaped weight locking
pin
1
112
M10x90 Hex bolt
30
83
Φ53xΦ90x245 L Foam
roller
2
113
M10x135 Hex bolt
1
84
Φ25*Φ100*195L Foam
roller
4
114
M10x170 Hex bolt
1
85
Lat pulldown cable
(3790mml)
1
115
Φ30 Hole plug
2
86
Low row cable (5250mml)
1
116
M10x50 Hex bolt
2
87
Leg press cable (6650mml)
1
117
M10x105 Hex bolt
2
88
Low pulley cable
(5470mml)
1
118
M10x195 Hex bolt
1
89
Butterfly cable (2165mml)
1
119
M10x200 Hex bolt
1
90
Weight stack shroud
2
120
Plastic barbell set
2

- 6 -
Parts List
No.
Part
Quantity
No.
Part
Quantity
121
Barbell collar
2
125
Squat adjustable frame
(out)
1
122
Squat bar pad
1
126
Squat arm frame
2
123
Squat connector
1
127
Squat connecting rod
1
124
Squat adjustable frame (in)
1
128
Squat handle adjustable
lever
2

- 7 -

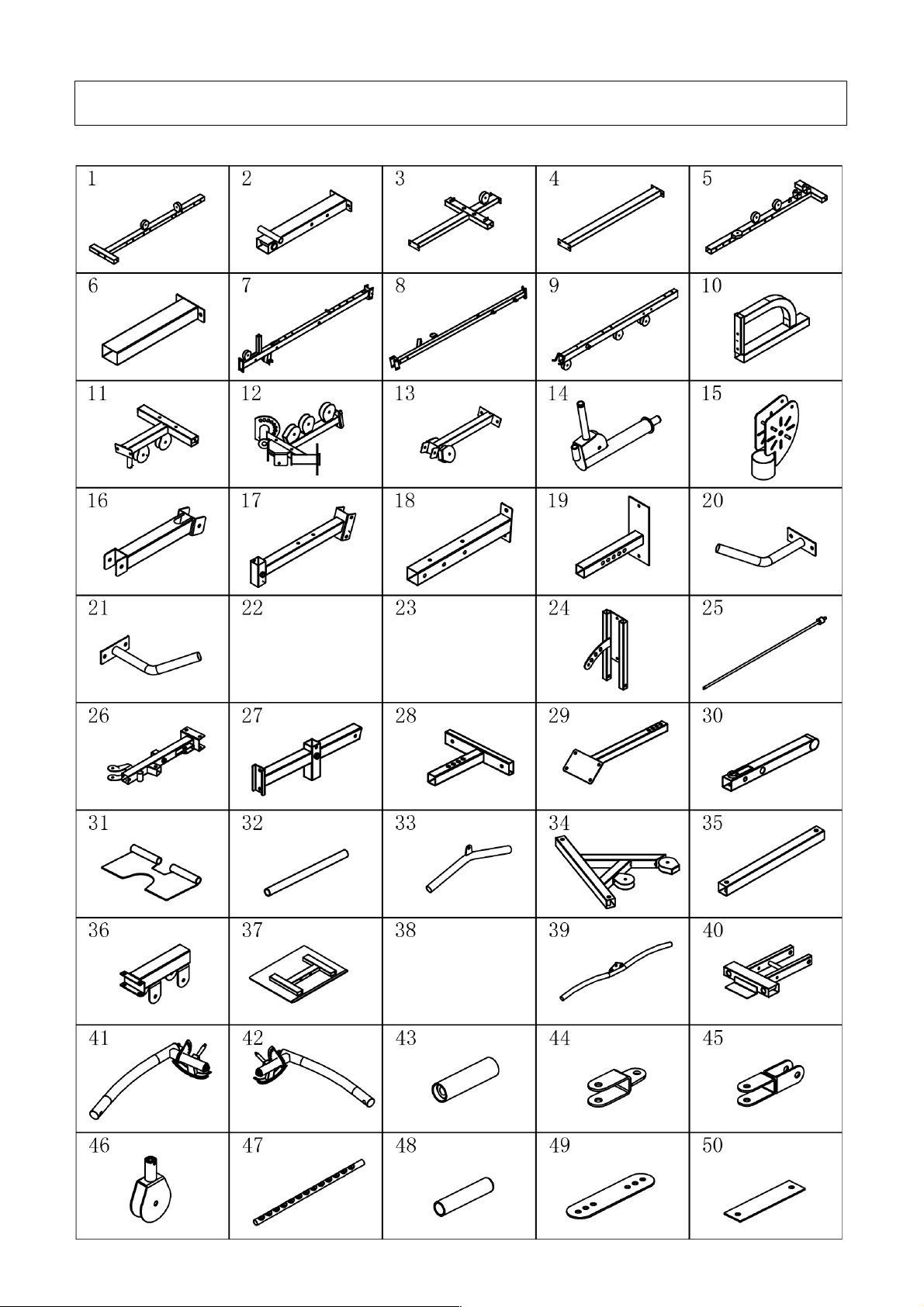

Parts List

- 8 -

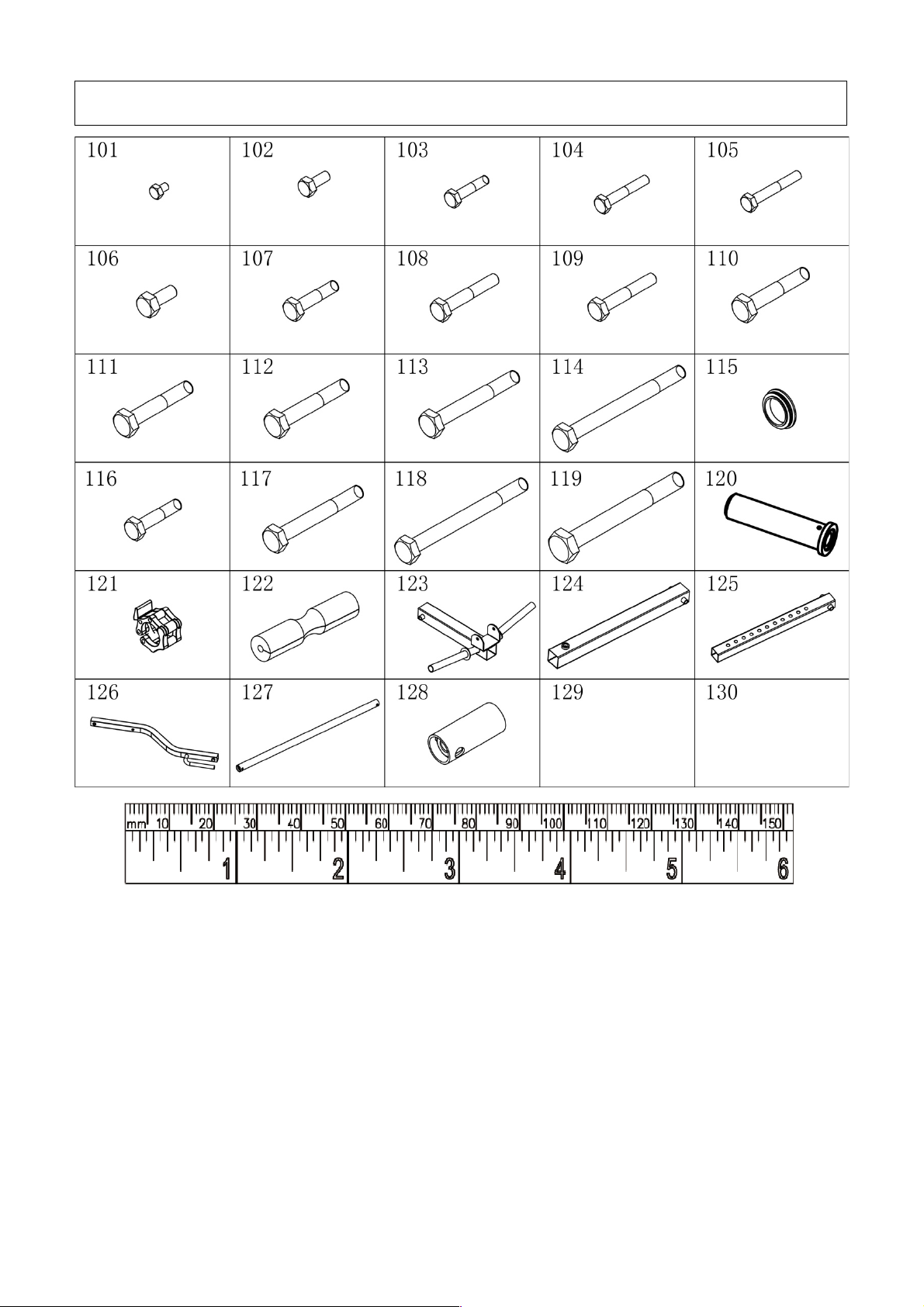

Parts List

- 9 -
Parts List

- 10 -
Assembly Instruction
Attention:
1. Put the washers to the two ends of bolts, unless any s
2. Finger tighten all bolts and nuts; do not spanner tighten firmly until this machine is
fully assembled.
3. Some components have been well pre-assembled in cartons.
4. This machine is recommended to be installed by at least two adults.

- 11 -
Assembly Instruction
Picture 1:
1. Attach 9 “F50x70 Foot Caps” (#74) respectively to the Rear Base Frame (#1), the
Weight-plate Base Frame (#3), the Base Junction Plate (#4) and the Side Bottom Frame (#6)
2. Slide two Guide Rods (#25) into the holes of Weight-plate Base Frame (#3), tighten them by
using M10x20 Socket hex bolt (#100).
3. Connect the Rear Base Frame (#1), Front Base Frame (#2), Weight-plate Base Frame (#3),
Base Junction Plate (#4), Leg Press Base frame (#5), and the Side Bottom Frame (#6) all
together as shown by using:
• M10x90 Hex bolt (#112) x 10
• Φ10 Washer (#93) x 20
• M10 Nut (#98) x 10
• Joint plate 11 (#50) x 3

- 12 -
Assembly Instruction

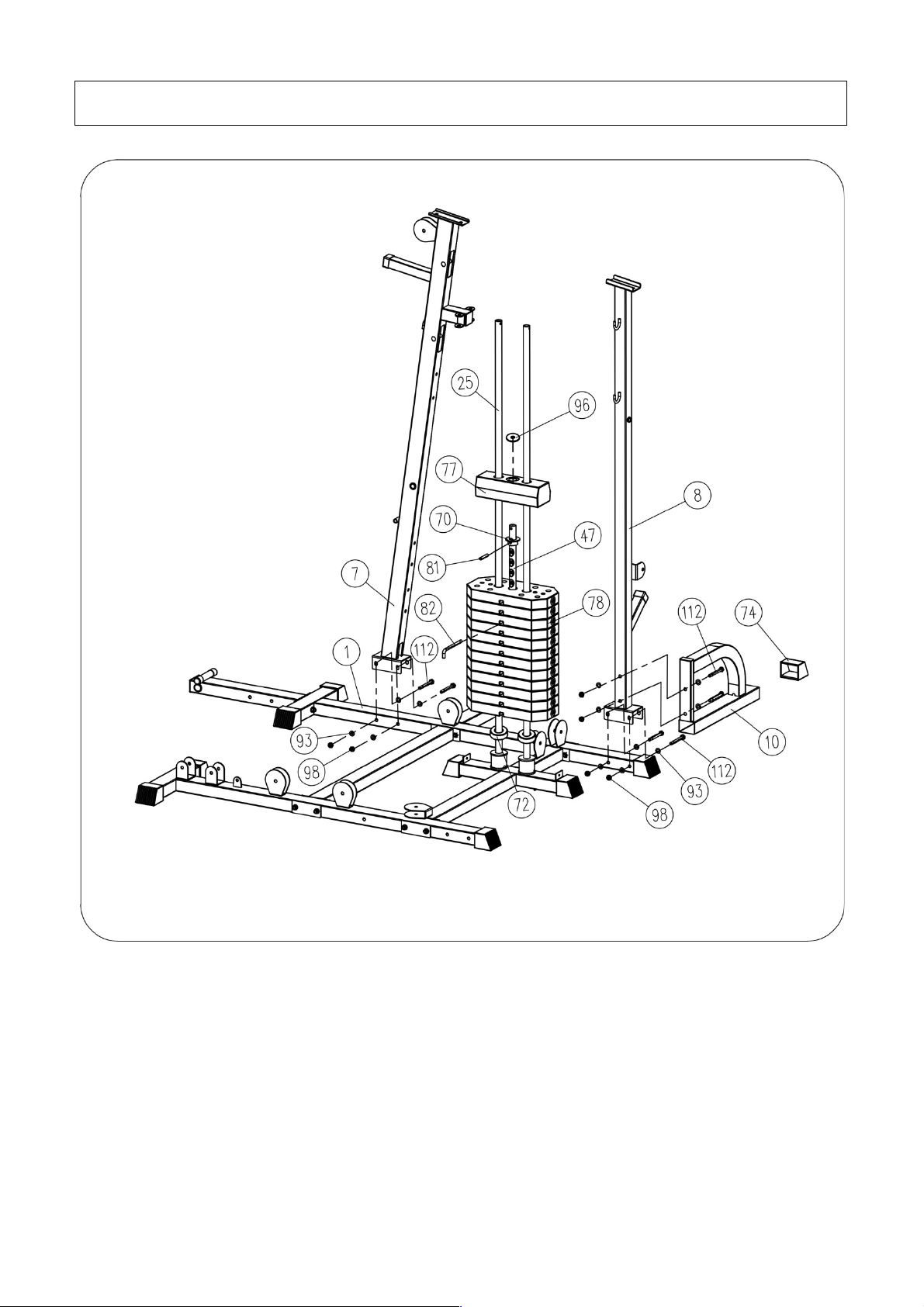

Picture 2:

- 13 -
Picture 2:
1. Attach both of Front Vertical Frame (#7) and Rear Vertical Dual Frame (#8) onto the Rear
Base Frame (#1) by using:
• M10x90 Hex bolt (#112) x 6
• Φ10 Washer (#93) x 8
• M10 Nut (#98) x 4
2. Attach a “F50x70 Foot Caps” (#74) to Rear End Base Frame (#10)
3. Attach Rear End Base Frame (#10) and Rear Vertical Dual Frame (#8) firmly by using:
• M10x90 Hex bolt (#112) x 2
• Φ10 Washer (#93) x 4
• M10 Nut (#98) x 2
4. Slide two Weight Plate Cushions (#72) through the Guide Rods (#25), followed by 12 Weight
Plate (#78). Make sure the holes on weight plate are facing down as shown.
5. Slide Stabilizer Bushing (#70) through Selector Rod (#47) with their holes aligned well, and
insert Stabilizer Latch (#81) into the holes.
6. Then slide the Selector Rod (#47) into the top-middle hole of Weight Plate (#78), make sure
the rod holes (#47) and weight plate holes (#78) are facing the same direction.
7. Slide Weight Plate Top Cover (#77) through the Guide Rods (#25) and Selector Rod (#47).
Place Φ12 Big Washer (#96) on top of Weight Plate Top Cover (#77).

- 14 -
Assembly Instruction

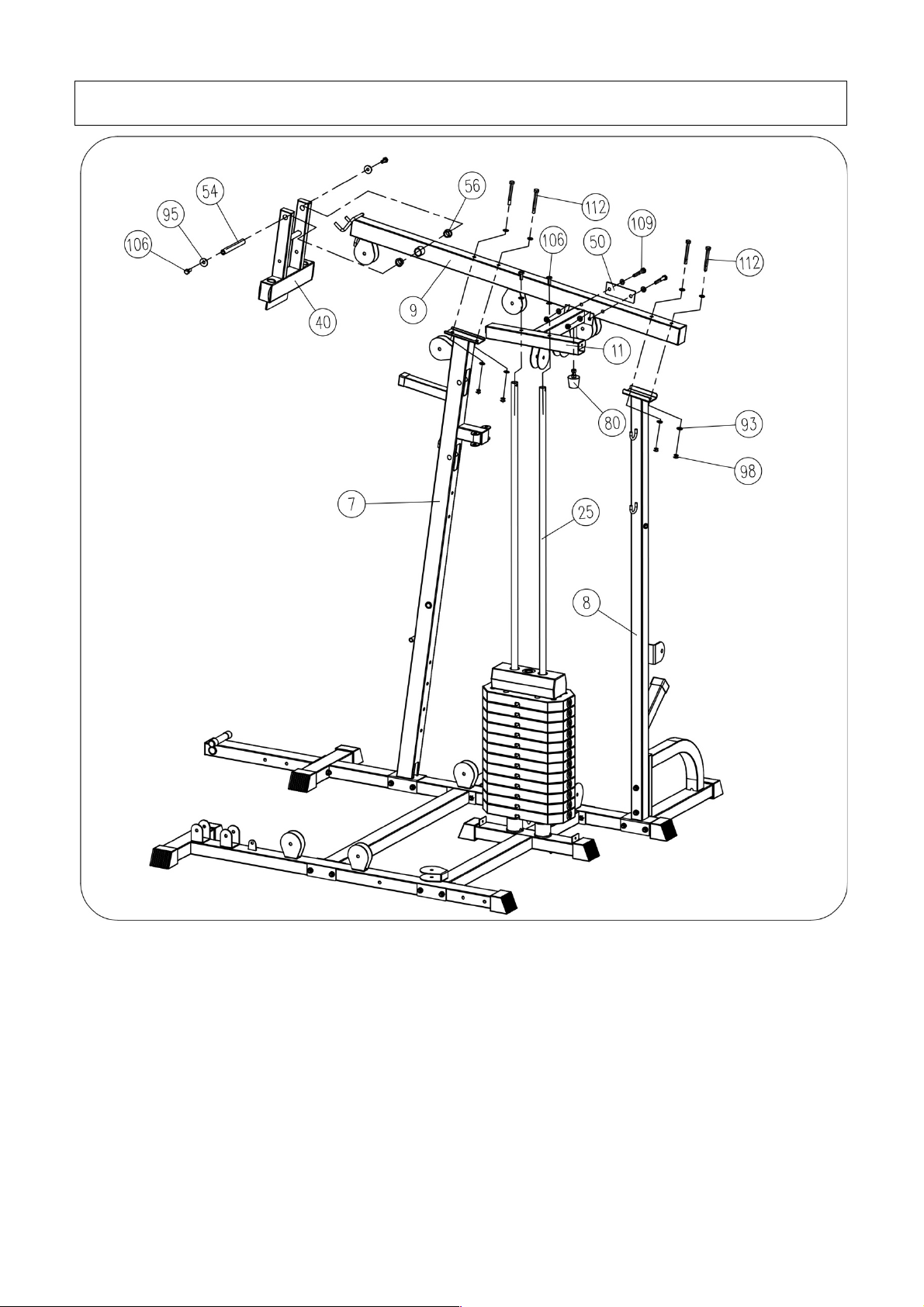

Picture 3:

- 15 -
Picture 3:
1. Attach Top Main Frame (#9) to Front Vertical Frame (#7) and Rear Vertical Dual Frame (#8)
as shown by using:
• M10x90 Hex bolt (#112) x 4
• Φ10 Washer (#93) x 8
• M10 Nut (#98) x 4
2. Attach Top Pulley Frame (#11) onto the two Guide Rods (#25), screw them firmly by using:
• M10x25 Hex bolt (#106) x 2
• Φ10 Washer (#93) x 2
3. Connect Top Pulley Frame (#11) and Top Main Frame (#9) closely by using:
• Joint plate 11 (#50) x 1
• M10x70 Hex bolt (#109) x 2
• Φ10 Washer (#93) x 4
• M10 Nut (#98) x 2
4. Screw Buffer (#80) under the Top Pulley Frame (#11).
5. Attach Butterfly Connector (#40) to Top Main Frame (#9) by using:
• M10x25 Hex bolt (#106) x 2
• Φ10 Big washer (#95) x 2
• Φ19 Powdered metal bushing (#56) x 2

- 16 -
Assembly Instruction
Picture 4:

- 17 -
Picture 4:
1. Attach Squat Outside Adjustable Frame (#124) and Squat Connector (#123) to Rear Vertical
Dual Frame (#8) by using:
• M10x105 Hex bolt (#117) x 2
• Φ10 Washer (#93) x 4
• M10 Nut (#98) x 2
2. Slide two sets of Plastic Barbell (#120) through Squat Connector (#123), then slide Barbell
Collars (#121) at the end of Plastic Barbell Set (#120).
3. Insert Squat Inside Adjustable Frame (#125) into the Squat Outside Adjustable Frame (#124),
then screw Tightening Knob (#67) onto the latter (#124).
4. Attach two Squat Arm Frames (#126) to Rear Vertical Dual Frame (#8) by using:
• M12x200 Hex bolt (#119) x 1
• Φ12 Washer (#94) x 2
• M12 Nut (#99) x 1
5. Then attach Squat Inside Adjustable Frame (#125) to the Squat Arm Frames (#126) by
using:
• M10x195 Hex bolt (#118) x 1
• Φ10 Washer (#93) x 2
• M10 Nut (#98) x 1
6. Attach two Adjustable Joint Plates (#49) to two Squat Handle Adjustable Levers (#128)
respectively by using following parts, then insert the latter into Squat Arm Frame (#126)
• M10x25 Hex bolt (#106) x 2
• Φ10 Washer (#93) x 2
7. Attach the two Adjustable Joint Plates (#49) to Squat Connecting Rod (#127) firmly by using
following part. Then place Squat Bar Pad (#122) on the rod (#127)
• M10x25 Hex bolt (#106) x 2
• Φ10 Washer (#93) x 2

- 18 -
Assembly Instruction
Picture 5:
1. Attach Low Pulley Support Frame (#13) on the Rear Base Frame (#1) by using:
• M10x90 Hex bolt (#112) x 1
• Φ10 Washer (#93) x 2
• M10 Nut (#98) x 1
2. Attach Low Pulley Frame (#12) on the Front Vertical Frame (#7) by using:
• M10x90 Hex bolt (#112) x 2
• Φ10 Washer (#93) x 4
• M10 Nut (#98) x 2
3. Connect Low Pulley Frame (#12) to its Support Frame (#13) tightly by using:
• M10x65 Hex bolt (#108) x 2
• Φ10 Washer (#93) x 4
• M10 Nut (#98) x 2

- 19 -
Assembly Instruction
Picture 6: Butterfly Cable
1. Attach left (#41) and right (#42) Butterfly Arm Sets to Butterfly Connector (#40) by using:
• Φ19 Powdered metal bushing (#56) x 4
• Φ12 Washer (#94) x 2
• M12 Nut (#99) x 2
2. Attach two Hand Grips (#43) to the left (#41) and right (#42) Butterfly Arm Sets by using:
• M10x25 Hex bolt (#106) x 2
• Φ10 Arc Washer (#97) x 2
3. Route Butterfly Cable (#89) (2165mml) over the left (#41) and right (#42) Butterfly Arm Sets
as shown on Picture 6.
