ULTRA HIGH-SPEED SLIP RINGS
ROTOCON UHS Series
User’s Manual

2415 Pleasant View Rd.
Middleton, WI 53562
This document was created with the greatest possible care. However, Meridian Laboratory Inc. refuses to endorse
any responsibility in the event of errors or for omissions. The same applies to any damage rising from the use of
contained information in this handbook.
COPYRIGHT
Copyright ©2020 Meridian Laboratory, Inc. All rights reserved.
Copying or reproduction of all or any part of the contents of this manual without the express permission of
Meridian Laboratory is strictly prohibited.
Rev.A – February 2020
ii

2415 Pleasant View Rd.
Middleton, WI 53562
The Recycling of Mercury
According to the directive 2002/95/CE, relating to the limitation of the use of certain dangerous substances in
electrical equipment and electronic, starting from July 1st, 2006, the Member States of the European Union must
take care that the new electrical equipment and electronic put on the market does not contain lead, nor of
mercury, cadmium, hexavalent chromium, polybromobiphenyls (PBB) or polybromodiphenylethers (PBDE).
It is stipulated, in the Field of application of this Directive, which it applies to electrical equipment and electronic
concerned with categories 1,2,3,4,5,6,7, and 10 enumerated with appendix IA of the Directive 2002/96/CE (DEEE)
like to the electric bulbs and the domestic luminaries.
Meridian Laboratory products are included in category 9 (instruments of monitoring and control of appendix IA of
the Directive 2002/96/CE) and are thus excluded from the requirements of the Directive 2002/95/CE.
On the other hand, Meridian Laboratory must be in accordance with the Directive 2002/96/CE relating to the
DEEE (scrap electrical equipment and electronic).
As for any producer of electricals appliance or electronic put on the market after August 13th, 2005, the Meridian
Laboratory products must be clearly identifiable thanks to the label which corresponds to each apparatus. In the
same way, the date of marketing must appear on each product.
Indeed, according to appendix IA of the European directive 2002/96/CE, Meridian Laboratory, as a manufacturer
of instruments of monitoring and control, must take account of the requirements as regards repair, possible
improvement, re-use, disassembling and recycling of the products containing of mercury.
Meridian Laboratory is committed ensuring information for the users. Meridian Laboratory thus has the obligation
to mark in a suitable way the products which would be likely to be thrown among ordinary waste. This obligation to
make appear the symbol of recycling extends to packing, the note of use and the certificate of guarantee of the
equipment concerned.
Meridian Laboratory must ensure the collection of waste and the recycling of mercury by electing specialized
companies.
Meridian Laboratory attests that the financing of the costs of the collection, the treatment, the valorization and the
nonpolluting elimination of the DEEE are with its load.
iii

2415 Pleasant View Rd.
Middleton, WI 53562
Revisions to This Manual
The contents of this manual are subject to change without prior notice. Should revisions be necessary, updates to
all Meridian Laboratory User’s Manuals can be found at Meridian Laboratory’s web site at
https://www.meridianlab.com/products/rotocon-uhsseries-ultra-high-speed-slip-ring-alternatives/
Please compare the date of this manual with the revision date on the web site, then refer to the manual’s Table of
Revisions for any changes/updates that have been made since this edition.
TABLE OF REVISIONS
DATE
EDITION
CHANGES
SECTION
Feb. 2020
First Edition
-
-
iv

2415 Pleasant View Rd.
Middleton, WI 53562
Contents
THE RECYCLING OF MERCURY .......................................................................................................... III
REVISIONS TO THIS MANUAL .............................................................................................................. IV
TABLE OF REVISION.................................................................................................................... IV
CONTENTS.............................................................................................................................................. V
PREFACE................................................................................................................................................ VI
PURPOSE OF THIS MANUAL......................................................................................................... VI
WHO SHOULD USE THIS MANUAL................................................................................................ VI
MANUAL ORGANIZATION.............................................................................................................. VI
1. INTRODUCTION ................................................................................................................................. 1
1.1 DESCRIPTION ......................................................................................................................... 1
1.2 OPERATING PRINCIPLES ........................................................................................................ 1-2
1.3 DATA SHEETS ......................................................................................................................... 3-5
2. INSTALLATION/CONFIGURATION.................................................................................................... 6
2.1 MECHANICAL MOUNTING....................................................................................................... 7
3. MAINTENANCE.................................................................................................................................. 8
3.1 GENERAL INFORMATION....................................................................................................... 8
4. MERIDIAN LABORATORY LIMITED WARRANTY................................................................................ 9
CLAIMS ...................................................................................................................................... 9
v

2415 Pleasant View Rd.
Middleton, WI 53562
Preface
PURPOSE OF THIS MANUAL
This manual contains the necessary information regarding the use of ROTOCON UHS Slip Rings. It must
be attentively read by the user and placed in a sure place for later consultations.
WHO SHOULD USE THIS MANUAL
This handbook is addressed to any user of ROTOCON UHS Slip Rings.
MANUAL ORGANIZATION
This section gives an overview of the structure of the manual and the information contained in it. Some
information has been deliberately repeated in different sections of the document to minimize cross-
referencing and to facilitate understanding through reiteration.
Summary of the different chapters:
Chapter 1:
INTRODUCTION - Contains the technical data sheet of the ROTOCON UHS Series and
gives its technical characteristics as well as a brief overview of the application fields.
Chapter 2:
INSTALLATION - Inform of the precautions to be taken at the time of the installation of a
brushless slip ring.
Chapter 3:
MAINTENANCE - Indicates the procedures of maintenance for the brushless slip rings.
vi

2415 Pleasant View Rd.
Middleton, WI 53562
1. Introduction
1.1 DESCRIPTION
Meridian Laboratory Ultra High-Speed Slip Rings are used for signal transmission of transducers on a rotating
part (e.g. engine shaft) to a stationary system (measuring instrument or PC). They are exceptionally well-
suited for the transmission of low-level electrical signals, such as those from thermocouples, extensometer
gauges and strain gauges, as well as transducers to measure oscillation and acceleration. UHS Slip Rings
can also provide the power supply signal to each transducer.
The ROTOCON UHS Series provides a low transfer resistance and a high insulation resistance. They also
significantly reduce the EMF noise generated at the cell connections. These brushless slip rings are therefore
arc-free, making them superior to all other slip rings that use rings, brushes, wire loops and similar devices.
Meridian Laboratory Ultra High-Speed slip rings are used wherever measurement of rotating items is needed
in research and development laboratories, as well as in duration tests on objects under working conditions.
Through high-performance data transmission, Meridian Laboratory UHS Slip Rings enable the measurement
of pressure, acceleration, oscillation, vibration, shock, force, torque, temperature and displacement of rotating
parts such as: turbines, jet engines, turbocompressors, propellers, motors, machine tools, bearings, tilting
pads, molding machine screws and other machines, as well as for running tests on all types of road and rail
vehicles.

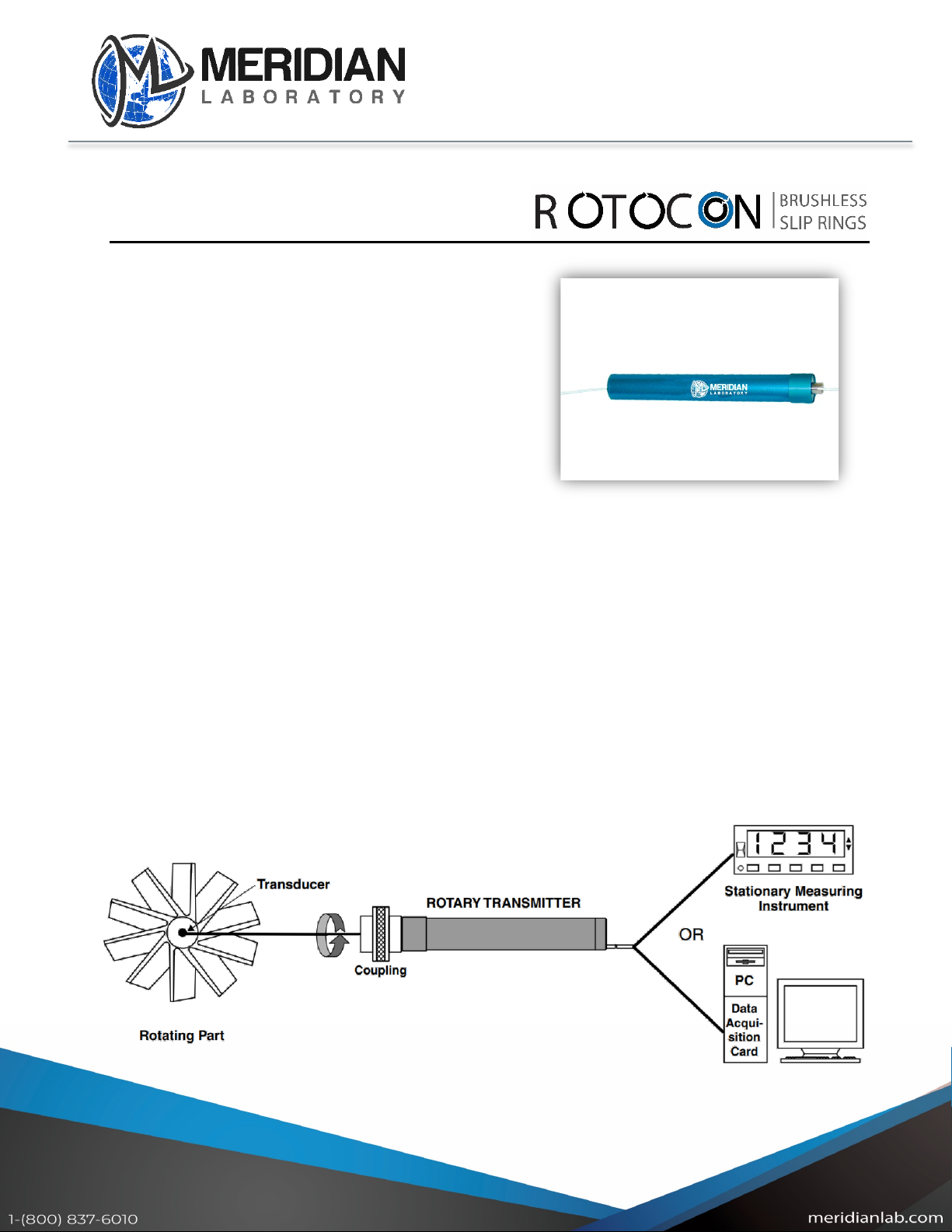

1.2 OPERATING PRINCIPLES
ROTOCON UHS Slip Rings contain small reservoirs of mercury to make the connection between the
stationary system and the rotating part. Each cell in the slip ring contains a reservoir of mercury (see Figure 1-
1) into which a hollow shaft, 2 mm in diameter, dips as a contact. Each cell of the slip ring provides one
transmission channel.
Within each cell, the reservoir remains fixed while the axis is driven by the rotating part. The cells are
electrically insulated from each other and the outside by plastic couplings. The low friction surface between
the reservoir and the axis guarantees a minimum heating of the device. This avoids the generation of an EMF
due to the Peltier effect, which would be induced by the heating of the contact point between the two metals.
In addition, the insulation resistance between the cells remains intact since there is no formation of vapor that
would cause the appearance of leakage currents.
1

2415 Pleasant View Rd.
Middleton, WI 53562
The slip ring produces a small EMF at high-speeds. To avoid increasing the EMF it is necessary to prevent
the rotating part from overheating the slip ring. Increasing the EMF can cause the vaporization of mercury
within the cells.
To ensure a long lifetime, it is recommended that the ROTOCON UHS Slip Rings are operated only within the
specified temperature range.
The small amount of mercury contained within the slip ring is only a minimum health risk because of the
confinement of the liquid metal within a hermetically sealed cell. The seal is guaranteed by PTFE seals even
at high speeds. Only extremely pure mercury is used in the manufacture of the ROTOCON UHS Slip Rings to
provide maximum conductivity.
These slip rings should not be stored for periods longer than one year. When not in use deposits of mercury
oxide can form within the cell causing increased resistance.
2

2415 Pleasant View Rd.
Middleton, WI 53562
ROTOCON UHS Series
Ultra High-Speed Brushless Slip Rings
Features:
• Channels: 1, 4, 8 or 12
• Speed: up to 40,000 RPM
• Resistance: < 0.2 mOhms
• Noise: 25 µV
• Signal: up to 0.3 A per cell
• 60 Volts AC/DC
• Very low inertia
• Brushless (fluid metal contact)
• Insensitive to electromagnetic disturbance
• Long lifetime
Description
For applications with demanding operating
speeds up to 40,000 RPM, Meridian Laboratory
offers the ROTOCON UHS Series. With up to 12
contacts available, the ROTOCON UHS Series
of ultra high-speed slip rings is capable of
transmitting both low current power, as well as
signal and data within the same assembly. Like
all ROTOCON brushless slip rings, the contact
resistance is extremely low, both when
stationary and while rotating. The UHS Series of
slip rings is especially well utilized in high-speed
applications (above 10,000 RPM) and remains
unaffected in performance & reliability. If you
have limited mounting space and/or require
operating speeds at 3,000 to 8,000 RPM, see
our MM-Series, Miniature High Speed,
ROTOCON rotary electrical connectors.
Applications
ROTOCON UHS Slip Rings are used wherever
measurement of rotating items is needed.
Whether in research & development
laboratories, or in duration tests on objects
under working conditions. Through high-
performance data transmission, ROTOCON
UHS slip rings enable the measurement of
pressure, acceleration, oscillation, vibration,
shock, force, torque, temperature and
displacement of rotating parts such as: turbines,
jet engines, turbocompressors, propellers,
motors, machine tools, bearings, and other
machines, as well as for running tests on all
types of road and rail vehicles.
3

2415 Pleasant View Rd.
Middleton, WI 53562

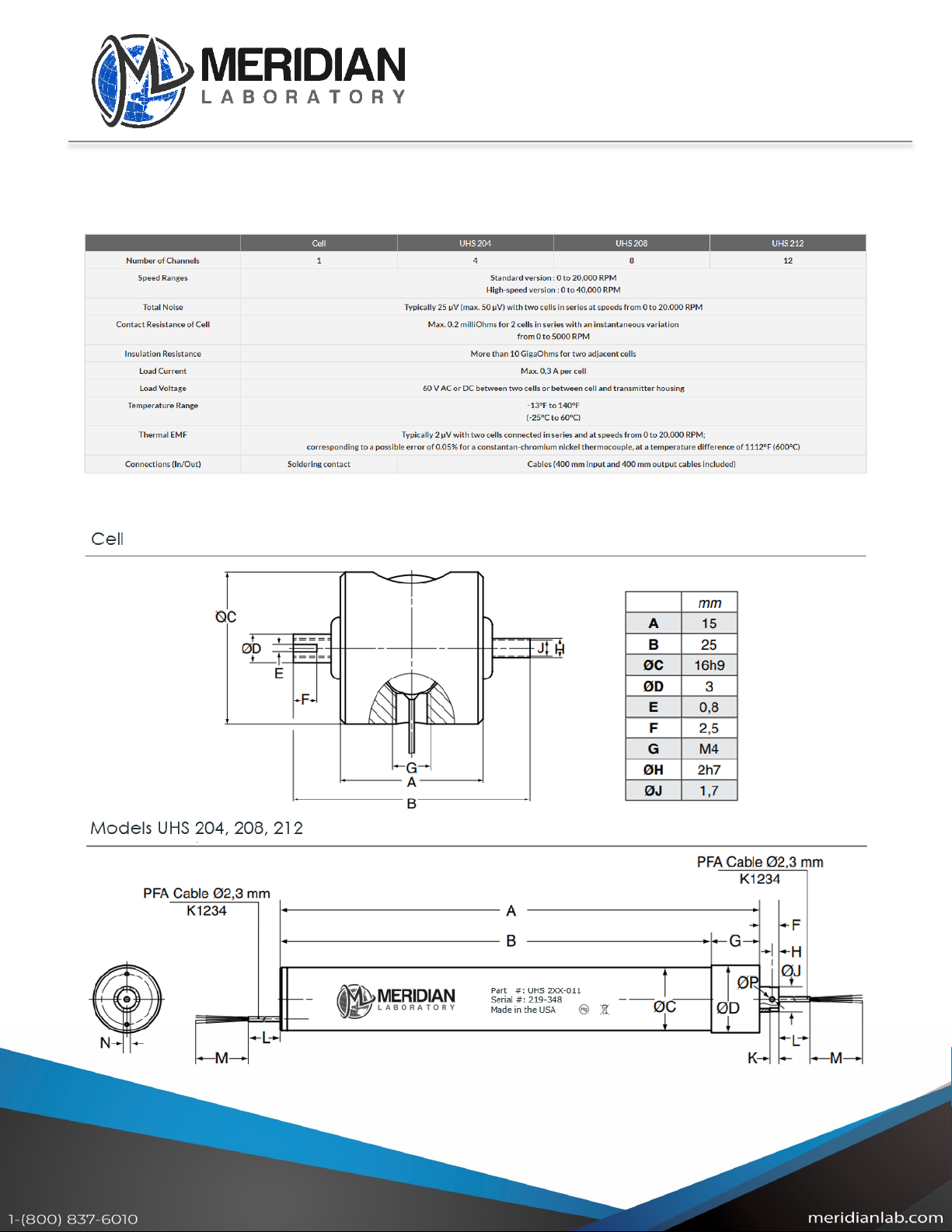

Ratings
Dimensions
4

2415 Pleasant View Rd.
Middleton, WI 53562

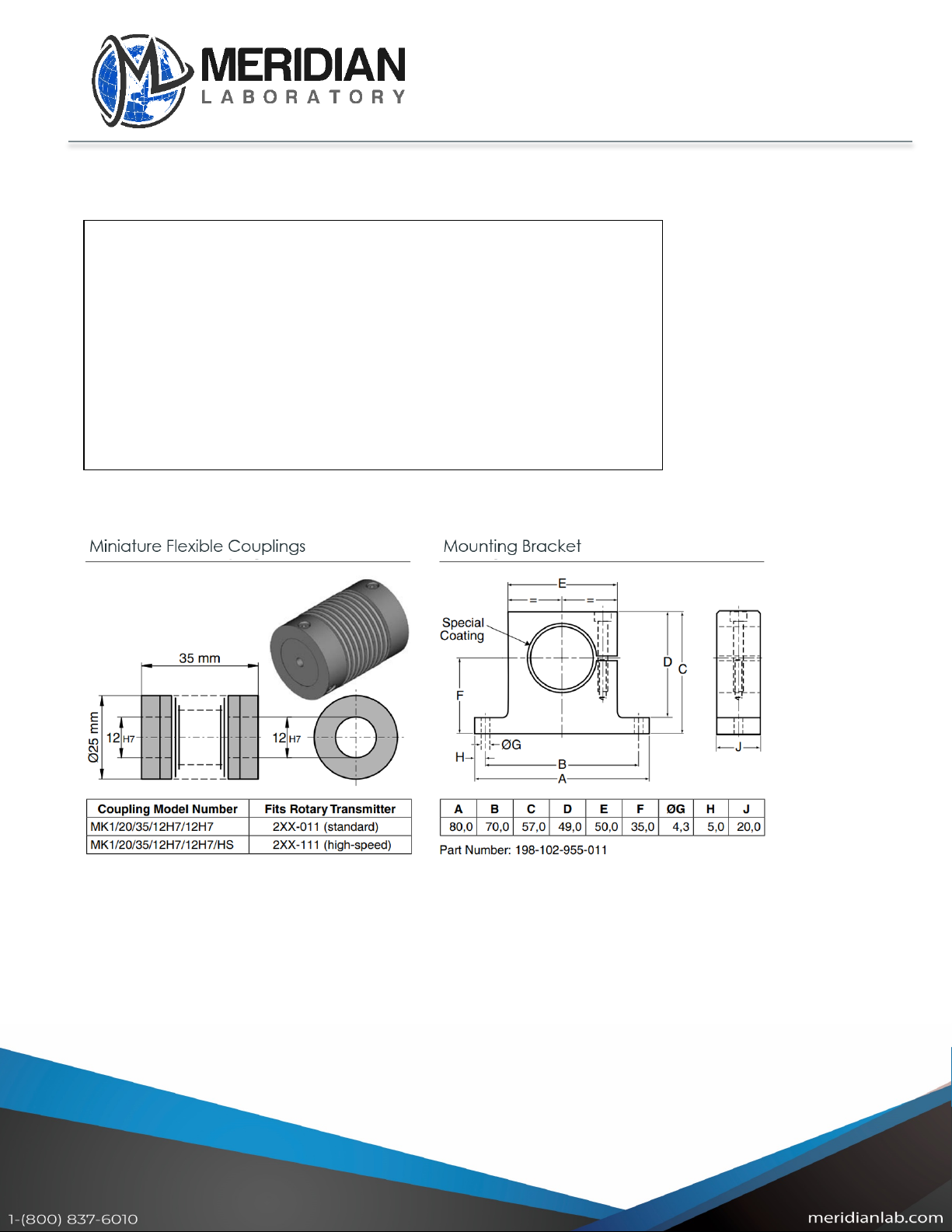

Options & Ordering Information
Accessories
CAUTION: ROTOCON UHS Slip Rings contain mercury. The cells are hermetically sealed and
should not be opened. In lieu of disposing the slip ring, please return it to Meridian Laboratory for recycling.
Due to the continual development of our products, we reserve the right to modify specifications without forewarning.
MODEL NUMBER: UHS 2 __ __ / __ 11
UHS Slip Ring with
:
NUMBER OF CHANNELS
• 4 channels 0 4
• 8 channels 0 8
• 12 channels 1 2
HIGH-SPEED CAPABILITY
• without (standard) 0
• with (option) 1
Slip Ring Cell: P/N 198-101-010-011V
5

2415 Pleasant View Rd.
Middleton, WI 53562
2. Installation/Configuration
2.1 MECHANICAL MOUNTING
To avoid subjecting the cells to vibration, the slip ring must be connected to the rotating part by a flexible
coupling. This will increase the lifespan of the slip ring’s cells.
There are two types of flexible couplings available:
• MK1/20/35/12H7/12H7 couplings are used in the standard UHS 2XX-011 with operating speeds of up to
20,000 tmin-1.
• MK1/20/35/12H7/12H7/HS couplings are used in the highest-speed UHS 2XX-111 with operating
speeds of up to 40,000 tmin-1.
The coupling is attached to the slip ring by the included clamping screws.
For proper mounting of the slip ring, use of the original fixture support is recommended (part number 198-102-
955-011). This support has a special coating which protects the slip ring housing and assures its electrical
insulation. Proper alignment of the slip ring is necessary to avoid vibration or side loads to the flexible
coupling.
In addition, at high rotation speeds the alignment of the slip ring must be very precise. For applications with
speeds up to 40000 tmin-1, it is advised to have a precision of alignment of about 0.05 mm.
The slip ring produces a small EMF at high-speeds. To avoid increasing the EMF it is necessary to prevent
the rotating part from overheating the slip ring. Increasing the EMF can cause the vaporization of mercury
within the cells.
To ensure a long lifetime, it is recommended that the ROTOCON UHS Brushless Slip Rings are operated only
within the specified temperature range.
6

2415 Pleasant View Rd.
Middleton, WI 53562
2.2 ELECTRICAL INSTALLATION
Each wire color corresponds to a cell of the slip ring according to the wiring diagram below:
Cell
Wire Color
1
green
2
red
3
blue
4
black
5
transparent
6
pink
7
purple
8
white
9
brown
10
gray
11
yellow
12
orange
The color code is the same as for the cables on both sides of the slip ring.
In order to reduce the electrical noise, the slip ring cables are insulated. Be sure that the wires are properly
fixed to the part in rotation to prevent the connection from being damaged or broken by vibrations.
The wires can be shortened as needed. However, if the wires are cut too short, their replacement requires a
complete disassembling of the slip ring. Replacement of the wires can only be carried out by the manufacturer
and is quite complicated, thus it is inevitably expensive.
7

2415 Pleasant View Rd.
Middleton, WI 53562
3. Maintenance
3.1 GENERAL INFORMATION
Meridian Laboratory Ultra High-Speed Brushless Slip Rings contain maintenance-free ball bearings. No
additional lubrication is required.
When in-use on a high-speed system, it is recommended that the slip ring undergo a routine maintenance
check every two to three years. However, if the slip ring is being used for a very high-speed application, more
frequent maintenance may be necessary.
Do not attempt to dismantle the slip ring for any reason.
Please return the ROTOCON UHS Series Slip Ring directly to the manufacturer for proper disposal and
recycling.
If the slip ring has not been in use for a long period of time the dynamic transfer resistance may increase
above the specifications for the unit. This is caused by a clogging of the cells due to deposits of mercury oxide
within the slip ring. The slip ring should be returned to Meridian Laboratory for cleaning and maintenance.
8

2415 Pleasant View Rd.
Middleton, WI 53562
4. Limited Warranty
Seller warrants to the original purchaser that the Products will be free from manufacture defects for a period of
one (1) year following the date of delivery. Seller will, at its option, repair or replace any part or component
covered by this limited warranty which, following examination by Seller or its authorized representatives, is found
to be defective under normal use and service.
Seller’s replacement parts and components will be warranted for 30 days from the date of purchase, or the
remainder of the original equipment warranty period, whichever is longer. No claim under this warranty will be
valid unless Seller is notified in writing of the warranty claim prior to the expiration of the warranty period. This
warranty is not transferable. This warranty does not apply to Products or parts or components thereof which have
been subjected to abnormal wear and tear, accident, misuse, abuse or unauthorized modifications, or which have
been repaired with parts or components which are not of a quality equivalent to those provided by Seller.
IN ADDITION, THE FAILURE OF BUYER TO FOLLOW SELLER’S WRITTEN INSTRUCTIONS REGARDING
THE SET-UP, OPERATION AND/OR MAINTENANCE OF THE PRODUCTS VOIDS THIS WARRANTY.
It is Buyer’s responsibility to keep adequate records to show that the Products have been properly maintained.
There is no express representation or warranty other than the foregoing warranty. THERE ARE NO IMPLIED
WARRANTIES, INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE OR OF NON-INFRINGEMENT. Neither this warranty nor the
exclusions, limitations and reservations contained herein may be modified or enlarged, except in writing signed by
a duly authorized officer of Seller.
9

2415 Pleasant View Rd.
Middleton, WI 53562
