Merz UHRO-16 User manual

USB-I/O Manual
UHRO-16 - DIN-Rail-Version
UPRO-16 - Board-Version
16 photo couple input / 16 relay output channels
Product Code: AUSB16P/R USB 16 PHOTO ISO./ RELAY BOARD
DECISION-COMPUTER Jürgen Merz e.K.
Lengericher Str. 21
49536 Lienen
Telefon [phone]
Telefax [phone]
http://www.decision-computer.de

Product Code:
AUSB16P/R USB 16 PHOTO ISO./ RELAY BOARD
UHRO-16 - DIN-Rail-version
UPRO-16 - Board-version
Bus: USB 2.0
Description:
16 photo couple input / 16 relay output channels
Input maximum load voltage is 30V
By jumper, you can select two range of voltage
0 - 4.5V o󰀨 and 6V - 20V on. (0 - 20V)
0 - 16.5V o󰀨 and 18 - 30V on (0 - 30V)

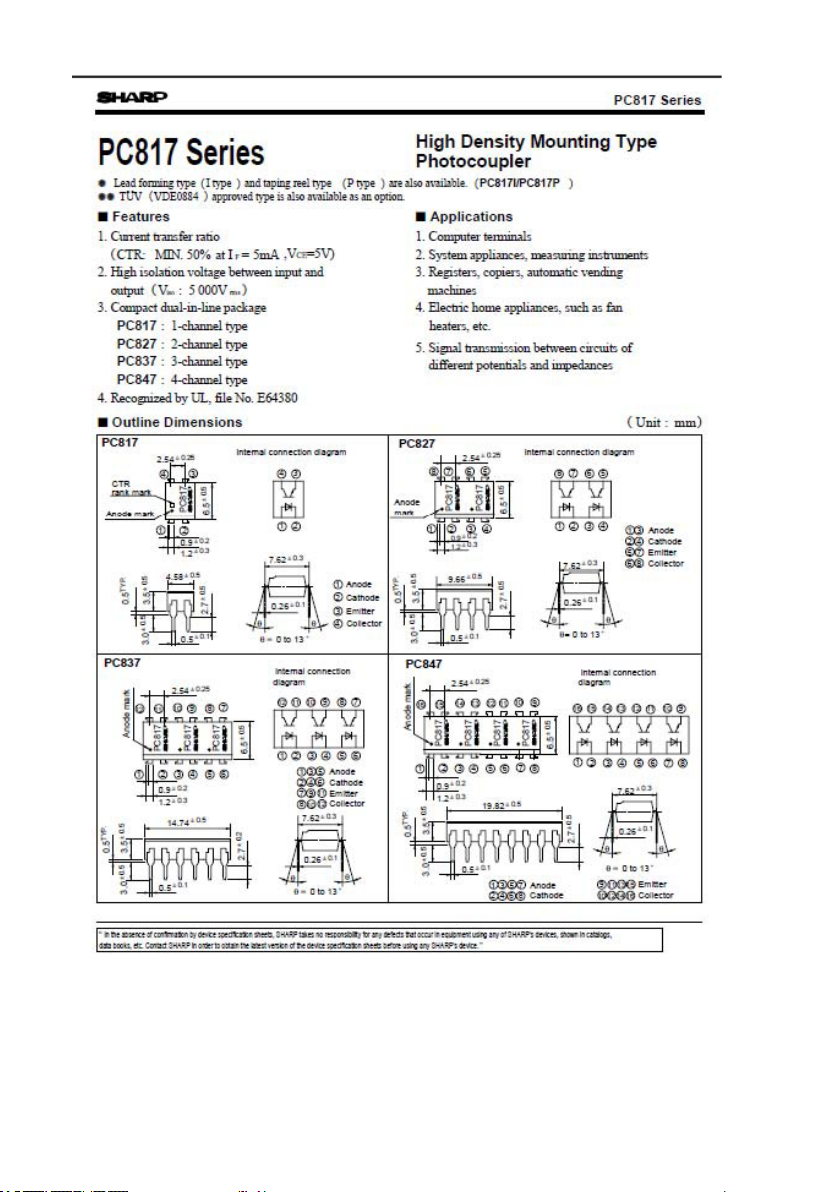

PC817 photo couple chips.
5000V isolation voltage.
16 Relays - 1 x COM/NO
Max switching current: 500mA
Max contact rating for relay: 100V DC
32 LED correspond to I/O ports activation status
Connections via Pluggable Screw Terminals
Features:
For direct DIN-Rail mounting
Also as board without DIN Rail adapter available
High Speed 8051 μC Core
USB 2.0 Function Controller
Support USB ID 0~14 SET
POWER External DC+5V 0,5A (max. 5.2V) - Best is to use
5V/>1A
Software/Driver:
Windows will use HID-interface and sample for program-
ming, Linux driver and sample for programming.
Package includes the following items:
USB 16PR Board
USB cable
Software and Manual CD
The DIN-Rail-version comes with a EMI-Protection-kit
This kit is optional in the board-version!
Operating temperature range: 0 ~ 55C.
Relative humidity rage: 0 ~ 90%.
Size: 250 mm x 120 mm x 55 mm
This device should not be used in applications where failure may result in death or injury without
proper consideration and design of associated system architecture and redundant safety features.
Connection and repairs are allowed only by a specialist.
When used in a machine or plant, is to ensure that after installation continues to the relevant
provisions, rules and guidelines are complied with!
These products come into contact voltage, therefore to consider the applicable VDE regulations
VDE 0550 / 0551, VDE 0700, VDE 0711, especially VDE 0100 and VDE 0860.
Security Note
Data

USB wiring is very sensitive against EMI errors (mainly sparking when opening contacts). The U-EMI-1 Kit is included with the DIN
rail version and includes two Würth folded cores for the USB data cable and a Ferrite sleeve for the power cable. If you are using
a HUB, it should be protected the connection HUB/computer (U-EMI-2)! The kit includes two Würth folded cores for the USB data
cable.
The cores must be mounted as shown in the illustrations, as close as possible on the connectors.
But also the avoidance of errors is very important. Therefore, the careful layout and installation of the wiring is very important!
Folding core on the USB cable to the computer Folding core on the USB cable to the USB IO
1 or 2 x through the core
TB1 - External 5V DC
1 EXT+V 5V+
2 SGND 5V-
More than 5.2V can kill the CPU!
Ferrite sleeve on the power supply cable
The power-supply of our products must be 5V external DC. It is to pay attention to correct polarity. Otherwise, the product could be
damaged. If the board is by wrong power supply except function, you can try new store the rmware.
The U-EMI-1 Kit is included with the DIN rail version, and includes ferrite sleeve, shielded by EMI for the power cable. Are shown
on the image above.
For earlier versions of the Decision-USB IO was also the possibility of the power supply via the USB bus. To get greater stability,
this connection was removed. The USB bus power is not always able to provide enough power for the Relais switched on! The
result is a loss of connection or "hanging" USB module. An external power supply provides a secure power supply!
USB Power Management in Windows - In Window System, USB communication might disconnect under Power Saving Mode or
Sleep Mode. When connecting USB boards on PC, please make sure windows power management set in case interference with
USB communication.
J1 USB Connection USB-B
A suitable cable is included
Power Supply - TB1
VCC +5 VDC (USB VBUS POWER)
D- Data -
D+ Data +
SGND Signal Ground

Multiple Boards Connect
When you need to connect more than 3 boards on one PC, please make sure the following below
1. Set di󰀨erent ID for each board.
2. Supply external 5V to each USB board.
3. Supply external 5V to USB hub.
Please make sure your external 5V power supply enough for the USB I/O boards. If input voltage is below 4.8V for USB I/O board,
it can’t work normally and sometimes it will cause device manager keeping refreshing itself or can’t recognize the device.
To reset the "hanging" USB-Module
Set di󰀨erent ID for each board

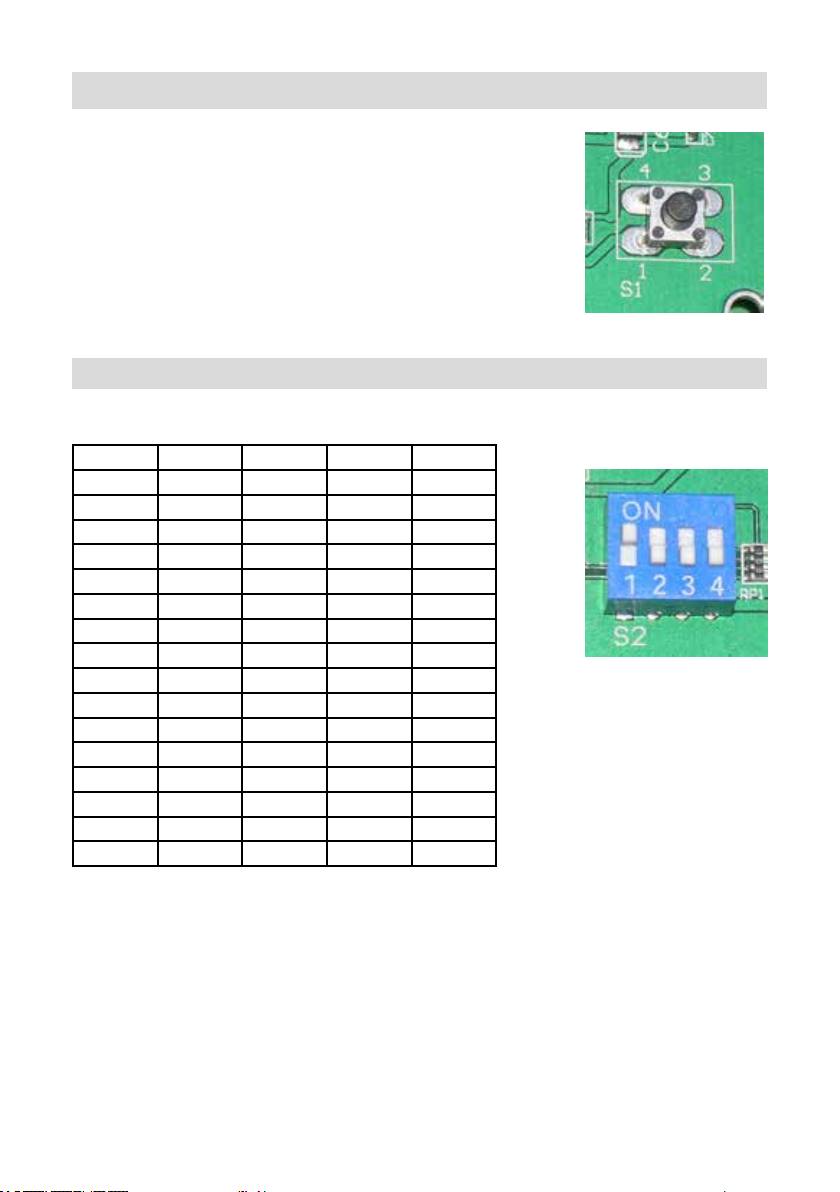

S1 Reset Button
S2 USB ID
1 2 3 4 Card ID
ON ON ON ON --
OFF ON ON ON 14
ON OFF ON ON 13
OFF OFF ON ON 12
ON ON OFF ON 11
OFF ON OFF ON 10
ON OFF OFF ON 9
OFF OFF OFF ON 8
ON ON ON OFF 7
OFF ON ON OFF 6
ON OFF ON OFF 5
OFF OFF ON OFF 4
ON ON OFF OFF 3
OFF ON OFF OFF 2
ON OFF OFF OFF 1
OFF OFF OFF OFF 0

The JP3 is used to select voltage signal opto+ and opto- range of photo couple input channel 1, and the JP4 is used to select
voltage signal range of photo input channel 2, …etc.
Jumper Input Range Inactive Voltage Active Voltage
short 0 to 30V 0 to 1.5V 3 to 20V
open 0 to 30V 0 to 16.5V 18 to 30V
Strong electromagnetic sources, such as power lines, large electric motors, switches, or welders can cause strong electromagnetic
interference. Video monitors and cables are strong sources of interference.
If the cable must be led by an area with signicant electromagnetic interference, shielded cables with grounding on the source
should be used.
Avoid placing your cable parallel to a high-voltage line! to minimize adverse e󰀨ects, insert the cable at right angle to the power line.
TB2/3 ISOLATOR Input Ports
ISOLATOR Input SET JP3 to JP18

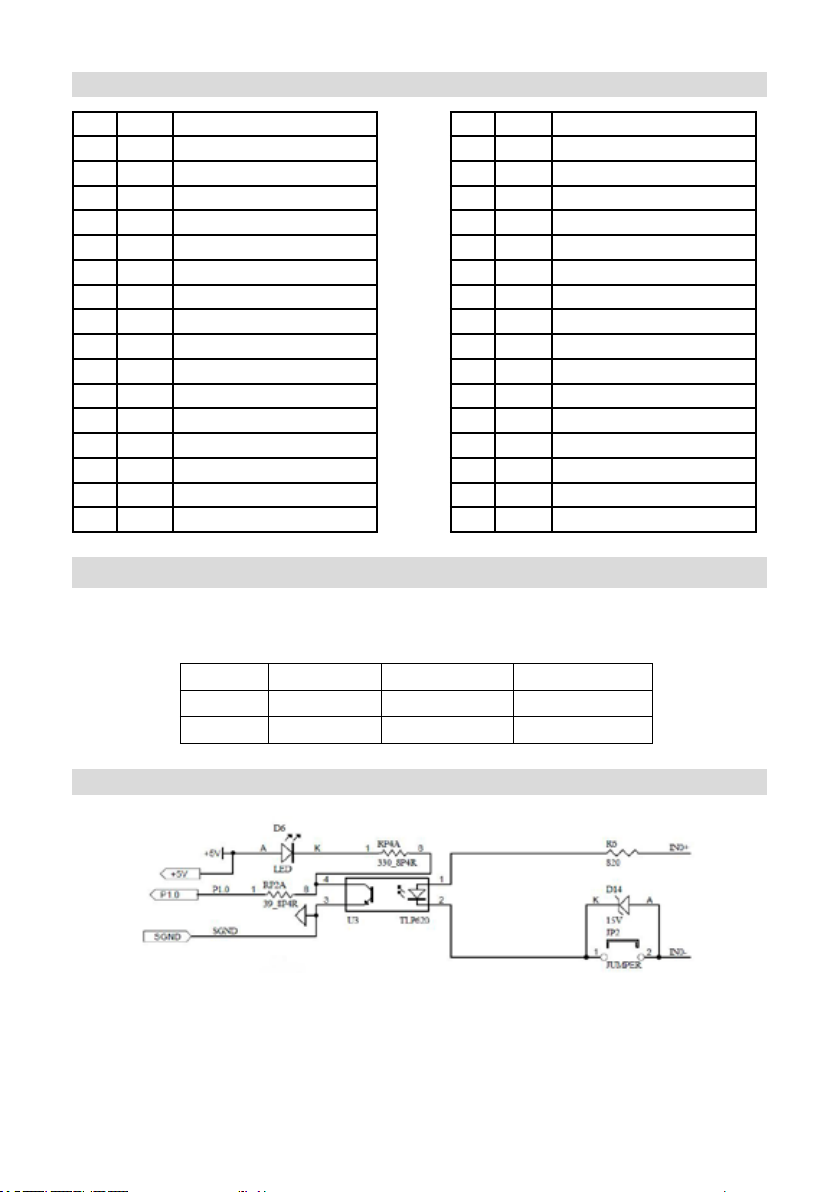

Schematic Input Ports
Pin Signal Description
1 IN0+ Opto-isolator Ch. 00 + Input
2 IN0- Opto-isolator Ch. 00 - Input
3 IN1+ Opto-isolator Ch. 01 + Input
4 IN1- Opto-isolator Ch. 01 - Input
5 IN2+ Opto-isolator Ch. 02 + Input
6 IN2- Opto-isolator Ch. 02 - Input
7 IN3+ Opto-isolator Ch. 03 + Input
8 IN3- Opto-isolator Ch. 03 - Input
9 IN4+ Opto-isolator Ch. 04 + Input
10 IN4- Opto-isolator Ch. 04 - Input
11 IN5+ Opto-isolator Ch. 05 + Input
12 IN5- Opto-isolator Ch. 05 - Input
13 IN6+ Opto-isolator Ch. 06 + Input
14 IN6- Opto-isolator Ch. 06 - Input
15 IN7+ Opto-isolator Ch. 07 + Input
16 IN7- Opto-isolator Ch. 07 - Input
Pin Signal Description
1 IN8+ Opto-isolator Ch. 08 + Input
2 IN8- Opto-isolator Ch. 08 - Input
3 IN9+ Opto-isolator Ch. 09 + Input
4 IN9- Opto-isolator Ch. 09 - Input
5 IN10+ Opto-isolator Ch. 10 + Input
6 IN10- Opto-isolator Ch. 10 - Input
7 IN11+ Opto-isolator Ch. 11 + Input
8 IN11- Opto-isolator Ch. 11 - Input
9 IN12+ Opto-isolator Ch. 12 + Input
10 IN12- Opto-isolator Ch. 12 - Input
11 IN13+ Opto-isolator Ch. 13 + Input
12 IN13- Opto-isolator Ch. 13 - Input
13 IN14+ Opto-isolator Ch. 14 + Input
14 IN14- Opto-isolator Ch. 14 - Input
15 IN15+ Opto-isolator Ch. 15 + Input
16 IN15- Opto-isolator Ch. 15 - Input

When a reed relay is used with an electromagnetic relay or solenoid, the energy stored will cause an inverse voltage when the
reed contacts break. The voltage, although dependent on the inductance value, sometimes reaches as high as several hundred
volts and becomes a major factor to deteriorate the contacts.
• DC: Protection circuit with a diode
• DC and AC: Protection circuit with Varistor or RC-element
The suppressor must be made to the load.
TB4/5 Relay-Output
Schematic Outputs
Contact protection circuits
Pin Signal Description
1 NO 0 Relay Ch. 00 - Output
2 COM 0 Relay Ch. 00 - Output
3 NO 1 Relay Ch. 01 - Output
4 COM 1 Relay Ch. 01 - Output
5 NO 2 Relay Ch. 02 - Output
6 COM 2 Relay Ch. 02 - Output
7 NO 3 Relay Ch. 03 - Output
8 COM 3 Relay Ch. 03 - Output
9 NO 4 Relay Ch. 04 - Output
10 COM 4 Relay Ch. 04 - Output
11 NO 5 Relay Ch. 05 - Output
12 COM 5 Relay Ch. 05 - Output
13 NO 6 Relay Ch. 06 - Output
14 COM 6 Relay Ch. 06 - Output
15 NO 7 Relay Ch. 07 - Output
16 COM 7 Relay Ch. 07 - Output
Pin Signal Description
1 NO 8 Relay Ch. 08 - Output
2 COM 8 Relay Ch. 08 - Output
3 NO 9 Relay Ch. 09 - Output
4 COM 9 Relay Ch. 09 - Output
5 NO 10 Relay Ch. 10 - Output
6 COM 10 Relay Ch. 10 - Output
7 NO 11 Relay Ch. 11 - Output
8 COM 11 Relay Ch. 11 - Output
9 NO 12 Relay Ch. 12 - Output
10 COM 12 Relay Ch. 12 - Output
11 NO 13 Relay Ch. 13 - Output
12 COM 13 Relay Ch. 13 - Output
13 NO 14 Relay Ch. 14 - Output
14 COM 14 Relay Ch. 14 - Output
15 NO 15 Relay Ch. 15 - Output
16 COM 15 Relay Ch. 15 - Output

The decision-computer USB devices use the HID (human interface device). The HID belongs to the generic device class is
integrated in the operating system. If a new HID device is connected, no driver installation is required. The functions for access and
control of HID hid.dll you can nd in the Windows System32 folder.

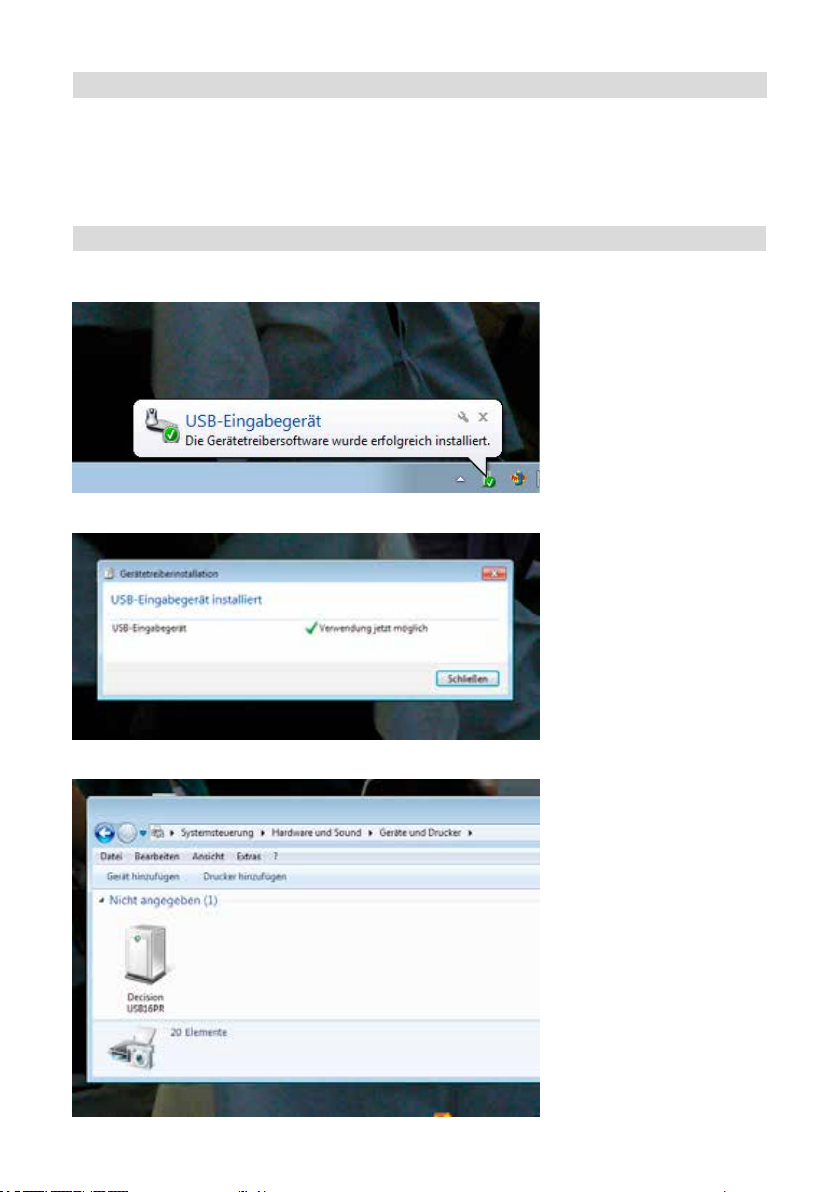

1. Power supply 5V connect
2. USB connect
3. USB input device - device driver
software is successfully installed
4. USB input device - use now
possible
5. In the Control Panel, you can nd
the Decision-USB module now
6. Ready to use
Installation
Windows 7 installation example

On Windows, we o󰀨er a function library and dll le as programming help. See the manual „USBDII_Manual.pdf“ and demo code in
VB/VC / Delphi on the decision-Studio CD.
We o󰀨er a C-source Linux users for direct access to the USB devices. See „Dcihid 0.5.1.tgz“ manual and example.
USB test Program.exe is a diagnostic tool to test USB devices on Windows/XP.
The USB test software can be found on the decision-Studio CD.
The examples and drivers be developed continuously. See the latest on the decision-computer-Merz „Service CD“.
An important way to get more informations you nd at http://www.usb-industrial.com
Software support on the short way: http://www.usb-industrial.com/support.html
Windows Support 2010/04 USBDII.dll
2.0.0.4
This package includes Dynamic-link library which is developed by De-
cision Computer to communicate with the USB Series Device. It can be
included in multiple computer language (VB6, VC6, VB.NET, C# Delphi)
under Windows.
Watchdog Timer This watchdog timer is a kind of software timer that triggers a system
reset or other corrective action if the main program, due to some fault
condition. The intention is to bring the system back from the unresponsi-
ve state into normal operation. This function is new released and please
contact us to get further information.
VCP driver ( For LABKIT Only ) Virtual COM port (VCP) drivers cause the USB device to appear as
an additional COM port available to the PC. Application software can
access the USB device in the same way as it would access a standard
COM port. This function is only implemented in USBLABKIT
Linux Support dcihid - 0.5.1
Basic function library
and demo program
2009.05.01
This package includes a c library and a demo program which is develo-
ped by Decision Computer to communicate with the USB Series Device
under Linux. It also includes a ReadMe le to demonstrate how to use it
and package‘s format is .tgz.
Firmware Update Firmware Hex le
Download
This Package includes a driver and a software which is developed by
Decision Computer to update the newest rmware into the USB Series
Device. When new version of rmware is released, user can follow the
instructions to update the rmware.
LabVIEW Support LabVIEW 8
LabVIEW 2009
This package includes manual and examples which demonstrate how
to connect and develop USB Series Device under LabVIEW,which is a
well-known platform and development environment for a visual program-
ming language from NI.
ProLAB Support This package includes manual and examples which demonstrate how
to connect and develop USB Series Device under ProLAB, which is a
well-known platform and development environment for a visual program-
ming language from Abacom.
Init Value Setting Tool (For Output Channel) The Init Value Setting Tool is a software tool to set init value for output
channel. User can use this tool to plan output channel as default high or
default low when power on.
Data Acquisition and
Remote Monitoring Tool
The Data Acquisition and Remote Monitoring Tool (DARMT) is a soft-
ware tool to record high/low state reports at local computer, and transmit
them to FTP site to achieve data acquisition and remote monitoring
USB Industrial.com Overview:
DIAGNOSTICS UNDER WINDOWS
SOFTWARE PROGRAMMING UNDER WINDOWS AND LINUX

USBBootloader.exe is the tool software to update rmware into the USB SerialDevice Board developed by Decision Computer.
When you get a new version of rmware (.hex), you can follow the steps to update rmware to the board.
1. Remove the external input signal Voltage and only support device power.
2. Set Board Id 15 (All on) for Update Mode and press the Reset button.
3. Connect PC to the Board by USB
4. If this is the rst to use this function, please indicate the driver install path to the Driver Folder to install the driver.
5. Open the Software USBBootloader.exe and press the Open button and indicate the hex le and then press the Download button
to update rmware.
6. Set Board Id between 0 ~ 14 and press Reset button and connect PC again.
The remote control of Decision USB products by LAN
or wireless with a remote-PC is very simple with a multi
port USB Server
Because no driver should be installed to the installation
and programming is very easy.
Under Windows, are the external USB I/O directly in the
Device Manager and can be connect or control such as
in the original host PC.
Some unused holes (2 x 5) for JP1 are located on the board. Here a serial port can be added at a special version, with an optional
expansion board, RS-232 or RS-422/RS-485. The ports are controlled via the USB. Please contact us if necessary
Communication JP1 - only option!
Firmware Update Manual
USB by LAN or Wireless

A.1 Copyright
Copyright DECISION COMPUTER INTERNATIONAL CO., LTD. All rights reserved. No part of
SmartLab software and manual may be produced, transmitted, transcribed, or translated into any
language or computer language, in any form or by any means, electronic, mechanical, magnetic,
optical, chemical, manual, or otherwise, without the prior written permission of DECISION
COMPUTER INTERNATIONAL CO., LTD.
Each piece of SmartLab package permits user to use SmartLab only on a single computer, a
registered user may use the program on a di󰀨erent computer, but may not use the program on
more than one computer at the same time.
Corporate licensing agreements allow duplication and distribution of specic number of copies
within the licensed institution. Duplication of multiple copies is not allowed except through
execution of a licensing agreement. Welcome call for details.
A.2 Warranty Information
SmartLab warrants that for a period of one year from the date of purchase (unless otherwise
specied in the warranty card) that the goods supplied will perform according to the
specications dened in the user manual. Furthermore that the SmartLab product will be
supplied free from defects in materials and workmanship and be fully functional under normal
usage.
In the event of the failure of a SmartLab product within the specied warranty period,
SmartLab will, at its option, replace or repair the item at no additional charge. This limited
warranty does not cover damage resulting from incorrect use, electrical interference, accident, or
modication of the product.
All goods returned for warranty repair must have the serial number intact. Goods without serial
numbers attached will not be covered by the warranty.
The purchaser must pay transportation costs for goods returned. Repaired goods will be
dispatched at the expense of SmartLab.
To ensure that your SmartLab product is covered by the warranty provisions, it is necessary that
you return the Warranty card.
Under this Limited Warranty, SmartLab’s obligations will be limited to repair or replacement only,
of goods found to be defective a specied above during the warranty period. SmartLab is
not liable to the purchaser for any damages or losses of any kind, through the use of, or inability to
use, the SmartLab product.
SmartLab reserves the right to determine what constitutes warranty repair or replacement.
Return Authorization: It is necessary that any returned goods are clearly marked with an RA
number that has been issued by SmartLab. Goods returned without this authorization will not be
attended to.

USB
Dynamic Industrial Interface
V 2.0.1.9
A Universal
Application Programming Interface
To Data Acquisition Products
Users Manual
Design & Implementation by
Decision Computer International Company
No parts of this documentation may be reproduced or transmitted in any
form, by any means (electronic, photocopying, recording, or otherwise)
without the prior written permission of Decision Computer International
Company.
2010/04/20

Contents
1. Introduction 3
2. Features 4
3. Device Type denition 5
4. Data Types of Function calls 6
5. Functions to open and close Devices 7
6. Functions for digital input/output 10
7. Functions for reset hardware device 16
8. Functions for analog input/output 17
9. Functions for watch dog 18
10. Using USBDII with di󰀨erent programming language 20
10.1. C++. 20
10.2 Visual Basic 20
11. Technical support and Feedback 20

1. Introduction
This document provides the USB Dynamic Industrial Interface Specications, including all function
calls, and operating procedures.
Disclaimer:
Decision Computer International Company (DECISION) cannot take responsibility for conse-
quential damages caused by using this software. In no event shall DECISION be liable for any
damages whatsoever (including, without limitation, damages for loss of business prots, business
interruption, loss of business information, or any other pecuniary loss) arising out of the use of or
inability to use this product, even if we have been advised of the possibility of such damages.
Trademark Acknowledgments:
Windows 98, Windows ME, Windows 2000, Windows XP, Windows 7, Visual Basic, Visual C++
are registered trademarks of Microsoft Corporation.
2. Features
The USB Dynamic Industrial Interface (USBDII) was created to provide a standard way to access
the functionality provided by all USB data acquisition products. Specically, the USBDII provides
the following features:
Platform-independent
The library is compatible under Windows 98, Windows ME, Windows 2000, windows XP, Vista,
and Win7. The compatibility under these operation systems guarantees that programs written for
either operating system will work unchanged on the other, even without recompilation.
Abstracts Card Functionality from Card Design
The interface concentrates on a card’s functionality and hides the user from having to know
specics about the card design, for example, which port needs to be accessed in order to access
specic functionality. All details of the card implementation are hidden from the user.
Multiple Device Support
You could access device by its name or by its information (device type, id index).
Programming Language Independent
The library provides a language independent way to access the USB industrial I/O cards, by using
a Dynamic-Link-Library architecture.

3. Device Type Denition
Below are names for device types and its' corresponding dened value:
USB_16PIO 0x01 // USB 16 Channel Photo Input / 16 Channel Photo Output Board
USB_LABKIT 0x02 // USB LABKIT
USB_16PR 0x03 // USB 16 Channel Photo Input / 16 Channel Relay Output Board
USB_STARTER 0x04 // USB STARTER
USB_8PR 0x06 // USB 8 Channel Photo Input / 8 Channel Relay Output Board
USB_4PR 0x07 // USB 4 Channel Photo Input / 4 Channel Relay Output Board
USB_8PI 0x08 // USB 8 Channel Photo Input Board
USB_8RO 0x09 // USB 8 Channel Relay Output Board
USB_16PI 0x0A // USB 16 Channel Photo Input Board
USB_16RO 0x0B // USB 16 Channel Relay Output Board
USB_32PI 0x0C // USB 32 Channel Photo Input Board
USB_32RO 0x0D // USB 32 Channel Relay Output Board
USB_IND 0x0E // USB Industry Board
USB_M_4IO 0x10 // USB Mini 4 I/O
Notice : Please use this function to open USB_14ADDA or USB_16ADDA.
4. Data Types of Function calls
Since the USBDII was developed in the C++ language, some data types used may not be present
in the programming language you want to use. Please nd the following data type conversion
table for your convenience:
HANDLE An opaque 32-bit integer
BYTE A 8-bit unsigned integer
BOOL A 32-bit integer, either 0 (FALSE) or 1 (TRUE)
DWORD A 32-bit unsigned integer
HWND A 32-bit integer representing a valid handle to a Window
LPTSTR A 32-bit at pointer to a zero terminated string
LPBOOL A 32-bit at pointer to a variable of type BOOL
LPBYTE A 32-bit at pointer to a variable of type BYTE
LPDWORD A 32-bit at pointer to a variable of type DWORD
Also note that the DLL employs the Standard Call (Pascal) calling mechanism, which is used for
all system. USBDII as well and is compatible with VB, VC, Delphi, .NET, and notice the variable
with same type name may have di󰀨erent dene in di󰀨erent program language. For example, in
Visual Basic 6, the width of Integer is 16 bits and the width of Long is 32 bits, but in Visual Basic.
Net, the width of Integer becomes 32 bits and the width of Long becomes 64 bits. If you declare
variable with di󰀨erent width from our dene, it may cause some run-time error.

5. Functions to open and close Devices
hid_OpenDevice
This function opens a device for further access by USB. Please do not use this
function to open USB_14ADDA or USB_16ADDA.
Declaration
HANDLE hid_OpenDevice ( DWORD device_type,
DWORD device_id );
Parameters
device_type The type of the device to open.
device_id Device's id on the Board.
For more information, please see “Device Type Table & ID Table” following below.
Return value
A valid handle representing the device, or INVALID_HANDLE_VALUE (-1) if an error occurred. For
USB_STARTER, there is no ID selection and device_id = 0
Example
HANDLE hDevice = hid_OpenDevice(Device Type, Device Index); if (hDevice == INVALID_
HANDLE_VALUE)
{
MessageBox (NULL,“Open Failed!“,“Error“,MB_OK);
}
----------------------------------------------------------------------------------------------------------------------------------
hid_CloseDevice
This function closes a device by USB.
Declaration
BOOL hid_CloseDevice (HANDLE hDevice)
Parameters
hDevice A valid device handle.
Return value
TRUE if successful, FALSE otherwise.
Example
hid_CloseDevice(hDevice);

com_OpenDevice
This function opens a device for further access by Serial Port. Please use this
function to open USB_14ADDA or USB_16ADDA.
Declaration
HANDLE com_OpenDevice ( DWORD device_type,
DWORD device_id,
DWORD port_num );
Parameters
device_type The type of the device to open.
device_id Device's id on the board.
For more information, please see “Device Type Table & ID Table” following
below.
port_num Com Port Num to open.
Return value
A valid handle representing the device, or INVALID_HANDLE_VALUE (-1) if an error occurred.
Example
HANDLE hDevice = com_OpenDevice(Device Type, Device Index, 1); if (hDevice == INVALID_
HANDLE_VALUE)
MessageBox (NULL,“Open Failed!“,“Error“,MB_OK);
