Met One Instruments 010C User manual

Features
•Low starting threshold
•Internal heater for long bearing life
•High damping ratio
•Low profile to minimize “sensor
turbulence”
•Short delay distance
•Quick-disconnect connector
•Ingress Protection Level 65 (IP65)
•Field-replaceable electronic
components

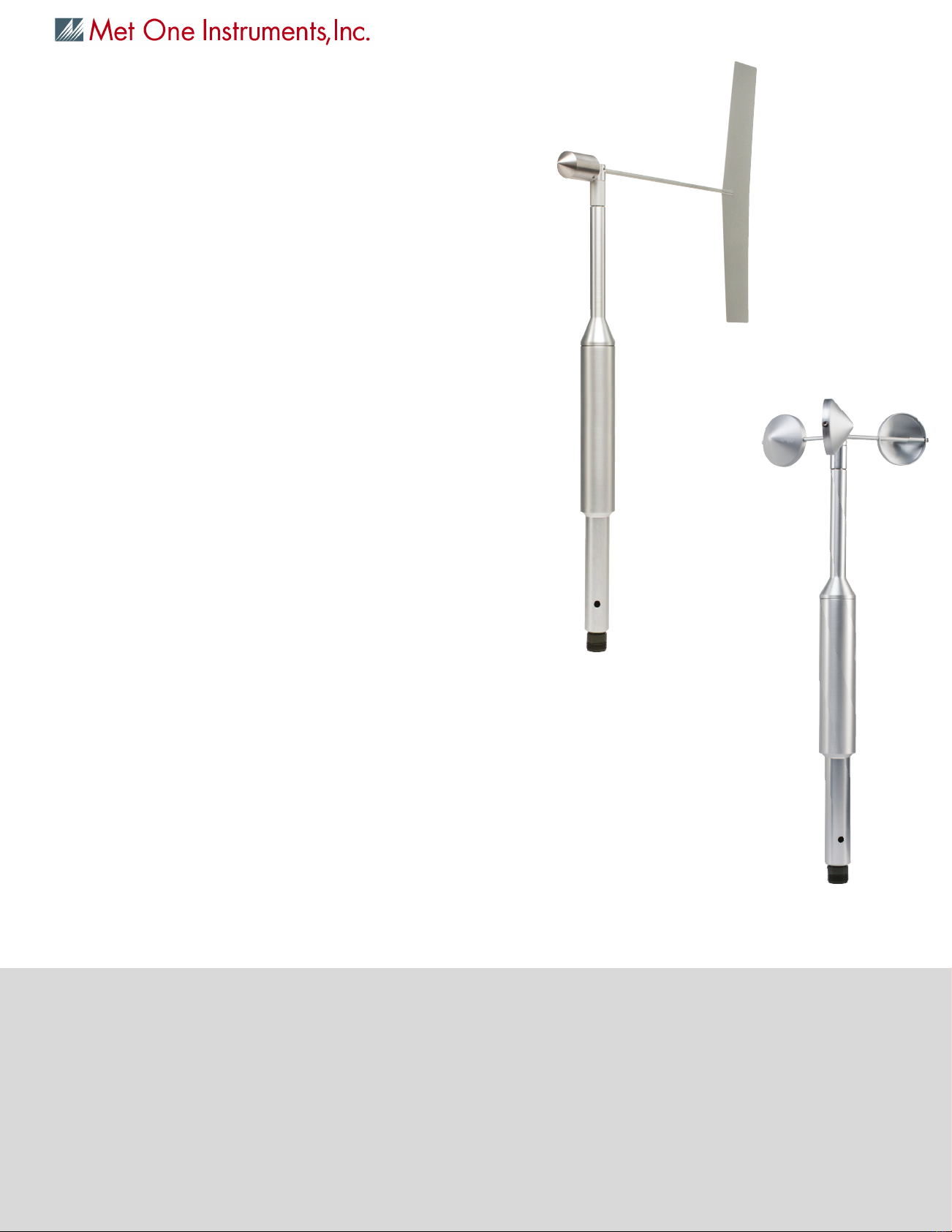

020D Wind Direction Sensor
010C Wind Speed Sensor
010C Wind Speed Sensor
020D Wind Direction Sensor
Both wind speed and wind direction sensors
are used in environments ranging from
Antarctic cold to arid desert heat. The 010C
010C-1 and 020D instruments meet U.S. EPA
and NRC performance specifications for
critical regulatory, research or scientific
measurement applications.
The 010C Wind Speed Sensor provides accurate and detailed information on
horizontal wind speed. The lightweight three-cup anemometer is used in virtually
all applications where fast response and low starting threshold(s) are of paramount
importance.
The 020D Wind Direction Sensor provides azimuth data for use in micro-
meteorological measurements related to operational studies and research. The
lightweight airfoil vane is directly coupled to a single precision potentiometer. These
sensors are especially useful when a low starting threshold, a high damping ratio, or
a short delay distance is required.
Reliability
The 010C and 020D are made of stainless steel and anodized
aluminum components and are functionally more reliable than any
other sensors of their kind:
•BBuilt-in electrical field surge protection greatly reduces
problems associated with static fields, near-miss lightning
hits and poor grounding systems
•Inclusion of Met One Instruments’ internal heater (AC use
only) provides positive clean aspiration through the bearings, thereby
greatly increasing sensor bearing life
•Optional, external de-icing heater sleeve for applications
where freezing rain, ice and low wind speeds may be encountered

010C Wind Speed Sensor
020D Wind Direction Sensor
0-135mph (0-60m/s)
0.5 mph (0.22 m/s)
0 -112 mph (0 -50 m/s)
±1% or 0.15 mph (0.07 m/s)
Resolution <0.1 mph or m/s
-50°C to +65°C (-58°F to +149°F)
less than 5 It (1.5m) of flow (meets EPA specifications)
12 VDC at 10 mA, 12 VDC at 350 mA for internal heater
11 volt (pulse frequency equivalent to speed)
100 Ω maximum
1.5 Ibs (.68 kg)
Clear anodized aluminum; Lexan cup assembly
Cable Assembly; specify length in feet or meters
PN 191 Crossarm Assembly
Electrical 0° -357°
Mechanical 0° -360°
0.5 mph (0.22 m/s)
±1/2% of full scale
±3°
Resolution <0.1 °
Standard 0.6 (magnesium tail) (meets EPA specifications)
Less than 3 ft (91 cm)
-50°C to +65°C (-58°F to +149°F
12 VDC at 10 mA, 12 VDC at 350 mA for internal heater
0-5, 0-2.5 (optional 0-1) VDC for 0° -360°
Ωmaximum
1.5 Ibs (.68 kg)
Clear anodized aluminum
Cable Assembly; specify length in feet or meters PN 191-1
Crossarm Assembly
15 ft. (4.6 m) aluminum cup assembly (meets EPA specifications)
0.25 (aluminum tail)
010C Wind Speed Sensor
Performance Characteristics
Maximum Operating Range:
Starting Speed:
Calibrated Range:
Accuracy:
Temperature Range:
Distance Constant:
Electrical Characteristics
Power Requirements:
Output Signal:
Output Impedance:
Physical Characteristics
Weight:
Finish:
Cable & Mounting
PN 1953
Mounting:
020DWind Directon Sensor
Performance Characteristics
Azimuth:
Threshold:
Linearity:
Accuracy:
Damping Ratio:
Delay Distance:
Temperature Range:
Electrical Characteristics
Power Requirements:
Output Signal:
Output Impedance:
Physical Characteristics
Weight:
Finish:
Cable & Mounting
PN 1957
Mounting:
Wind Sensors W/ Aluminum Cups & Vane
010C Distance Constant:
020D Damping Ratio:
Specifications are subject to change at any
time.
Specifications

Technical Drawings
020D Wind Direction Sensor
191-1 Mounting Arm & 010C-020D
010C Wind Speed Sensor
1.05 (27 mm)
DIAMETER MOUNTING
1.05 (27 mm) D
SHOWN WITH
5315 ICE SKIRT
(Optional)
MS CONNECTOR
MS CONNECTOR 1553 MOUNTING ADAPTER
1686 ALIGNMENT ADAPTER
1552 MOUNTING ADAPTER
DIAMETER TO FIT
3/4” IPS PIPE 1552 MOUNTING
ADAPTER
3/4” IPS PIPE
1” DIAMETER
191-1 CROSS ARM ASSEMBLY
CABLE 1957
2.50” (64 mm)
17.75” (451 mm)
1.50 (38 mm) D
1.05 (27 mm)
DIAMETER MOUNTING
SHOWN WITH
5315 ICE SKIRT
(Optional)
MS CONNECTOR
CABLE 1953
4.50” (114 mm)
22.95” (583 mm)
22.95” (583 mm)
12.00” (305 mm)
12.00” (305 mm)
10.37” (263 mm)
VANE ROTATION DIAMETER
10.37” (263 mm)
VANE ROTATION
DIAMETER
8.00” (203 mm)
60.00” (1524 mm)
16.92” (430 mm)
16.92” (430 mm) 16.92” (430 mm)
C
L
C
L
010C Wind Speed Sensor
020D Wind Direction Sensor
August 2019
B Met One lnstruments,lnc.
1600 Washington Blvd. Grants Pass, Oregon 97526 Phone: [phone]
Sales: [email protected] | Service: [email protected] | Website: www.metone.com

MODEL 020D
WIND DIRECTION SENSOR
OPERATION MANUAL
Document No 020D-9800
Met One Instruments, Inc
Corporate Sales & Service: 1600 NW Washington Blvd. Grants Pass, OR 97526
Tel [phone] Fax [phone]
www.metone.com - [email protected]m

020D-9800 REV A Page 1
Copyright Notice
© Copyright 2020 Met One Instruments, Inc. All Rights Reserved Worldwide. No part of
this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or
translated into any other language in any form by any means without the express written
permission of Met One Instruments, Inc.
Technical Support
Should you require support, please consult your printed documentation or our website
www.metone.com to resolve your problem. If you are still experiencing difficulty, you may
contact a Technical Service representative during normal business hours;
Monday – Friday 7:00 a.m. to 4:00 p.m. Pacific Time.
Voice: [phone]
Fax: [phone]
E-Mail: [e-mail]
Mail: Technical Services Department
Met One Instruments, Inc.
1600 NW Washington Blvd
Grants Pass, OR 97526

020D-9800 REV A Page 2

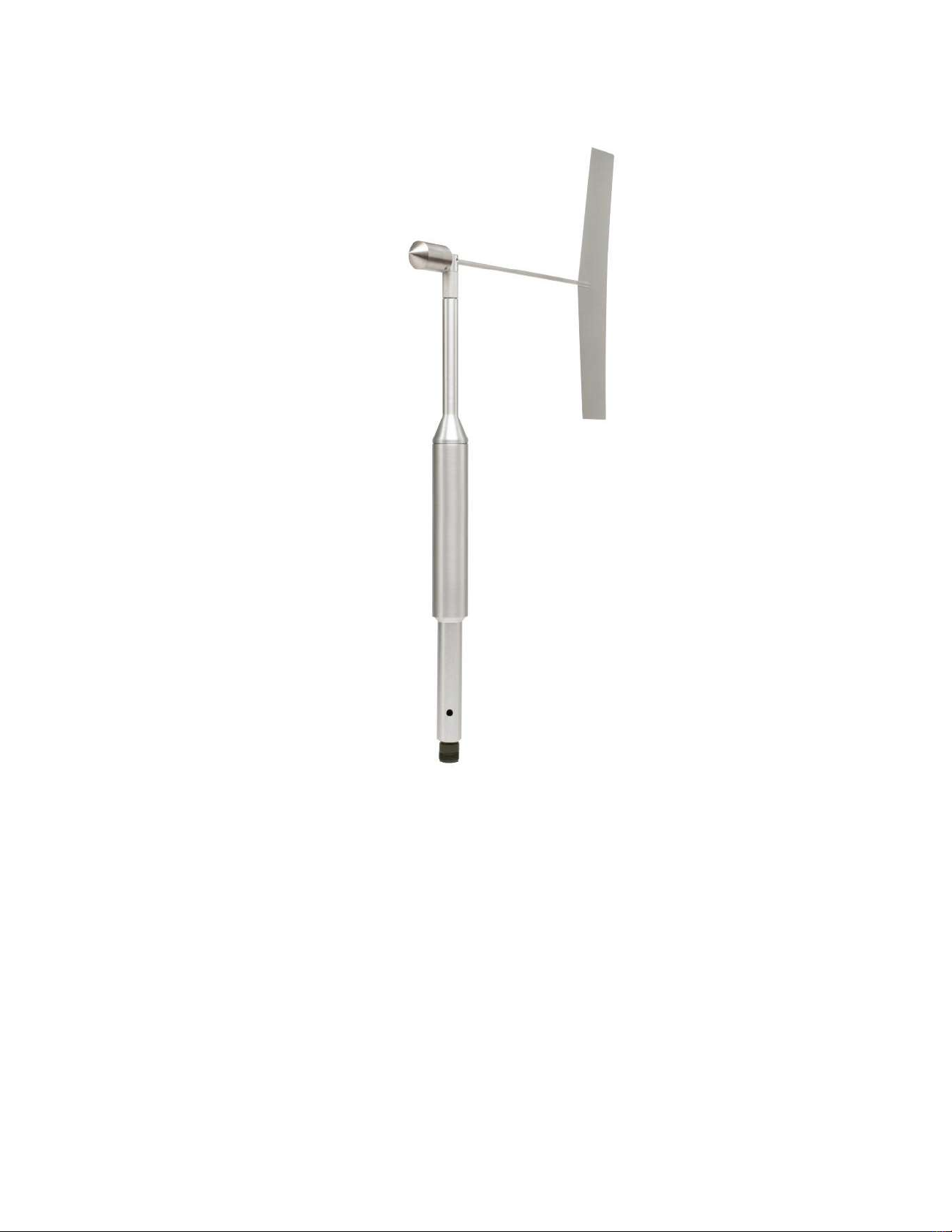

020D WIND DIRECTION SENSOR
OPERATION MANUAL
1.0 GENERAL INFORMATION
1.1 The Model 020D Wind Direction Sensor uses a lightweight, vane and a micro torque
potentiometer to produce an analog voltage output proportional to wind direction. An
internal heater reduces moisture for extended bearing life. The sensor mounts in a
crossarm assembly, such as the Met One Instruments’ Model 191-1.
1.2 The sensor cable has a quick-connect connector with vinyl-jacketed, shielded cable.
Cable length is given in-XX feet on each cable part number. A 1957-XX cable is
supplied for translators and data loggers having terminal strip connections. (Color
code, Figure 2-1).

020D-9800 REV A Page 3
Model 020D Wind Direction Sensor Specifications
Performance
Azimuth Electrical 0-356, Mechanical 0-360
Threshold 0.6 mph
Linearity  ½% of full scale
Accuracy 3
Damping Ratio 0.4
Delay Distance Less than 3 feet
Temperature Range -50C to +85C
Electrical Characteristics
Input Power 9-18 VDC, 10 mA
Output* a. 0-5 volts for 0-360 (default setting)
b. 0-2.5 volts for 0-360 (user selectable)
Output Impedance 100 Ohms maximum
Maximum Cable Length 300 feet
Physical Characteristics
Weight 1.1 pounds
Finish Anodized Aluminum
Mounting Use with Crossarm Model 191 or equivalent
Cabling 1957-XX Cable (XX is cable length in feet)
Optional Accessories
A. External heater and power supply for extreme low temperature operation.
B. Aluminum vane assembly.
C. Model 040 Degree Wheel Calibrator.
D. Model 042 Telescopic Orientation Fixture.

020D-9800 REV A Page 4
2.0 INSTALLATION
2.1 Model 020D Wind direction Sensor Installation
A. Select output voltage range. Slide outer cover down to expose circuit board.
Connect the Yellow connector wire to J2-2 for 0-5v output, or J2-3 for 0-2.5v
output.
B. Check to see that the vane assembly rotates freely.
C. Makes sure that the vane assembly is properly balanced and that the balance
counterweight is tight. With the vane mounted, hold the sensor horizontal. Verify
balance.
D. Install the sensor in the crossarm with the keyed bushing. The orientation screw
in the stem of the wind direction sensor will fit through the hole in the mounting
bushing.
E. Connect the cable assembly to the keyed sensor receptacle and secure it to the
mounting arm using cable ties.
2.2 Model 020 Wind Direction Sensor Alignment
(Refer to Figure 2-1 “Typical 020D Installation”). The Orientation screw located on
the stem of the sensor is to be oriented so that it points south. Proceed as follows:
A. Tape the sensor hub and column together so that the notches on each part are
exactly aligned.
B. Loosen the two set screws in the alignment bushing so that the sensor and
bushing may be rotated.
C. Rotate the sensor so that vane (counterweight end) points directly south.
D. A transit located either directly south or directly north will facilitate the alignment
process; merely rotate sensor until vane and sensor column merge completely,
then tighten the set screws into the mounting bushing.
E. Optional alignment accessories are available:
1. A telescopic orientation device, which is inserted into alignment bushing
until alignment is achieved. Bushing is locked and orientation device is
removed and wind direction sensor installed.
2. A compass orientation device operates in similar manner, but is not
suitable for steel towers or poles.

020D-9800 REV A Page 5
2.3 Wiring
The cable assembly contains five wires. Typical wiring hookup is shown in Figure 2-1.
2.4 Lightning Protection
Weather sensors are sensitive to direct or nearby lightning strikes. A well-grounded
metal rod or frame should be placed above the sensor installation. In addition, the
shield on the signal cable (white/brown wire) must be connected to a good earth
ground at the translator end, and the cable route should not be vulnerable to
lightning.

020D-9800 REV A Page 6
3.0 OPERATIONAL CHECK-OUT
3.1 020D Wind Direction Sensor Check-Out (standard 360 operation)
A. With the sensor connected to the input, upon movement of the sensor’s vane in a
clockwise direction (as seen from above), the module’s output will move up-
scale. Movement of the module’s output will progress up-scale until the 360 (full
scale) mark has been reached; then output will drop to 0. When the notches on
the rotating hub and the column of the sensor are exactly aligned, the output
signal will correspond to 180.
3.2 020D Wind Direction Sensor Check-Out (with 540 conversion electronics)
A. With the sensor connected to the input, upon movement of the sensor’s vane in a
clockwise direction (as seen from above), the module’s output will move up-
scale. Movement of the module’s output will progress up-scale until the 540 (full
scale) mark has been reached, and then the output will drop to 180. Continued
clockwise rotation will again bring the module’s output up-scale to 540 and the
action is repeated. When the notches on the rotating hub and the column of the
sensor are exactly aligned, the output signal will correspond to 180 (or 540 on
the expanded scale.
3.3 If the sensor heater is used, then check internal heater operation by sliding sensor
cover down and touching the housing behind the printed circuit board. The housing
should feet warmer than the adjoining metal parts. The sensor has a built-in heater
that is designed to provide a raise in the internal temperature, providing a small
positive pressure. This heater requires an external 12V (@ 350 ma) power supply.

020D-9800 REV A Page 7
4.0 MAINTENANCE AND TROUBLESHOOTING
4.1 General Maintenance Schedule
6-12 Month Intervals:
A. Inspect Sensor for proper operation per Section 3.1 or 3.2.
B. Calibration as required per Section 4.4.
12-24 Month Intervals:
A. Replacement of sensor bearings as per Section 4.5.
B. Replacement of potentiometer as per Section 4.6
Table 4-1
020D Wind Direction Sensor Troubleshooting
Symptom Probable Cause Solution Refer to
No wind direction
output
Loss of supply
voltage
Check +12V supply
and connecting
cables
Figure 2-1
Faulty circuit
amplifier (output
often will be steady
5.0V)
Replace 2840-2 PCB Section 4.8
Faulty potentiometer Replace
potentiometer
Section 4.6
No change in
wind direction
output below 2-5
mph
Bad bearings Replace bearings Section 4.5

020D-9800 REV A Page 8
4.2 020D Wind Direction Sensor: 6-12 Month Periodic Service (Refer to Assembly
Drawing)
A. At the crossarm assembly, disconnect the quick disconnect plug from the sensor
(leave the cable secured to the crossarm). Remove the sensor from the
crossarm assembly bushing. Leave the bushing secure in the fitting.
B. Loosen the set screw on the bottom edge of the vane hub. Support the rotating
hub of the sensor with one hand and pull the vane assembly free.
C. Visually inspect the wind vane assembly to ensure that the wind vane and
counterweight are securely attached to the wind vane rod, and that the set screw
in the top edge of the rotating hub holds the rod in place.
D. Slide the sensor cover down to expose the potentiometer assembly and signal
conditioning module.
E. Inspect the interior of the sensor for any signs of corrosion.
F. Inspect the potentiometer for loose wires, cracks, and corrosion.
G. Inspect the shaft coupler for proper position. Make sure that the marks on the
rotating hub and the column assembly are aligned, and that all special set screws
are tight.
H. Inspect the circuit board assembly for cracks and corrosion. See Section 4.6 B.
I. Rotate the sensor hub assembly to make sure that it turns freely, and that the
sensor bearings are not damaged.
J. Make sure that the potentiometer assembly is rigid in its holder.
K. Apply a small amount of silicone lubricant (Dow Corning DC-33 or equivalent) to
the sensor O-ring seals. Slide the cover up over the sensor and wipe off any
excess lubricant.
L. Support the rotating hub of the sensor with one hand and mount the wind vane
assembly on the hub. The wind vane assembly is keyed to fit the pin on the hub.
Tighten the set screw in the bottom edge of the vane hub.
M. A moisture vent is located on the base of the sensor. Make sure that this vent is
clear.
N. Reinstall sensor according to installation procedure (Section 2.1); verify proper
operation using procedures in Section 3.1 and 3.2.

020D-9800 REV A Page 9

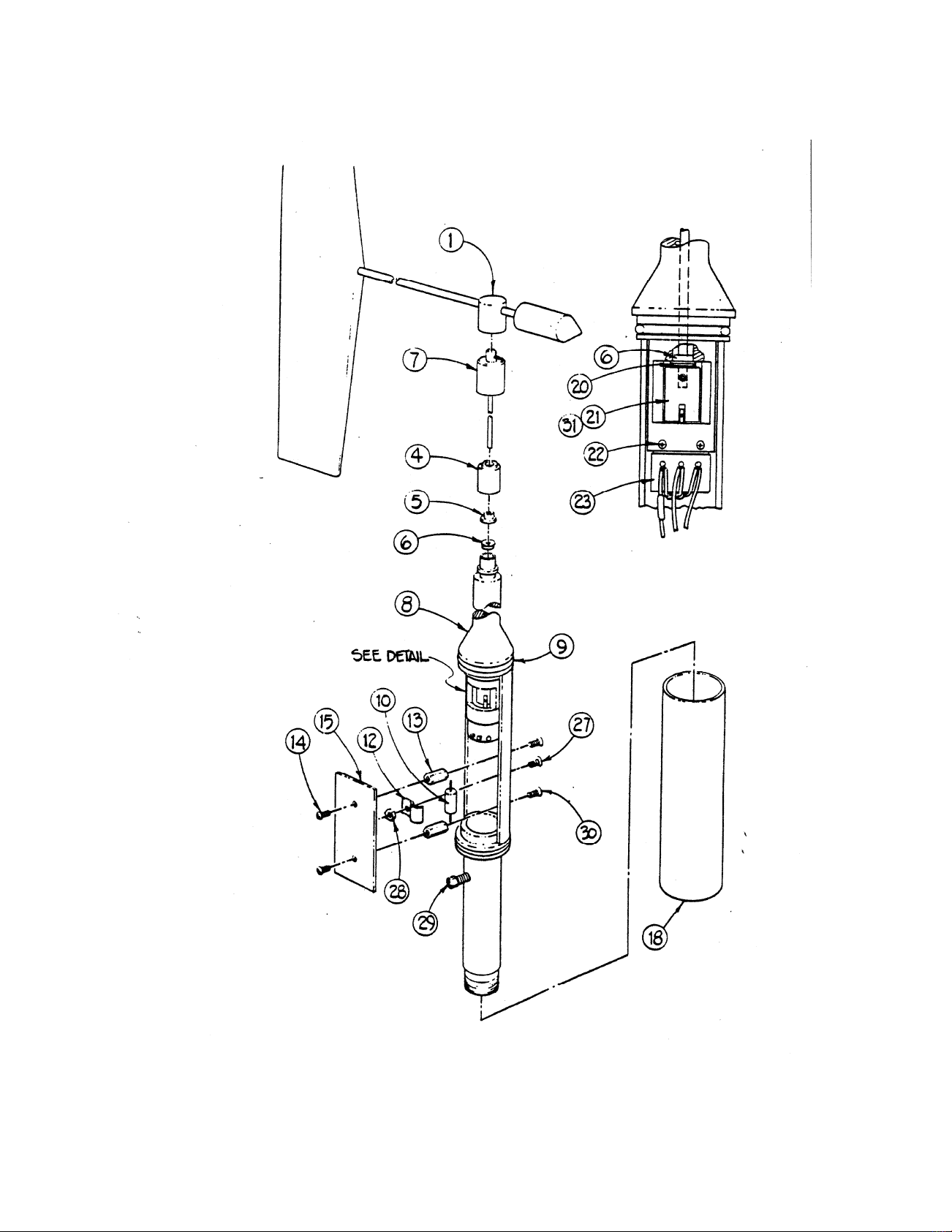

4.3 020D Wind direction Sensor Maintenance (Refer to 020D drawing for assembly
information)
The following procedures require a relatively clean, dry work area, a source of 12
VDC power at approximately 20 mA, a Model 040 Degree Wheel, and a 4-1/2 digit or
better digital voltmeter.
4.4 020D Wind Sensor Calibration
Any time the bearing, shaft, hub or potentiometer is removed and replaced, the
alignment of the potentiometer must be reestablished. Perform the following steps
for calibration:
A. Connect the sensor to a 12-volt power supply:
Pin A +12V
Pin B Common
B. Connect a high impedance digital (4-1/2 digit or better, see above) voltmeter
between common and Pin C (signal output).
C. Slide the Model 040 Degree Wheel onto the column of the wind direction sensor.
Install the 040 Pointer Assembly onto the rotating hub. Tape sensor hub and
column together so that the notches on both parts are exactly aligned.
D. Slide the degree wheel up to the pointer, allowing clearance space, and rotate
the degree wheel until the pointer is at exactly 180 on the wheel. Tighten the
degree wheel to the column, checking to ensure that it does not interfere with the
rotation of the pointer.
E. Remove tape and rotate the pointer, then recheck the alignment of the two
notches with the 180 mark on the degree wheel. Readjust if necessary.
F. Loosen the set screws in the shaft coupler (#21).
G. Place the pointer at 180 and rotate the potentiometer shaft coupler so that an
output of 2.500 0.005V (1.250V with a 2.5V output range) is measured. Tighten
set screws in the drive coupler (#21) and recheck at 180. Readjust if necessary.
H. Reconnect digital voltmeter to Pin C of the sensor connector and rotate the
pointer to 180. The output reading should be 2.500V 40mV (1.25V 20mV with
2.5V output range).
I. Remove 040 Degree Wheel and pointer. This completes the alignment
procedure.

020D-9800 REV A Page 10
4.5 Sensor Bearing Replacement (Refer to 020D Sensor Assembly drawing)
A. Remove sensor from tower and remove vane assembly. Refer to Section 4.2.
B. Disassemble sensor and remove old bearing. (#6)(Refer to Assembly Drawing)
1. Slide the sensor cover (18) down to expose the potentiometer assembly
(23) and circuit board assembly (15).
2. Make sure that the two (lower) special set screws on the COUPLER (21)
next to the potentiometer are tight, and then loosen the two (upper)
special set screws.
NOTE: Any time the shaft coupler assembly is removed, the
potentiometer alignment procedures outlined in Section 4.3 must be
performed.
3. Slowly pull the rotating hub/shaft assembly (7) out of the column (8).
4. Remove the shield (4) and slinger (5) from the column.
5. Insert a right-angle type of tool, such as an Allen wrench, into the bearing;
cock it slightly to one side and remove the bearing (6).
6. Clean dirt from bearing bore, using a cotton swab and alcohol.
C. Install the new bearing and assemble the sensor.
1. Install new upper bearing in the column assembly. Bearing should slide
easily into bearing bore.
CAUTION: Do not lubricate bearing. Do not force.
2. Install slinger (4) and shield (5) on the column (8).
3. Insert the rotating hub/shaft assembly (7) into the column (8), through the
shield (4), slinger (5), and bearing (6).
4. Support the drive coupler (21) with one hand and slowly push the rotating
hub/shaft assembly (7) into it until the shaft bottoms.
D. Recalibrate sensor in accordance with Section 4.3.
E. Replace vane assembly and reinstall (refer to Section 2.1).

020D-9800 REV A Page 11
4.6 Potentiometer Replacement (Refer to 020D Sensor Assembly drawing)
A. Remove sensor from tower and vane assembly. Refer to Section 4.2.
B. Disassemble sensor:
1. Slide the sensor cover (18) down to expose the potentiometer assembly
(23) and circuit board assembly (15). Loosen the 3 terminal block screws
on the 2840-2 circuit board, and disconnect the potentiometer wires.
2. Loosen the two set screws in coupler holding potentiometer.
3. Remove the three recessed Phillips head screws from the top housing
and remove the column and pot assembly.
4. Remove three screws (22) to separate potentiometer from column.
C. Install New Potentiometer by following above instructions in reverse order.
D. Recalibrate sensor as per Section 4.4.
E. Replace vane assembly and reinstall (refer to Section 2.1).
4.7 2840 Circuit Board Assembly replacement. (Refer to 020D Assembly drawing)
A. Remove sensor from tower and remove vane assembly (refer to Section 4.2).
B. Slide the sensor cover down to expose the sensor interior.
C. Remove two screws (14) holding circuit board assembly (15). Note color of
wires.
D. Loosen all terminal block wires to potentiometer assembly and note color and
position of wires.
E. Loosen all terminal block wires to connector and note color and position of wires.
F. Install new circuit board assembly by reversing above procedure.
G. Adjust potentiometer R7 or R6 according to procedure of Section 4.5.
H. Replace vane assembly and reinstall (refer to Section 2.1).

020D-9800 REV A Page 12
4.8 020D Wind Direction Sensor Repair and Recalibration Service
The factory provides fast, economical service for the user. This repair and
calibration service includes disassembly and detailed inspection of all moving
mechanical parts and electronic components.
Service includes replacement of bearings, regardless of apparent condition,
calibration, and functional test of sensor. Replacement of the following items, if
necessary, is also included: O-rings, shield and slinger, shaft, set screws. Charges
for any additional materials will be added to the basic service charge.
Table 4-2
020D Replaceable Parts List
ITEM # PART # DESCRIPTION
1 10296 Magnesium Vane Assembly, or
2755 Alum Vane Assembly
4 1009 Shield
5 1010 Slinger
6 1055 Bearing
7 2658 Hub/Shaft Assembly
9 720120 O-ring
10 805080 Resister 5W, 35
12 480100 Cable Clamp
13 860050 Standoff
14 601240 Screw, PH 4-40x1/4
15 2840-2 PCBA Assembly
18 2675 Cover
21 2727 Coupler, Direct
22 601070 Screw PH 2-56 x 1/8
23 10889 Potentiometer Assembly
27 601330 Screw, FH 82 4-40 x 3/8
28 600400 Nut, Hex, Kep 4-40
29 601850 Screw, Soc. Hd Cap 10-32x5/8
30 601240 Screw, FH 82 4-40x1/4
31 601251 Set Screw 4-40x1/8

020D-9800 REV A Page 13

REPAIR AND FIELD MAINTENANCE
A complete repair and service department is maintained at our factory in Grants Pass, Oregon, and at our regional service facility in
Dallas, Texas. Most repairs can be made in the field by a simple substitution of components. Some repairs do require recalibration
following the replacement of faulty components. If calibration standards are not available, the instrument can be returned to our
service facility. The turn around time is generally less than five (5) working days.
RETURN AUTHORIZATION
Prior to any product return, please contact the factory for a return authorization number.
BASIC SERVICE(S)
ORDER #
DESCRIPTION
SVC0020 020/5470 WD SENSOR STD. REPAIR
Inspection and Performance Test. Replace Bearing, Slinger
and Shield. Check Starting Threshold, NIST Calibration and
Linearity.
SVC0100 "AS FOUND" SENSOR TEST, BENCH
REPLACEABLE PARTS
Note: Replacement of some of the following parts will require re-calibration of the sensor. Those replacement items that
require re-calibration of the sensor are indicated with an “ * “. Instructions are provided in the Product User’s Manual.
Ref# PART # DESCRIPTION
1 2755 VANE ASSEMBLY, ALUM. (020C-1)
1 10296 MAGNESIUM VANE ASSY, 020C, 021C
4* 1009 SHIELD WS/WD
5* 1010 SLINGER WS/WD
6* 1055 BEARING
7* 2658 HUB/SHAFT ASSY
9 720120 O RING
10 805080 RES. 5W 1% 35 OHM WW
12 480100 HEATER CLAMP
13 860050 STANDOFF
14 601240 SCREW, PAN HD PHIL 4-40 X 1/4" SS
15* 2840-1 PCBA WD 020C
18 2675 SENSOR COVER
21* 2727 COUPLER, DIRECT
22 601070 SCREW, PH 2-56 X 1/8
23* 2017 POTENTIOMETER ASSY.
27 601330 SCREW, 4-40 X 3/8, F.H., PHIL., SST
28 600400 NUT, HEX KEP 4-40
29 601850 SCREW, SOC. HD CAP 10-32 X 5/8
30 601240 SCREW, PAN HD PHIL 4-40 X 1/4" SS
31 601251 SET SCREW 4-40 X 1/8
**CONSULT FACTORY FOR CABLE PRICING
PAGE 1 of 2 Last Update: 5/29/2012
020C WIND DIRECTION SENSOR
SERVICE MAINTENANCE, REPAIR, SPARE PARTS
Met One Instruments, Inc.; 1600 NW Washington Blvd.; Grants Pass, OR. 97526
Ph. 541-471-7111; Fax [phone]; E-mail: [e-mail]

PAGE 2 of 2 Last Update: 5/29/2012
